LEGACY MOLDING CORP CUSTOM PRECISION PLASTIC INJECTION MOLDING

LEGACY MOLDING CORP. CUSTOM PRECISION PLASTIC INJECTION MOLDING SERVICES • LMC SOLVES PROBLEMS FAST! • LMC DELIVERS PARTS FAST! • LMC LIKES SHORT RUNS! • LMC SAFEGUARDS YOUR PROPRIETARY INFORMATION!

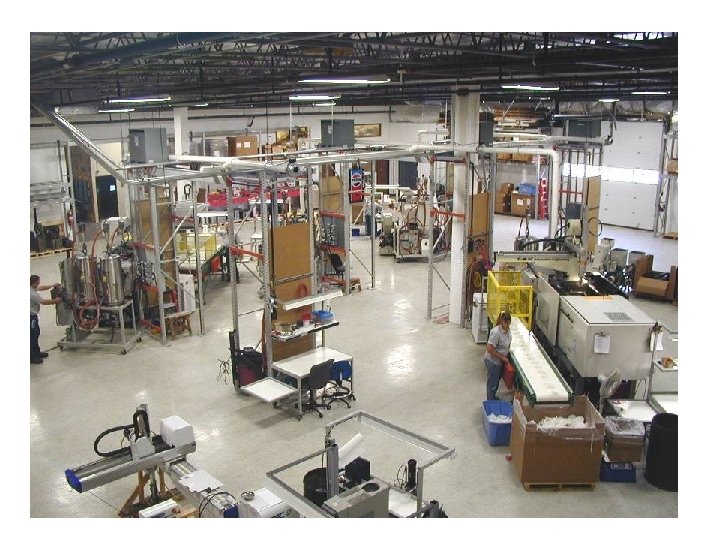

VIEW OF THE PRODUCTION FLOOR WE USE ONLY SERVO ELECTRIC MACHINES WHICH OFFER: THE HIGHEST DEGREE OF REPEATABILITY USE LESS ENERGY THAN HYDRAULIC MACHINES, AND PROVIDE FOR A MUCH CLEANER ENVIRONMENT

PRECISION INSPECTION LAB Measurements taken with micrometer/caliper are imported directly to PC Few molding shops have a CMM available; here’s our Mitutoyo unit

DIMENSIONAL INSPECTION • All measurement equipment is under the control of a PC based calibration and recall system

200 TON TOYO SERVO ELECTRIC PRESS

EXPANDED CAPABILITIES 500 TON TOYO SERVO ELECTRIC PRESS

RAW MATERIAL /MOLD TOOLING STORAGE AND MAINTENANCE

QUICK MOLD CHANGE • TYPICAL INSTALLATION OF A MOLD USING FAST MAGNETIC MOUNTING INSTEAD OF MECHANICAL OR HYDRAULIC CLAMPS

DESSICANT DRYING SYSTEMS ARE USED EXCLUSIVELY TO ENSURE QUALITY OF THE MATERIALS PROCESSED • TWO DRYERS AT EACH WORKSTATION ENABLE FAST CHANGEOVER

PRODUCTION FLOOR • A CLIMATE CONTROLLED ENVIRONMENT ENSURES CONSISTENT BATCH TO BATCH QUALITY

PRECISE TEMPERATURE CONTROLS • MOLD TEMPERATURE CONTROLLERS COMMUNICATE WITH THE MOLDING MACHINE FOR CONSTANT CONTROL AND MONITORING • THIS AIDS IN KEEPING VARIATION TO A MINIMUM, PROMOTING CONSISTENT PART QUALITY

CUSTOM PARTS • WE KEEP AN INVENTORY OF THE MATERIALS REQUIRED TO PRODUCE YOUR PRODUCT SO THAT LEAD TIMES ON CUSTOM PARTS ARE USUALLY LESS THAN TEN DAYS, OFTEN AS SHORT AS ONE DAY! FAST!

ALL PROCESSES ARE DIGITALLY STORED • ONCE PROCESS CONDITIONS ARE QUALIFIED, ALL VARIABLES ARE DIGITALLY STORED FOR FAST AND PRECISE RECALL

HIGH SPEED INTERNET CONFERENCING • IDEAL FOR REMOTE DESIGN REVIEWS • WE USE “GOTO MEETING” FOR TOTAL COMMUNICATION

IN HOUSE DESIGN ENGINEERING • OUR STAFF CAN ASSIST AND REVIEW OR CONCEPTUALIZE AND COMPLETE

3 D DESIGN • SOLIDWORKS CAD SOFTWARE IS USED TO CREATE, ALTER, OR IMPORT 3 D GEOMETRY

MOLD FLOW ANALYSIS SOFTWARE AIDS IN MOLD FILLING AND AVOIDING FLOW PROBLEMS

• THANKS FOR CHECKING US OUT!
