Legacy Adaptor KXNS 8290 Test Environments Setup Manual
- Slides: 36
Legacy Adaptor (KX-NS 8290) Test Environments Setup Manual 1. Example of test configuration -> Please refer to TEST Config page. 2. NS 1000 setup procedure -> Please refer to NS 1000 SETUP page. (1) KX-NS 1000 (Ver 002. xxxx) Setup Procedure (2) KX-NS 1000 (Ver 001. xxxx) Setup Procedure 3. Legacy Adaptor setup procedure -> Please refer to NS 8290 SETUP page. (1)Initial Configuration (2)Setting for the test configuration 4. Legacy Adopter Log capture manual -> Please refer to Log Capture page.
TEST Config Legacy Adaptor (KX-NS 8290) PRI 30 Line Status System Status SPEED PRI 30 LINK/ACT AC-Adaptor Vo. IP LAN Initial SW

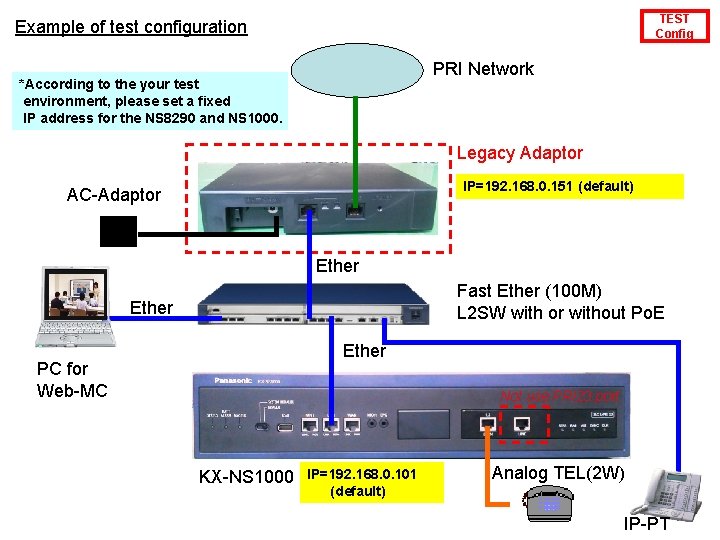

TEST Config Example of test configuration PRI Network *According to the your test environment, please set a fixed IP address for the NS 8290 and NS 1000. Legacy Adaptor IP=192. 168. 0. 151 (default) AC-Adaptor Ether Fast Ether (100 M) L 2 SW with or without Po. E Ether PC for Web-MC Not use PRI 23 port KX-NS 1000 IP=192. 168. 0. 101 (default) Analog TEL(2 W) IP-PT
TEST Config Legacy Adaptor Test Logical Channel Connection Legacy Adaptor SLT I/F ex 101 IP-PT I/F ex 103 SIP Trunk SIP Server SIP-Trunk I/F #01 SIP ID #401 SIP-Trunk I/F #02 SIP ID #402 SIP-Trunk I/F #03 SIP ID #403 ・ ・ SIP-Trunk ・ I/F #23 ・ ・ SIP ID ・ #423 or or SIP-Trunk I/F #30 SIP ID #430 PRI Network PR I/F KX-NS 1000
KX-NS 1000 (Ver 002. xxxx) Setup Procedure (1/7) 1)Select [Virtual] 2)Select [V-SIPGW 16] 3)Set Total number of cards as 2. 4)Set to the [OUS] state for each slot. NS 1000 SETUP
KX-NS 1000 (Ver 002. xxxx) Setup Procedure (2/7) 1)Select [Port Propertty] NS 1000 SETUP

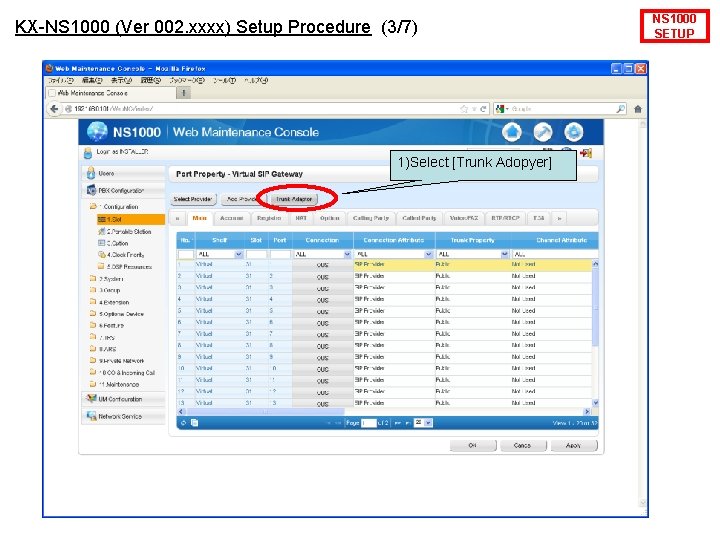

KX-NS 1000 (Ver 002. xxxx) Setup Procedure (3/7) 1)Select [Trunk Adopyer] NS 1000 SETUP

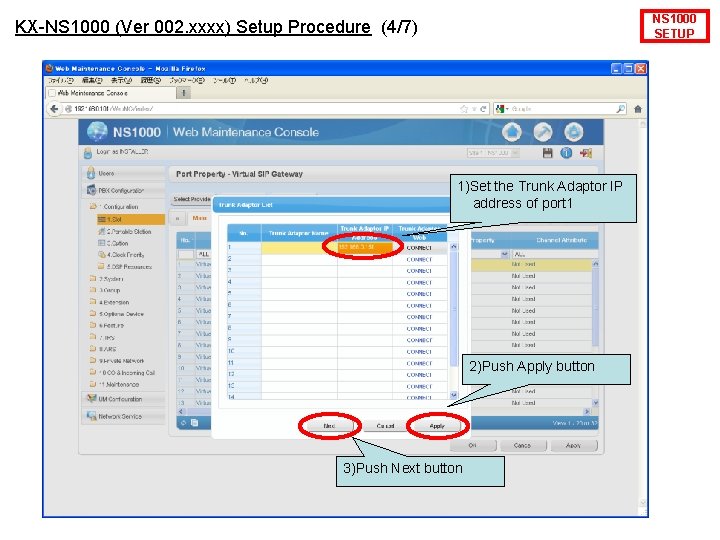

NS 1000 SETUP KX-NS 1000 (Ver 002. xxxx) Setup Procedure (4/7) 1)Set the Trunk Adaptor IP address of port 1 2)Push Apply button 3)Push Next button
NS 1000 SETUP KX-NS 1000 (Ver 002. xxxx) Setup Procedure (5/7) 1)Push Finish button
NS 1000 SETUP KX-NS 1000 (Ver 002. xxxx) Setup Procedure (6/7) 1) check that the setting of IP address are reflected in each port
KX-NS 1000 (Ver 002. xxxx) Setup Procedure (7/7) 1)Set to the [INS] state for each slot. NS 1000 SETUP

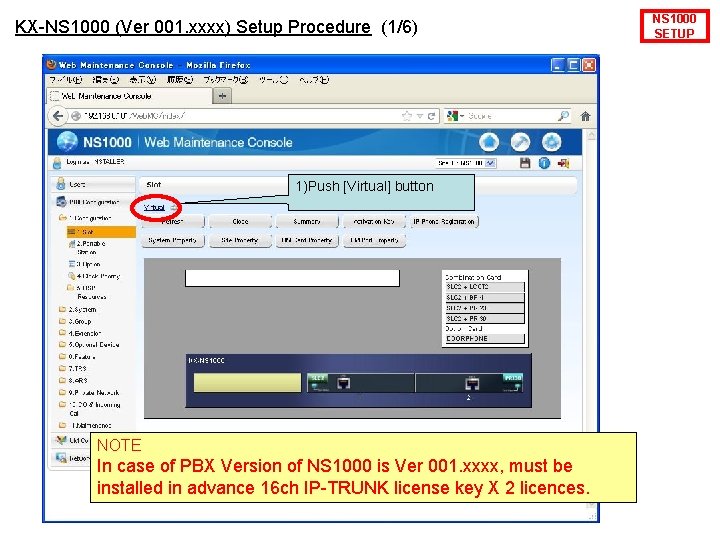

KX-NS 1000 (Ver 001. xxxx) Setup Procedure (1/6) 1)Push [Virtual] button NOTE In case of PBX Version of NS 1000 is Ver 001. xxxx, must be installed in advance 16 ch IP-TRUNK license key X 2 licences. NS 1000 SETUP
KX-NS 1000 (Ver 001. xxxx) Setup Procedure (2/6) 1)Select [V-SIPGW 16] tab 2)Set Total number of cards as 2. NS 1000 SETUP

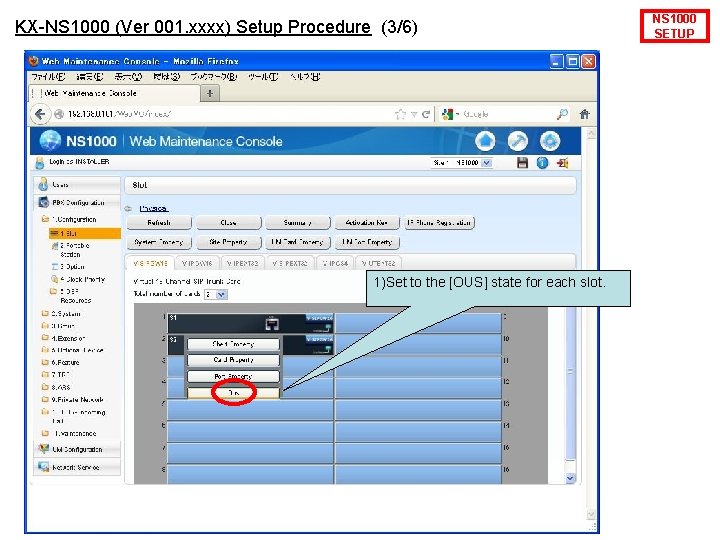

KX-NS 1000 (Ver 001. xxxx) Setup Procedure (3/6) 1)Set to the [OUS] state for each slot. NS 1000 SETUP
KX-NS 1000 (Ver 001. xxxx) Setup Procedure (4/6) 1)Select [Port Property] menu NS 1000 SETUP
NS 1000 SETUP KX-NS 1000 (Ver 001. xxxx) Setup Procedure (5/6) Please set the parameters of the port properties as follows. In case of parameters except [User Name] and [Authentication ID] can be set all ports by using COPY function. In case of [User Name] and [Authentication ID], please configure each port No Slot Port Main Account Register Channel Attribute SIP Server IP Address User Name Authenti -cation ID Authenti -cation Pass Register Server IP Address 1 31 1 Basic Channel 192. 168. 0. 151 401 1234 192. 168. 0. 151 2 31 2 ↓ ↓ 402 ↓ ↓ 3 31 3 ↓ ↓ 403 ↓ ↓ 4 31 4 ↓ ↓ 404 ↓ ↓ ~ 31 ~ ↓ ↓ ~ ~ ↓ ↓ 13 31 13 ↓ ↓ 413 ↓ ↓ 14 31 14 ↓ ↓ 414 ↓ ↓ 15 31 15 ↓ ↓ 415 ↓ ↓ 16 31 16 ↓ ↓ 416 ↓ ↓ 17 32 1 ↓ ↓ 417 ↓ ↓ 18 32 2 ↓ ↓ 418 ↓ ↓ 19 32 3 ↓ ↓ 419 ↓ ↓ 20 32 4 ↓ ↓ 420 ↓ ↓ ~ 32 ~ ↓ ↓ ~ ~ ↓ ↓ 29 32 13 ↓ ↓ 429 ↓ ↓
NS 1000 SETUP KX-NS 1000 (Ver 001. xxxx) Setup Procedure (6/6) Activate the virtual card to push the [INS] button for each slot. .
Initial Configuration (1/7) NS 8290 SETUP Username ⇒ INSTALLER Password ⇒ 1234 http: //192. 168. 0. 151/Web. MC/users/login
NS 8290 SETUP Initial Configuration (2/7) 1)Push Install button
NS 8290 SETUP Initial Configuration (3/7) 1)Push Next button
NS 8290 CE SETUP Initial Configuration (4/7) 1)Push next button
NS 8290 SETUP Initial Configuration (5/7) 1)According to the your test environment, set a fixed IP address 1)Push next button
NS 8290 SETUP Initial Configuration (6/7) 1)Push next button
NS 8290 SETUP Initial Configuration (7/7) 1)Please set KX-NS 8290 CE password 2)Push next button
Setting for the test configuration (1/9) 1)After all the initialization procedure finished, KX-NS 8290 CE will display this home menu. 2)Please push this icon, and enter the path configuration menu. NS 8290 SETUP
Setting for the test configuration (2/9) 2)Push [OUS] button 1)Enter the SIP card property menu by select the [2. SIP Card Property] NS 8290 SETUP
NS 8290 SETUP Setting for the test configuration (3/9) 1) Set with reference to the note below 2)Push Apply NOTE If the PBX Version of NS 1000 is Ver 001. xxxx, please set the Activation Key Mode as "YES". In that case, Authentication ID setting of "SIP port Property" shown in the following pages, is required. Otherwise, the settings that are shown in this and subsequent pages is not required.
Setting for the test configuration (4/9) 1)Enter the SIP port property menu by select the [3. SIP Port Property] NS 8290 SETUP

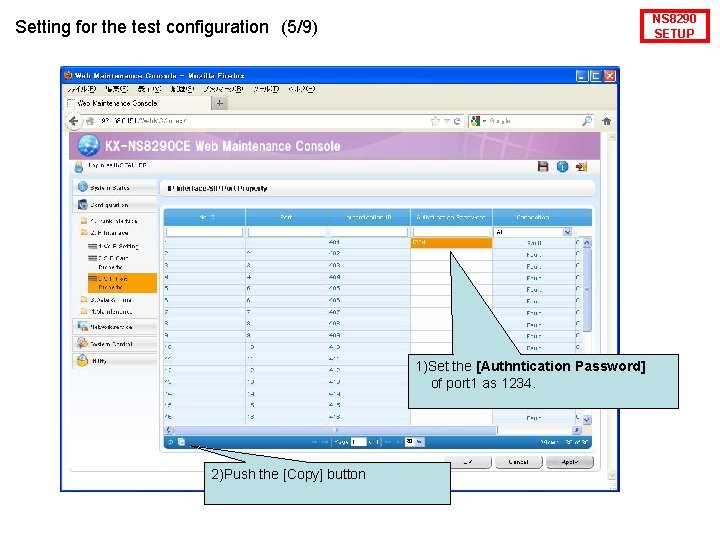

NS 8290 SETUP Setting for the test configuration (5/9) 1)Set the [Authntication Password] of port 1 as 1234. 2)Push the [Copy] button
NS 8290 SETUP Setting for the test configuration (6/9) 1) Click here 2)Select the port number, from port 2 until port 30 3) Push [Copy] button
Setting for the test configuration (7/9) 1)Enter the SIP card property menu by select the [2. SIP Card Property] NS 8290 SETUP
Setting for the test configuration (8/9) 1)Push [INS] button NS 8290 SETUP
NS 8290 SETUP Setting for the test configuration (9/9) 1)After all the settings has been completed, please save the system data 2) When you close the Web maintenance console, please press the [LOGOUT] button
Log Capture Legacy Adaptor Error Log Capture 2) Push [Minor] Button 1) Utility -> 3. Log -> 1. Error Log 3) Push [Save] Button to store data to PC

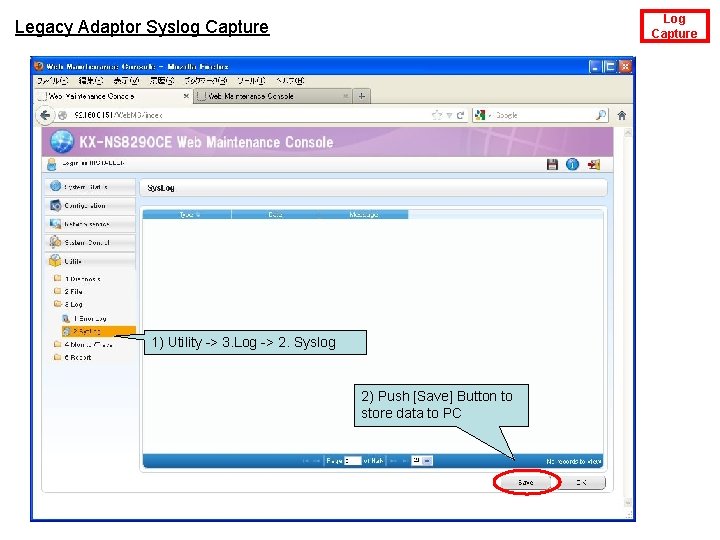

Log Capture Legacy Adaptor Syslog Capture 1) Utility -> 3. Log -> 2. Syslog 2) Push [Save] Button to store data to PC
Log Capture Legacy Adaptor ISDN/QSIG Protocol Trace Capture 3) Push [Start] Button 2) Select [Accumulation Trace] 4) Push [Capture] Button to store data to PC 1) Utility -> 4. Monitor/Trace -> 1. ISDN/QSIG Protocol Trace
