Leg Problems Outline Gross Anatomy Achilles Problems Compartment

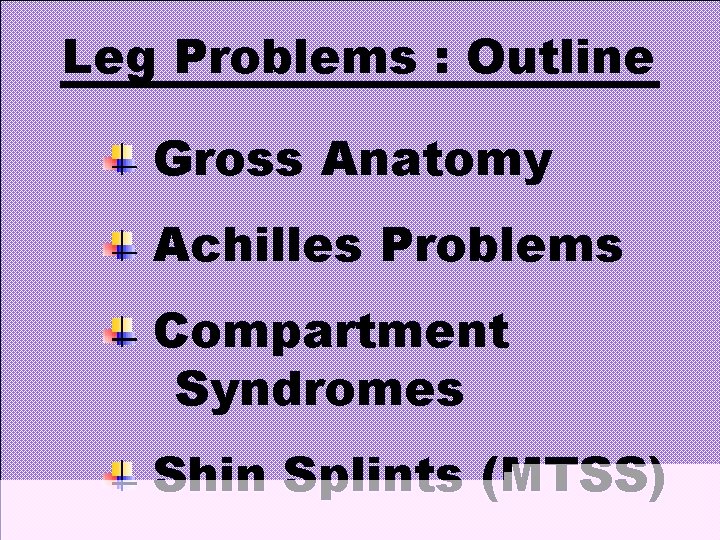

Leg Problems : Outline Gross Anatomy Achilles Problems Compartment Syndromes Shin Splints (MTSS)

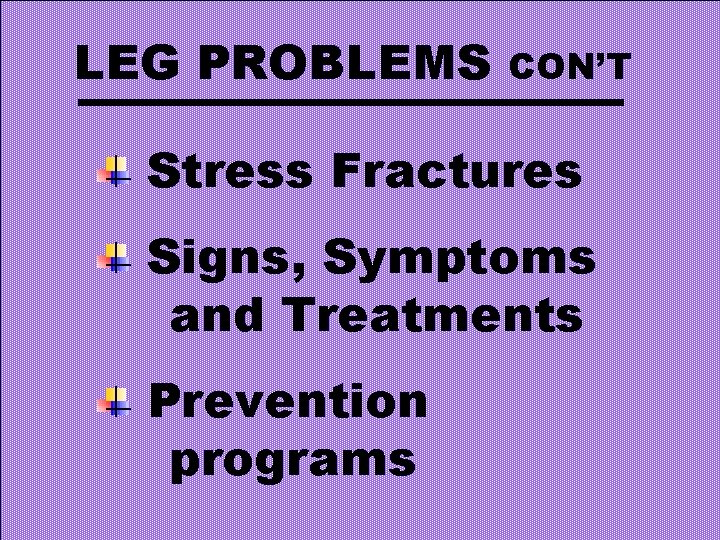

LEG PROBLEMS CON’T Stress Fractures Signs, Symptoms and Treatments Prevention programs

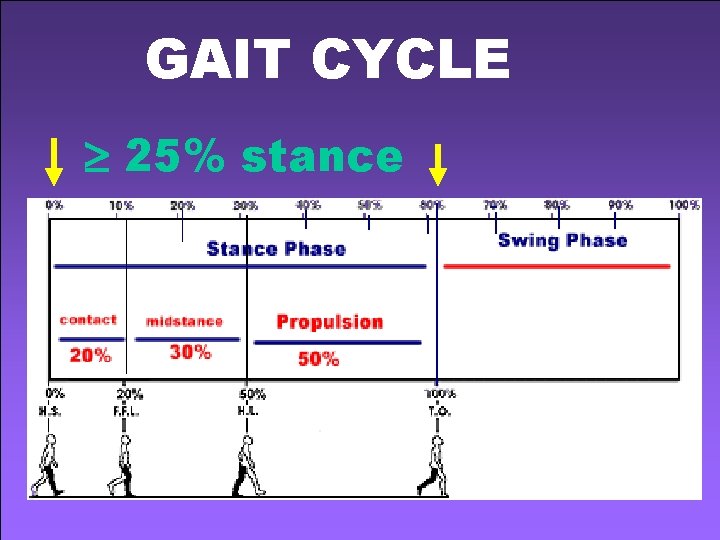

GAIT CYCLE 25% stance

Supination Pronation

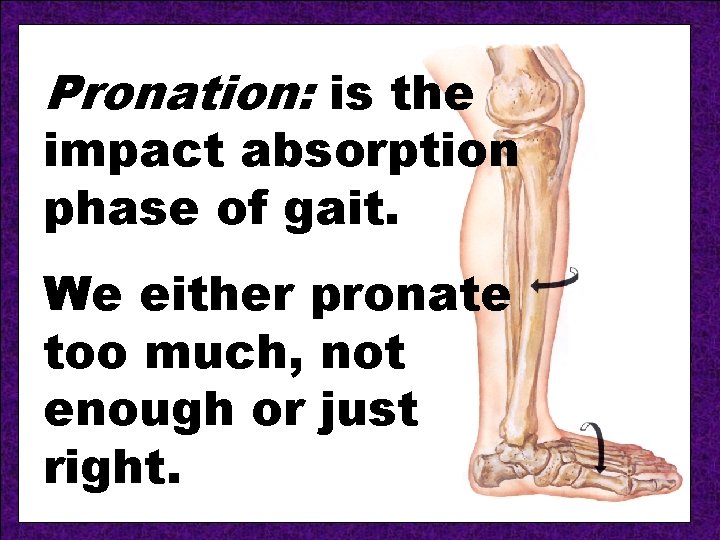

Pronation: is the impact absorption phase of gait. We either pronate too much, not enough or just right.

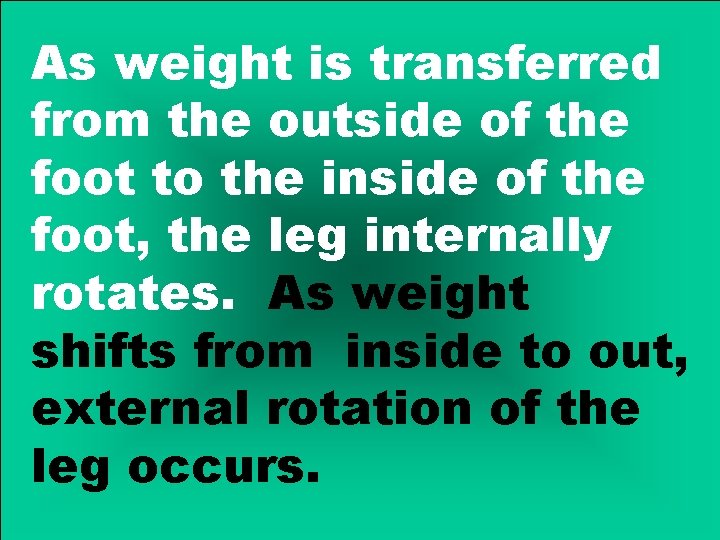

As weight is transferred from the outside of the foot to the inside of the foot, the leg internally rotates. As weight shifts from inside to out, external rotation of the leg occurs.

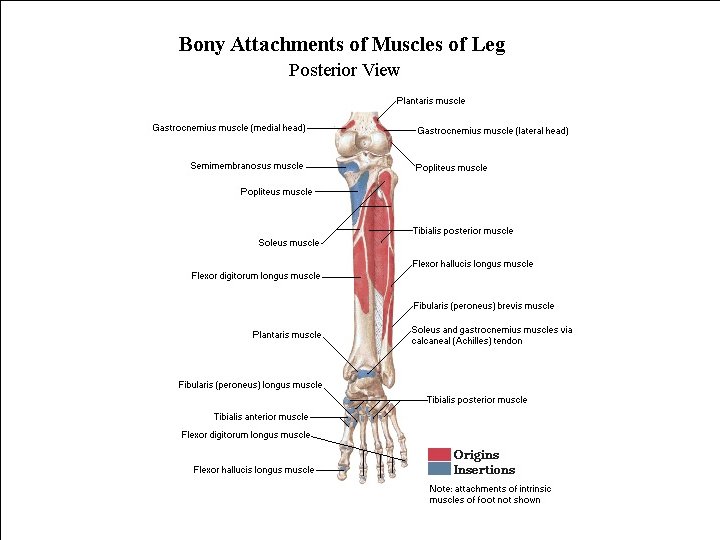

Reminder – Muscles of the leg.

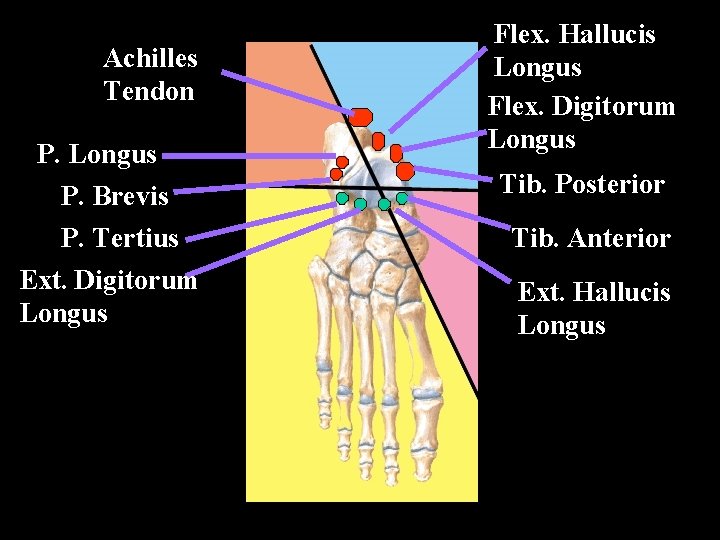

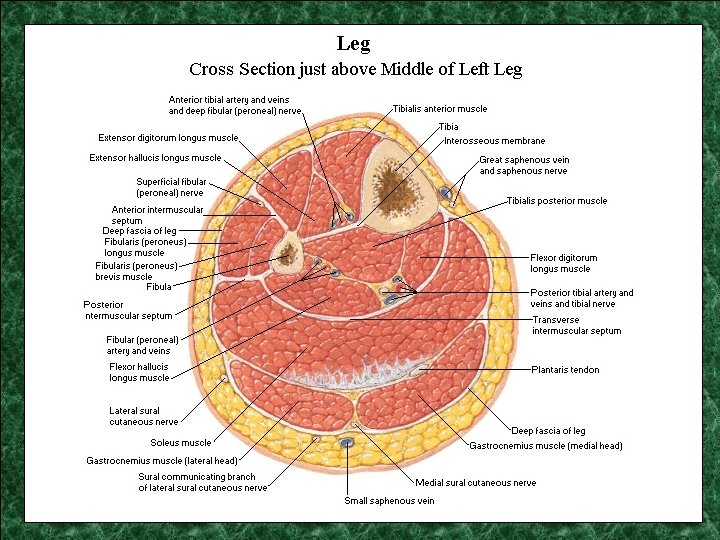

Achilles Tendon P. Longus P. Brevis P. Tertius Ext. Digitorum Longus Flex. Hallucis Longus Flex. Digitorum Longus Tib. Posterior Tib. Anterior Ext. Hallucis Longus

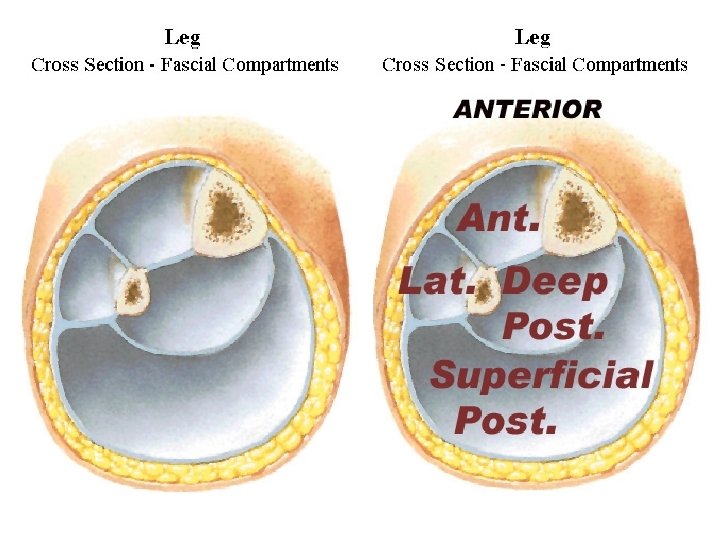

COMPARTMENT SYNDROMES Traumatic and Exertional

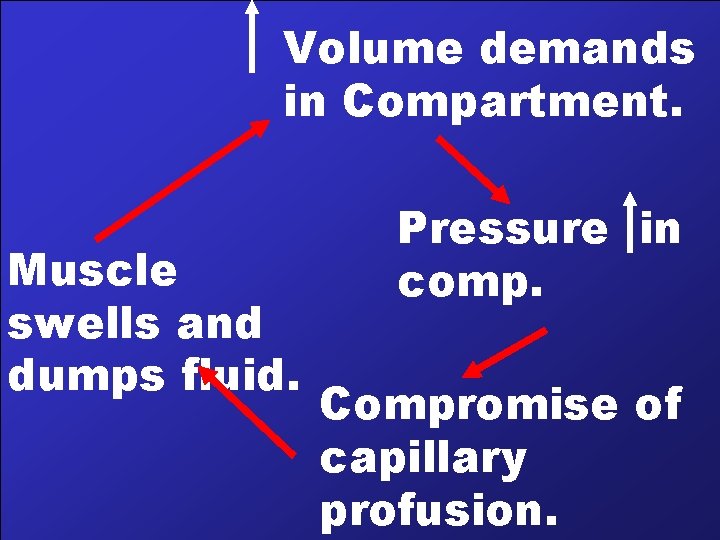

Volume demands in Compartment. Muscle swells and dumps fluid. Pressure in comp. Compromise of capillary profusion.

Muscles are attempting in work in a hypoxic environment. Not only is this difficult, it is painful and muscles continue to swell in a hypoxic environment.

Nerves are the first structures to show signs of hypoxia

SENSATION

Compartment Evaluation • Test strength x 10 • Stretch muscle • Palpate for firmness • Examine skin.

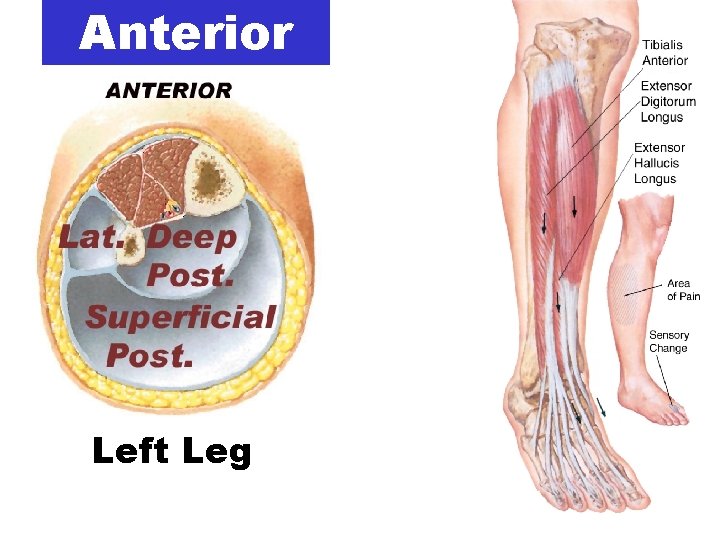

Anterior Left Leg

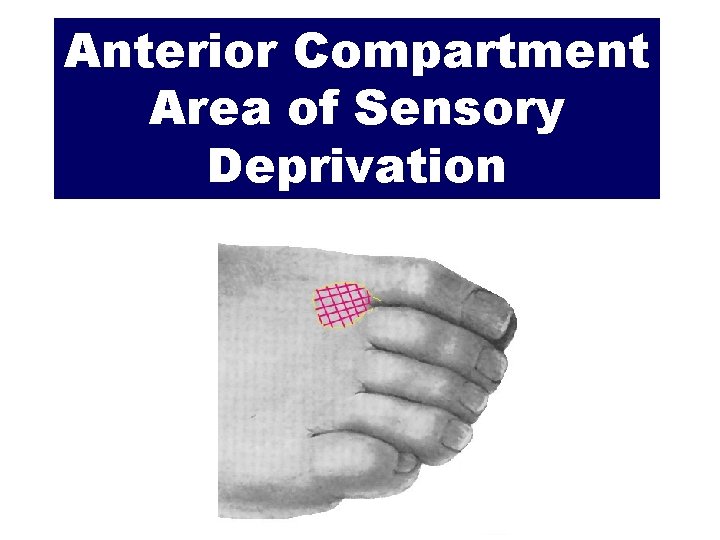

Anterior Compartment Area of Sensory Deprivation

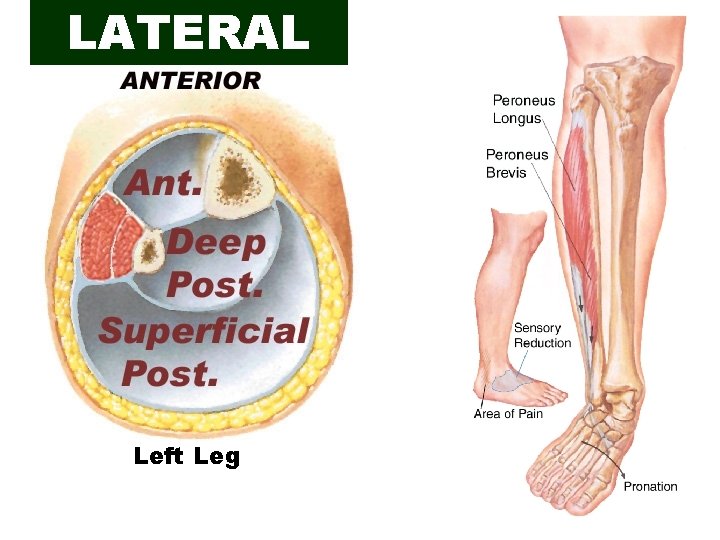

LATERAL Left Leg

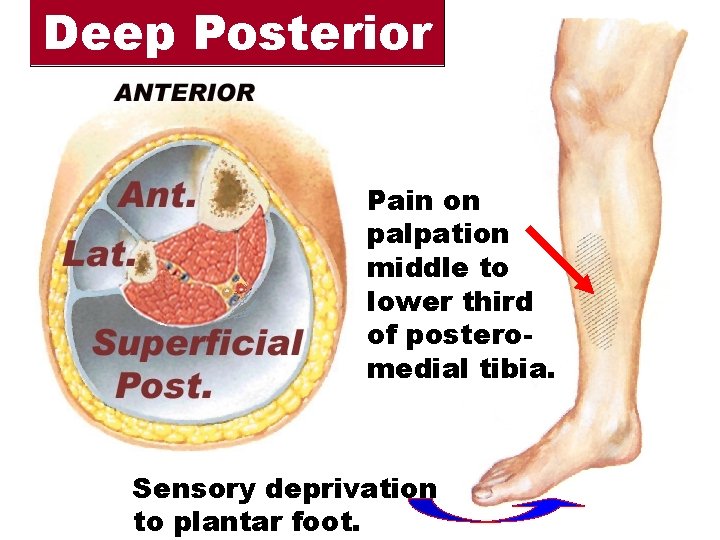

Deep Posterior Pain on palpation middle to lower third of posteromedial tibia. Sensory deprivation to plantar foot.

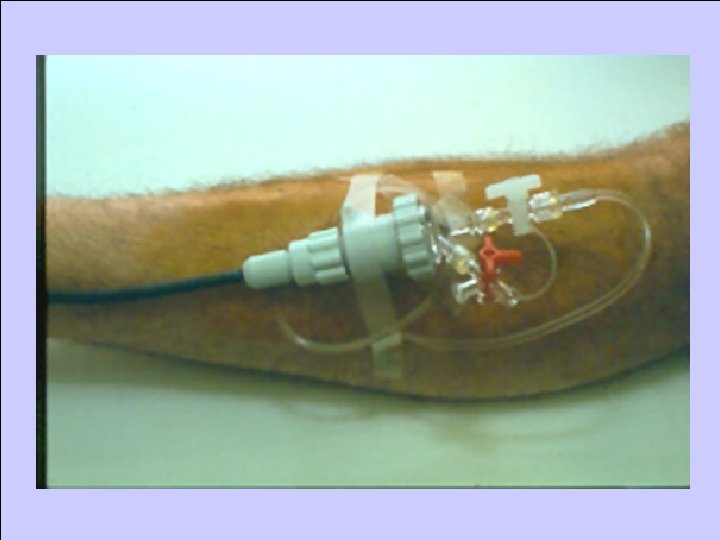

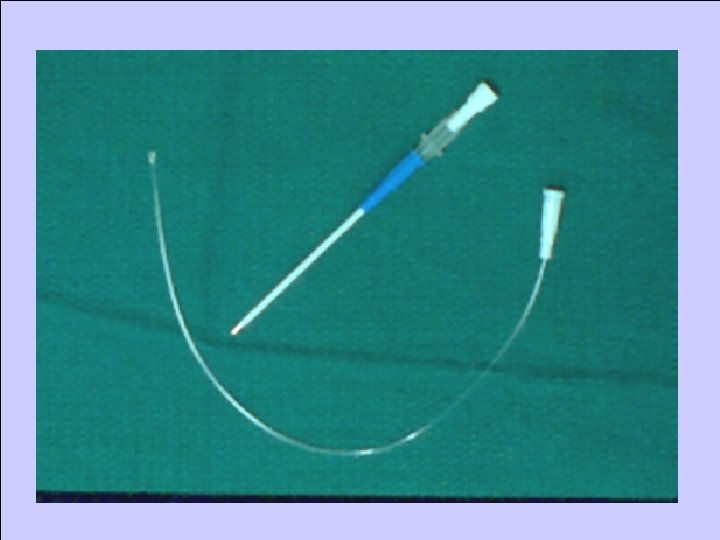

Measuring Compartment Pressures

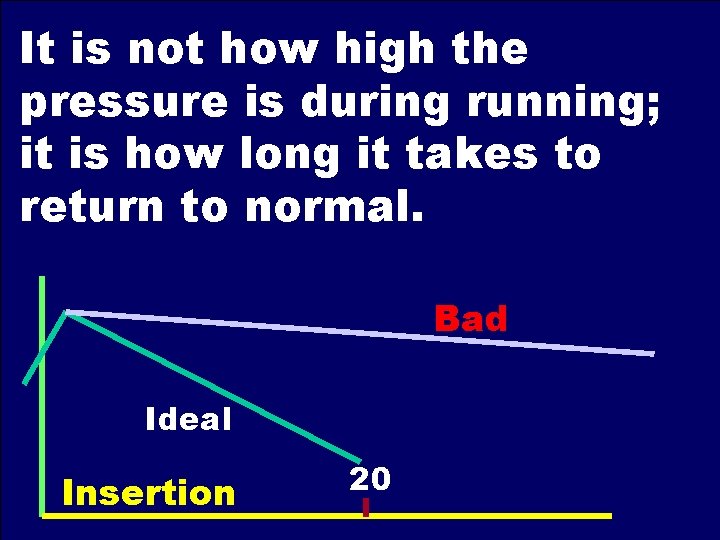

It is not how high the pressure is during running; it is how long it takes to return to normal. Bad Ideal Insertion 20

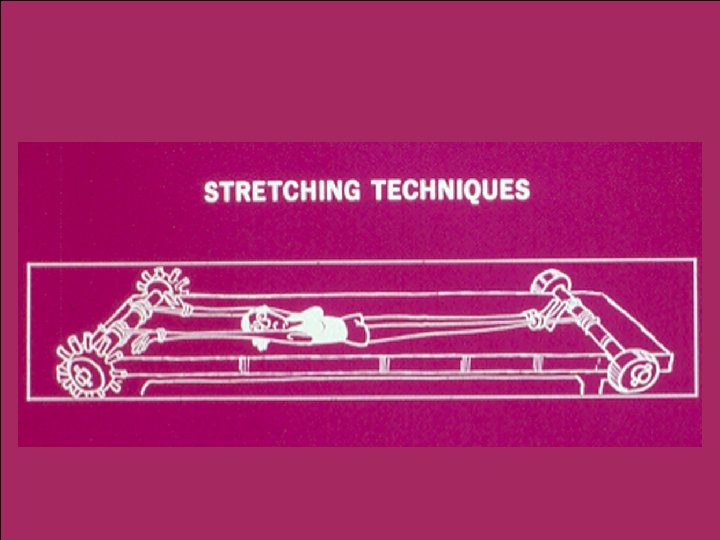

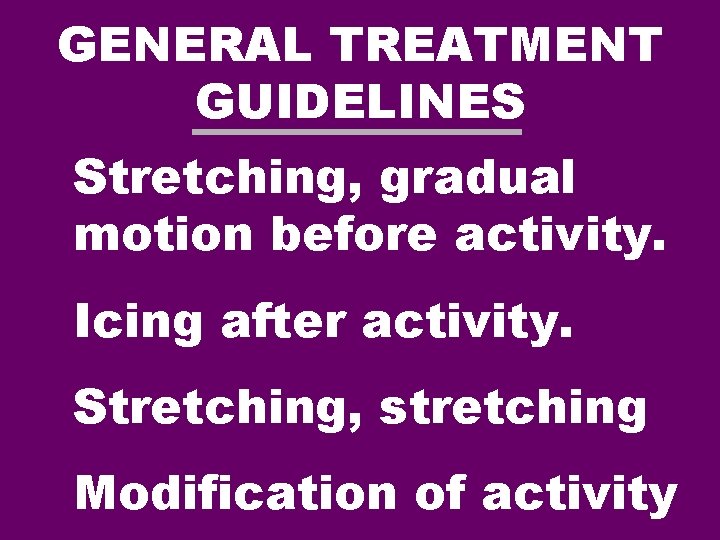

GENERAL TREATMENT GUIDELINES Stretching, gradual motion before activity. Icing after activity. Stretching, stretching Modification of activity

SHIN SPLINTS

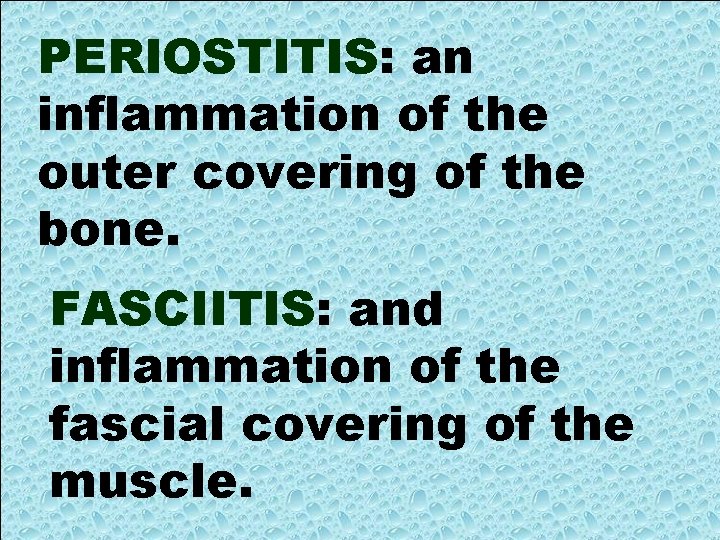

PERIOSTITIS: an inflammation of the outer covering of the bone. FASCIITIS: and inflammation of the fascial covering of the muscle.

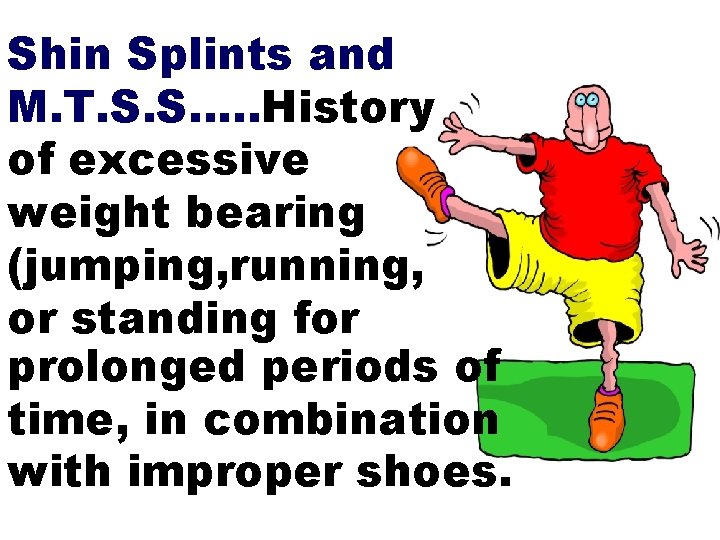

Shin Splints and M. T. S. S…. . History of excessive weight bearing (jumping, running, or standing for prolonged periods of time, in combination with improper shoes.

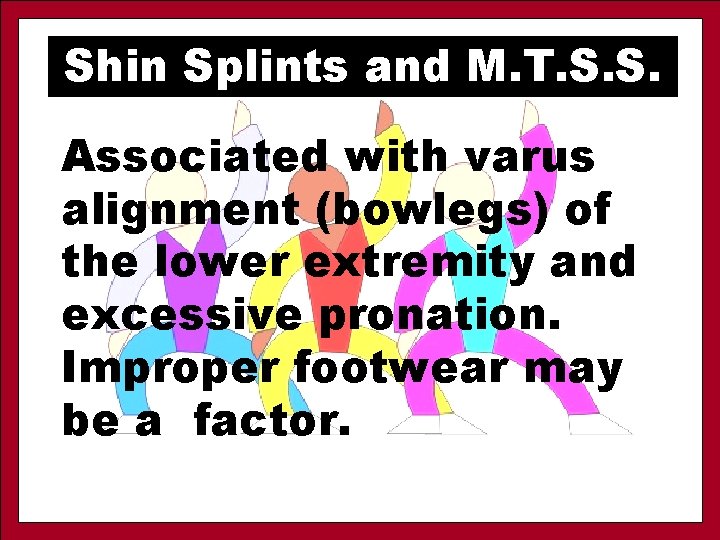

Shin Splints and M. T. S. S. Associated with varus alignment (bowlegs) of the lower extremity and excessive pronation. Improper footwear may be a factor.

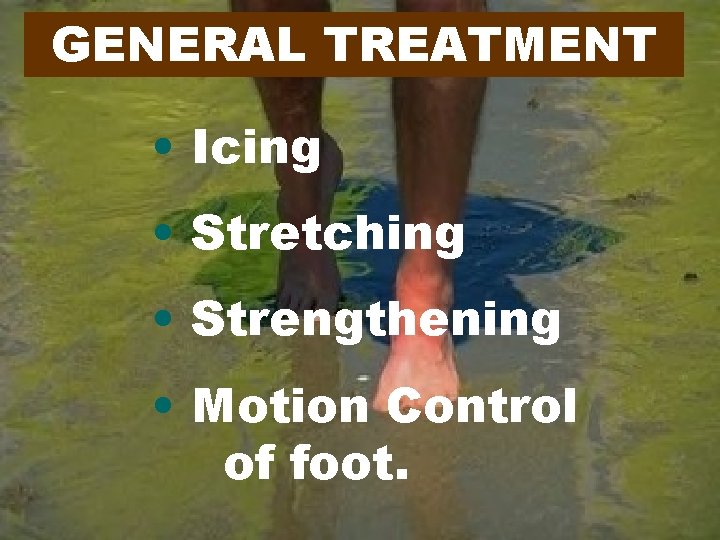

GENERAL TREATMENT • Icing • Stretching • Strengthening • Motion Control of foot.

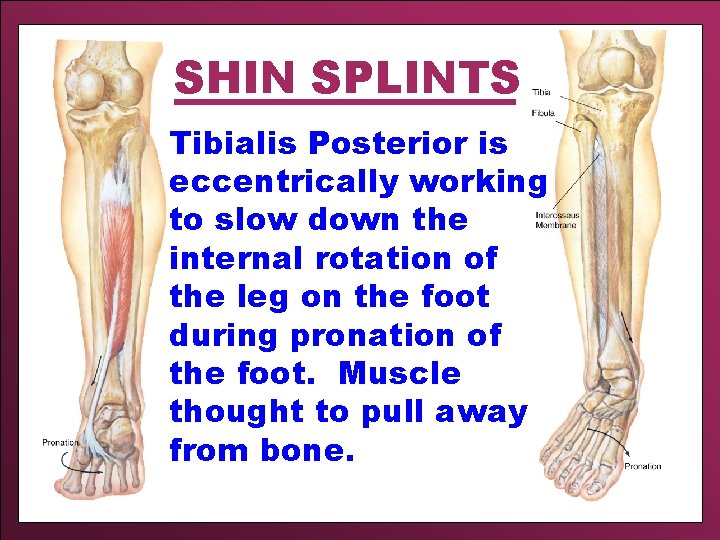

SHIN SPLINTS Tibialis Posterior is eccentrically working to slow down the internal rotation of the leg on the foot during pronation of the foot. Muscle thought to pull away from bone.

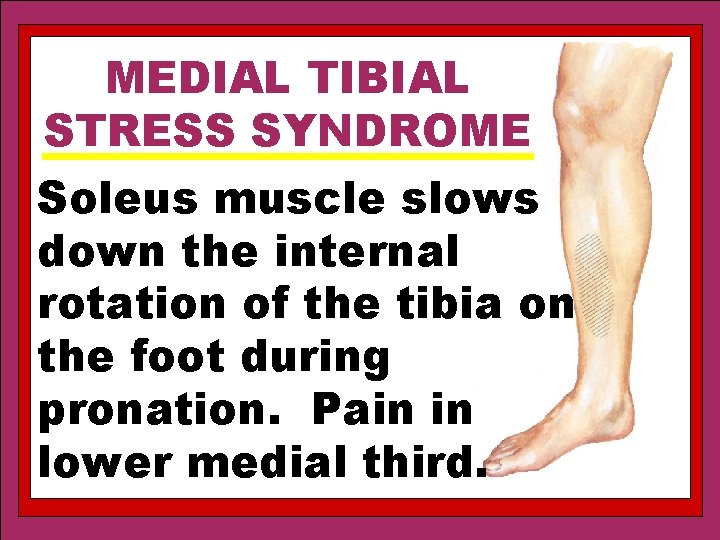

MEDIAL TIBIAL STRESS SYNDROME Soleus muscle slows down the internal rotation of the tibia on the foot during pronation. Pain in lower medial third.

Postero-medial Tibia

ACHILLES TENDON Gastrocnemius, Soleus, Plantaris Tendon and Paratenon

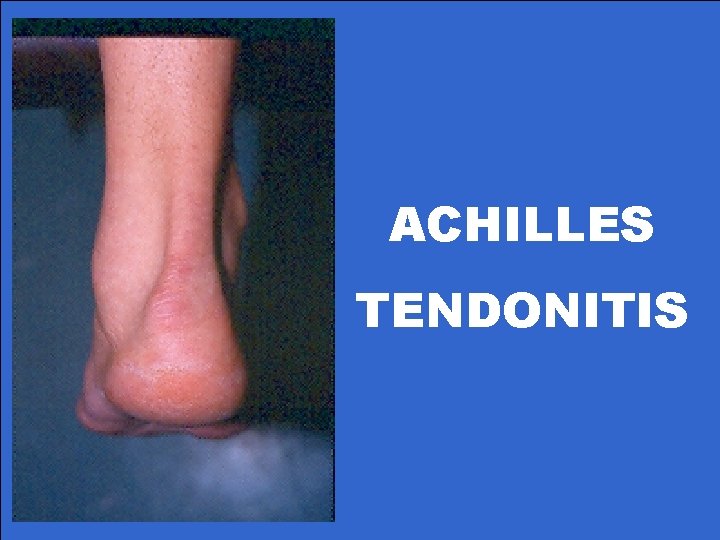

ACHILLES TENDONITIS

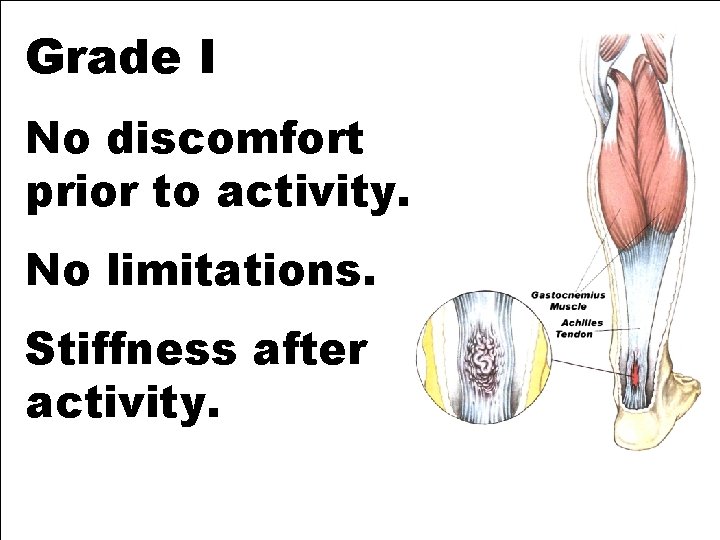

Grade I No discomfort prior to activity. No limitations. Stiffness after activity.

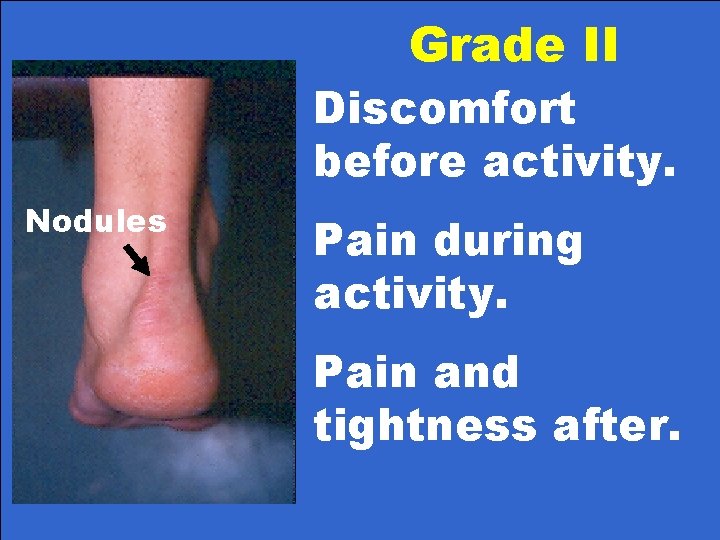

Grade II Discomfort before activity. Nodules Pain during activity. Pain and tightness after.

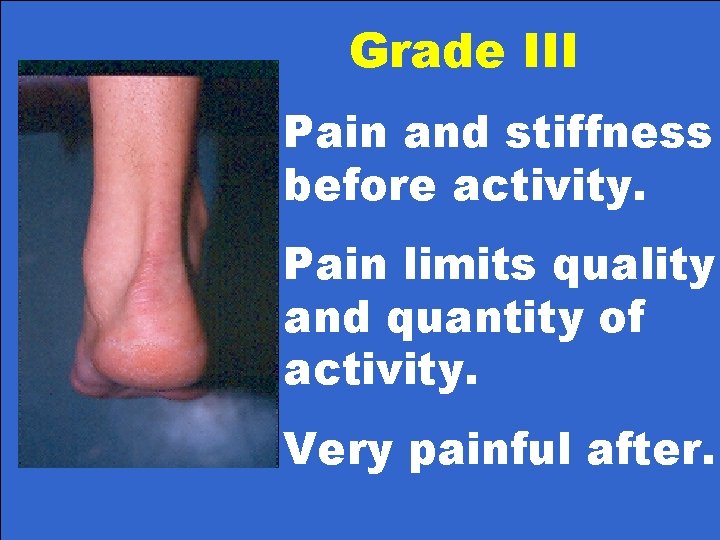

Grade III Pain and stiffness before activity. Pain limits quality and quantity of activity. Very painful after.

ACHILLES THICKENING

Achilles Tendon Rehab

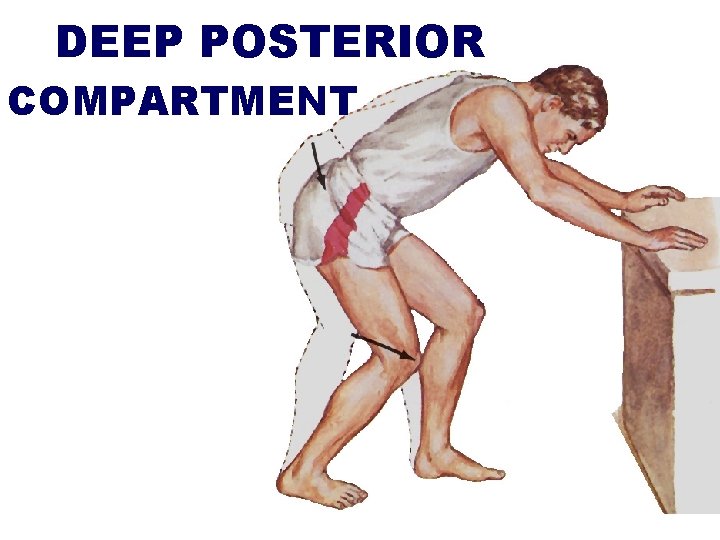

DEEP POSTERIOR COMPARTMENT

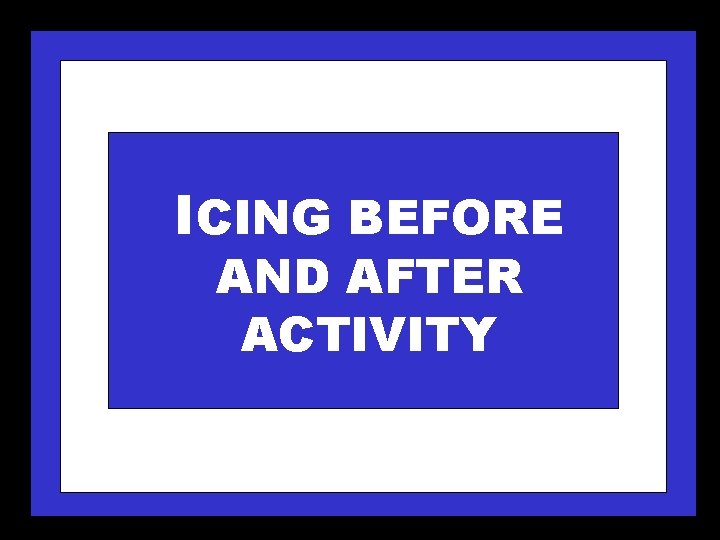

ICING BEFORE AND AFTER ACTIVITY

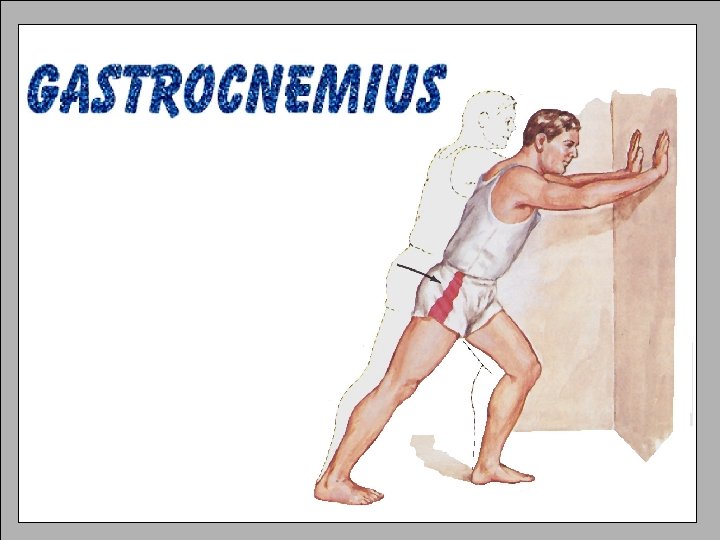

Stretching of Achilles. Squeezing lump out of tendon. Curtail injurious activity and substitute other fitness activities. Heel lifts in shoes.

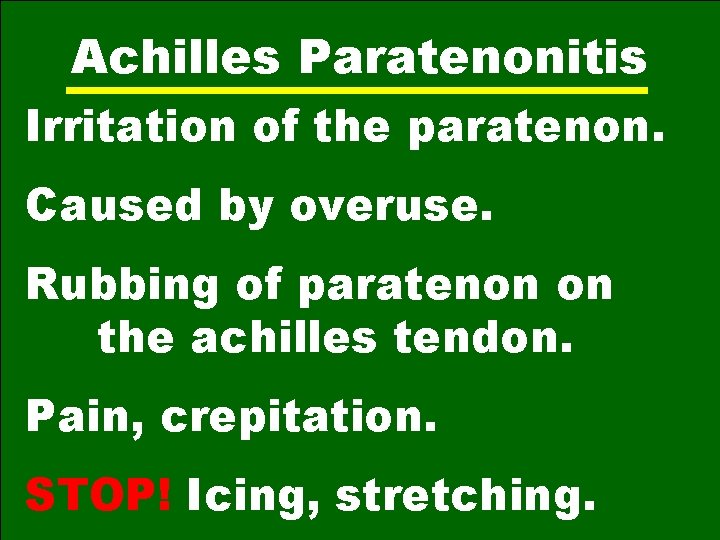

Achilles Paratenonitis Irritation of the paratenon. Caused by overuse. Rubbing of paratenon on the achilles tendon. Pain, crepitation. STOP! Icing, stretching.

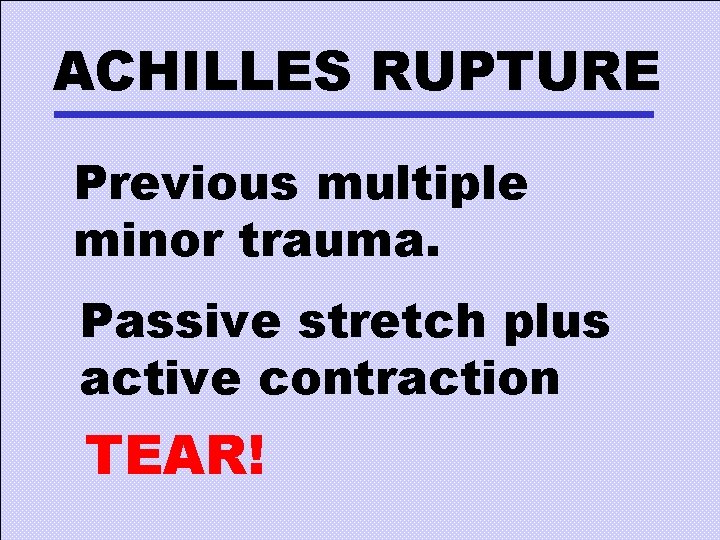

ACHILLES RUPTURE Previous multiple minor trauma. Passive stretch plus active contraction TEAR!

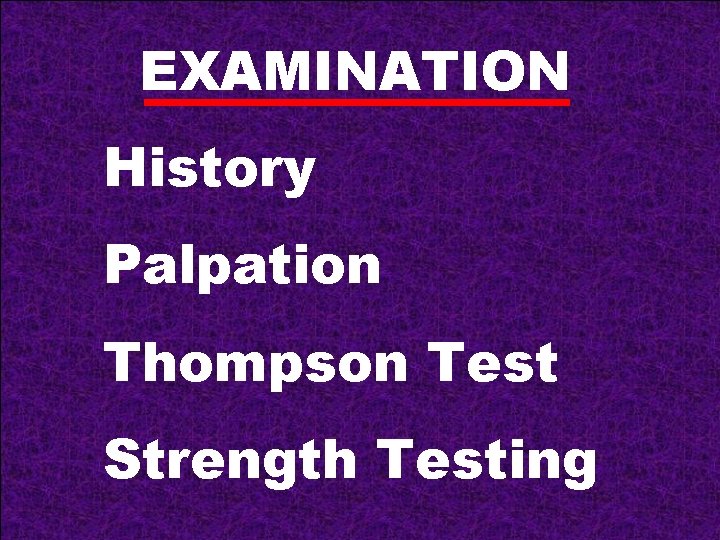

EXAMINATION History Palpation Thompson Test Strength Testing

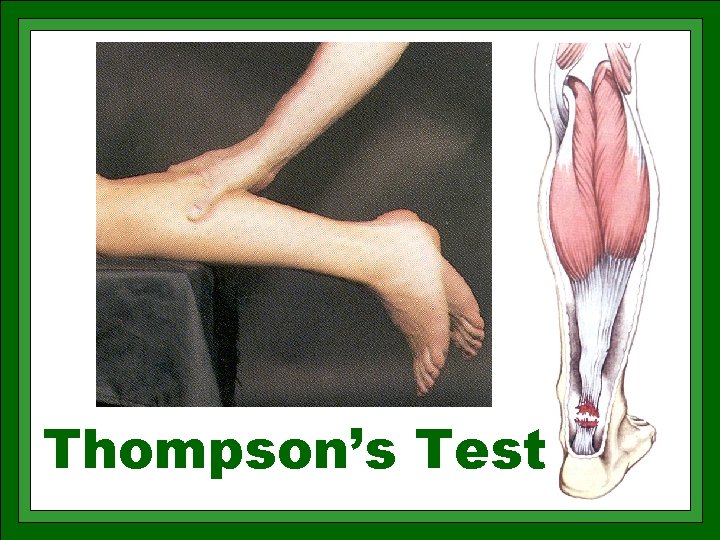

Thompson’s Test

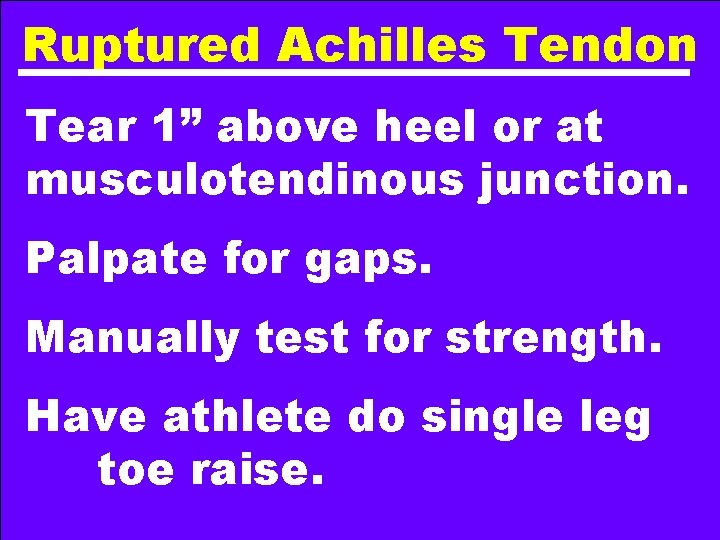

Ruptured Achilles Tendon Tear 1” above heel or at musculotendinous junction. Palpate for gaps. Manually test for strength. Have athlete do single leg toe raise.

ACHILLES RUPTURE

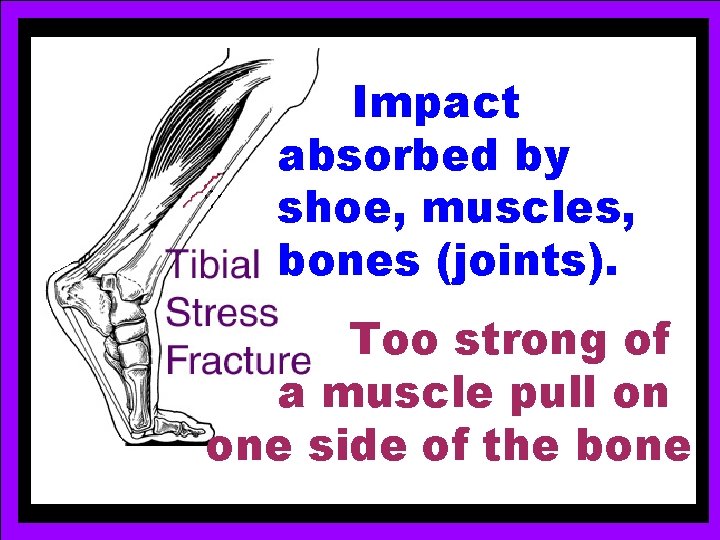

Impact absorbed by shoe, muscles, bones (joints). Too strong of a muscle pull on one side of the bone

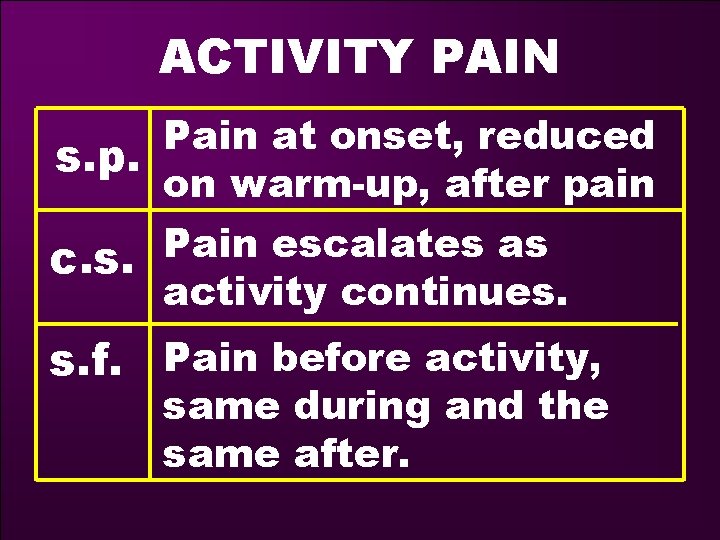

ACTIVITY PAIN Pain at onset, reduced s. p. on warm-up, after pain Pain escalates as c. s. activity continues. s. f. Pain before activity, same during and the same after.

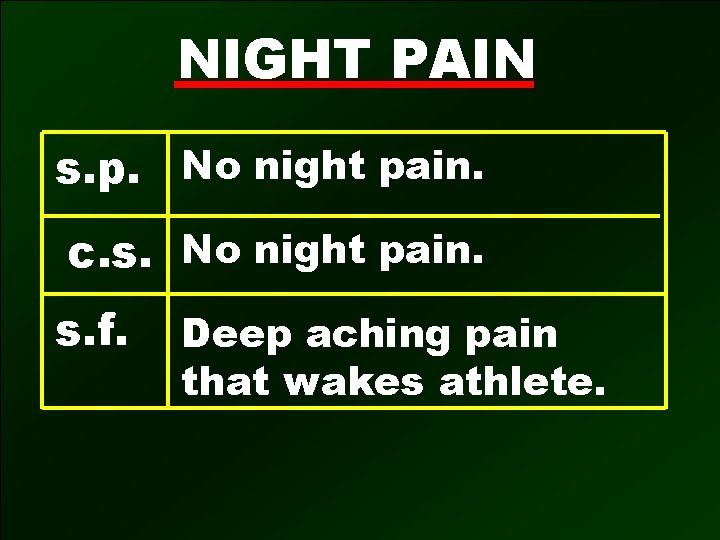

NIGHT PAIN s. p. No night pain. c. s. No night pain. s. f. Deep aching pain that wakes athlete.

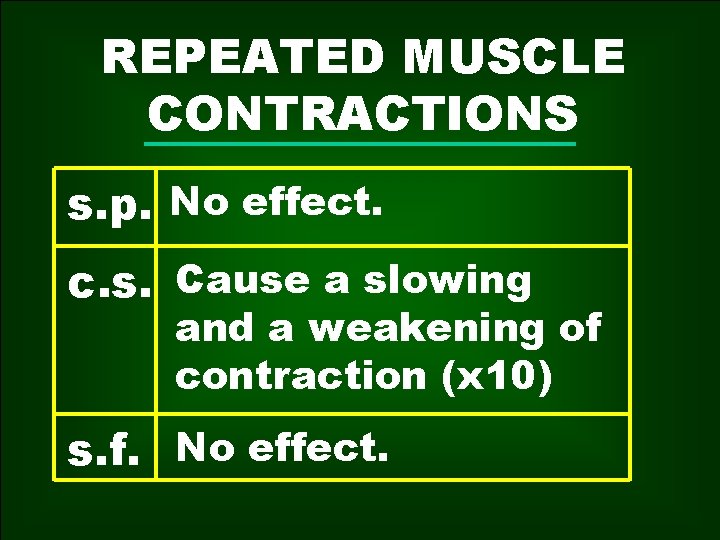

REPEATED MUSCLE CONTRACTIONS s. p. No effect. c. s. Cause a slowing and a weakening of contraction (x 10) s. f. No effect.

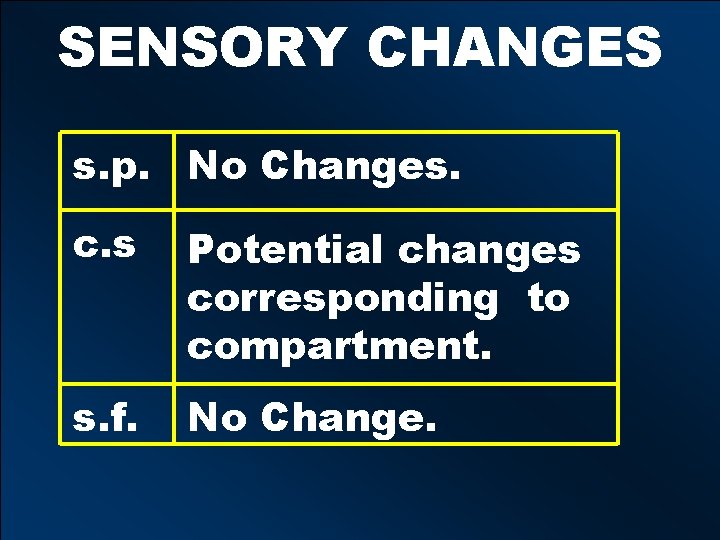

SENSORY CHANGES s. p. No Changes. c. s Potential changes corresponding to compartment. s. f. No Change.

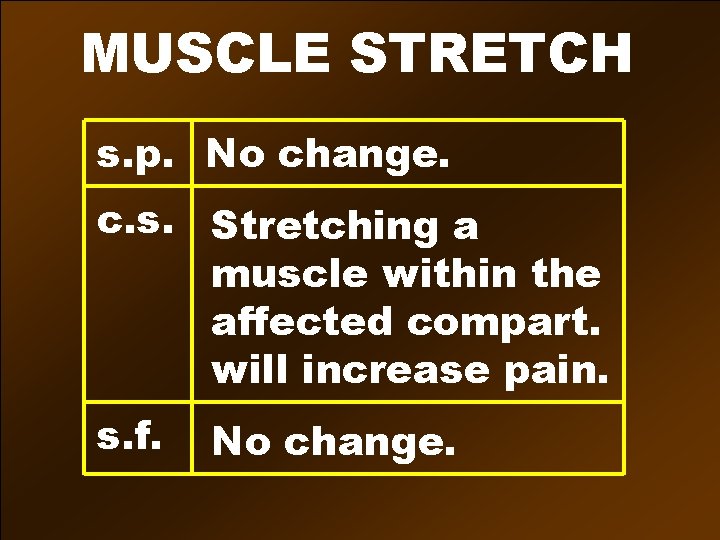

MUSCLE STRETCH s. p. No change. c. s. Stretching a muscle within the affected compart. will increase pain. s. f. No change.
