Leg and Ankle Fibula distal end post Lateral

Leg and Ankle

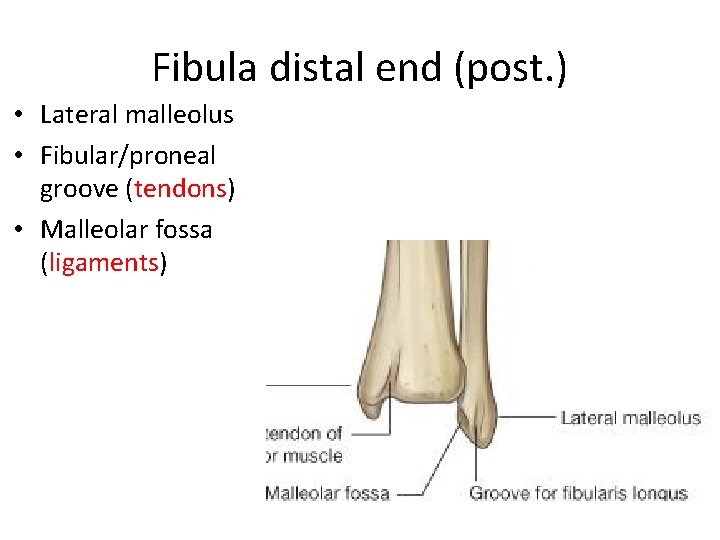

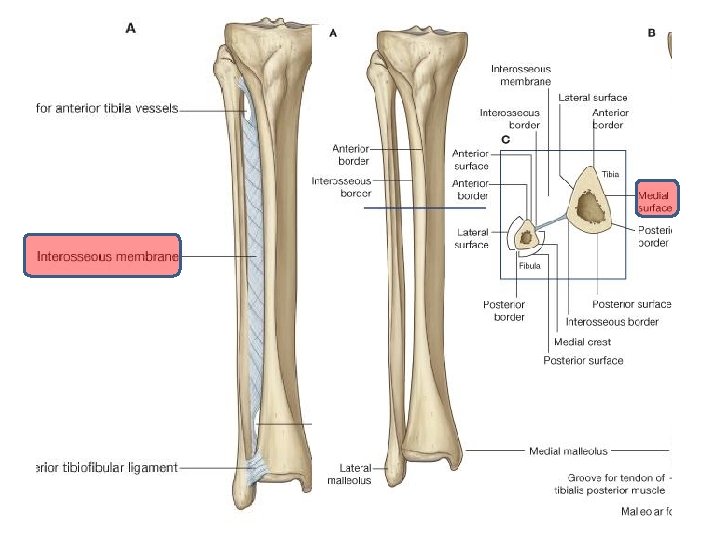

Fibula distal end (post. ) • Lateral malleolus • Fibular/proneal groove (tendons) • Malleolar fossa (ligaments)

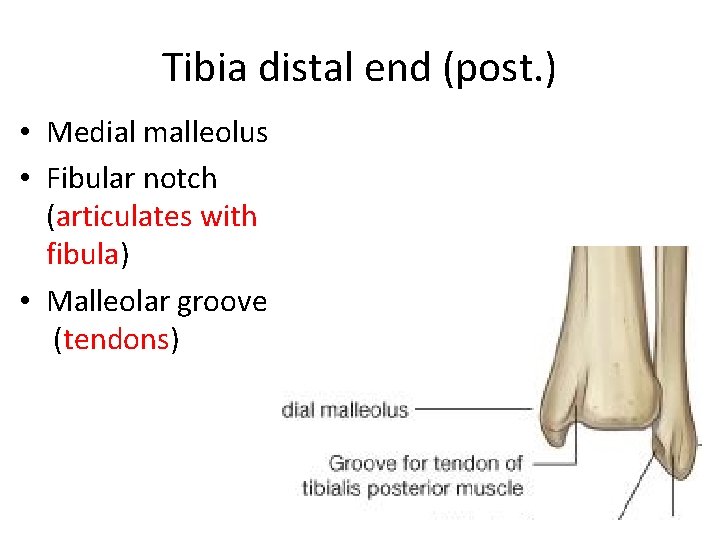

Tibia distal end (post. ) • Medial malleolus • Fibular notch (articulates with fibula) • Malleolar groove (tendons)

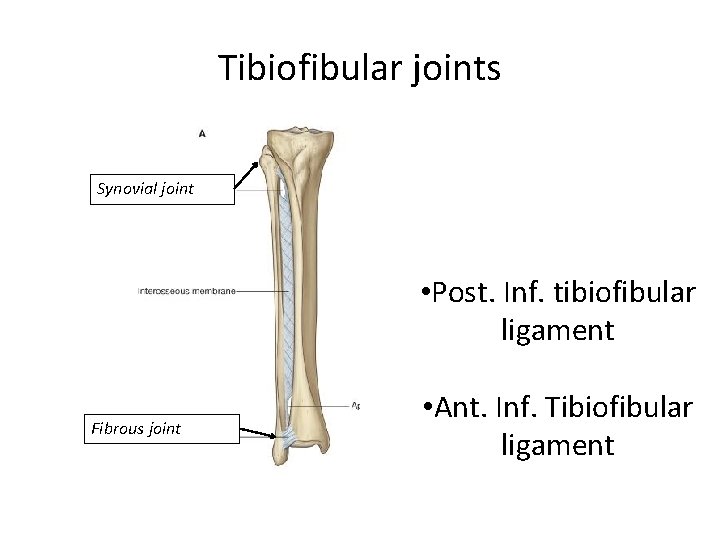

Tibiofibular joints Synovial joint • Post. Inf. tibiofibular ligament Fibrous joint • Ant. Inf. Tibiofibular ligament

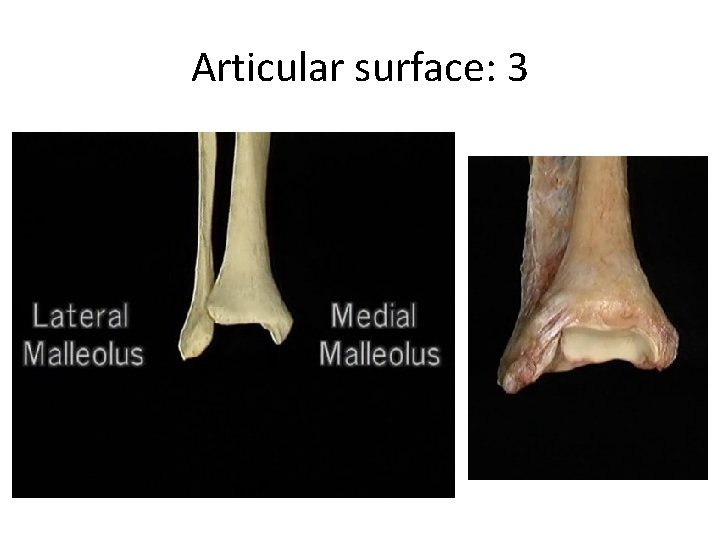

Articular surface: 3

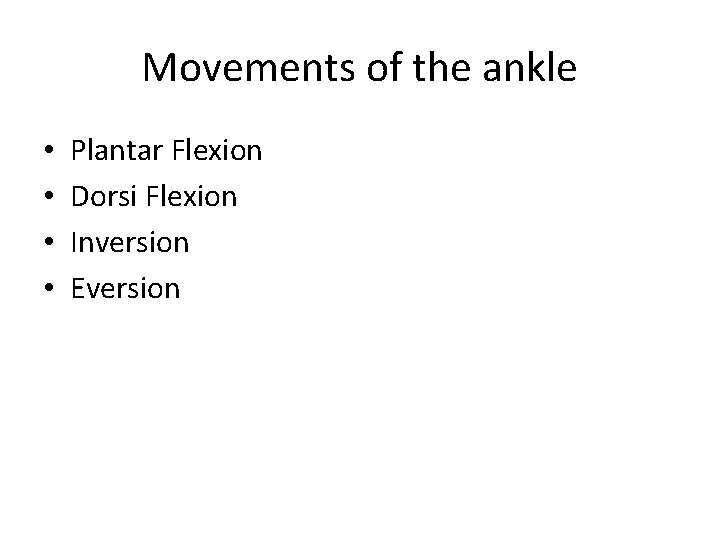

Movements of the ankle • • Plantar Flexion Dorsi Flexion Inversion Eversion

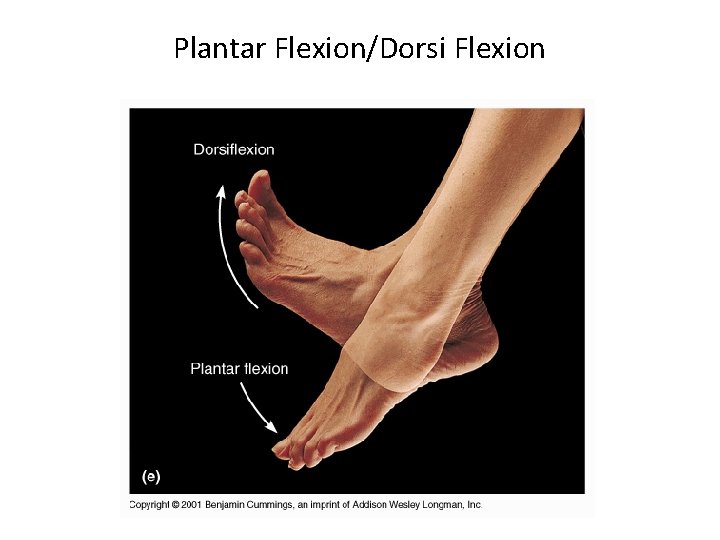

Plantar Flexion/Dorsi Flexion

Inversion/Eversion

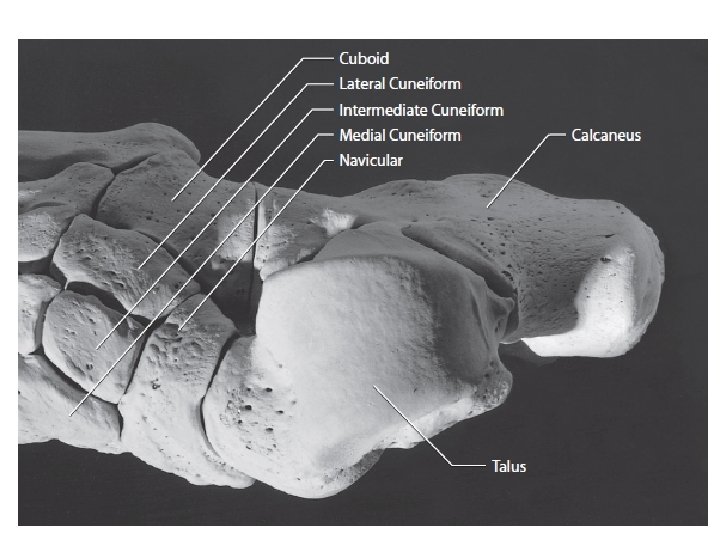

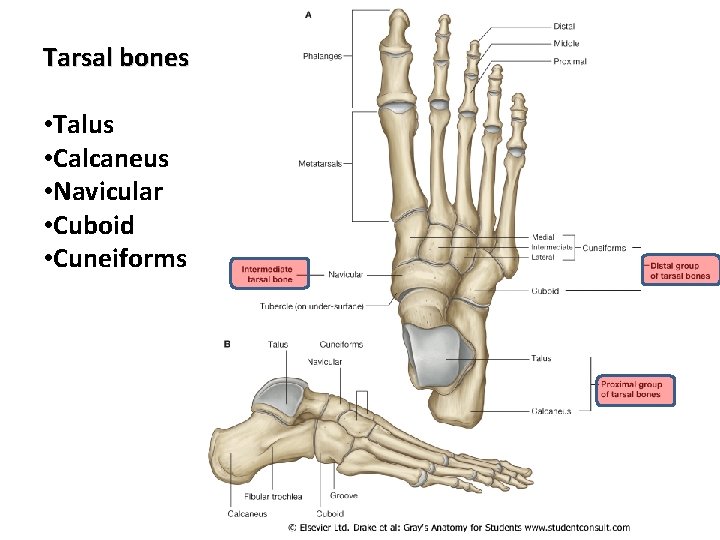

Tarsal bones • Talus • Calcaneus • Navicular • Cuboid • Cuneiforms

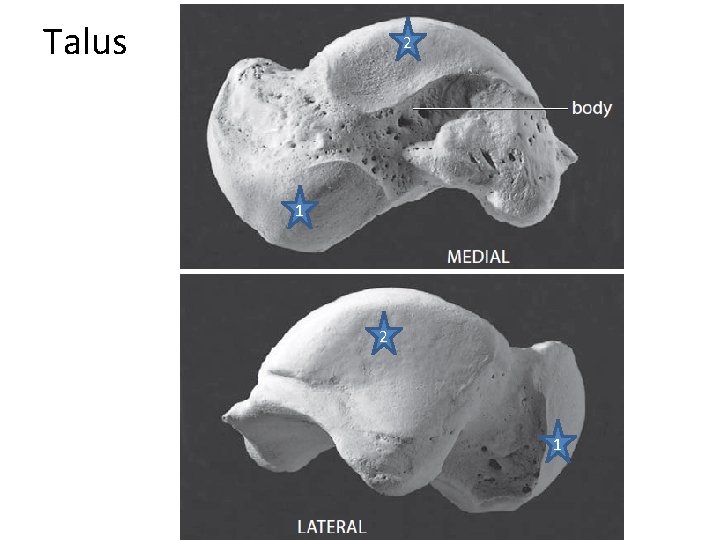

Talus 2 1

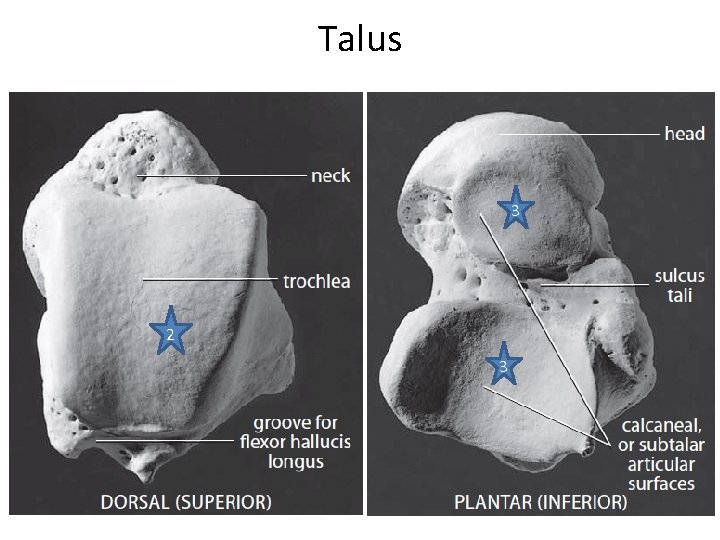

Talus 3 2 3

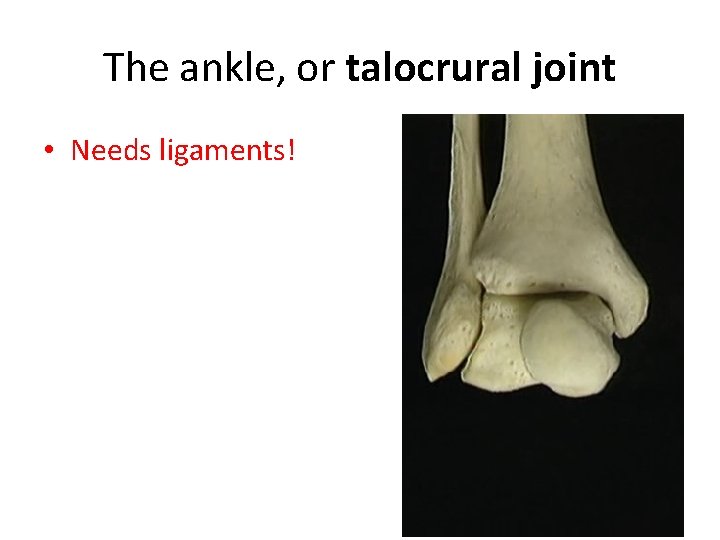

The ankle, or talocrural joint • Needs ligaments!

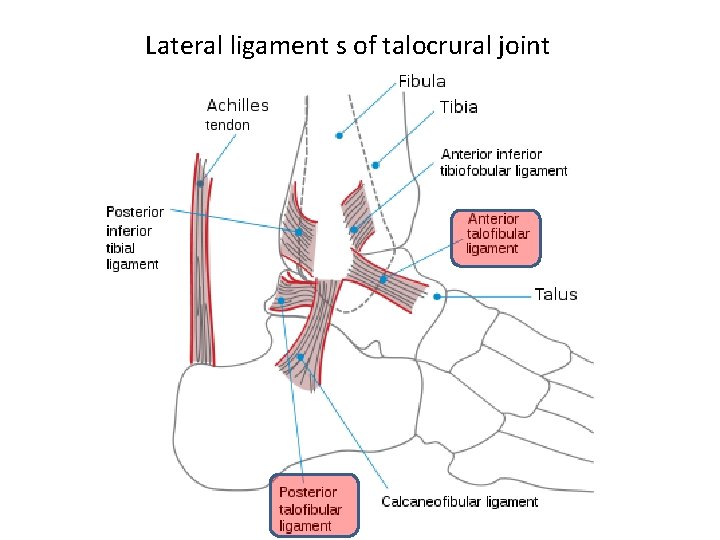

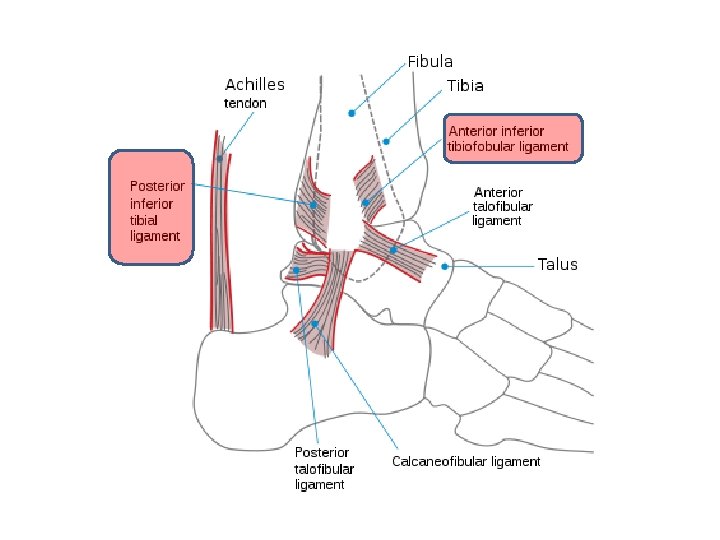

Lateral ligament s of talocrural joint

Anterior drawer test to evaluate the anterior talofibular ligament.

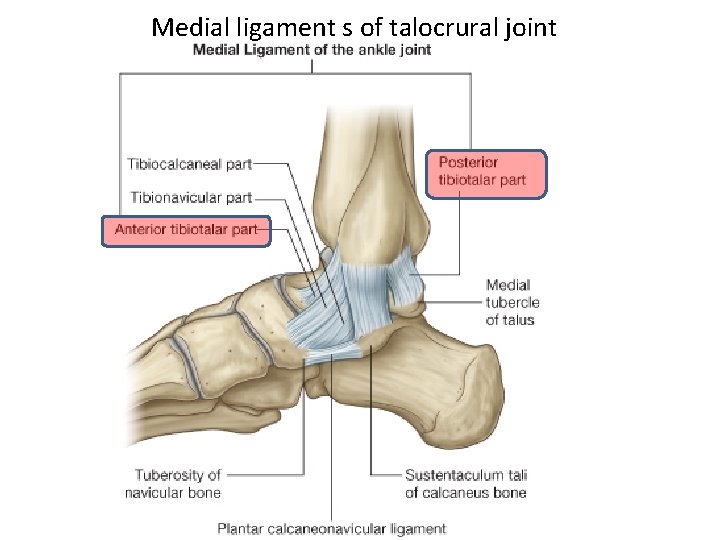

Medial ligament s of talocrural joint

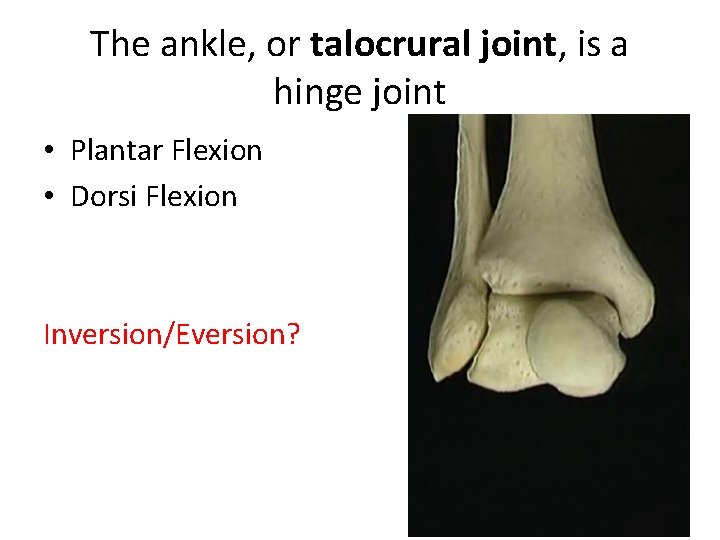

The ankle, or talocrural joint, is a hinge joint • Plantar Flexion • Dorsi Flexion Inversion/Eversion?

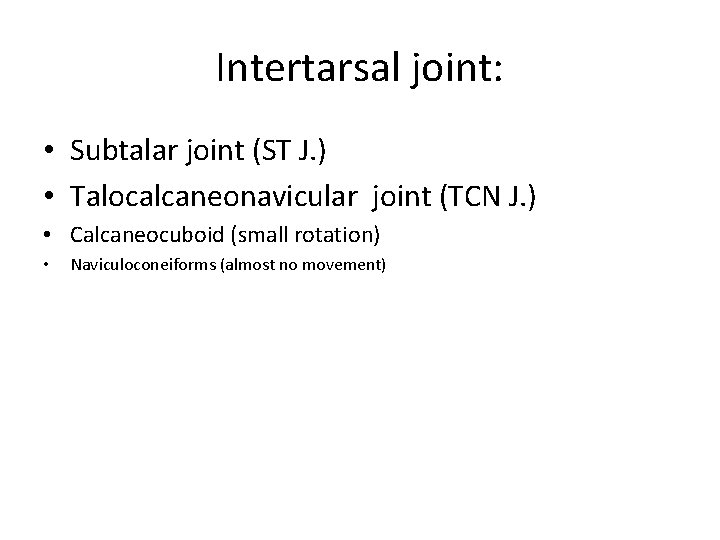

Intertarsal joint: • Subtalar joint (ST J. ) • Talocalcaneonavicular joint (TCN J. ) • Calcaneocuboid (small rotation) • Naviculoconeiforms (almost no movement)

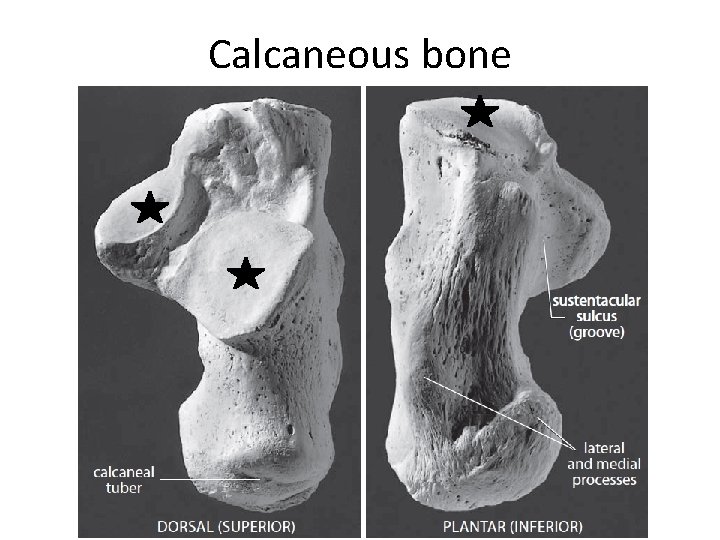

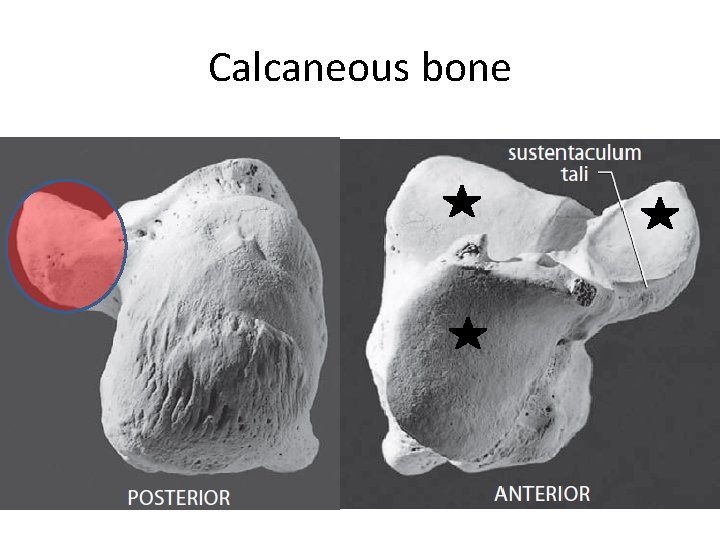

Calcaneous bone

Calcaneous bone

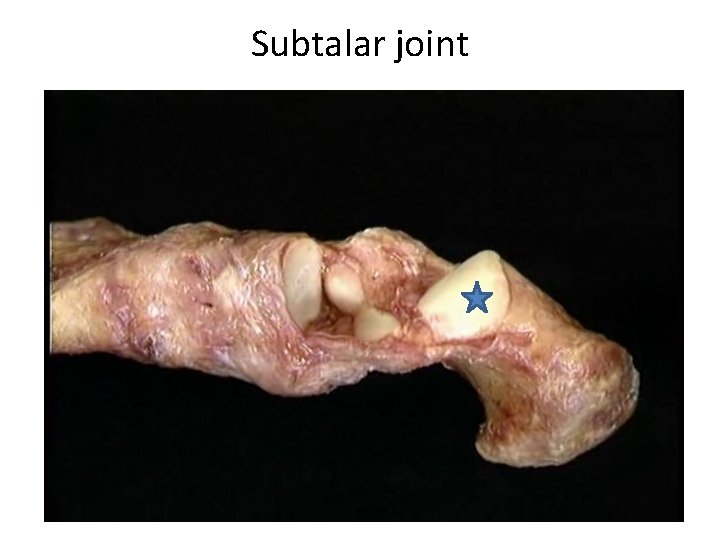

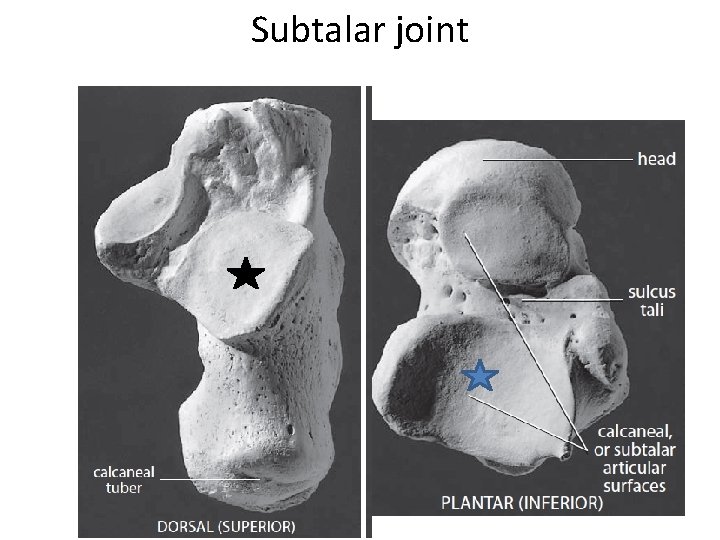

Subtalar joint

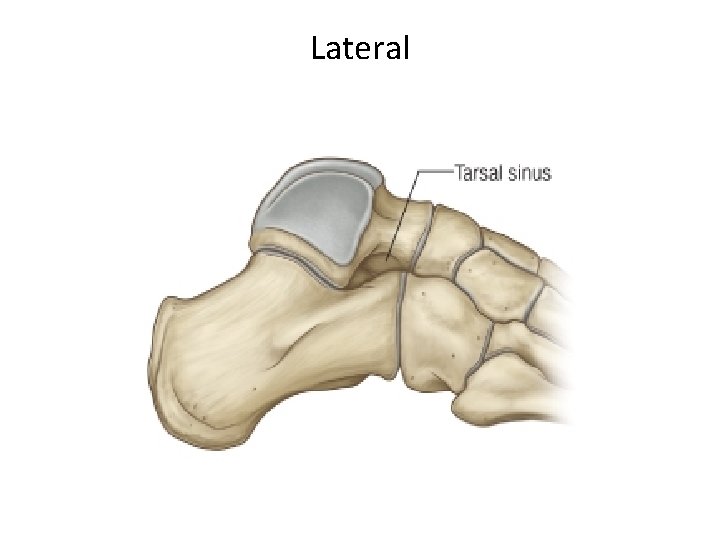

Lateral

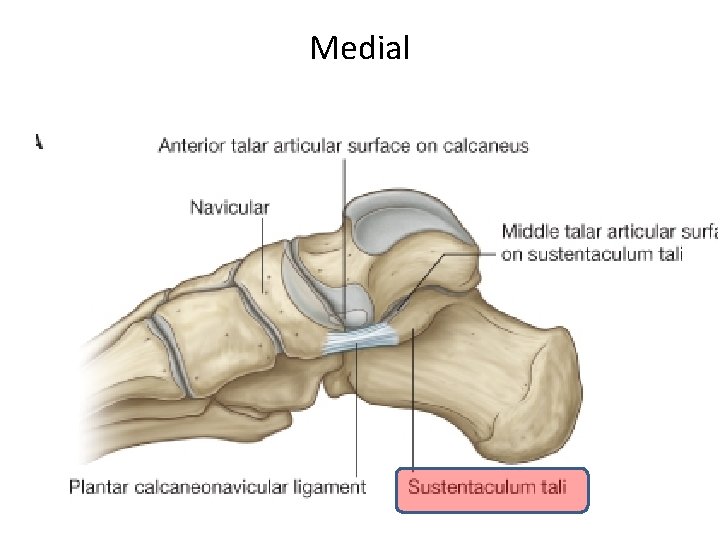

Medial

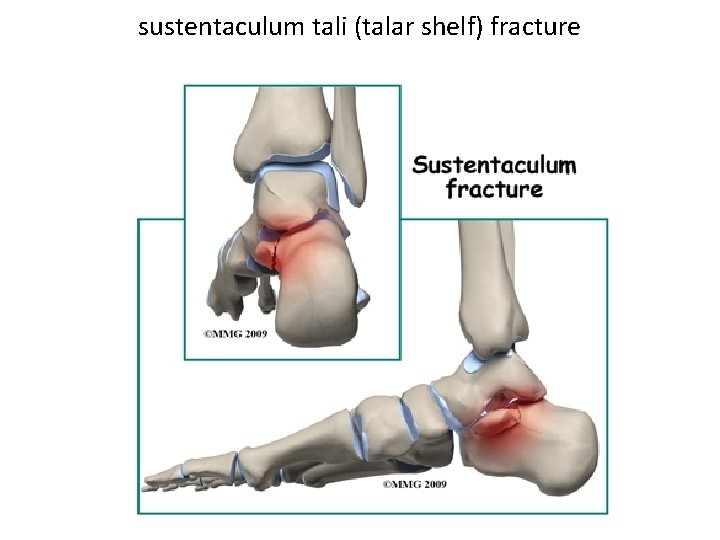

sustentaculum tali (talar shelf) fracture

Subtalar joint

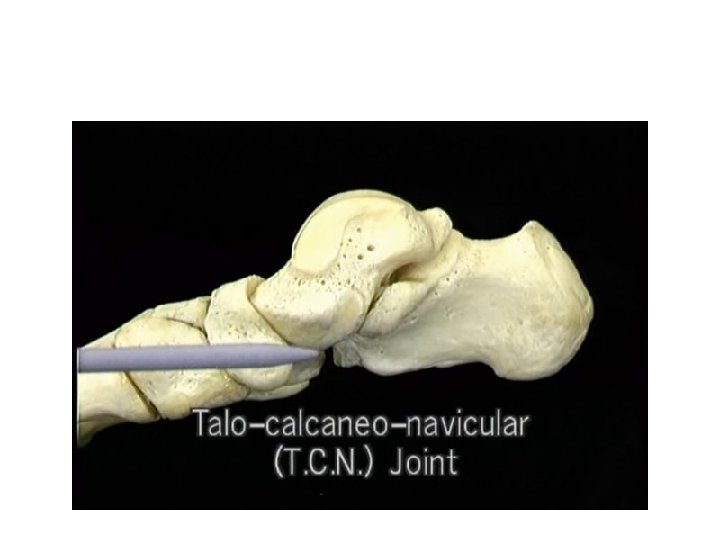

TCN joint

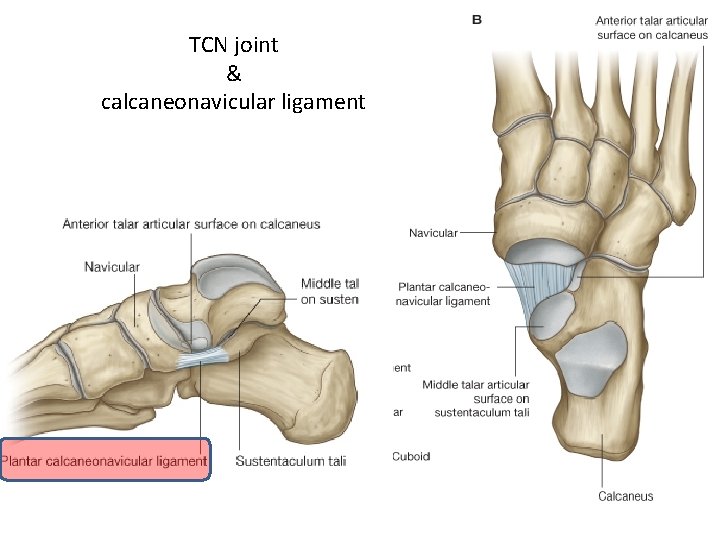

TCN joint & calcaneonavicular ligament

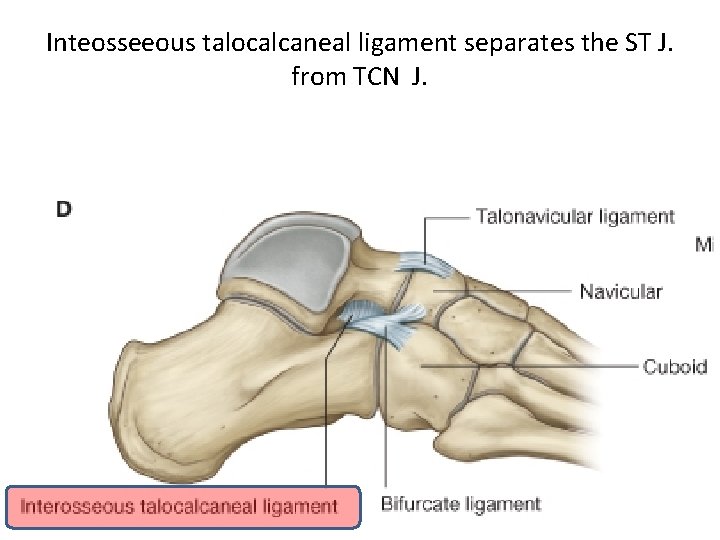

Inteosseeous talocalcaneal ligament separates the ST J. from TCN J.

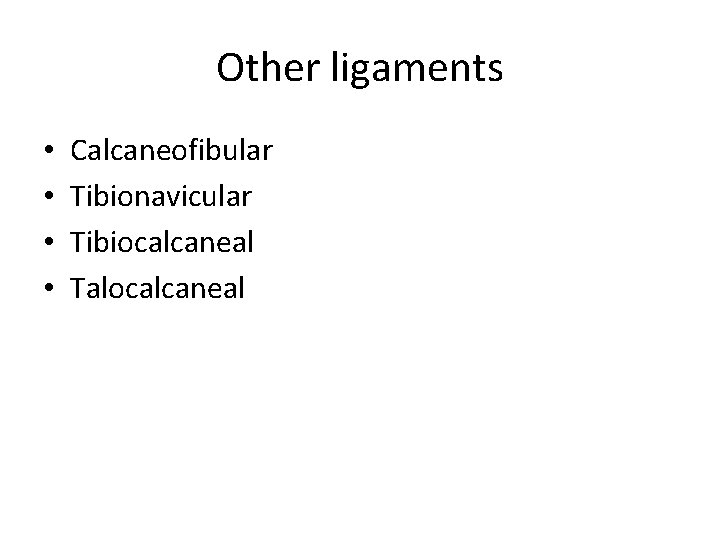

Other ligaments • • Calcaneofibular Tibionavicular Tibiocalcaneal Talocalcaneal

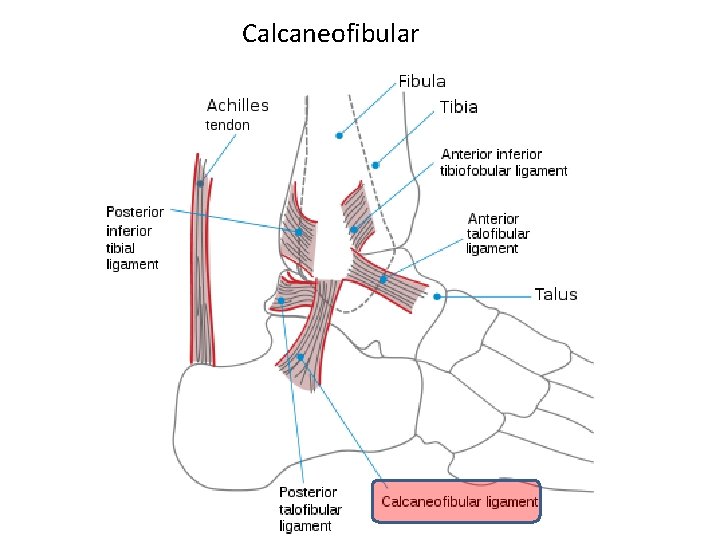

Calcaneofibular

Talar tilt test to evaluate the calcaneofibular ligament.

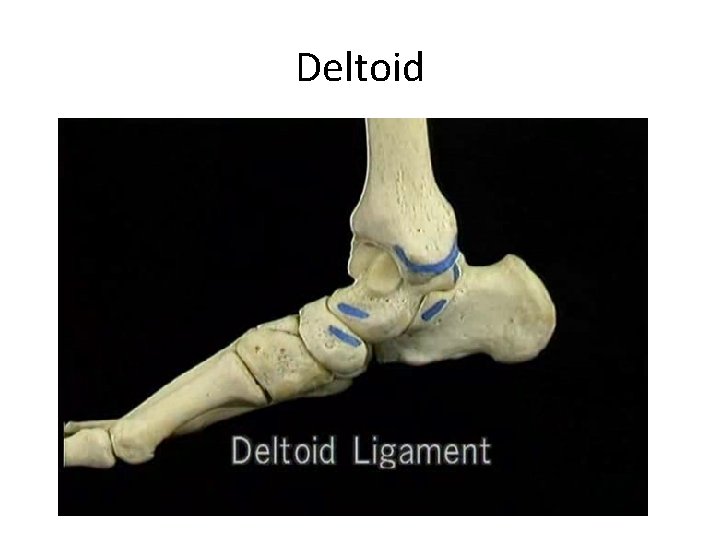

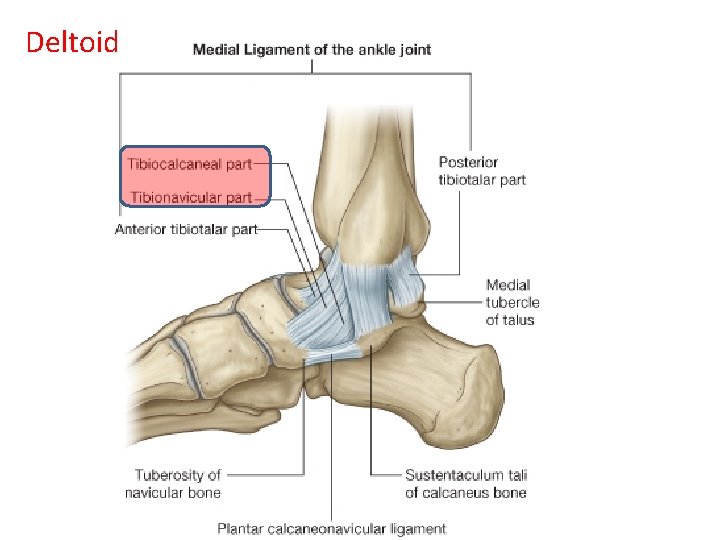

Deltoid

Deltoid

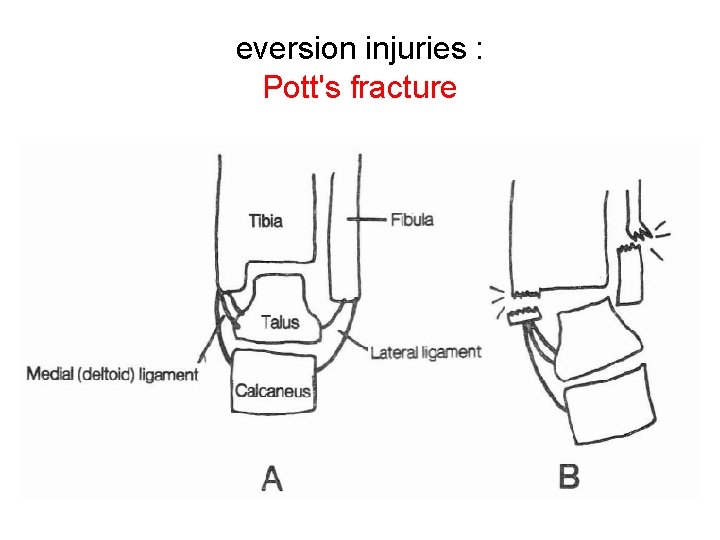

eversion injuries : Pott's fracture

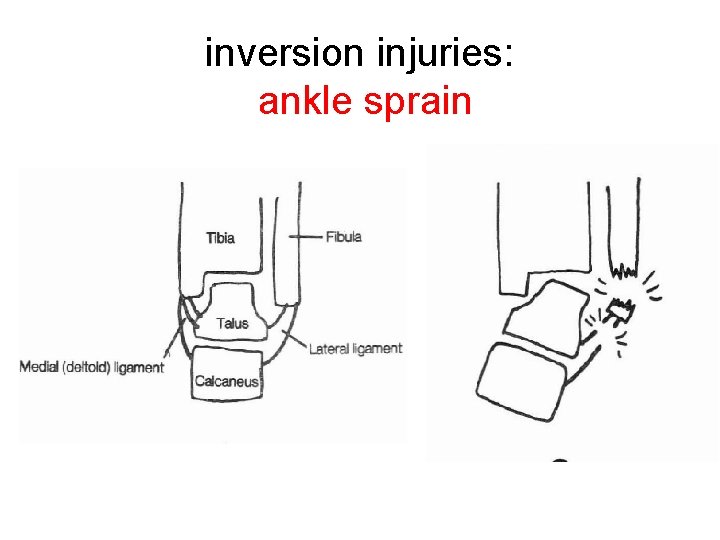

inversion injuries: ankle sprain
