LED MR 16 12 V 5 3 a

LED MR 16 12 V, 5. 3 @ a Glance Where to Use • 20 W Halogen MR 16 5. 3 12 V Equiv SGL P/N 97304 S Light output (lumens) 300 Power 6 W Efficacy 50 CRI 85 Color Temp 3000 K Beam angle 40 Life (hours) 25 K Dimmable Yes Rating Damp Pricing $19 ® 2011 Generation Brands • • Any SGL 4” low voltage recessed housings and trims currently qualified for 12 V 50 W halogen MR 16 5. 3 or higher Transitions rail mount directionals All MR 11 holders for Lx low voltage cable lighting system Good performer vs. halogen equivalents LRG, new catalog and website will list upgrade options with all compatible fixtures 1 LED

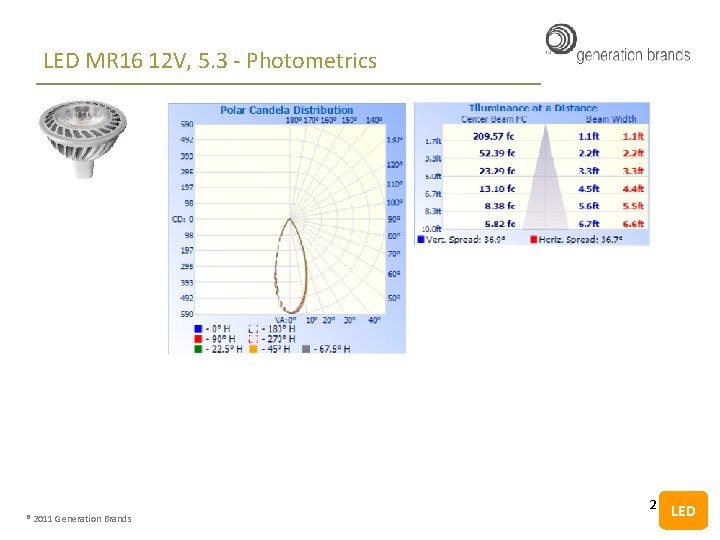

LED MR 16 12 V, 5. 3 - Photometrics 2 ® 2011 Generation Brands LED

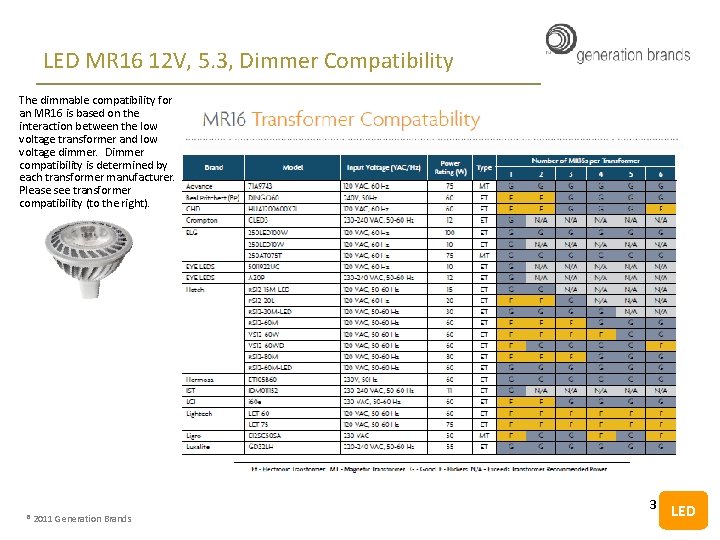

LED MR 16 12 V, 5. 3, Dimmer Compatibility The dimmable compatibility for an MR 16 is based on the interaction between the low voltage transformer and low voltage dimmer. Dimmer compatibility is determined by each transformer manufacturer. Please see transformer compatibility (to the right). 3 ® 2011 Generation Brands LED

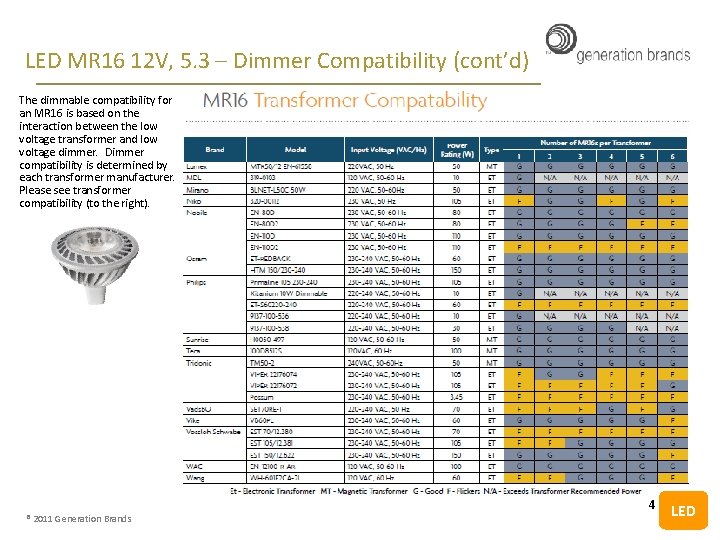

LED MR 16 12 V, 5. 3 – Dimmer Compatibility (cont’d) The dimmable compatibility for an MR 16 is based on the interaction between the low voltage transformer and low voltage dimmer. Dimmer compatibility is determined by each transformer manufacturer. Please see transformer compatibility (to the right). 4 ® 2011 Generation Brands LED
