LED Linear Strip Light UP AND DOWN LED

LED Linear Strip Light UP AND DOWN LED WALL LIGHT SPECIFICATION www. ledkingtx. com TEL: 972 -243 -5464

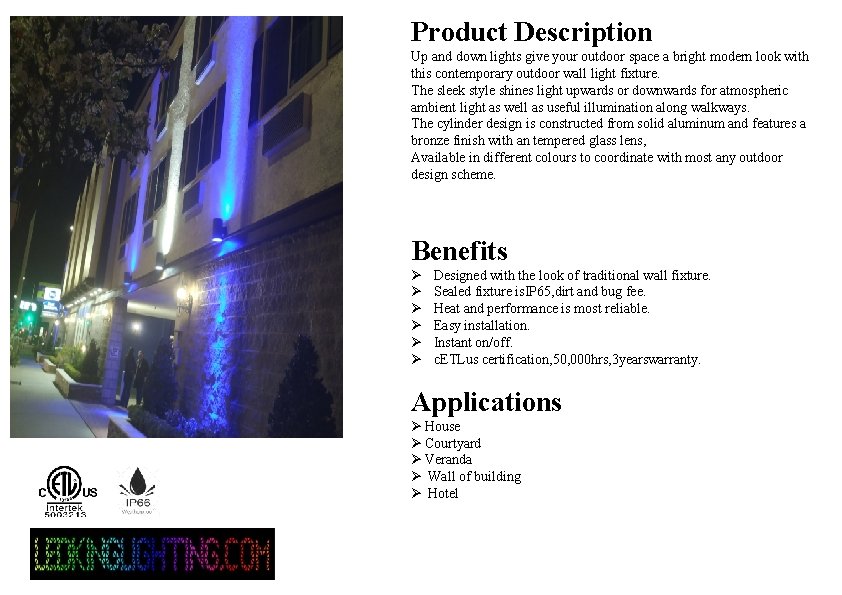

Product Description Up and down lights give your outdoor space a bright modern look with this contemporary outdoor wall light fixture. The sleek style shines light upwards or downwards for atmospheric ambient light as well as useful illumination along walkways. The cylinder design is constructed from solid aluminum and features a bronze finish with an tempered glass lens, Available in different colours to coordinate with most any outdoor design scheme. Benefits Ø Ø Ø Designed with the look of traditional wall fixture. Sealed fixture is. IP 65, dirt and bug fee. Heat and performance is most reliable. Easy installation. Instant on/off. c. ETLus certification, 50, 000 hrs, 3 yearswarranty. Applications Ø House Ø Courtyard Ø Veranda Ø Wall of building Ø Hotel

Item Code Rules: MC - WL - UD/UP - 18 A- PX 1 1 2 3 4 5 6 7 MC: Company Code WL: Item Code , means WALL LIGHT UD: UP and down/UP: up only 18: Power consumption, 18 W A: diameter 5 P: high power LED as light source X: LED color Features Ø High performance LM-80 LED for significant energy saving. Ø Available with dusk to dawn sensor. Ø Sealed fixture is IP 65, dirt and bug fee. Ø Multi sizes are available. Ø Aluminum body , glass cover, aluminum heatsink. Ø Dust proof, shatter proof and waterproof with protection class IP 66. Ø No UV rays, nonoise, no flickering. Ø Hi-quality shatter resistant glass. Dimensions 2*9 W； 2*12 W 2*18 W； 2*20 W 2*36 W 2*24 W； 2*30 W

Data Sheet Model Size (mm) Power (W) LED Color Housing Color Beam Angle IP Grade Input Certification UP AND DOWN MC-WLUD 18 A-PX Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL ￠ 108*300 2*9 W W/R/G/B/Y/RG B MC-WLUD 24 A-PX ￠ 108*300 2*12 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUD 36 B-PX ￠ 145*300 2*18 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUD 40 B-PX ￠ 145*300 2*20 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, Cetl MC-WLUD 48 C-PX ￠ 160*300 2*24 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUD 60 C-PX ￠ 160*300 2*30 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUD 72 D-PX ￠ 180*300 2*36 W W/R/G/B/Y/RG B Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL

Data Sheet Model Size (mm) Power (W) LED Color Housing Color Beam Angle IP Grade Input Certification UP ONLY MC-WLUP 9 A-PX MC-WLUP 12 A-PX MC-WLUP 18 B-PX ￠ 108*300 9 W 12 W 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL W/R/G/B/Y/RGB Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL ￠ 145*300 18 W W/R/G/B/Y/RGB MC-WLUP 20 B-PX ￠ 145*300 20 W W/R/G/B/Y/RGB Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, Cetl MC-WLUP 24 C-PX ￠ 160*300 24 W W/R/G/B/Y/RGB Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUP 30 C-PX ￠ 160*300 30 W W/R/G/B/Y/RGB Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUP 36 D-PX ￠ 180*300 36 W W/R/G/B/Y/RGB Brown/black/ Gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL MC-WLUP 50 D-PX ￠ 180*300 50 W W/R/G/B/Y/RGB Brown/black/ gray 15°/30°/60° IP 66 100 -277 V ac； 50 HZ/60 HZ ETL, c. ETL

Structure HOLE

Installations

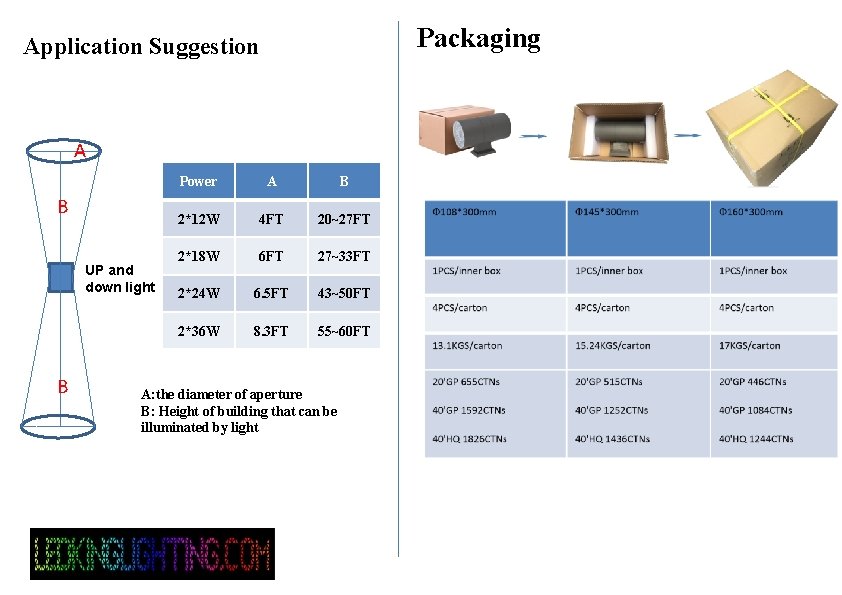

Packaging Application Suggestion A B UP and down light B Power A B 2*12 W 4 FT 20~27 FT 2*18 W 6 FT 27~33 FT 2*24 W 6. 5 FT 43~50 FT 2*36 W 8. 3 FT 55~60 FT A: the diameter of aperture B: Height of building that can be illuminated by light
