Lecture Set 3 Gauss’s Law Spring 2007

Calendar for the Week Today (Wednesday) – One or two problems on E – Introduction to the concept of FLUX Friday – 7: 30 session if wanted – Quiz – Chapter 23 – Electric Field – Gauss’s Law & some problems EXAM APPROACHING

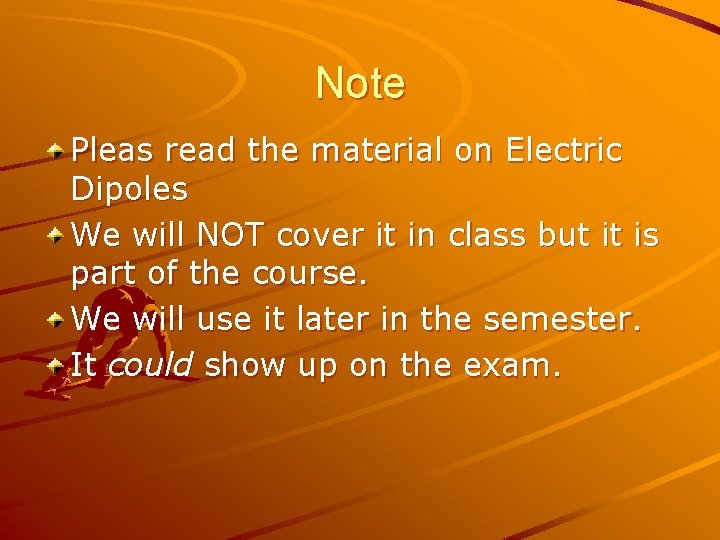

Note Pleas read the material on Electric Dipoles We will NOT cover it in class but it is part of the course. We will use it later in the semester. It could show up on the exam.

Approximate Schedule EXAM NUMBER DATE 1 2/2 (Fri) 3/2 (Fri) 4/4 (Wed) 2 3 FINAL EXAM Fri. is Good Friday Check UCF Cal.

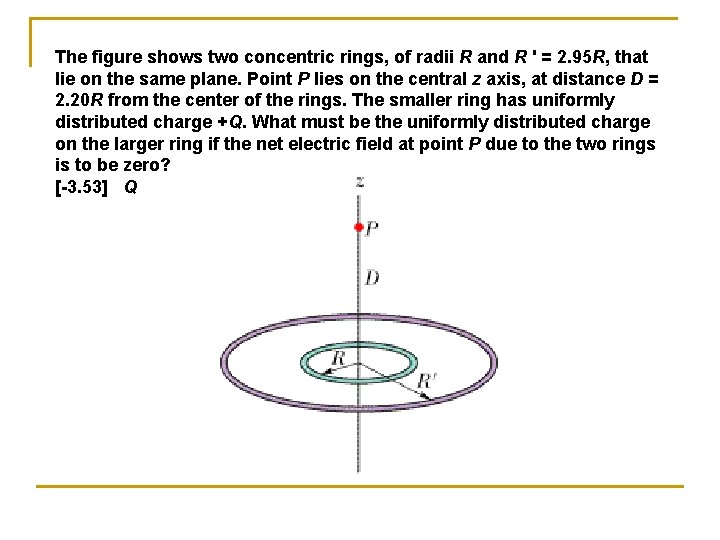

The figure shows two concentric rings, of radii R and R ' = 2. 95 R, that lie on the same plane. Point P lies on the central z axis, at distance D = 2. 20 R from the center of the rings. The smaller ring has uniformly distributed charge +Q. What must be the uniformly distributed charge on the larger ring if the net electric field at point P due to the two rings is to be zero? [-3. 53] Q

Definition – Sort of Electric Field Lines

Field Lines Electric Field

Last time we showed that

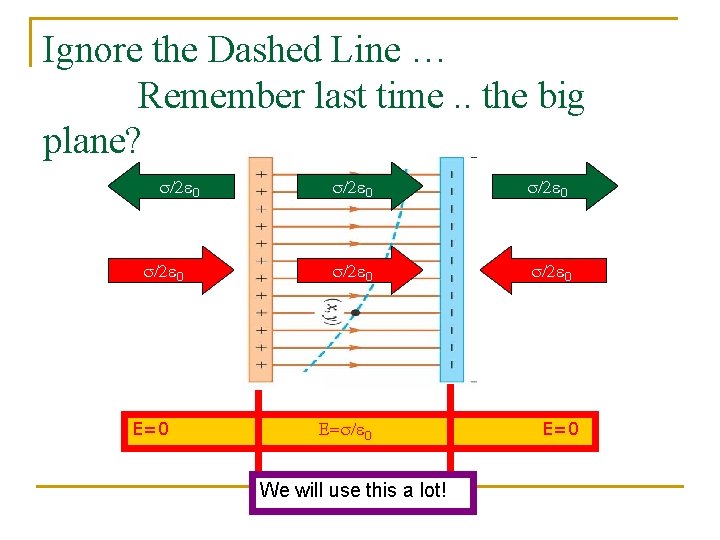

Ignore the Dashed Line … Remember last time. . the big plane? s/2 e 0 E=0 s/2 e 0 E=s/e 0 We will use this a lot! E=0

NEW RULES (Bill Maher) n n n Imagine a region of space where the ELECTRIC FIELD LINES HAVE BEEN DRAWN. The electric field at a point in this region is TANGENT to the Electric Field lines that have been drawn. If you construct a small rectangle normal to the field lines, the Electric Field is proportional to the number of field lines that cross the small area. q q The DENSITY of the lines. We won’t use this much

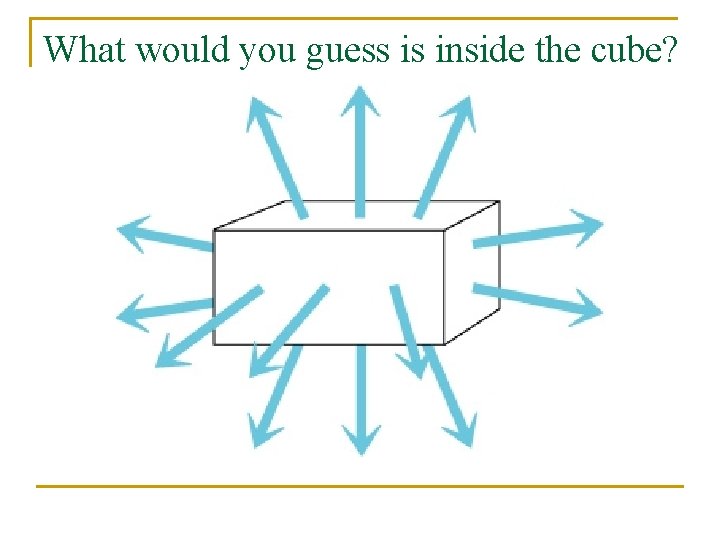

What would you guess is inside the cube?

What about now?

How about this? ? 1. 2. 3. 4. 5. Positive point charge Negative point charge Large Sheet of charge No charge You can’t tell from this

Which box do you think contains more charge?

All of the E vectors in the bottom box are twice as large as those coming from the top box. The top box contains a charge Q. How much charge do you think is in the bottom box? 1. 2. 3. 4. Q 2 Q You can’t tell Leave me alone.

So far … n n n The electric field exiting a closed surface seems to be related to the charge inside. But … what does “exiting a closed surface mean”? How do we really talk about “the electric field exiting” a surface? q q How do we define such a concept? CAN we define such a concept?

Mr. Gauss answered the question with. .

Another QUESTION: Solid Surface Given the electric field at EVERY point on a closed surface, can we determine the charges that caused it? ?

A Question: n n n Given the magnitude and direction of the Electric Field at a point, can we determine the charge distribution that created the field? Is it Unique? Question … given the Electric Field at a number of points, can we determine the charge distribution that caused it? q How many points must we know? ?

Still another question Given a small area, how can you describe both the area itself and its orientation with a single stroke!

The “Area Vector” n n Consider a small area. It’s orientation can be described by a vector NORMAL to the surface. q q q We usually define the unit normal vector n. If the area is FLAT, the area vector is given by An, where A is the area. A is usually a differential area of a small part of a general surface that is small enough to be considered flat.

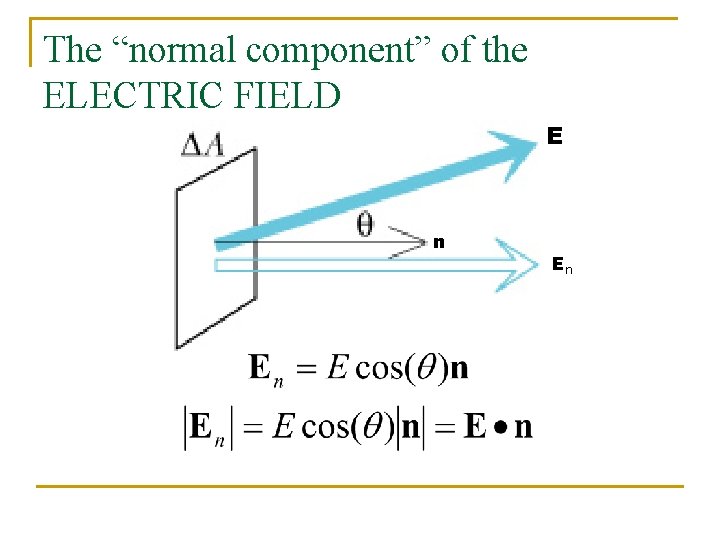

The “normal component” of the ELECTRIC FIELD E n En

DEFINITION FLUX E n En

We will be considering CLOSED surfaces q The normal vector to a closed surface is DEFINED as positive if it points OUT of the surface. Remember this definition!

“Element” of Flux of a vector E leaving a surface For a CLOSED surface: n is a unit OUTWARD pointing vector.

This flux is LEAVING the closed surface. q

Definition of TOTAL FLUX through a surface

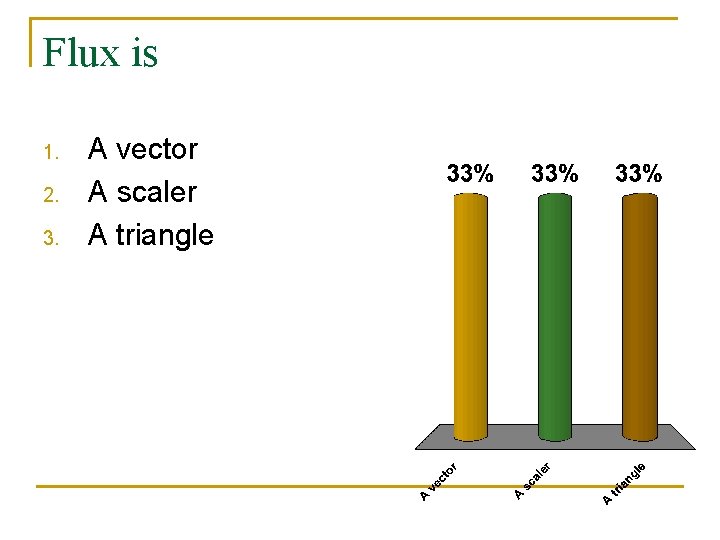

Flux is 1. 2. 3. A vector A scaler A triangle

Visualizing Flux n is the OUTWARD pointing unit normal.

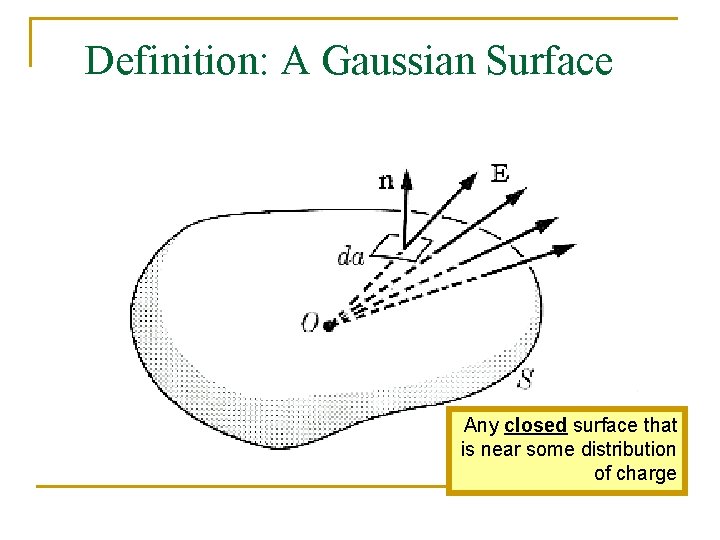

Definition: A Gaussian Surface Any closed surface that is near some distribution of charge

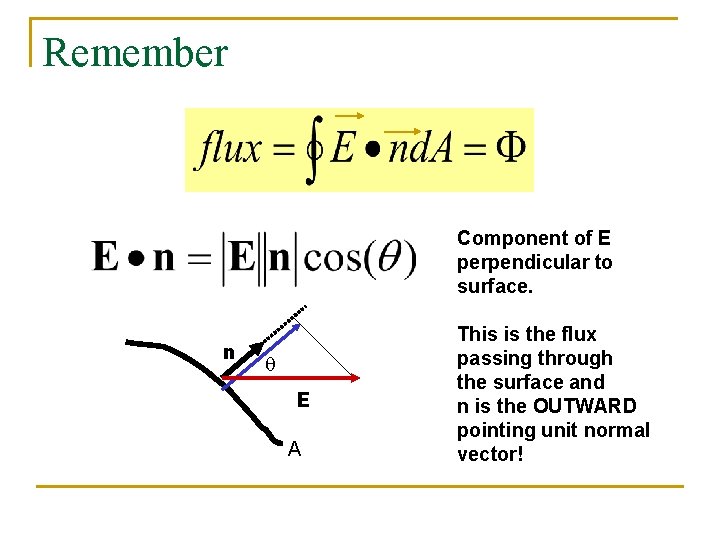

Remember Component of E perpendicular to surface. n q E A This is the flux passing through the surface and n is the OUTWARD pointing unit normal vector!

Example Cube in a UNIFORM Electric Field Flux is EL 2 E Flux is -EL 2 Note sign L area E is parallel to four of the surfaces of the cube so the flux is zero across these because E is perpendicular to A and the dot product is zero. Total Flux leaving the cube is zero

Simple Example r q

Gauss’ Law Flux is total EXITING the Surface. n is the OUTWARD pointing unit normal. q is the total charge ENCLOSED by the Gaussian Surface.

Simple Example UNIFORM FIELD LIKE BEFORE e g r o N Cha d se E lo c n A E E A E

Line of Charge Q L

Line of Charge From SYMMETRY E is Radial and Outward

What is a Cylindrical Surface? ? Ponder

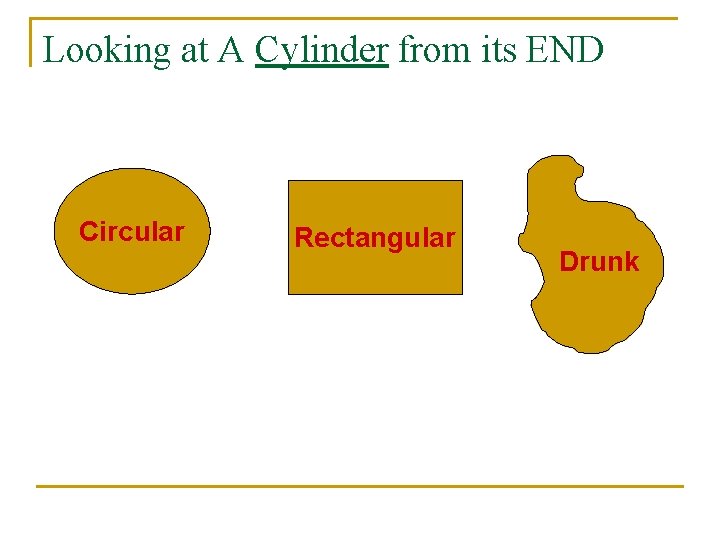

Looking at A Cylinder from its END Circular Rectangular Drunk

Infinite Sheet of Charge +s h cylinder E We got this same result from that ugly integration!

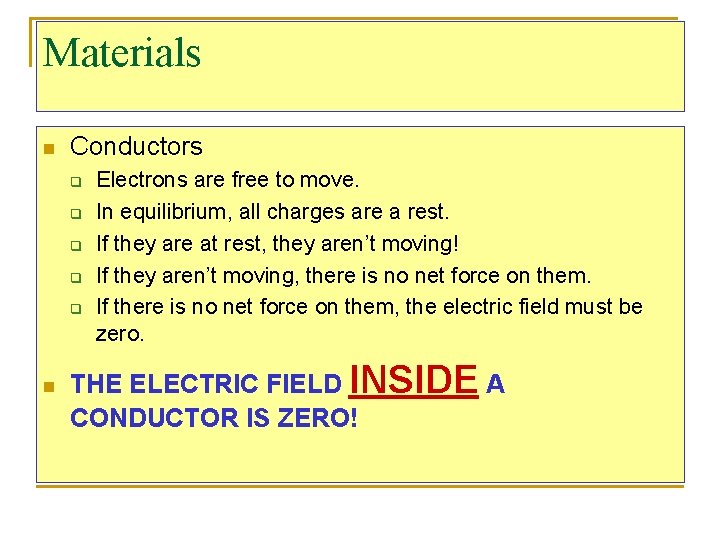

Materials n Conductors q q q n Electrons are free to move. In equilibrium, all charges are a rest. If they are at rest, they aren’t moving! If they aren’t moving, there is no net force on them. If there is no net force on them, the electric field must be zero. THE ELECTRIC FIELD INSIDE A CONDUCTOR IS ZERO!

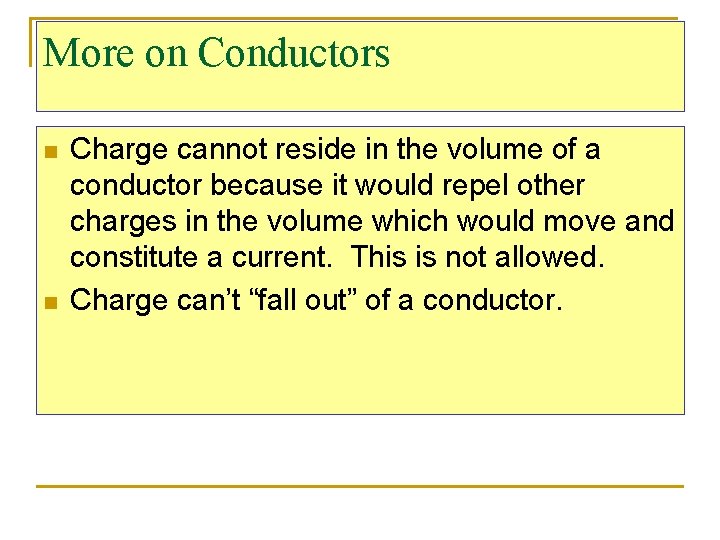

More on Conductors n n Charge cannot reside in the volume of a conductor because it would repel other charges in the volume which would move and constitute a current. This is not allowed. Charge can’t “fall out” of a conductor.

Isolated Conductor Electric Field is ZERO in the interior of a conductor. Gauss’ law on surface shown Also says that the enclosed Charge must be ZERO. Again, all charge on a Conductor must reside on The SURFACE.

Charged Conductors Charge Must reside on the SURFACE - E=0 - - s Very SMALL Gaussian Surface E

Charged Isolated Conductor n n The ELECTRIC FIELD is normal to the surface outside of the conductor. The field is given by: Inside of the isolated conductor, the Electric field is ZERO. If the electric field had a component parallel to the surface, there would be a current flow!

Isolated (Charged) Conductor with a HOLE in it. Because E=0 everywhere inside the conductor. So Q (total) =0 inside the hole Including the surface.

A Spherical Conducting Shell with A Charge Inside.

Insulators n n n In an insulator all of the charge is bound. None of the charge can move. We can therefore have charge anywhere in the volume and it can’t “flow” anywhere so it stays there. You can therefore have a charge density inside an insulator. You can also have an ELECTRIC FIELD in an insulator as well.

Example – A Spatial Distribution of charge. Uniform charge density = r = charge per unit volume O r E (Vectors) A Solid SPHERE

Outside The Charge R r O E Old Coulomb Law!

Graph E R r

Charged Metal Plate s E + + + + s + + + + A A E E is the same in magnitude EVERYWHERE. The direction is different on each side.

Apply Gauss’ Law s + + + + A A E Same result!

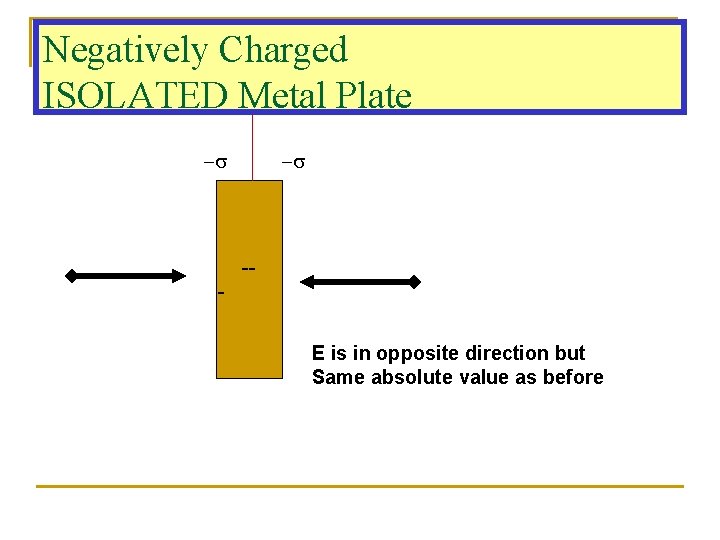

Negatively Charged ISOLATED Metal Plate -s -s -E is in opposite direction but Same absolute value as before

Bring the two plates together +s 1 A e -s 1 B e As the plates come together, all charge on B is attracted To the inside surface while the negative charge pushes the Electrons in A to the outside surface. This leaves each inner surface charged and the outer surface Uncharged. The charge density is DOUBLED.

Result is …. . E=0 +2 s 1 -2 s 1 +s -s E A e E=0 B e

VERY POWERFULL IDEA n Superposition q The field obtained at a point is equal to the superposition of the fields caused by each of the charged objects creating the field INDEPENDENTLY.

Problem #1 Trick Question Consider a cube with each edge = 55 cm. There is a 1. 8 m. C charge In the center of the cube. Calculate the total flux exiting the cube. NOTE: INDEPENDENT OF THE SHAPE OF THE SURFACE! Easy, yes? ?

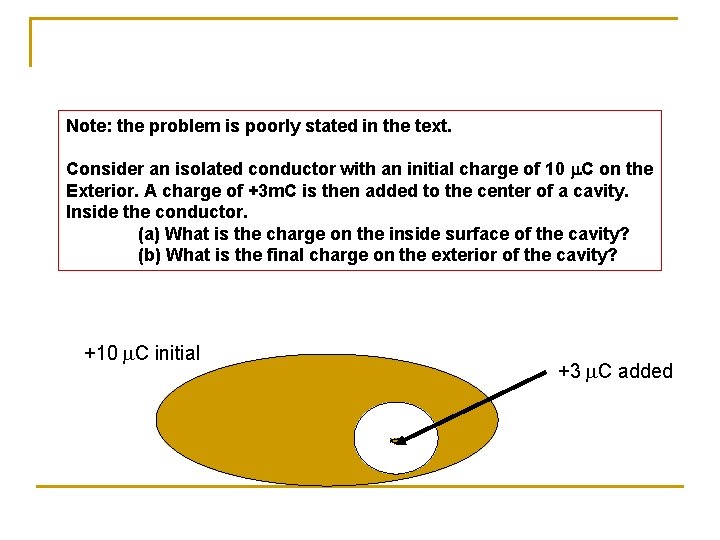

Note: the problem is poorly stated in the text. Consider an isolated conductor with an initial charge of 10 m. C on the Exterior. A charge of +3 m. C is then added to the center of a cavity. Inside the conductor. (a) What is the charge on the inside surface of the cavity? (b) What is the final charge on the exterior of the cavity? +10 m. C initial +3 m. C added

Another Problem Charged Sheet a m, q both given as is a +s Gaussian Surface

-2 a a T m, q both given as is a q. E +s mg Free body diagram

-3 (all given)

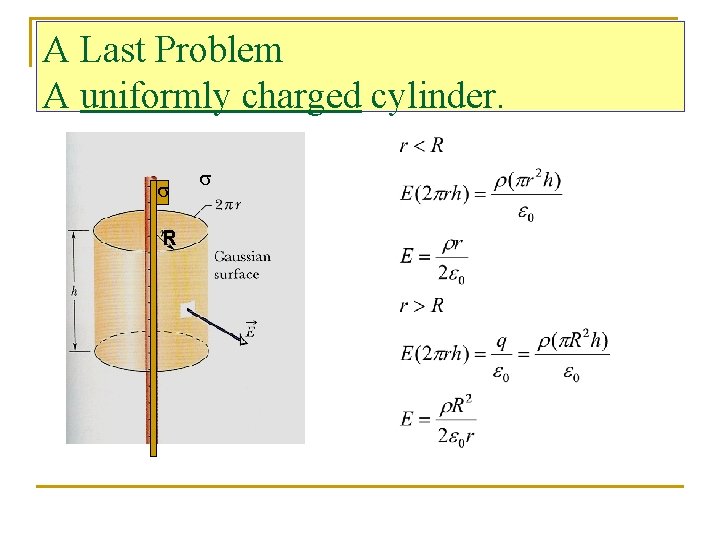

A Last Problem A uniformly charged cylinder. s R s
