Lecture Presentation Chapter 16 Carboxylic Acids and Esters
Lecture Presentation Chapter 16 Carboxylic Acids and Esters Karen C. Timberlake General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

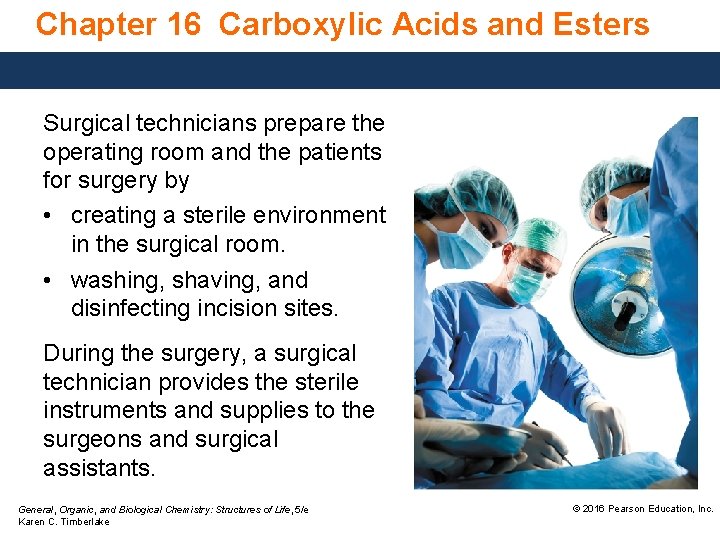

Chapter 16 Carboxylic Acids and Esters Surgical technicians prepare the operating room and the patients for surgery by • creating a sterile environment in the surgical room. • washing, shaving, and disinfecting incision sites. During the surgery, a surgical technician provides the sterile instruments and supplies to the surgeons and surgical assistants. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

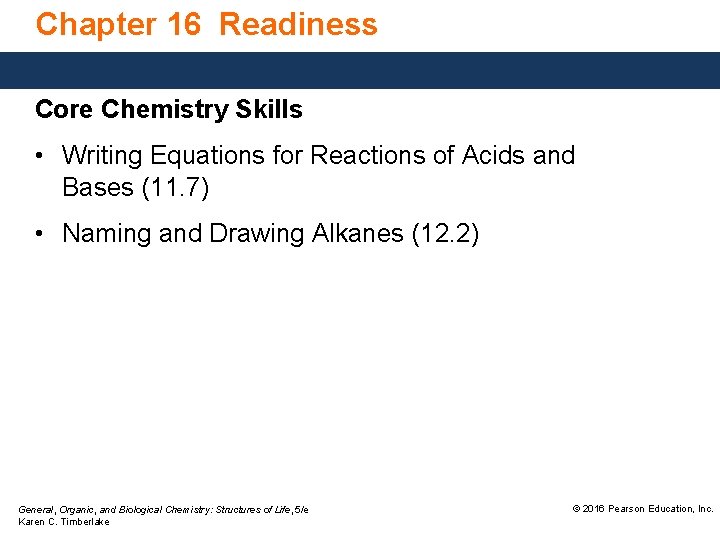

Chapter 16 Readiness Core Chemistry Skills • Writing Equations for Reactions of Acids and Bases (11. 7) • Naming and Drawing Alkanes (12. 2) General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
16. 1 Carboxylic Acids A carboxylic acid contains a carboxyl group, which consists of a hydroxyl group —OH attached to the carbon in a carbonyl group. Learning Goal Write the IUPAC and common names for carboxylic acids, and draw their condensed and line-angle structural formulas. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

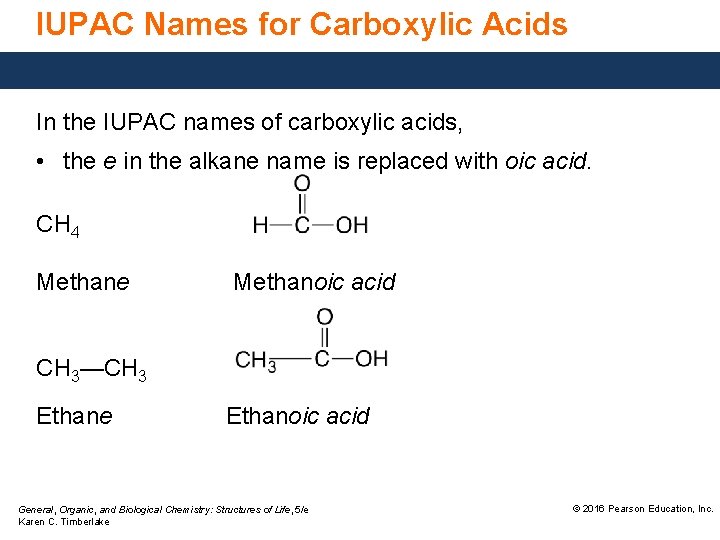

IUPAC Names for Carboxylic Acids In the IUPAC names of carboxylic acids, • the e in the alkane name is replaced with oic acid. CH 4 Methane Methanoic acid CH 3—CH 3 Ethane Ethanoic acid General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
IUPAC Names for Carboxylic Acids Substituents are numbered from the carboxyl, which is carbon 1. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
IUPAC Names for Carboxylic Acids • As before, for benzoic acid, the placement of substituents is shown using the prefixes ortho, meta, and para. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

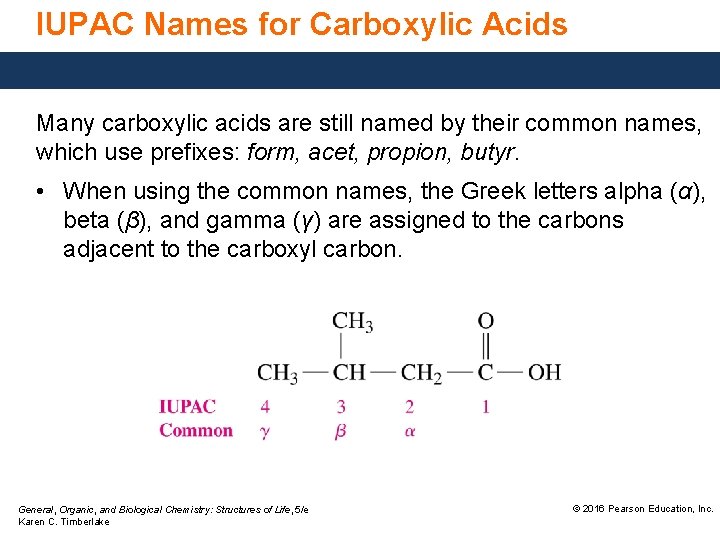

IUPAC Names for Carboxylic Acids Many carboxylic acids are still named by their common names, which use prefixes: form, acet, propion, butyr. • When using the common names, the Greek letters alpha (α), beta (β), and gamma (γ) are assigned to the carbons adjacent to the carboxyl carbon. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

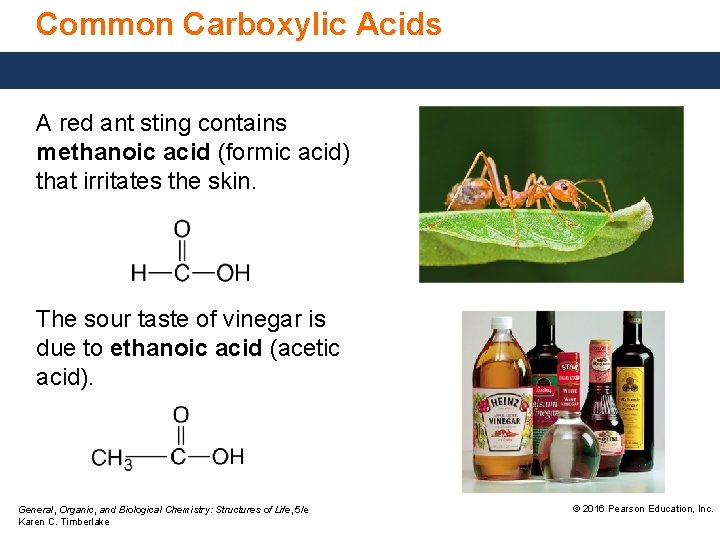

Common Carboxylic Acids A red ant sting contains methanoic acid (formic acid) that irritates the skin. The sour taste of vinegar is due to ethanoic acid (acetic acid). General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

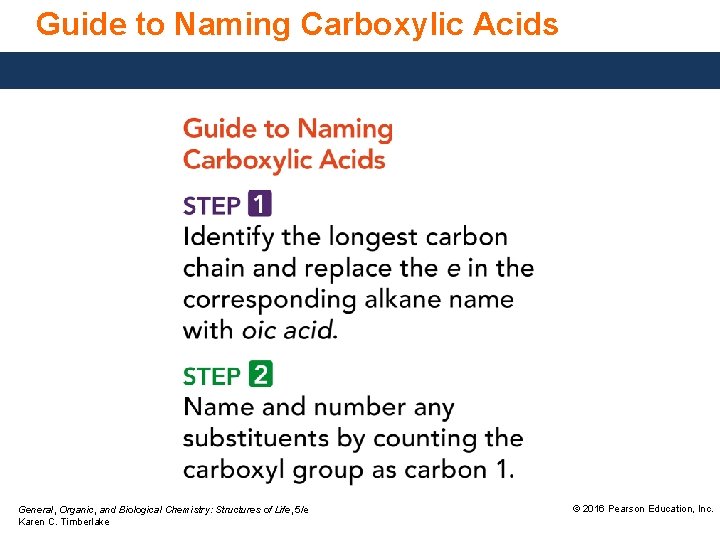

Guide to Naming Carboxylic Acids General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

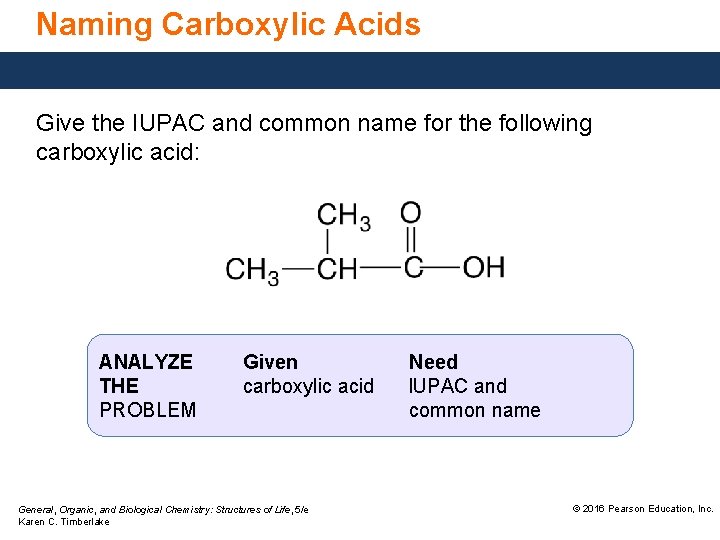

Naming Carboxylic Acids Give the IUPAC and common name for the following carboxylic acid: ANALYZE THE PROBLEM Given carboxylic acid General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake Need IUPAC and common name © 2016 Pearson Education, Inc.

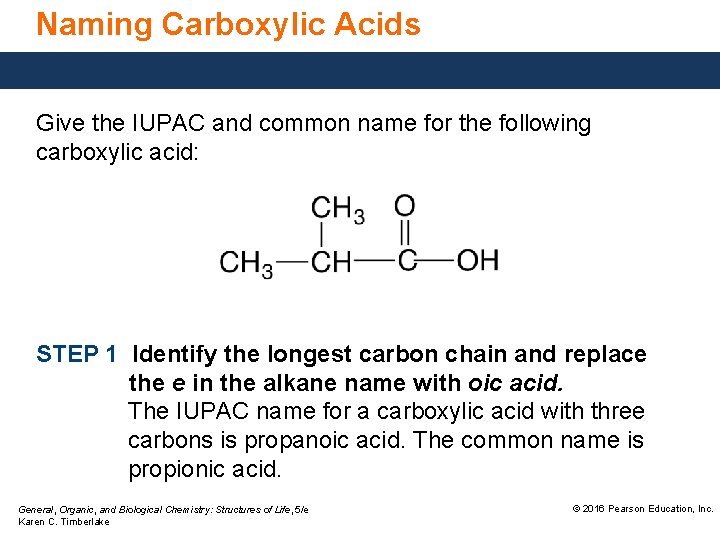

Naming Carboxylic Acids Give the IUPAC and common name for the following carboxylic acid: STEP 1 Identify the longest carbon chain and replace the e in the alkane name with oic acid. The IUPAC name for a carboxylic acid with three carbons is propanoic acid. The common name is propionic acid. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
Naming Carboxylic Acids Give the IUPAC and common name for the following carboxylic acid: STEP 2 Name and number any substituents by counting the carboxyl group as carbon 1. IUPAC name Common name General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake 2 -methylpropanoic acid 2 -methylpropionic acid © 2016 Pearson Education, Inc.

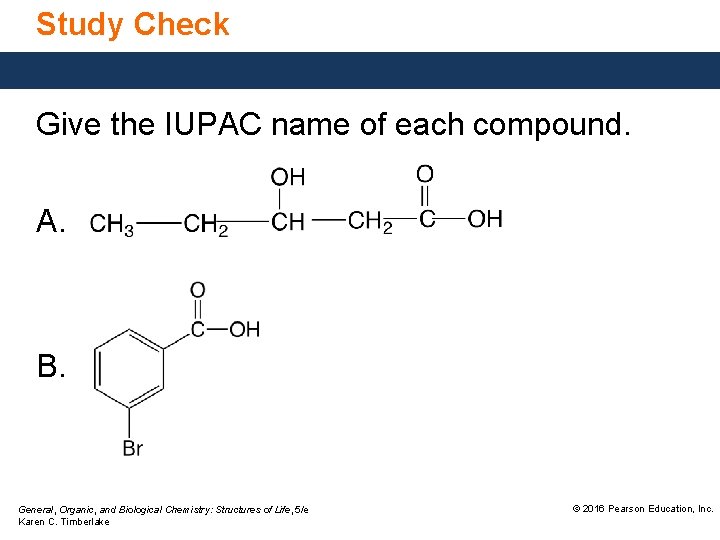

Study Check Give the IUPAC name of each compound. A. B. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
Solution Give the IUPAC name of each compound. A. 3 -hydroxypentanoic acid B. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake 3 -bromobenzoic acid © 2016 Pearson Education, Inc.

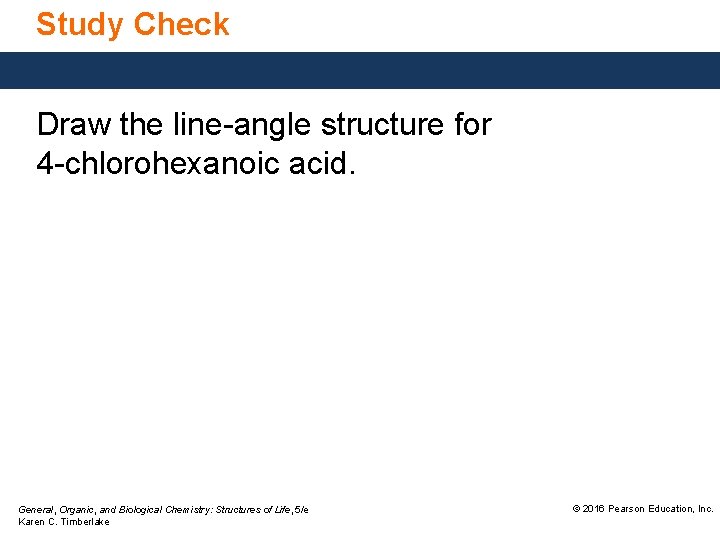

Study Check Draw the line-angle structure for 4 -chlorohexanoic acid. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

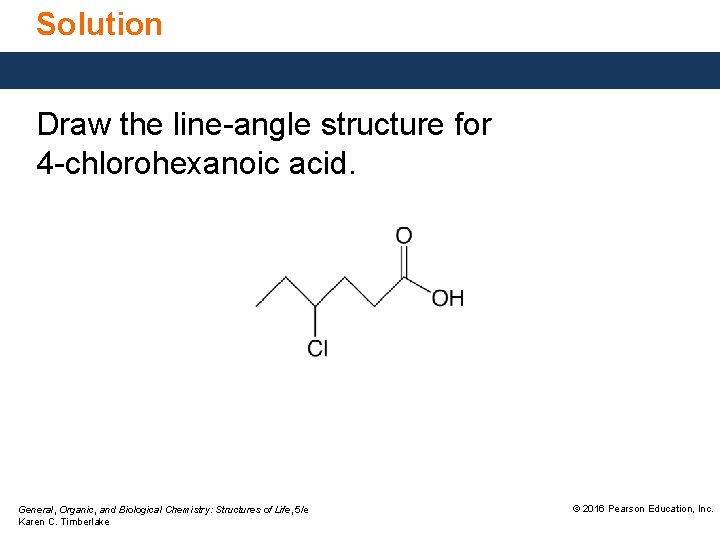

Solution Draw the line-angle structure for 4 -chlorohexanoic acid. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.

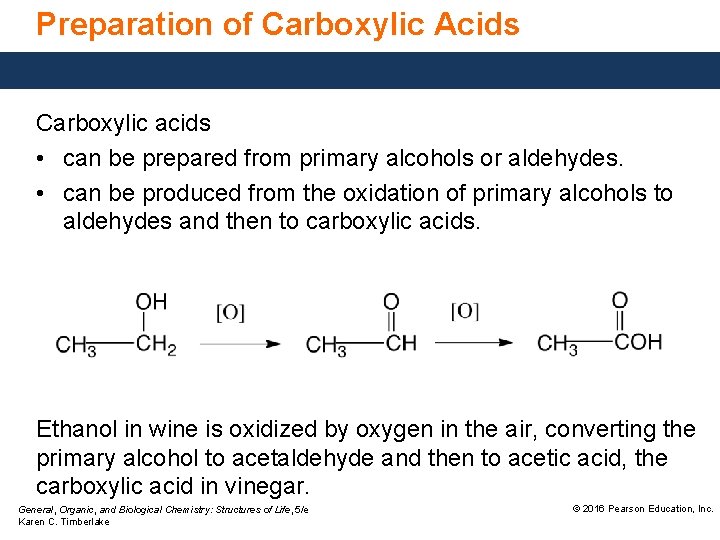

Preparation of Carboxylic Acids Carboxylic acids • can be prepared from primary alcohols or aldehydes. • can be produced from the oxidation of primary alcohols to aldehydes and then to carboxylic acids. Ethanol in wine is oxidized by oxygen in the air, converting the primary alcohol to acetaldehyde and then to acetic acid, the carboxylic acid in vinegar. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
Chemistry Link to Health: Alpha Hydroxy Acids Alpha hydroxy acids (AHAs) • are found in fruits, milk, and sugar cane. • are naturally occurring carboxylic acids with a hydroxyl group on the carbon atom that is adjacent to the carboxyl group. Dermatologists have been using products with high concentrations (20– 70%) of AHAs to remove acne scars and in skin peels to reduce irregular pigmentation and age spots. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
Chemistry Link to Health: Alpha Hydroxy Acids Several different alpha hydroxy acids may be found in skin care products singly or in combination. General, Organic, and Biological Chemistry: Structures of Life, 5/e Karen C. Timberlake © 2016 Pearson Education, Inc.
