Lecture: Pipelining Hazards • Topics: Basic pipelining implementation, hazards, bypassing • HW 2 posted, due Wednesday 1

Problem 3 • For the following code sequence, show the instrs flow through the pipeline: ADD R 1, R 2, R 3 BEZ R 4, [R 5] LD [R 6] R 7 ST [R 8] R 9 2

Pipeline Summary RR ADD R 1, R 2, R 3 BEZ R 1, [R 5] ALU Rd R 1, R 2 R 1+R 2 Rd R 1, R 5 -Compare, Set PC DM RW -- Wr R 3 -- -- LD 8[R 3] R 6 Rd R 3+8 Get data ST 8[R 3] R 6 Rd R 3, R 6 R 3+8 Wr data Wr R 6 -- 3

Problem 4 • Convert this C code into equivalent RISC assembly instructions a[i] = b[i] + c[i]; 4

Problem 4 • Convert this C code into equivalent RISC assembly instructions a[i] = b[i] + c[i]; LD [R 1], R 2 # R 1 has the address for variable i MUL R 2, 8, R 3 # the offset from the start of the array ADD R 4, R 3, R 7 # R 4 has the address of a[0] ADD R 5, R 3, R 8 # R 5 has the address of b[0] ADD R 6, R 3, R 9 # R 6 has the address of c[0] LD [R 8], R 10 # Bringing b[i] LD [R 9], R 11 # Bringing c[i] ADD R 10, R 11, R 12 # Sum is in R 12 5 ST [R 7], R 12 # Putting result in a[i]

A 5 -Stage Pipeline Source: H&P textbook 6

Hazards • Structural hazards: different instructions in different stages (or the same stage) conflicting for the same resource • Data hazards: an instruction cannot continue because it needs a value that has not yet been generated by an earlier instruction • Control hazard: fetch cannot continue because it does not know the outcome of an earlier branch – special case of a data hazard – separate category because they are treated in different ways 7

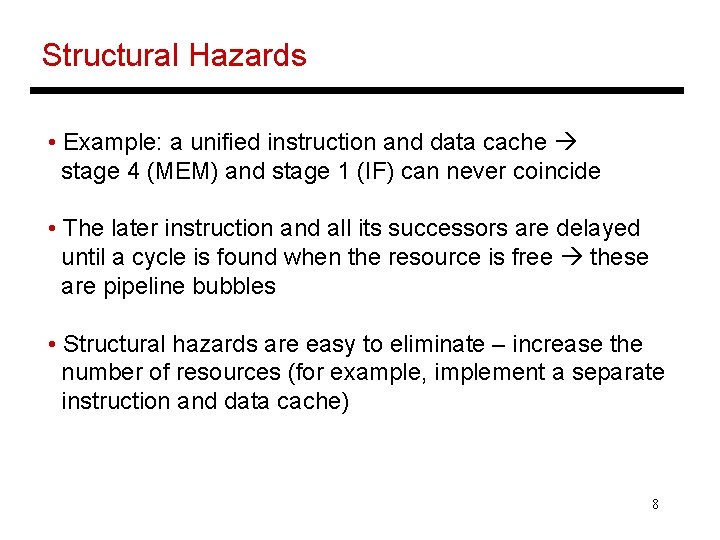

Structural Hazards • Example: a unified instruction and data cache stage 4 (MEM) and stage 1 (IF) can never coincide • The later instruction and all its successors are delayed until a cycle is found when the resource is free these are pipeline bubbles • Structural hazards are easy to eliminate – increase the number of resources (for example, implement a separate instruction and data cache) 8

A 5 -Stage Pipeline Source: H&P textbook 9

Problem 5 • Show the instruction occupying each stage in each cycle (no bypassing) if I 1 is R 1+R 2 R 3 and I 2 is R 3+R 4 R 5 and I 3 is R 7+R 8 R 9 CYC-1 CYC-2 CYC-3 CYC-4 CYC-5 CYC-6 CYC-7 CYC-8 IF IF D/R D/R ALU ALU DM DM RW RW 10

Problem 5 • Show the instruction occupying each stage in each cycle (no bypassing) if I 1 is R 1+R 2 R 3 and I 2 is R 3+R 4 R 5 and I 3 is R 7+R 8 R 9 CYC-1 CYC-2 CYC-3 CYC-4 CYC-5 CYC-6 CYC-7 CYC-8 IF I 1 IF I 2 IF I 3 IF I 4 IF I 5 IF D/R I 1 D/R I 2 D/R I 3 D/R I 4 D/R ALU ALU I 1 ALU ALU I 2 ALU I 3 ALU DM DM I 1 DM DM DM I 2 DM I 3 RW RW RW I 1 RW RW RW I 2 11

Problem 6 • Show the instruction occupying each stage in each cycle (with bypassing) if I 1 is R 1+R 2 R 3 and I 2 is R 3+R 4 R 5 and I 3 is R 3+R 8 R 9. Identify the input latch for each input operand. CYC-1 CYC-2 CYC-3 CYC-4 CYC-5 CYC-6 CYC-7 CYC-8 IF IF D/R D/R ALU ALU DM DM RW RW 12

Problem 6 • Show the instruction occupying each stage in each cycle (with bypassing) if I 1 is R 1+R 2 R 3 and I 2 is R 3+R 4 R 5 and I 3 is R 3+R 8 R 9. Identify the input latch for each input operand. CYC-1 CYC-2 CYC-3 CYC-4 CYC-5 CYC-6 CYC-7 CYC-8 IF I 1 IF I 2 IF I 3 IF I 4 IF I 5 IF IF IF D/R I 1 D/R I 2 D/R I 3 D/R I 4 D/R D/R L 3 L 4 L 3 L 5 L 3 ALU I 3 ALU ALU ALU I 1 ALU I 2 DM DM I 1 DM I 2 DM I 3 DM DM RW RW RW I 1 RW I 2 RW I 3 RW

Pipeline Implementation • Signals for the muxes have to be generated – some of this can happen during ID • Need look-up tables to identify situations that merit bypassing/stalling – the number of inputs to the muxes goes up 14

Example add R 1, R 2, R 3 lw R 4, 8(R 1) Source: H&P textbook 15

Example lw R 1, 8(R 2) lw R 4, 8(R 1) Source: H&P textbook 16

Example lw R 1, 8(R 2) sw R 1, 8(R 3) Source: H&P textbook 17

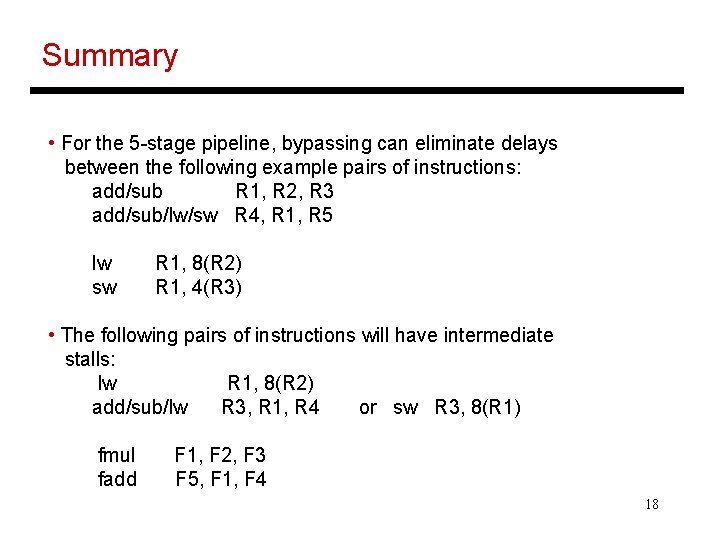

Summary • For the 5 -stage pipeline, bypassing can eliminate delays between the following example pairs of instructions: add/sub R 1, R 2, R 3 add/sub/lw/sw R 4, R 1, R 5 lw sw R 1, 8(R 2) R 1, 4(R 3) • The following pairs of instructions will have intermediate stalls: lw R 1, 8(R 2) add/sub/lw R 3, R 1, R 4 or sw R 3, 8(R 1) fmul fadd F 1, F 2, F 3 F 5, F 1, F 4 18

Problem 7 • Consider this 8 -stage pipeline IF DE RR AL AL DM DM RW • For the following pairs of instructions, how many stalls will the 2 nd instruction experience (with and without bypassing)? § ADD R 1+R 2 R 3 ADD R 3+R 4 R 5 § LD [R 1] R 2 ADD R 2+R 3 R 4 § LD [R 1] R 2 SD [R 2] R 3 § LD [R 1] R 2 SD [R 3] R 2 19

Problem 7 • Consider this 8 -stage pipeline (RR and RW take a full cycle) IF DE RR AL AL DM DM RW • For the following pairs of instructions, how many stalls will the 2 nd instruction experience (with and without bypassing)? § ADD R 1+R 2 R 3 ADD R 3+R 4 R 5 § LD [R 1] R 2 ADD R 2+R 3 R 4 § LD [R 1] R 2 SD [R 2] R 3 § LD [R 1] R 2 SD [R 3] R 2 without: 5 with: 1 without: 5 with: 3 without: 5 with: 1 20
