Lecture Objectives Plumbing Hydronic distribution systems ChillerBoiler Storage

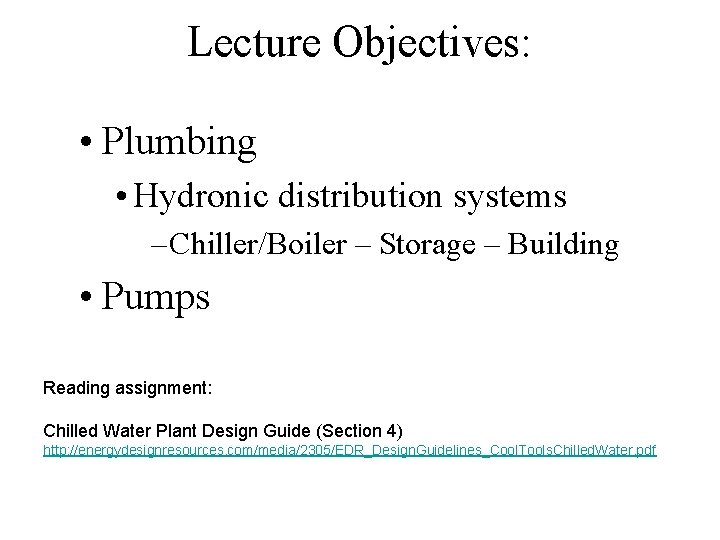

Lecture Objectives: • Plumbing • Hydronic distribution systems – Chiller/Boiler – Storage – Building • Pumps Reading assignment: Chilled Water Plant Design Guide (Section 4) http: //energydesignresources. com/media/2305/EDR_Design. Guidelines_Cool. Tools. Chilled. Water. pdf

Primary/Secondary and Tertiary Pumping (schematics A&B below)

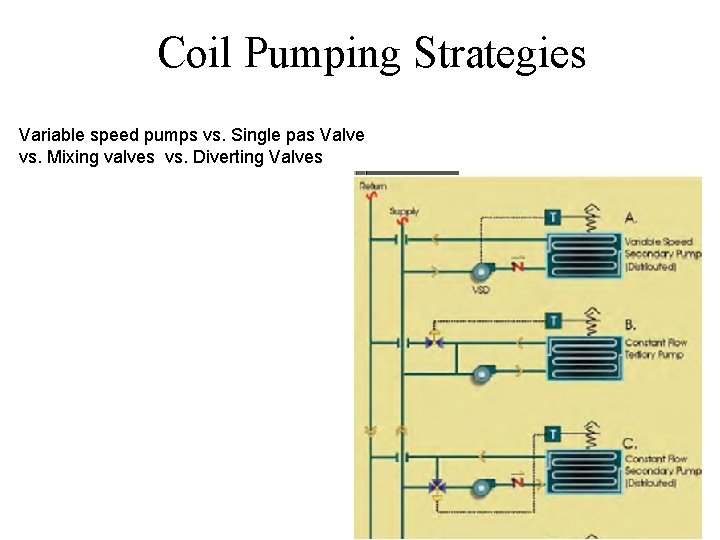

Coil Pumping Strategies Variable speed pumps vs. Single pas Valve vs. Mixing valves vs. Diverting Valves

Impact of Piping Coil How will this affect needed CHW flow? What about the chiller performance?

Plumbing Arrangement in Building’s Hydronic Systems Radiators Baseboard heaters Fan coil systems

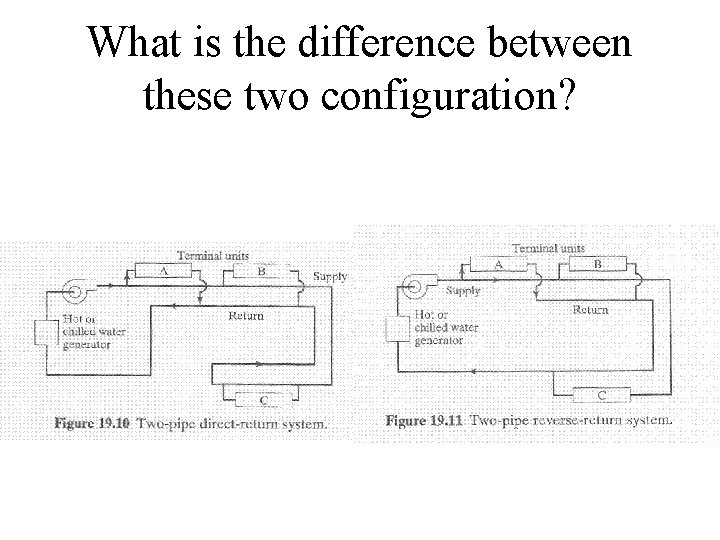

What is the difference between these two configuration?

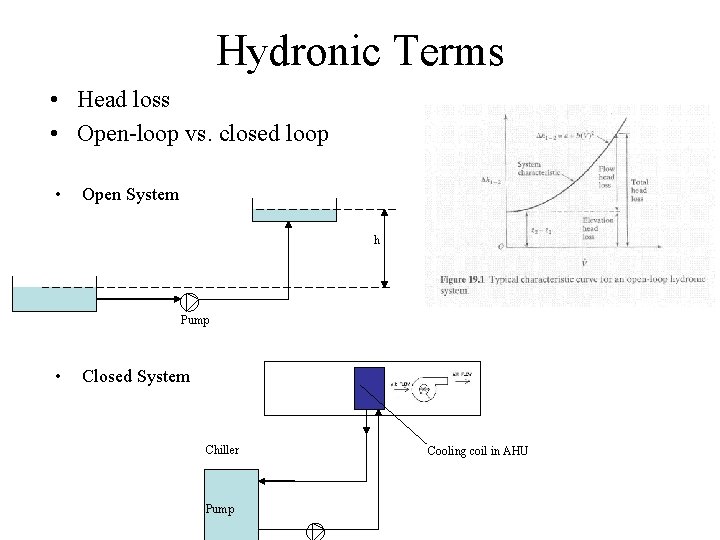

Hydronic Terms • Head loss • Open-loop vs. closed loop • Open System h Pump • Closed System Chiller Pump Cooling coil in AHU

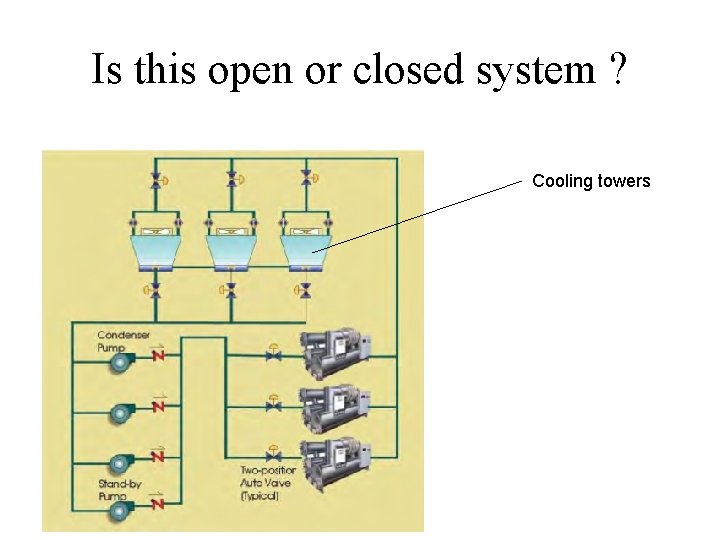

Is this open or closed system ? Cooling towers

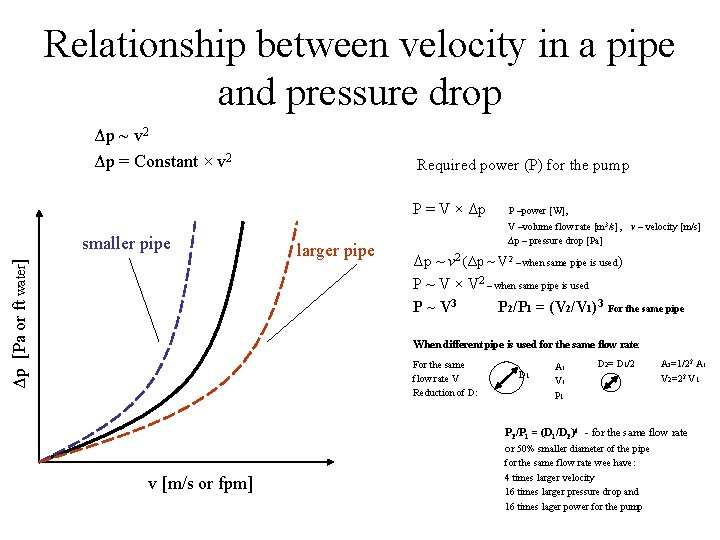

Relationship between velocity in a pipe and pressure drop Δp ~ v 2 Δp = Constant × v 2 Required power (P) for the pump P = V × Δp Δp [Pa or ft water] smaller pipe larger pipe P –power [W], V –volume flow rate [m 3/s], Δp – pressure drop [Pa] v – velocity [m/s] Δp ~ v 2 (Δp ~ V 2 – when same pipe is used) P ~ V × V 2 – when same pipe is used P ~ V 3 P 2/P 1 = (V 2/V 1)3 For the same pipe When different pipe is used for the same flow rate: For the same flow rate V Reduction of D: D 1 A 1 V 1 P 1 D 2= D 1/2 A 2=1/22 A 1 V 2=22 V 1 P 2/P 1 = (D 1/D 2)4 - for the same flow rate or 50% smaller diameter of the pipe v [m/s or fpm] for the same flow rate wee have: 4 times larger velocity 16 times larger pressure drop and 16 times lager power for the pump

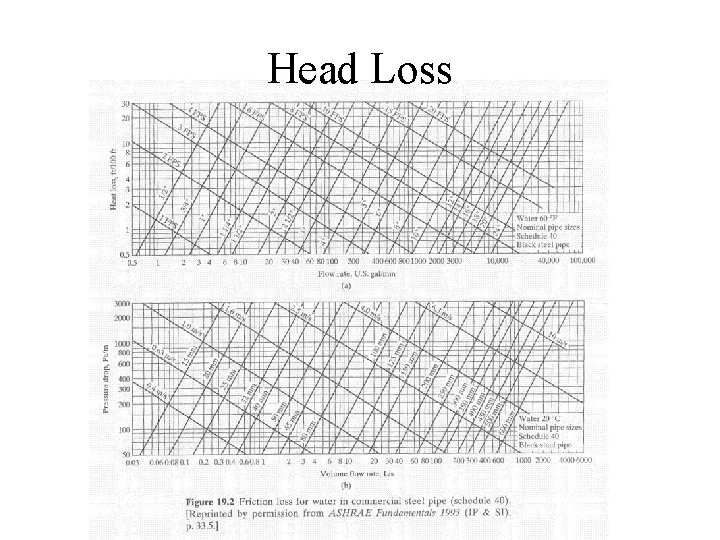

Head Loss

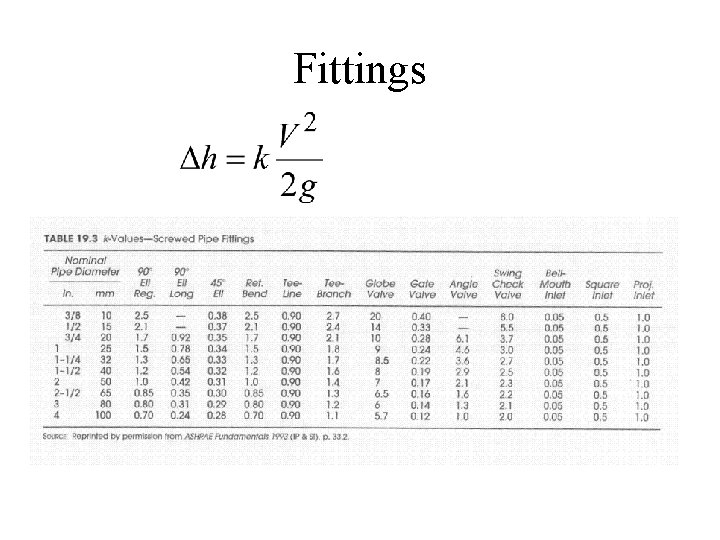

Fittings

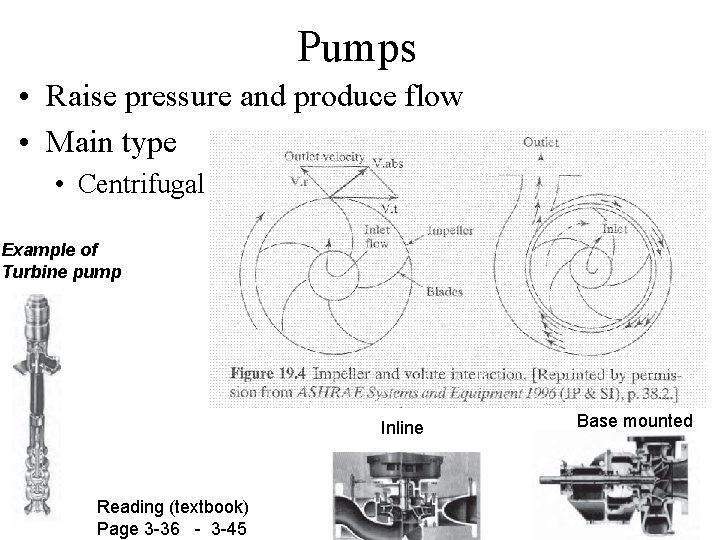

Pumps • Raise pressure and produce flow • Main type • Centrifugal Example of Turbine pump Inline Reading (textbook) Page 3 -36 - 3 -45 Base mounted

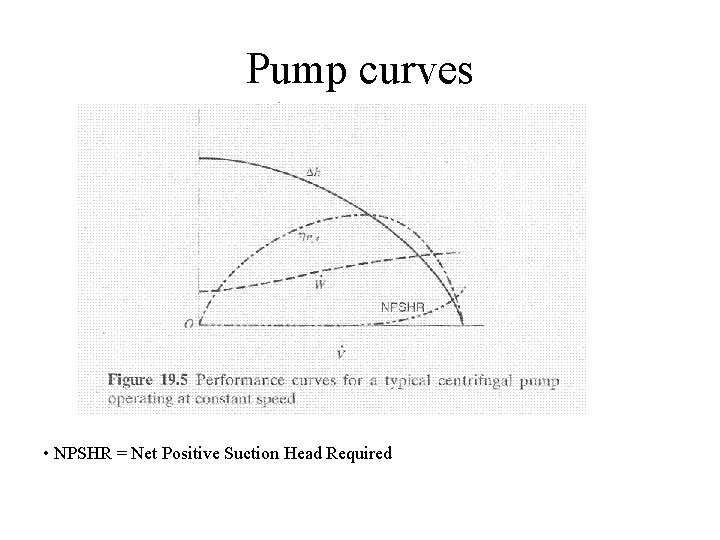

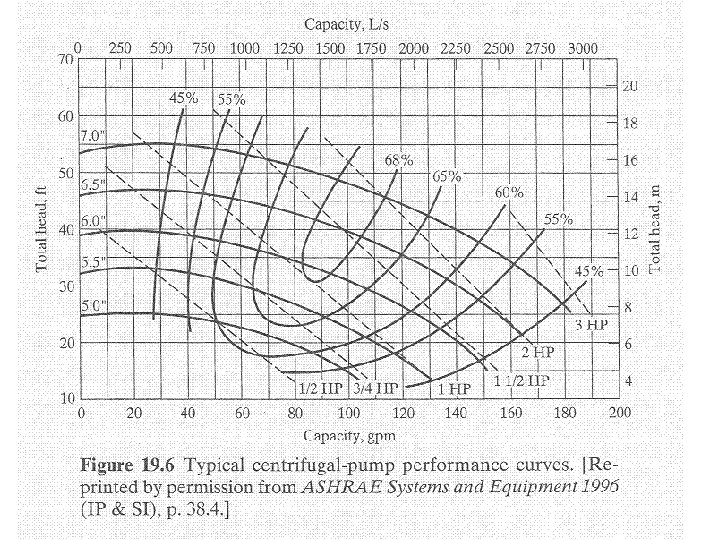

Pump curves • NPSHR = Net Positive Suction Head Required

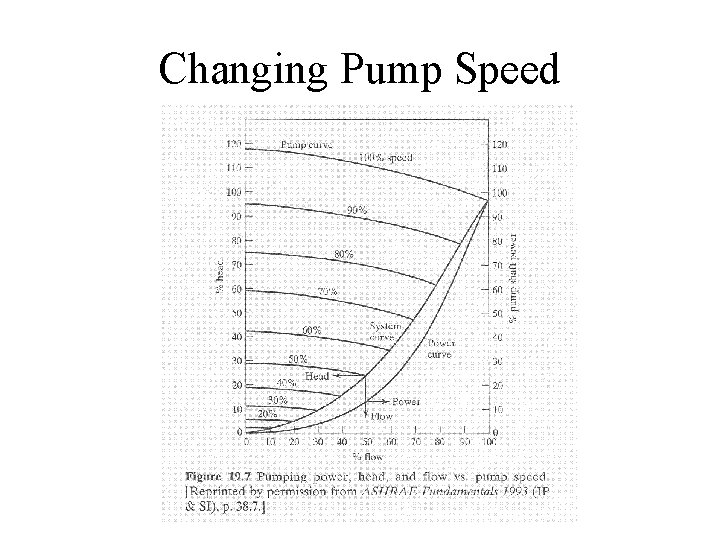

Changing Pump Speed

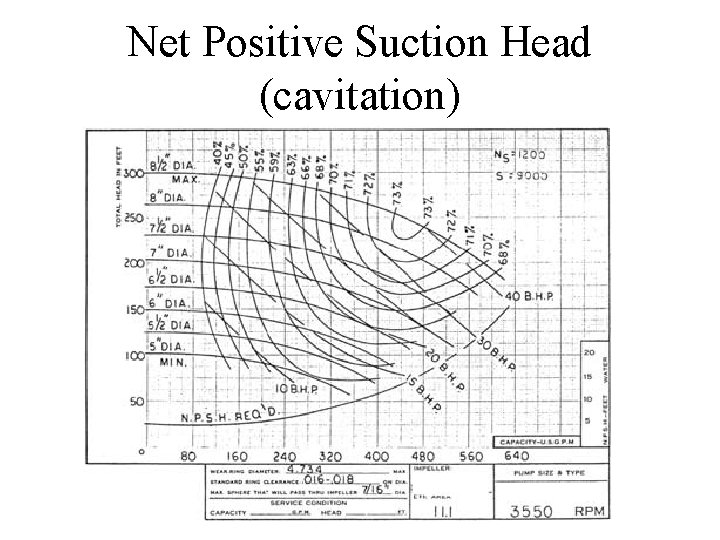

Net Positive Suction Head (cavitation)

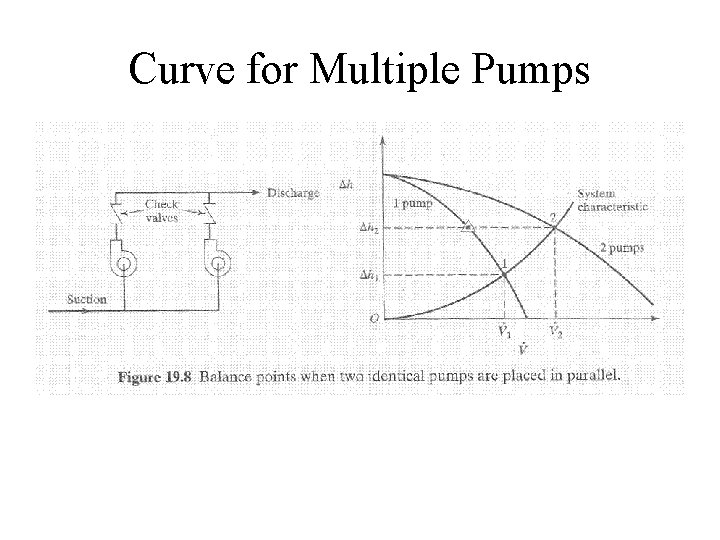

Curve for Multiple Pumps

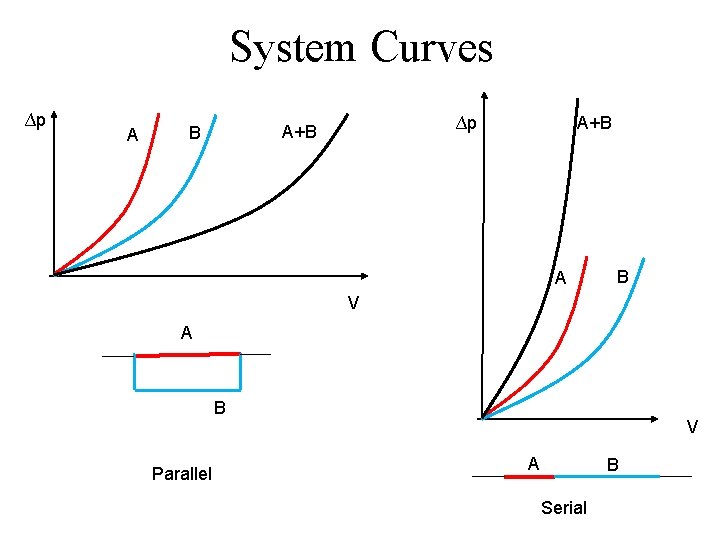

System Curves ∆p A+B B A+B A B V A B Parallel V A B Serial

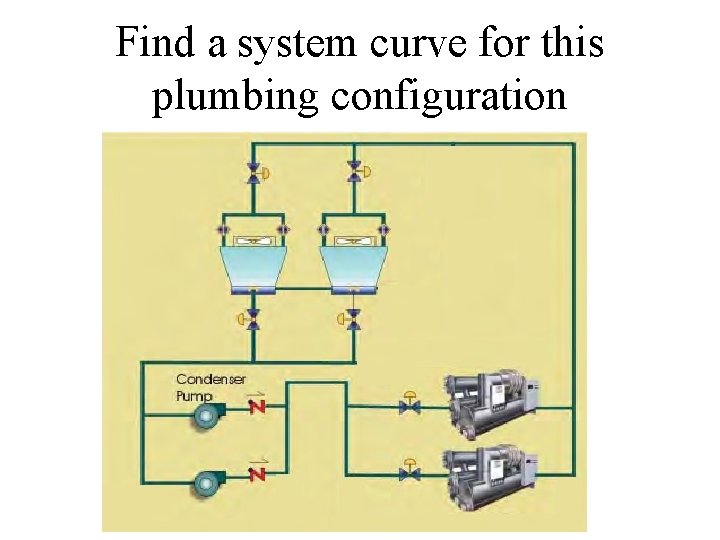

Find a system curve for this plumbing configuration

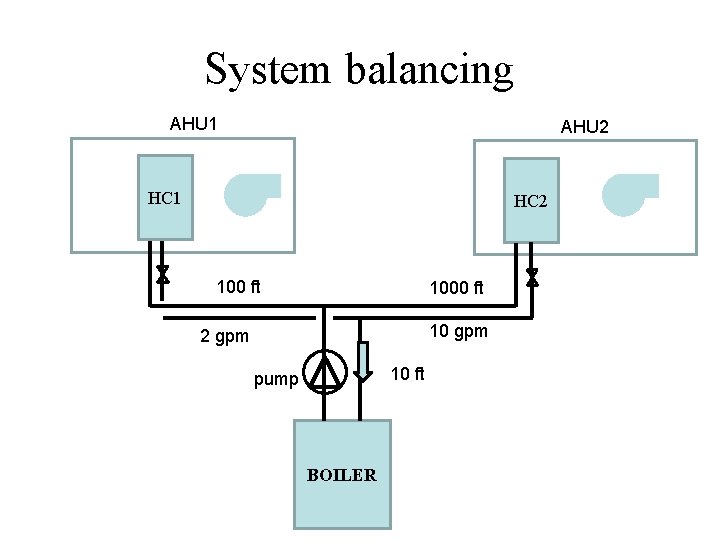

System balancing AHU 1 AHU 2 HC 1 HC 2 100 ft 10 gpm 2 gpm 10 ft pump BOILER

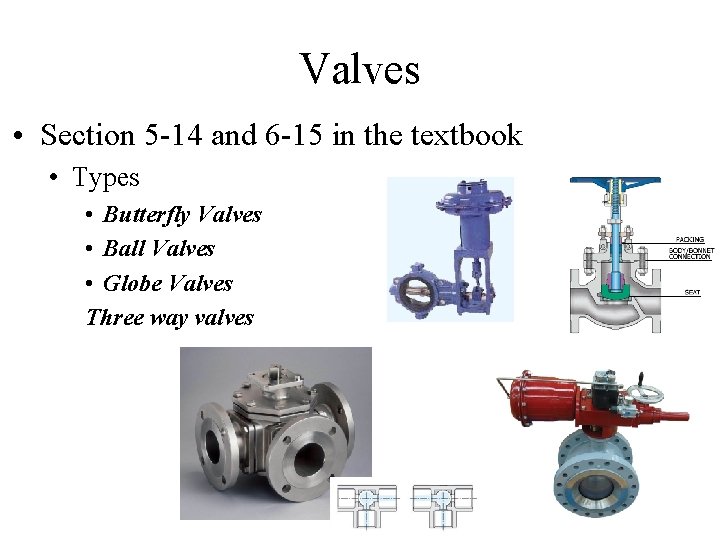

Valves • Section 5 -14 and 6 -15 in the textbook • Types • Butterfly Valves • Ball Valves • Globe Valves Three way valves

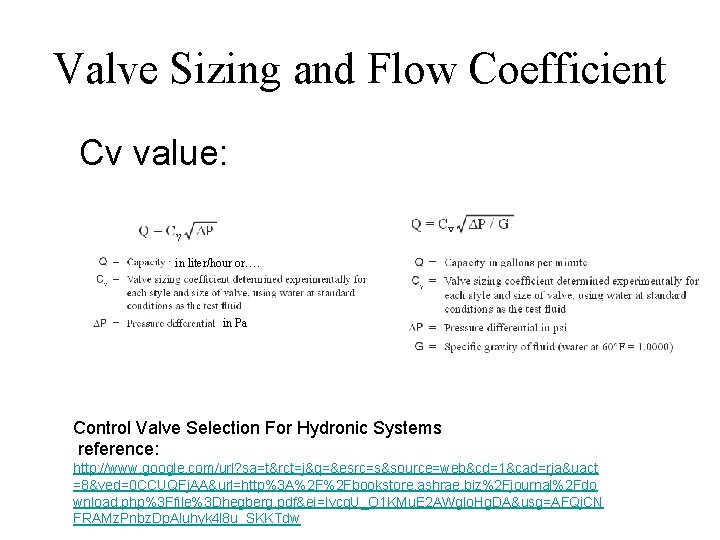

Valve Sizing and Flow Coefficient Cv value: in liter/hour or…. in Pa Control Valve Selection For Hydronic Systems reference: http: //www. google. com/url? sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&uact =8&ved=0 CCUQFj. AA&url=http%3 A%2 F%2 Fbookstore. ashrae. biz%2 Fjournal%2 Fdo wnload. php%3 Ffile%3 Dhegberg. pdf&ei=Ivcq. U_O 1 KMu. E 2 AWglo. Hg. DA&usg=AFQj. CN FRAMz. Pnbz. Dp. Aluhyk 4 l 8 u_SKKTdw

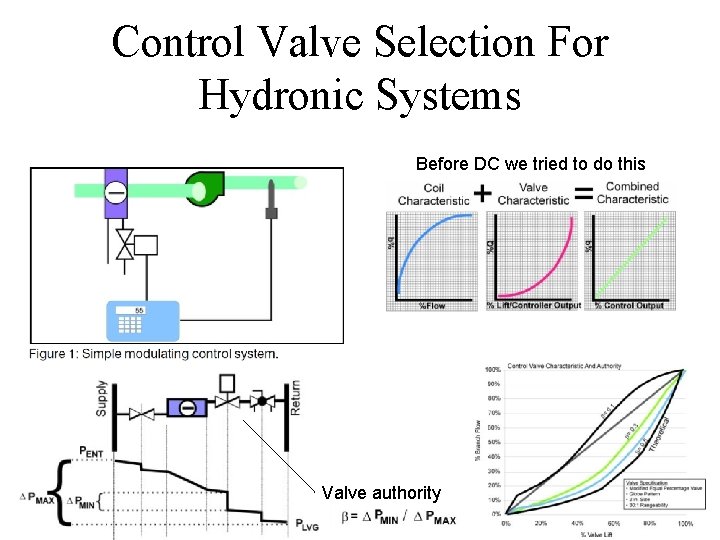

Control Valve Selection For Hydronic Systems Before DC we tried to do this Valve authority
