Lecture Objectives Finish with thermal storage systems Plumbing

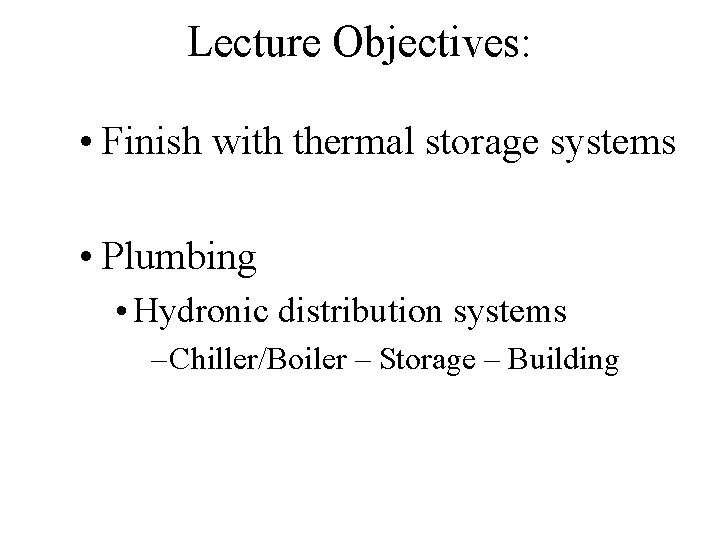

Lecture Objectives: • Finish with thermal storage systems • Plumbing • Hydronic distribution systems – Chiller/Boiler – Storage – Building

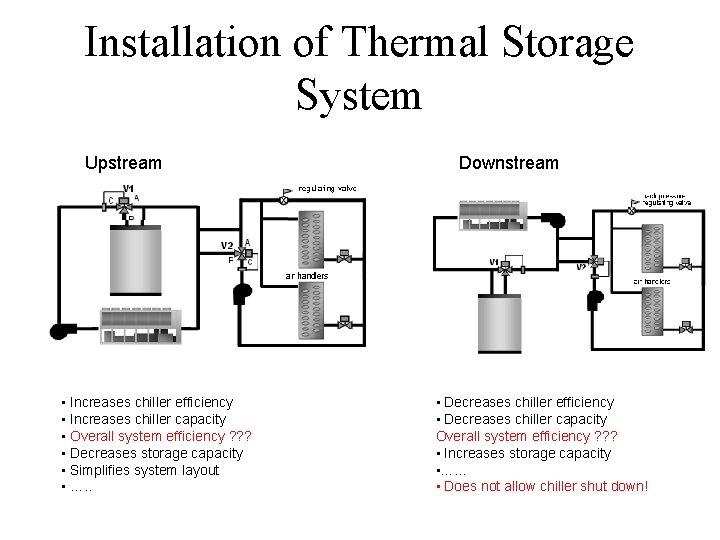

Installation of Thermal Storage System Upstream • Increases chiller efficiency • Increases chiller capacity • Overall system efficiency ? ? ? • Decreases storage capacity • Simplifies system layout • …. . Downstream • Decreases chiller efficiency • Decreases chiller capacity Overall system efficiency ? ? ? • Increases storage capacity • …… • Does not allow chiller shut down!

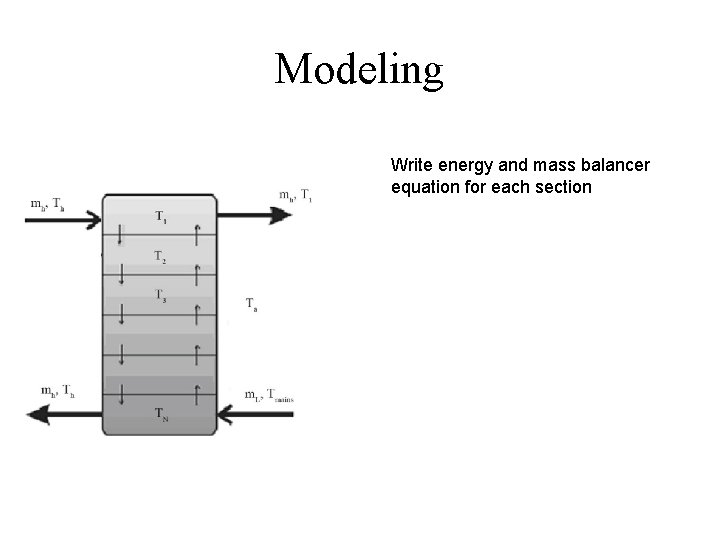

Modeling Write energy and mass balancer equation for each section

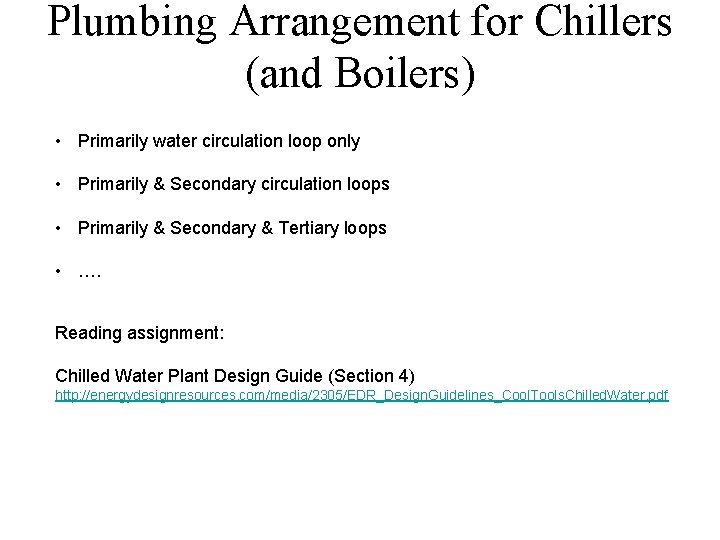

Plumbing Arrangement for Chillers (and Boilers) • Primarily water circulation loop only • Primarily & Secondary circulation loops • Primarily & Secondary & Tertiary loops • …. Reading assignment: Chilled Water Plant Design Guide (Section 4) http: //energydesignresources. com/media/2305/EDR_Design. Guidelines_Cool. Tools. Chilled. Water. pdf

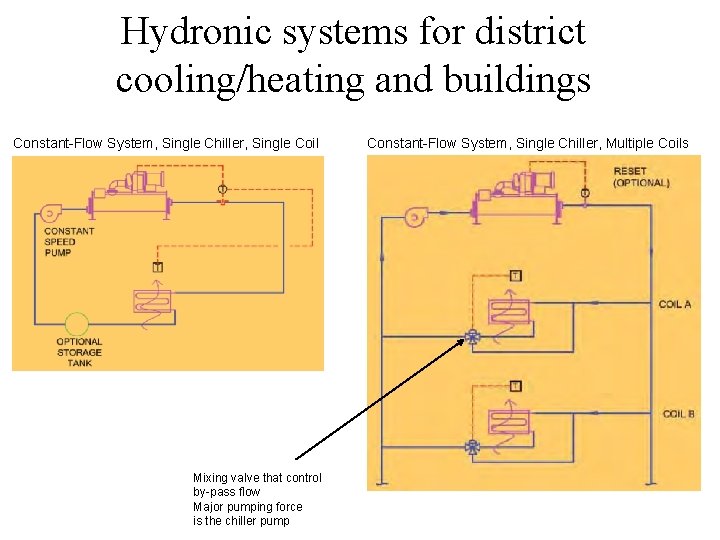

Hydronic systems for district cooling/heating and buildings Constant-Flow System, Single Chiller, Single Coil Mixing valve that control by-pass flow Major pumping force is the chiller pump Constant-Flow System, Single Chiller, Multiple Coils

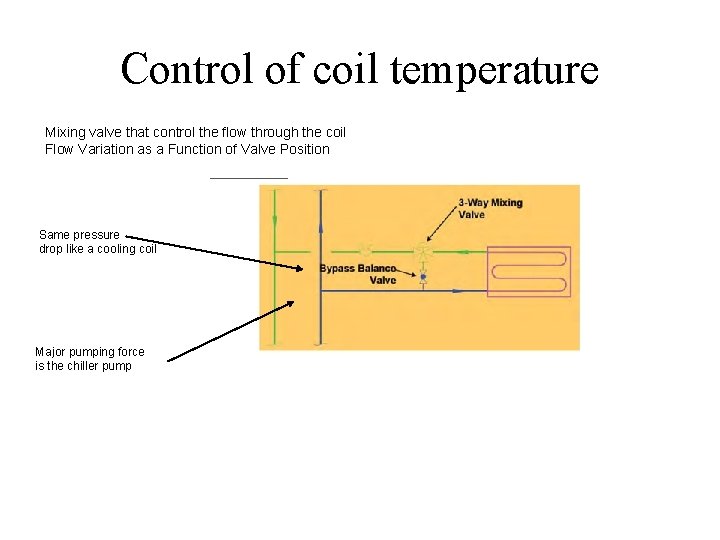

Control of coil temperature Mixing valve that control the flow through the coil Flow Variation as a Function of Valve Position Same pressure drop like a cooling coil Major pumping force is the chiller pump

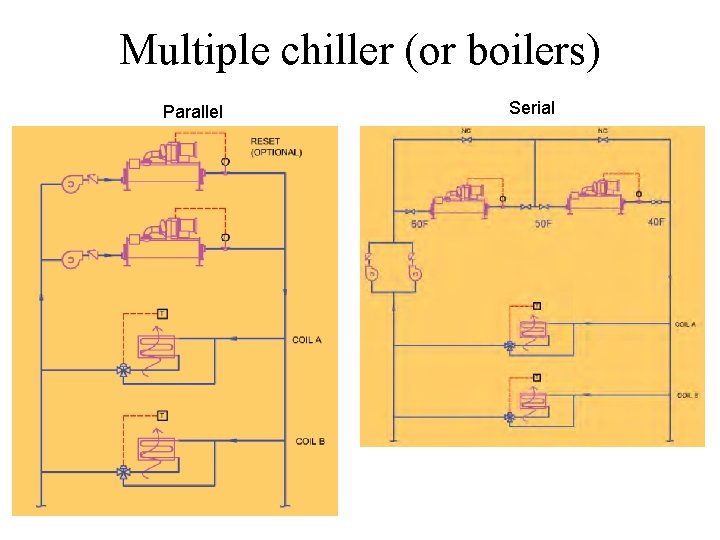

Multiple chiller (or boilers) Parallel Serial

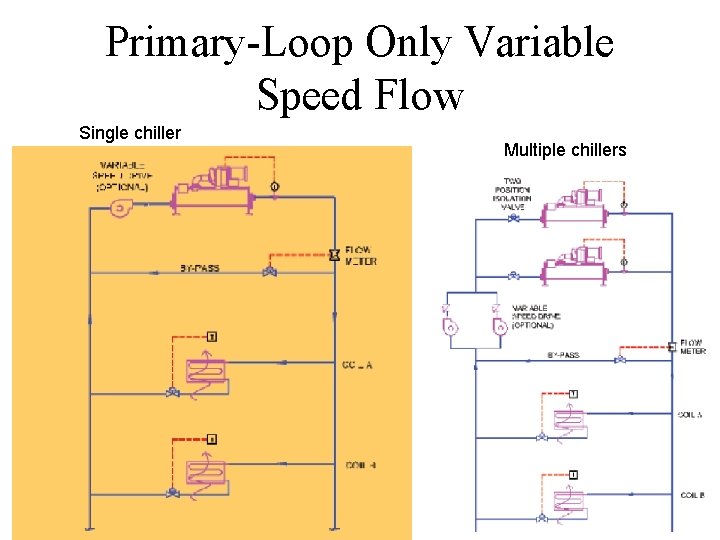

Primary-Loop Only Variable Speed Flow Single chiller Multiple chillers

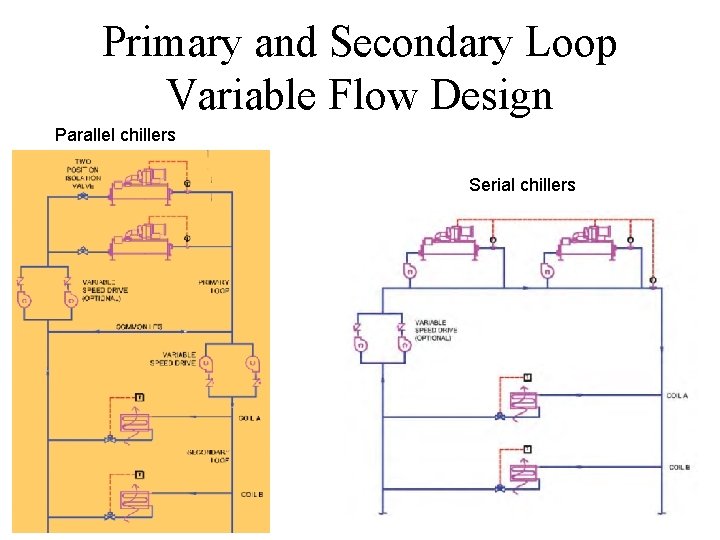

Primary and Secondary Loop Variable Flow Design Parallel chillers Serial chillers

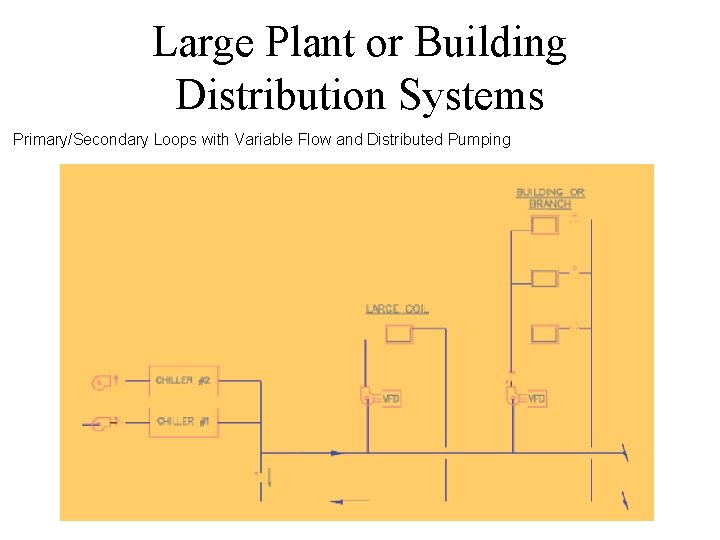

Large Plant or Building Distribution Systems Primary/Secondary Loops with Variable Flow and Distributed Pumping

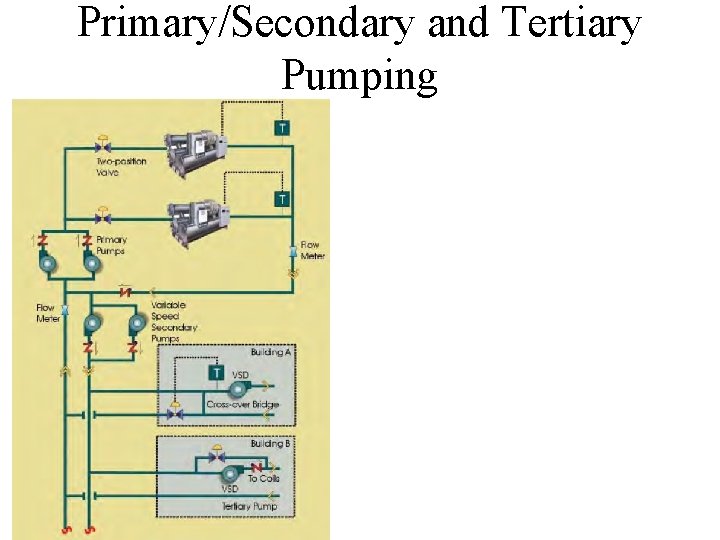

Primary/Secondary and Tertiary Pumping

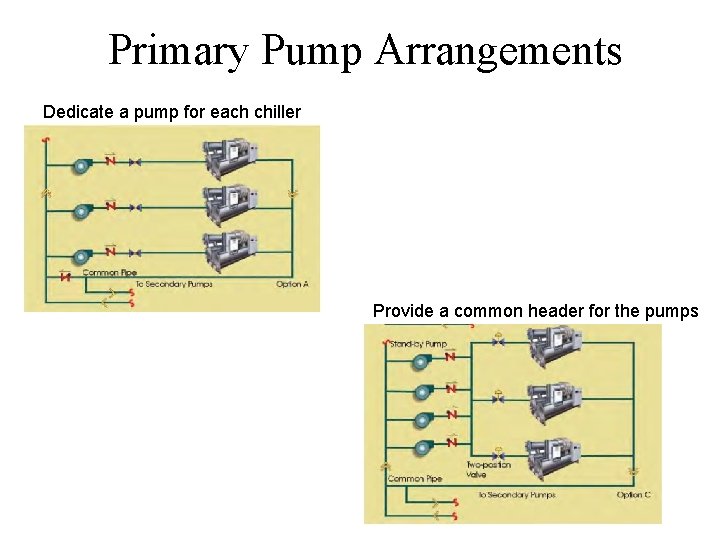

Primary Pump Arrangements Dedicate a pump for each chiller Provide a common header for the pumps

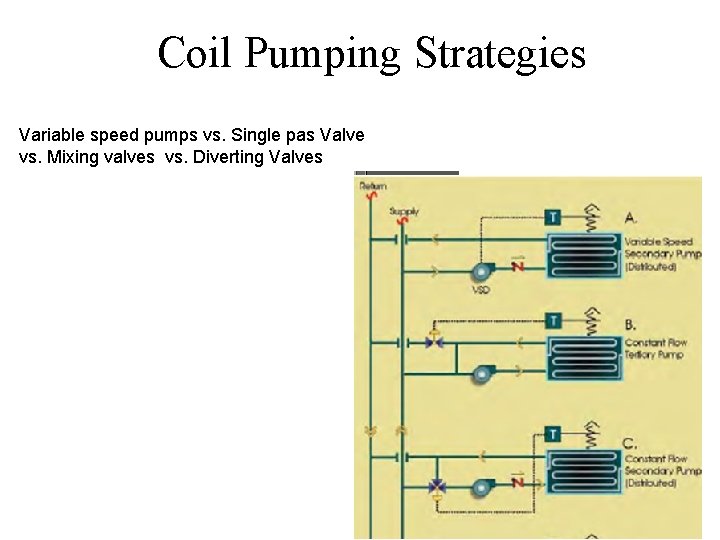

Coil Pumping Strategies Variable speed pumps vs. Single pas Valve vs. Mixing valves vs. Diverting Valves

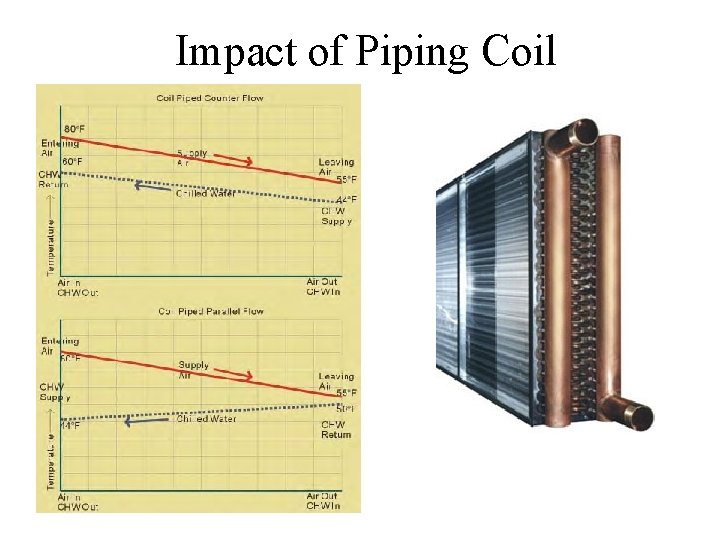

Impact of Piping Coil

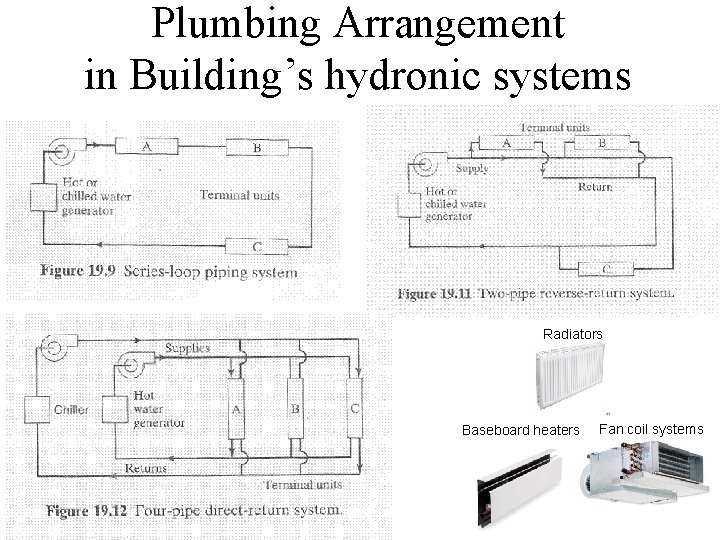

Plumbing Arrangement in Building’s hydronic systems Radiators Baseboard heaters Fan coil systems

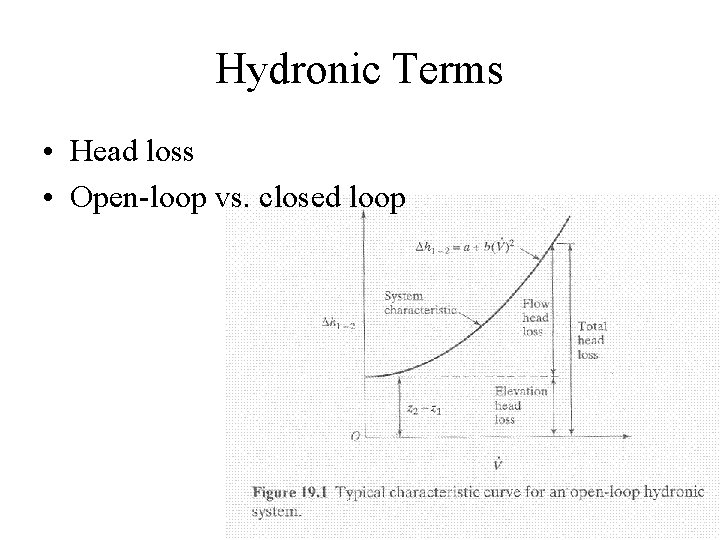

Hydronic Terms • Head loss • Open-loop vs. closed loop

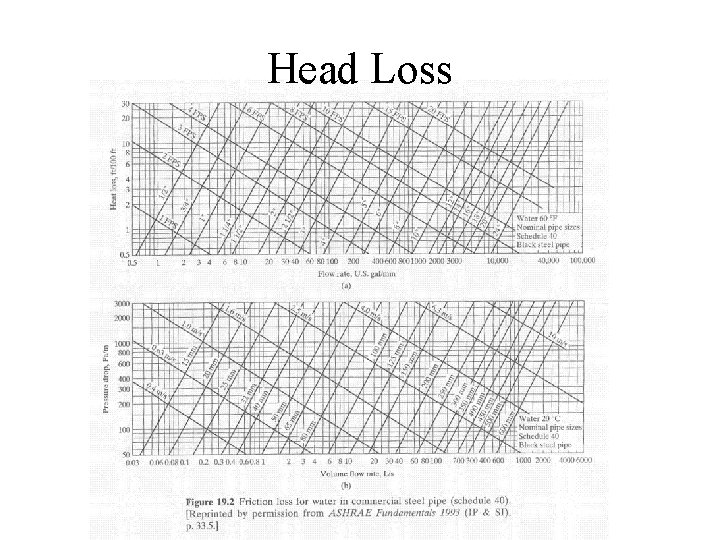

Head Loss

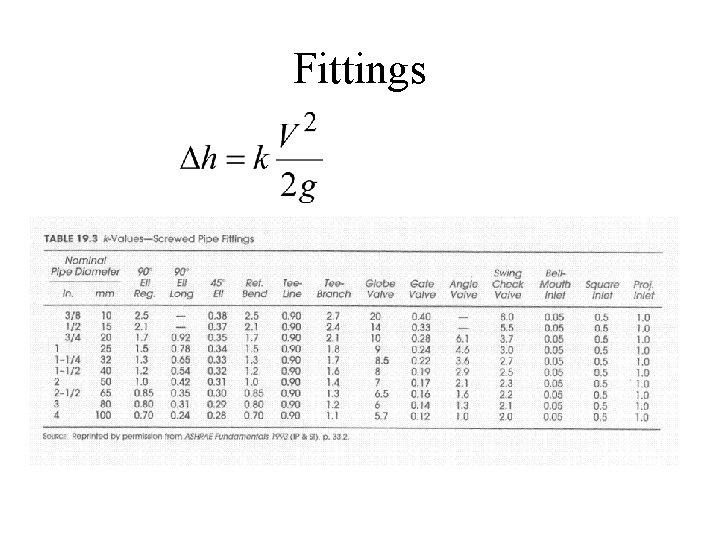

Fittings

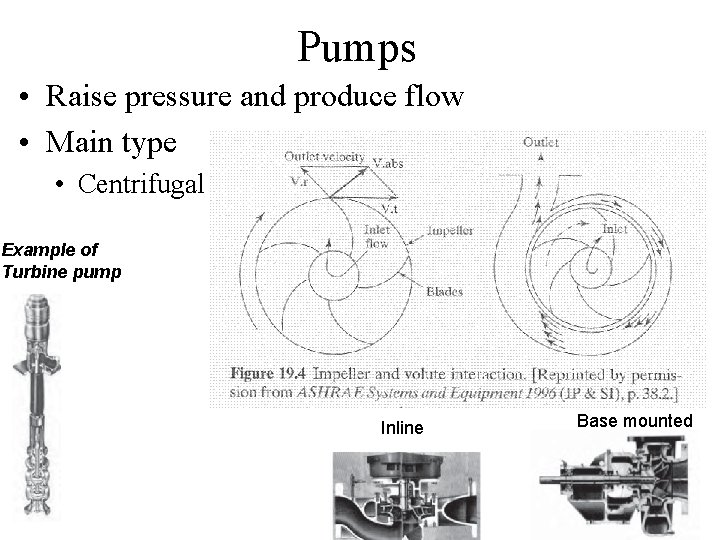

Pumps • Raise pressure and produce flow • Main type • Centrifugal Example of Turbine pump Inline Base mounted

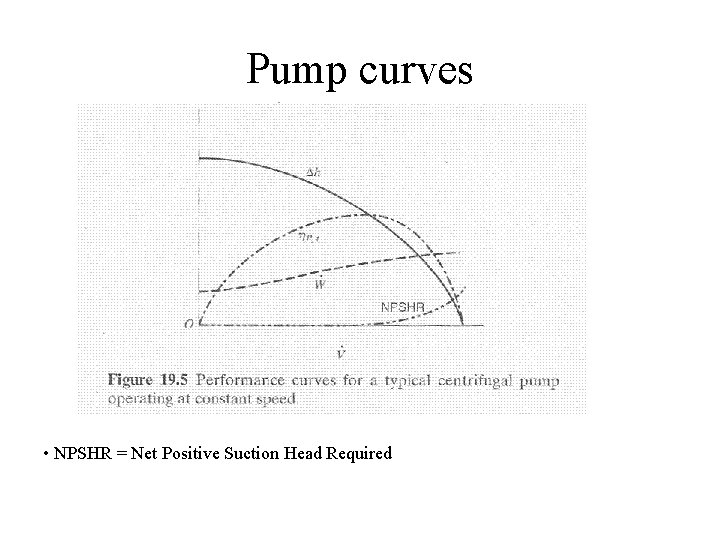

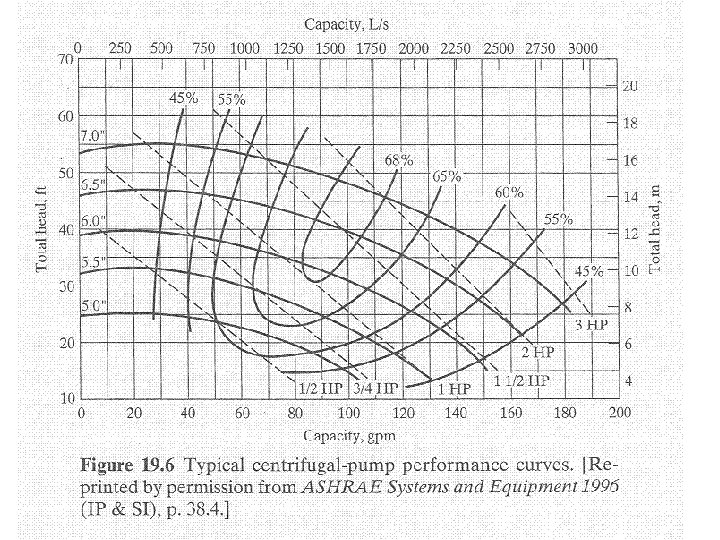

Pump curves • NPSHR = Net Positive Suction Head Required

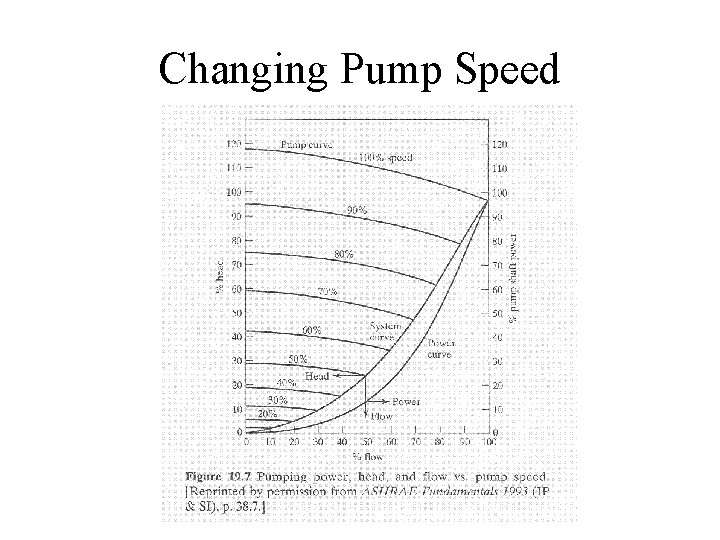

Changing Pump Speed

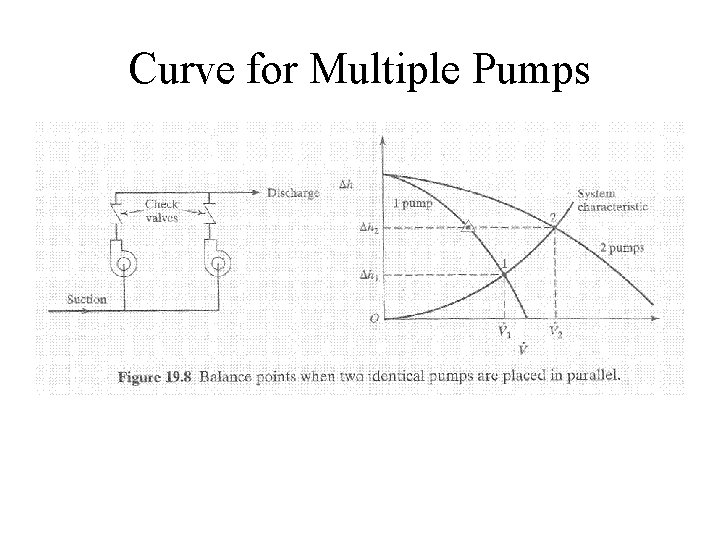

Curve for Multiple Pumps

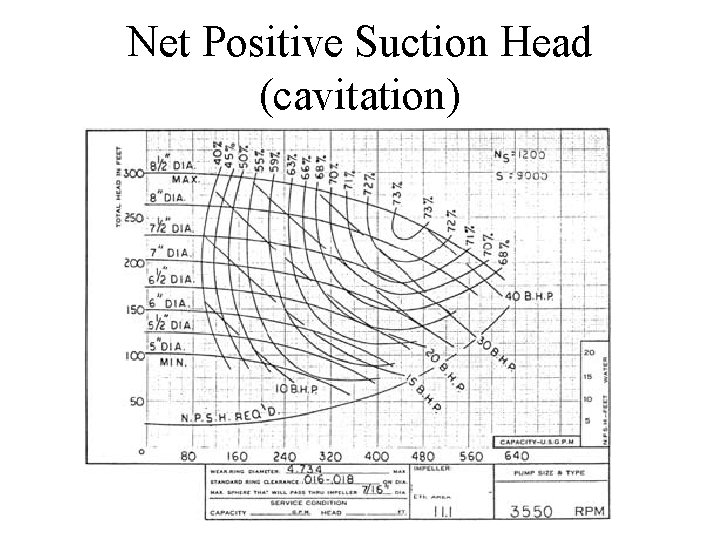

Net Positive Suction Head (cavitation)
