Lecture Objectives Finish cooling heat pump example Review

Lecture Objectives: • Finish cooling / heat pump example • Review Psychrometrics • Swimming pool example

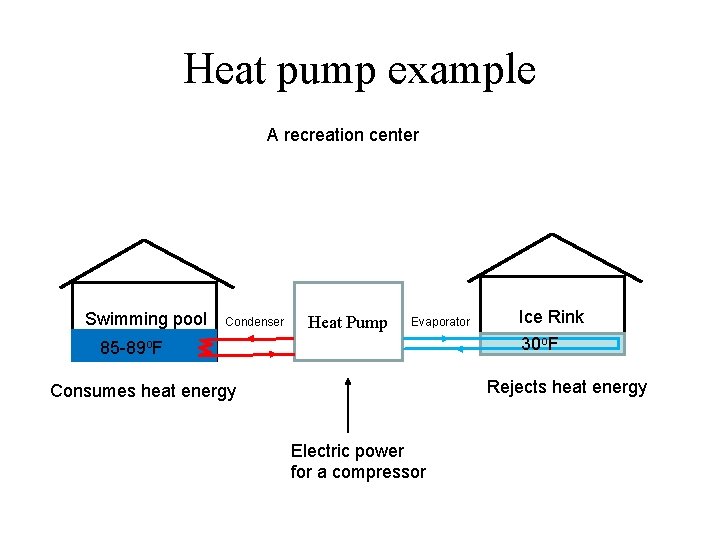

Heat pump example A recreation center Swimming pool Condenser Heat Pump Evaporator Ice Rink 30 o. F 85 -89 o. F Rejects heat energy Consumes heat energy Electric power for a compressor

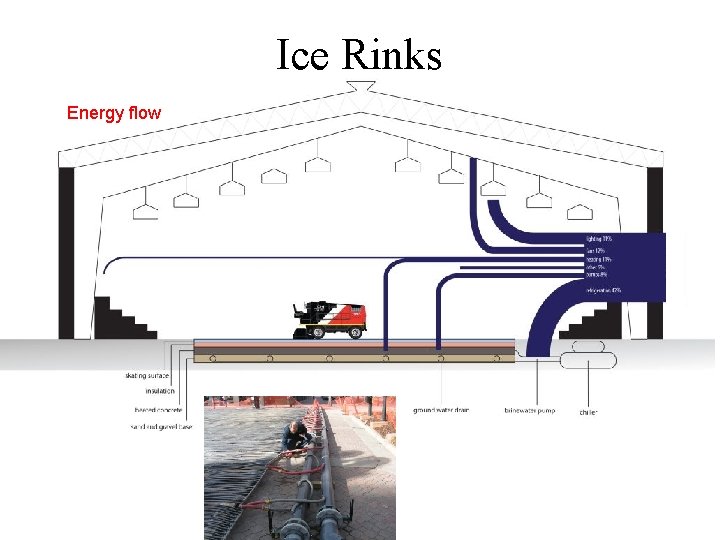

Ice Rinks Energy flow

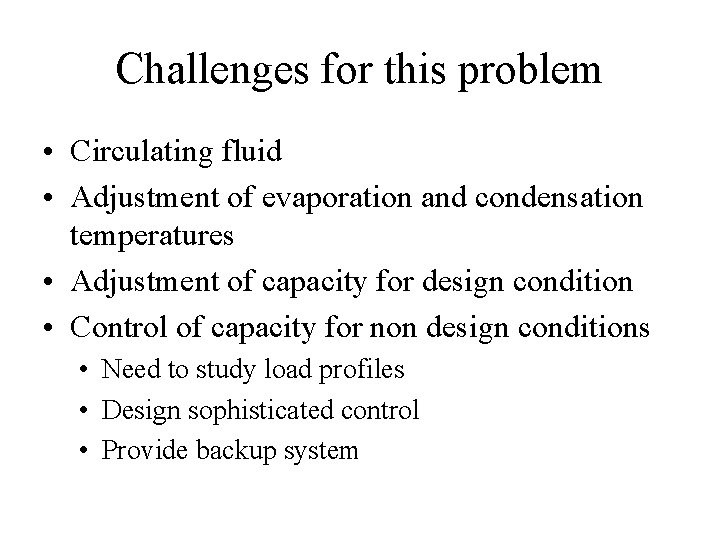

Challenges for this problem • Circulating fluid • Adjustment of evaporation and condensation temperatures • Adjustment of capacity for design condition • Control of capacity for non design conditions • Need to study load profiles • Design sophisticated control • Provide backup system

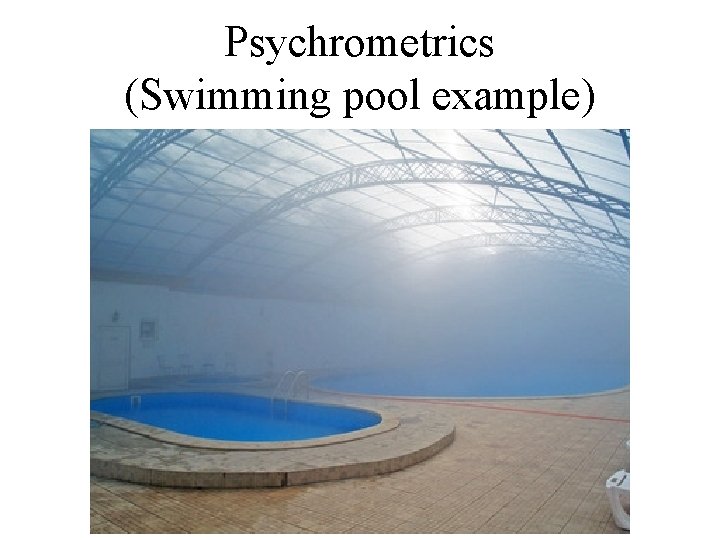

Psychrometrics (Swimming pool example)

High humidity and low temperature

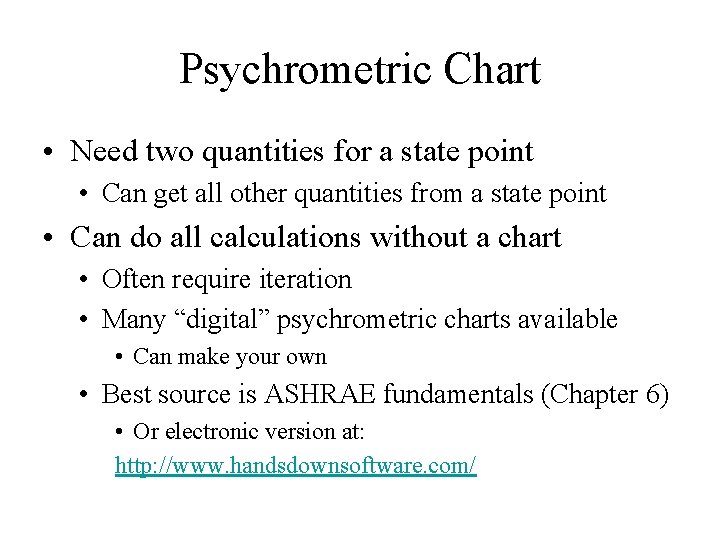

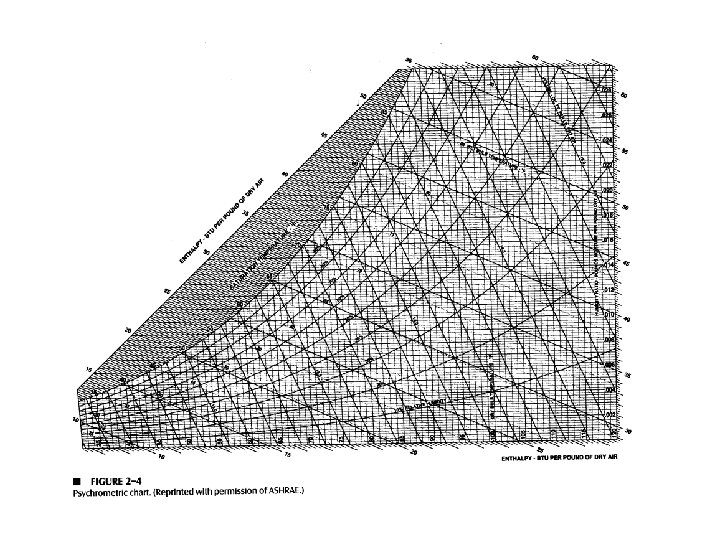

Psychrometric Chart • Need two quantities for a state point • Can get all other quantities from a state point • Can do all calculations without a chart • Often require iteration • Many “digital” psychrometric charts available • Can make your own • Best source is ASHRAE fundamentals (Chapter 6) • Or electronic version at: http: //www. handsdownsoftware. com/

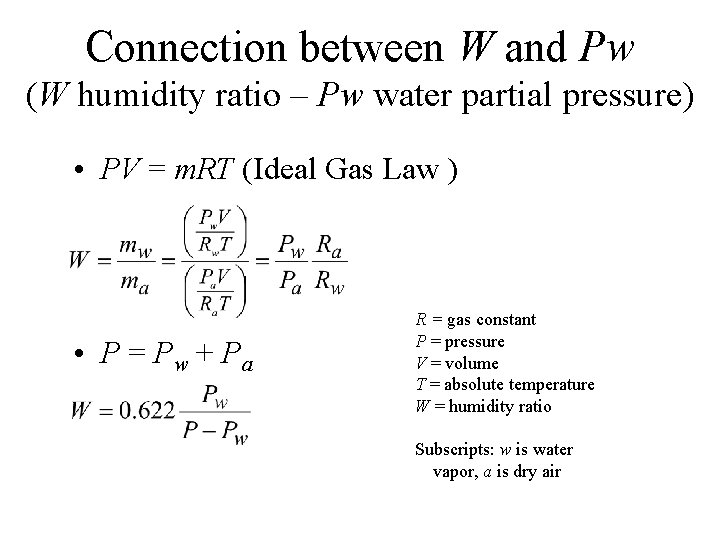

Connection between W and Pw (W humidity ratio – Pw water partial pressure) • PV = m. RT (Ideal Gas Law ) • P = Pw + Pa R = gas constant P = pressure V = volume T = absolute temperature W = humidity ratio Subscripts: w is water vapor, a is dry air

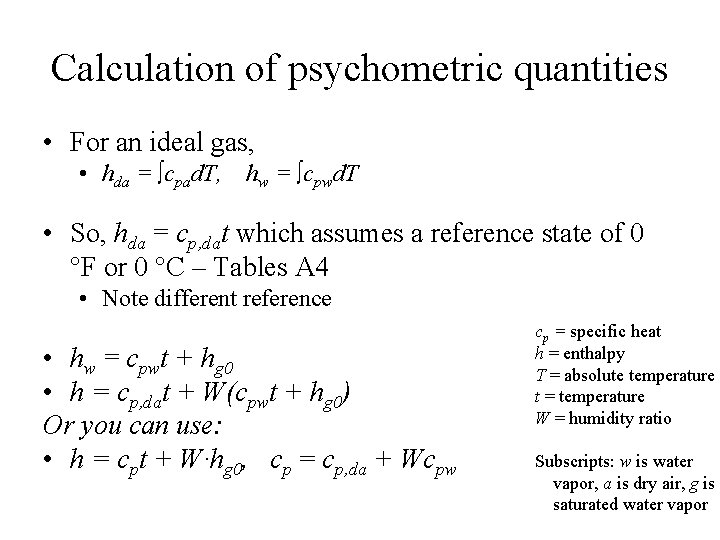

Calculation of psychometric quantities • For an ideal gas, • hda = ∫cpad. T, hw = ∫cpwd. T • So, hda = cp, dat which assumes a reference state of 0 °F or 0 °C – Tables A 4 • Note different reference • hw = cpwt + hg 0 • h = cp, dat + W(cpwt + hg 0) Or you can use: • h = cpt + W∙hg 0, cp = cp, da + Wcpw cp = specific heat h = enthalpy T = absolute temperature t = temperature W = humidity ratio Subscripts: w is water vapor, a is dry air, g is saturated water vapor

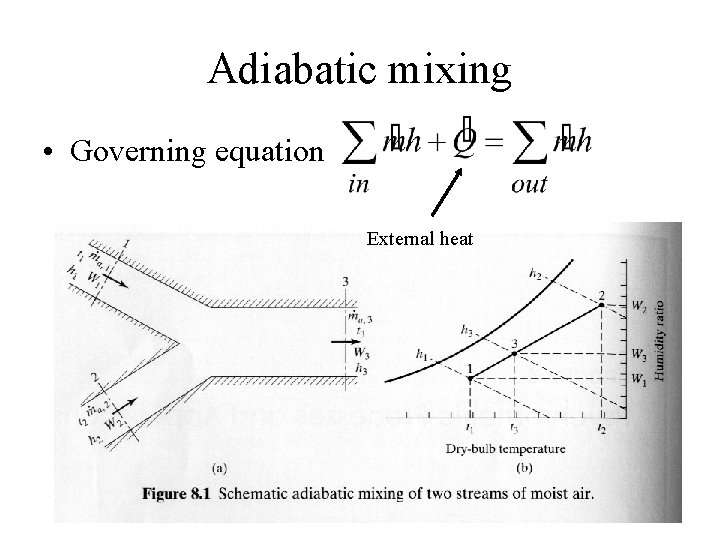

Adiabatic mixing • Governing equation External heat

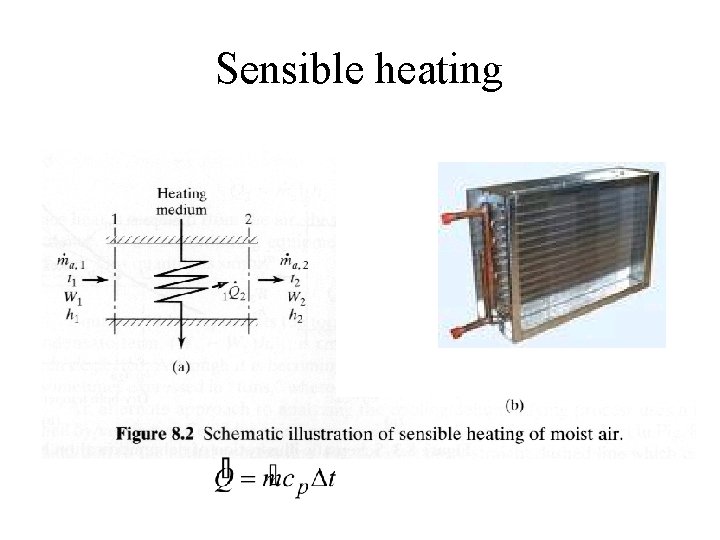

Sensible heating

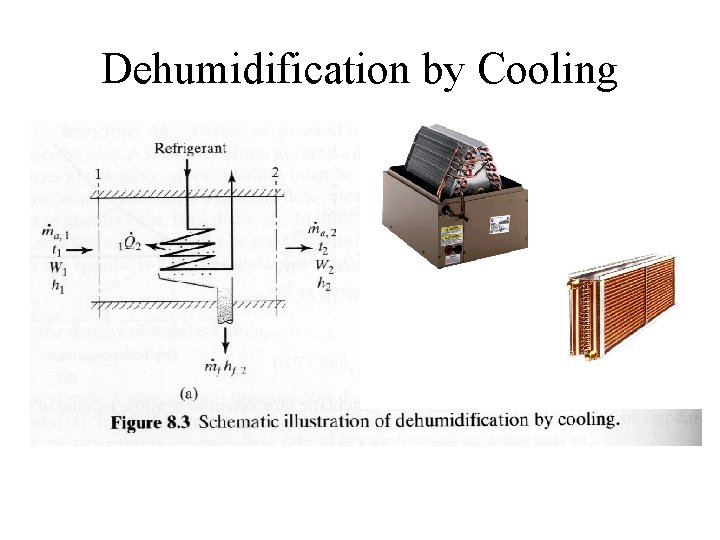

Dehumidification by Cooling

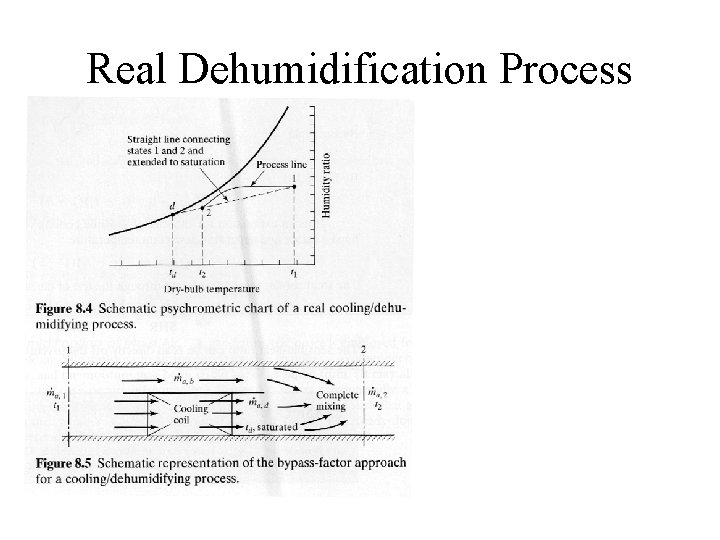

Real Dehumidification Process

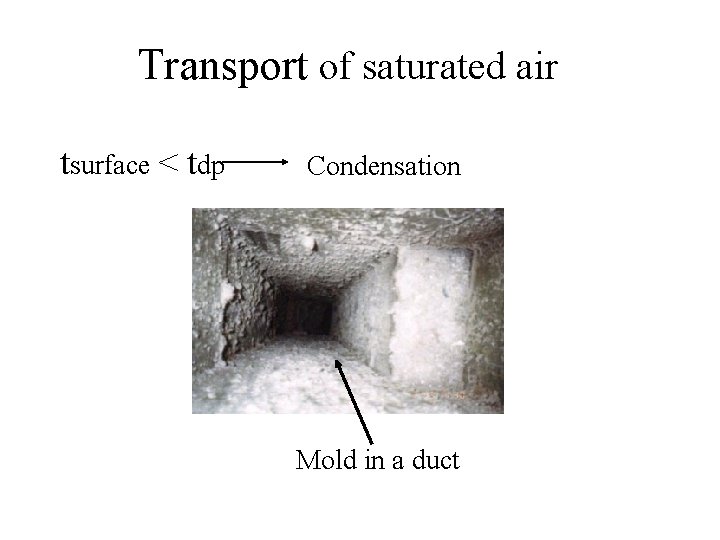

Transport of saturated air tsurface < tdp Condensation Mold in a duct

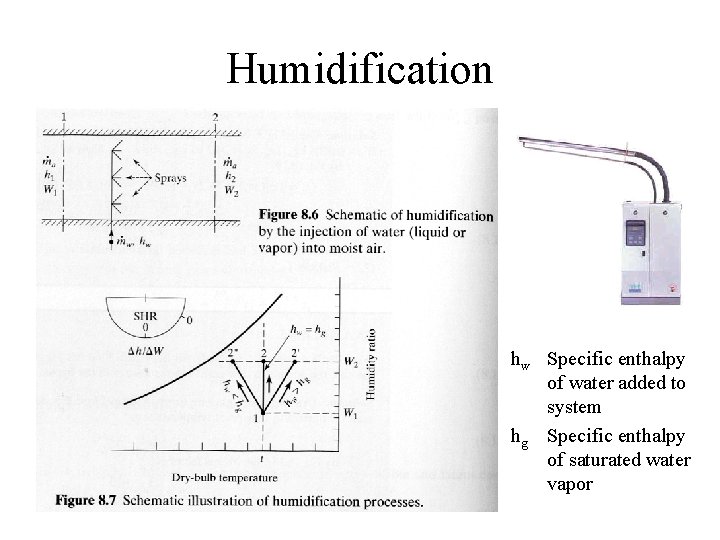

Humidification hw Specific enthalpy of water added to system hg Specific enthalpy of saturated water vapor

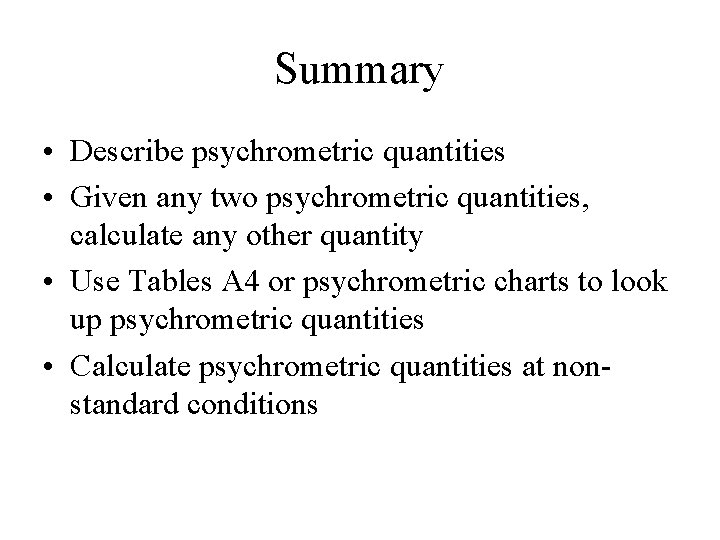

Summary • Describe psychrometric quantities • Given any two psychrometric quantities, calculate any other quantity • Use Tables A 4 or psychrometric charts to look up psychrometric quantities • Calculate psychrometric quantities at nonstandard conditions

Swimming pool energy and mass balance

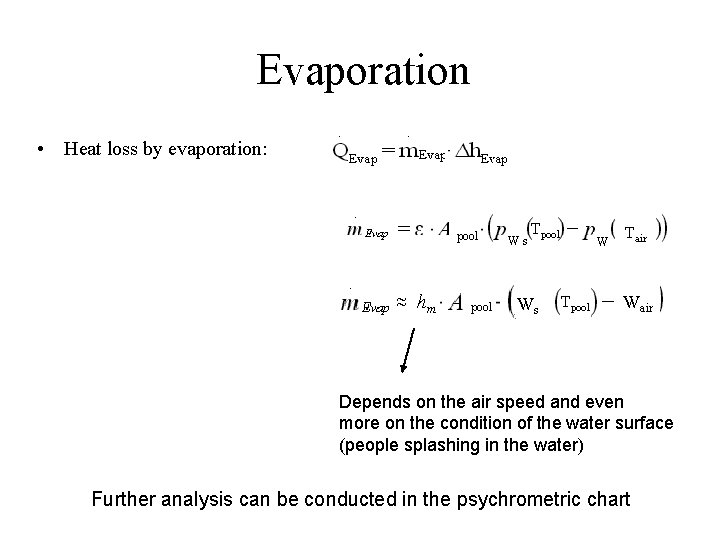

Evaporation • Heat loss by evaporation: pool ≈ hm pool Ws Tpool Ws W Tpool Tair Wair Depends on the air speed and even more on the condition of the water surface (people splashing in the water) Further analysis can be conducted in the psychrometric chart

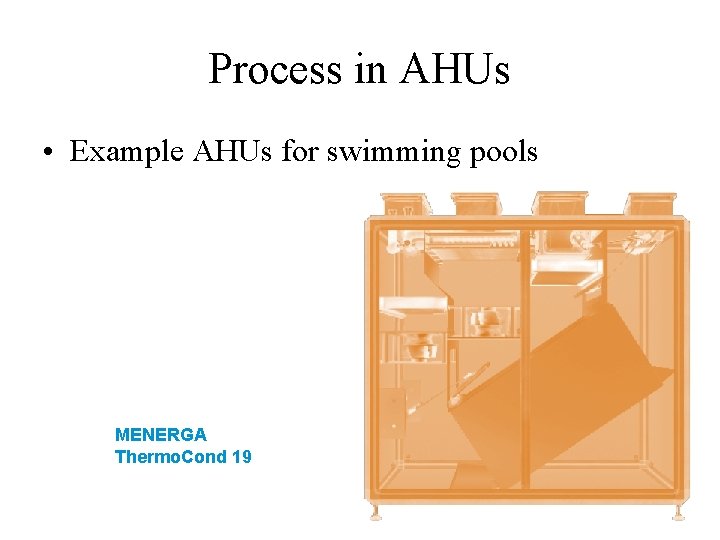

Process in AHUs • Example AHUs for swimming pools MENERGA Thermo. Cond 19

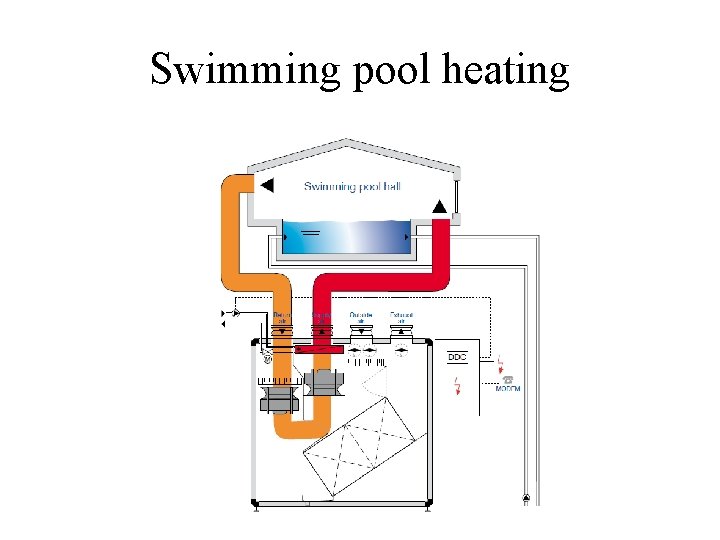

Swimming pool heating

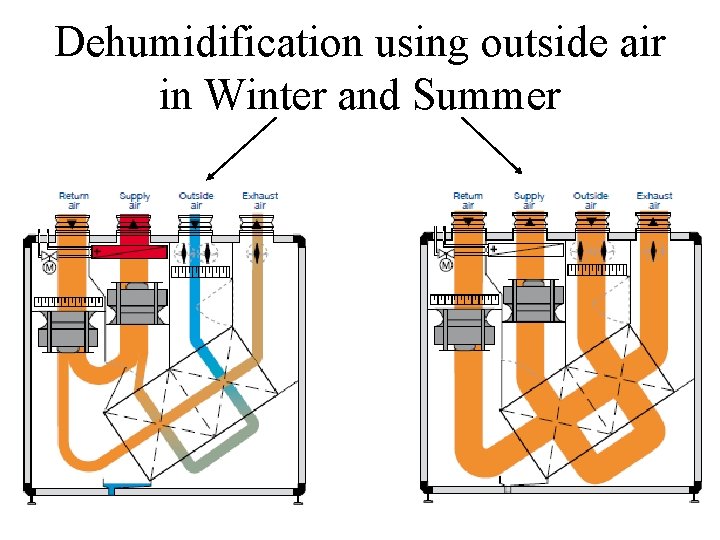

Dehumidification using outside air in Winter and Summer

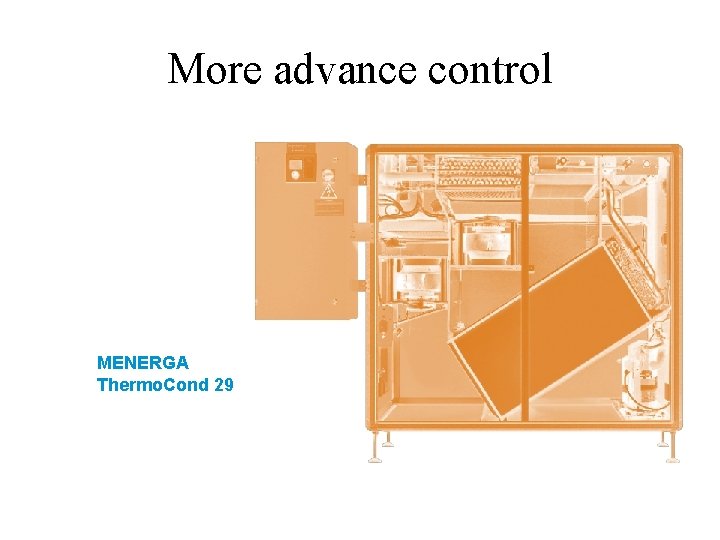

More advance control MENERGA Thermo. Cond 29

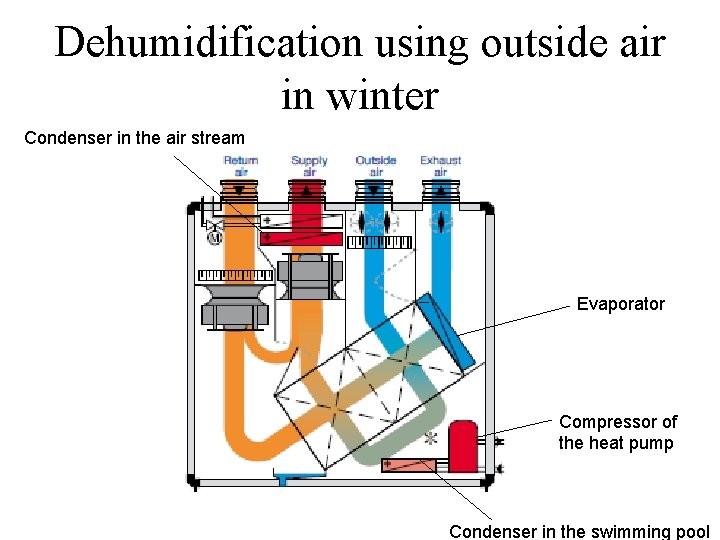

Dehumidification using outside air in winter Condenser in the air stream Evaporator Compressor of the heat pump Condenser in the swimming pool

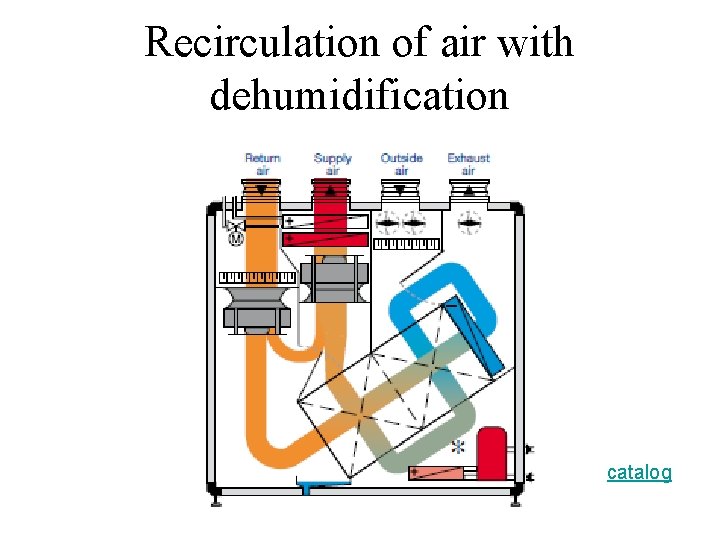

Recirculation of air with dehumidification catalog
