Lecture no 2 to 5 THE BASIC BJT

Lecture no 2 to 5 THE BASIC BJT AMPLIFIER CONFIGURATIONS Prepared by Engr: Sarfaraz Khan Turk Lecturer at IBT LUMHS Jamshoro

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Key Words: Words Common-Emitter Amplifier Graphical Analysis Small-Signal Models Analysis Common-Collector Amplifier Common-Base Amplifier

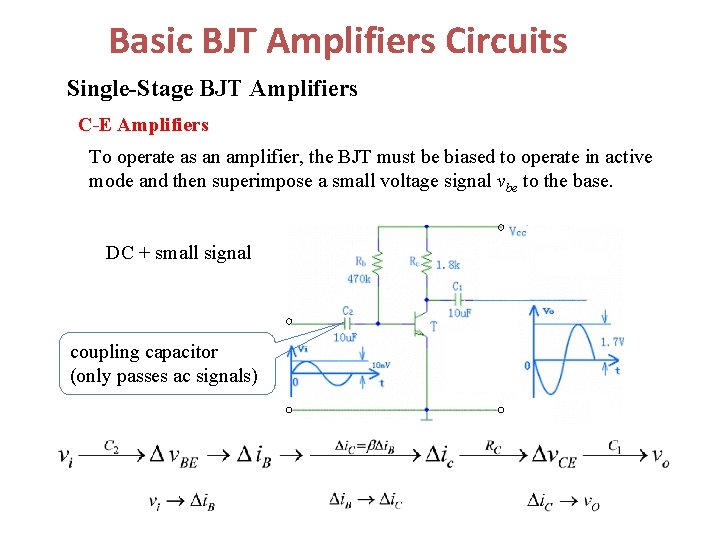

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers To operate as an amplifier, the BJT must be biased to operate in active mode and then superimpose a small voltage signal vbe to the base. DC + small signal coupling capacitor (only passes ac signals)

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers Apply a small signal input voltage and see ib v. BE=vi+VBE

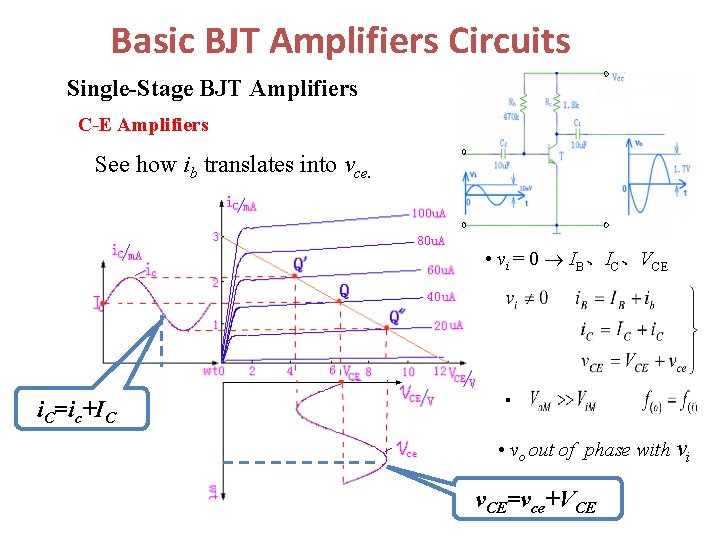

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers See how ib translates into vce. • vi = 0 IB、IC、VCE i. C=ic+IC • • vo out of phase with vi v. CE=vce+VCE

BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers Considering (all the capacitors are replaced by open circuits) Considering (all the capacitors are replaced by short circuits)

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers C-E Amplifiers Considering (all the capacitors are replaced by open circuits) Considering (all the capacitors are replaced by short circuits)

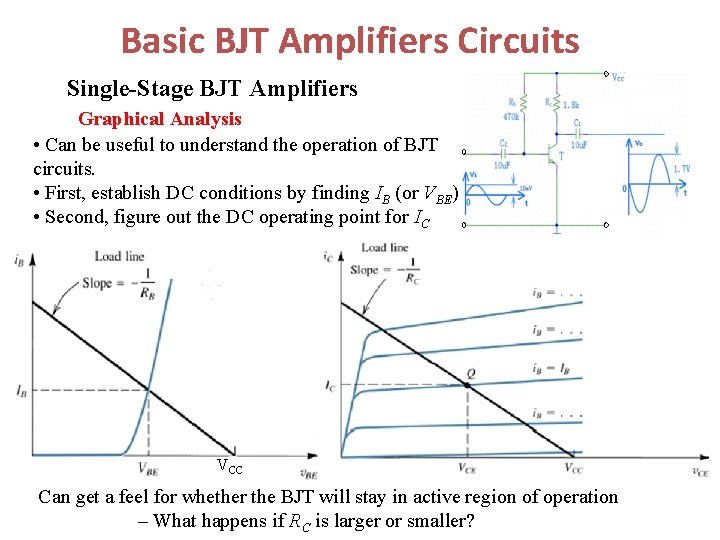

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis • Can be useful to understand the operation of BJT circuits. • First, establish DC conditions by finding IB (or VBE) • Second, figure out the DC operating point for IC VCC Can get a feel for whether the BJT will stay in active region of operation – What happens if RC is larger or smaller?

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis V CC

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis Q-point is centered on the ac load line: V CC

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis Q-point closer to cutoff: V CC Clipped at cutoff (cutoff distortion)

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis Q-point closer to saturation: V CC Clipped at cutoff (saturation distortion)

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Graphical Analysis

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Small-Signal Models Analysis Steps for using small-signal models 1. Determine the DC operating point of the BJT － in particular, the collector current 2. Calculate small-signal model parameters: rbe 3. Eliminate DC sources – replace voltage sources with short circuits and current sources with open circuits 4. Replace BJT with equivalent small-signal models 5. Analysis

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Small-Signal Models Analysis Example 1 IC ≈ βIB, IE = IC + IB = (1+β)IB

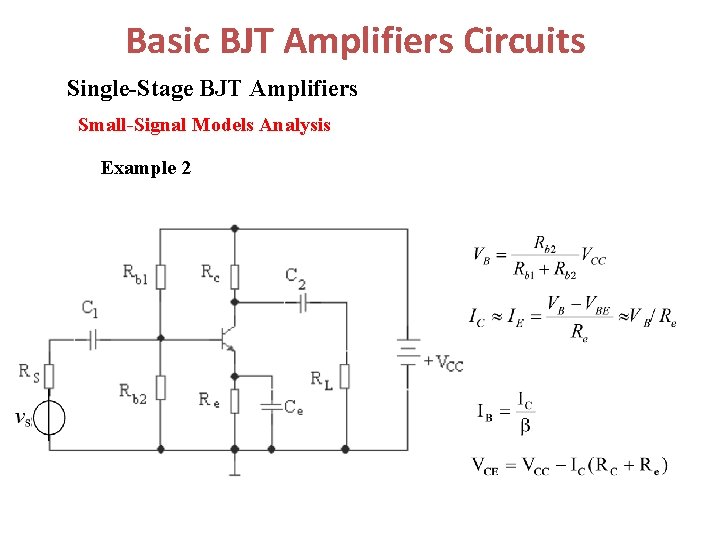

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Small-Signal Models Analysis Example 2

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Small-Signal Models Analysis There are three basic configurations for single-stage BJT amplifiers: – Common-Emitter – Common-Base – Common-Collector

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier Note : is slightly less than due to the voltage drop introduced by

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier The last basic configuration is to tie the collector to a fixed voltage, drive an input signal into the base and observe the output at the emitter.

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier Let’s find Av， Ai：

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier Let’s find Av， Ai： << Rb >>1

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier Let’s find Ri：

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier Let’s find Ro：

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Collector Amplifier >>1 C-C amp characteristics: • Voltage gain is less than unity, but close (to unity) since β is large and rbe is small. • Also called an emitter follower since the emitter follows the input signal. • Input resistance is higher, output resistance is lower. - Used for connecting a source with a large Rs to a load with low resistance.

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Base Amplifier Ground the base and drive the input signal into the emitter

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Base Amplifier Ri= Ro≈RC For RL<<RC,

Basic BJT Amplifiers Circuits Single-Stage BJT Amplifiers Common-Base Amplifier For RL<<RC, Ri= Ro≈RC CB amp characteristics: • current gain has little dependence on β • is non-inverting • most commonly used as a unity-gain current amplifier or current buffer and not as a voltage amplifier: accepts an input signal current with low input resistance and delivers a nearly equal current with high output impedance • most significant advantage is its excellent frequency response

Basic BJT Amplifiers Circuits Summary for three types of diodes: C-C C-E C-B Input Output Functions Zout < Zin Zout > Zin Vout ≈ Vin Vout > Vin

Basic BJT Amplifiers Circuits Frequency Response Key Words: Words Basic Concepts High-Frequency BJT Model Frequency Response of the CE Amplifier

Basic BJT Amplifiers Circuits Frequency Response Basic Concepts 1. 0 V 0. 5 V 0 V -0. 5 V -1. 0 V 0. 5 ms V(1) V(2) 1. 0 ms 1. 5 ms 2. 0 ms 2. 5 ms Time 3. 0 ms 3. 5 ms 4. 0 ms

Basic BJT Amplifiers Circuits Frequency Response Basic Concepts 800 m. V 600 m. V 400 m. V 200 m. V 0 V 0 Hz V(2) 2 KHz V(1) 4 KHz 6 KHz 8 KHz 10 KHz Frequency 12 KHz 14 KHz 16 KHz 18 KHz 20 KHz

Basic BJT Amplifiers Circuits Frequency Response Basic Concepts Lower cut off frequency Upper cut off frequency The drops of voltage gain (output/input) is mainly due to: 1、Increasing reactance of (at low f) 2、Parasitic capacitive elements of the network (at high f) 3、Dissappearance of changing current (for transformer coupled amp. )

Basic BJT Amplifiers Circuits Frequency Response High-Frequency BJT Model In BJTs, the PN junctions (EBJ and CBJ) also have capacitances associated with them C rbe C C'

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier rbe C' There are three capacitors in the circuit. At the mid frequency band, these are considered to be short circuits and internal capacitors C' , and C' are considered to be open circuits. C'

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier At low frequencies, C 1, C 2 are an open circuit and the gain is zero. Thus C 1 has a high pass effect on the gain, i. e. it affects the lower cutoff frequency of the amplifier. 2 is the time constant for C 2. ---is neglected

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier ---is neglected Capacitor Ce is an open circuit. The pole time constant is given by the resistance multiplied by Ce.

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier At high frequencies, C 1, C 2 Ce are all short circuit. The frequency that dominates is the lowest pole frequency. The time constant is neglected for C' rbe C' In summary: the lower cut off frequency is determined by network capacitence. e. g. The higher cut off frequency is determined by the parasitic ferquency of the BJT. e. g.

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier rbe C'

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier rbe C'

Basic BJT Amplifiers Circuits Frequency Response of the CE Amplifier decade 0 decade

For student References. Ø Chapter 9 amplifier fundamentals (9. 1) (9. 2) from the book Electronic devices, circuit and systems (Micheal M cirovic) Ø Chapter 8 introduction to amplifiers (8. 1) (8. 2) from the book introductory electronic devices and circuits by author (Robert T. paynter). Ø Wikipedia and world wide web
