Lecture 9 Review Mesh analysis Constrained loops Additional

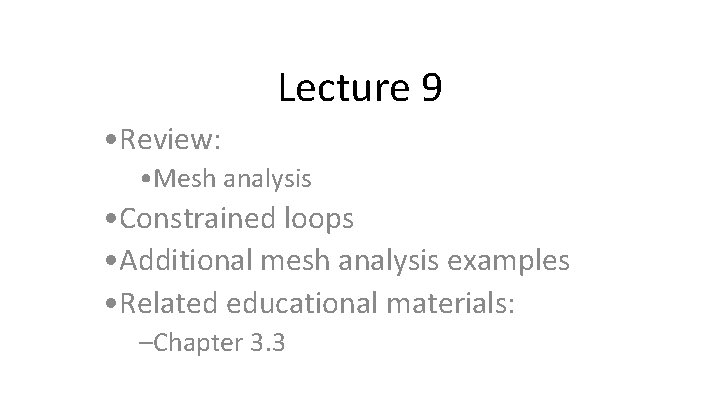

Lecture 9 • Review: • Mesh analysis • Constrained loops • Additional mesh analysis examples • Related educational materials: –Chapter 3. 3

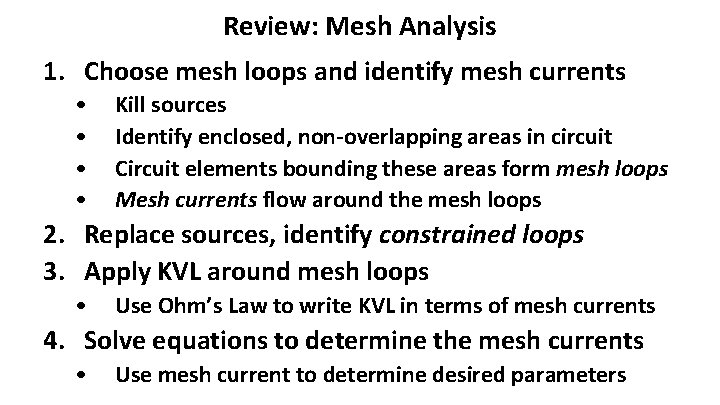

Review: Mesh Analysis 1. Choose mesh loops and identify mesh currents • • Kill sources Identify enclosed, non-overlapping areas in circuit Circuit elements bounding these areas form mesh loops Mesh currents flow around the mesh loops 2. Replace sources, identify constrained loops 3. Apply KVL around mesh loops • Use Ohm’s Law to write KVL in terms of mesh currents 4. Solve equations to determine the mesh currents • Use mesh current to determine desired parameters

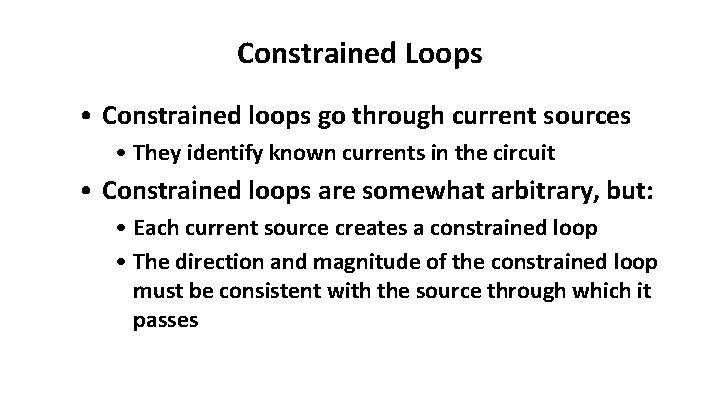

Constrained Loops • Constrained loops go through current sources • They identify known currents in the circuit • Constrained loops are somewhat arbitrary, but: • Each current source creates a constrained loop • The direction and magnitude of the constrained loop must be consistent with the source through which it passes

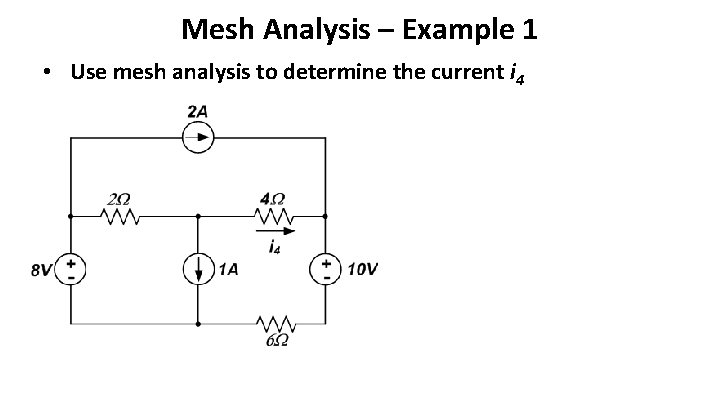

Mesh Analysis – Example 1 • Use mesh analysis to determine the current i 4

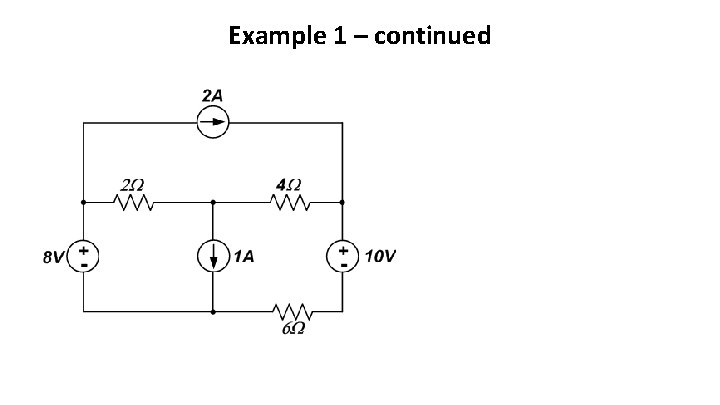

Example 1 – continued

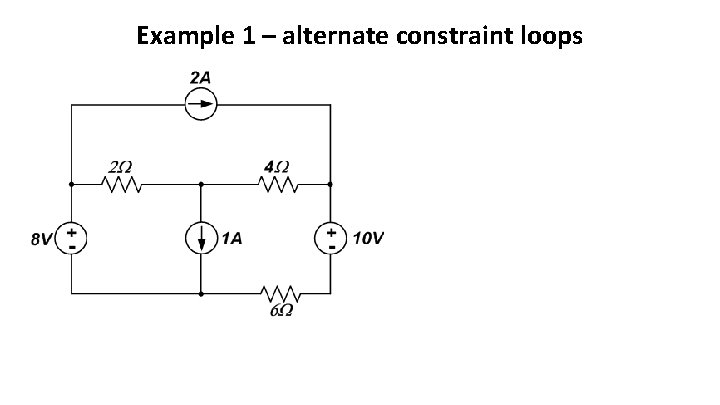

Example 1 – alternate constraint loops

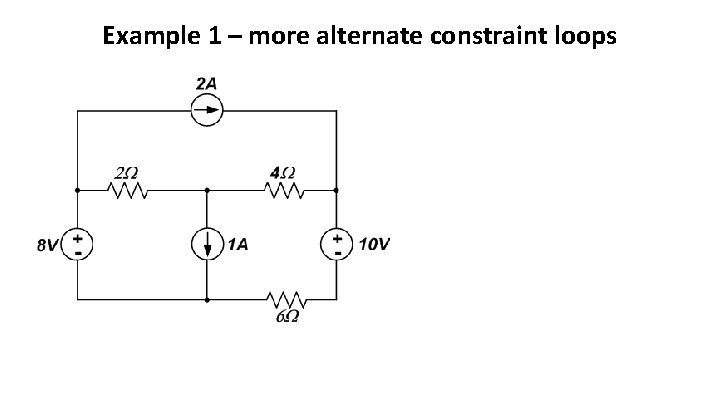

Example 1 – more alternate constraint loops

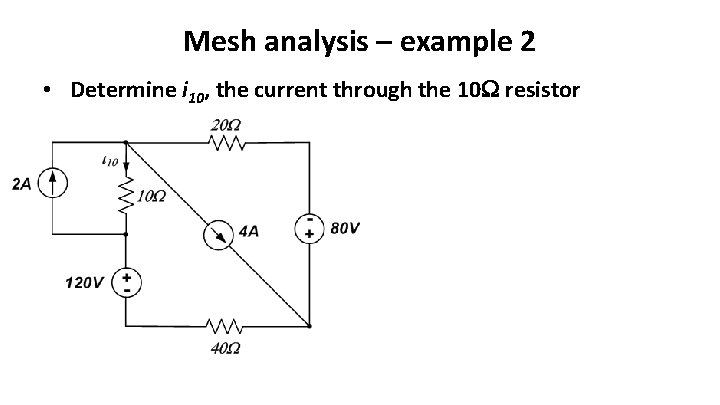

Mesh analysis – example 2 • Determine i 10, the current through the 10 resistor

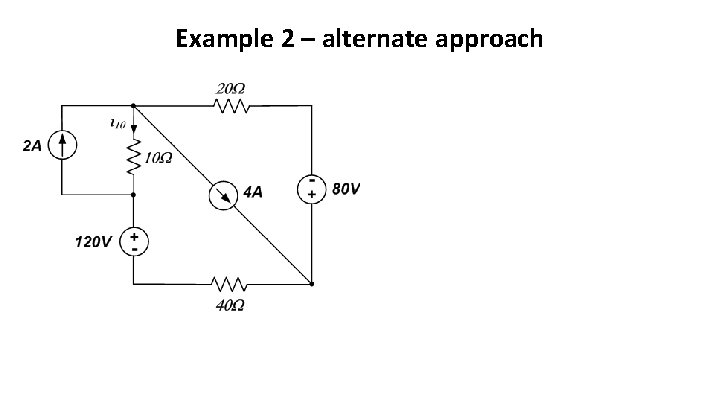

Example 2 – alternate approach

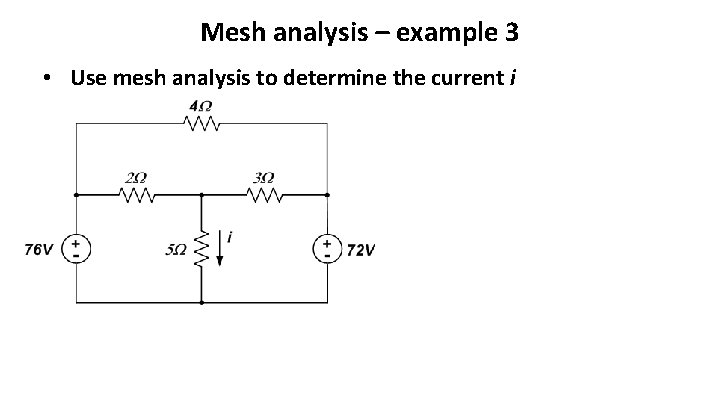

Mesh analysis – example 3 • Use mesh analysis to determine the current i

Example 3 – continued

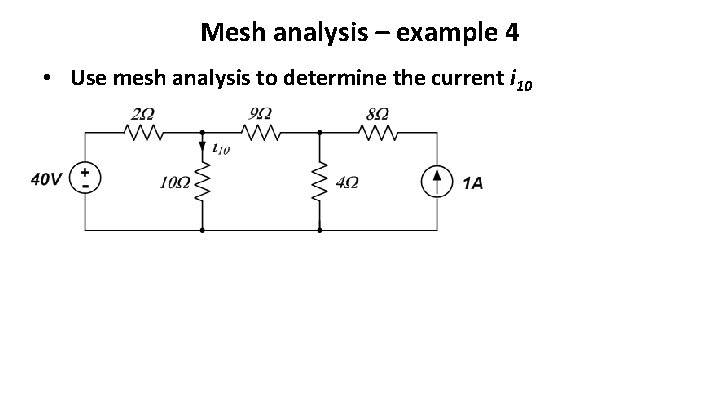

Mesh analysis – example 4 • Use mesh analysis to determine the current i 10

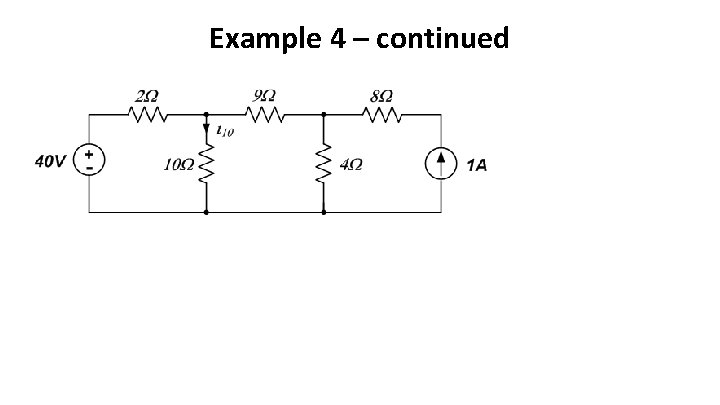

Example 4 – continued
