Lecture 8 Processes and events Local and global

Lecture 8 Processes and events Local and global states Time Causality and concurrent events Logical clocks Message delivery to processes Synchronous systems Asynchronous systems Monitoring models 1

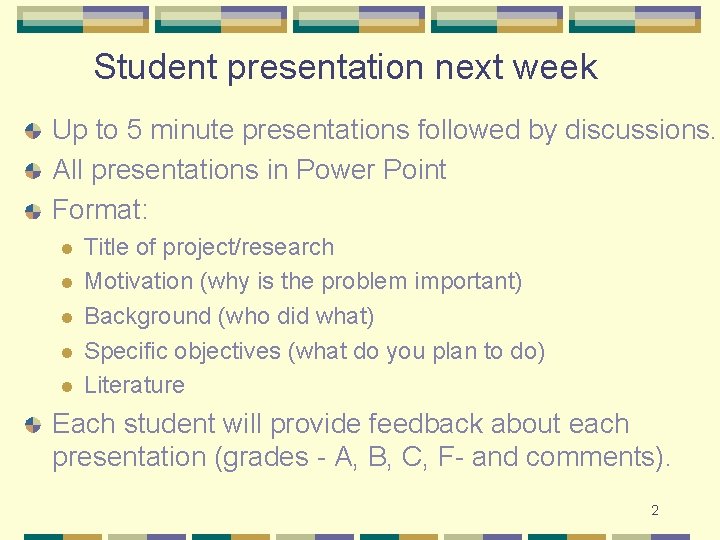

Student presentation next week Up to 5 minute presentations followed by discussions. All presentations in Power Point Format: l l l Title of project/research Motivation (why is the problem important) Background (who did what) Specific objectives (what do you plan to do) Literature Each student will provide feedback about each presentation (grades - A, B, C, F- and comments). 2

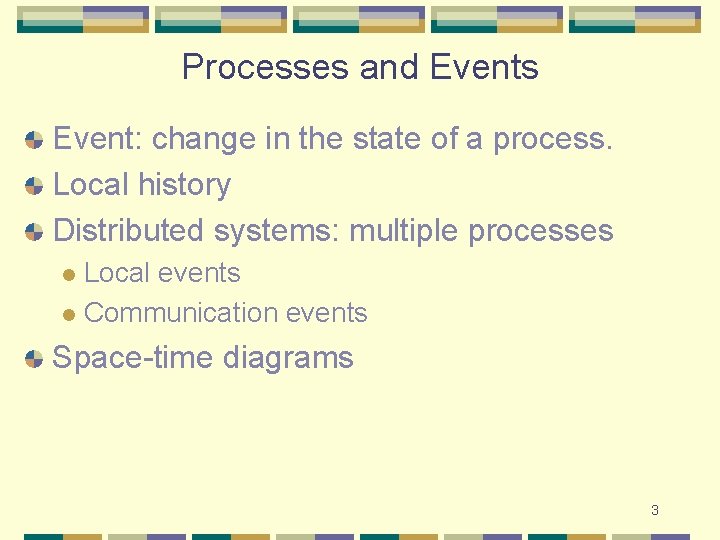

Processes and Events Event: change in the state of a process. Local history Distributed systems: multiple processes Local events l Communication events l Space-time diagrams 3

Space-time diagrams 4

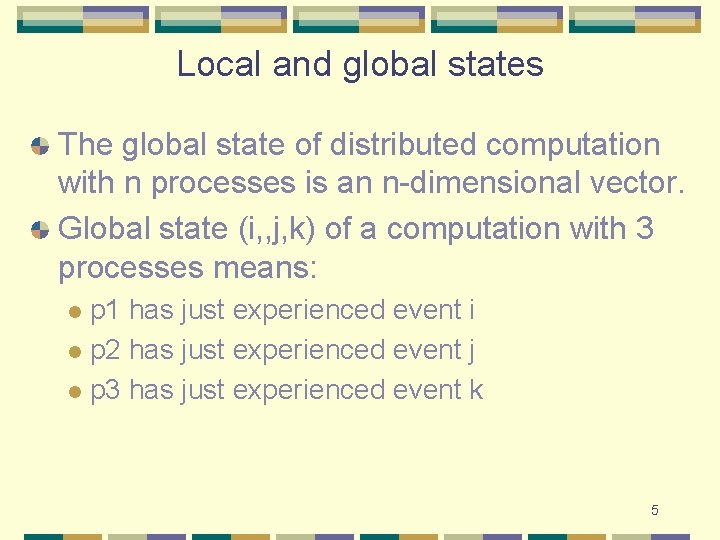

Local and global states The global state of distributed computation with n processes is an n-dimensional vector. Global state (i, , j, k) of a computation with 3 processes means: p 1 has just experienced event i l p 2 has just experienced event j l p 3 has just experienced event k l 5

6

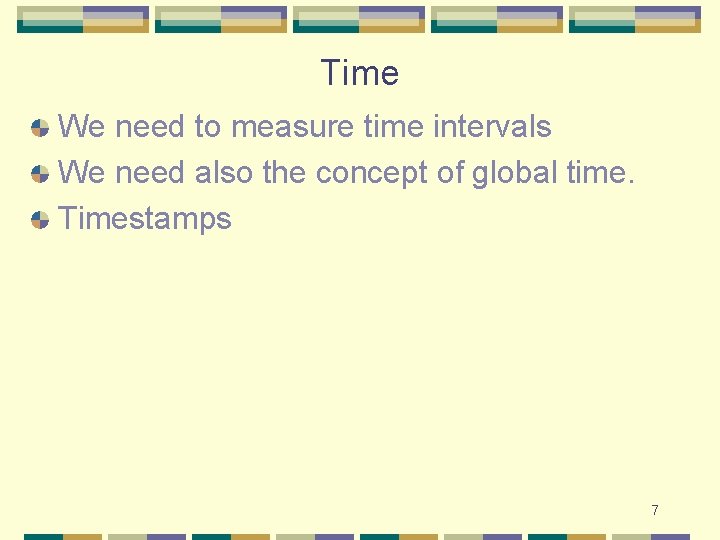

Time We need to measure time intervals We need also the concept of global time. Timestamps 7

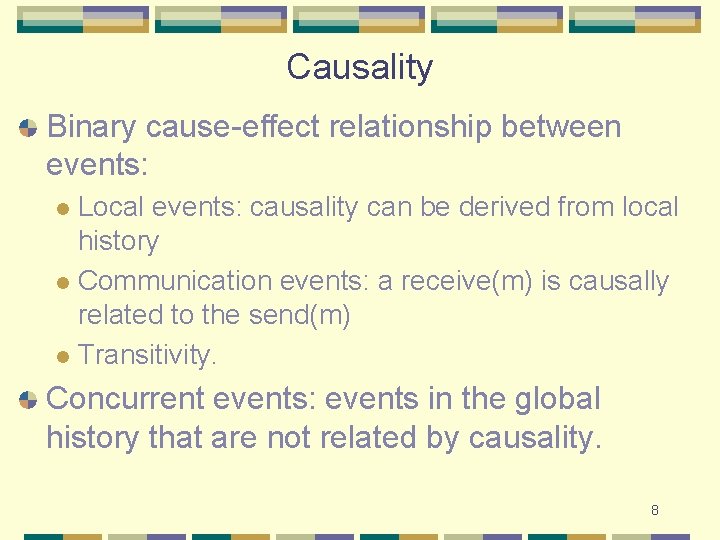

Causality Binary cause-effect relationship between events: Local events: causality can be derived from local history l Communication events: a receive(m) is causally related to the send(m) l Transitivity. l Concurrent events: events in the global history that are not related by causality. 8

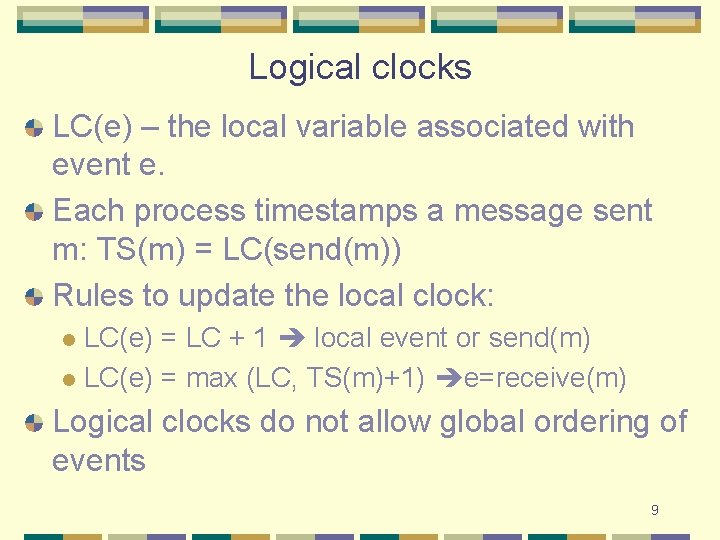

Logical clocks LC(e) – the local variable associated with event e. Each process timestamps a message sent m: TS(m) = LC(send(m)) Rules to update the local clock: LC(e) = LC + 1 local event or send(m) l LC(e) = max (LC, TS(m)+1) e=receive(m) l Logical clocks do not allow global ordering of events 9

10

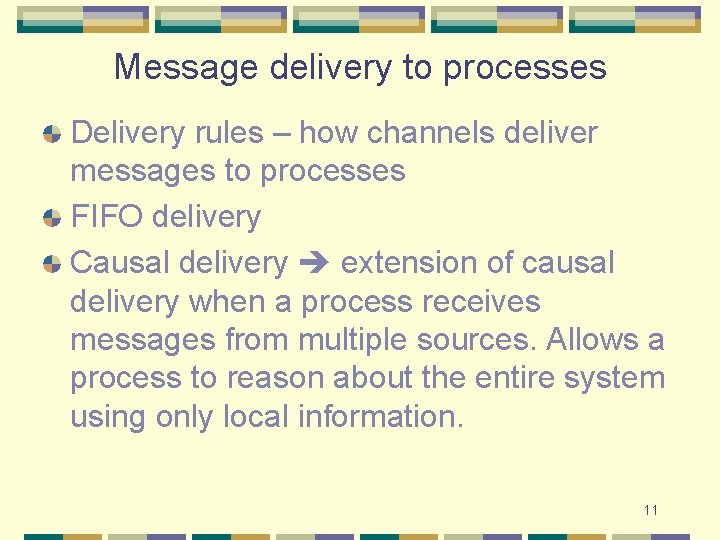

Message delivery to processes Delivery rules – how channels deliver messages to processes FIFO delivery Causal delivery extension of causal delivery when a process receives messages from multiple sources. Allows a process to reason about the entire system using only local information. 11

12

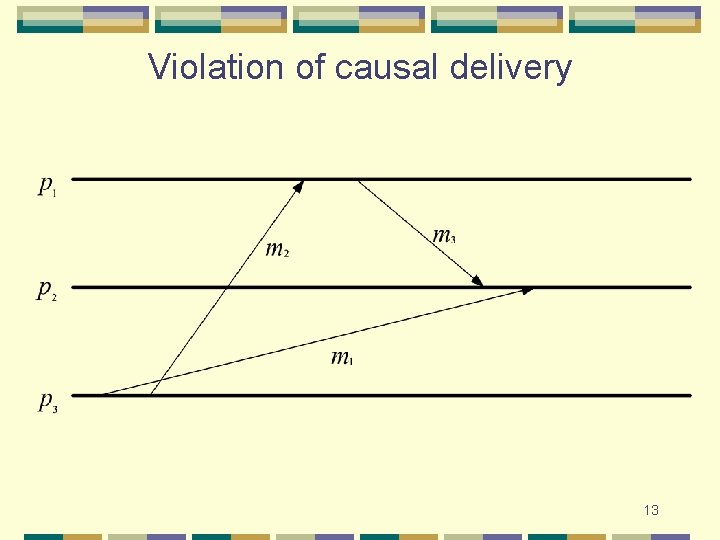

Violation of causal delivery 13

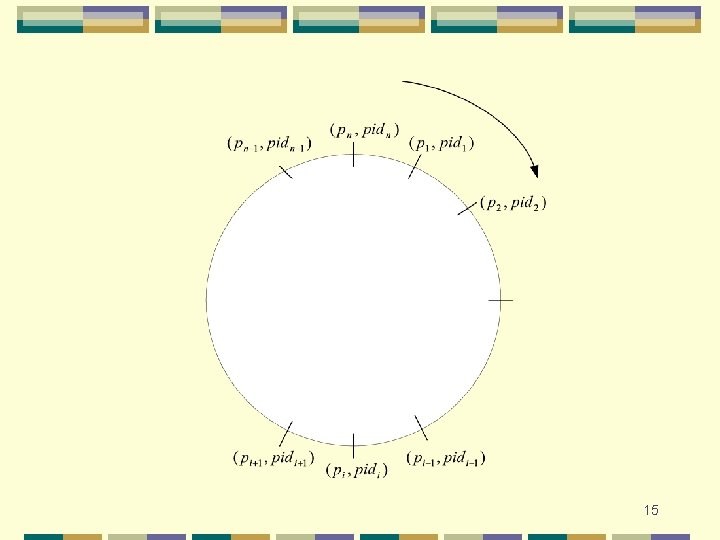

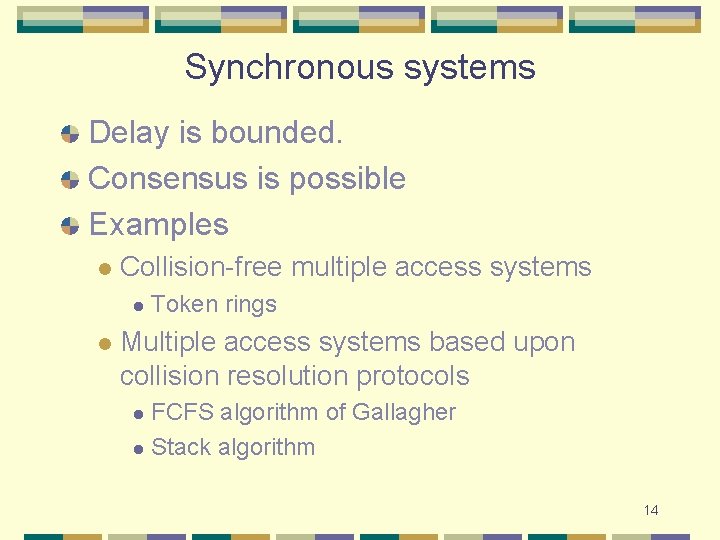

Synchronous systems Delay is bounded. Consensus is possible Examples l Collision-free multiple access systems l l Token rings Multiple access systems based upon collision resolution protocols FCFS algorithm of Gallagher l Stack algorithm l 14

15

16

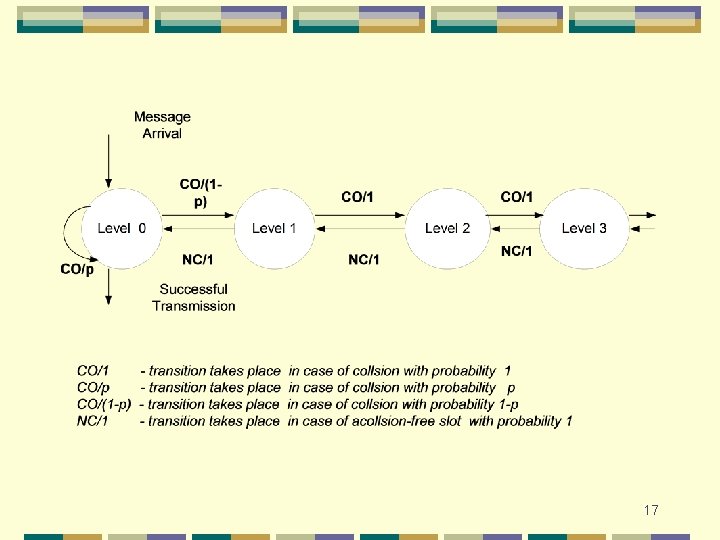

17

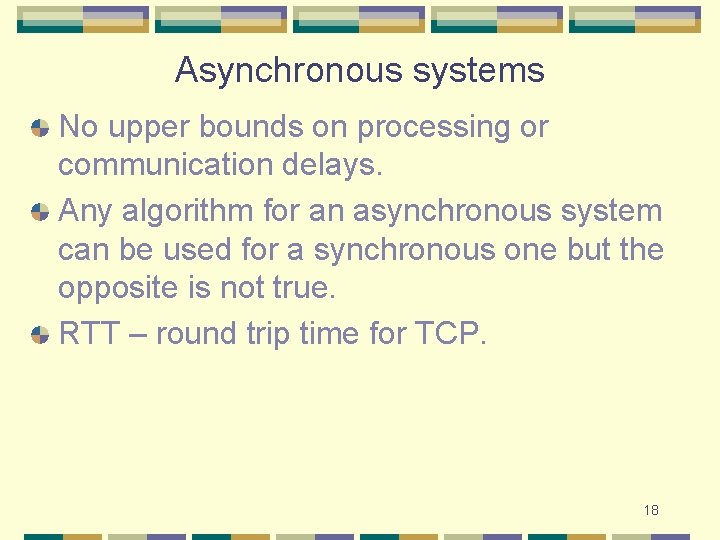

Asynchronous systems No upper bounds on processing or communication delays. Any algorithm for an asynchronous system can be used for a synchronous one but the opposite is not true. RTT – round trip time for TCP. 18

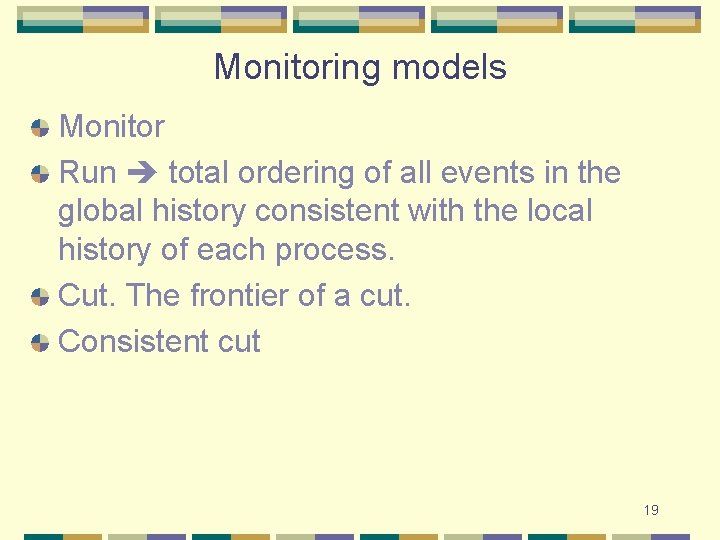

Monitoring models Monitor Run total ordering of all events in the global history consistent with the local history of each process. Cut. The frontier of a cut. Consistent cut 19

Consistent and inconsistent cuts 20
