Lecture 8 Orbital Variation and Insolation Change Chapter
Lecture 8: Orbital Variation and Insolation Change (Chapter 7)
Orbit Today Earth’s revolution around the sun on the ecliptic

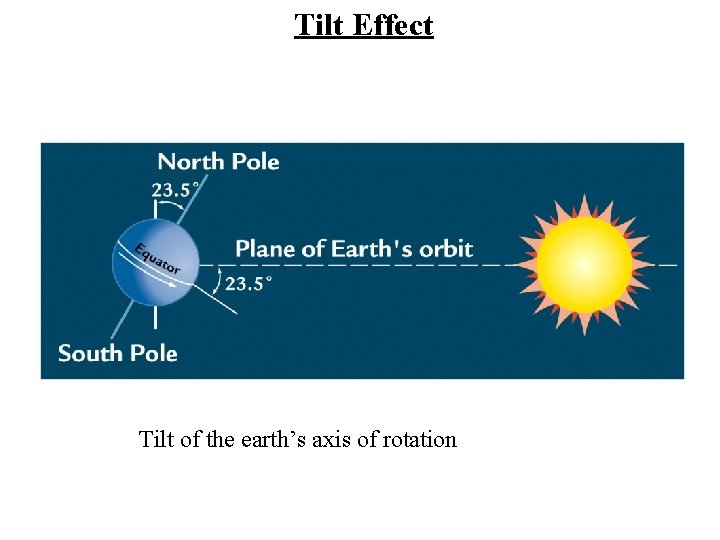

Tilt Effect Tilt of the earth’s axis of rotation
Tilt and Season Tilting and season
Extreme Tilts Extreme tilt

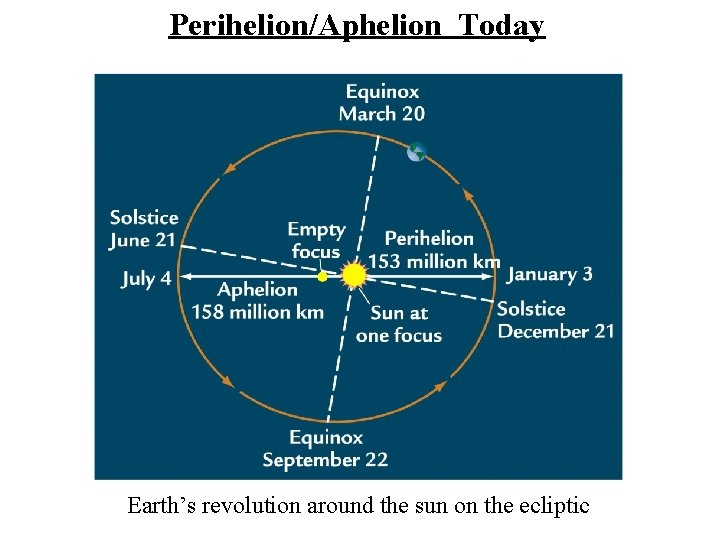

Perihelion/Aphelion Today Earth’s revolution around the sun on the ecliptic
Change of tilt

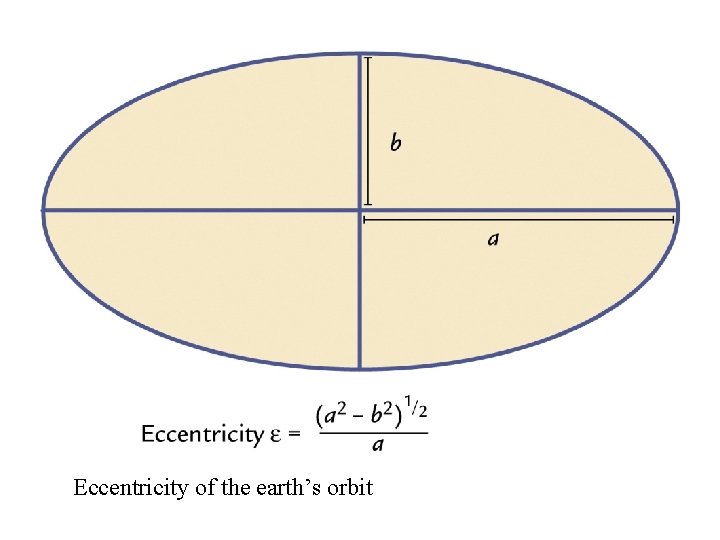

Eccentricity of the earth’s orbit
Change of Eccentricity

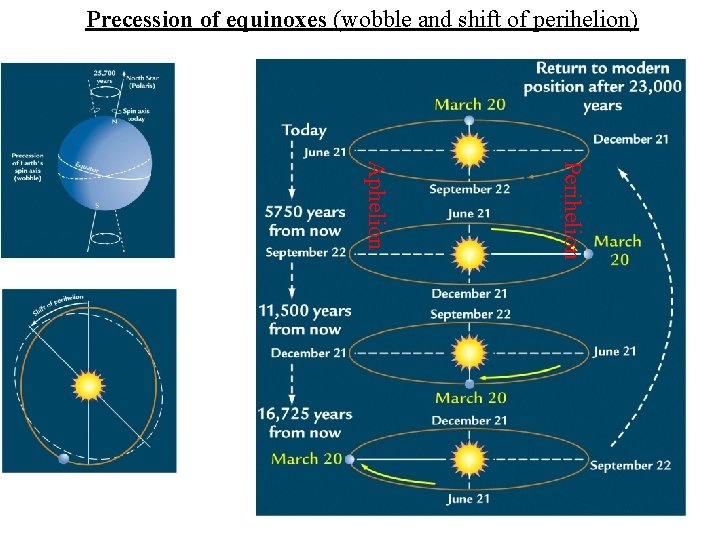

Precession of equinoxes (wobble and shift of perihelion) Perihelion Aphelion

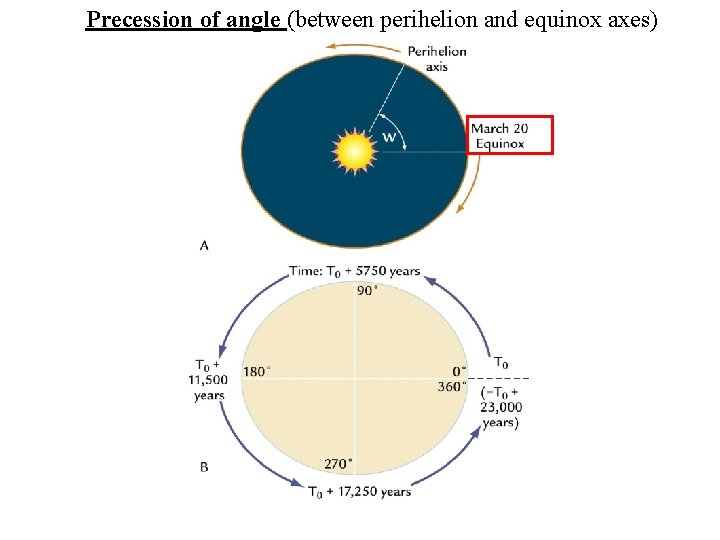

Precession of angle (between perihelion and equinox axes)

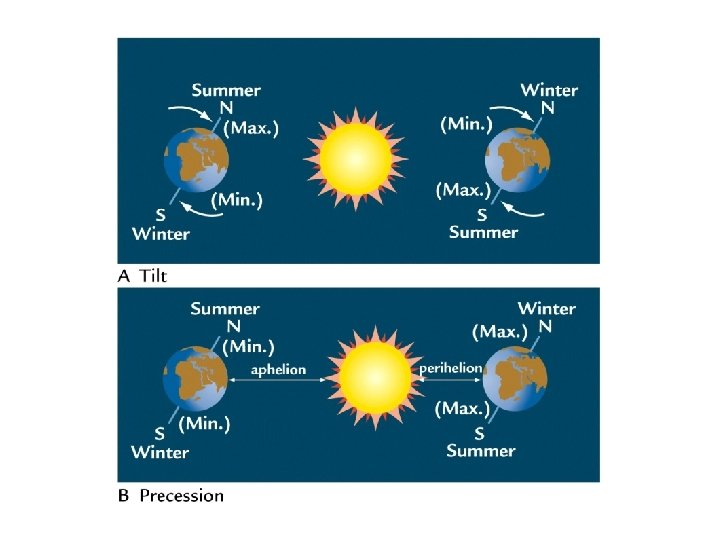

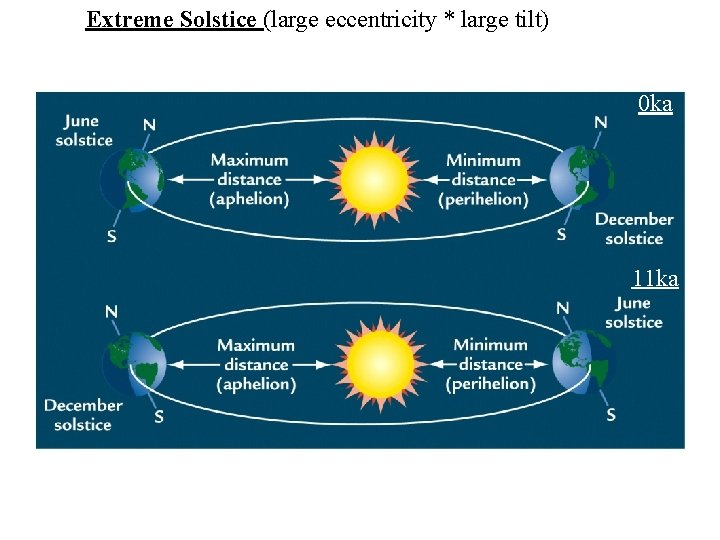

Extreme Solstice (large eccentricity * large tilt) 0 ka 11 ka
Modulation of Precession Index by Eccentricity
Precession Index Modulated by Eccentricity

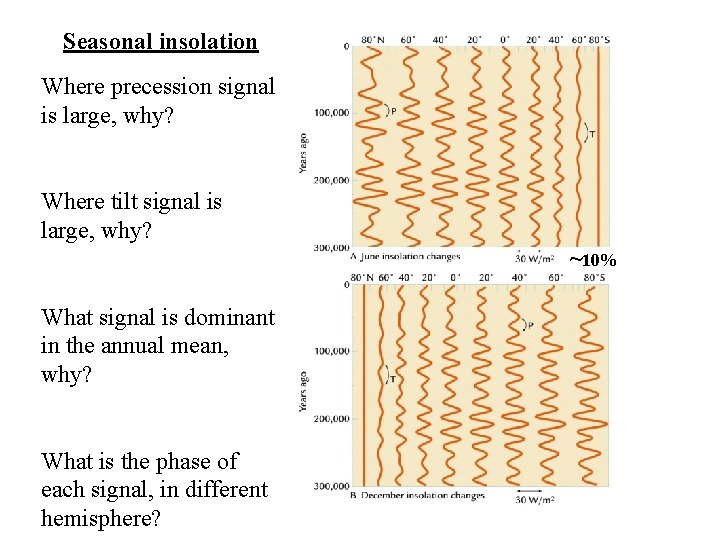

Seasonal insolation Where precession signal is large, why? Where tilt signal is large, why? ~10% What signal is dominant in the annual mean, why? What is the phase of each signal, in different hemisphere?

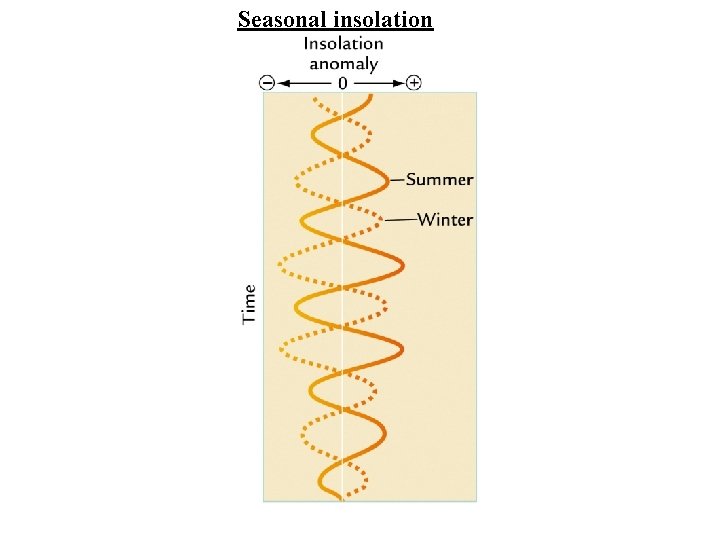

Seasonal insolation
Insolation time series of different months
Calendar months (fixed-day) vs. Celestial months (fixed-degree, or fixed-angular) Apr, 1 May 1|Celestial=Apr 1 +30 o May 1|Calender=Apr 1 +30 days Jul 1|Calender=Apr 1 +91 days Jul 1|Celestial=Apr 1 +90 o Kepler’s laws: equal area!
Calendar vs. Celestial months 126 ka (PH June) -- 0 ka (PH Jan) 0 ka Celestial month 126 -0 ka, Calendar month Calendar-Celestial Starting Vernal Equinox Chen et al. , 2010, Clm Dyn

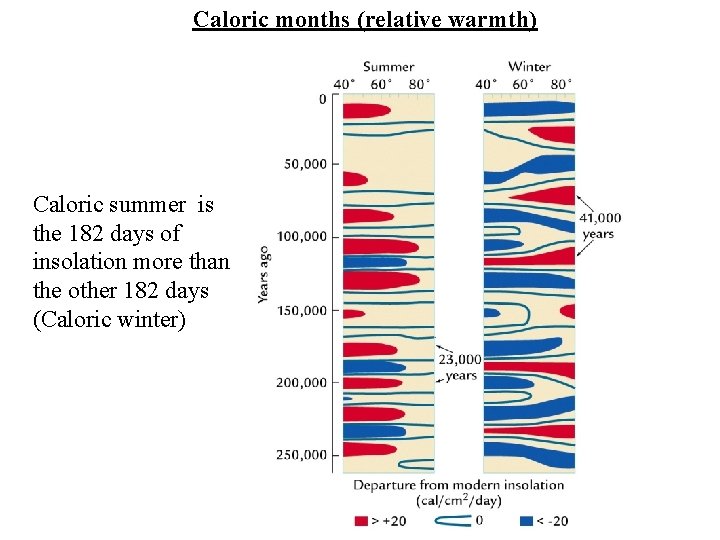

Caloric months (relative warmth) Caloric summer is the 182 days of insolation more than the other 182 days (Caloric winter)

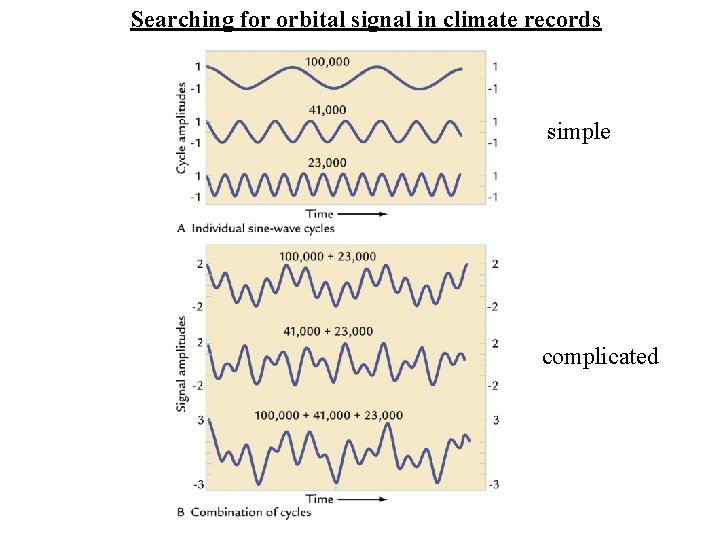

Searching for orbital signal in climate records simple complicated
Milutin Milankovitch was a Serbian engineer and meteorologist - born in 1879 he attended the Vienna institute of technology graduating in 1904 with a doctorate in technical sciences. He then went on to work in the University of Belgrade where he spent time working on a mathematical theory of climate based on the seasonal and latitudinal variations of solar radiation received by the Earth. Milankovitch proposed that the changes in the intensity of solar radiation received from the Earth were effected by three fundamental factors. The first is called eccentricity, a period of about 100, 000 years in which the nearly circular orbit of the Earth changes into a more elliptical orbit. The next factor is called obliquity, a period of about 41, 000 years where the Earth's axis tilt varies between 21. 5 and 24. 5 degrees. The final factor is called precession, a period of approximately 23, 000 years where the Earth's axis wobbles like a spinning top.

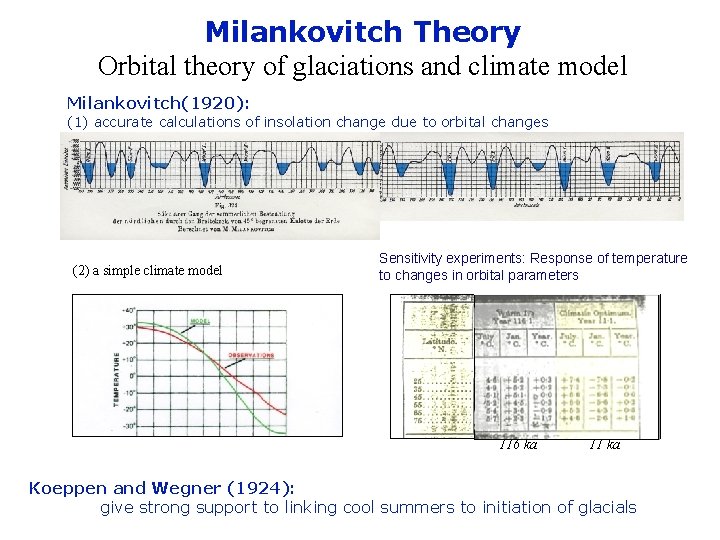

Milankovitch Theory Orbital theory of glaciations and climate model Milankovitch(1920): (1) accurate calculations of insolation change due to orbital changes (2) a simple climate model Sensitivity experiments: Response of temperature to changes in orbital parameters 116 ka 11 ka Koeppen and Wegner (1924): give strong support to linking cool summers to initiation of glacials
Rejection of Orbital Theory Simpson (1940): Simpson reported LARGE summer temperature charges And LARGE winter temperature changes, but he concluded that these extremes cancelled in the annual average. Therefore Milankovitch’s idea was unimportant. JEK - 2014

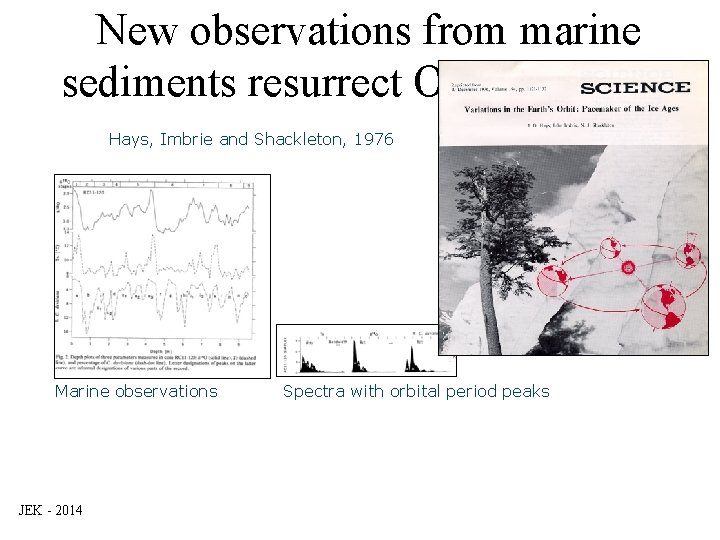

New observations from marine sediments resurrect Orbital Theory Hays, Imbrie and Shackleton, 1976 Marine observations JEK - 2014 Spectra with orbital period peaks

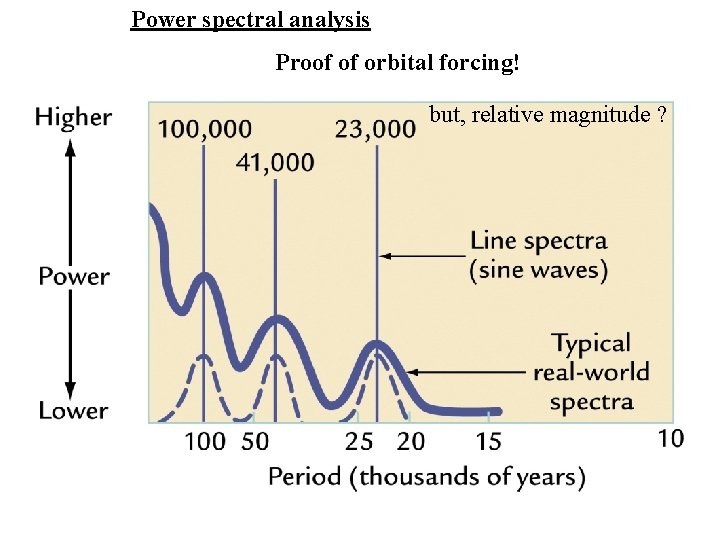

Power spectral analysis Proof of orbital forcing! but, relative magnitude ?

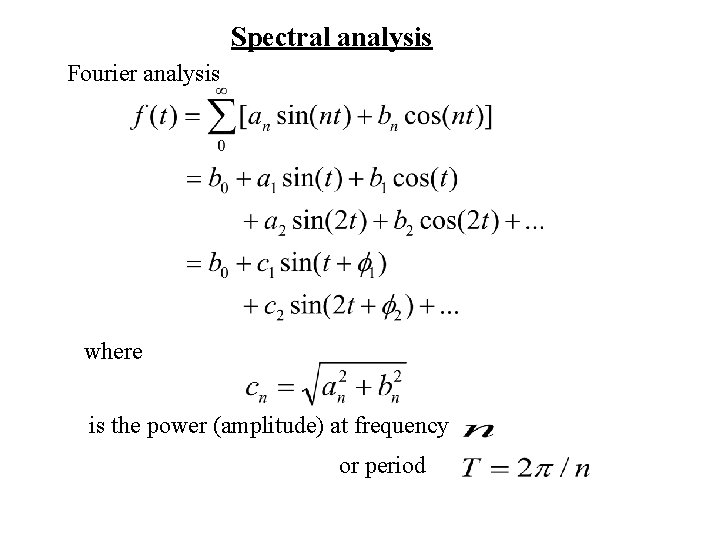

Spectral analysis Fourier analysis where is the power (amplitude) at frequency or period
Power spectral analysis Proof of orbital forcing! but, relative magnitude ?

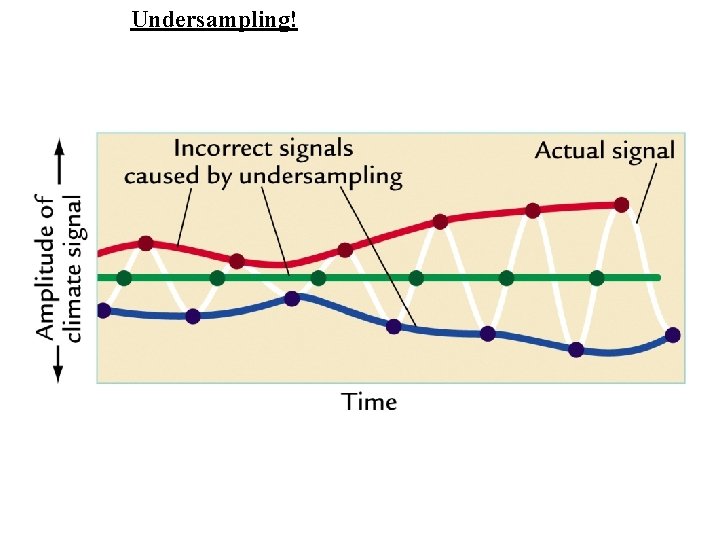

Undersampling!
Homework set 3 • Insolation forcing • Power spectrum
End of Lecture 8
