Lecture 7 Temperature and Heat Buoyancy Chapter 4

Lecture 7 Temperature and Heat. Buoyancy. Chapter 4. 1 4. 6 Outline • Temperature and Heat • Density and Pressure • Buoyancy

Temperature All material objects in the Universe consist of small particles called atoms. Atoms are constantly moving have energy The amount of energy they have depends on their mass: Kinetic energy KE=mv 2/2 Rest energy E 0=m 0 c 2 Temperature is a physical quantity that is related to sensations of hot and cold. It is related to energy of an object that we feel.

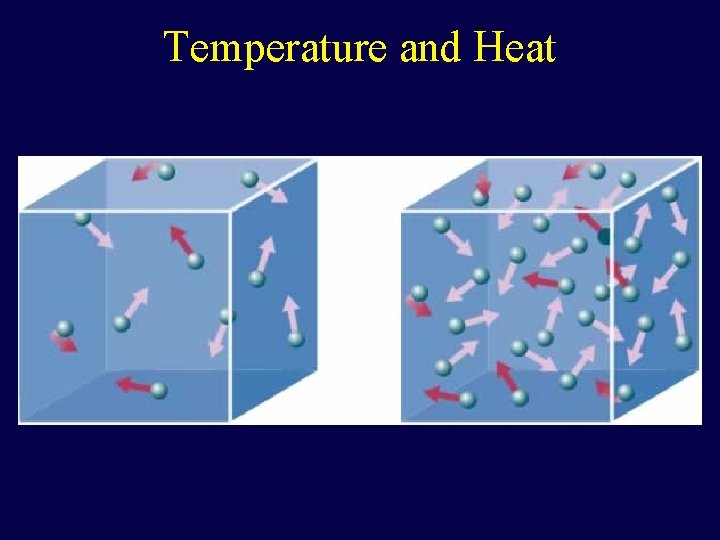

Temperature and Heat

Thermometers Thermometer is a device that measures temperature. It uses the property of substances to expand when heated and shrink when cooled. The most common thermometers use mercury or alcohol. Thermometers for high temperatures use pairs of metal strips, which disconnect above a certain temperature.

Temperature scales Any temperature measurement makes sense if it is done on a scale. There are 3 major temperature scales currently used in the world: Celsius (Centigrade), Kelvin, and Fahrenheit. The Celsius scale set its zero-point (0 o C) at the water freezing point and 100 o C at the water boiling point. The Kelvin scale has a zero-point at the so-called absolute zero ( 273 o. 16 C) and 1 K = 1 o. C. The Fahrenheit scale zero-point is attained by mixing equal parts of water, ice, and salt (=32 o. C). The water boiling point is 212 o. F. 1 o. C=1. 8 o. F.

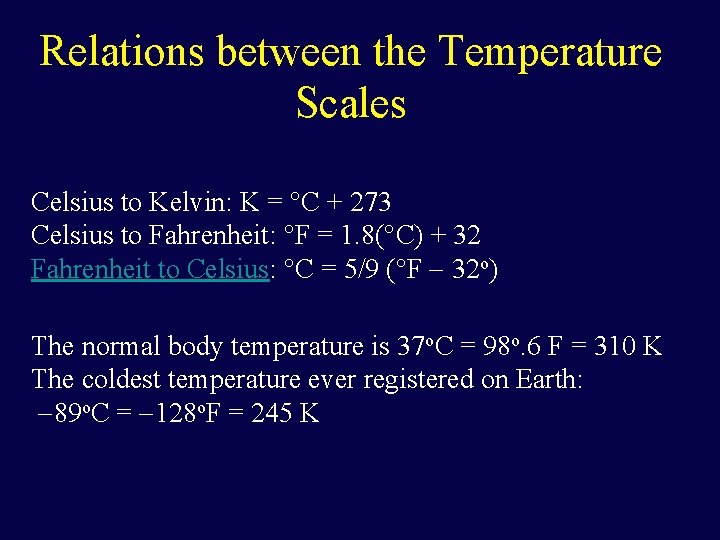

Relations between the Temperature Scales Celsius to Kelvin: K = °C + 273 Celsius to Fahrenheit: °F = 1. 8(°C) + 32 Fahrenheit to Celsius: °C = 5/9 (°F 32 o) The normal body temperature is 37 o. C = 98 o. 6 F = 310 K The coldest temperature ever registered on Earth: 89 o. C = 128 o. F = 245 K

Heat The heat in a material body is a sum of the kinetic energies of all its separate particles. The more heat the body contains, the higher its temperature. Joule is the unit for heat Substances differ by the amount of heat needed to raise their temperature by 1 o. It takes 4. 2 k. J to raise the temperature of 1 kg of water by 1 o. C.

Heat Transfer Conduction (transfer through a solid body) Convection (transfer through a fluid or gas) Radiation (by electromagnetic waves)

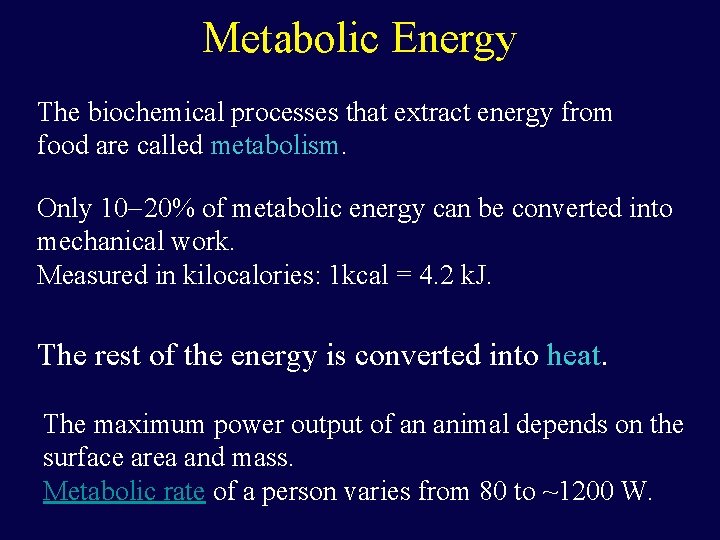

Metabolic Energy The biochemical processes that extract energy from food are called metabolism. Only 10 20% of metabolic energy can be converted into mechanical work. Measured in kilocalories: 1 kcal = 4. 2 k. J. The rest of the energy is converted into heat. The maximum power output of an animal depends on the surface area and mass. Metabolic rate of a person varies from 80 to ~1200 W.

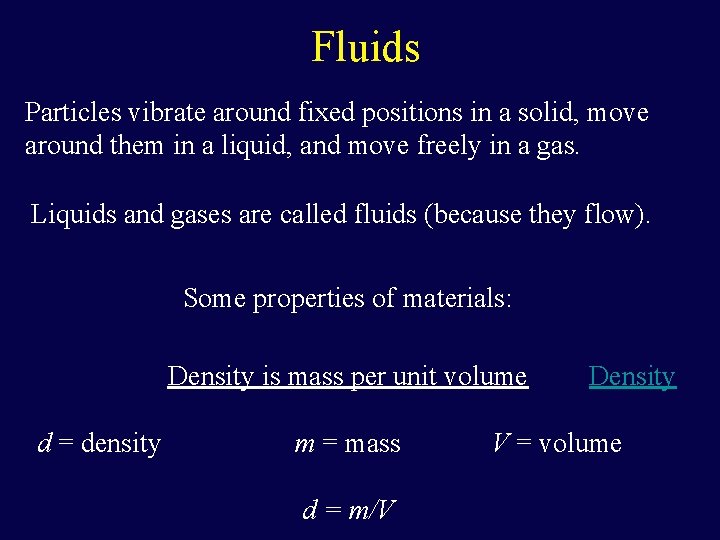

Fluids Particles vibrate around fixed positions in a solid, move around them in a liquid, and move freely in a gas. Liquids and gases are called fluids (because they flow). Some properties of materials: Density is mass per unit volume d = density m = mass d = m/V Density V = volume

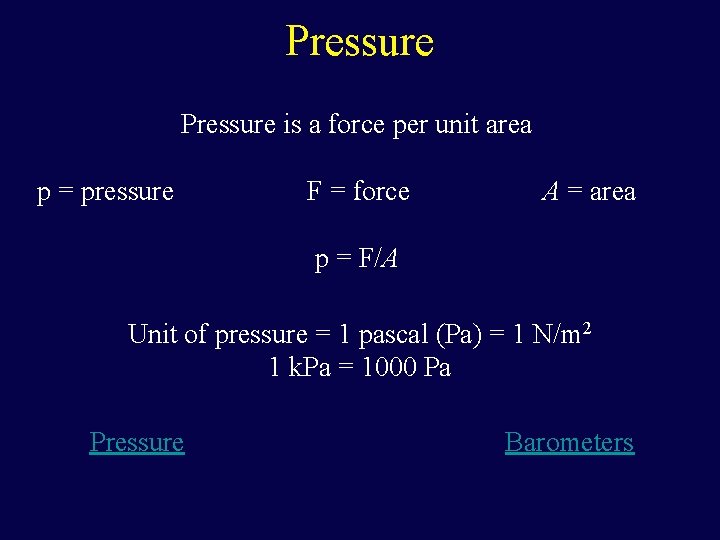

Pressure is a force per unit area p = pressure F = force A = area p = F/A Unit of pressure = 1 pascal (Pa) = 1 N/m 2 1 k. Pa = 1000 Pa Pressure Barometers

Buoyancy is an ability of a solid body to float in a fluid If an object is immersed in a fluid, an upward force acts upon it. The force on the bottom is higher than that on the top. The difference between the 2 forces is the buoyant force. It enables balloons to float in the air and ships to float in the sea.

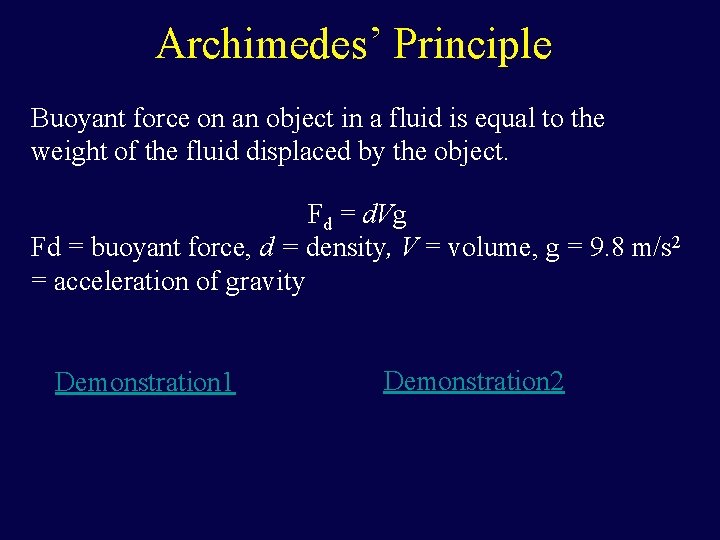

Archimedes’ Principle Buoyant force on an object in a fluid is equal to the weight of the fluid displaced by the object. Fd = d. Vg Fd = buoyant force, d = density, V = volume, g = 9. 8 m/s 2 = acceleration of gravity Demonstration 1 Demonstration 2

Summary • Temperature is a measure of the average kinetic energy of all particles in an object • Density describes mass of a unit volume and is different for different materials • Pressure is a force applied to a unit area • Buoyancy is a property of objects to float in a fluid. Weight of an object has to be less than the buoyant force.
