Lecture 5 The Cell Microtubules and microfilaments The
Lecture 5: The Cell Microtubules and microfilaments The Cytoskeleton ﺍﻟﻬﻴﻜﻞ ﺍﻟﺨﻠﻮﻯ A network of fibres ﺷﺒﻜﺔ ﻣﻦ ﺍﻻﻟﻴﺎﻑ that provide structural support ﺗﺪﻋﻴﻢ to the cell. The cytoskeleton also functions in cell motility ﺗﺤﺮﻙ ﺍﻟﺨﻠﻴﺔ and regulation
The Cytoskeleton ﺍﻟﻬﻴﻜﻞ ﺍﻟﺨﻠﻮﻯ The cytoskeleton is a network of fibers extending throughout ﺗﻤﺘﺪ ﻋﺒﺮ the cytoplasm. The cytoskeleton organizes ﻳﺮﺗﺐ structures the cell. the and activities of
Cytoskeleton Microtubules ﺃﻨﻴﺒﻴﺒﺎﺕ ﺩﻗﻴﻘﺔ Thick ﺳﻤﻴﻜﺔ Responsible for cell motility, and separation of chromosome during cell division. (Tubulin protein) Microfilaments ﺃﻠﻴﺎﻑ ﺩﻗﻴﻘﺔ Intermediate filaments ﺃﻠﻴﺎﻑ ﻣﺘﻮﺳﻄﺔ Thin Middle ﺭﻓﻴﻌﺔ ﻣﺘﻮﺳﻄﺔ Support cell motility and transport materials within the cell. Reinforcing the cell shape and fixing position of organelles. (Actin protein) (Fibrous protein)
Cilia and Flagella Microtubules are the central structural supports both cilia ﺍﻷﻬﺪﺍﺏ and flagella ﺍﻷﺴﻮﺍﻁ. Both can move unicellular and small multicellular organisms by propelling water outside the organism. • Cilia usually occur in large numbers on the cell surface. • Flagella usually occur in just one or a few per cell. • Cilia move more like oars ﻣﺠﺎﺩﺑﻒ with alternating power and recovery strokes. • Flagella have an undulatory movement ﺣﺮﻛﺔ ﺗﻤﻮﺟﻴﺔ. • So, They differ in their beating pattern ﺃﺴﻠﻮﺏ ﺍﻟﺤﺮﻛﺔ.

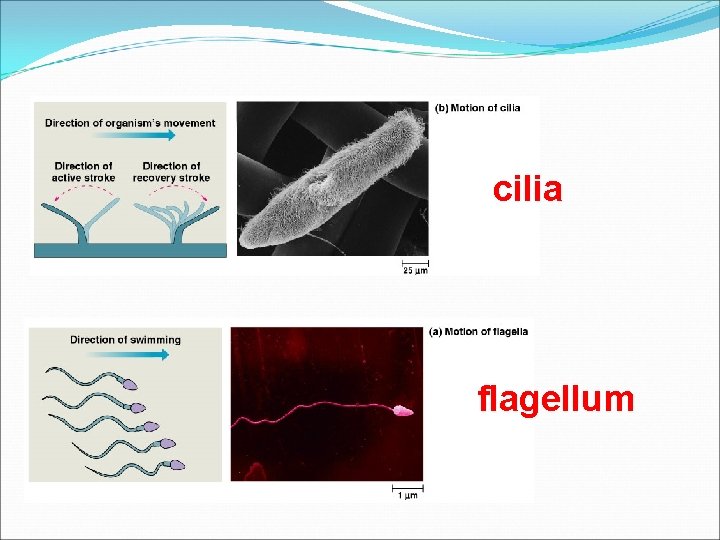

cilia flagellum
Cilia and flagella are formed of arms of a motor protein (dynein )ﺑﺮﻭﺗﻴﻦ ﺍﻟﺪﺍﻳﻨﻴﻦ. Dynein arms alternately grab, move, and release the outer microtubules. Protein cross-links limit sliding and the force is expressed as bending ﺇﻟﺘﻮﺍﺀ.
Thus, many prokaryotes are motile ﻣﺘﺤﺮﻛﺔ About half of all prokaryotes are capable directional movement ﺍﻟﺤﺮﻛﺔ ﺍﻟﻤﻮﺟﻬﺔ by the following: - of 1. By the flagella ﺍﻷﺴــﻮﺍﻁ , scattered ﻣﺒﻌﺜﺮﺓ the entire surface, is the most method of movement. 2. By two or more filaments ﺃﻠﻴﺎﻑ. 3. By threads ﺧﻴﻮﻁ that anchors ﺗﺮﺑﻂ the cells to the substratum ﺍﻟﺴﻄﺢ ﺍﻟﺬﻯ ﺗﻌﻴﺶ ﻋﻠﻴﻪ. By cilia ﺃﻬﺪﺍﺏ that differ from flagella in beating pattern 4. over common ﺷﺎﺋﻌﺔ
7 - Cell membrane • The plasma membrane functions as a selective barrier ﺣﺎﺟﺰ ﺇﺧﺘﻴﺎﺭﻯ that allows passage of oxygen, nutrients, and wastes for the whole volume of the cell.
Cell membrane Composed of lipids (phospholipids) and proteins Lipid layer contains hydrophilic and hydrophobic regions Carbohydrate chains Hydrophilic ﺣﺐ ﻟﻠﻤﺎﺀ Phospholipid Hydrophobic ﻛﺎﺭﻩ ﻟﻠﻤﺎﺀ Proteins
Comparison between Prokaryotes and Eukaryotes Term Prokaryotes Eukaryotes Size 1 -10 µm in diameter 10 -100 µm in diameter Cell wall Existed In plant cell (not animal cell) nucleus No nuclear envelope but Nucleoid True nucleus exists with nuclear envelope DNA As fibre in the nucleoid As Chromatin (DNA and region (plasmids in some cases) protein) Specialized Most of them are absent Organells All are existed Cell division Meiotic and/or Mitotic By Binary Fission
- Slides: 10
