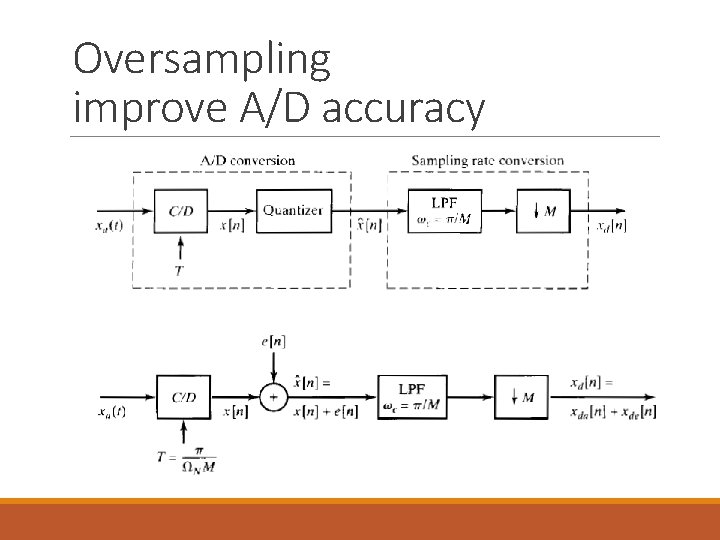

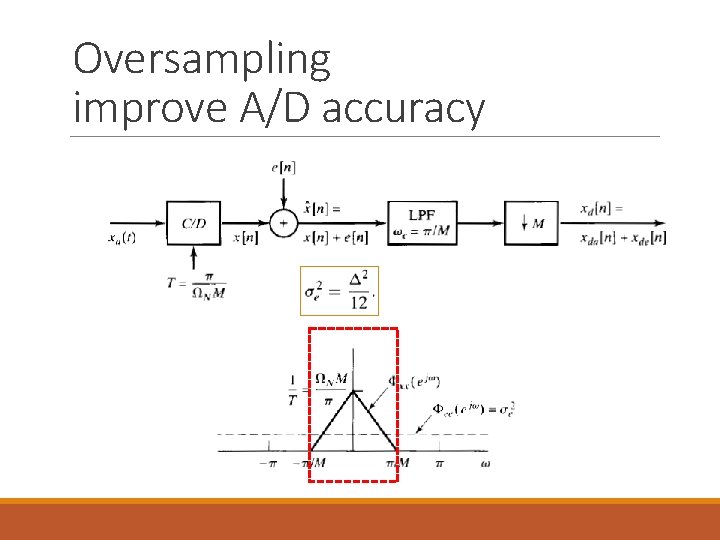

Oversampling improve A/D accuracy

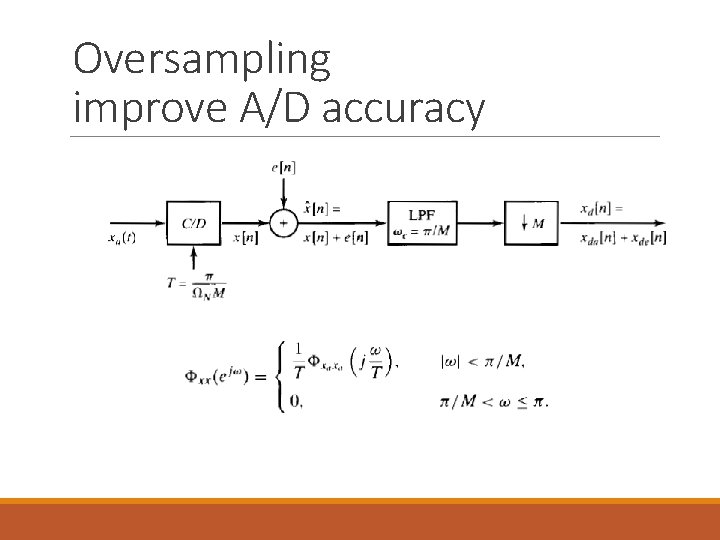

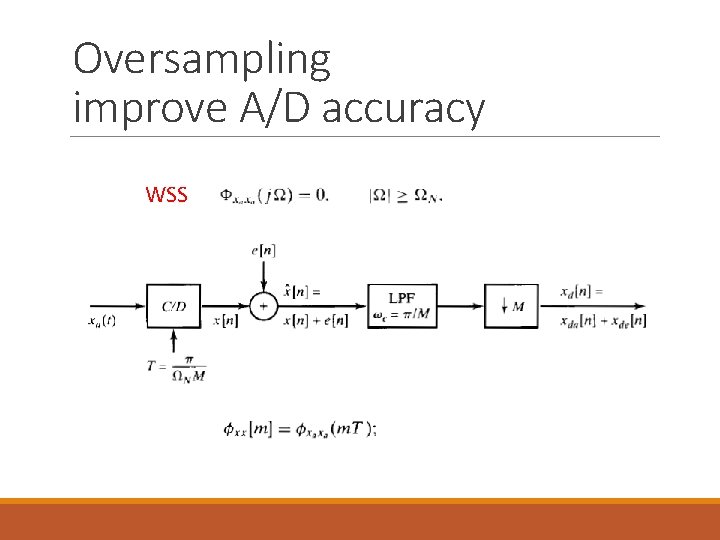

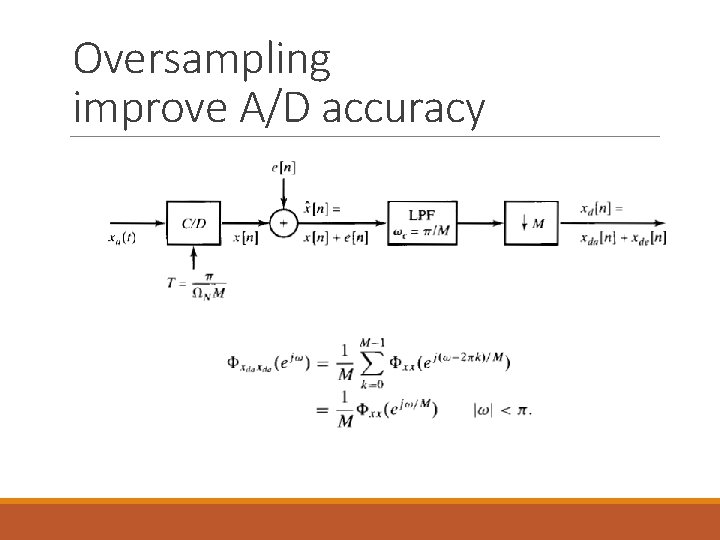

Oversampling improve A/D accuracy WSS

Oversampling improve A/D accuracy

Oversampling improve A/D accuracy

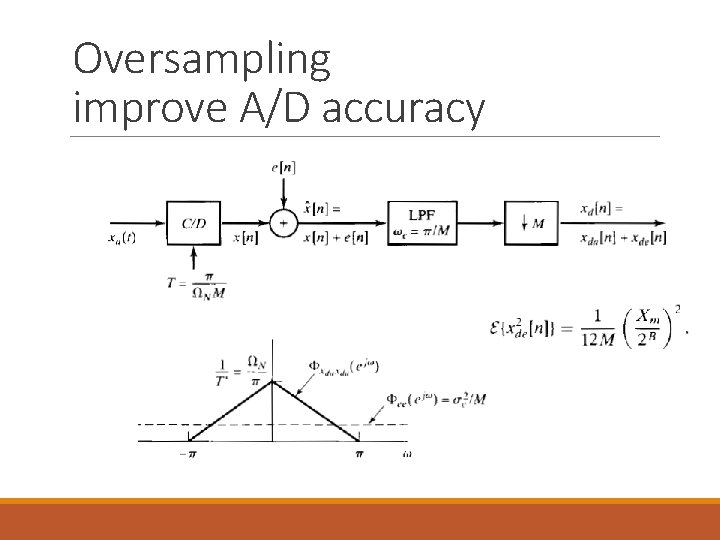

Oversampling improve A/D accuracy

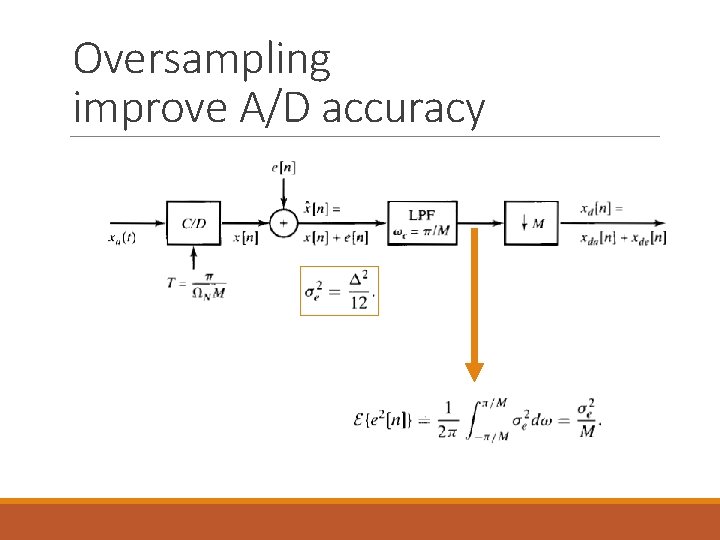

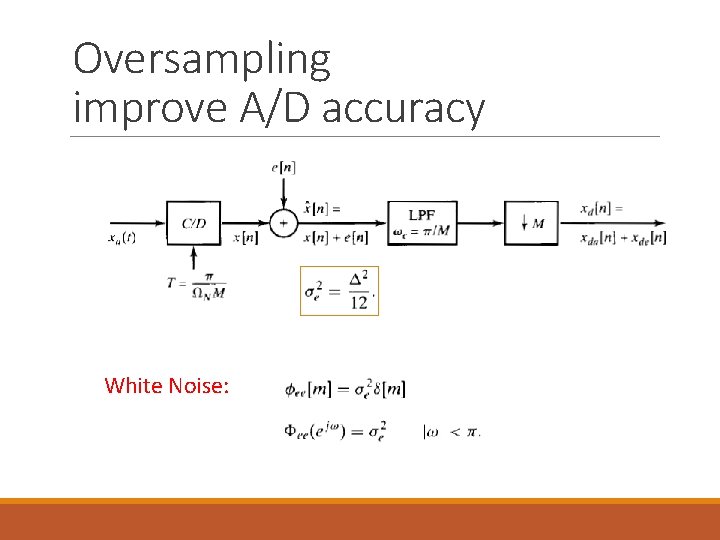

Oversampling improve A/D accuracy White Noise:

Oversampling improve A/D accuracy

Oversampling improve A/D accuracy

Oversampling improve A/D accuracy

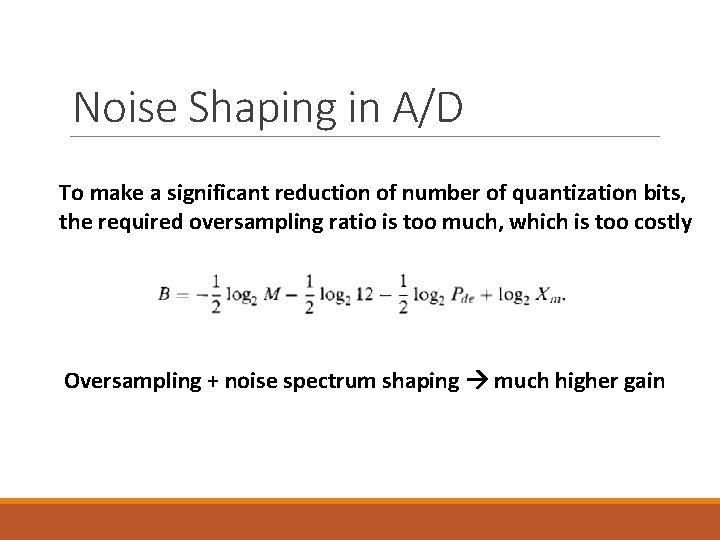

Noise Shaping in A/D To make a significant reduction of number of quantization bits, the required oversampling ratio is too much, which is too costly Oversampling + noise spectrum shaping much higher gain

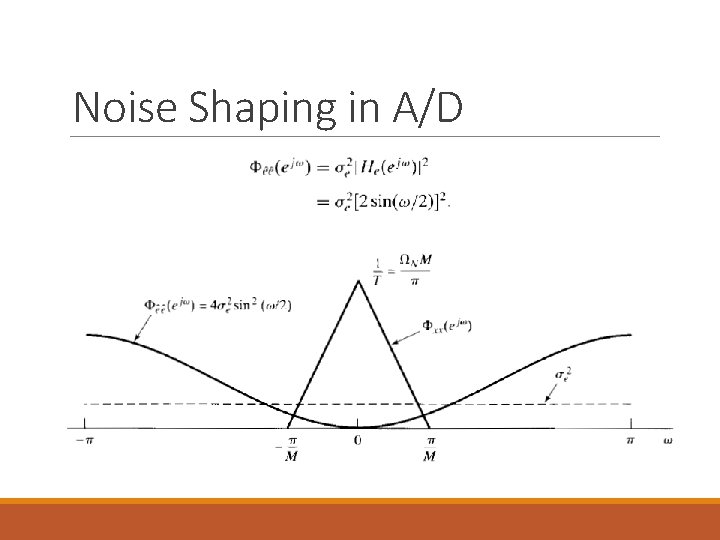

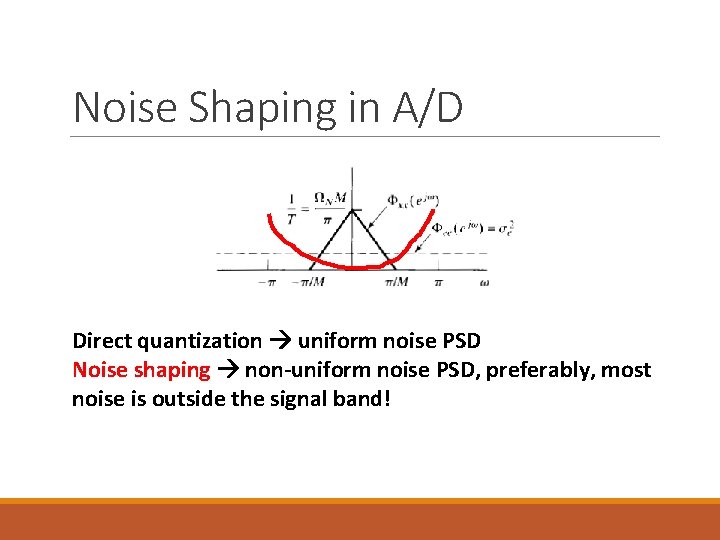

Noise Shaping in A/D Direct quantization uniform noise PSD Noise shaping non-uniform noise PSD, preferably, most noise is outside the signal band!

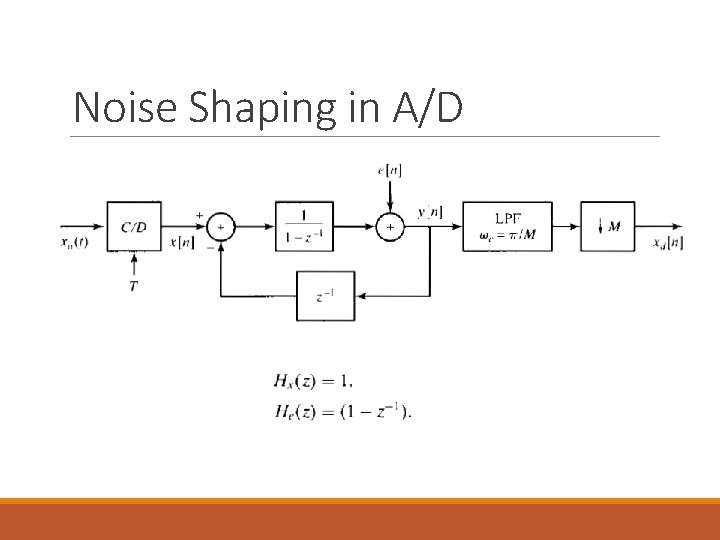

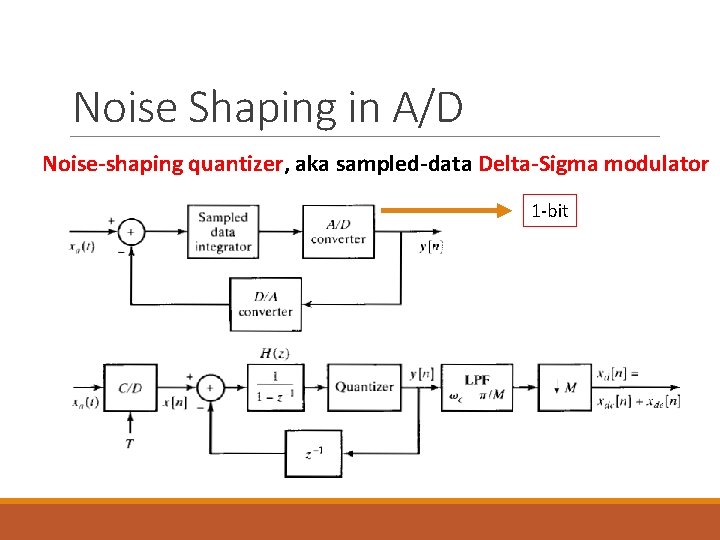

Noise Shaping in A/D Noise-shaping quantizer, aka sampled-data Delta-Sigma modulator 1 -bit

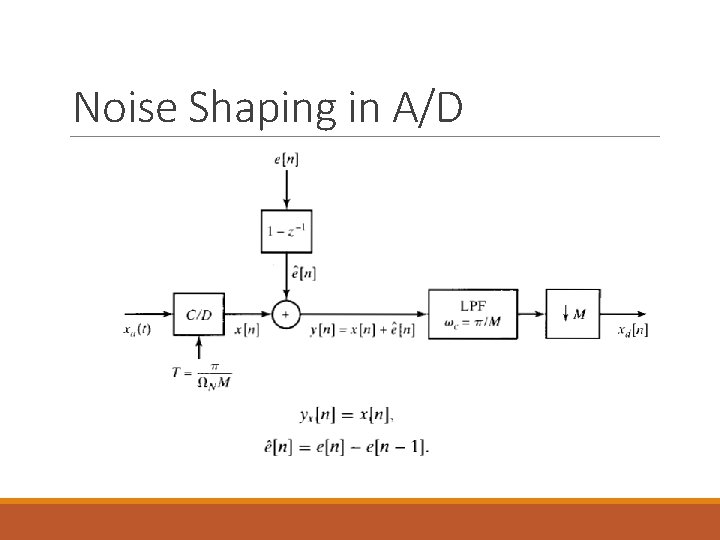

Noise Shaping in A/D

Noise Shaping in A/D

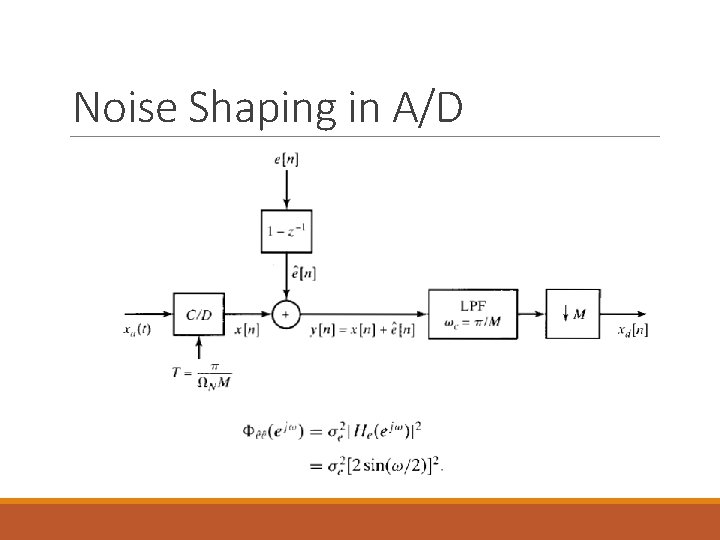

Noise Shaping in A/D

Noise Shaping in A/D

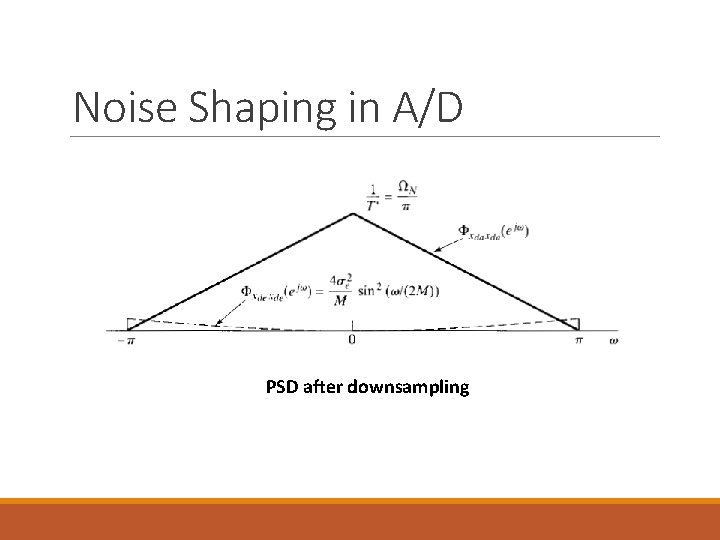

Noise Shaping in A/D PSD after downsampling

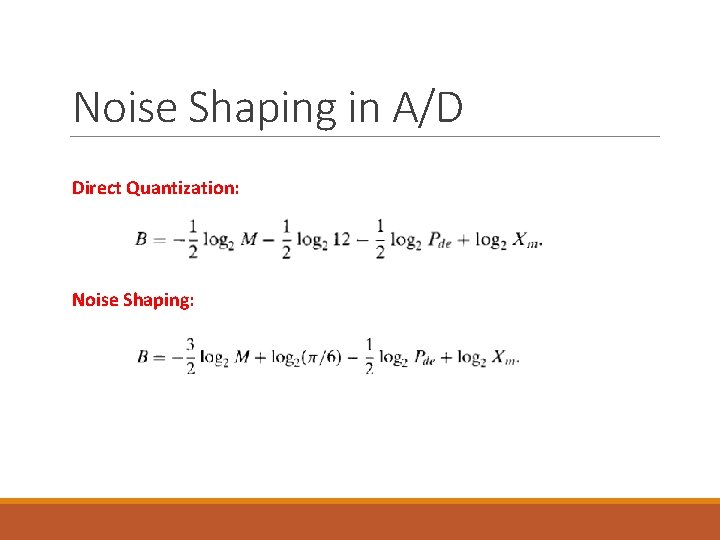

Noise Shaping in A/D Direct Quantization: Noise Shaping:

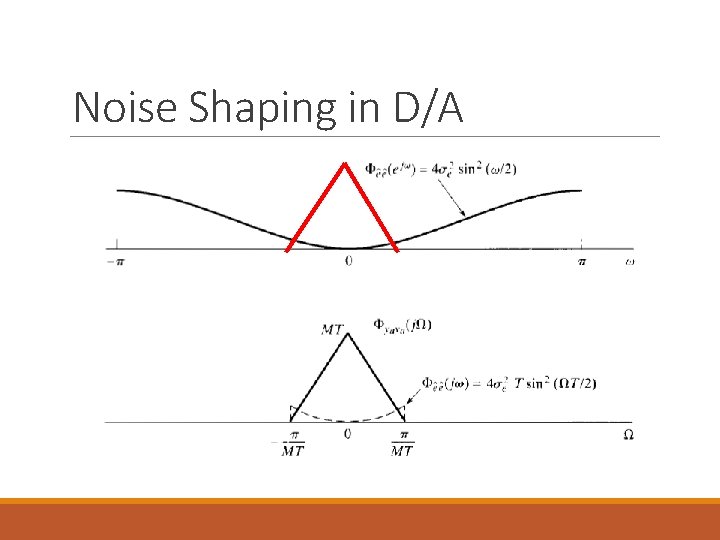

Noise Shaping in D/A quantization error

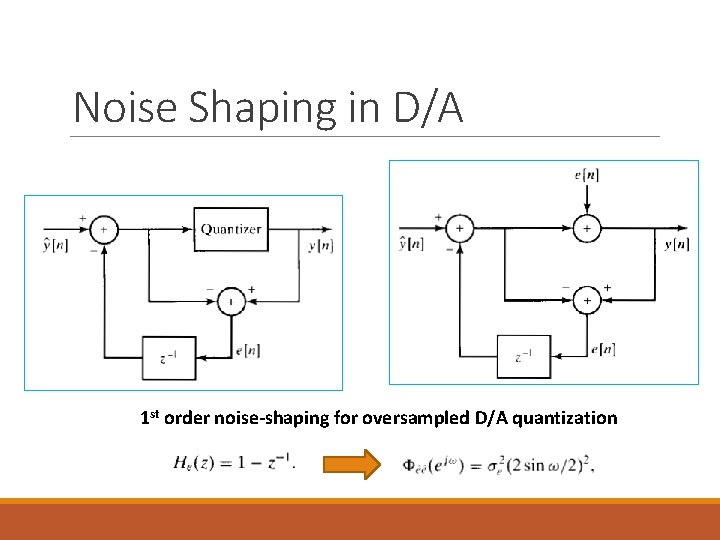

Noise Shaping in D/A 1 st order noise-shaping for oversampled D/A quantization

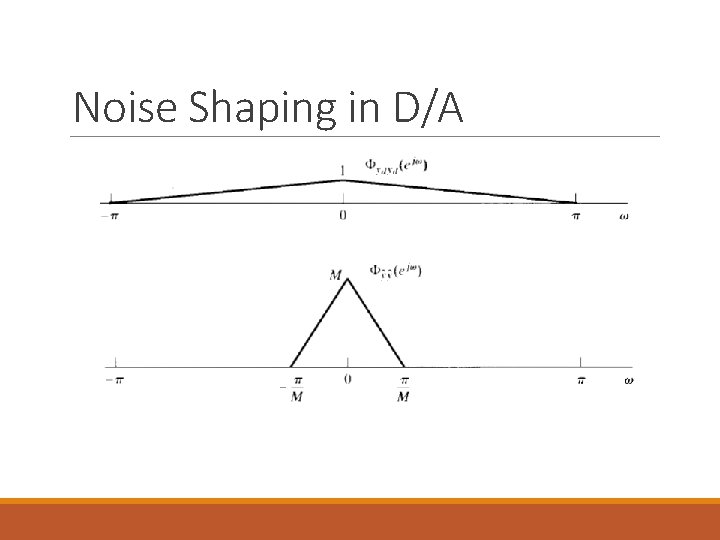

Noise Shaping in D/A

Noise Shaping in D/A

Summary 1. Nyquist-Sampling 2. Process continuous time signal with discrete system 3. Downsampling/Upsampling 4. Polyphase decomposition 5. D/A, A/D, Noise Shaping
