Lecture 5 Gravity and Motion Describing Motion and

Lecture 5: Gravity and Motion

Describing Motion and Forces n n n speed, velocity and acceleration momentum and force mass and weight Newton’s Laws of Motion conservation of momentum analogs for rotational motion

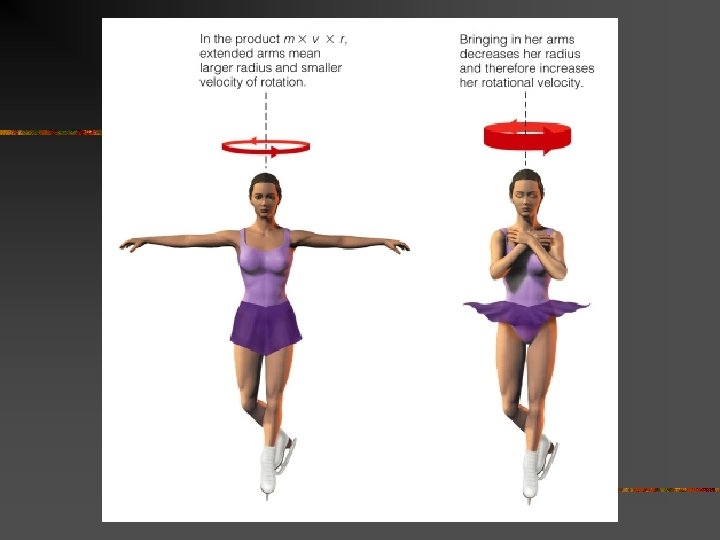

Torque and Angular Momentum n A torque is a twisting force n n Torque = force x length of lever arm Angular momentum is torque times velocity n For circular motion, =mxvxr L

Laws for Rotational Motion n Analogs of all of Newton’s Laws exist for rotational motion For example, in the absence of a net torque, the total angular momentum of a system remains constant There is also a Law of Conservation of Angular Momentum

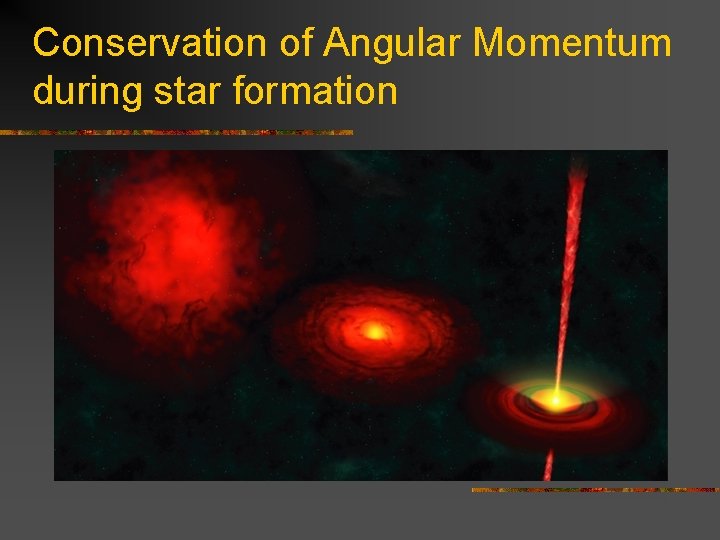

Conservation of Angular Momentum during star formation

Newton’s Universal Law of Gravitation n Every mass attracts every other mass through a force called gravity The force is proportional to the product of the two objects’ masses The force is inversely proportional to the square of the distance between the objects’ centers

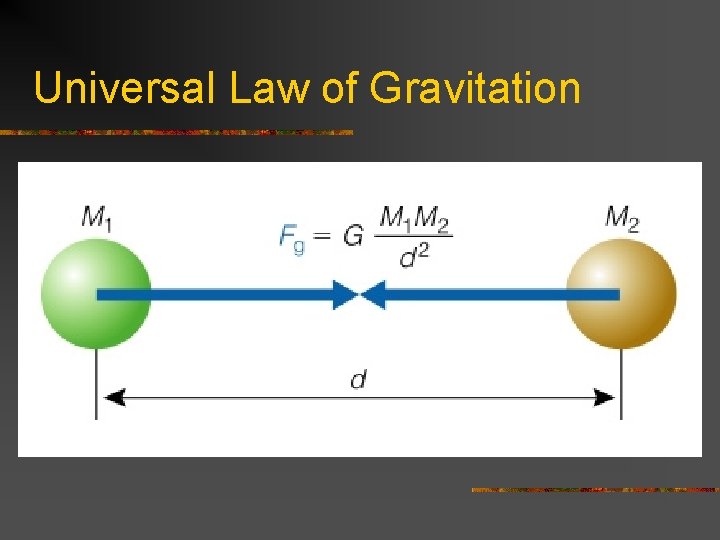

Universal Law of Gravitation

The Gravitational Constant G n n The value of the constant G in Newton’s formula has been measured to be G = 6. 67 x 10 – 11 m 3/(kg s 2) This constant is believed to have the same value everywhere in the Universe

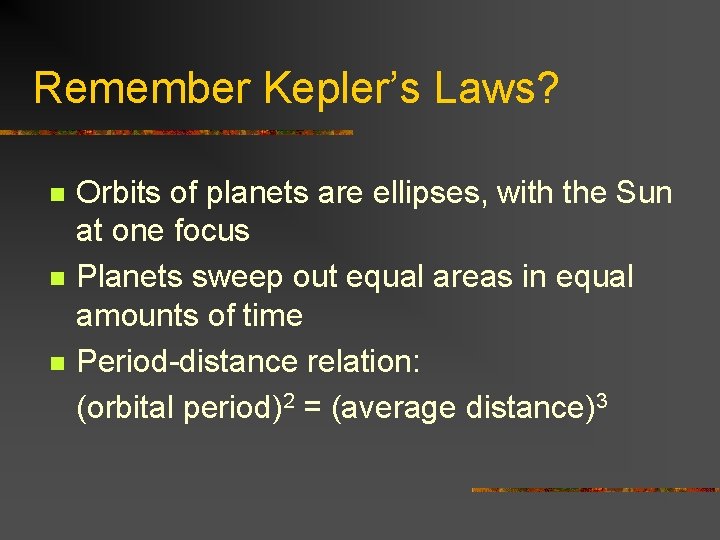

Remember Kepler’s Laws? n n n Orbits of planets are ellipses, with the Sun at one focus Planets sweep out equal areas in equal amounts of time Period-distance relation: (orbital period)2 = (average distance)3

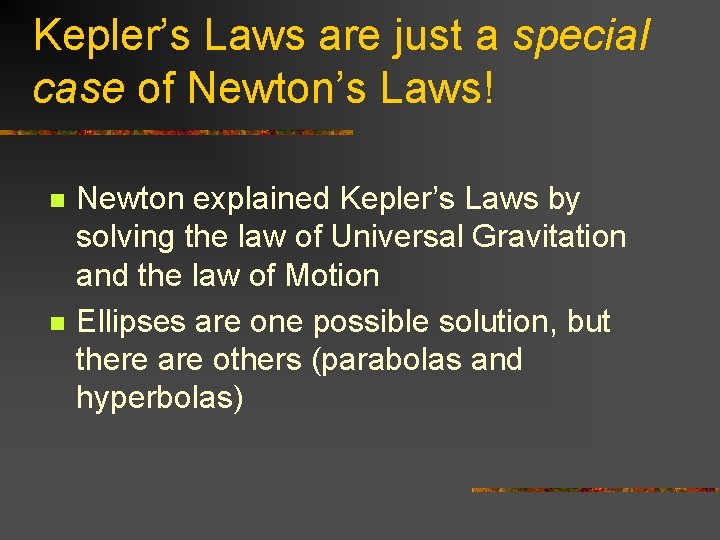

Kepler’s Laws are just a special case of Newton’s Laws! n n Newton explained Kepler’s Laws by solving the law of Universal Gravitation and the law of Motion Ellipses are one possible solution, but there are others (parabolas and hyperbolas)

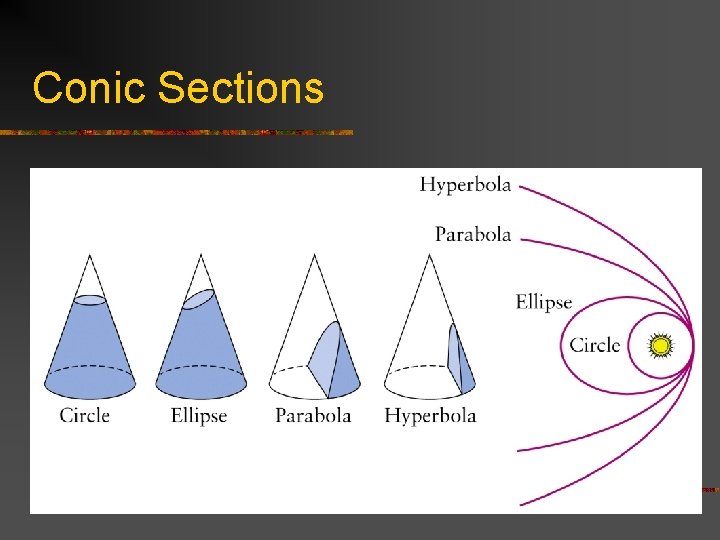

Conic Sections

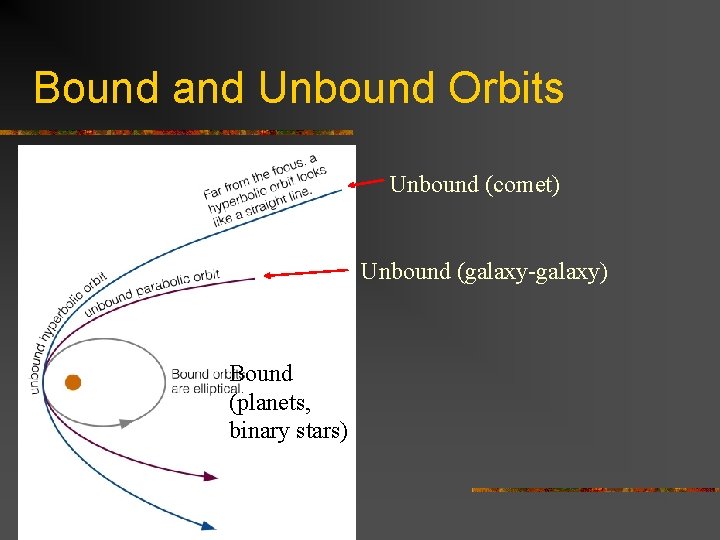

Bound and Unbound Orbits Unbound (comet) Unbound (galaxy-galaxy) Bound (planets, binary stars)

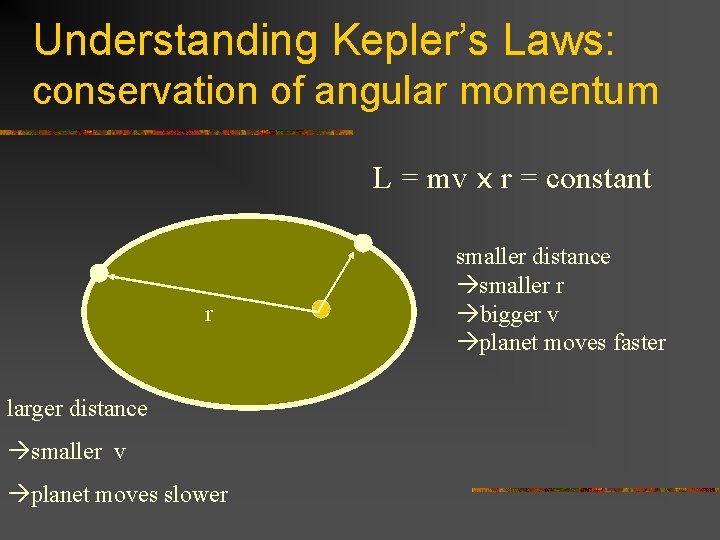

Understanding Kepler’s Laws: conservation of angular momentum L = mv x r = constant r larger distance smaller v planet moves slower smaller distance smaller r bigger v planet moves faster

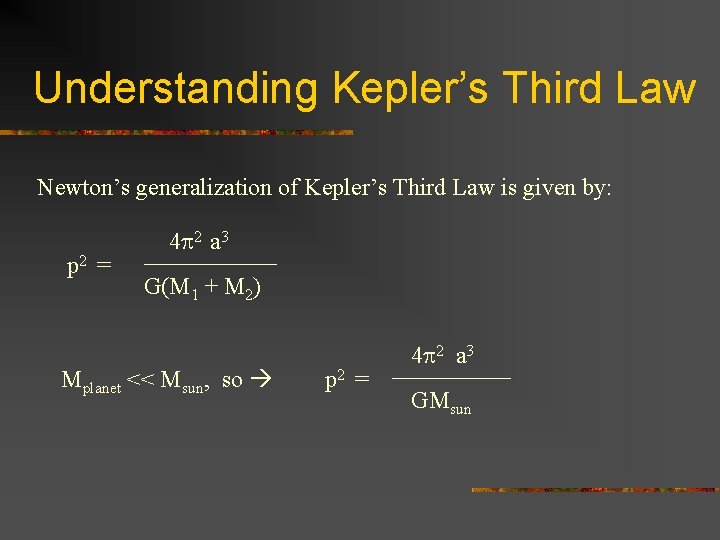

Understanding Kepler’s Third Law Newton’s generalization of Kepler’s Third Law is given by: p 2 = 4 p 2 a 3 G(M 1 + M 2) Mplanet << Msun, so p 2 = 4 p 2 a 3 GMsun

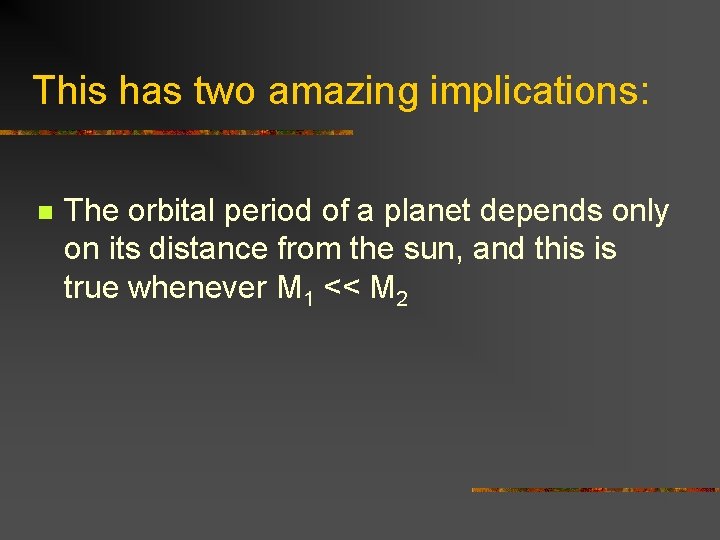

This has two amazing implications: n The orbital period of a planet depends only on its distance from the sun, and this is true whenever M 1 << M 2

An Astronaut and the Space Shuttle have the same orbit!

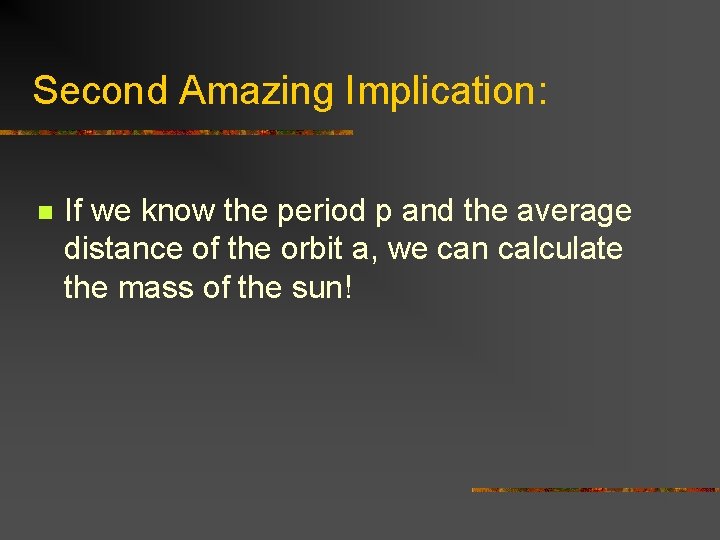

Second Amazing Implication: n If we know the period p and the average distance of the orbit a, we can calculate the mass of the sun!

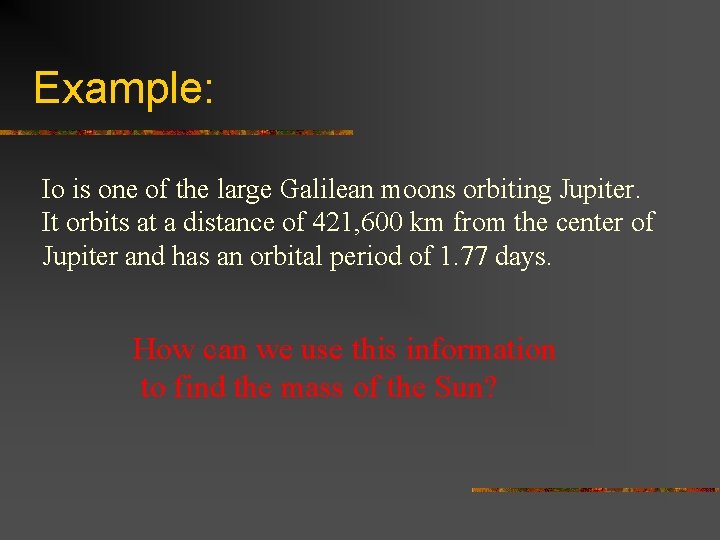

Example: Io is one of the large Galilean moons orbiting Jupiter. It orbits at a distance of 421, 600 km from the center of Jupiter and has an orbital period of 1. 77 days. How can we use this information to find the mass of the Sun?

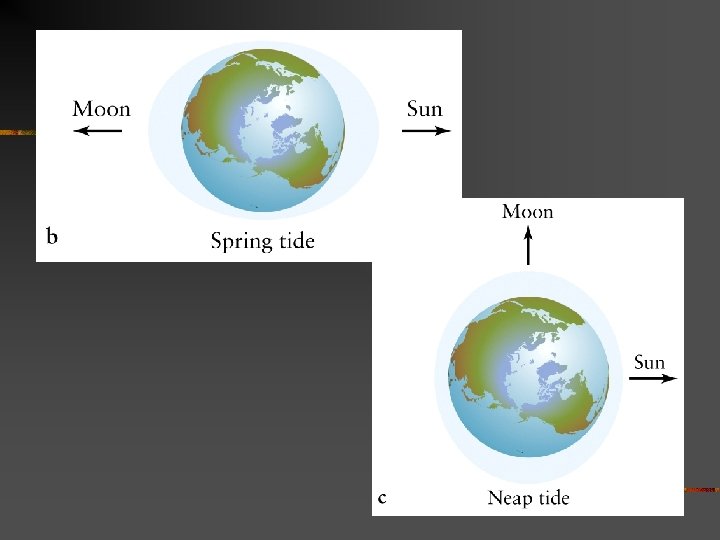

Tides

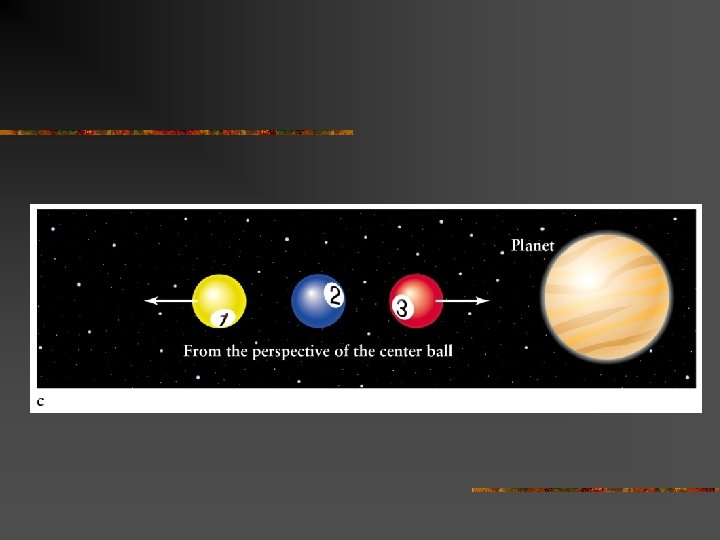

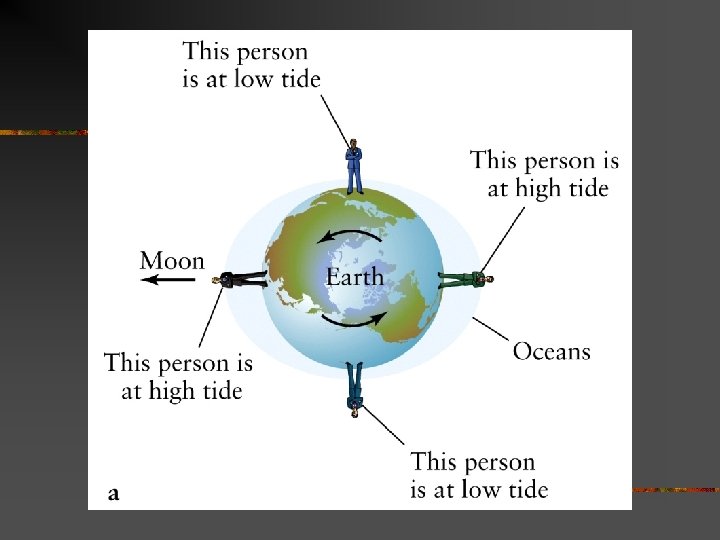

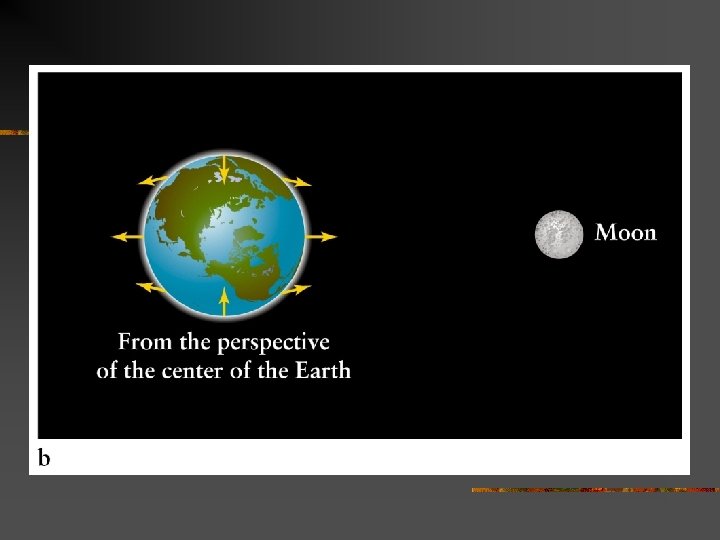

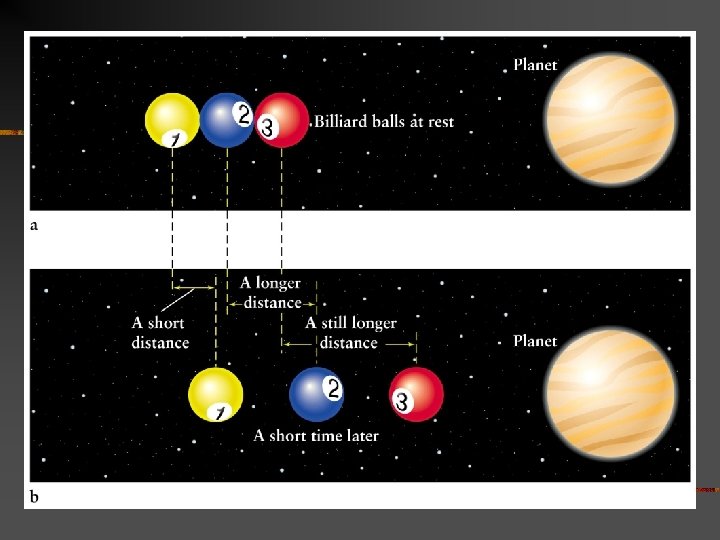

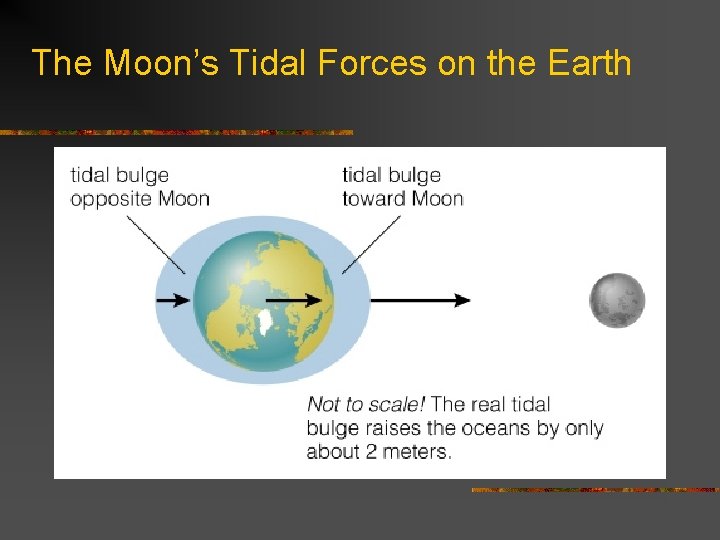

The Moon’s Tidal Forces on the Earth

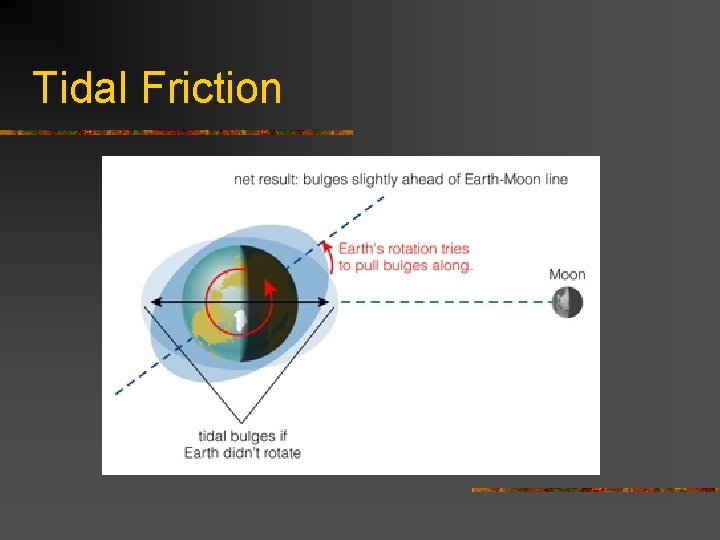

Tidal Friction

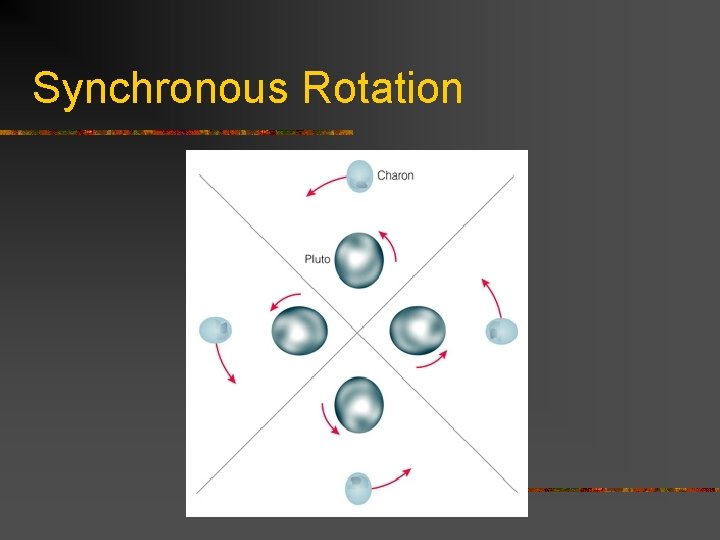

Synchronous Rotation

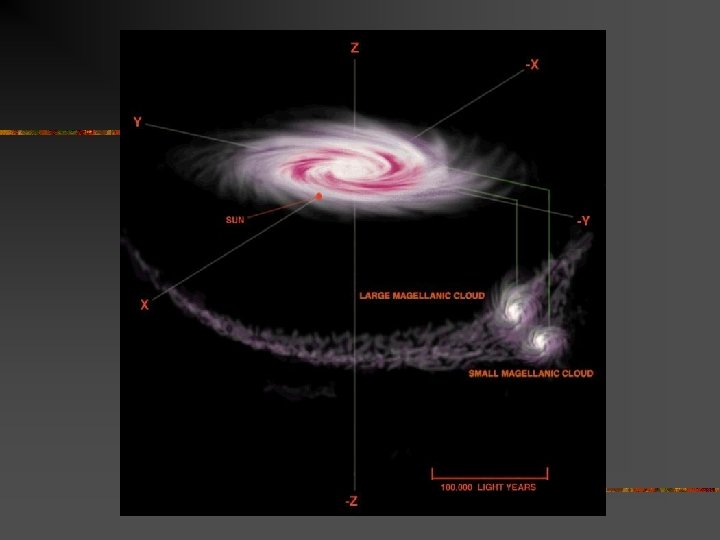

Galactic Tidal Forces
