LECTURE 3 Prokaryotic Cell Structure and Function Microbiology

LECTURE 3: Prokaryotic Cell Structure and Function Microbiology and Virology; 3 Credit hours Atta-ur-Rahman School of Applied Biosciences (ASAB) National University of Sciences and Technology (NUST

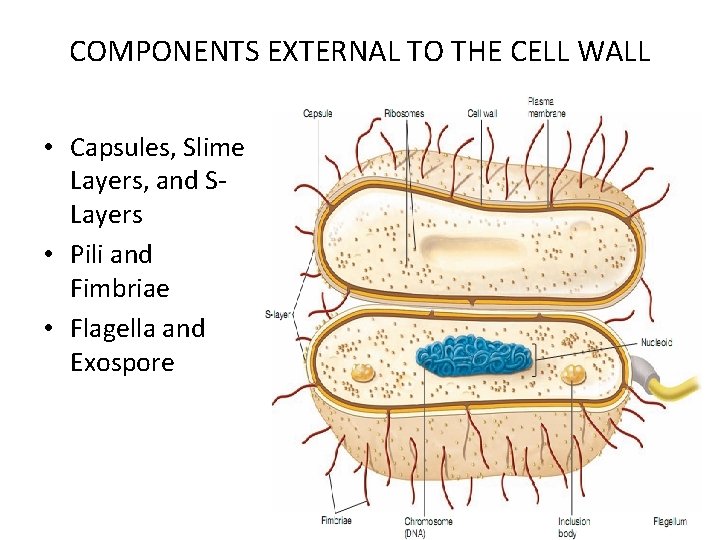

COMPONENTS EXTERNAL TO THE CELL WALL • Capsules, Slime Layers, and SLayers • Pili and Fimbriae • Flagella and Exospore

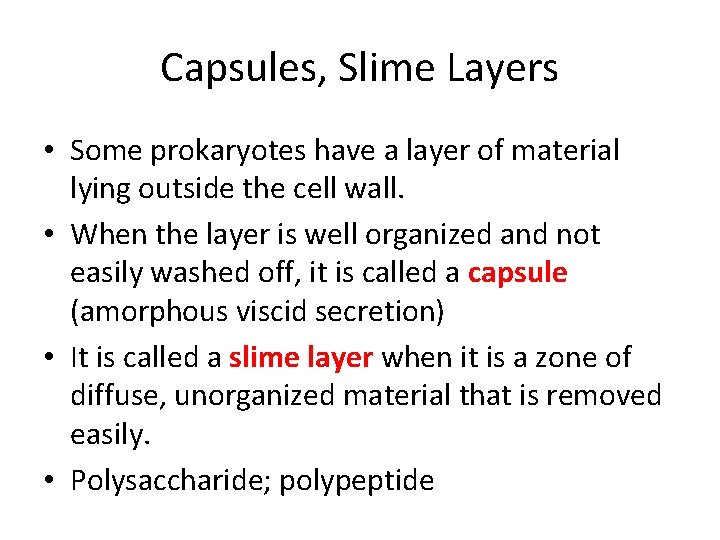

Capsules, Slime Layers • Some prokaryotes have a layer of material lying outside the cell wall. • When the layer is well organized and not easily washed off, it is called a capsule (amorphous viscid secretion) • It is called a slime layer when it is a zone of diffuse, unorganized material that is removed easily. • Polysaccharide; polypeptide

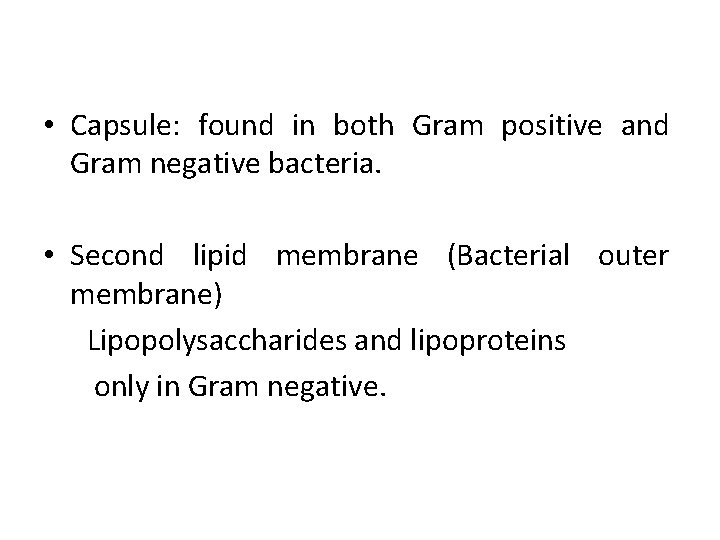

• Capsule: found in both Gram positive and Gram negative bacteria. • Second lipid membrane (Bacterial outer membrane) Lipopolysaccharides and lipoproteins only in Gram negative.

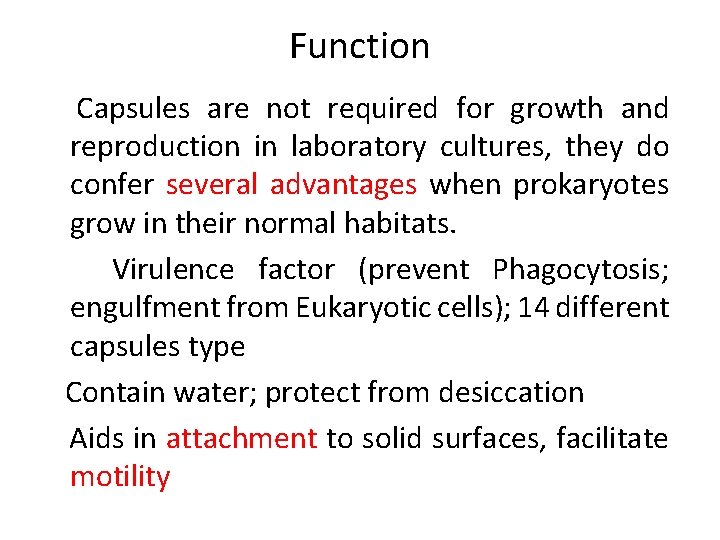

Function Capsules are not required for growth and reproduction in laboratory cultures, they do confer several advantages when prokaryotes grow in their normal habitats. Virulence factor (prevent Phagocytosis; engulfment from Eukaryotic cells); 14 different capsules type Contain water; protect from desiccation Aids in attachment to solid surfaces, facilitate motility

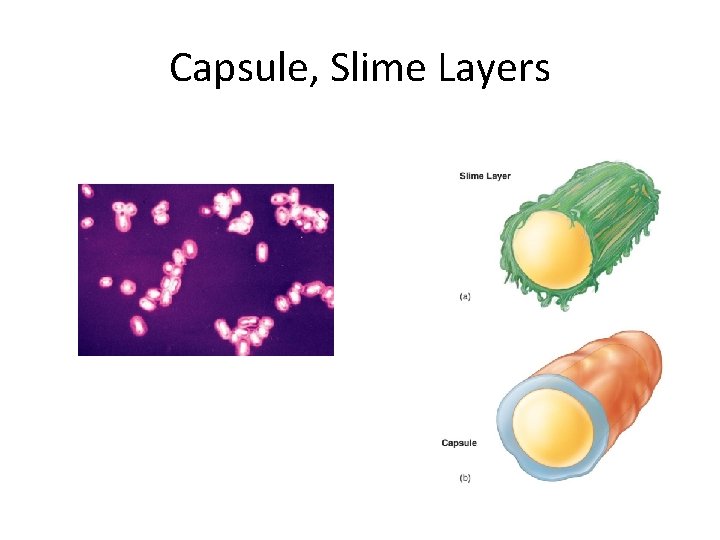

Capsule, Slime Layers

Bacteria connected to each other and to the intestinal wall, by their glycocalyxes, the extensive networks of fibers extending from the cells

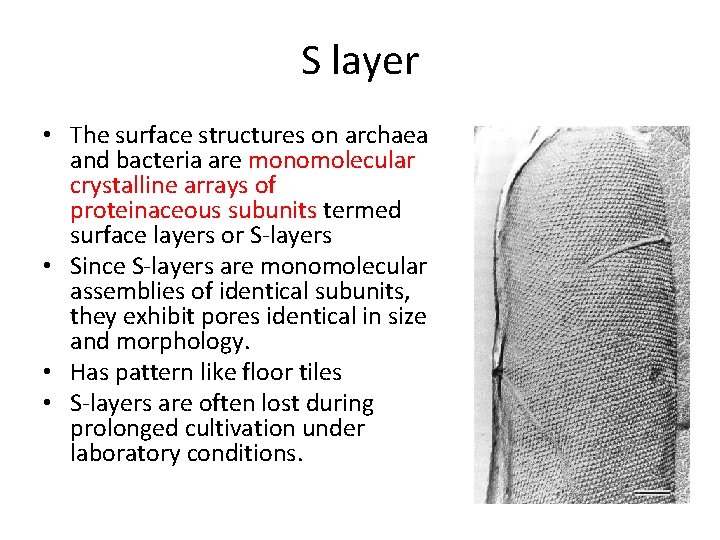

S layer • The surface structures on archaea and bacteria are monomolecular crystalline arrays of proteinaceous subunits termed surface layers or S-layers • Since S-layers are monomolecular assemblies of identical subunits, they exhibit pores identical in size and morphology. • Has pattern like floor tiles • S-layers are often lost during prolonged cultivation under laboratory conditions.

Surface Layer • Because S-layer lattices possess pores identical in size and morphology in the 2 - to 8 -nm range, they work as precise molecular sieves, providing sharp cutoff levels for the bacterial cells • A kind of periplasmic space is formed between the S-layer and the plasma membrane where secreted macromolecules involved in nutrient degradation, nutrient transport, and folding and export of proteins could be stored • Hyper-thermostable protease • Adhesion sites for cell associated exoenzymes • A quite interesting type of protective function was reported for the S-layer lattice of Synechococcus GL-24, a cyanobacterium capable of growing in lakes with exceptionally high calcium and sulfate ion concentrations. The hexagonally ordered S-layer lattice functions as a template for fine-grain mineralization and is continuously shed from the cell surface to prevent clogging of further cell envelope layers.

Surface Layer The S-Layer. An electron micrograph of the S-layer of the bacterium Deinococcus radiodurans

Pili and Fimbriae

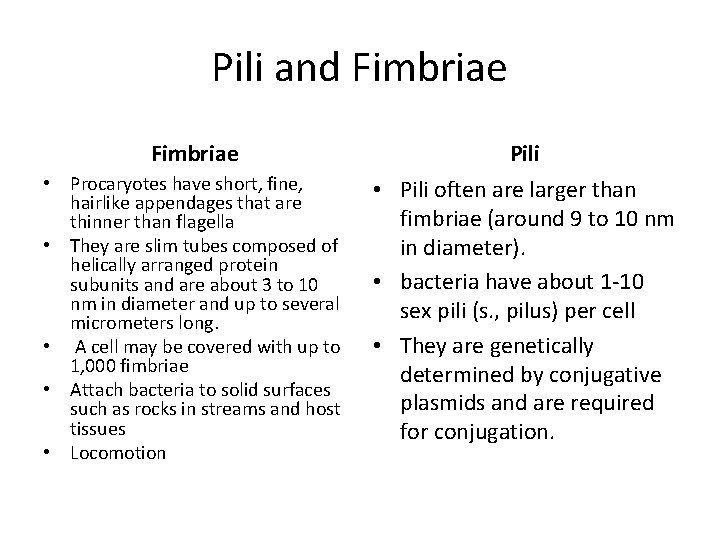

Pili and Fimbriae Pili • Procaryotes have short, fine, hairlike appendages that are thinner than flagella • They are slim tubes composed of helically arranged protein subunits and are about 3 to 10 nm in diameter and up to several micrometers long. • A cell may be covered with up to 1, 000 fimbriae • Attach bacteria to solid surfaces such as rocks in streams and host tissues • Locomotion • Pili often are larger than fimbriae (around 9 to 10 nm in diameter). • bacteria have about 1 -10 sex pili (s. , pilus) per cell • They are genetically determined by conjugative plasmids and are required for conjugation.

Pili and Fimbriae The long flagella and the numerous shorter fimbriae are very evident in this electron micrograph of the bacterium Proteus vulgaris

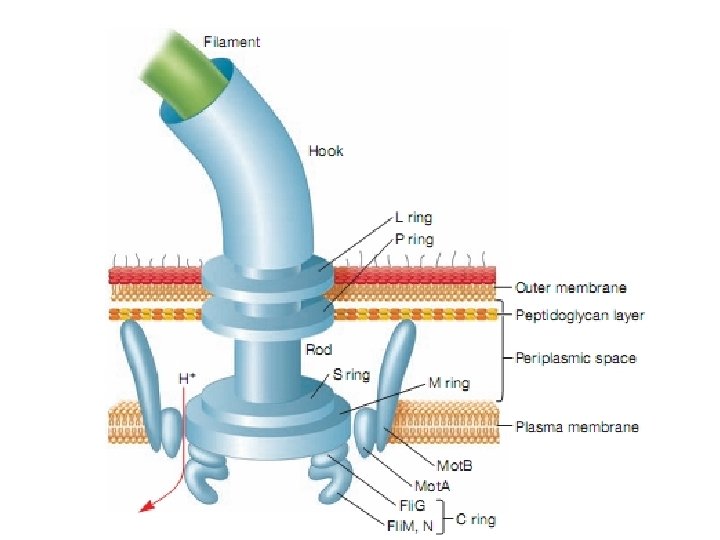

Flagella and Motility • Bacterial flagella are slender, rigid structures, about 20 nm diameter and up to 15 or 20 μm long. • Threadlike locomotor appendages extending outward from the plasma membrane and cell wall. • Bacterial species often differ distinctively in their patterns of flagella distribution and these patterns are useful in identifying bacteria.

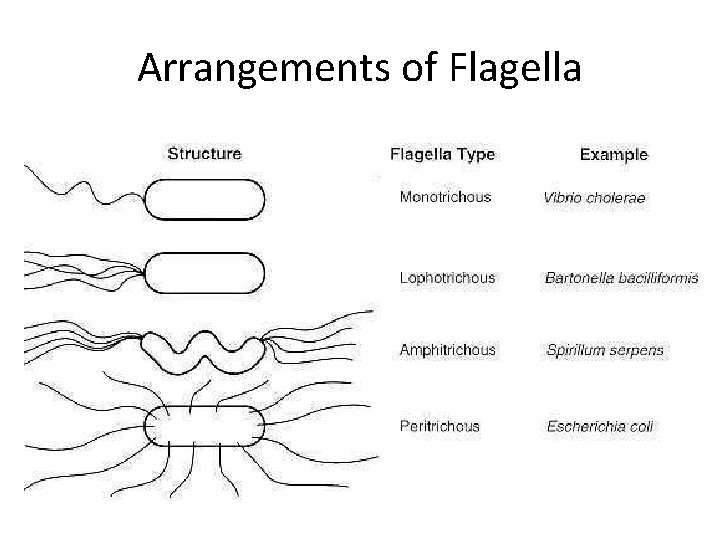

Arrangements of Flagella

THE BACTERIAL ENDOSPORE • A number of gram-positive bacteria can form a special resistant, dormant structure called an endospore. • These structures are extraordinarily resistant to environmental stresses such as – Heat, ultraviolet radiation, – Gamma radiation, chemical disinfectants, – Desiccation. • In fact, some endospores have remained viable for around 100, 000 years

THE BACTERIAL ENDOSPORE • Endospore position in the mother cell (sporangium) frequently differs among species, making it of considerable value in identification. • Endospores may be centrally located, close to one end (subterminal), or definitely terminal • Sometimes an endospore is so large that it swells the sporangium.

The Bacterial Endospore Structure. Bacillus anthracis endospore

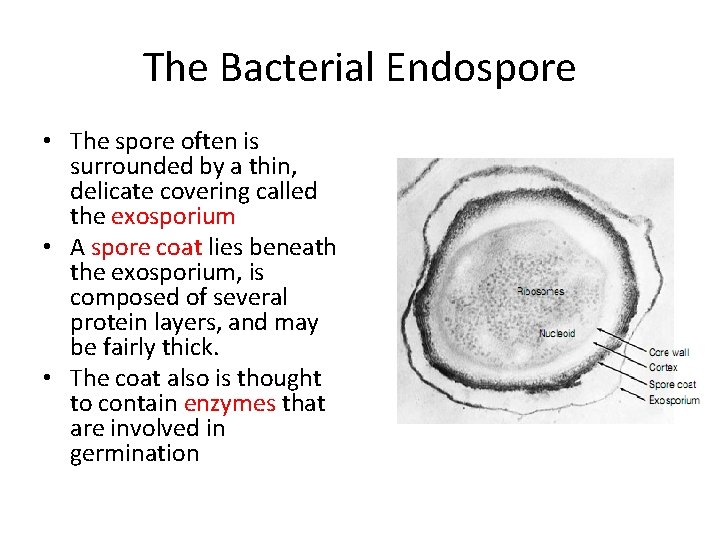

The Bacterial Endospore • The spore often is surrounded by a thin, delicate covering called the exosporium • A spore coat lies beneath the exosporium, is composed of several protein layers, and may be fairly thick. • The coat also is thought to contain enzymes that are involved in germination

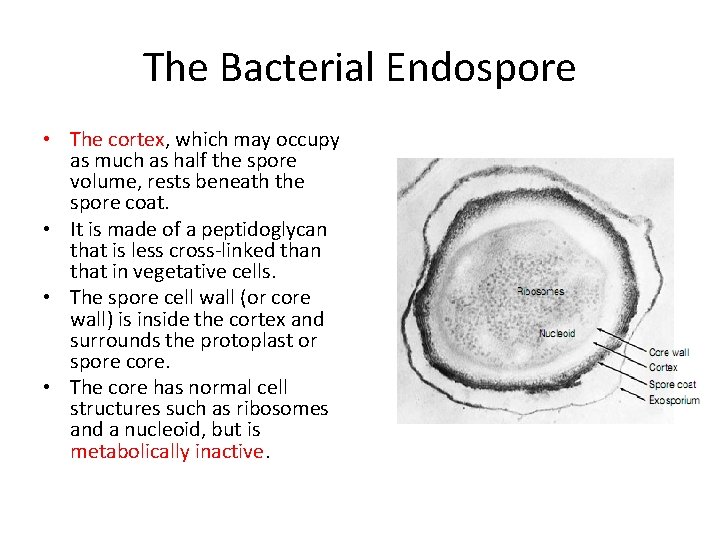

The Bacterial Endospore • The cortex, which may occupy as much as half the spore volume, rests beneath the spore coat. • It is made of a peptidoglycan that is less cross-linked than that in vegetative cells. • The spore cell wall (or core wall) is inside the cortex and surrounds the protoplast or spore core. • The core has normal cell structures such as ribosomes and a nucleoid, but is metabolically inactive.

• As much as 15% of the spore’s dry weight consists of dipicolinic acid complexed with calcium ions which is located in the core. • Aid in resistance to wet • Heat, oxidizing agents, and sometimes dry heat • Calcium dipicolinate stabilizes the spore’s nucleic acids • Specialized small, acid-soluble DNA binding proteins (SASPs)
