Lecture 3: Networking Standards By D. Najla Al-Nabhan

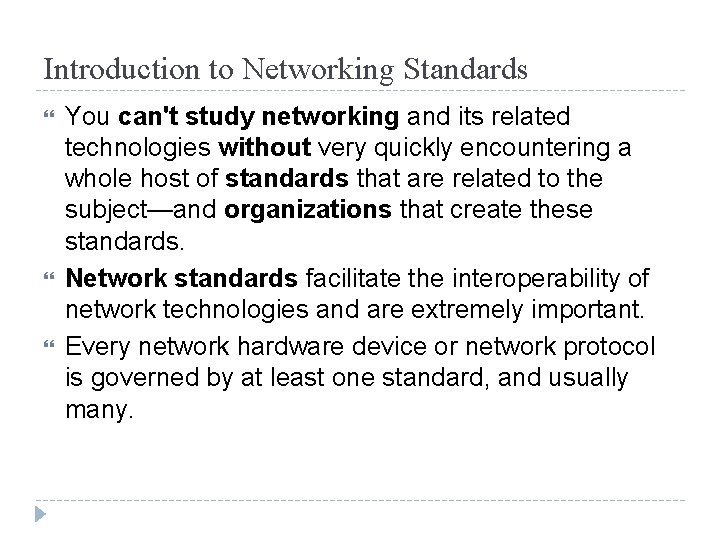

Introduction to Networking Standards You can't study networking and its related technologies without very quickly encountering a whole host of standards that are related to the subject—and organizations that create these standards. Network standards facilitate the interoperability of network technologies and are extremely important. Every network hardware device or network protocol is governed by at least one standard, and usually many.

Why are standards important? “the beauty of standards is that there are so many to choose from”. standards also often differ in terms of the type of standards they are, and how they came about. Types of standards: Proprietary Standards Open Standards De facto Standards

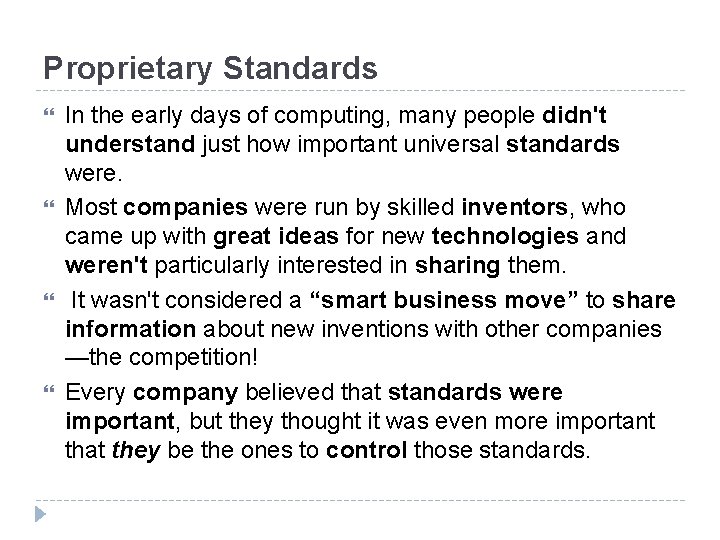

Proprietary Standards In the early days of computing, many people didn't understand just how important universal standards were. Most companies were run by skilled inventors, who came up with great ideas for new technologies and weren't particularly interested in sharing them. It wasn't considered a “smart business move” to share information about new inventions with other companies —the competition! Every company believed that standards were important, but they thought it was even more important that they be the ones to control those standards.

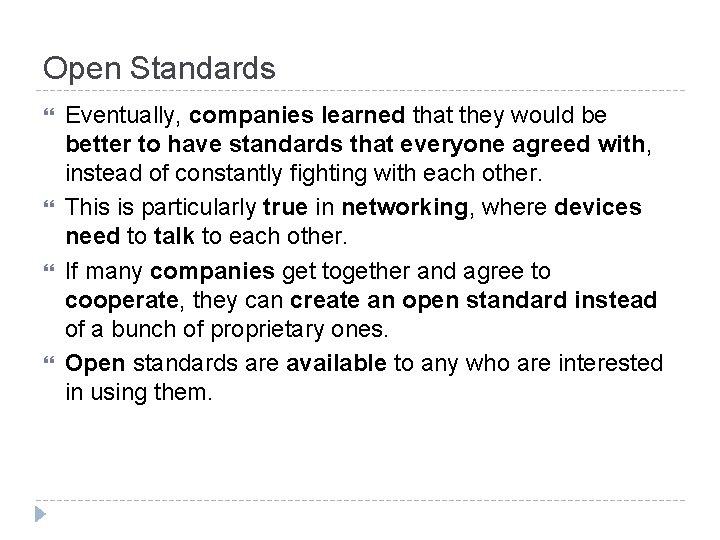

Open Standards Eventually, companies learned that they would be better to have standards that everyone agreed with, instead of constantly fighting with each other. This is particularly true in networking, where devices need to talk to each other. If many companies get together and agree to cooperate, they can create an open standard instead of a bunch of proprietary ones. Open standards are available to any who are interested in using them.

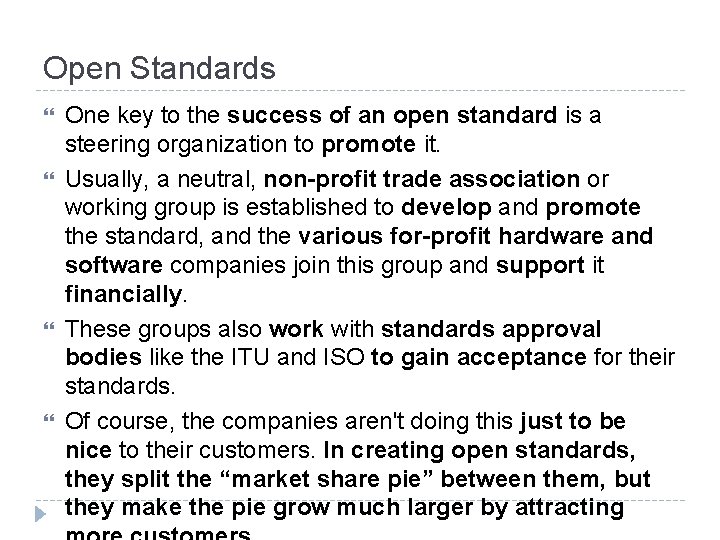

Open Standards One key to the success of an open standard is a steering organization to promote it. Usually, a neutral, non-profit trade association or working group is established to develop and promote the standard, and the various for-profit hardware and software companies join this group and support it financially. These groups also work with standards approval bodies like the ITU and ISO to gain acceptance for their standards. Of course, the companies aren't doing this just to be nice to their customers. In creating open standards, they split the “market share pie” between them, but they make the pie grow much larger by attracting

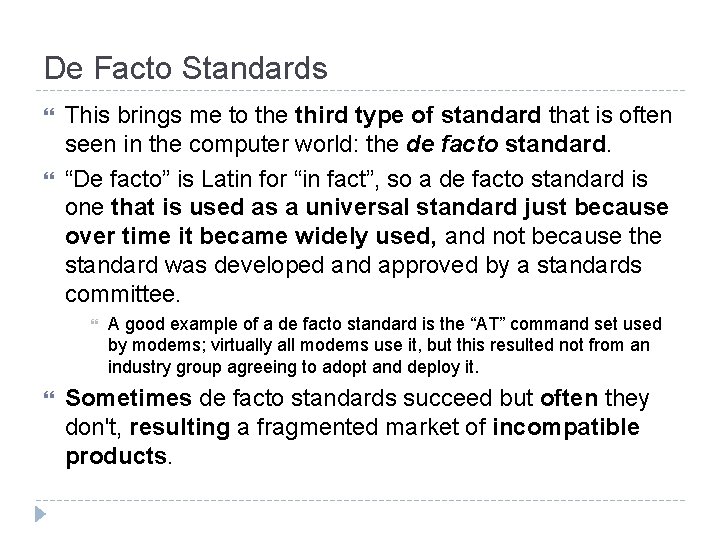

De Facto Standards This brings me to the third type of standard that is often seen in the computer world: the de facto standard. “De facto” is Latin for “in fact”, so a de facto standard is one that is used as a universal standard just because over time it became widely used, and not because the standard was developed and approved by a standards committee. A good example of a de facto standard is the “AT” command set used by modems; virtually all modems use it, but this resulted not from an industry group agreeing to adopt and deploy it. Sometimes de facto standards succeed but often they don't, resulting a fragmented market of incompatible products.

Networking Standards All networking technologies have standards associated with them. A networking technology may have more than one standard for any or all of the following reasons: The original standard has been revised or updated; The technology is sufficiently complex that it needs to be described in more than one document; The technology borrows from or builds on documents used in related technologies; More than one organization has been involved in developing the technology. Today, all networking standards are “open” standards, administered by a standards organization or industry group.

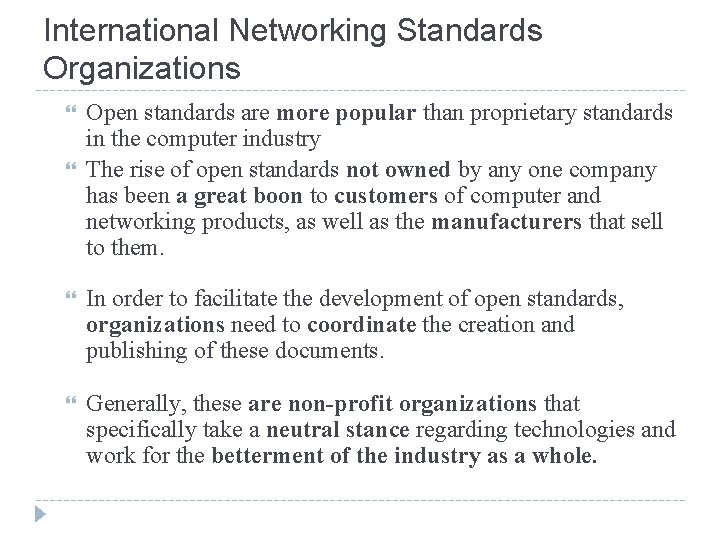

International Networking Standards Organizations Open standards are more popular than proprietary standards in the computer industry The rise of open standards not owned by any one company has been a great boon to customers of computer and networking products, as well as the manufacturers that sell to them. In order to facilitate the development of open standards, organizations need to coordinate the creation and publishing of these documents. Generally, these are non-profit organizations that specifically take a neutral stance regarding technologies and work for the betterment of the industry as a whole.

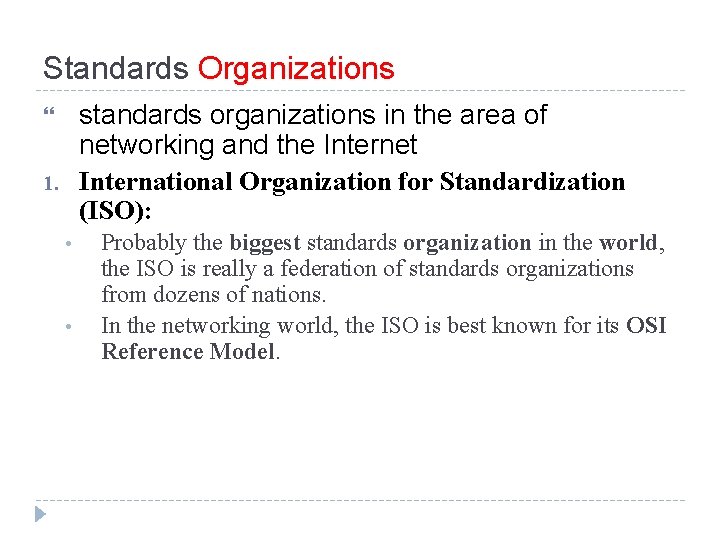

Standards Organizations standards organizations in the area of networking and the Internet International Organization for Standardization (ISO): 1. • • Probably the biggest standards organization in the world, the ISO is really a federation of standards organizations from dozens of nations. In the networking world, the ISO is best known for its OSI Reference Model.

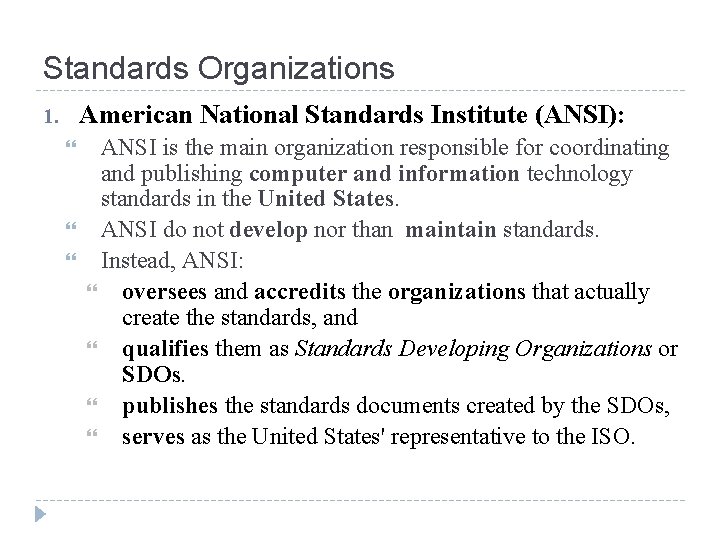

Standards Organizations American National Standards Institute (ANSI): 1. ANSI is the main organization responsible for coordinating and publishing computer and information technology standards in the United States. ANSI do not develop nor than maintain standards. Instead, ANSI: oversees and accredits the organizations that actually create the standards, and qualifies them as Standards Developing Organizations or SDOs. publishes the standards documents created by the SDOs, serves as the United States' representative to the ISO.

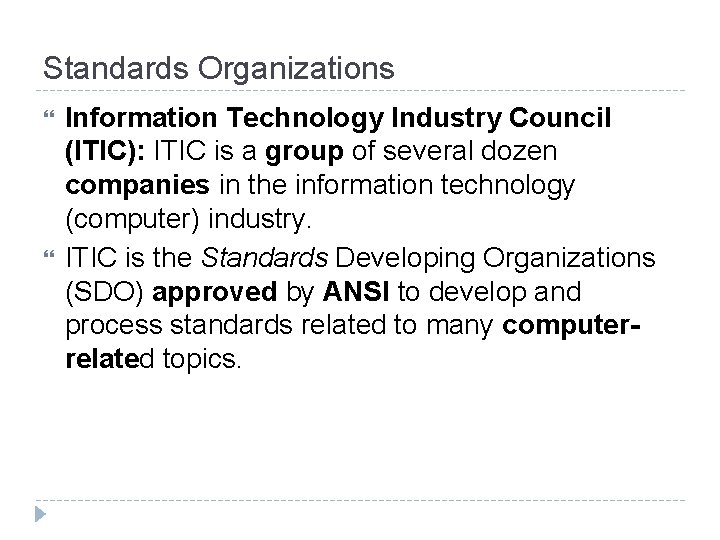

Standards Organizations Information Technology Industry Council (ITIC): ITIC is a group of several dozen companies in the information technology (computer) industry. ITIC is the Standards Developing Organizations (SDO) approved by ANSI to develop and process standards related to many computerrelated topics.

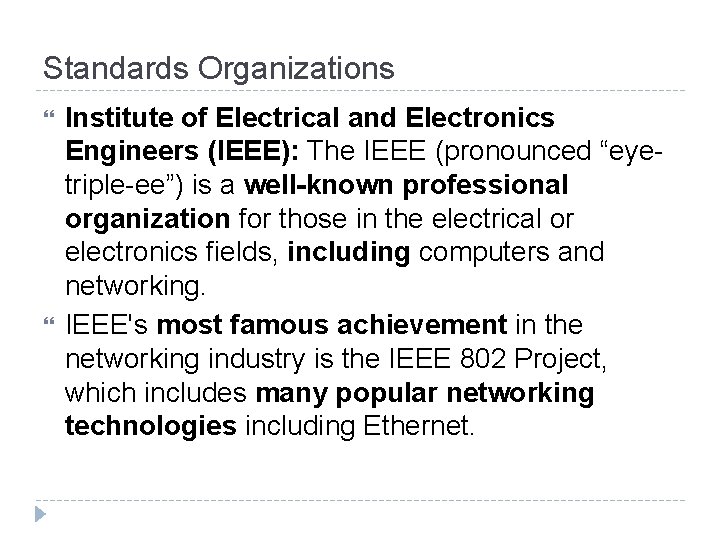

Standards Organizations Institute of Electrical and Electronics Engineers (IEEE): The IEEE (pronounced “eyetriple-ee”) is a well-known professional organization for those in the electrical or electronics fields, including computers and networking. IEEE's most famous achievement in the networking industry is the IEEE 802 Project, which includes many popular networking technologies including Ethernet.

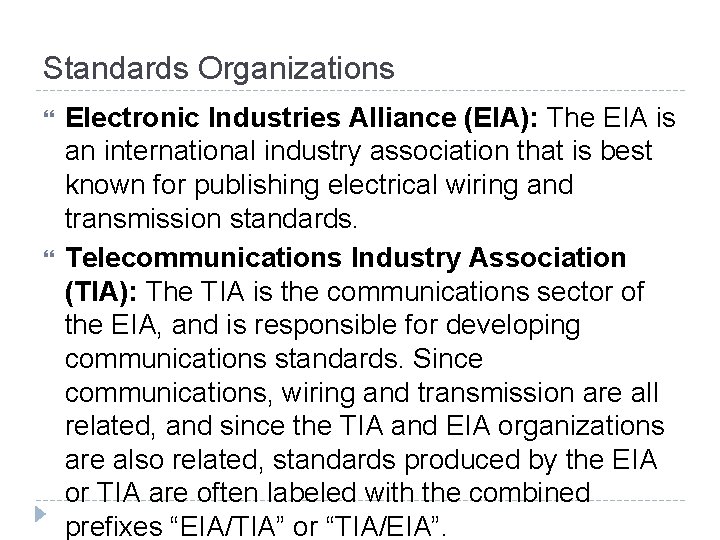

Standards Organizations Electronic Industries Alliance (EIA): The EIA is an international industry association that is best known for publishing electrical wiring and transmission standards. Telecommunications Industry Association (TIA): The TIA is the communications sector of the EIA, and is responsible for developing communications standards. Since communications, wiring and transmission are all related, and since the TIA and EIA organizations are also related, standards produced by the EIA or TIA are often labeled with the combined prefixes “EIA/TIA” or “TIA/EIA”.

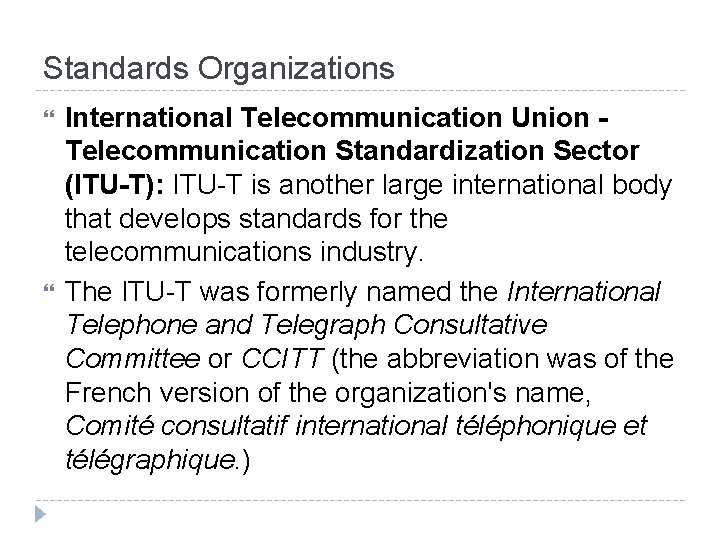

Standards Organizations International Telecommunication Union Telecommunication Standardization Sector (ITU-T): ITU-T is another large international body that develops standards for the telecommunications industry. The ITU-T was formerly named the International Telephone and Telegraph Consultative Committee or CCITT (the abbreviation was of the French version of the organization's name, Comité consultatif international téléphonique et télégraphique. )

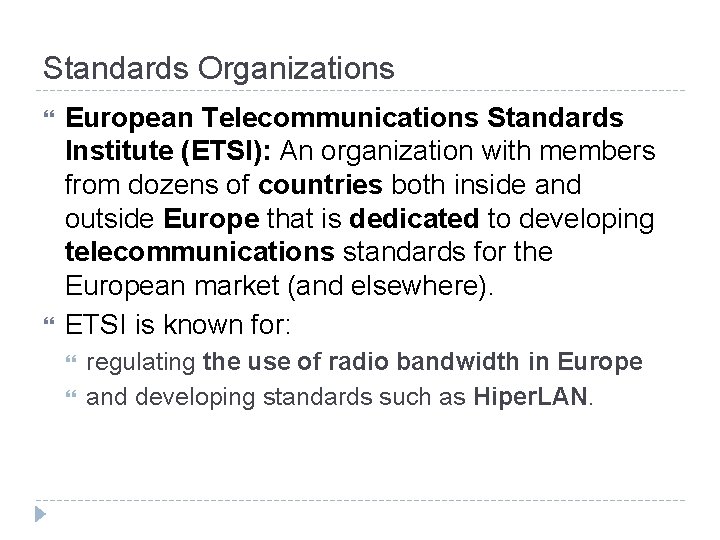

Standards Organizations European Telecommunications Standards Institute (ETSI): An organization with members from dozens of countries both inside and outside Europe that is dedicated to developing telecommunications standards for the European market (and elsewhere). ETSI is known for: regulating the use of radio bandwidth in Europe and developing standards such as Hiper. LAN.

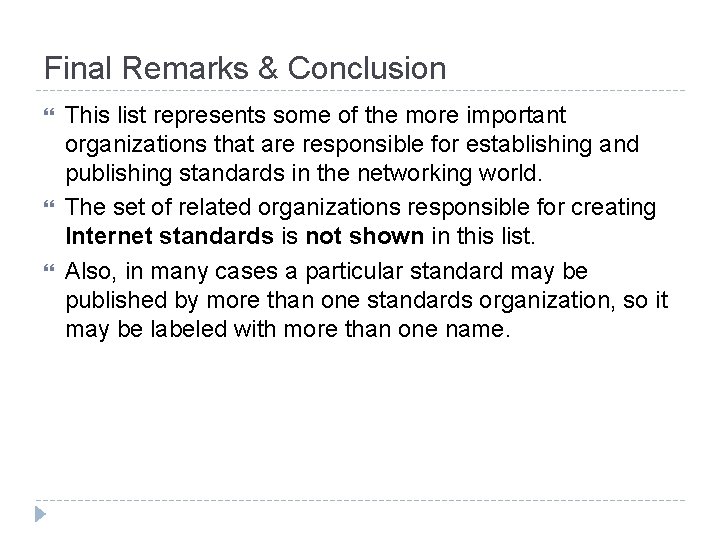

Final Remarks & Conclusion This list represents some of the more important organizations that are responsible for establishing and publishing standards in the networking world. The set of related organizations responsible for creating Internet standards is not shown in this list. Also, in many cases a particular standard may be published by more than one standards organization, so it may be labeled with more than one name.

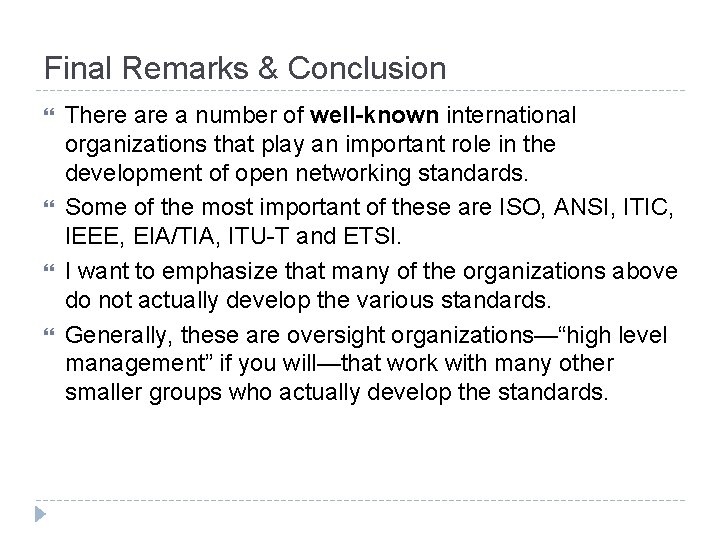

Final Remarks & Conclusion There a number of well-known international organizations that play an important role in the development of open networking standards. Some of the most important of these are ISO, ANSI, ITIC, IEEE, EIA/TIA, ITU-T and ETSI. I want to emphasize that many of the organizations above do not actually develop the various standards. Generally, these are oversight organizations—“high level management” if you will—that work with many other smaller groups who actually develop the standards.
