Lecture 3 Cables and quenching Cables why cables

Lecture 3: Cables and quenching Cables • why cables? • coupling in cables • effect on field error in magnets Rutherford cable used in all superconducting accelerators to date Quenching • the quench process, internal and external voltages • decay times and temperature rise • propagation of the normal zone • quench protection schemes • protection of LHC Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

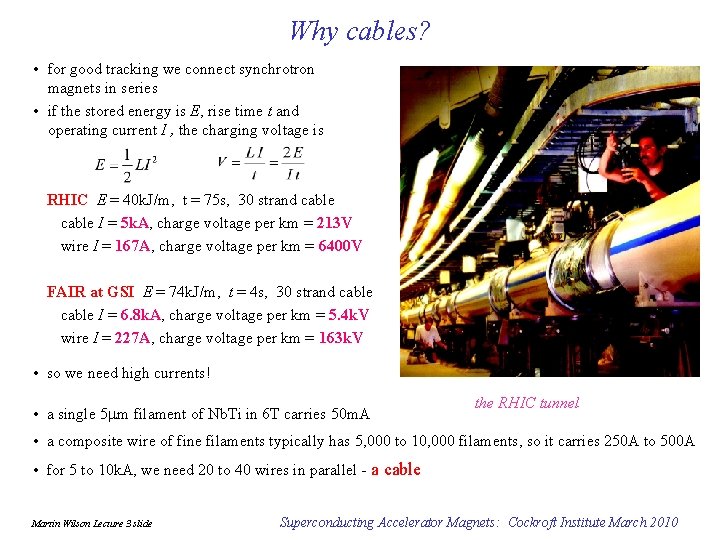

Why cables? • for good tracking we connect synchrotron magnets in series • if the stored energy is E, rise time t and operating current I , the charging voltage is RHIC E = 40 k. J/m, t = 75 s, 30 strand cable I = 5 k. A, charge voltage per km = 213 V wire I = 167 A, charge voltage per km = 6400 V FAIR at GSI E = 74 k. J/m, t = 4 s, 30 strand cable I = 6. 8 k. A, charge voltage per km = 5. 4 k. V wire I = 227 A, charge voltage per km = 163 k. V • so we need high currents! • a single 5 mm filament of Nb. Ti in 6 T carries 50 m. A the RHIC tunnel • a composite wire of fine filaments typically has 5, 000 to 10, 000 filaments, so it carries 250 A to 500 A • for 5 to 10 k. A, we need 20 to 40 wires in parallel - a cable Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Cable transposition I • flux linkages circulating ‘parasitic’ currents bad • cables are twisted to avoid flux linkages between the wires coming from the external field • in a simple twisted cable, wires in the centre have a higher self inductance than those at the outside • current fed in from the power supply therefore takes the low inductance path and stays on the outside • so outer wires reach Jc while inner are still empty • thus it is necessary for the wires to be fully transposed, ie every wire must change places with every other wire along the length inner wires outside outer wire inside • three types of fully transposed cable have been tried in accelerators - rope - braid - Rutherford Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

• Rutherford cable • the cable is insulated by wrapping 2 or 3 layers of Kapton; gaps may be left to allow penetration of liquid helium; the outer layer is treated with an adhesive layer for bonding to adjacent turns. • Note: the adhesive faces outwards, don't bond it to the cable (avoid energy release by bond failure, which could quench the magnet ) Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

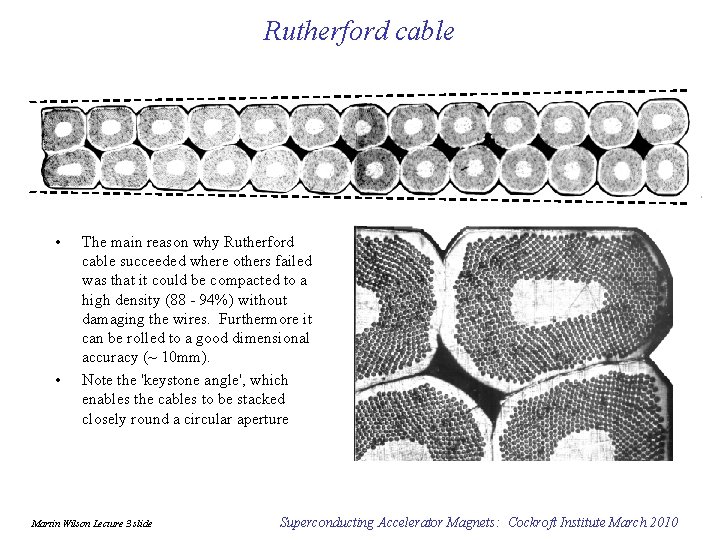

Rutherford cable • • The main reason why Rutherford cable succeeded where others failed was that it could be compacted to a high density (88 - 94%) without damaging the wires. Furthermore it can be rolled to a good dimensional accuracy (~ 10 mm). Note the 'keystone angle', which enables the cables to be stacked closely round a circular aperture Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

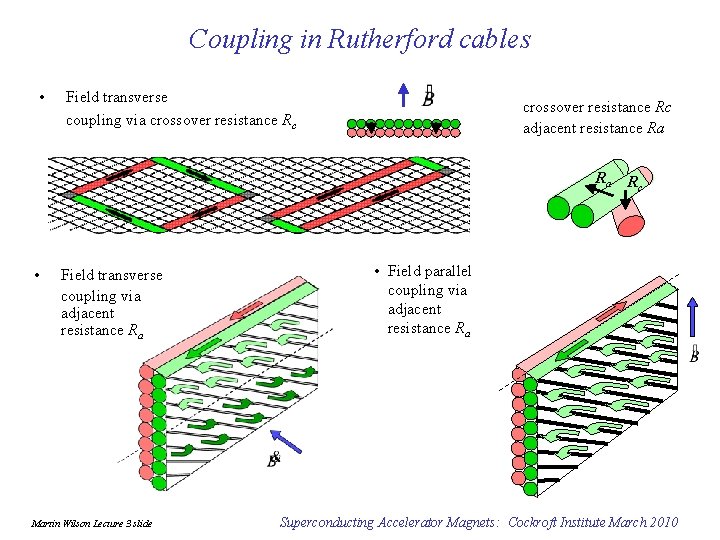

Coupling in Rutherford cables • Field transverse coupling via crossover resistance Rc adjacent resistance Ra Ra • Field transverse coupling via adjacent resistance Ra Martin Wilson Lecture 3 slide Rc • Field parallel coupling via adjacent resistance Ra Superconducting Accelerator Magnets: Cockroft Institute March 2010

Magnetization from coupling in cables B` • Field transverse coupling via crossover resistance Rc 2 b 2 c where M = magnetization per unit volume of cable, p twist pitch, N = number of strands • Field transverse coupling via adjacent resistance Ra where q = slope angle of wires Cosq ~ 1 • Field parallel coupling via adjacent resistance Ra (usually negligible) • Field transverse ratio crossover/adjacent So without increasing loss too much can make Ra 50 times less than Rc - anisotropy Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Cable coupling adds more magnetization Magnetization filament magnetization Mf depends on B External field Mtc coupling between filaments Me depends on d. B/dt Me Ms coupling between wires in cable depends on d. B/dt where lcu = fraction of cable in the section Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Controlling Ra and Rc • surface coatings on the wires are used to adjust the contact resistance • the values obtained are very sensitive to pressure and heat treatments used in coil manufacture (to cure the adhesive between turns) • data from David Richter CERN Cored Cables • using a resistive core allows us to increase Rc preferentially • not affected by heat treatment Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

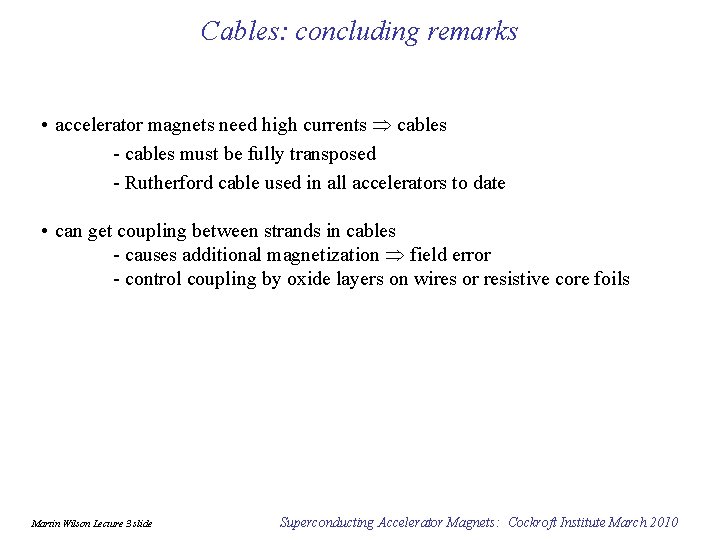

Cables: concluding remarks • accelerator magnets need high currents cables - cables must be fully transposed - Rutherford cable used in all accelerators to date • can get coupling between strands in cables - causes additional magnetization field error - control coupling by oxide layers on wires or resistive core foils Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Part 2: Quenching the most likely cause of death for a superconducting magnet Plan • the quench process • decay times and temperature rise • propagation of the resistive zone • resistance growth and decay times • quench protection schemes • case study: LHC protection Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Magnetic stored energy at 5 T Magnetic energy density LHC dipole magnet (twin apertures) E = 107 Joule. m-3 E = ½ LI 2 L = 0. 12 H at 10 T E = 4 x 107 Joule. m-3 I = 11. 5 k. A E = 7. 8 x 106 Joules the magnet weighs 26 tonnes so the magnetic stored energy is equivalent to the kinetic energy of: 26 tonnes travelling at 88 km/hr coils weigh 830 kg equivalent to the kinetic energy of: 830 kg travelling at 495 km/hr Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

The quench process • resistive region starts somewhere in the winding at a point - this is the problem! • it grows by thermal conduction • stored energy ½LI 2 of the magnet is dissipated as heat • greatest integrated heat dissipation is at point where the quench starts • internal voltages much greater than terminal voltage ( = Vcs current supply) • maximum temperature may be calculated from the current decay time via the U(q) function (adiabatic approximation) Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

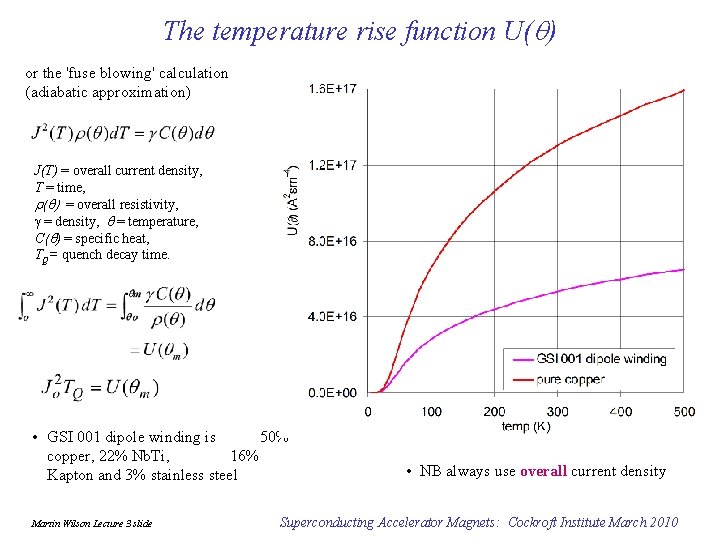

The temperature rise function U(q) or the 'fuse blowing' calculation (adiabatic approximation) J(T) = overall current density, T = time, r(q) = overall resistivity, g = density, q = temperature, C(q) = specific heat, TQ= quench decay time. • GSI 001 dipole winding is 50% copper, 22% Nb. Ti, 16% Kapton and 3% stainless steel Martin Wilson Lecture 3 slide • NB always use overall current density Superconducting Accelerator Magnets: Cockroft Institute March 2010

Measured current decay after a quench Dipole GSI 001 measured at Brookhaven National Laboratory Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

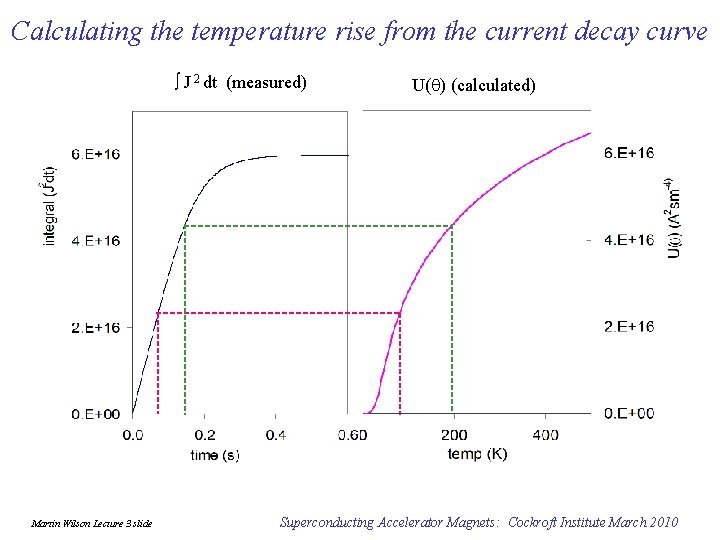

Calculating the temperature rise from the current decay curve J 2 dt (measured) Martin Wilson Lecture 3 slide U(q) (calculated) Superconducting Accelerator Magnets: Cockroft Institute March 2010

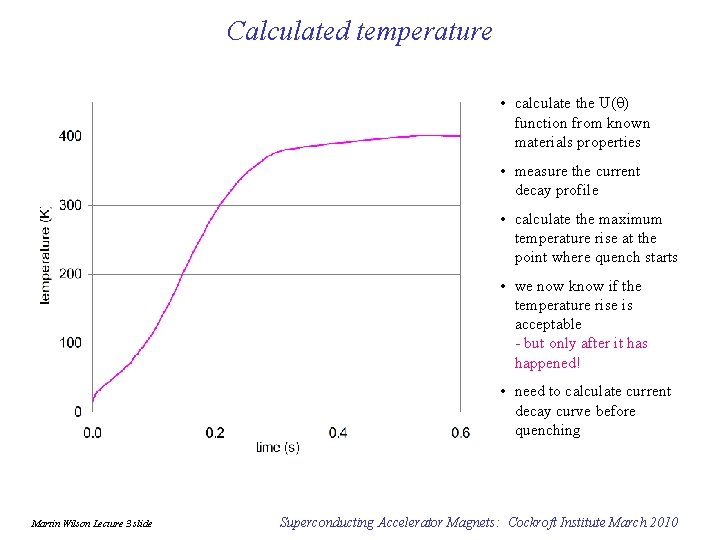

Calculated temperature • calculate the U(q) function from known materials properties • measure the current decay profile • calculate the maximum temperature rise at the point where quench starts • we now know if the temperature rise is acceptable - but only after it has happened! • need to calculate current decay curve before quenching Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Growth of the resistive zone the quench starts at a point and then grows in three dimensions via the combined effects of Joule heating and thermal conduction * Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Quench propagation velocity 1 • resistive zone starts at a point and spreads outwards • the force driving it forward is the heat generation in the resistive zone, together with heat conduction along the wire • write the heat conduction equations with resistive power generation J 2 r per unit volume in left hand region and r = 0 in right hand region. resistive temperature qo v qt distance superconducting xt where: k = thermal conductivity, A = area occupied by a single turn, g = density, C = specific heat, h = heat transfer coefficient, P = cooled perimeter, r = resistivity, qo = base temperature Note: all parameters are averaged over A the cross section occupied by one turn assume xt moves to the right at velocity v and take a new coordinate e = x-xt= x-vt Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

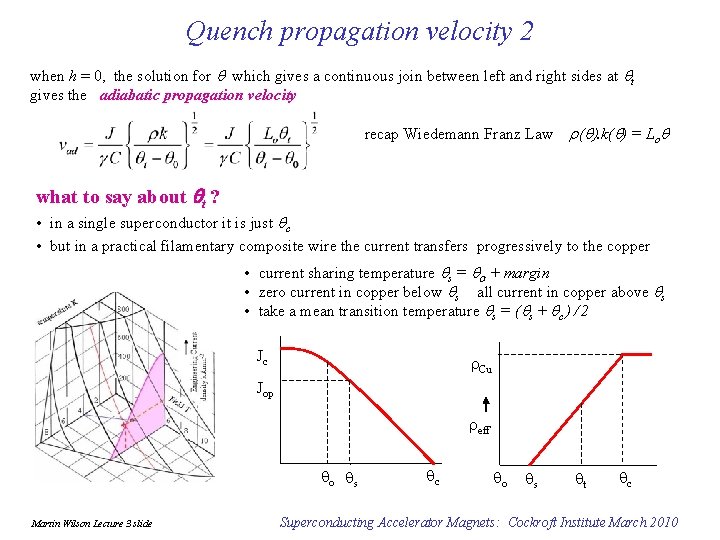

Quench propagation velocity 2 when h = 0, the solution for q which gives a continuous join between left and right sides at qt gives the adiabatic propagation velocity recap Wiedemann Franz Law r(q). k(q) = Loq what to say about qt ? • in a single superconductor it is just qc • but in a practical filamentary composite wire the current transfers progressively to the copper • current sharing temperature qs = qo + margin • zero current in copper below qs all current in copper above qs • take a mean transition temperature qs = (qs + qc ) / 2 Jc r. Cu Jop reff qo qs Martin Wilson Lecture 3 slide qc qo qs qt qc Superconducting Accelerator Magnets: Cockroft Institute March 2010

Quench propagation velocity 3 the resistive zone also propagates sideways through the inter-turn insulation (much more slowly) calculation is similar and the velocity ratio a is: Typical values vad = 5 - 20 ms-1 a = 0. 01 - 0. 03 av so the resistive zone advances in the form of an ellipsoid, with its long dimension along the wire av v Some corrections for a better approximation • because C varies so strongly with temperature, it is better to calculate an averaged C from the enthalpy change • heat diffuses slowly into the insulation, so its heat capacity should be excluded from the averaged heat capacity when calculating longitudinal velocity - but not transverse velocity • if the winding is porous to liquid helium (usual in accelerator magnets) need to include a time dependent heat transfer term • can approximate all the above, but for a really good answer must solve (numerically) the three dimensional heat diffusion equation or, even better, measure it! Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Resistance growth and current decay - numerical v dt start resistive zone 1 * avdt in time dt zone 1 grows v. dt longitudinally and a. v. dt transversely temperature of zone grows by dq 1 = J 2 r(q 1)dt / g C(q 1) resistivity of zone 1 is r(q 1) calculate resistance and hence current decay d. I = R / L. dt in time dt add zone n: v. dt longitudinal and a. v. dt transverse v dt avdt temperature of each zone grows by dq 1 = J 2 r(q 1)dt /g. C(q 1) dq 2 = J 2 r(q 2)dt /g. C(q 2) dqn = J 2 r(q 1)dt /g. C(qn) resistivity of each zone is r(q 1) r(q 2) r(qn) resistance r 1= r(q 1) * fg 1 (geom factor) r 2= r(q 2) * fg 2 rn= r(qn) * fgn calculate total resistance R = r 1+ r 2 + rn. . and hence current decay d. I = (I R /L)dt when I 0 stop Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

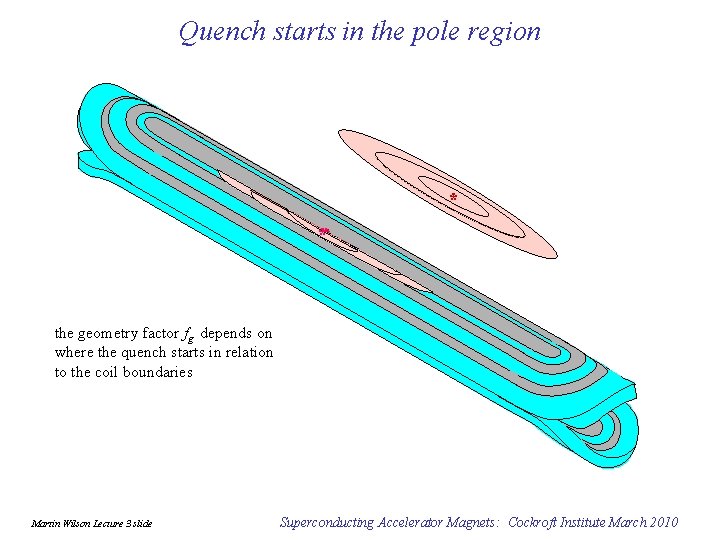

Quench starts in the pole region * ** the geometry factor fg depends on where the quench starts in relation to the coil boundaries Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Quench starts in the mid plane * Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

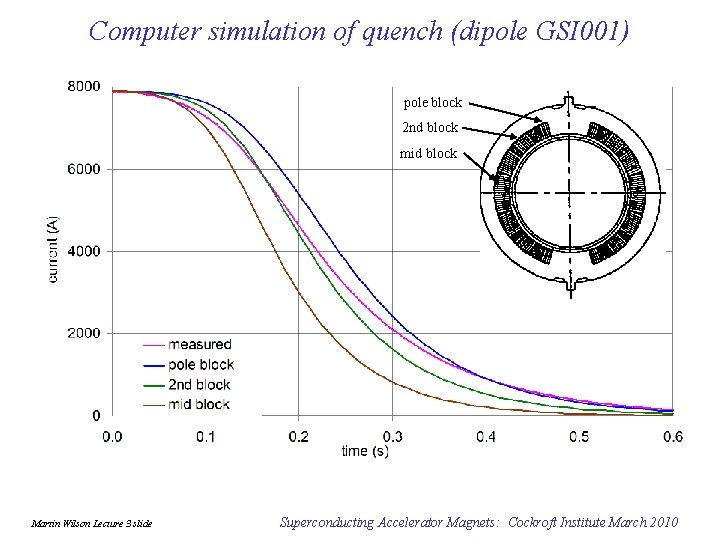

Computer simulation of quench (dipole GSI 001) pole block 2 nd block mid block Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Computer simulation of quench temperature rise pole block 2 nd block mid block Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Methods of quench protection: 1) external dump resistor • detect the quench electronically • open an external circuit breaker • force the current to decay with a time constant where • calculate qmax from Note: circuit breaker must be able to open at full current against a voltage V = I. Rp (expensive) Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

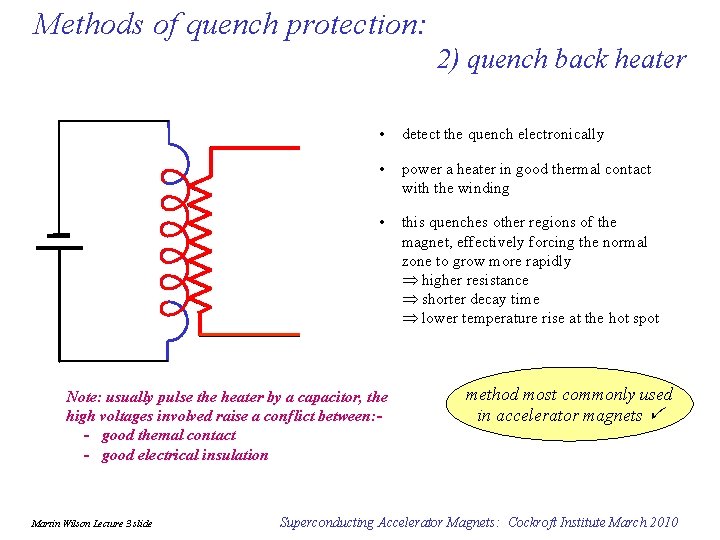

Methods of quench protection: 2) quench back heater • detect the quench electronically • power a heater in good thermal contact with the winding • this quenches other regions of the magnet, effectively forcing the normal zone to grow more rapidly higher resistance shorter decay time lower temperature rise at the hot spot Note: usually pulse the heater by a capacitor, the high voltages involved raise a conflict between: - good themal contact - good electrical insulation Martin Wilson Lecture 3 slide method most commonly used in accelerator magnets Superconducting Accelerator Magnets: Cockroft Institute March 2010

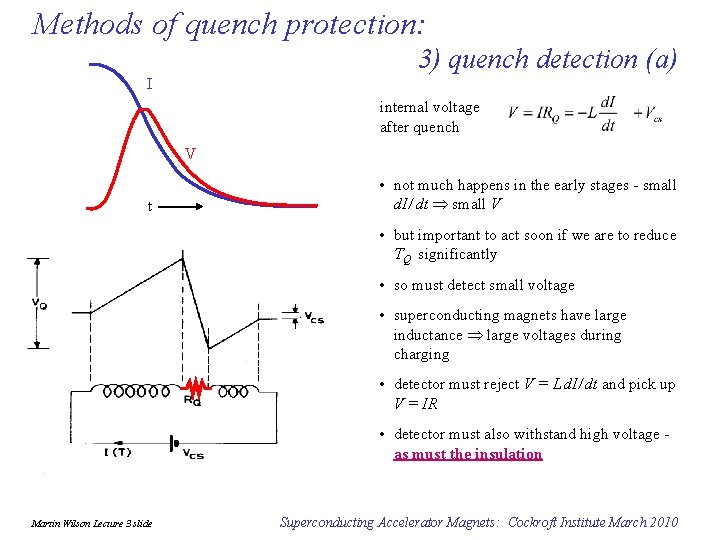

Methods of quench protection: 3) quench detection (a) I internal voltage after quench V t • not much happens in the early stages - small d. I / dt small V • but important to act soon if we are to reduce TQ significantly • so must detect small voltage • superconducting magnets have large inductance large voltages during charging • detector must reject V = L d. I / dt and pick up V = IR • detector must also withstand high voltage as must the insulation Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

Methods of quench protection: 3) quench detection (b) i) Mutual inductance ii) Balanced potentiometer D • adjust for balance when not quenched • unbalance of resistive zone seen as voltage across detector D • if you worry about symmetrical quenches connect a second detector at a different point detector subtracts voltages to give • adjust detector to effectively make L = M • M can be a toroid linking the current supply bus, but must be linear - no iron! Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

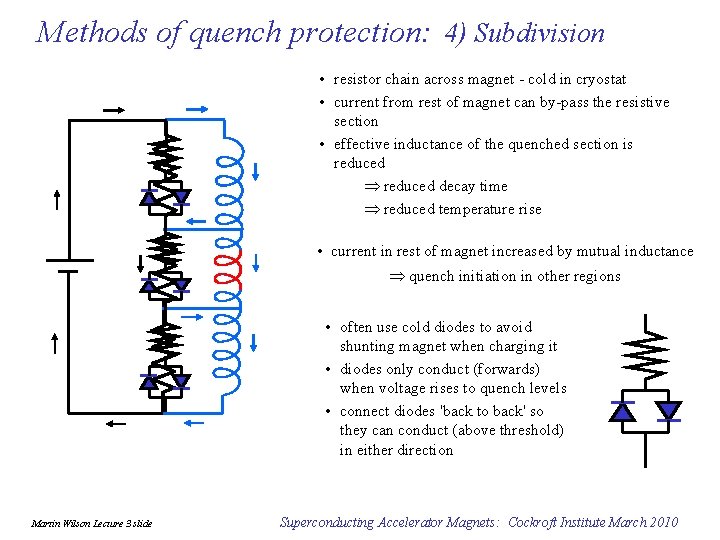

Methods of quench protection: 4) Subdivision • resistor chain across magnet - cold in cryostat • current from rest of magnet can by-pass the resistive section • effective inductance of the quenched section is reduced decay time reduced temperature rise • current in rest of magnet increased by mutual inductance quench initiation in other regions • often use cold diodes to avoid shunting magnet when charging it • diodes only conduct (forwards) when voltage rises to quench levels • connect diodes 'back to back' so they can conduct (above threshold) in either direction Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

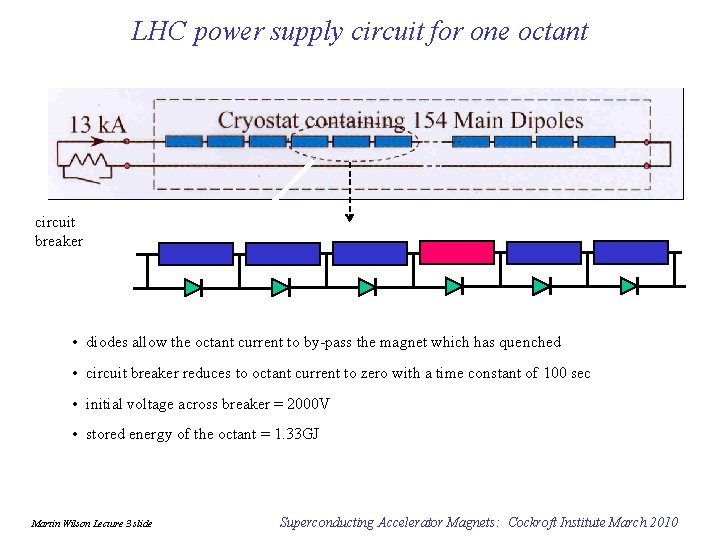

LHC power supply circuit for one octant circuit breaker • diodes allow the octant current to by-pass the magnet which has quenched • circuit breaker reduces to octant current to zero with a time constant of 100 sec • initial voltage across breaker = 2000 V • stored energy of the octant = 1. 33 GJ Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

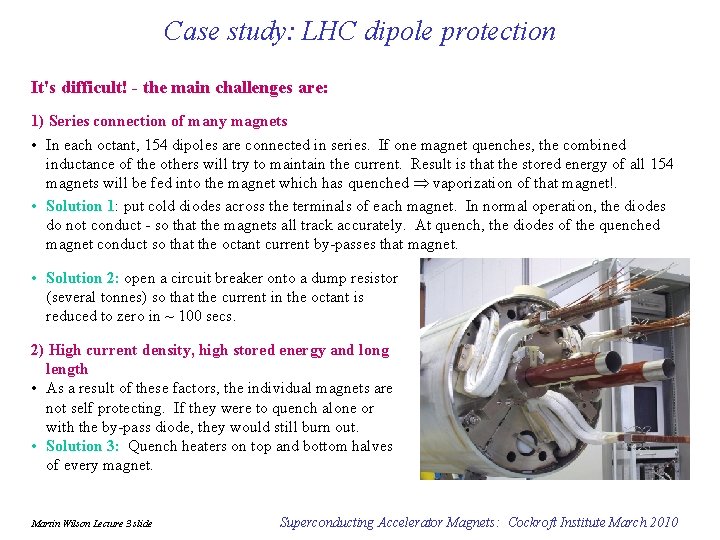

Case study: LHC dipole protection It's difficult! - the main challenges are: 1) Series connection of many magnets • In each octant, 154 dipoles are connected in series. If one magnet quenches, the combined inductance of the others will try to maintain the current. Result is that the stored energy of all 154 magnets will be fed into the magnet which has quenched vaporization of that magnet!. • Solution 1: put cold diodes across the terminals of each magnet. In normal operation, the diodes do not conduct - so that the magnets all track accurately. At quench, the diodes of the quenched magnet conduct so that the octant current by-passes that magnet. • Solution 2: open a circuit breaker onto a dump resistor (several tonnes) so that the current in the octant is reduced to zero in ~ 100 secs. 2) High current density, high stored energy and long length • As a result of these factors, the individual magnets are not self protecting. If they were to quench alone or with the by-pass diode, they would still burn out. • Solution 3: Quench heaters on top and bottom halves of every magnet. Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

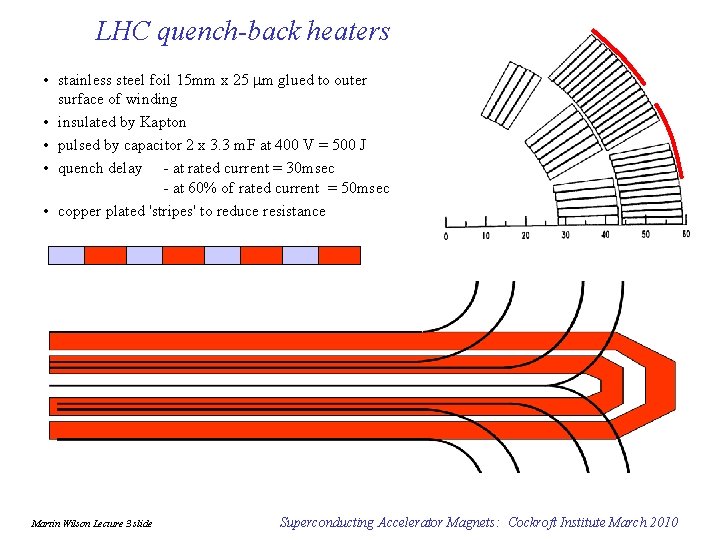

LHC quench-back heaters • stainless steel foil 15 mm x 25 mm glued to outer surface of winding • insulated by Kapton • pulsed by capacitor 2 x 3. 3 m. F at 400 V = 500 J • quench delay - at rated current = 30 msec - at 60% of rated current = 50 msec • copper plated 'stripes' to reduce resistance Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

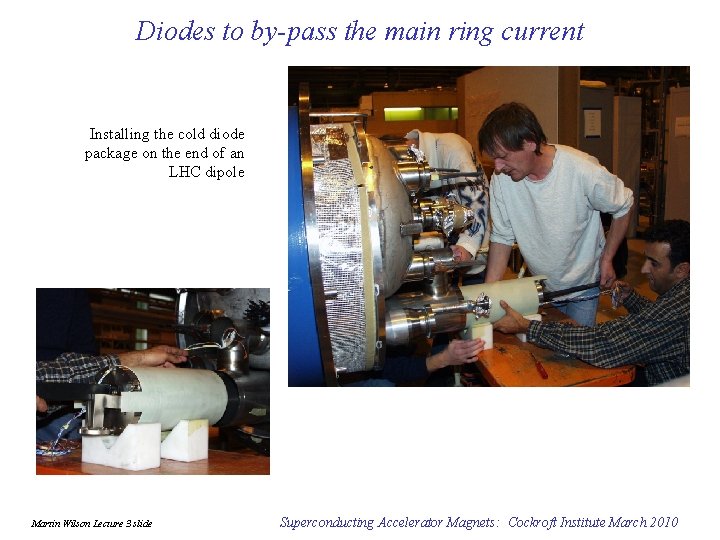

Diodes to by-pass the main ring current Installing the cold diode package on the end of an LHC dipole Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010

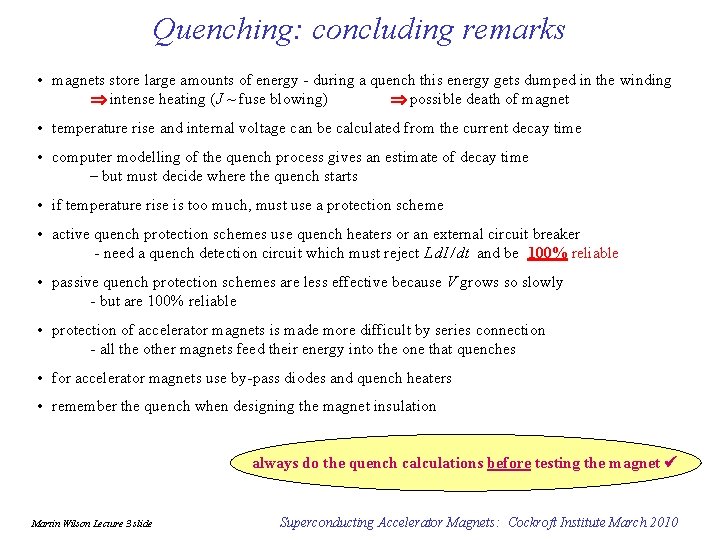

Quenching: concluding remarks • magnets store large amounts of energy - during a quench this energy gets dumped in the winding intense heating (J ~ fuse blowing) possible death of magnet • temperature rise and internal voltage can be calculated from the current decay time • computer modelling of the quench process gives an estimate of decay time – but must decide where the quench starts • if temperature rise is too much, must use a protection scheme • active quench protection schemes use quench heaters or an external circuit breaker - need a quench detection circuit which must reject L d. I / dt and be 100% reliable • passive quench protection schemes are less effective because V grows so slowly - but are 100% reliable • protection of accelerator magnets is made more difficult by series connection - all the other magnets feed their energy into the one that quenches • for accelerator magnets use by-pass diodes and quench heaters • remember the quench when designing the magnet insulation always do the quench calculations before testing the magnet Martin Wilson Lecture 3 slide Superconducting Accelerator Magnets: Cockroft Institute March 2010
