LECTURE 3 4 LEWIS STRUCTURES What are the

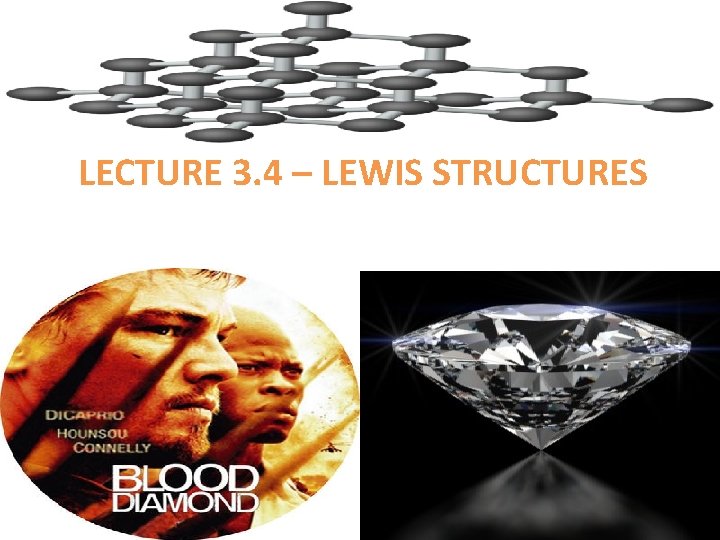

LECTURE 3. 4 – LEWIS STRUCTURES

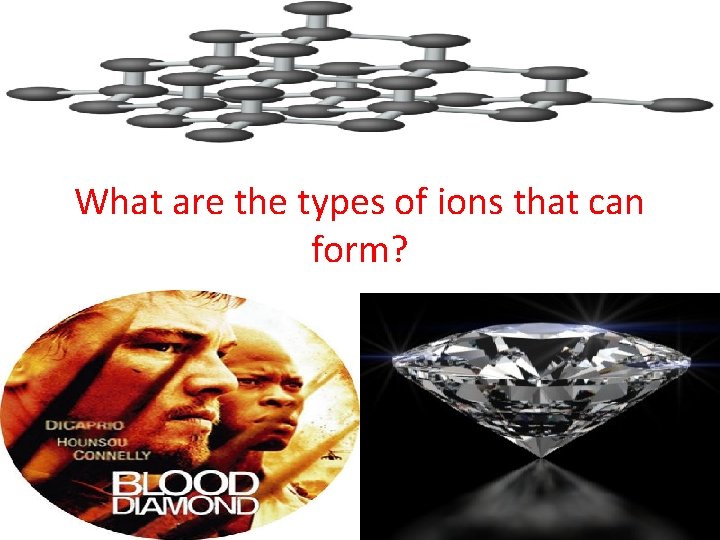

What are the types of ions that can form?

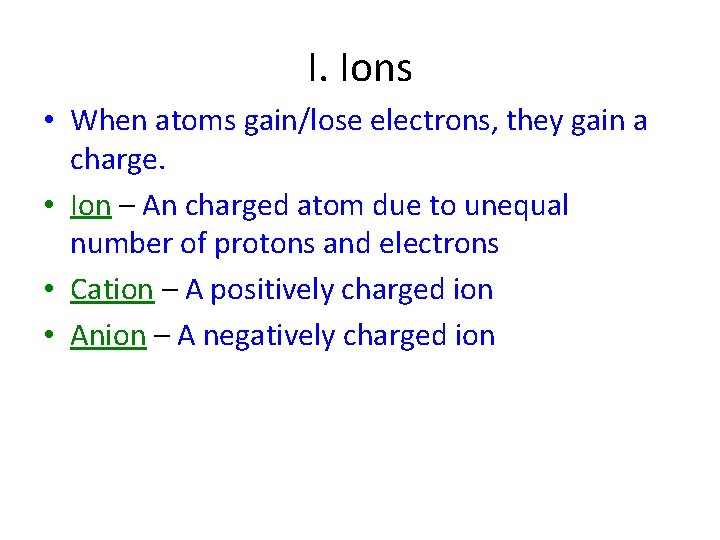

I. Ions • When atoms gain/lose electrons, they gain a charge. • Ion – An charged atom due to unequal number of protons and electrons • Cation – A positively charged ion • Anion – A negatively charged ion

Cats make people feel positive

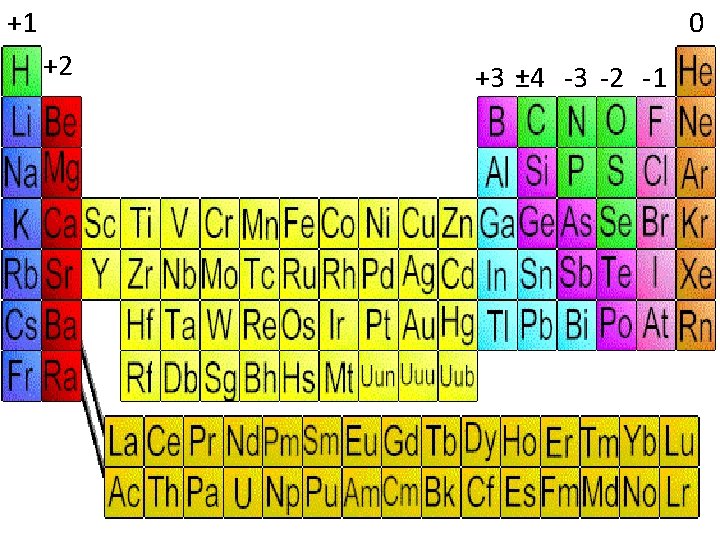

+1 0 +2 +3 ± 4 -3 -2 -1

How do you draw Lewis Structures?

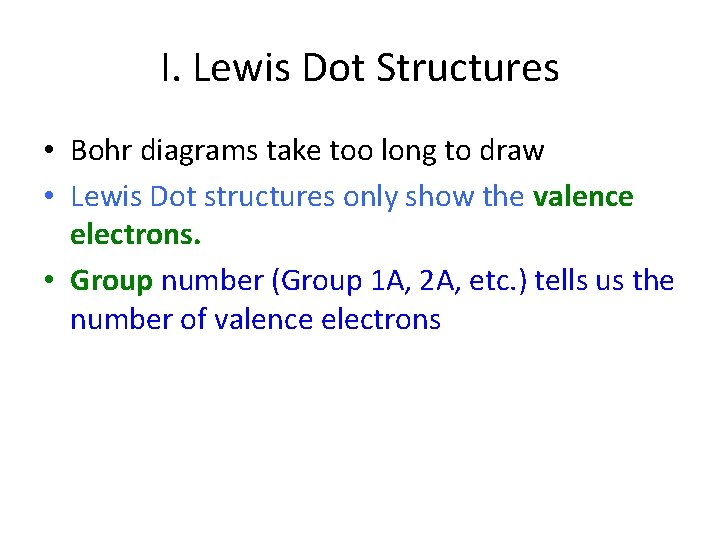

I. Lewis Dot Structures • Bohr diagrams take too long to draw • Lewis Dot structures only show the valence electrons. • Group number (Group 1 A, 2 A, etc. ) tells us the number of valence electrons

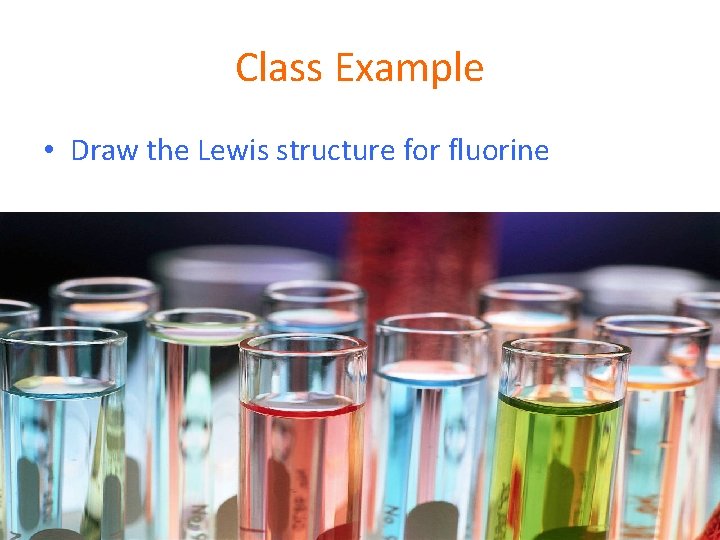

Class Example • Draw the Lewis structure for fluorine

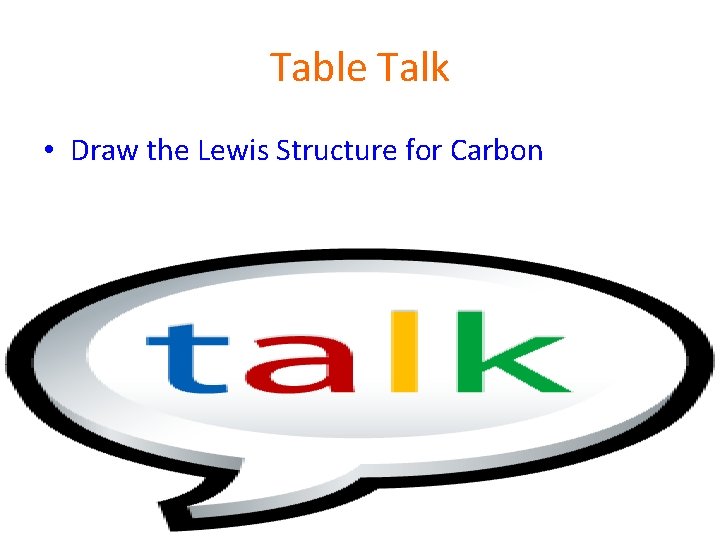

Table Talk • Draw the Lewis Structure for Carbon

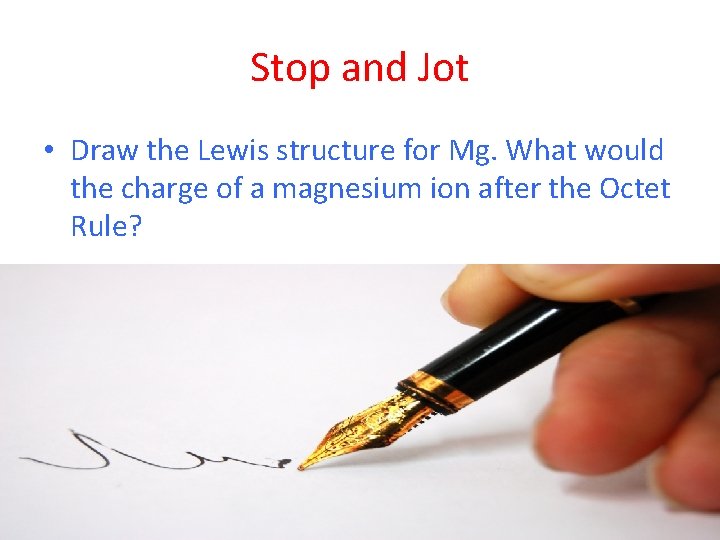

Stop and Jot • Draw the Lewis structure for Mg. What would the charge of a magnesium ion after the Octet Rule?

How do you show electrons being shared?

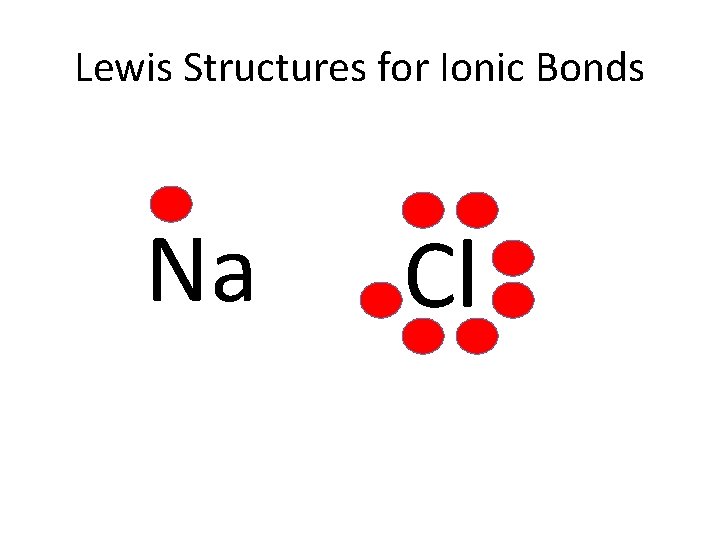

Lewis Structures for Ionic Bonds Na Cl

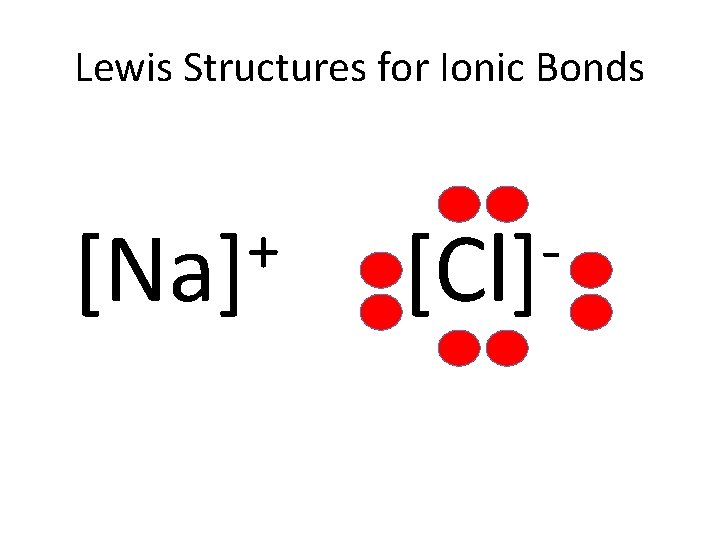

Lewis Structures for Ionic Bonds + [Na] [Cl]

Chemical Bonding Ionic Bonds Metallic Bonds Covalent Bonds

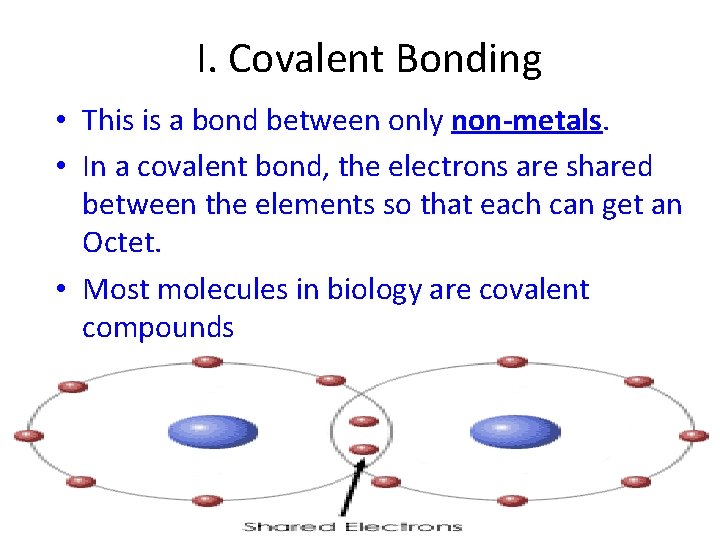

I. Covalent Bonding • This is a bond between only non-metals. • In a covalent bond, the electrons are shared between the elements so that each can get an Octet. • Most molecules in biology are covalent compounds

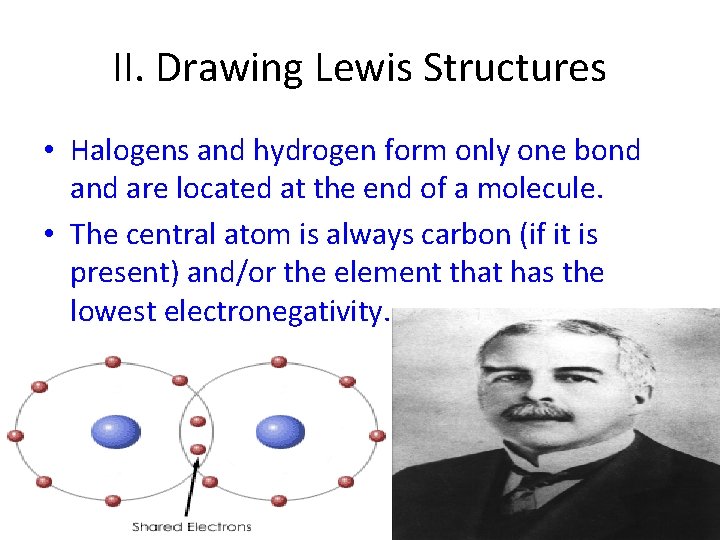

II. Drawing Lewis Structures • Halogens and hydrogen form only one bond are located at the end of a molecule. • The central atom is always carbon (if it is present) and/or the element that has the lowest electronegativity.

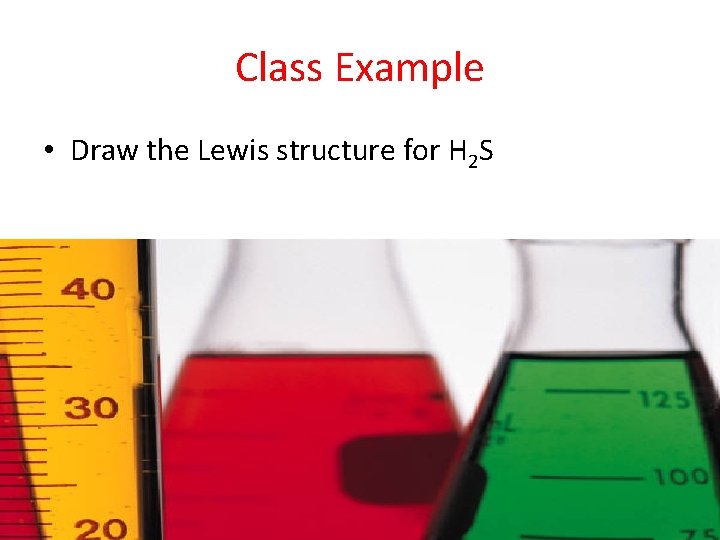

Class Example • Draw the Lewis structure for H 2 S

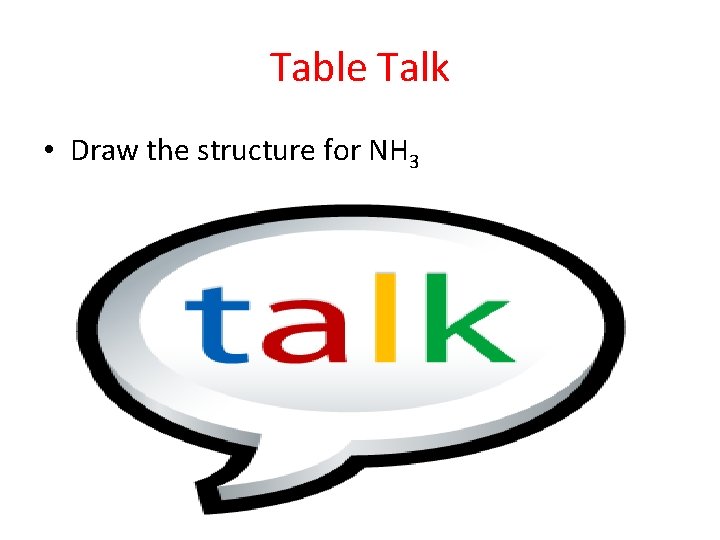

Table Talk • Draw the structure for NH 3

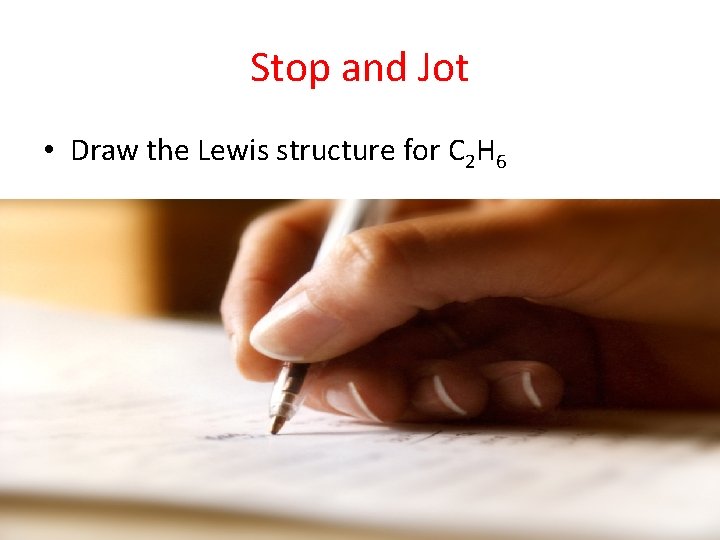

Stop and Jot • Draw the Lewis structure for C 2 H 6

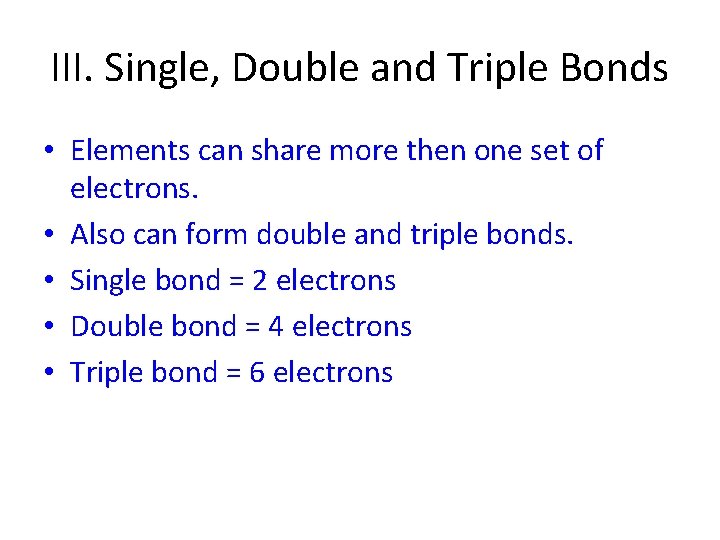

III. Single, Double and Triple Bonds • Elements can share more then one set of electrons. • Also can form double and triple bonds. • Single bond = 2 electrons • Double bond = 4 electrons • Triple bond = 6 electrons

Class Example • Draw the Lewis Structure for CH 2 O

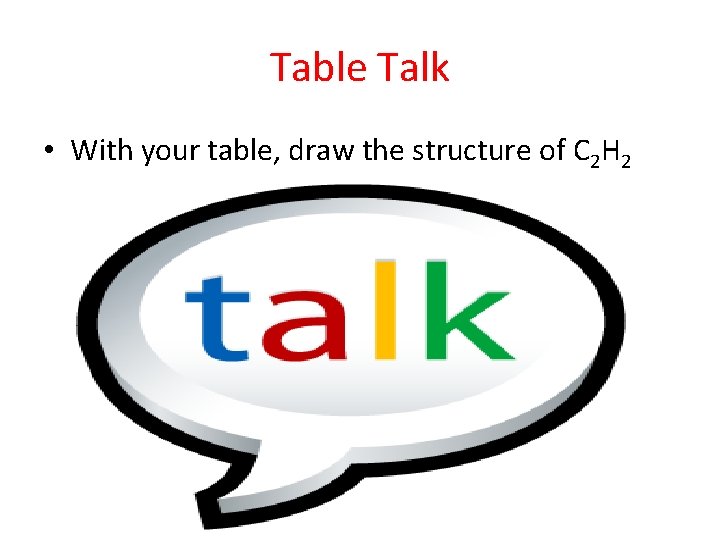

Table Talk • With your table, draw the structure of C 2 H 2

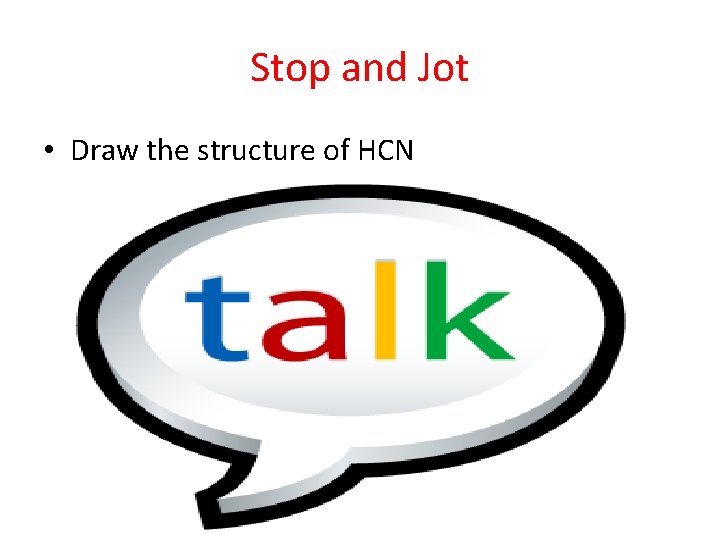

Stop and Jot • Draw the structure of HCN
