Lecture 24 Rough and Ready Analysis MATLAB uses

Lecture 24: Rough and Ready Analysis

MATLAB uses function names consistent with most major programming languages For example n n sqrt sin cos log

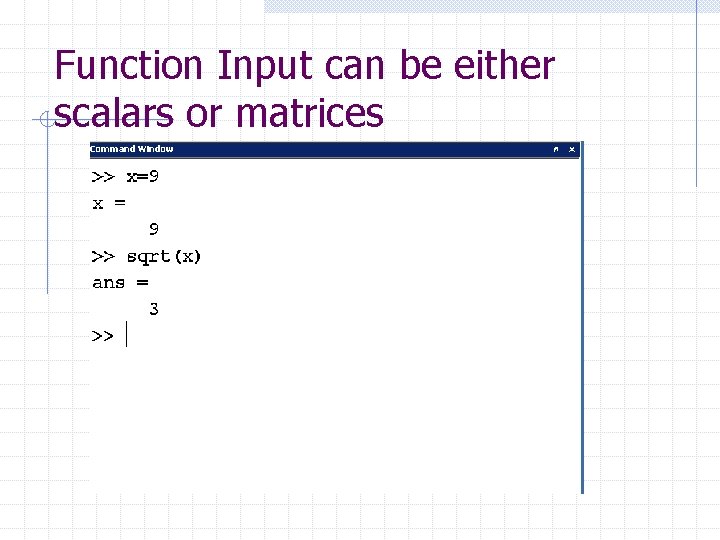

Function Input can be either scalars or matrices

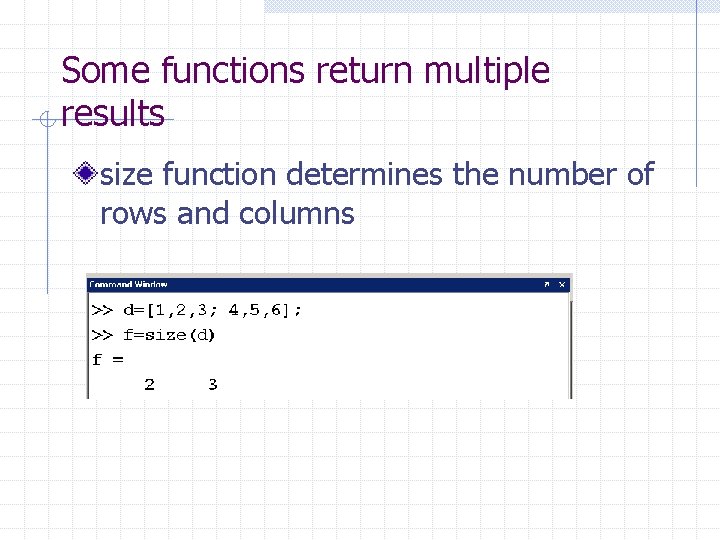

Some functions return multiple results size function determines the number of rows and columns

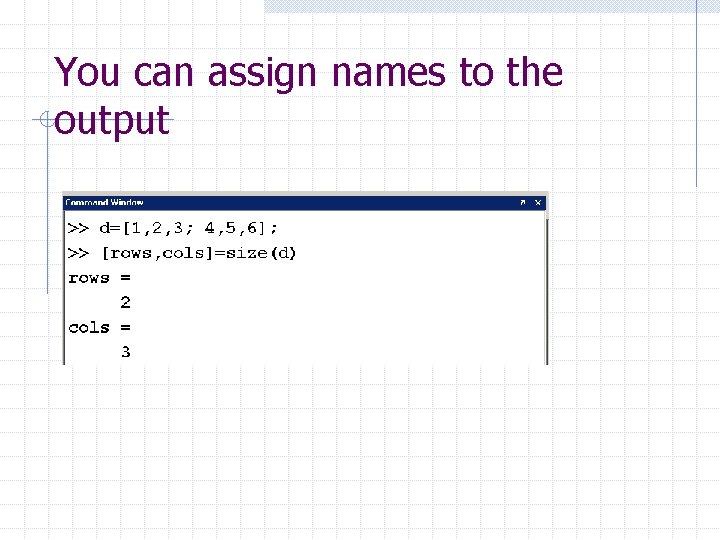

You can assign names to the output

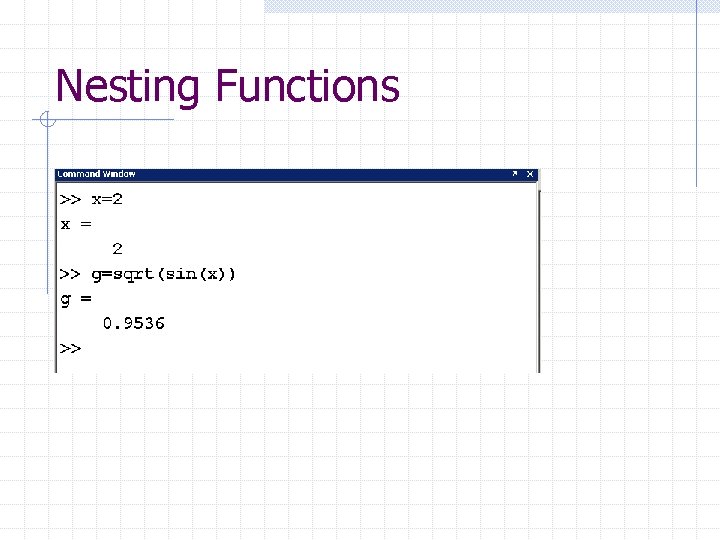

Nesting Functions

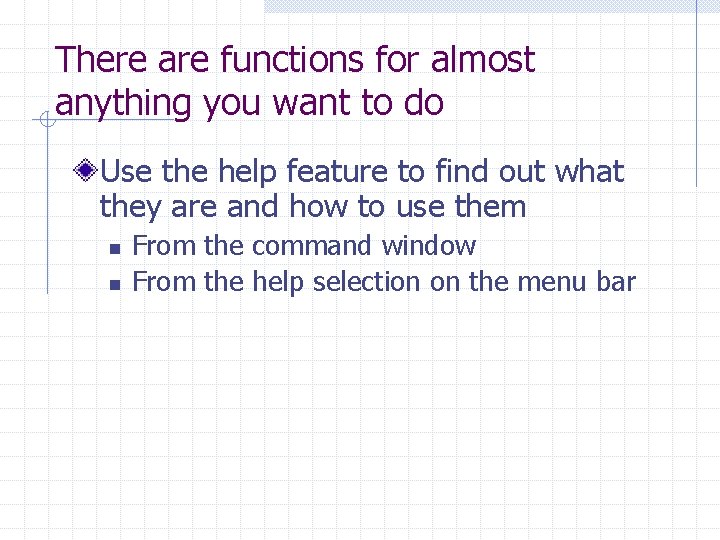

There are functions for almost anything you want to do Use the help feature to find out what they are and how to use them n n From the command window From the help selection on the menu bar

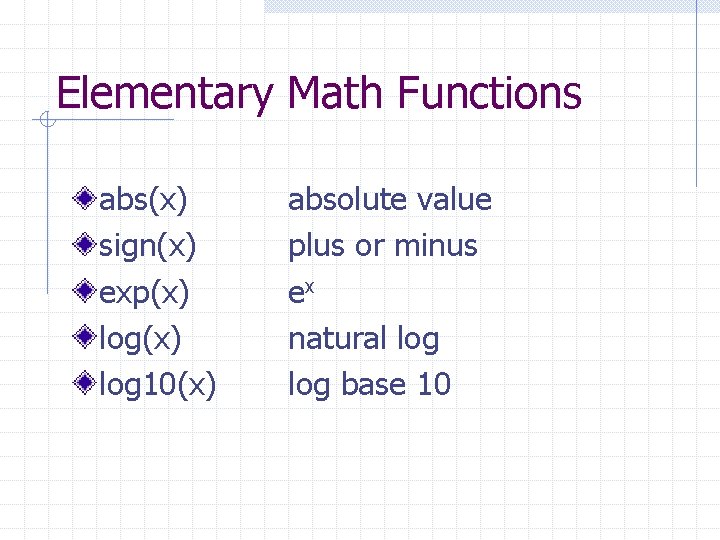

Elementary Math Functions abs(x) sign(x) exp(x) log 10(x) absolute value plus or minus ex natural log base 10

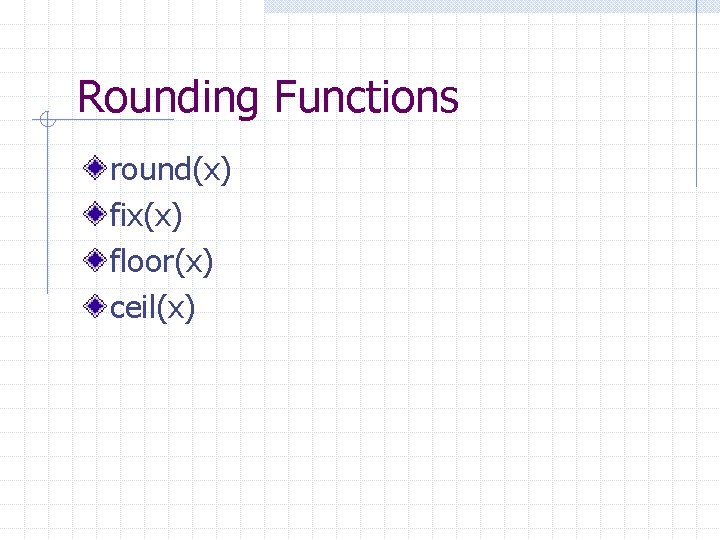

Rounding Functions round(x) fix(x) floor(x) ceil(x)

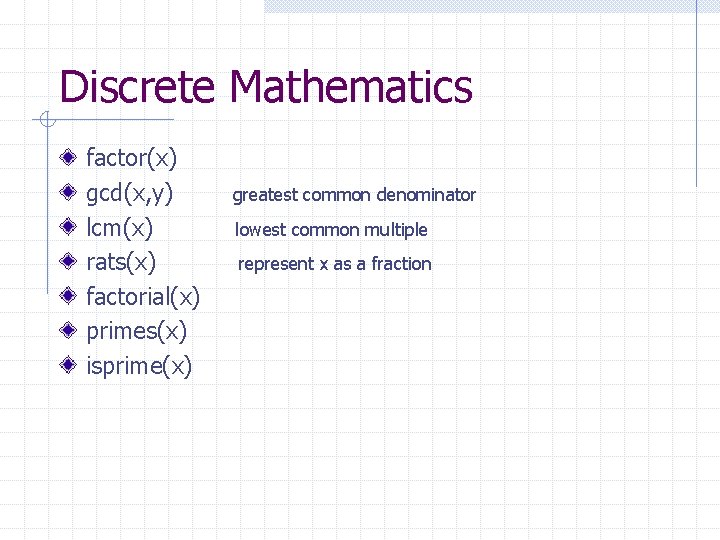

Discrete Mathematics factor(x) gcd(x, y) lcm(x) rats(x) factorial(x) primes(x) isprime(x) greatest common denominator lowest common multiple represent x as a fraction

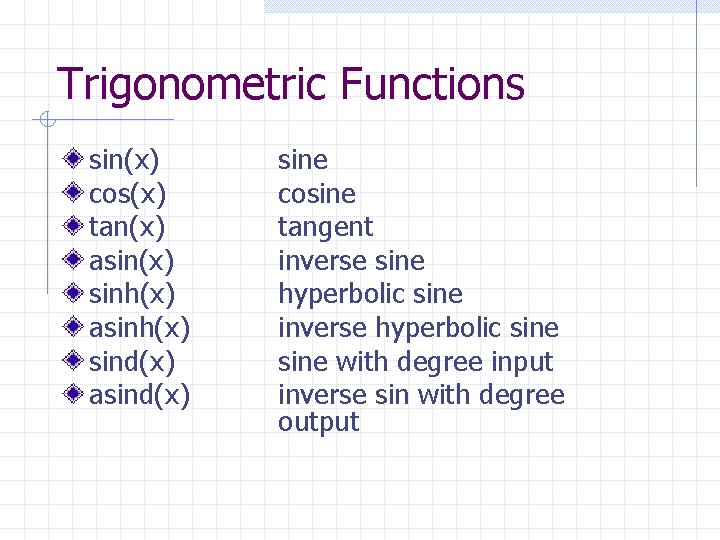

Trigonometric Functions sin(x) cos(x) tan(x) asin(x) sinh(x) asinh(x) sind(x) asind(x) sine cosine tangent inverse sine hyperbolic sine inverse hyperbolic sine with degree input inverse sin with degree output

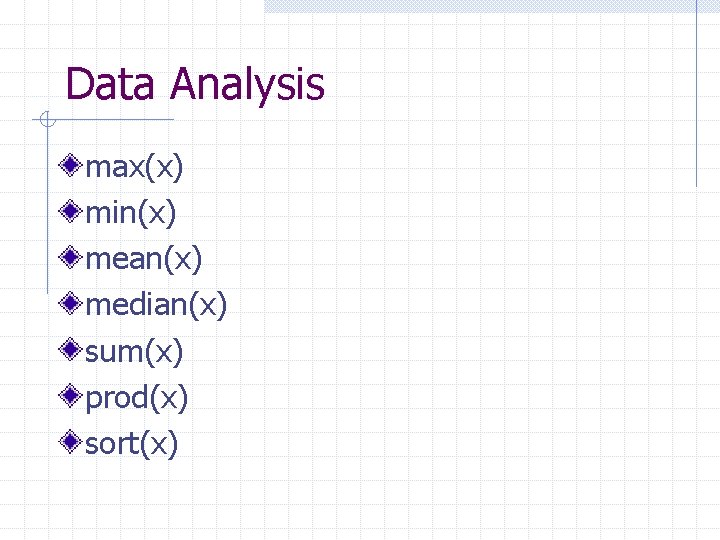

Data Analysis max(x) min(x) mean(x) median(x) sum(x) prod(x) sort(x)

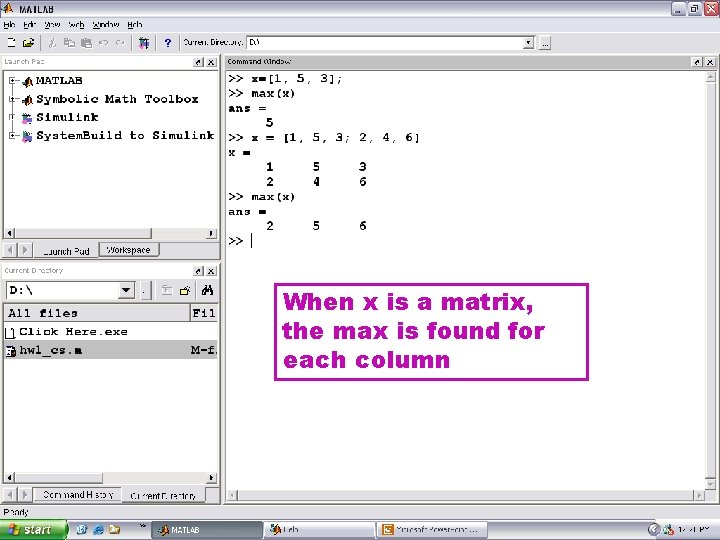

When x is a matrix, the max is found for each column

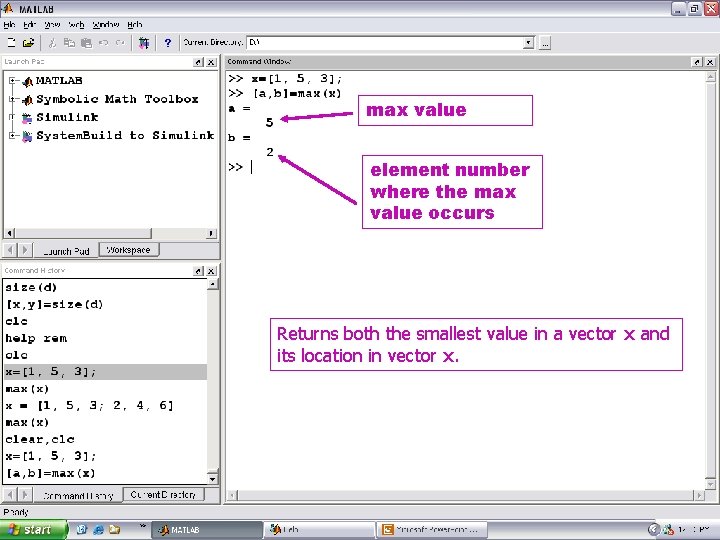

max value element number where the max value occurs Returns both the smallest value in a vector x and its location in vector x.

Vector of maximums Vector of row numbers Returns a row vector containing the minimum element from each column of a matrix x, and returns a row vector of the location of the minimum in each column of matrix x.

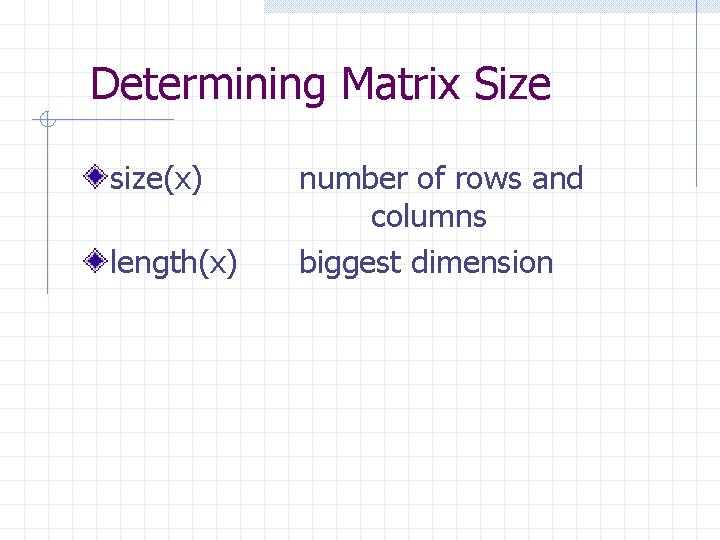

Determining Matrix Size size(x) length(x) number of rows and columns biggest dimension

Variance and Standard Deviation std(x) var(x)

Random Numbers rand(n) n Returns an n by n matrix of random numbers between 0 and 1 rand(n, m) n Returns an n by m matrix of random numbers These random numbers are evenly distributed

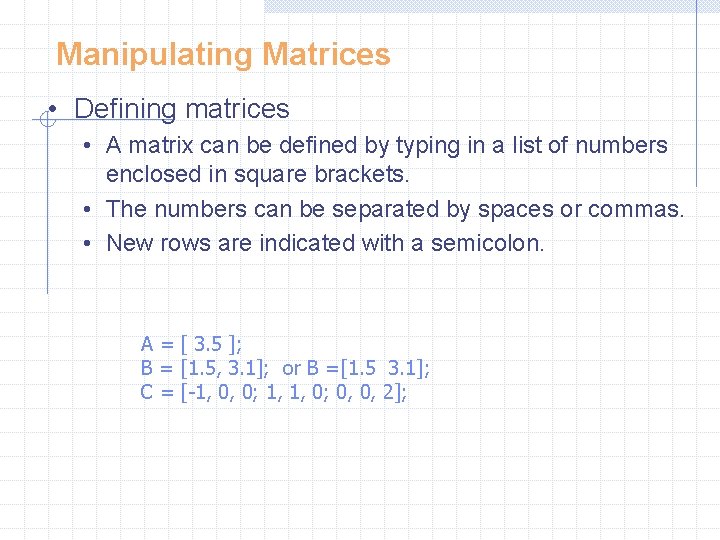

Manipulating Matrices • Defining matrices • A matrix can be defined by typing in a list of numbers enclosed in square brackets. • The numbers can be separated by spaces or commas. • New rows are indicated with a semicolon. A = [ 3. 5 ]; B = [1. 5, 3. 1]; or B =[1. 5 3. 1]; C = [-1, 0, 0; 1, 1, 0; 0, 0, 2];

Manipulating Matrices • Defining matrices • Define a matrix by using another matrix that has already been defined. B = [1. 5, 3. 1]; S = [3. 0, B] S = [3. 0, 1. 5, 3. 1]; T = [1 2 3; S] • Reference an element in a matrix • Both row and column indices start from 1. S= T= 3. 0 1. 5 3. 1 1 2 3 3. 0 1. 5 3. 1 S(2) T(2, 3) T(5) The element value on row 2 and column 3 of matrix T Count down column 1, then down column 2, and finally down column 3 to the correct element of matrix T.

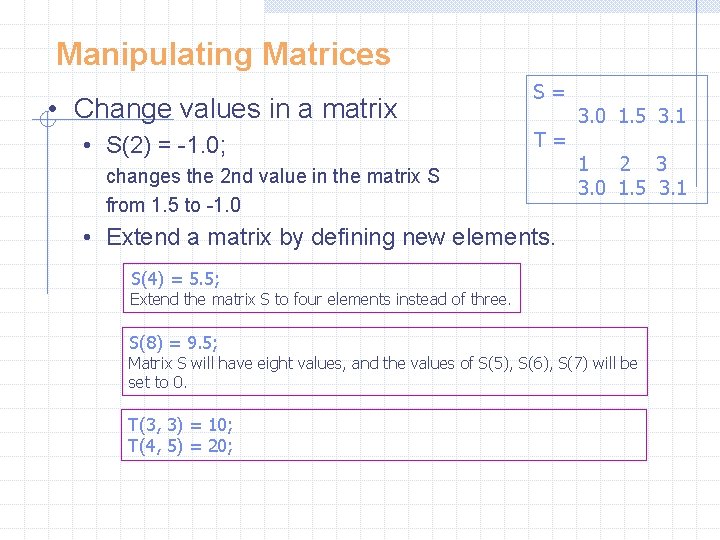

Manipulating Matrices • Change values in a matrix • S(2) = -1. 0; S= T= changes the 2 nd value in the matrix S from 1. 5 to -1. 0 3. 0 1. 5 3. 1 1 2 3 3. 0 1. 5 3. 1 • Extend a matrix by defining new elements. S(4) = 5. 5; Extend the matrix S to four elements instead of three. S(8) = 9. 5; Matrix S will have eight values, and the values of S(5), S(6), S(7) will be set to 0. T(3, 3) = 10; T(4, 5) = 20;

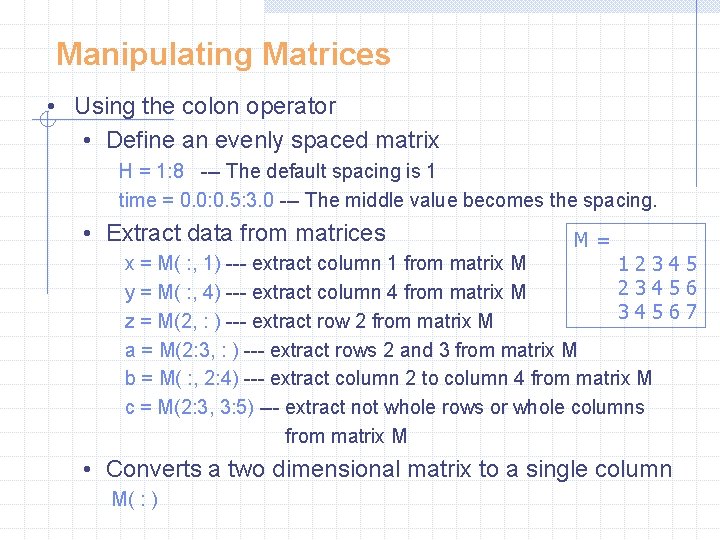

Manipulating Matrices • Using the colon operator • Define an evenly spaced matrix H = 1: 8 --- The default spacing is 1 time = 0. 0: 0. 5: 3. 0 --- The middle value becomes the spacing. • Extract data from matrices M= x = M( : , 1) --- extract column 1 from matrix M 123456 y = M( : , 4) --- extract column 4 from matrix M 34567 z = M(2, : ) --- extract row 2 from matrix M a = M(2: 3, : ) --- extract rows 2 and 3 from matrix M b = M( : , 2: 4) --- extract column 2 to column 4 from matrix M c = M(2: 3, 3: 5) --- extract not whole rows or whole columns from matrix M • Converts a two dimensional matrix to a single column M( : )

Practice Question Solution: C
