Lecture 20 Firewalls motivation ingredients packet filters application

Lecture 20: Firewalls • motivation • ingredients – packet filters – application gateways – bastion hosts and DMZ • example firewall design • using firewalls – virtual private networks • problems with firewalls the pictures are from “Cryptography and Network Security” by William Stallings 1

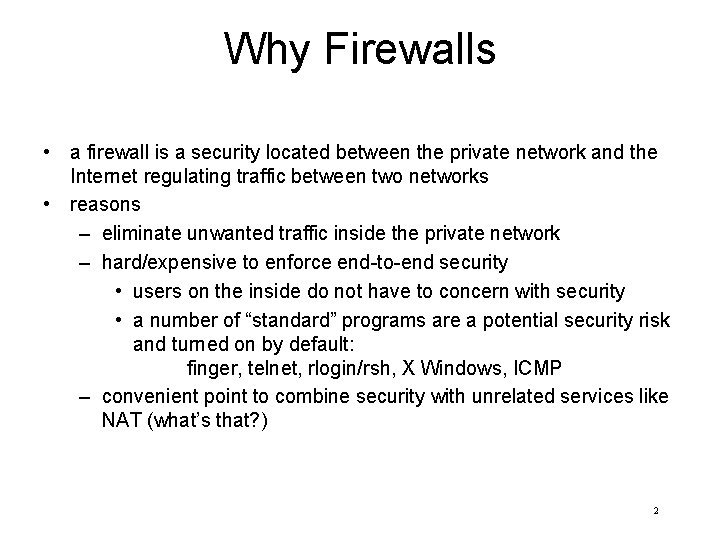

Why Firewalls • a firewall is a security located between the private network and the Internet regulating traffic between two networks • reasons – eliminate unwanted traffic inside the private network – hard/expensive to enforce end-to-end security • users on the inside do not have to concern with security • a number of “standard” programs are a potential security risk and turned on by default: finger, telnet, rlogin/rsh, X Windows, ICMP – convenient point to combine security with unrelated services like NAT (what’s that? ) 2

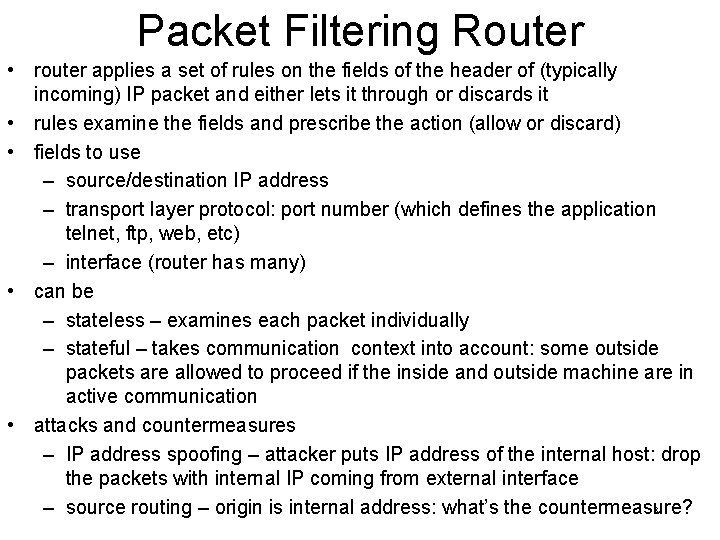

Packet Filtering Router • router applies a set of rules on the fields of the header of (typically incoming) IP packet and either lets it through or discards it • rules examine the fields and prescribe the action (allow or discard) • fields to use – source/destination IP address – transport layer protocol: port number (which defines the application telnet, ftp, web, etc) – interface (router has many) • can be – stateless – examines each packet individually – stateful – takes communication context into account: some outside packets are allowed to proceed if the inside and outside machine are in active communication • attacks and countermeasures – IP address spoofing – attacker puts IP address of the internal host: drop the packets with internal IP coming from external interface 3 – source routing – origin is internal address: what’s the countermeasure?

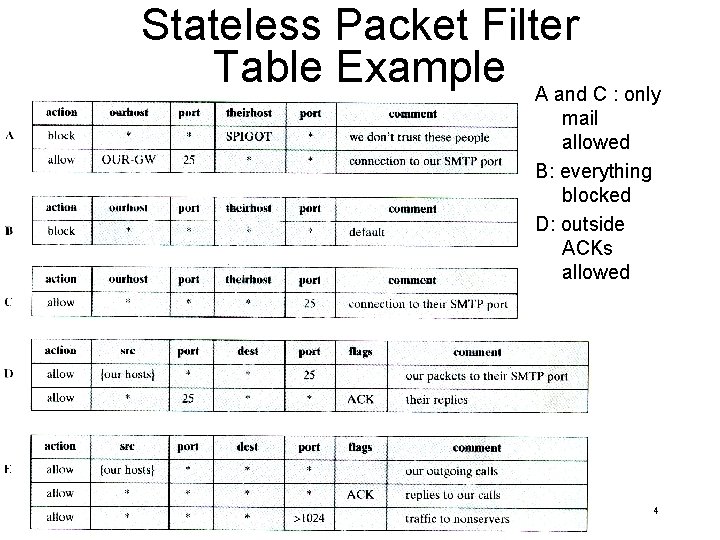

Stateless Packet Filter Table Example A and C : only mail allowed B: everything blocked D: outside ACKs allowed 4

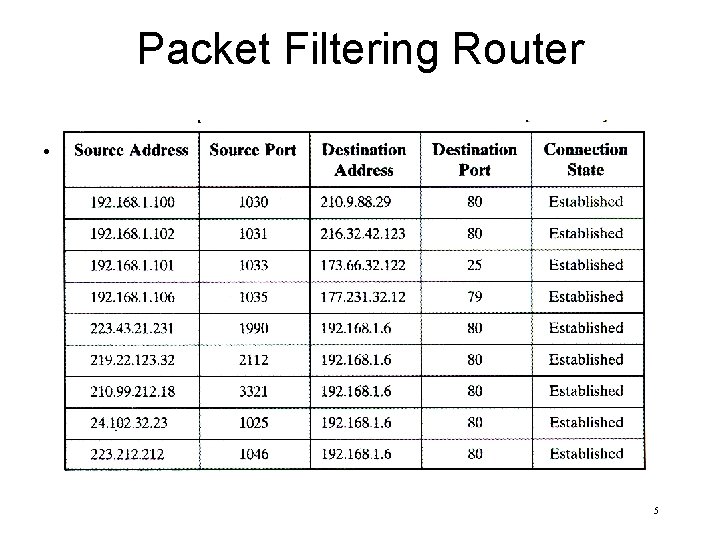

Packet Filtering Router • blah 5

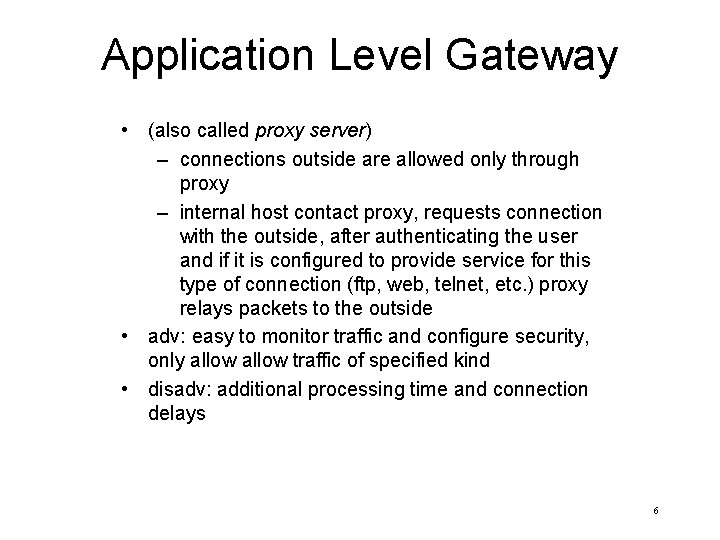

Application Level Gateway • (also called proxy server) – connections outside are allowed only through proxy – internal host contact proxy, requests connection with the outside, after authenticating the user and if it is configured to provide service for this type of connection (ftp, web, telnet, etc. ) proxy relays packets to the outside • adv: easy to monitor traffic and configure security, only allow traffic of specified kind • disadv: additional processing time and connection delays 6

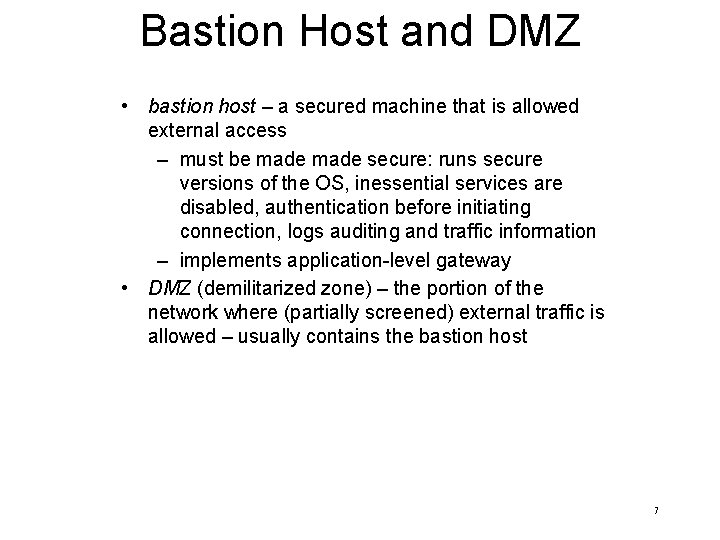

Bastion Host and DMZ • bastion host – a secured machine that is allowed external access – must be made secure: runs secure versions of the OS, inessential services are disabled, authentication before initiating connection, logs auditing and traffic information – implements application-level gateway • DMZ (demilitarized zone) – the portion of the network where (partially screened) external traffic is allowed – usually contains the bastion host 7

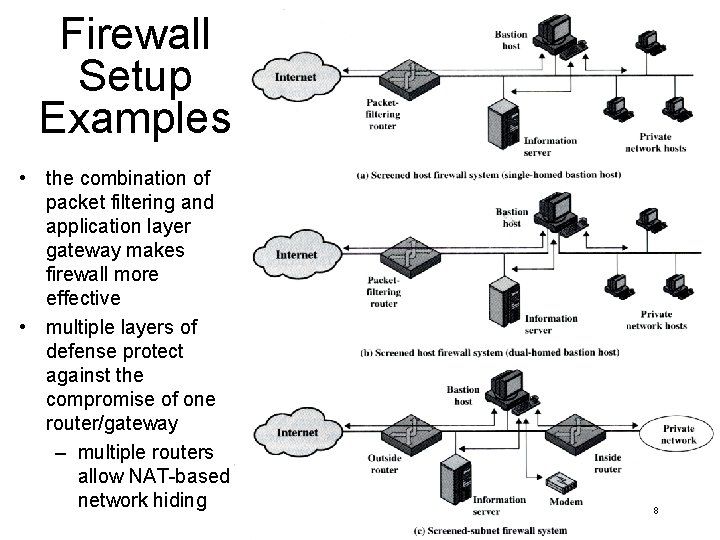

Firewall Setup Examples • the combination of packet filtering and application layer gateway makes firewall more effective • multiple layers of defense protect against the compromise of one router/gateway – multiple routers allow NAT-based network hiding 8

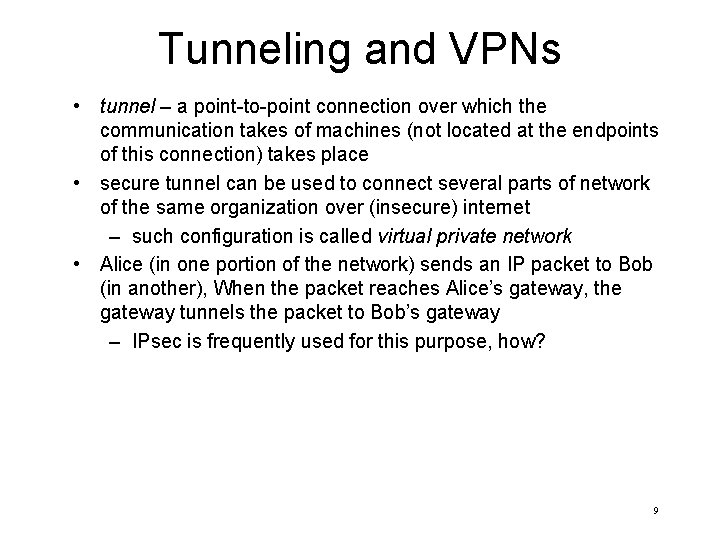

Tunneling and VPNs • tunnel – a point-to-point connection over which the communication takes of machines (not located at the endpoints of this connection) takes place • secure tunnel can be used to connect several parts of network of the same organization over (insecure) internet – such configuration is called virtual private network • Alice (in one portion of the network) sends an IP packet to Bob (in another), When the packet reaches Alice’s gateway, the gateway tunnels the packet to Bob’s gateway – IPsec is frequently used for this purpose, how? 9

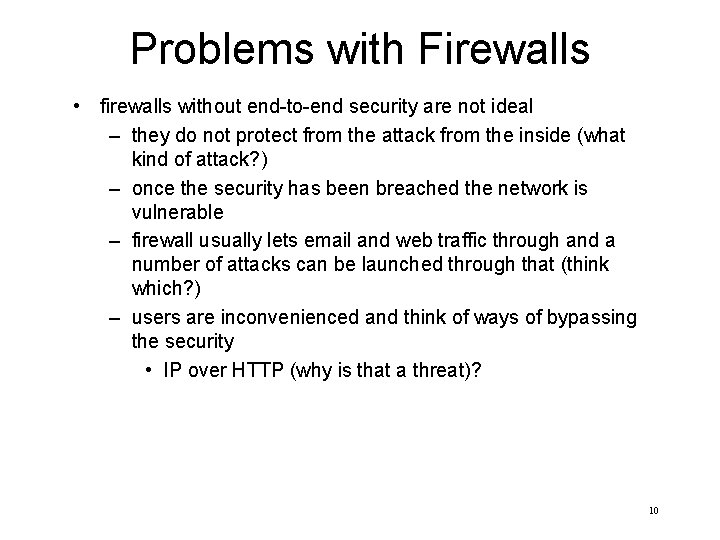

Problems with Firewalls • firewalls without end-to-end security are not ideal – they do not protect from the attack from the inside (what kind of attack? ) – once the security has been breached the network is vulnerable – firewall usually lets email and web traffic through and a number of attacks can be launched through that (think which? ) – users are inconvenienced and think of ways of bypassing the security • IP over HTTP (why is that a threat)? 10
