Lecture 2 Topics Bits and Bytes Primitive Types

Lecture 2: Topics • • • Bits and Bytes Primitive Types Casting Strings Boolean expressions

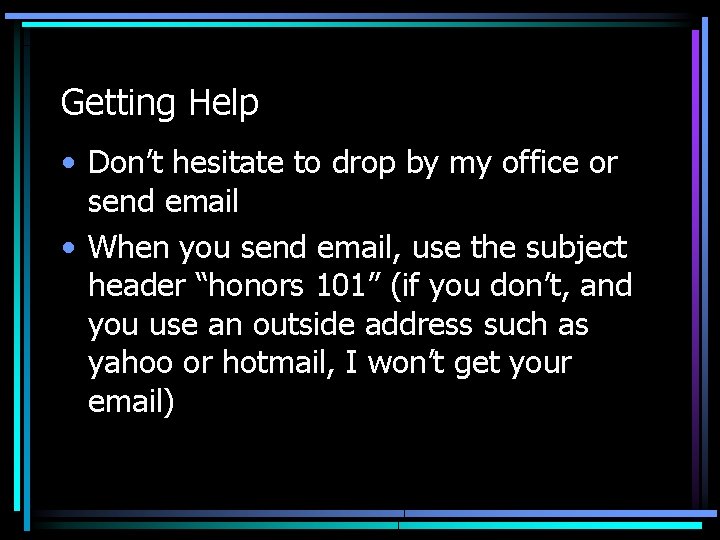

Getting Help • Don’t hesitate to drop by my office or send email • When you send email, use the subject header “honors 101” (if you don’t, and you use an outside address such as yahoo or hotmail, I won’t get your email)

Web page error • The mailing list link was wrong! • If you added your name to the Section 3 mailing list, please delete it and join the Section 1 list instead • The link is now fixed but if your web page is cached you may not see the corrected link: may have to force reload

Bits and Bytes • • • A A A bit is either 0 or 1, “on” or “off” byte is ___ bits kilobyte is ___ bytes megabyte is ___ kilobytes gigabyte is ___ megabytes ______ is _____ gigabytes

Primitive Types • boolean: only 2 values: true and false • In principle, needs only a bit, but uses a byte because of the way addressing is organized • char: 256 different possible character values. Each char variable uses 1 byte • int: for signed whole numbers • Each int variable uses a 32 -bit word • byte, short, long: 8, 16, 64 -bit variants • float and double: for real numbers (not necessarily whole numbers) • Each float (“floating point”) variable uses a 32 -bit word divided into 3 fields: sign, significand exponent • double (“double floating point”): 64 -bit variant

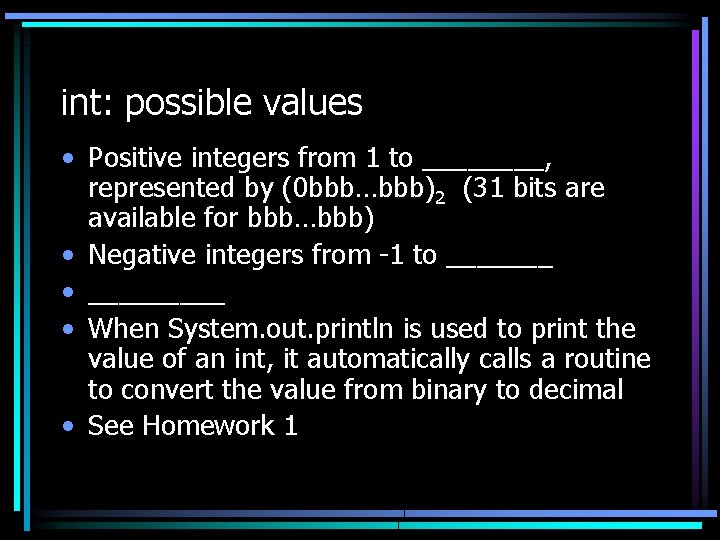

int: possible values • Positive integers from 1 to ____, represented by (0 bbb…bbb)2 (31 bits are available for bbb…bbb) • Negative integers from -1 to _______ • When System. out. println is used to print the value of an int, it automatically calls a routine to convert the value from binary to decimal • See Homework 1

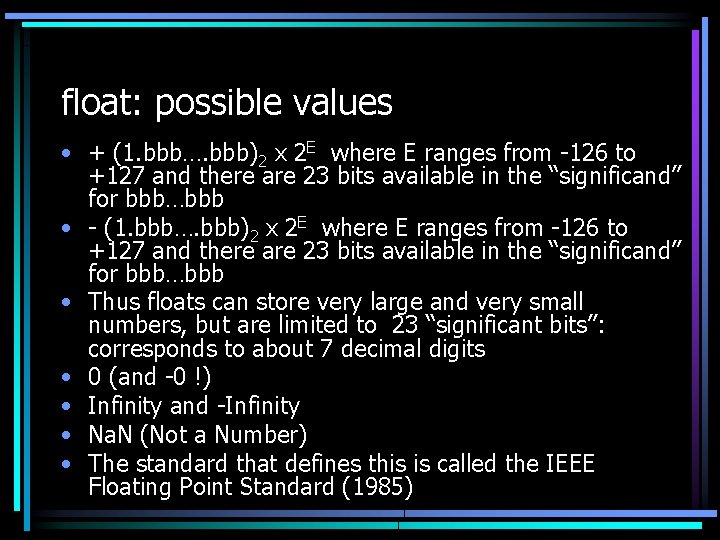

float: possible values • + (1. bbb…. bbb)2 x 2 E where E ranges from -126 to +127 and there are 23 bits available in the “significand” for bbb…bbb • - (1. bbb…. bbb)2 x 2 E where E ranges from -126 to +127 and there are 23 bits available in the “significand” for bbb…bbb • Thus floats can store very large and very small numbers, but are limited to 23 “significant bits”: corresponds to about 7 decimal digits • 0 (and -0 !) • Infinity and -Infinity • Na. N (Not a Number) • The standard that defines this is called the IEEE Floating Point Standard (1985)

double: possible values • + (1. bbb…. bbb)2 x 2 E where E ranges from -1022 to +1023 and there are 52 bits available in the “significand” for bbb…bbb • - (1. bbb…. bbb)2 x 2 E where E ranges from -1022 to +1023 and there are 52 bits available in the “significand” for bbb…bbb • Thus doubles have an even bigger range AND have 52 significant bits: more than int. Corresponds to about 16 decimal digits • ______ • When System. out. println is used to print the value of a float or double, it calls a conversion routine to convert the value from binary to decimal

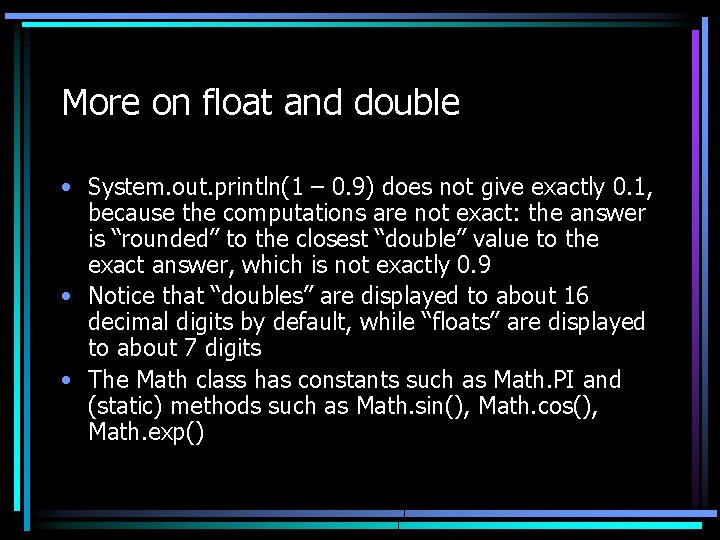

More on float and double • System. out. println(1 – 0. 9) does not give exactly 0. 1, because the computations are not exact: the answer is “rounded” to the closest “double” value to the exact answer, which is not exactly 0. 9 • Notice that “doubles” are displayed to about 16 decimal digits by default, while “floats” are displayed to about 7 digits • The Math class has constants such as Math. PI and (static) methods such as Math. sin(), Math. cos(), Math. exp()

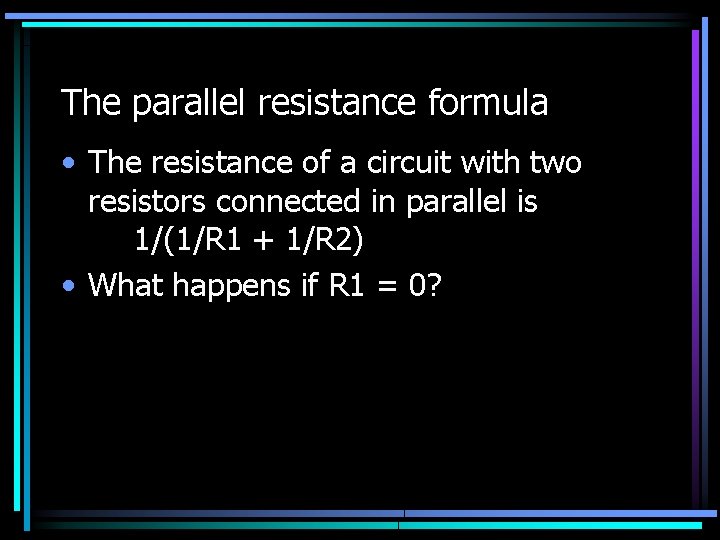

The parallel resistance formula • The resistance of a circuit with two resistors connected in parallel is 1/(1/R 1 + 1/R 2) • What happens if R 1 = 0?

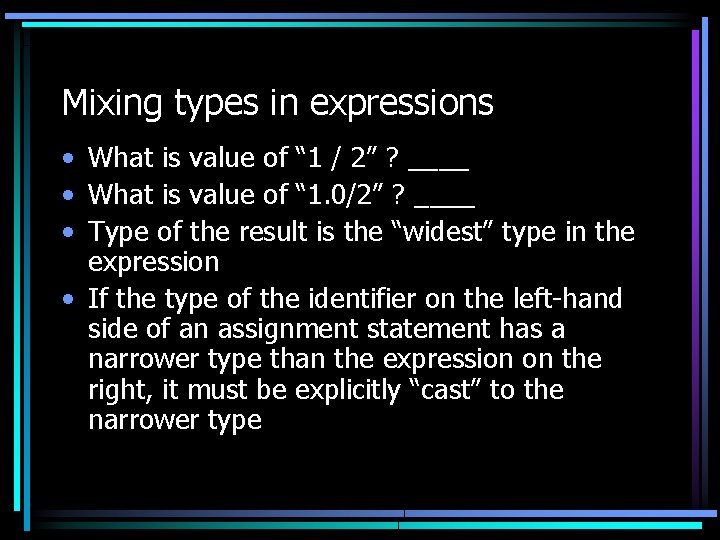

Mixing types in expressions • What is value of “ 1 / 2” ? ____ • What is value of “ 1. 0/2” ? ____ • Type of the result is the “widest” type in the expression • If the type of the identifier on the left-hand side of an assignment statement has a narrower type than the expression on the right, it must be explicitly “cast” to the narrower type

Casting • Explicit “casting” is needed to convert a wider type to a narrower type • Type width order: byte, short, int, long, float, double (widest) • Example: float f = (float) Math. PI • Example: int i = (int) Math. PI • Does float f = 123456789 require casting? • Is the value of f the same as the value on the right-hand side? • What about double f = 123456789 ?

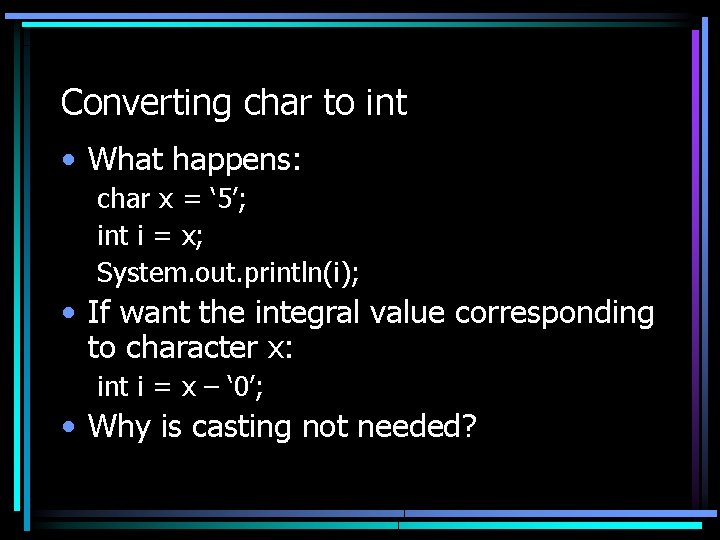

Converting char to int • What happens: char x = ‘ 5’; int i = x; System. out. println(i); • If want the integral value corresponding to character x: int i = x – ‘ 0’; • Why is casting not needed?

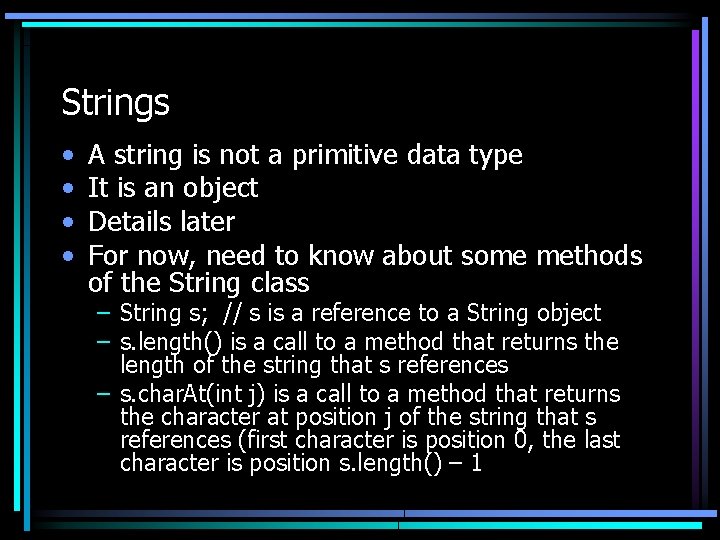

Strings • • A string is not a primitive data type It is an object Details later For now, need to know about some methods of the String class – String s; // s is a reference to a String object – s. length() is a call to a method that returns the length of the string that s references – s. char. At(int j) is a call to a method that returns the character at position j of the string that s references (first character is position 0, the last character is position s. length() – 1

Boolean expressions • Comparison (relational) operators: >, >=, <, <=, ==, != • Boolean (logical) operators: !, ^, &&, ||, &, | • Is this OK? public static boolean is. Leap. Year(int year){ return year % 4 == 0 && year % 100 != 0 || year % 400 == 0; } • Note: &&, || are “short-circuit” operators
