Lecture 2 Molecular Biology Primer Saurabh Sinha Heredity

Lecture 2 Molecular Biology Primer Saurabh Sinha

Heredity and DNA • Heredity: children resemble parents – Easy to see – Hard to explain • DNA discovered as the physical (molecular) carrier of hereditary information

Life, Cells, Proteins • The study of life the study of cells • Cells are born, do their job, duplicate, die • All these processes controlled by proteins

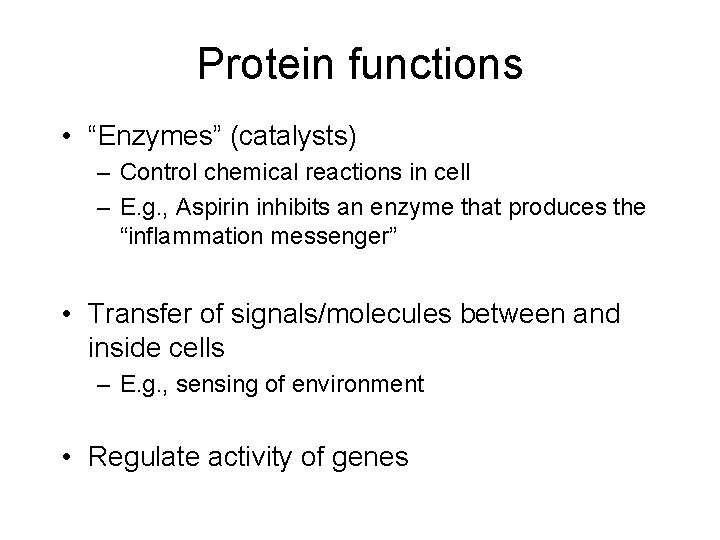

Protein functions • “Enzymes” (catalysts) – Control chemical reactions in cell – E. g. , Aspirin inhibits an enzyme that produces the “inflammation messenger” • Transfer of signals/molecules between and inside cells – E. g. , sensing of environment • Regulate activity of genes

DNA • DNA is a molecule: deoxyribonucleic acid • Double helical structure (discovered by Watson, Crick & Franklin) • Chromosomes are densely coiled and packed DNA

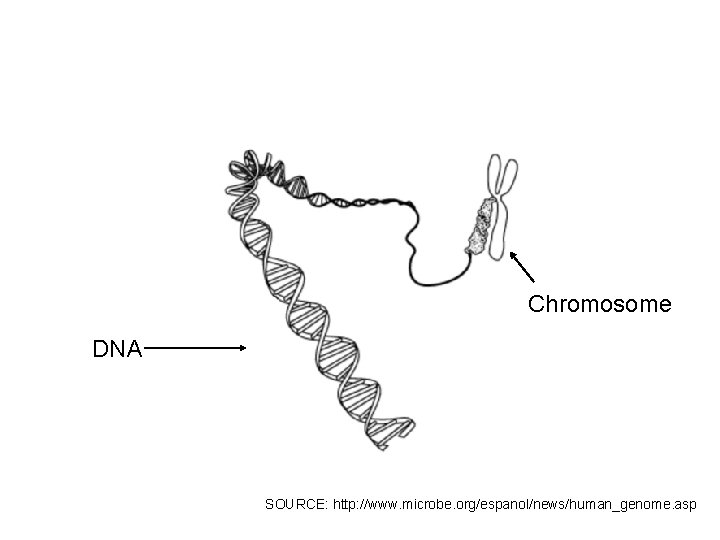

Chromosome DNA SOURCE: http: //www. microbe. org/espanol/news/human_genome. asp

The DNA Molecule 5’ G A T G C Base pairing property G T T A A C 3’ T -------- Base = Nucleotide C T A C G C A A T T G A

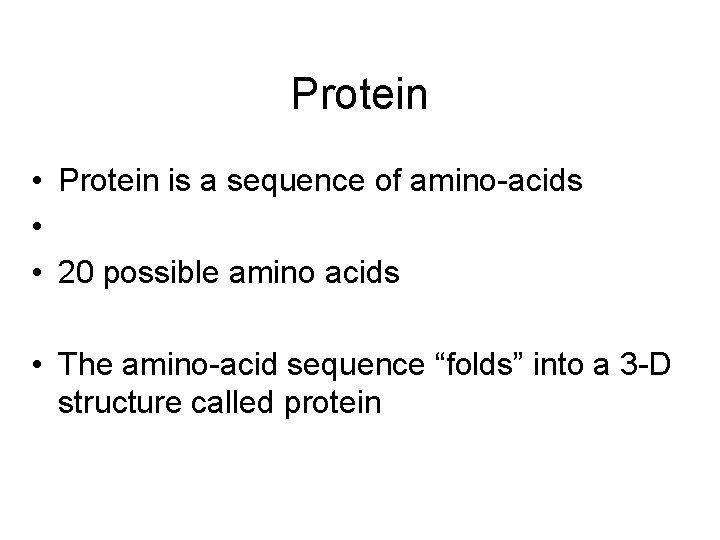

Protein • Protein is a sequence of amino-acids • • 20 possible amino acids • The amino-acid sequence “folds” into a 3 -D structure called protein

Protein Structure Protein PNAS cover, courtesy Amie Boal DNA The DNA repair protein Mut. Y (blue) bound to DNA (purple).

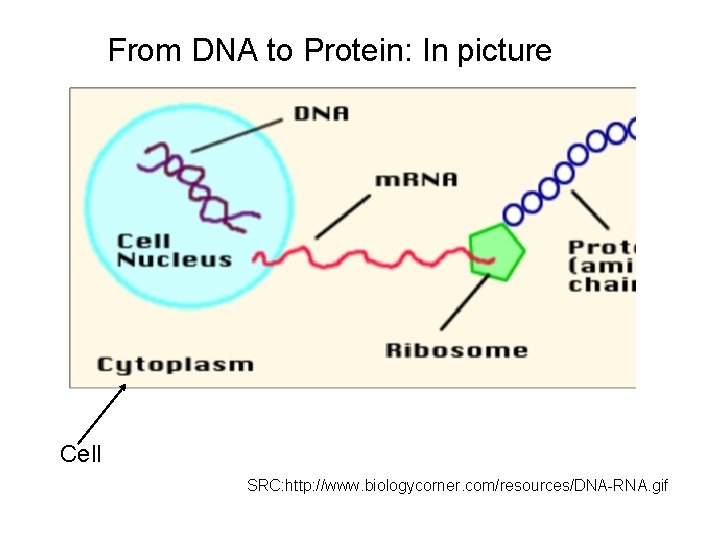

From DNA to Protein: In picture Cell SRC: http: //www. biologycorner. com/resources/DNA-RNA. gif

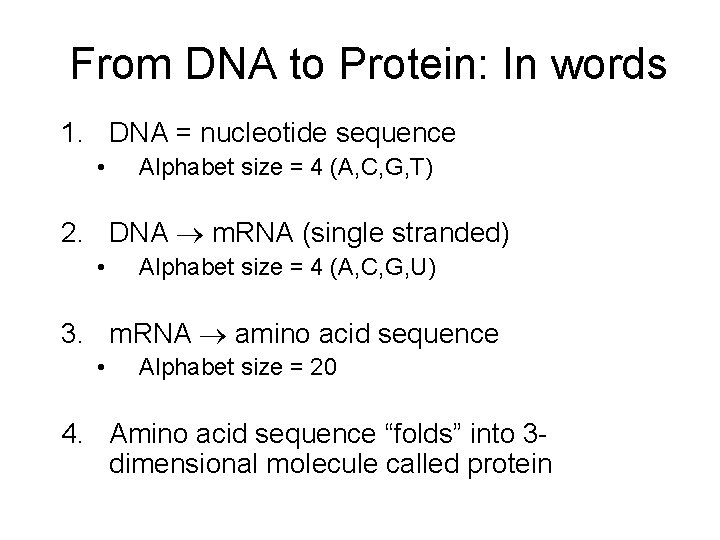

From DNA to Protein: In words 1. DNA = nucleotide sequence • Alphabet size = 4 (A, C, G, T) 2. DNA m. RNA (single stranded) • Alphabet size = 4 (A, C, G, U) 3. m. RNA amino acid sequence • Alphabet size = 20 4. Amino acid sequence “folds” into 3 dimensional molecule called protein

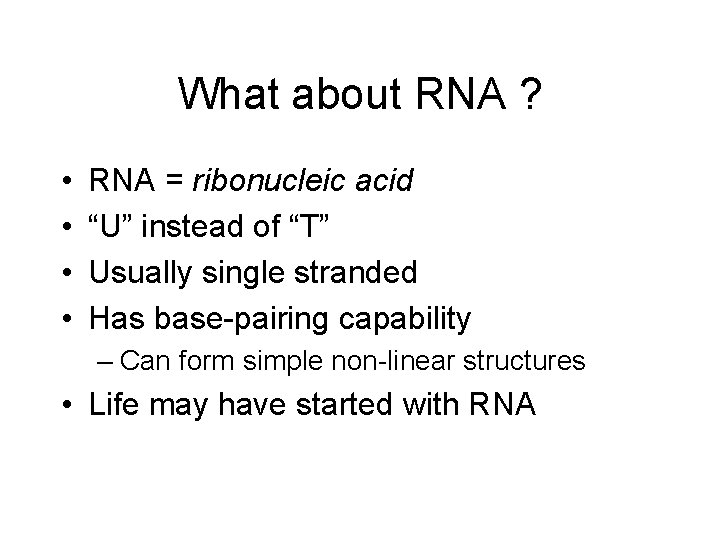

What about RNA ? • • RNA = ribonucleic acid “U” instead of “T” Usually single stranded Has base-pairing capability – Can form simple non-linear structures • Life may have started with RNA

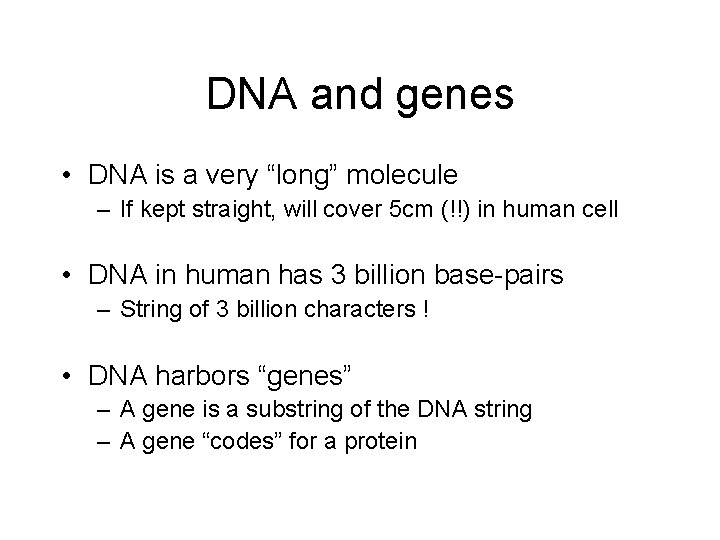

DNA and genes • DNA is a very “long” molecule – If kept straight, will cover 5 cm (!!) in human cell • DNA in human has 3 billion base-pairs – String of 3 billion characters ! • DNA harbors “genes” – A gene is a substring of the DNA string – A gene “codes” for a protein

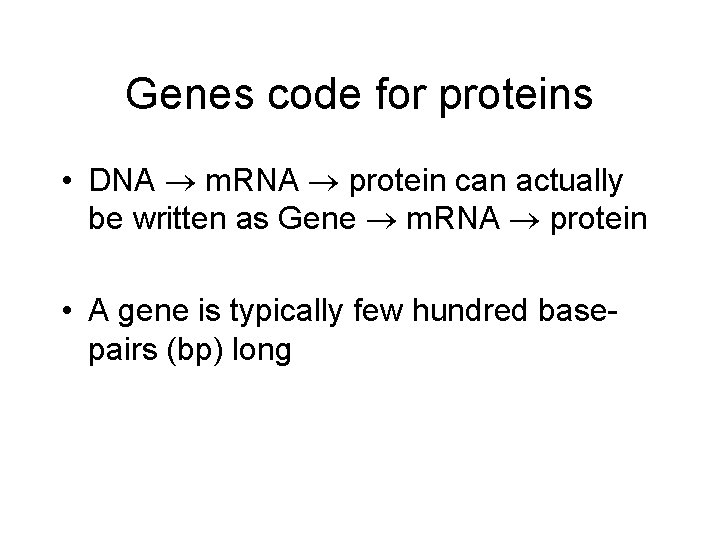

Genes code for proteins • DNA m. RNA protein can actually be written as Gene m. RNA protein • A gene is typically few hundred basepairs (bp) long

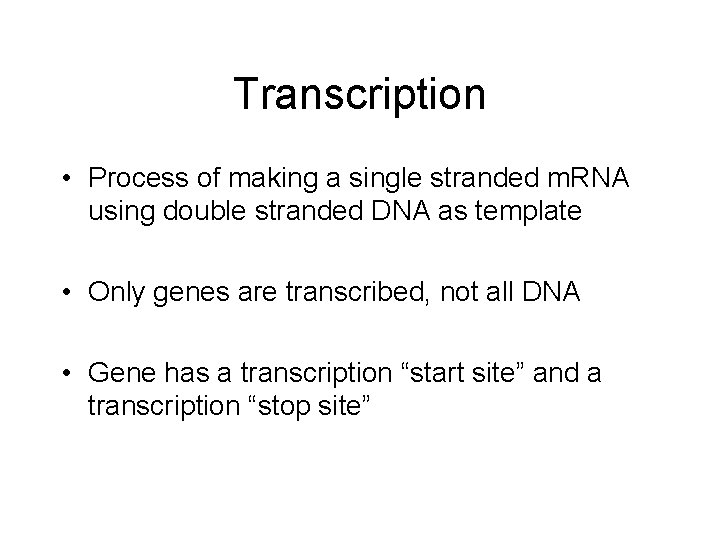

Transcription • Process of making a single stranded m. RNA using double stranded DNA as template • Only genes are transcribed, not all DNA • Gene has a transcription “start site” and a transcription “stop site”

Step 1: From DNA to m. RNA Transcription SOURCE: http: //www. fed. cuhk. edu. hk/~johnson/teaching/genetics/animations/transcription. htm

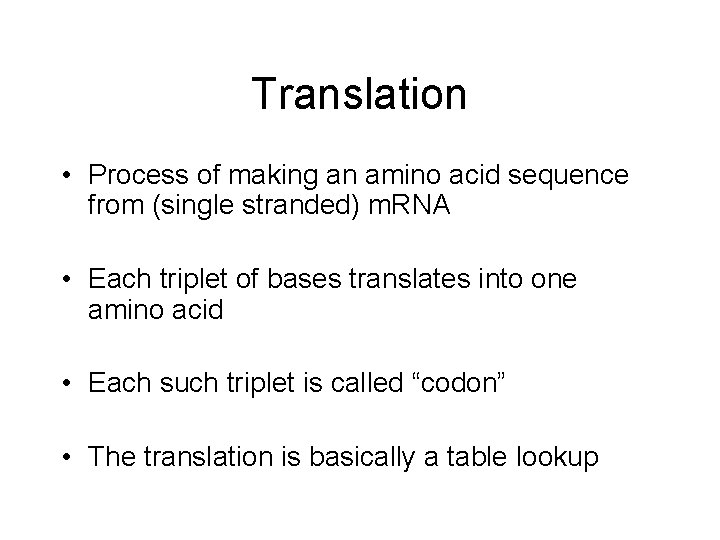

Translation • Process of making an amino acid sequence from (single stranded) m. RNA • Each triplet of bases translates into one amino acid • Each such triplet is called “codon” • The translation is basically a table lookup

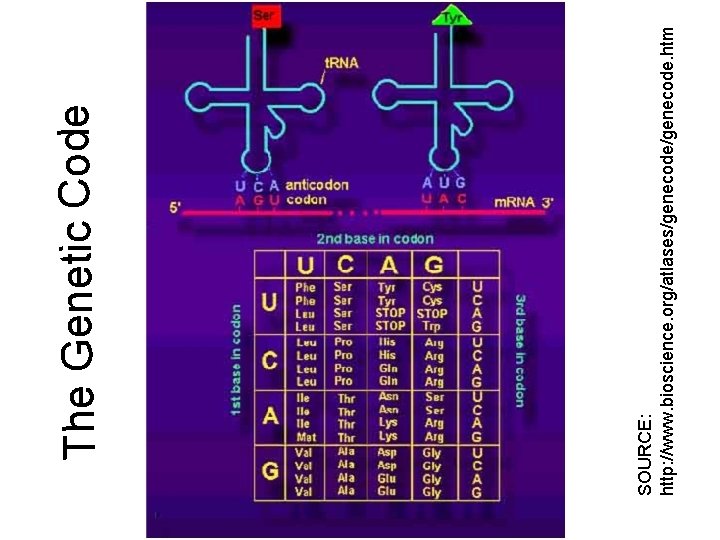

SOURCE: http: //www. bioscience. org/atlases/genecode. htm The Genetic Code

Step 2: m. RNA to Amino acid sequence Translation SOURCE: http: //bioweb. uwlax. edu/Gen. Web/Molecular/Theory/Translation/trans 1. swf

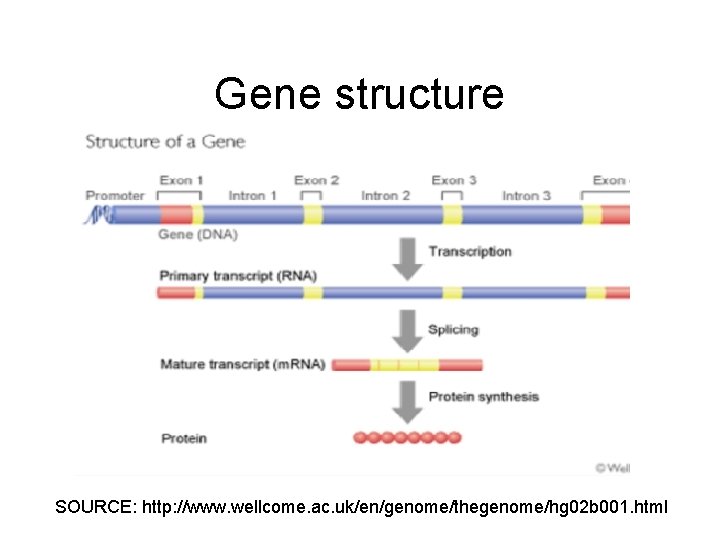

Gene structure SOURCE: http: //www. wellcome. ac. uk/en/genome/thegenome/hg 02 b 001. html

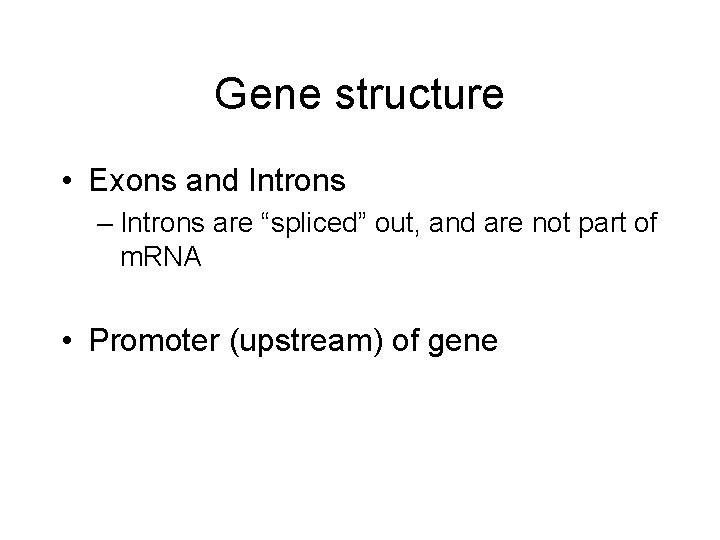

Gene structure • Exons and Introns – Introns are “spliced” out, and are not part of m. RNA • Promoter (upstream) of gene

Gene expression • Process of making a protein from a gene as template • Transcription, then translation • Can be regulated

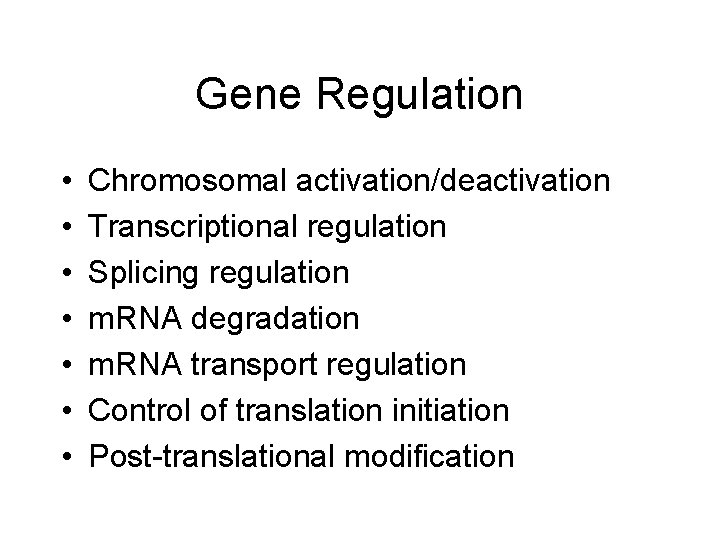

Gene Regulation • • Chromosomal activation/deactivation Transcriptional regulation Splicing regulation m. RNA degradation m. RNA transport regulation Control of translation initiation Post-translational modification

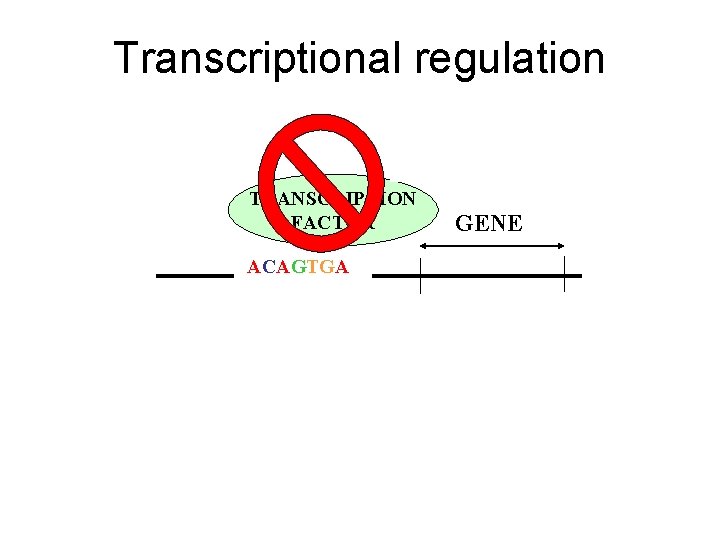

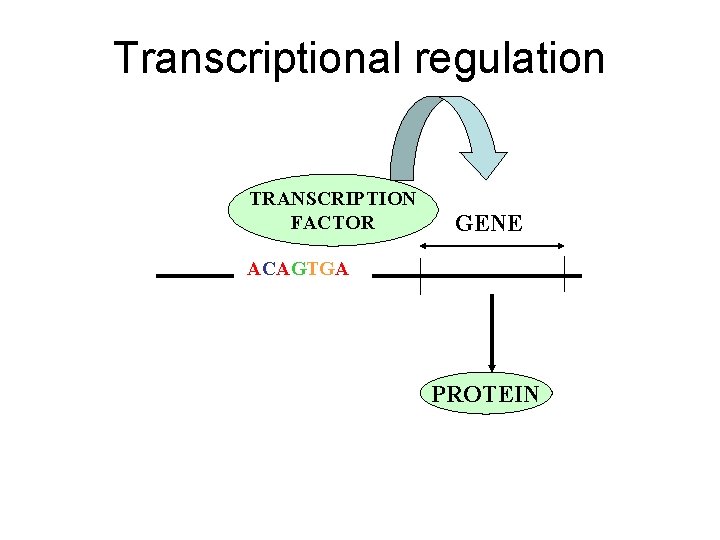

Transcriptional regulation TRANSCRIPTION FACTOR GENE ACAGTGA PROTEIN

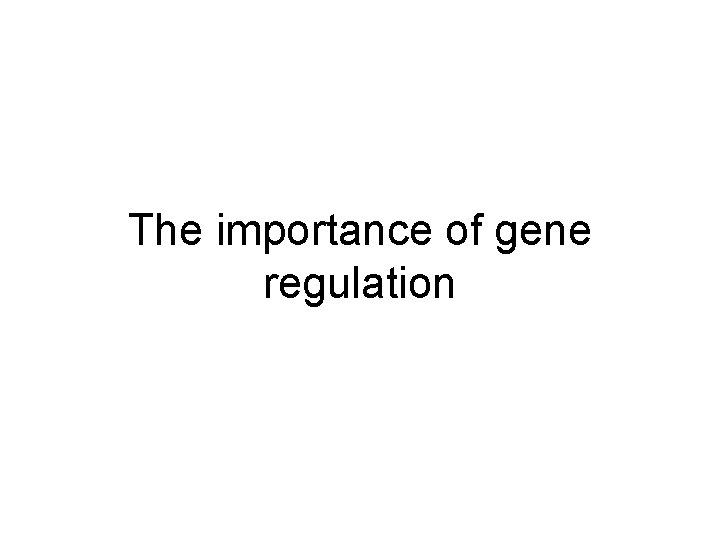

The importance of gene regulation

Genetic regulatory network controlling the development of the body plan of the sea urchin embryo Davidson et al. , Science, 295(5560): 1669 -1678.

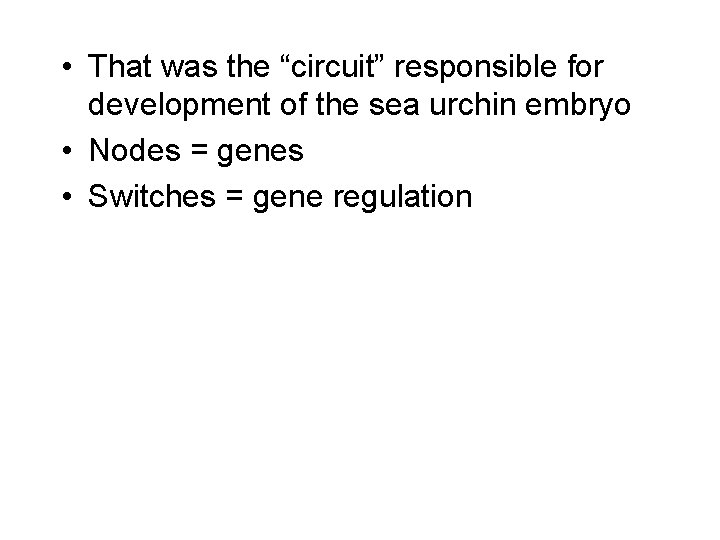

• That was the “circuit” responsible for development of the sea urchin embryo • Nodes = genes • Switches = gene regulation

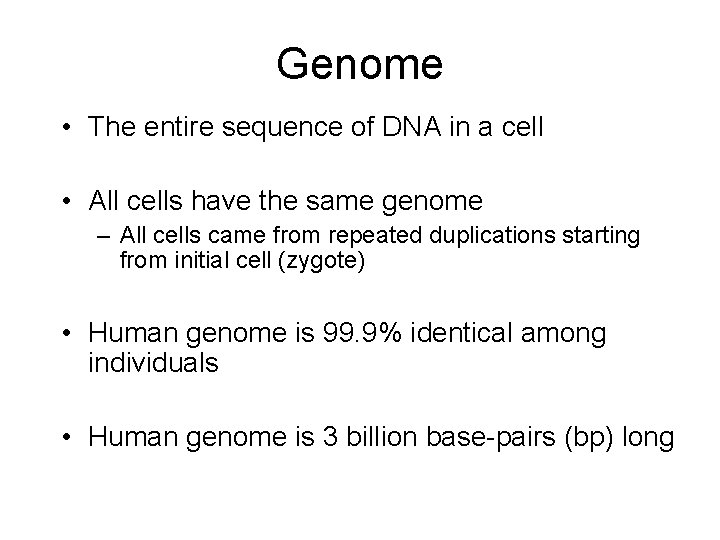

Genome • The entire sequence of DNA in a cell • All cells have the same genome – All cells came from repeated duplications starting from initial cell (zygote) • Human genome is 99. 9% identical among individuals • Human genome is 3 billion base-pairs (bp) long

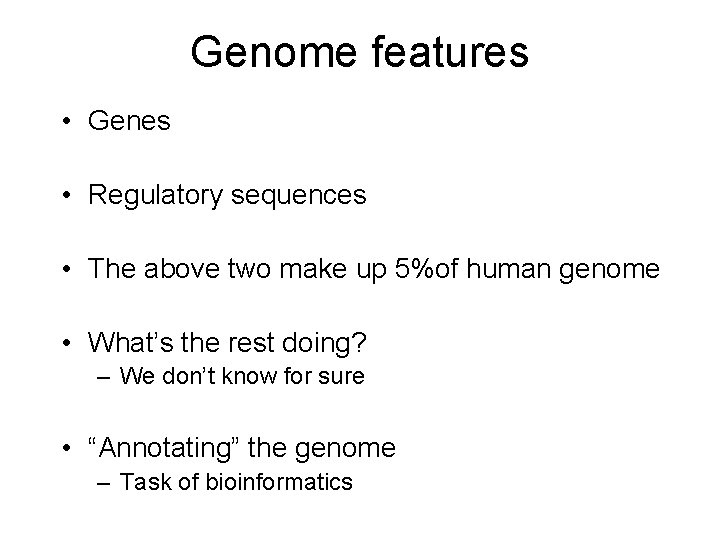

Genome features • Genes • Regulatory sequences • The above two make up 5%of human genome • What’s the rest doing? – We don’t know for sure • “Annotating” the genome – Task of bioinformatics

Some genome sizes Organism Virus, Phage Φ-X 174; Virus, Phage λ Bacterium, Escherichia coli Plant, Fritillary assyrica Fungus, Saccharomyces cerevisiae Nematode, Caenorhabditis elegans Insect, Drosophila melanogaster Mammal, Homo sapiens Genome size (base pairs) 5387 - First sequenced genome 5× 104 4× 106 13× 1010 Largest known genome 2× 107 8× 107 2× 108 3× 109 Note: The DNA from a single human cell has a length of ~1. 8 m.

Evolution • A model/theory to explain the diversity of life forms • Some aspects known, some not – An active field of research in itself • Bioinformatics deals with genomes, which are end -products of evolution. Hence bioinformatics cannot ignore the study of evolution

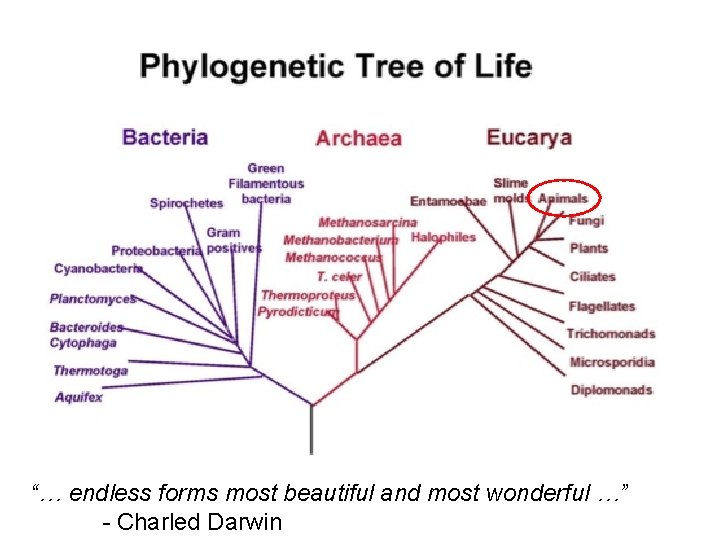

“… endless forms most beautiful and most wonderful …” - Charled Darwin

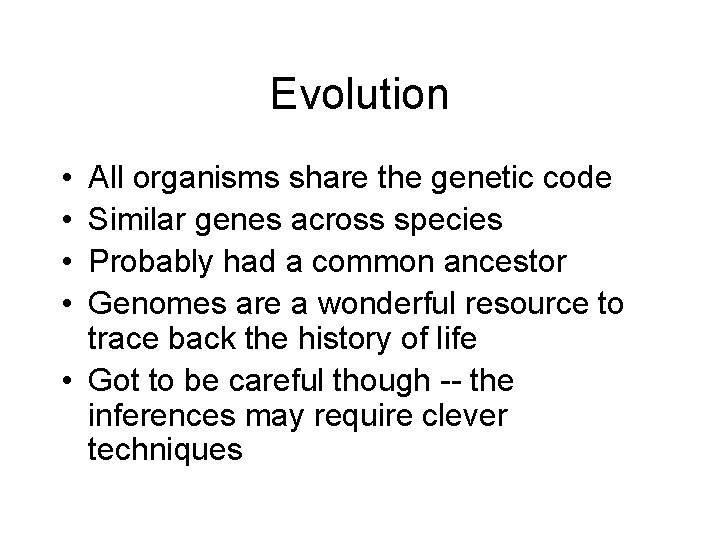

Evolution • • All organisms share the genetic code Similar genes across species Probably had a common ancestor Genomes are a wonderful resource to trace back the history of life • Got to be careful though -- the inferences may require clever techniques

Evolution • Lamarck, Darwin, Weissmann, Mendel Theory wasn’t well-received “Oh my dear, let us hope that what Mr. Darwin says is not true. But if it is true, let us hope that it will not become generally known!”
