Lecture 2 Examples Pseudo code and flowcharts Problem

Lecture 2 Examples Pseudo code and flowcharts

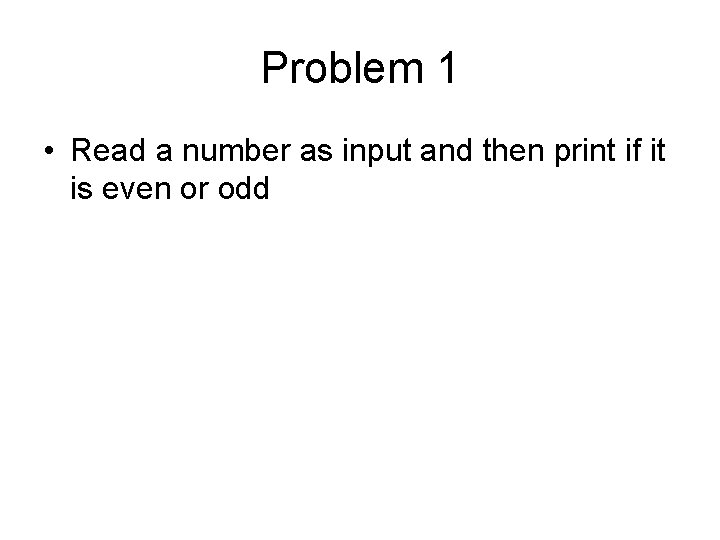

Problem 1 • Read a number as input and then print if it is even or odd

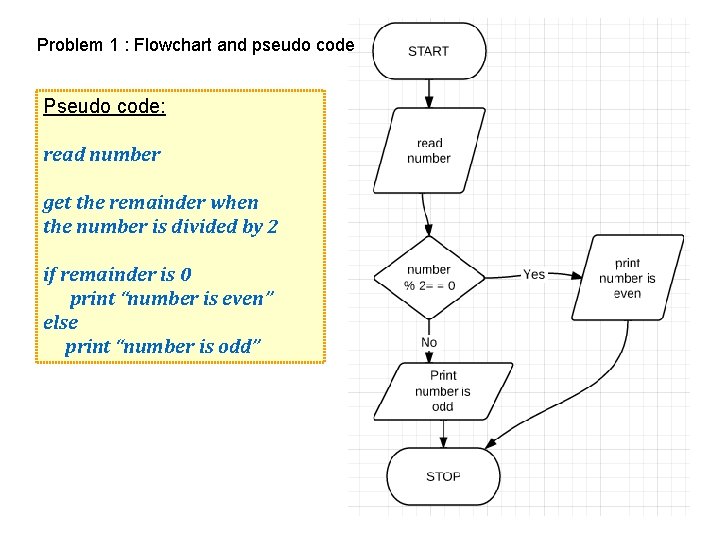

Problem 1 : Flowchart and pseudo code Pseudo code: read number get the remainder when the number is divided by 2 if remainder is 0 print “number is even” else print “number is odd”

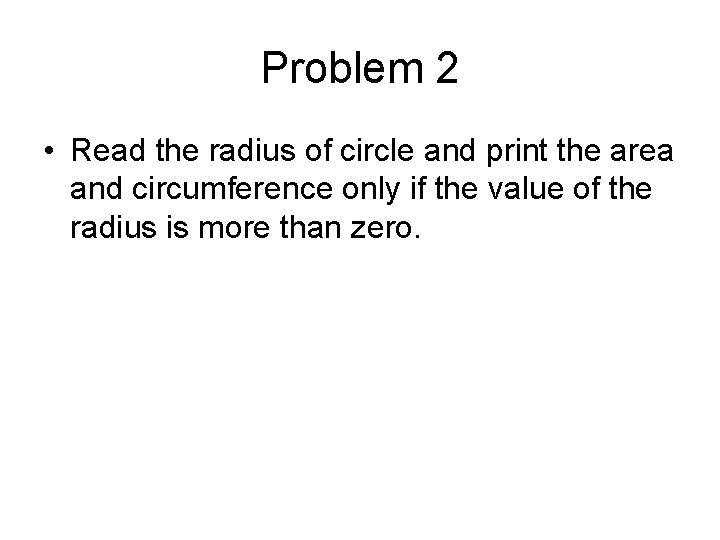

Problem 2 • Read the radius of circle and print the area and circumference only if the value of the radius is more than zero.

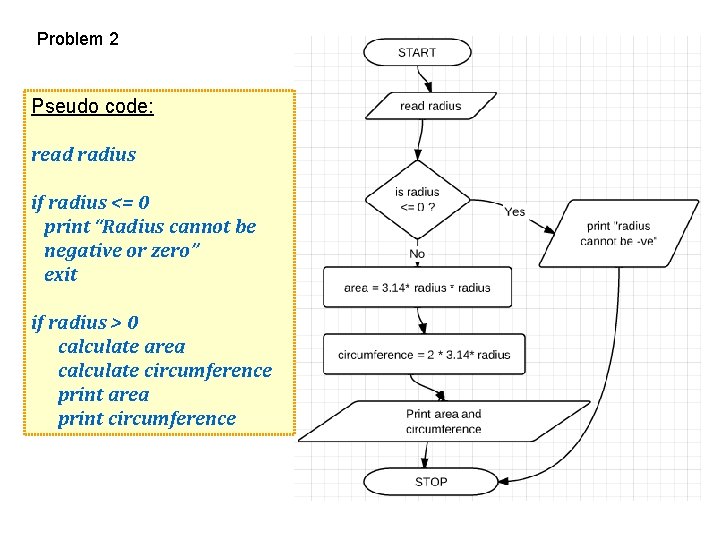

Problem 2 Pseudo code: read radius if radius <= 0 print “Radius cannot be negative or zero” exit if radius > 0 calculate area calculate circumference print area print circumference

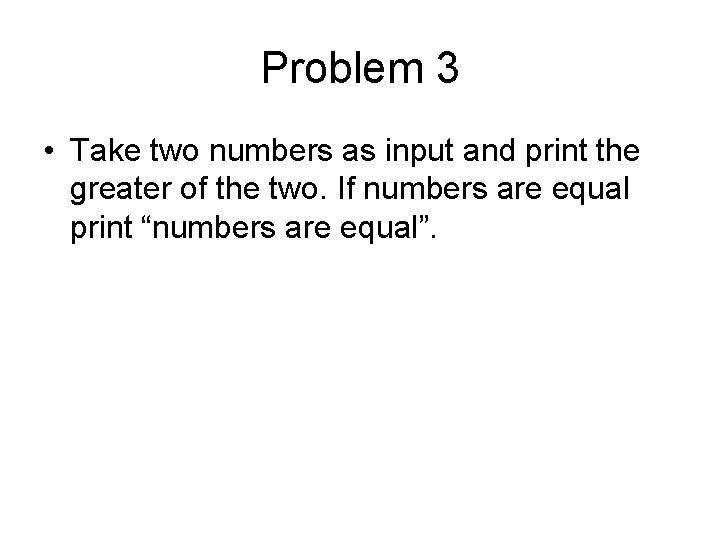

Problem 3 • Take two numbers as input and print the greater of the two. If numbers are equal print “numbers are equal”.

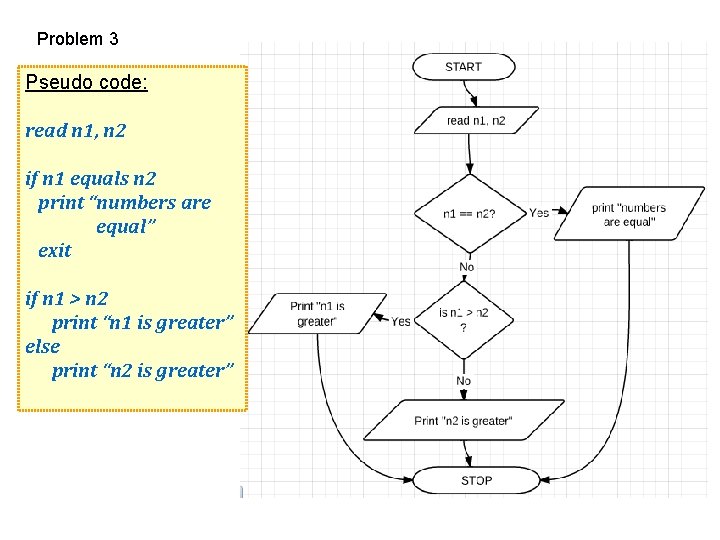

Problem 3 Pseudo code: read n 1, n 2 if n 1 equals n 2 print “numbers are equal” exit if n 1 > n 2 print “n 1 is greater” else print “n 2 is greater”

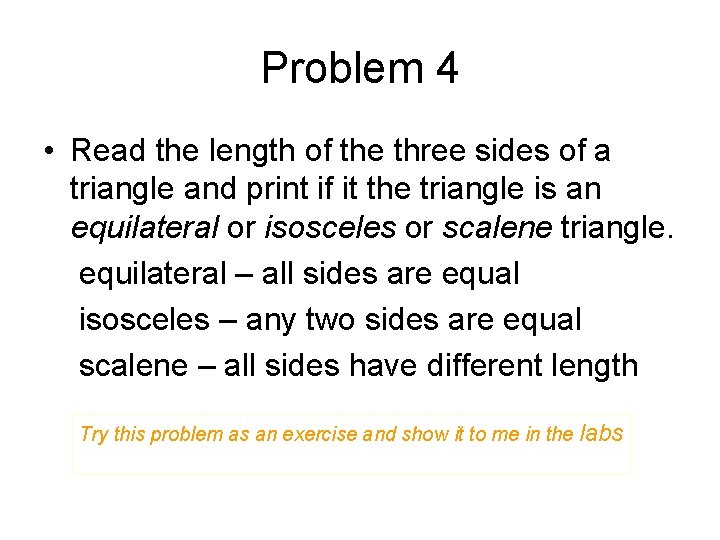

Problem 4 • Read the length of the three sides of a triangle and print if it the triangle is an equilateral or isosceles or scalene triangle. equilateral – all sides are equal isosceles – any two sides are equal scalene – all sides have different length Try this problem as an exercise and show it to me in the labs

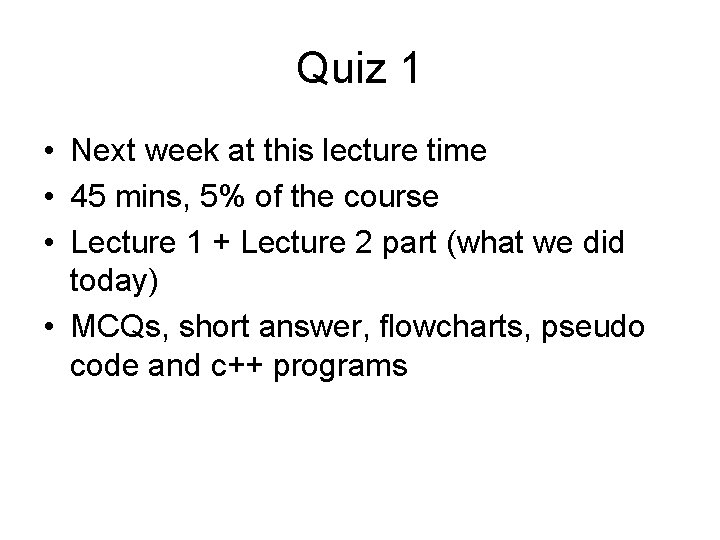

Quiz 1 • Next week at this lecture time • 45 mins, 5% of the course • Lecture 1 + Lecture 2 part (what we did today) • MCQs, short answer, flowcharts, pseudo code and c++ programs

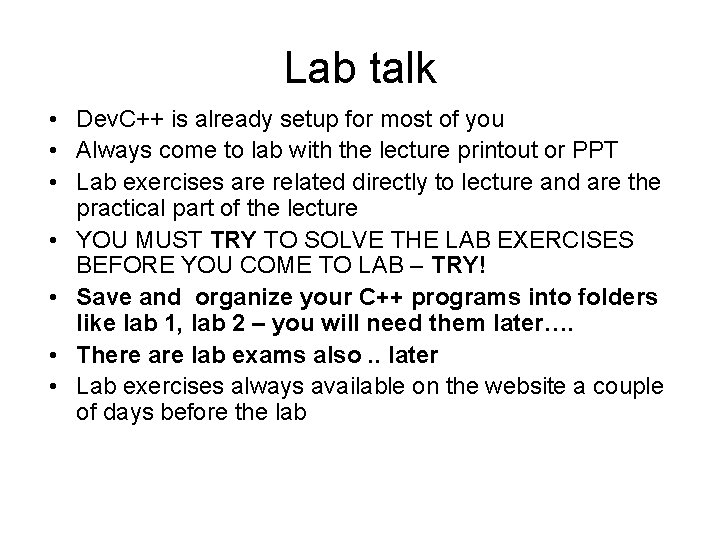

Lab talk • Dev. C++ is already setup for most of you • Always come to lab with the lecture printout or PPT • Lab exercises are related directly to lecture and are the practical part of the lecture • YOU MUST TRY TO SOLVE THE LAB EXERCISES BEFORE YOU COME TO LAB – TRY! • Save and organize your C++ programs into folders like lab 1, lab 2 – you will need them later…. • There are lab exams also. . later • Lab exercises always available on the website a couple of days before the lab
