Lecture 18 OUTLINE • The MOS Capacitor (cont’d) – Effect of oxide charges – VT adjustment – Poly-Si gate depletion effect Reading: Pierret 18. 2 -18. 3; Hu 5. 7 -5. 9

Oxide Charges In real MOS devices, there is always some charge within the oxide and at the Si/oxide interface. • Within the oxide: – Trapped charge Qot • High-energy electrons and/or holes injected into oxide – Mobile charge QM • Alkali-metal ions, which have sufficient mobility to drift in oxide under an applied electric field • At the interface: – Fixed charge QF • Excess Si (? ) R. F. Pierret, Semiconductor Device Fundamentals, Fig. 18. 4 – Trapped charge QIT • Dangling bonds EE 130/230 A Fall 2013 Lecture 18, Slide 2

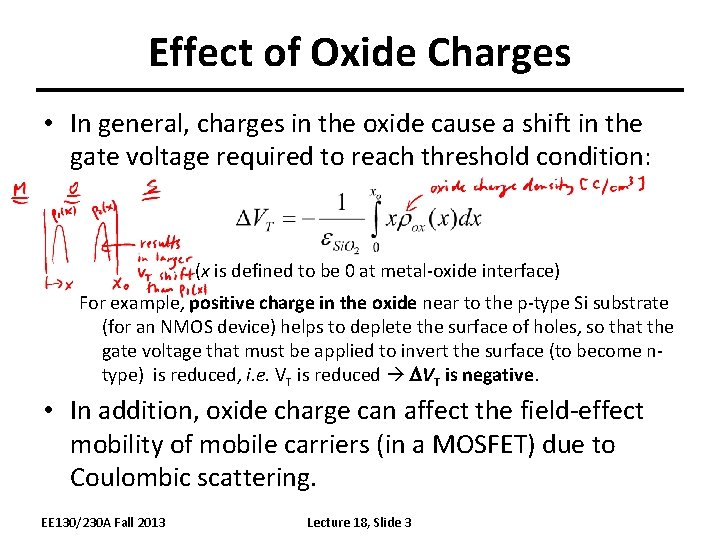

Effect of Oxide Charges • In general, charges in the oxide cause a shift in the gate voltage required to reach threshold condition: (x is defined to be 0 at metal-oxide interface) For example, positive charge in the oxide near to the p-type Si substrate (for an NMOS device) helps to deplete the surface of holes, so that the gate voltage that must be applied to invert the surface (to become ntype) is reduced, i. e. VT is reduced DVT is negative. • In addition, oxide charge can affect the field-effect mobility of mobile carriers (in a MOSFET) due to Coulombic scattering. EE 130/230 A Fall 2013 Lecture 18, Slide 3

Fixed Oxide Charge, QF M 3. 1 e. V O S q. QF / Cox Ec= EFM |q. VFB | Ev Ec EFS Ev 4. 8 e. V EE 130/230 A Fall 2013 Lecture 18, Slide 4

Parameter Extraction from C-V From a single C-V measurement, we can extract much information about the MOS device: • Suppose we know the gate material is heavily doped n-type poly-Si (FM= 4. 1 e. V), and the gate dielectric is Si. O 2 (er = 3. 9): 1. From Cmax = Cox we can determine oxide thickness xo 2. From Cmin and Cox we can determine substrate doping (by iteration) 3. From substrate doping and Cox we can find flat-band capacitance CFB 4. From the C-V curve, we can find 5. From FM, FS, Cox, and VFB we can determine Qf EE 130/230 A Fall 2013 Lecture 18, Slide 5

Determination of FM and QF Measure C-V characteristics of capacitors with different oxide thicknesses. Plot VFB as a function of xo: C. C. Hu, Modern Semiconductor Devices for Integrated Circuits, Figure 5 -21 EE 130/230 A Fall 2013 Lecture 18, Slide 6

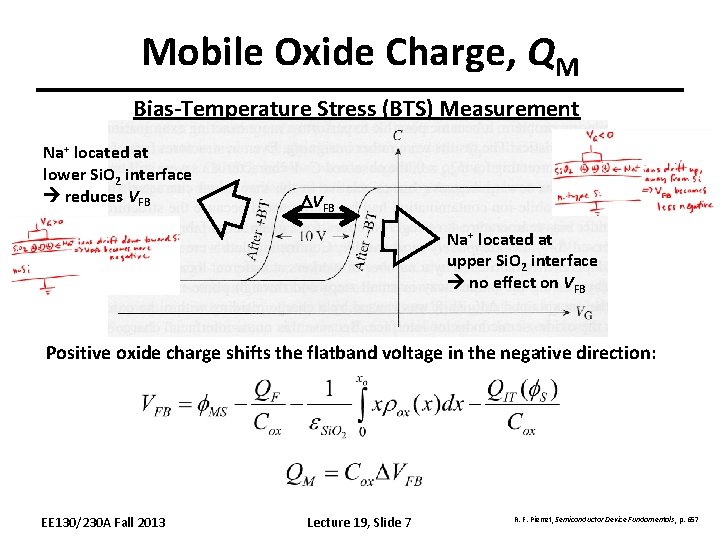

Mobile Oxide Charge, QM Bias-Temperature Stress (BTS) Measurement Na+ located at lower Si. O 2 interface reduces VFB DVFB Na+ located at upper Si. O 2 interface no effect on VFB Positive oxide charge shifts the flatband voltage in the negative direction: EE 130/230 A Fall 2013 Lecture 19, Slide 7 R. F. Pierret, Semiconductor Device Fundamentals, p. 657

Interface Trap Charge, QIT (c) (b) “Donor-like” traps are charge-neutral when filled, positively charged when empty (a) Positive oxide charge R. F. Pierret, Semiconductor Device Fundamentals, Fig. 18. 10 causes C-V curve to shift toward left. As VG decreases, there is more positive interface Traps cause “sloppy” C-V and also charge and hence greatly degrade mobility in channel the “ideal C-V curve” is shifted more to the left. EE 130/230 A Fall 2013 Lecture 18, Slide 8 (a) (b) (c) R. F. Pierret, Semiconductor Device Fundamentals, Fig. 18. 12

VT Adjustment • In modern IC fabrication processes, the threshold voltages of MOS transistors are adjusted by adding dopants to the Si by a process called “ion implantation”: – A relatively small dose NI (units: ions/cm 2) of dopant atoms is implanted into the near-surface region of the semiconductor – When the MOS device is biased in depletion or inversion, the implanted dopants add to (or substract from) the depletion charge near the oxide-semiconductor interface. EE 130/230 A Fall 2013 Lecture 18, Slide 9

Poly-Si Gate Technology • A heavily doped film of polycrystalline silicon (poly-Si) is often employed as the gate-electrode material in MOS devices. NMOS PMOS n+ poly-Si p-type Si n-type Si – There are practical limits to the electrically active dopant concentration (usually less than 1 x 1020 cm-3) Þ The gate must be considered as a semiconductor, rather than a metal EE 130/230 A Fall 2013 Lecture 18, Slide 10

MOS Band Diagram w/ Gate Depletion Si biased to inversion: WT Ec q. Vpoly qf S VG is effectively reduced: EFS Ev q. VG Ec Ev Wpoly n+ poly-Si gate EE 130/230 A Fall 2013 How can gate depletion be minimized? p-type Si Lecture 18, Slide 11

Gate Depletion Effect Gauss’s Law dictates that Wpoly = eox. Eox / q. Npoly xo is effectively increased: n+ poly-Si Cpoly + + + + Cox N+ - - - - - p-type Si EE 130/230 A Fall 2013 Lecture 18, Slide 12

Example: Gate Depletion Effect The voltage across a 2 nm oxide is Vox = 1 V. The active dopant concentration within the n+ poly-Si gate is Npoly = 8 1019 cm-3 and the Si substrate doping concentration NA is 1017 cm-3. Find (a) Wpoly , (b) Vpoly , and (c) VT. Solution: (a) Wpoly = eox. Eox / q. Npoly = eox. Vox / xoq. Npoly EE 130/230 A Fall 2013 Lecture 18, Slide 13

(b) (c) EE 130/230 A Fall 2013 Lecture 18, Slide 14

Inversion-Layer Thickness, Tinv The average inversion-layer location below the Si/Si. O 2 interface is called the inversion-layer thickness, Tinv. C. C. Hu, Modern Semiconductor Devices for Integrated Circuits, Figure 5 -24 EE 130/230 A Fall 2013 Lecture 18, Slide 15

Effective Oxide Thickness, Toxe (VG + VT)/Toxe can be shown to be the average electric field in the inversion layer. Tinv of holes is larger than that of electrons due to difference in effective masses. EE 130/230 A Fall 2013 Lecture 18, Slide 16 C. C. Hu, Modern Semiconductor Devices for Integrated Circuits, Figure 5 -25

Effective Oxide Capacitance, Coxe EE 130/230 A Fall 2013 Lecture 18, Slide 17 C. C. Hu, Modern Semiconductor Devices for Integrated Circuits, Figure 5 -26
