Lecture 15 OUTLINE • The MOS Capacitor – Energy band diagrams Reading: Pierret 16. 1 -16. 2, 18. 1; Hu 5. 1
MOS Capacitor Structure MOS capacitor (cross-sectional view) GATE VG + _ Semiconductor EE 130/230 A Fall 2013 • Most MOS devices today employ: o degenerately doped polycrystalline Si (“poly-Si”) as the “metallic” gateelectrode material n+-type for “n-channel” transistors xo p+-type, for “p-channel” transistors o Si. O 2 as the gate dielectric band gap = 9 e. V er, Si. O 2 = 3. 9 o Si as the semiconductor material p-type, for “n-channel” transistors n-type, for “p-channel” transistors Lecture 15, Slide 2

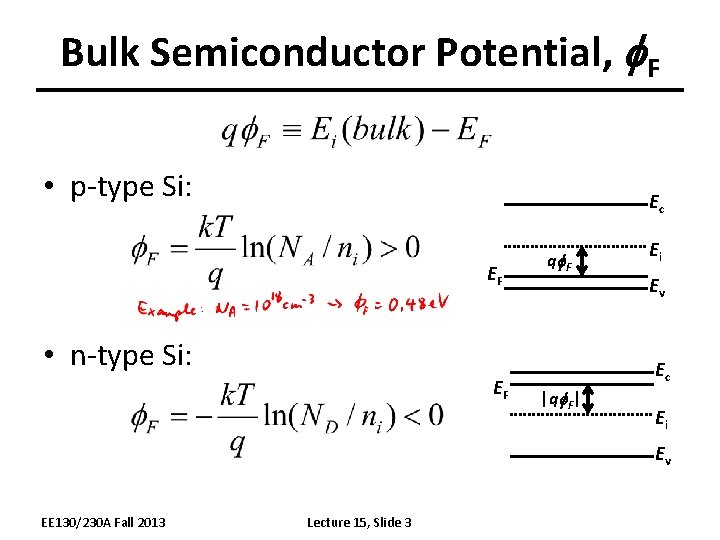

Bulk Semiconductor Potential, f. F • p-type Si: Ec EF qf. F • n-type Si: EF Ei Ev Ec |qf. F| Ei Ev EE 130/230 A Fall 2013 Lecture 15, Slide 3
Special Case: Equal Work Functions FM = FS EE 130/230 A Fall 2013 R. F. Pierret, Semiconductor Device Fundamentals, Fig. 16. 2 Lecture 15, Slide 4

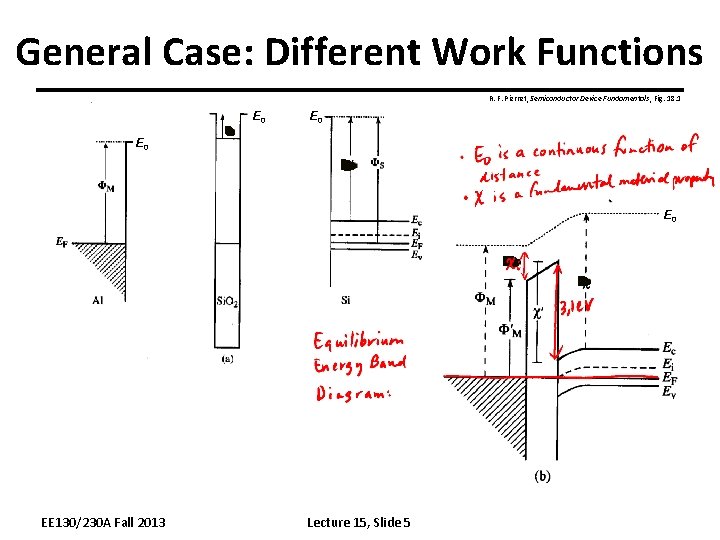

General Case: Different Work Functions R. F. Pierret, Semiconductor Device Fundamentals, Fig. 18. 1 E 0 E 0 EE 130/230 A Fall 2013 Lecture 15, Slide 5
MOS Band Diagrams: Guidelines • Fermi level EF is flat (constant with x) within the semiconductor – Since no current flows in the x direction, we can assume that equilibrium conditions prevail • Band bending is linear within the oxide – No charge in the oxide => d. E/dx = 0 so E is constant => d. Ec/dx is constant • From Gauss’ Law, we know that the electric field strength in the Si at the surface, ESi, is related to the electric field strength in the oxide, Eox: E EE 130/230 A Fall 2013 E E Lecture 15, Slide 6
MOS Band Diagram Guidelines (cont’d) • The barrier height for conduction-band electron flow from the Si into Si. O 2 is 3. 1 e. V – This is equal to the electron-affinity difference (c. Si and c. Si. O 2) • The barrier height for valence-band hole flow from the Si into Si. O 2 is 4. 8 e. V • The vertical distance between the Fermi level in the metal, EFM, and the Fermi level in the Si, EFS, is equal to the applied gate voltage (assuming that the Si bulk is grounded): EE 130/230 A Fall 2013 Lecture 15, Slide 7
MOS Equilibrium Band Diagram metal oxide semiconductor n+ poly-Si Si. O 2 p-type Si EC EC=EFM EV EE 130/230 A Fall 2013 Lecture 15, Slide 8 EFS EV

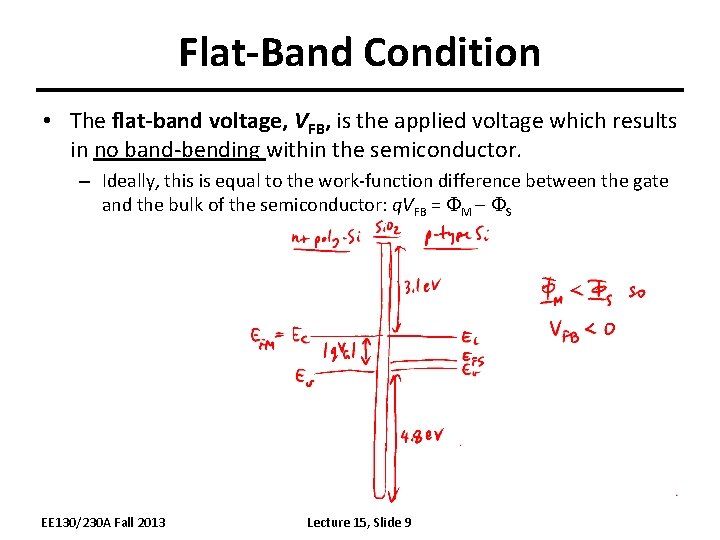

Flat-Band Condition • The flat-band voltage, VFB, is the applied voltage which results in no band-bending within the semiconductor. – Ideally, this is equal to the work-function difference between the gate and the bulk of the semiconductor: q. VFB = FM FS EE 130/230 A Fall 2013 Lecture 15, Slide 9

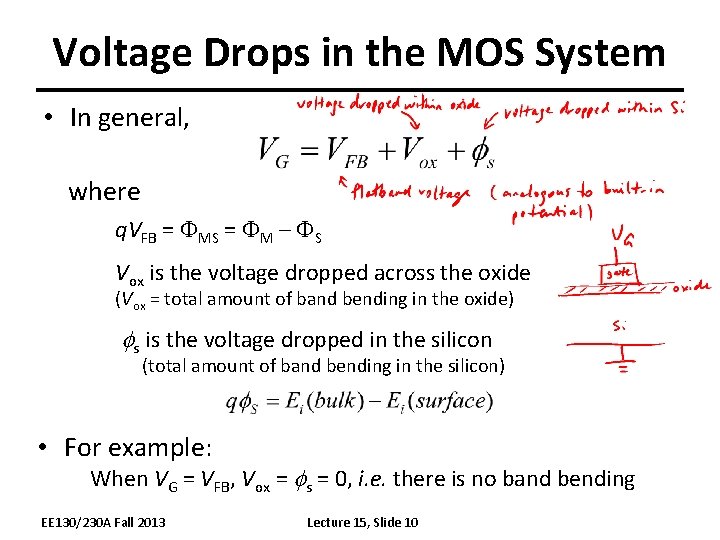

Voltage Drops in the MOS System • In general, where q. VFB = FMS = FM – FS Vox is the voltage dropped across the oxide (Vox = total amount of band bending in the oxide) fs is the voltage dropped in the silicon (total amount of band bending in the silicon) • For example: When VG = VFB, Vox = fs = 0, i. e. there is no band bending EE 130/230 A Fall 2013 Lecture 15, Slide 10
MOS Operating Regions (n-type Si) Decrease VG toward more negative values the gate electron energy increases relative to that in the Si decrease VG • Accumulation – VG > VFB Electrons accumulated at Si surface EE 130/230 A Fall 2013 decrease VG • Depletion – VG < VFB Electrons depleted from Si surface Lecture 15, Slide 11 • Inversion – VG < VT Surface inverted to p-type R. F. Pierret, Semiconductor Device Fundamentals, Fig. 16. 5
MOS Operating Regions (p-type Si) increase VG VG = VFB EE 130/230 A Fall 2013 VG < VFB increase VG VT > VG > VFB Lecture 15, Slide 12 R. F. Pierret, Semiconductor Device Fundamentals, Fig. 16. 6
