Lecture 15 Multics for the Masses There once

Lecture 15: Multics for the Masses There once was an artist named Titian Who worked like a future Multician. With models ramshackle, He’d just change their ACL, And give them all access permission. Peter Neumann CS 551: Security and Privacy David Evans University of Virginia CS 551 http: //www. cs. virginia. edu/~evans Computer Science

Menu • Midterm Results • Introduction to the Rest of the Course • Saltzer & Schroeder – “The Protection of Information in Computer Systems” • Return Midterms 12/7/2020 University of Virginia CS 551 2

Midterm • Most people did well • I don’t grade on a curve (but the histogram is provided to give you a sense of how you did) • Don’t misinterpret the , , or crosscountry skier as an indication of your likely final grade: – Everyone can still get an A in the course – Anyone can still fail the course 12/7/2020 University of Virginia CS 551 3

Problem 4 (2): Faculty Turnover • Best solutions based on S-Key • Card issuer generates random number R for each door, calculates h(R), h(h(R), . . . , h 1001 (R). • Initializes door with h 1001 (R). • The first card gets h 1000 (R). Next card gets h 999 (R), h 998 (R), etc. 12/7/2020 University of Virginia CS 551 4

Card Reader Memory: hn+1 (R) Value from card h h(v) = Yes Open Door No h h(h(v)) = Yes No Alert Security! 12/7/2020 University of Virginia CS 551 Open Door Store h(v) in memory 5

System Security 12/7/2020 University of Virginia CS 551 6

Course Overview • Part 1 (until now): – Making/breaking the numeric keypad – Almost all math • Part 2 (rest of course): – Making/Kicking down the door – Mostly engineering and people (but math is still important) 12/7/2020 University of Virginia CS 551 7

Learning in CS 551 Part 2 Problem Sets 60% 15% Projects 20% 40% Readings 15% 40% Lectures 5% 5% 12/7/2020 University of Virginia CS 551 8

Anonymous Poll: How many read S&S? 12/7/2020 University of Virginia CS 551 9

Rest of Course • Saltzer/Schroeder papers describes state of the art in security in 1974 • Based on work on Multics (predecessor to UNIX, but better) • Are things better or worse today? 12/7/2020 University of Virginia CS 551 10

Laws of Inevitable Progress • Moore’s Law: – Processing power doubles every 18 months • Gates’ Law – Software grows to use all available memory and processing power – Ex: • Multics 1969: 56, 000 lines of code (PL/I) • Windows 2000: ~55 M lines of code (asm/C/C++) • 1000 x in 30 years (law predicts 1 Mx, so u. Soft has work to do!) 12/7/2020 University of Virginia CS 551 11

Bugs and Vulnerabilities • Neumann’s (? ) Law: – Number of bugs increases as square of code size • Security vulnerabilities are approximately linear in the number of program bugs (lots of other things cause vulnerabilities too) – Windows 2000 has 965, 000 times as many bugs as Multics. – Double because of C++ ~ 2 M times as many security vulnerabilities. 12/7/2020 University of Virginia CS 551 12

Motivation • Metcalfe’s Law: – Value of a network is square of number of users • Internet growth: – 1974: ~1000 hosts (10000 users? ) – 2000: 200 M users • Internet is 400 M times more valuable today than it was in 1974 12/7/2020 University of Virginia CS 551 13

The Bad News • Unnamed Law: – Security risk is the product of the number of vulnerabilities (linear in the number of code bugs) and the value (how many people will be motivated how hard to attack you) Multics in 1974: (56 K)2 * (10 K)2 Windows 2000: (55 M * 2)2 * (200 M)2 • Security problems are 1. 54*1015 times (quadrillion) worse today than in 1974! 12/7/2020 University of Virginia CS 551 14

The Good News • Some small technical improvements since 1974 – firewalls, intrusion detection, virus scanners (no viruses in 1974) (The Really Good News) • This means security people are much in demand obscenely well paid. 12/7/2020 University of Virginia CS 551 15

Prehistory • Security didn’t matter much when you had batch processing and machine operators • CTSS (1961, Fernando Corbató) – Compatible Time-Sharing System – First time-sharing operating system – Each user’s job has access to full machine in turn – 1962 demo to ARPA led to $3 M funding for Project MAC 12/7/2020 University of Virginia CS 551 16

History • • Multics – “Multiplexed Information and Computing Service” (1969, Corbató, Saltzer) Design goals: http: //www. multicians. org/managerial. html 1. Convenient remote terminal use. 2. Continuous operation (i. e. , without shutdown) analogous to power and telephone companies. 3. A wide range of configuration capacity which could be dynamically varied without system or user program reorganisation. 12/7/2020 University of Virginia CS 551 17

Multics Design Goals, Cont. 4. An internal file system with apparent reliability high enough for users to entrust their only copies of programs and data to it. 5. The ability of users to share selectively information among themselves. 6. The ability to store and create hierarchical structures of information for purposes of system administration and decentralisation of user activities. First hierarchical file system! 12/7/2020 University of Virginia CS 551 18

Multics Design Goals, cont. 7. The ability to support a wide range of applications ranging from heavy numerical production calculations to inter active timesharing users without inordinate inefficiency. 8. The ability to allow a multiplicity of programming environments and human interfaces within the same system. 9. The ability to evolve the system with changes in technology and in user aspirations. Multics more-or-less achieved all of these with 54. 94 M less lines of code than Windows 2000! 12/7/2020 University of Virginia CS 551 19

S & S Definitions • Privacy – “The ability of an individual to decide whether, when, and to whom personal information is released. ” • Security – “Used to denote mechanisms and techniques that control who may use or modify the computer or the information stored in it. ” – Reading (confidentiality) – Writing (integrity) – Availability 12/7/2020 University of Virginia CS 551 20

Multiple Use Systems • Computer with more than one purpose – 1975: mainframes, time-sharing – 2000: networked PCs • One machine is shared by people and programs who don’t trust each other completely. 12/7/2020 University of Virginia CS 551 21

Levels of Information Protection • All-or-Nothing Systems – Complete isolation – No sharing, like pulling out network cable • Controlled (Static) Sharing – Different people can access each item – UNIX: user/group IDs, mode bits – NFS: access control lists 12/7/2020 University of Virginia CS 551 22

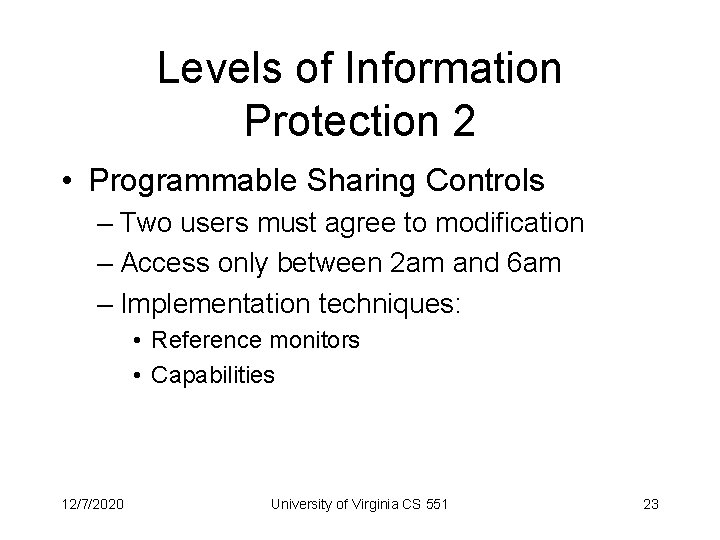

Levels of Information Protection 2 • Programmable Sharing Controls – Two users must agree to modification – Access only between 2 am and 6 am – Implementation techniques: • Reference monitors • Capabilities 12/7/2020 University of Virginia CS 551 23

S&S Principles 1 1. Economy of Mechanism – keep it (small and) simple stupid! 2. Fail-safe defaults – make permission active instead of exclusion 3. Complete mediation – every access to every object is checked 4. Open design – don’t rely on security by obscurity. 12/7/2020 University of Virginia CS 551 24

S&S Principles 2 5. Separation of privilege – require two separate checks/keys for permission 6. Least privilege – allow as little access as possible for job 7. Least common mechanism – don’t share mechanisms between users 8. Psychological acceptability – don’t confuse users or drive them crazy 12/7/2020 University of Virginia CS 551 25

S&S Principles: Conflicts? • Economy of Mechanism vs. Least Common Mechanism • Fail-safe defaults vs. Psychological Acceptability • Separation of Privilege vs. Economy, Psychological Acceptability • Least privilege vs. Psychological Acceptability • etc. 12/7/2020 University of Virginia CS 551 26

How well does this satisfy S&S Principles? Card Reader Card Issuer Memory: hn+1 (R) R, n Key Card hn (R) Value from card h h(v) = Yes Open Door No h h(h(v)) = Yes No Open Door Store h(v) in memory Alert Security! 12/7/2020 University of Virginia CS 551 27

Virtual Memory Protection Memory Processor Program 2 Descriptor Register: base bound Privileged state bit: off bound base Processor checks all memory references according to base address and bound. Cannot change unless privileged state bit is on (only for Supervisor). 12/7/2020 University of Virginia CS 551 Program 1 Supervisor 28

Limitations of Virtual Memory • Cannot share memory between programs – Can additional descriptors to set up shared memory, add read/write bits, etc. • Requires special hardware – Software Fault Isolation [Wahbe 96] can do it in software only • Performance cost for every memory access 12/7/2020 University of Virginia CS 551 29

Capabilities • User places protection descriptor values (“capabilities”) on memory addresses – Allows for arbitrary, controlled memory sharing – Capabilities can refer to hardware devices also (they are just memory addresses) • Need to make capabilities unforgeable – Hardware-protected tags – (~ Java – type-checking + bytecode verification) 12/7/2020 University of Virginia CS 551 30

Capabilities Problems: Revocation • Once someone has a capability, how can you deny access? • Must destroy original object • Java: once someone has an open File. Output. Stream, can’t revoke it! • No cheap solution: – Store capabilities somewhere special and disallow copying – Require an indirection step through something object owner controls 12/7/2020 University of Virginia CS 551 31

Capabilities Problems: Propagation • How can you control who capability is passed to? (You can’t. ) • Java: can’t control which applet that File. Output. Stream is passed to • Possible solutions: – Store somewhere special and disallow copying (passing as parameters) – Associate capability with principal (need to check call stack) 12/7/2020 University of Virginia CS 551 32

Access Control Lists • Maintain a list of principals and access permissions • Delay check until last possible moment (can “revoke” until then) • Access controlled must be protected • Combine with capabilities to avoid having to check table for every memory reference 12/7/2020 University of Virginia CS 551 33

Multics Ring 8 Lower rings have more privileges. Ring 2 Ring 1 Memory segments have descriptors that indicate highest ring number that may read/write segment. Ring 0: Kernel Untrusted User Programs 12/7/2020 Special instructions for switching between rings (e. g. , making a system call). University of Virginia CS 551 34

Summary • Computers may be ~1 M times faster than 1970, but they are >1 Quadrillion times less secure! • Multics way better than Windows 2000 • Basic confidentiality and integrity mechanisms from early 1970 s still dominate today, and more or less work. Hard part is: – Designing and defining good policies – Implementing software without bugs 12/7/2020 University of Virginia CS 551 35

Charge • Now is the time to get cracking on your projects. If you are unsure what to do, meet with me. • I brushed over all the details on capabilities and ACLs: read S&S • Do the readings! • Next time: Viruses, Worms, Trojan Horses, and all that good stuff! 12/7/2020 University of Virginia CS 551 36
