Lecture 11 Operational Amplifiers Microelectric Circuit by Meiling

Lecture 11 Operational Amplifiers Microelectric Circuit by Meiling CHEN 1

Topics • Ideal op Amplifiers • Ideal OPA circuits analysis • Non-ideal op amplifiers • Non-ideal OPA circuit analysis Microelectric Circuit by Meiling CHEN 2

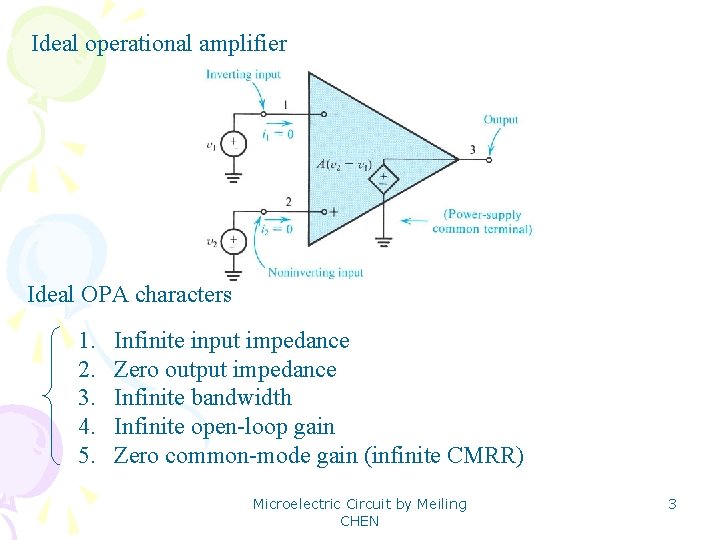

Ideal operational amplifier Ideal OPA characters 1. 2. 3. 4. 5. Infinite input impedance Zero output impedance Infinite bandwidth Infinite open-loop gain Zero common-mode gain (infinite CMRR) Microelectric Circuit by Meiling CHEN 3

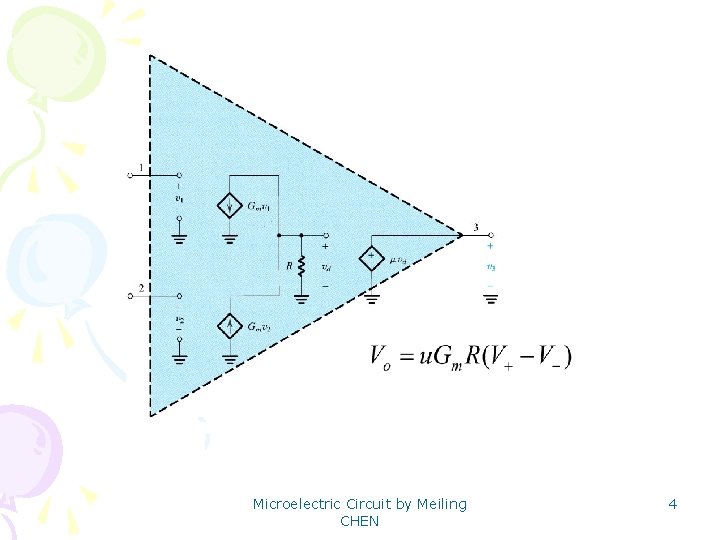

Microelectric Circuit by Meiling CHEN 4

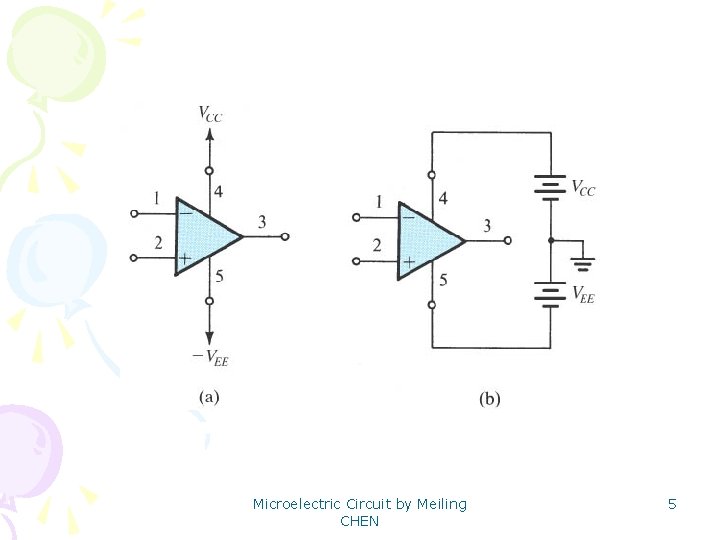

Microelectric Circuit by Meiling CHEN 5

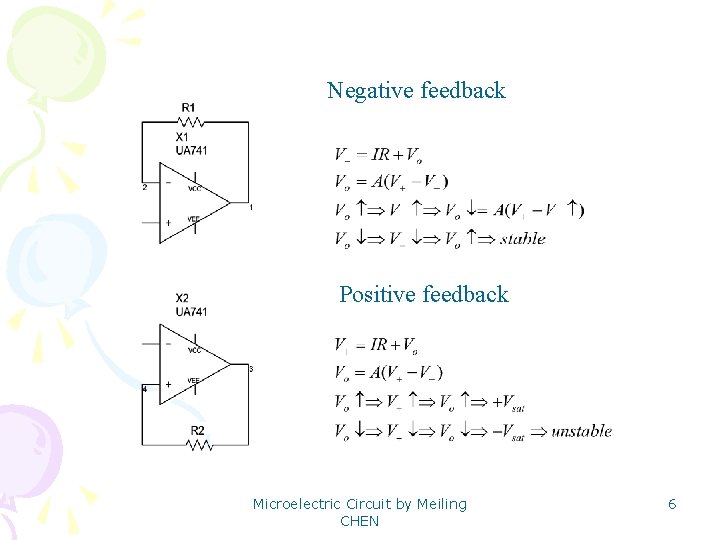

Negative feedback Positive feedback Microelectric Circuit by Meiling CHEN 6

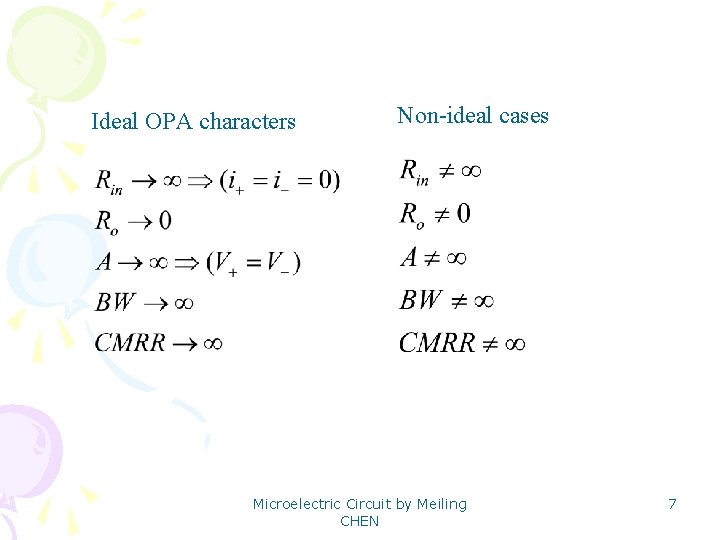

Ideal OPA characters Non-ideal cases Microelectric Circuit by Meiling CHEN 7

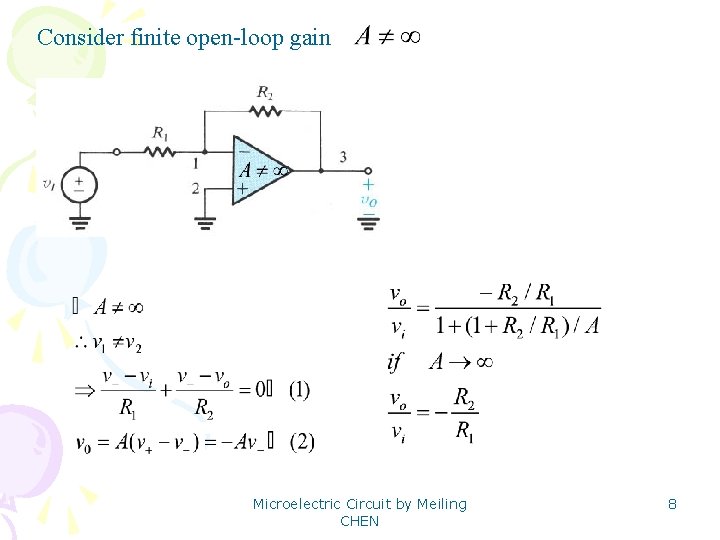

Consider finite open-loop gain Microelectric Circuit by Meiling CHEN 8

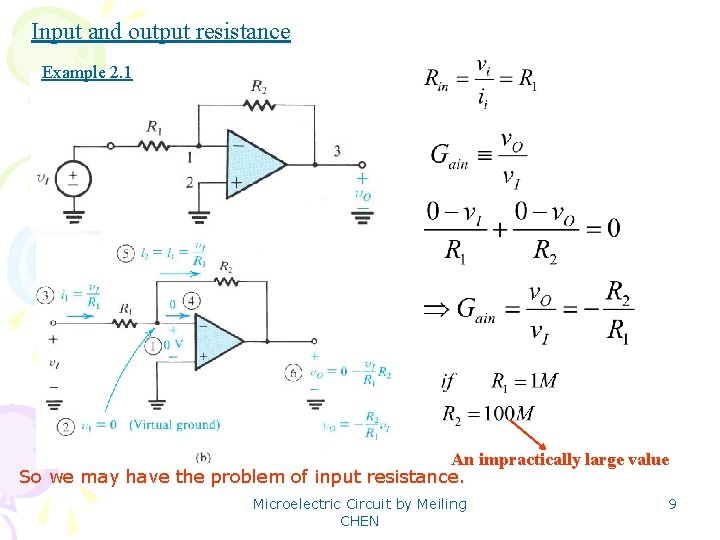

Input and output resistance Example 2. 1 An impractically large value So we may have the problem of input resistance. Microelectric Circuit by Meiling CHEN 9

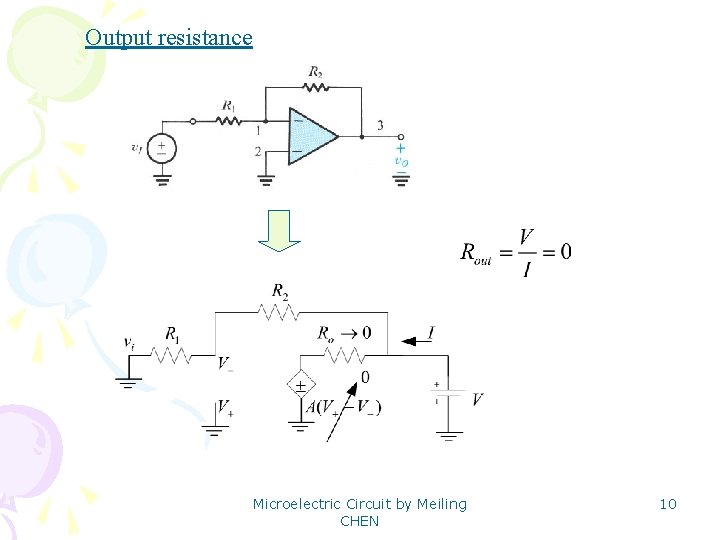

Output resistance Microelectric Circuit by Meiling CHEN 10

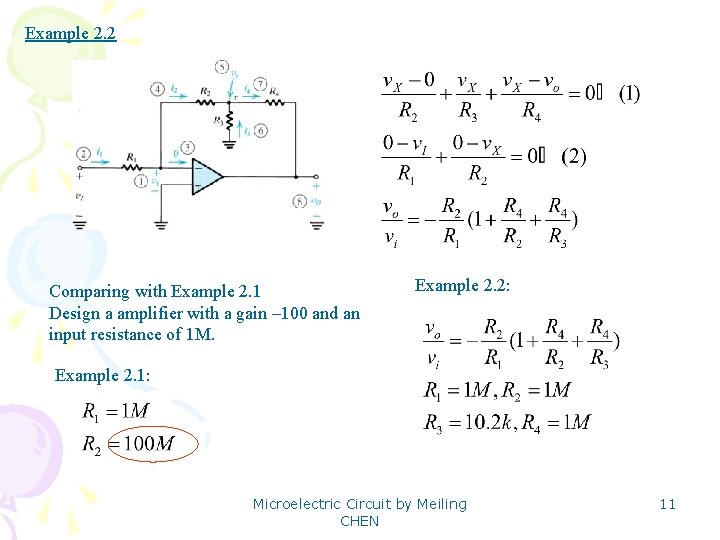

Example 2. 2 Comparing with Example 2. 1 Design a amplifier with a gain – 100 and an input resistance of 1 M. Example 2. 2: Example 2. 1: Microelectric Circuit by Meiling CHEN 11

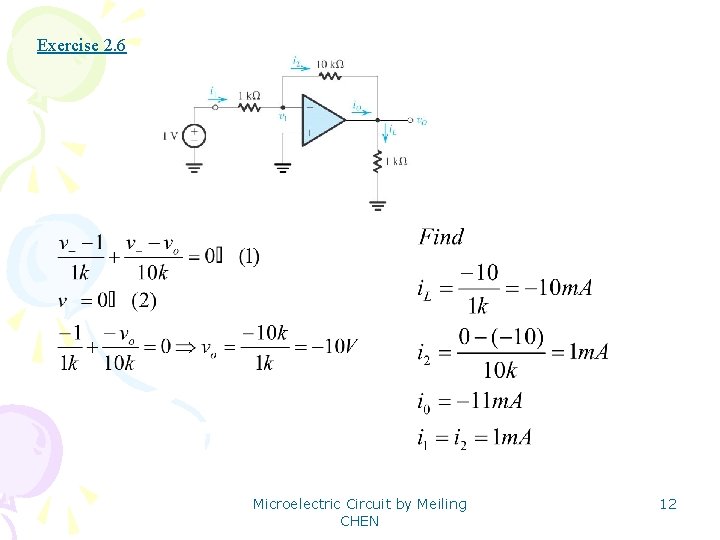

Exercise 2. 6 Microelectric Circuit by Meiling CHEN 12

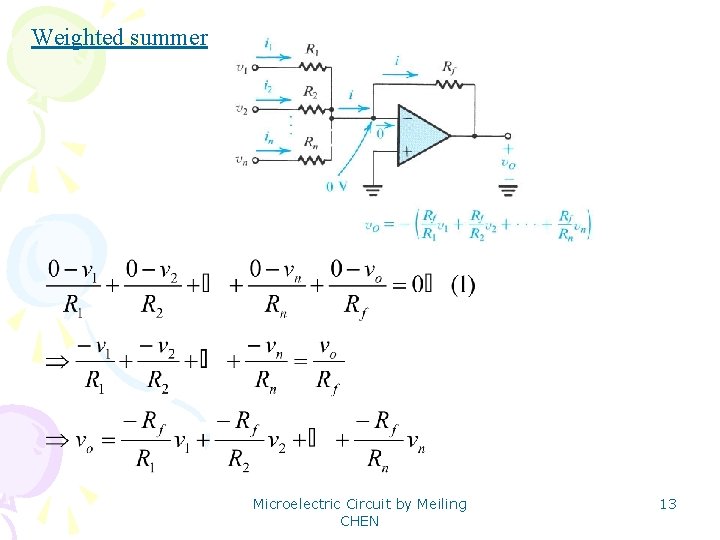

Weighted summer Microelectric Circuit by Meiling CHEN 13

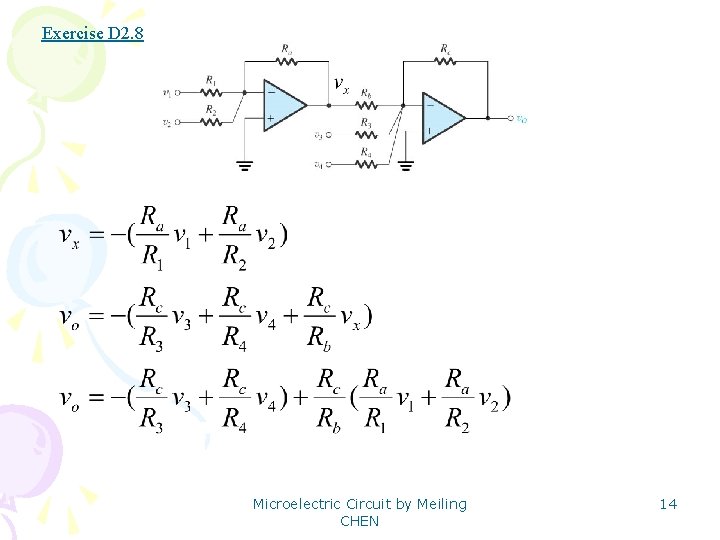

Exercise D 2. 8 Microelectric Circuit by Meiling CHEN 14

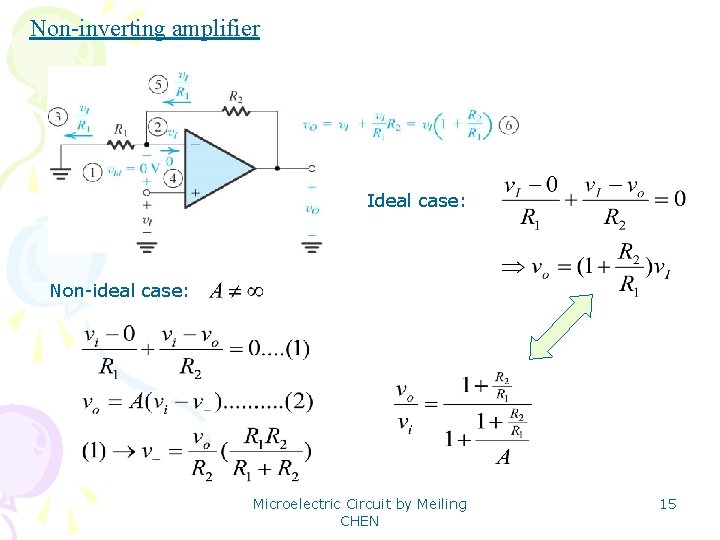

Non-inverting amplifier Ideal case: Non-ideal case: Microelectric Circuit by Meiling CHEN 15

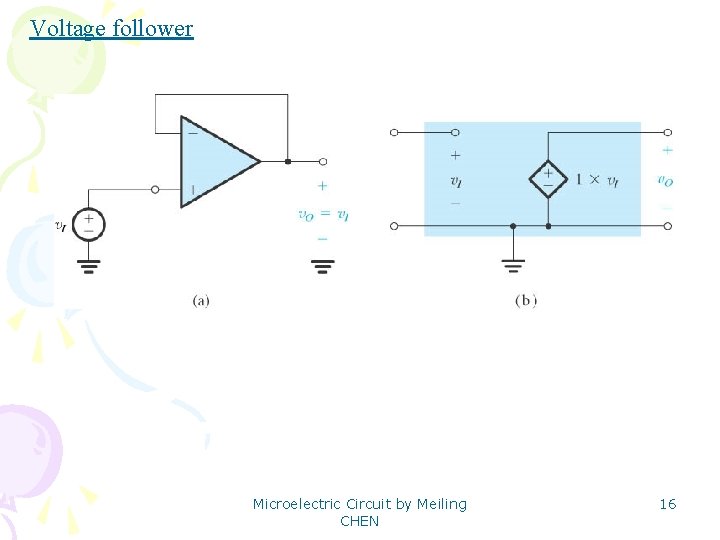

Voltage follower Microelectric Circuit by Meiling CHEN 16

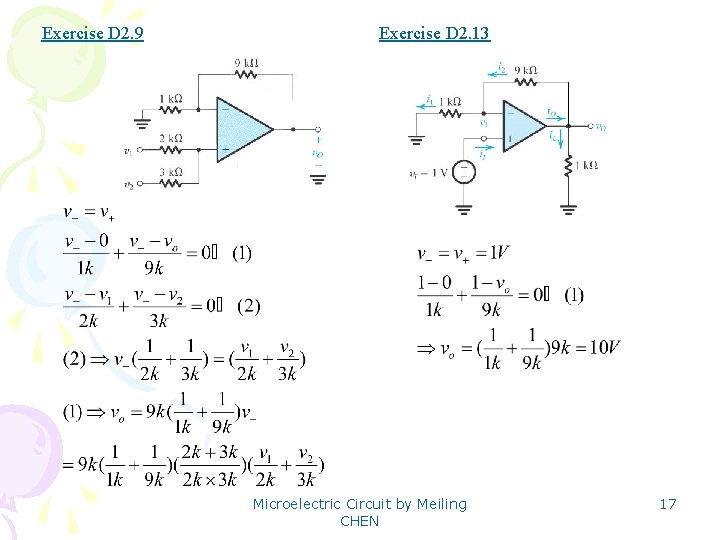

Exercise D 2. 9 Exercise D 2. 13 Microelectric Circuit by Meiling CHEN 17

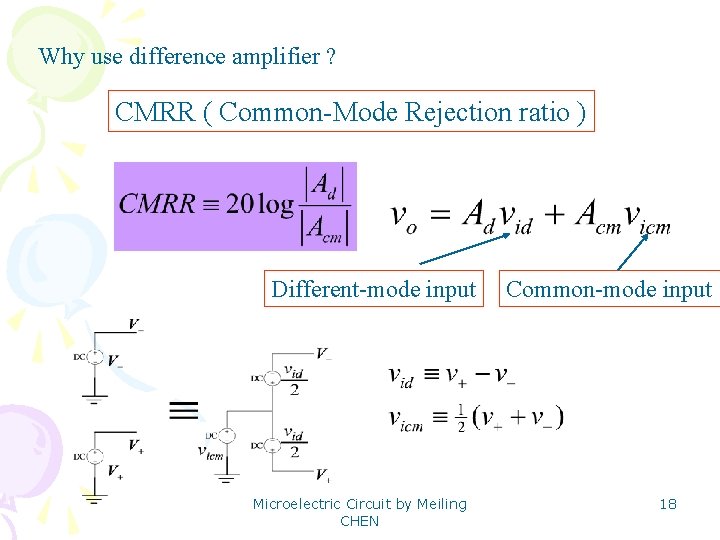

Why use difference amplifier ? CMRR ( Common-Mode Rejection ratio ) Different-mode input Microelectric Circuit by Meiling CHEN Common-mode input 18

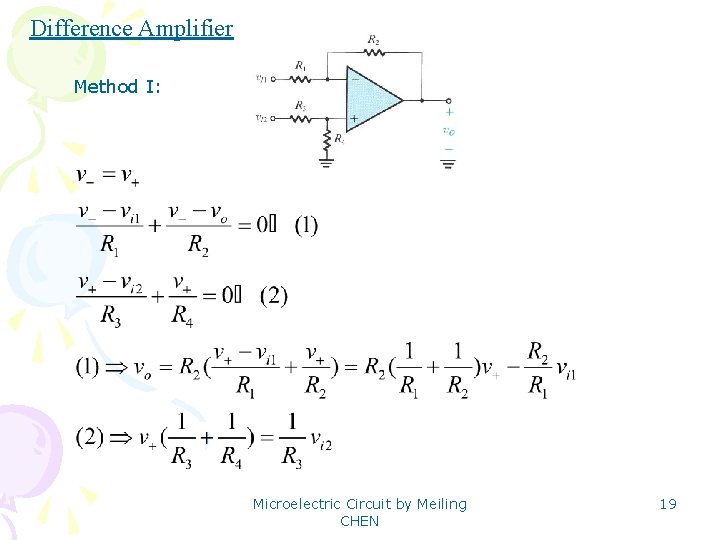

Difference Amplifier Method I: Microelectric Circuit by Meiling CHEN 19

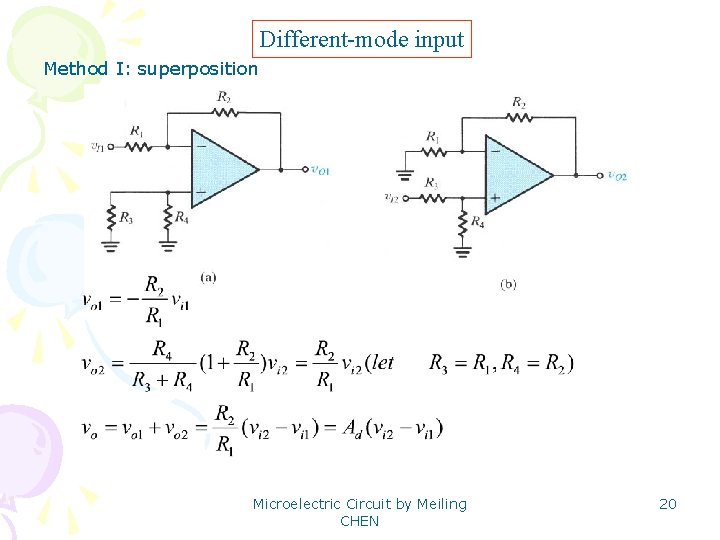

Different-mode input Method I: superposition Microelectric Circuit by Meiling CHEN 20

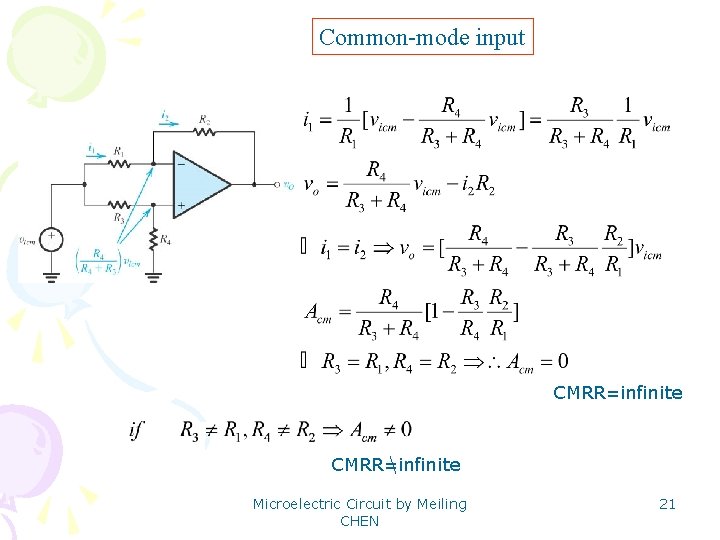

Common-mode input CMRR=infinite Microelectric Circuit by Meiling CHEN 21

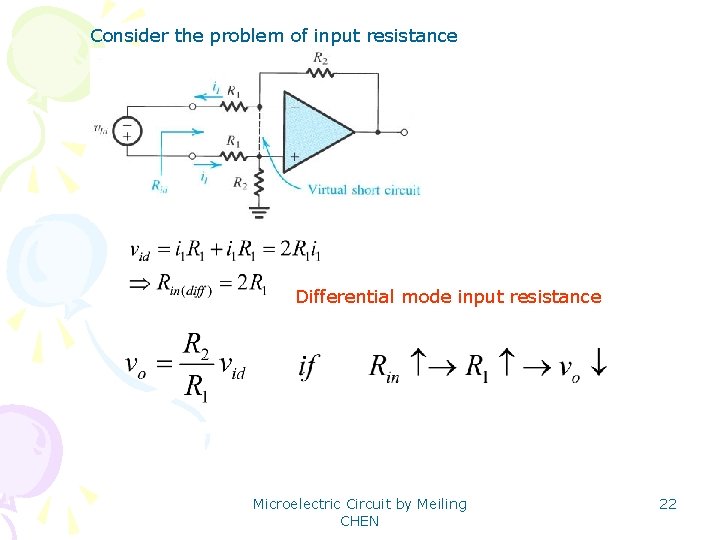

Consider the problem of input resistance Differential mode input resistance Microelectric Circuit by Meiling CHEN 22

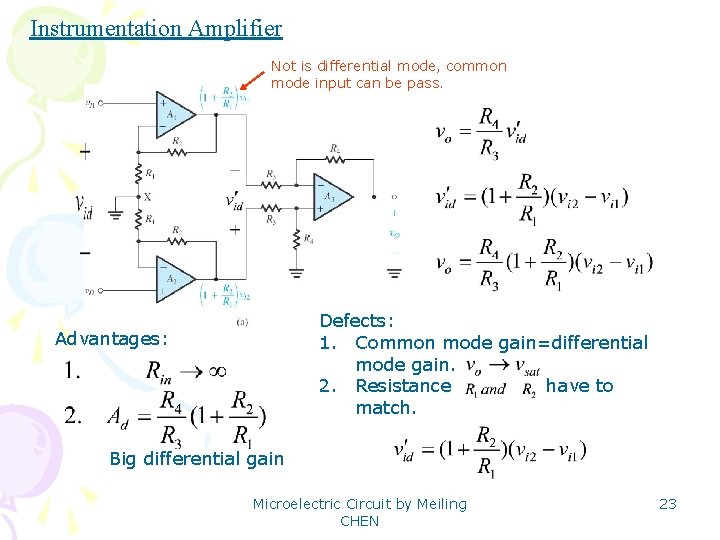

Instrumentation Amplifier Not is differential mode, common mode input can be pass. Defects: 1. Common mode gain=differential mode gain. 2. Resistance have to match. Advantages: Big differential gain Microelectric Circuit by Meiling CHEN 23

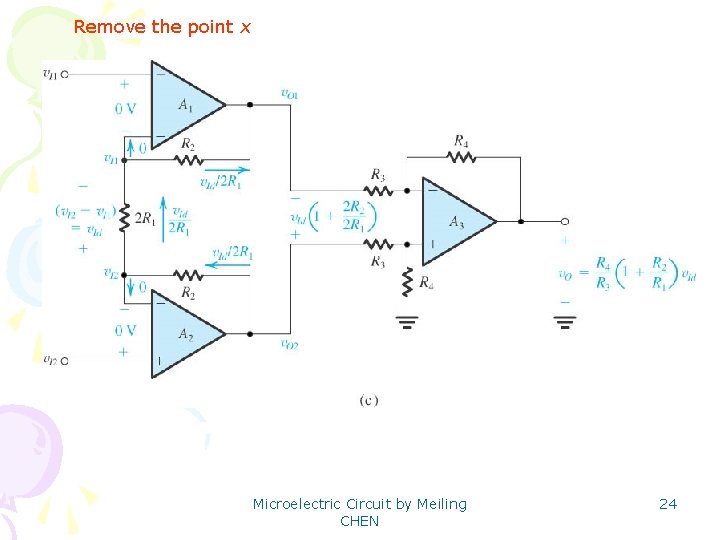

Remove the point x Microelectric Circuit by Meiling CHEN 24

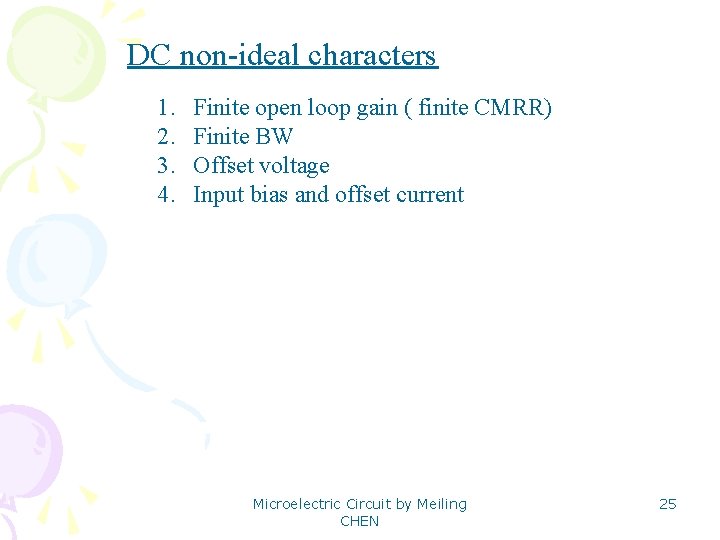

DC non-ideal characters 1. 2. 3. 4. Finite open loop gain ( finite CMRR) Finite BW Offset voltage Input bias and offset current Microelectric Circuit by Meiling CHEN 25

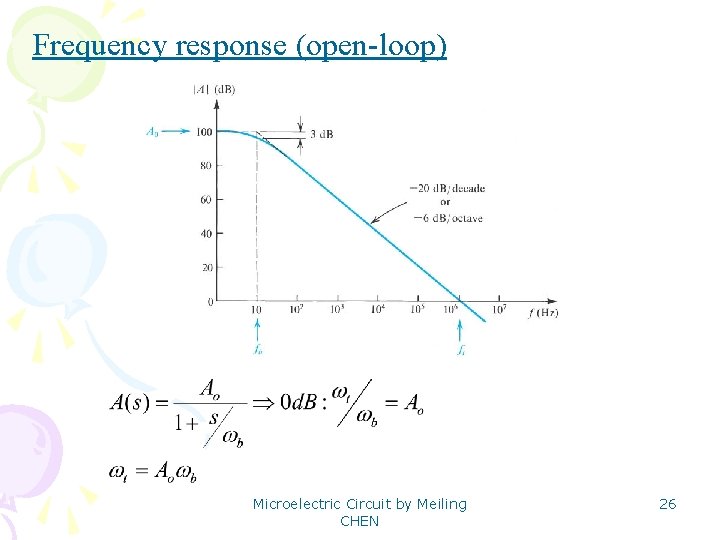

Frequency response (open-loop) Microelectric Circuit by Meiling CHEN 26

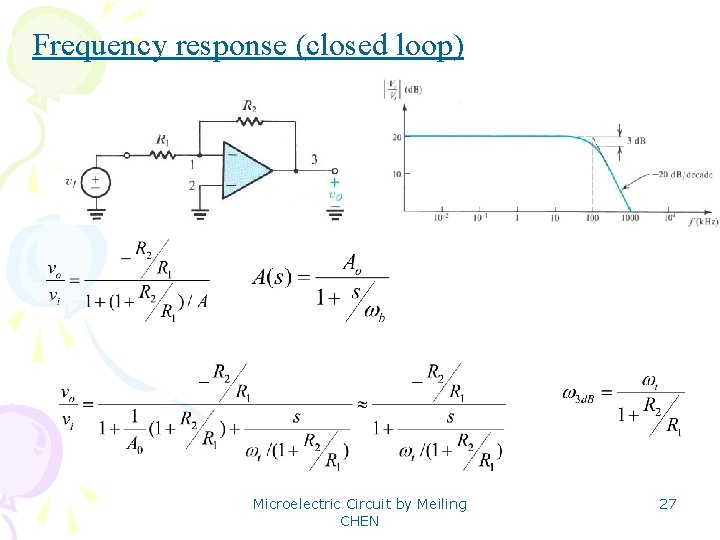

Frequency response (closed loop) Microelectric Circuit by Meiling CHEN 27

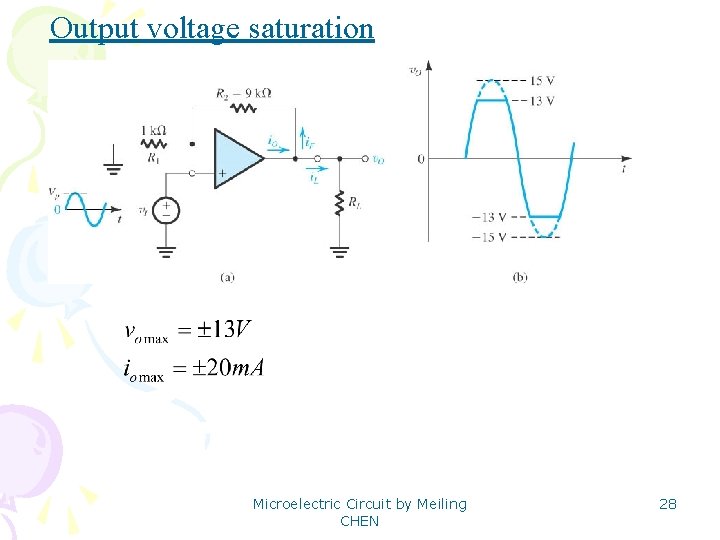

Output voltage saturation Microelectric Circuit by Meiling CHEN 28

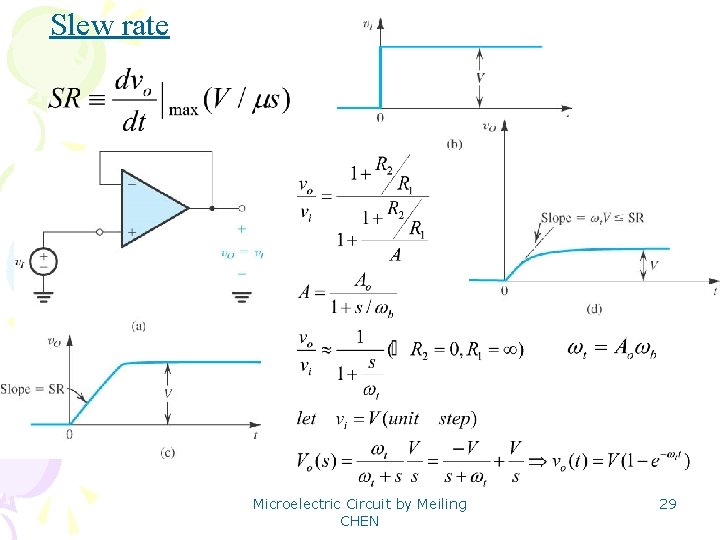

Slew rate Microelectric Circuit by Meiling CHEN 29

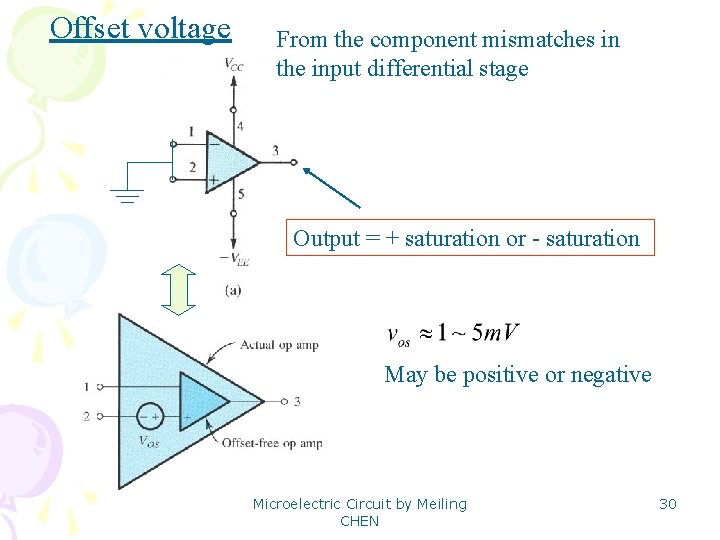

Offset voltage From the component mismatches in the input differential stage Output = + saturation or - saturation May be positive or negative Microelectric Circuit by Meiling CHEN 30

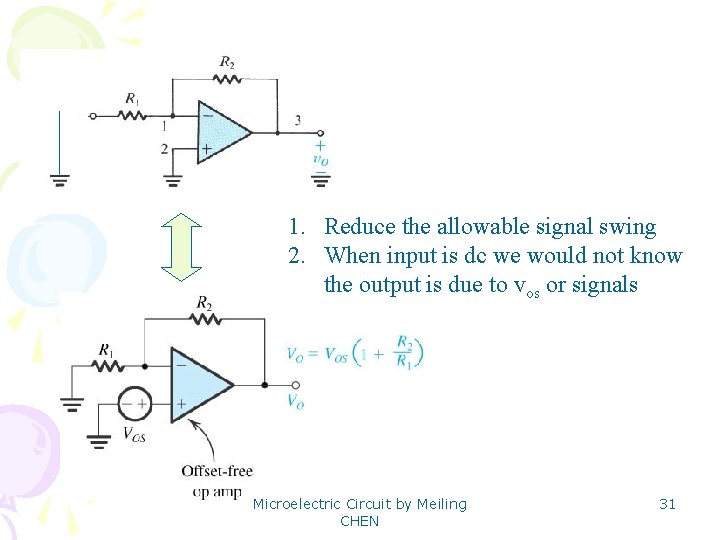

1. Reduce the allowable signal swing 2. When input is dc we would not know the output is due to vos or signals Microelectric Circuit by Meiling CHEN 31

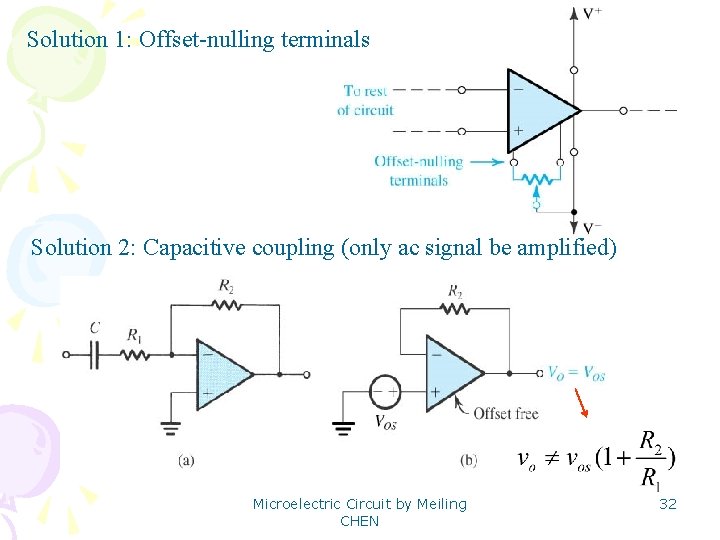

Solution 1: Offset-nulling terminals Solution 2: Capacitive coupling (only ac signal be amplified) Microelectric Circuit by Meiling CHEN 32

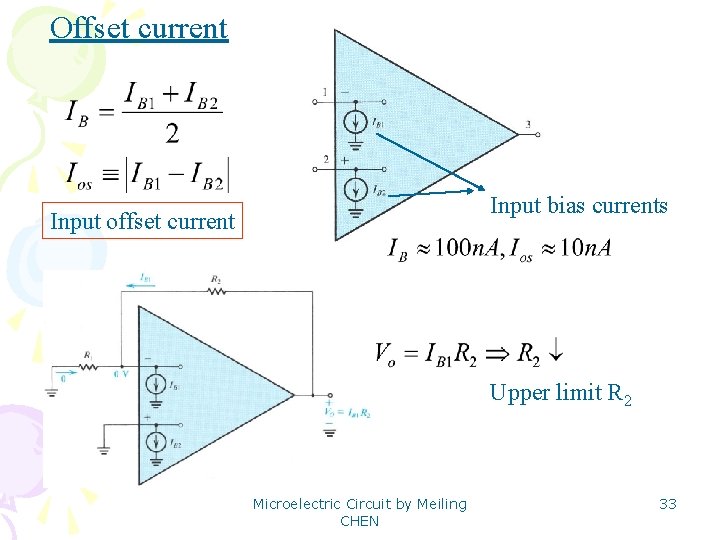

Offset current Input bias currents Input offset current Upper limit R 2 Microelectric Circuit by Meiling CHEN 33

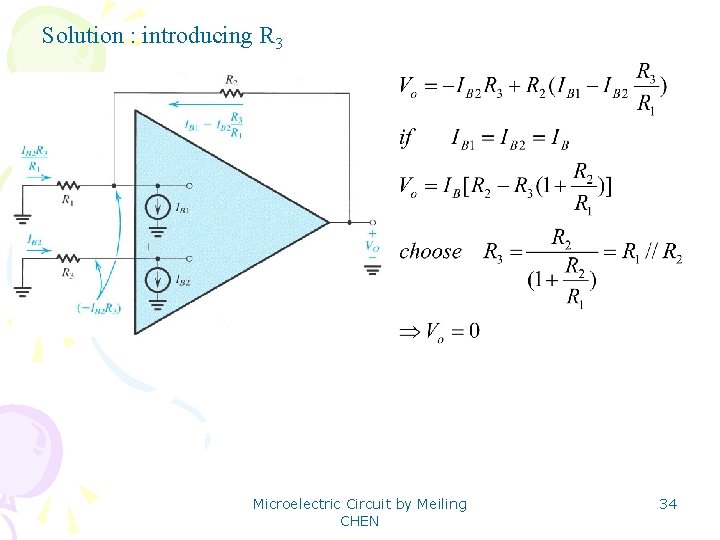

Solution : introducing R 3 Microelectric Circuit by Meiling CHEN 34

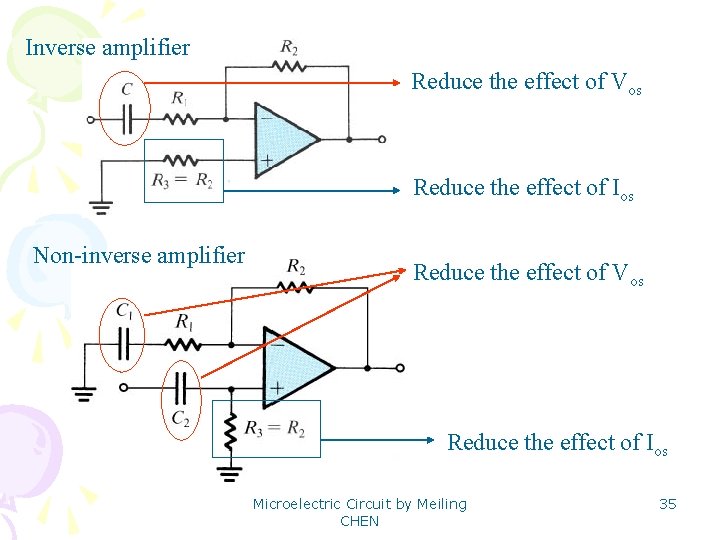

Inverse amplifier Reduce the effect of Vos Reduce the effect of Ios Non-inverse amplifier Reduce the effect of Vos Reduce the effect of Ios Microelectric Circuit by Meiling CHEN 35

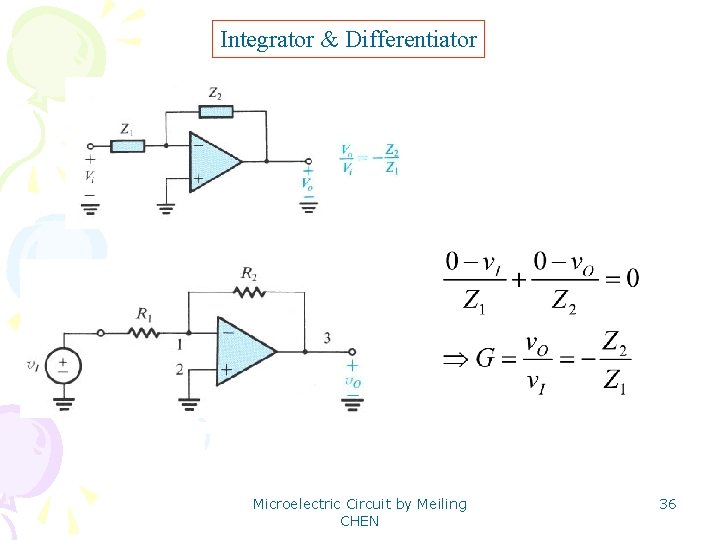

Integrator & Differentiator Microelectric Circuit by Meiling CHEN 36

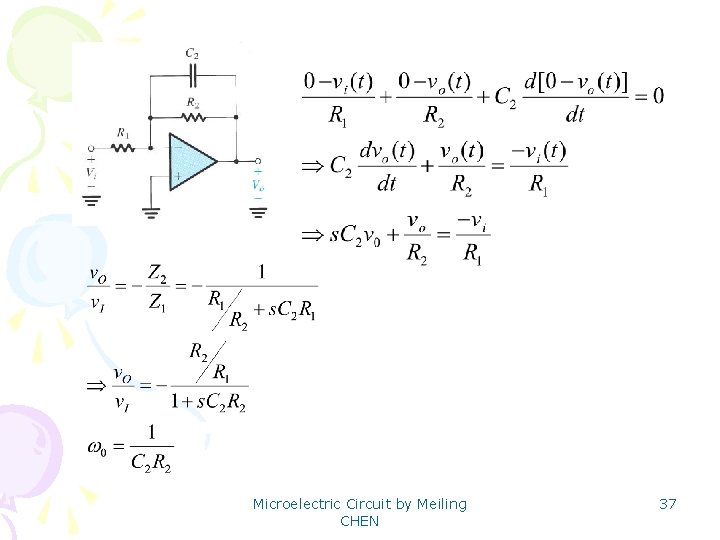

Microelectric Circuit by Meiling CHEN 37

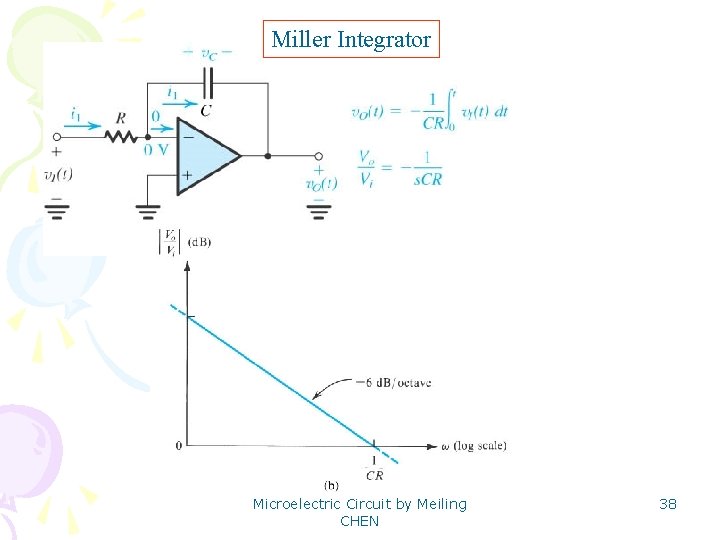

Miller Integrator Microelectric Circuit by Meiling CHEN 38

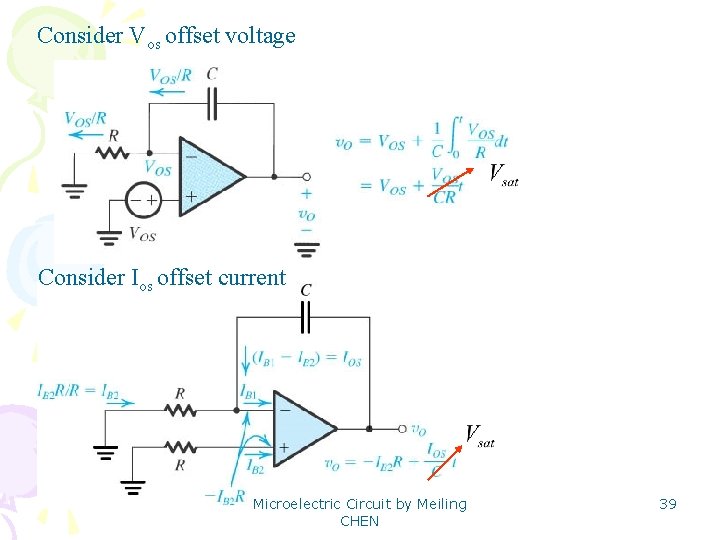

Consider Vos offset voltage Consider Ios offset current Microelectric Circuit by Meiling CHEN 39

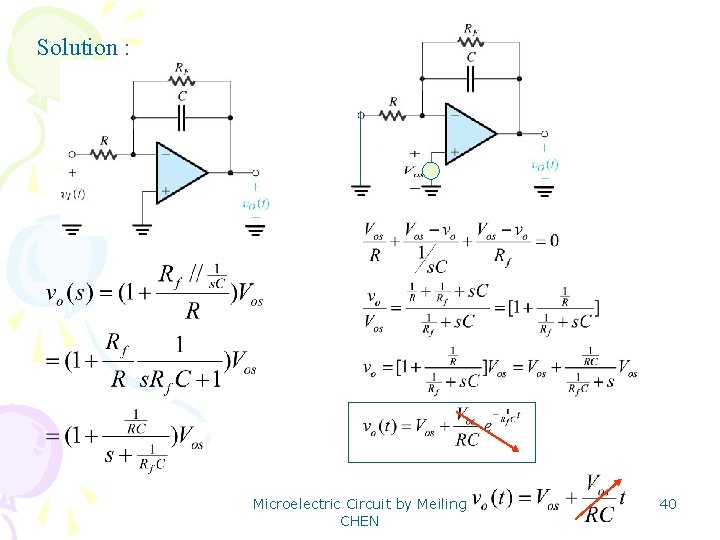

Solution : Microelectric Circuit by Meiling CHEN 40

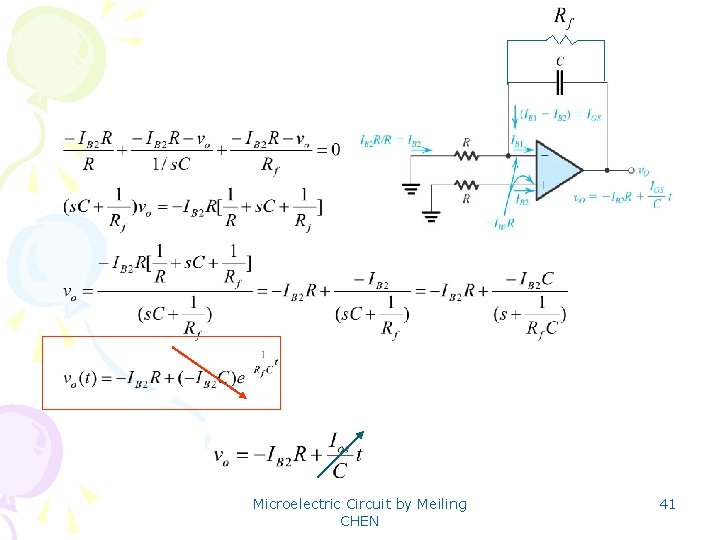

Microelectric Circuit by Meiling CHEN 41

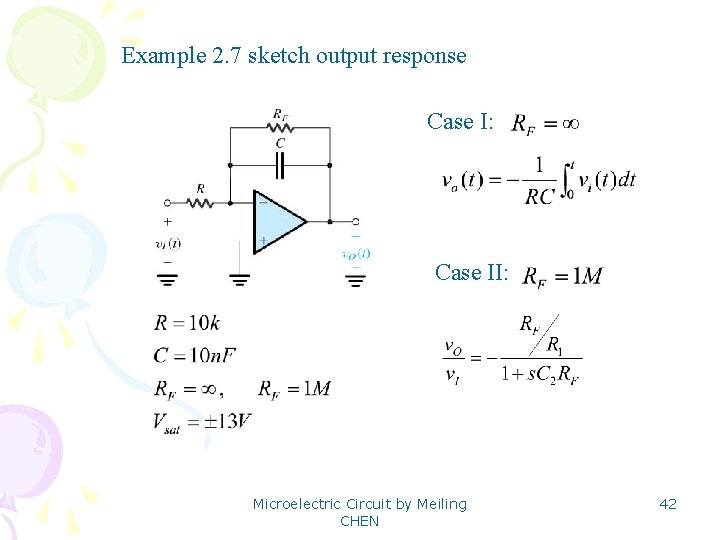

Example 2. 7 sketch output response Case I: Case II: Microelectric Circuit by Meiling CHEN 42

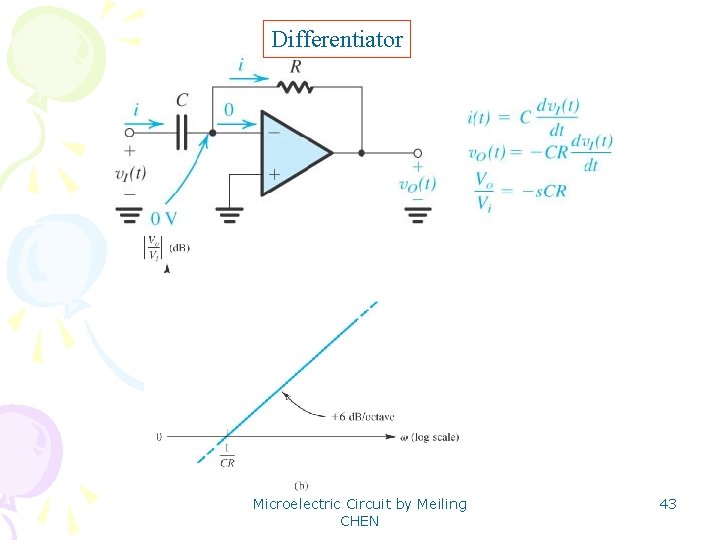

Differentiator Microelectric Circuit by Meiling CHEN 43

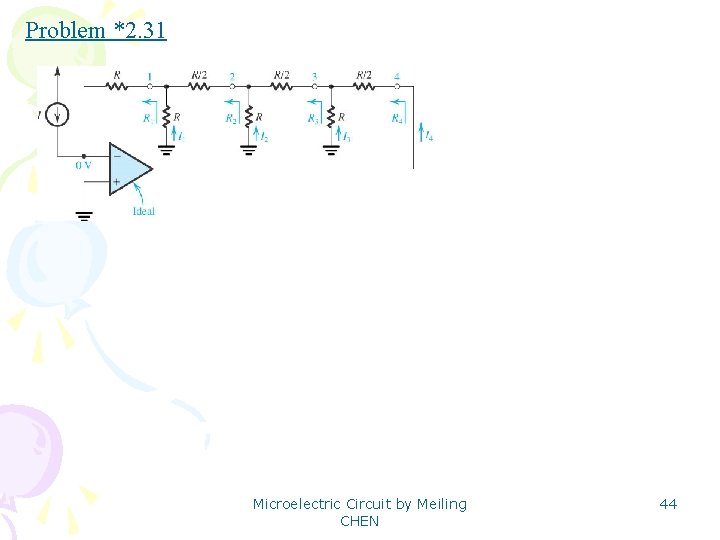

Problem *2. 31 Microelectric Circuit by Meiling CHEN 44

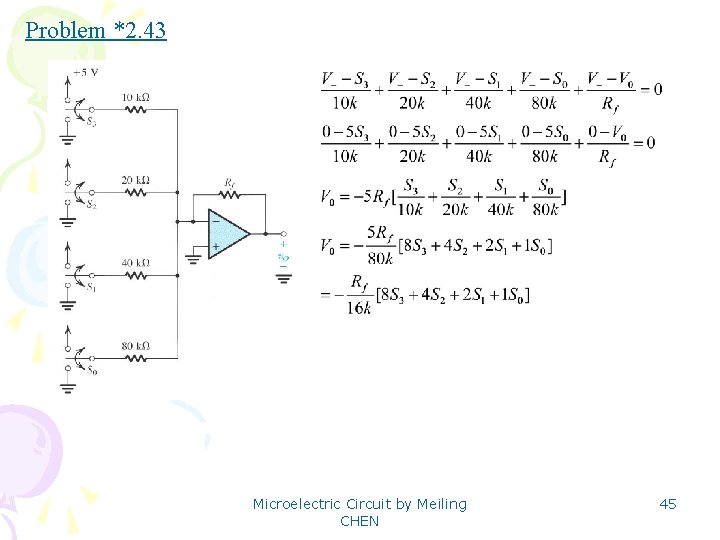

Problem *2. 43 Microelectric Circuit by Meiling CHEN 45

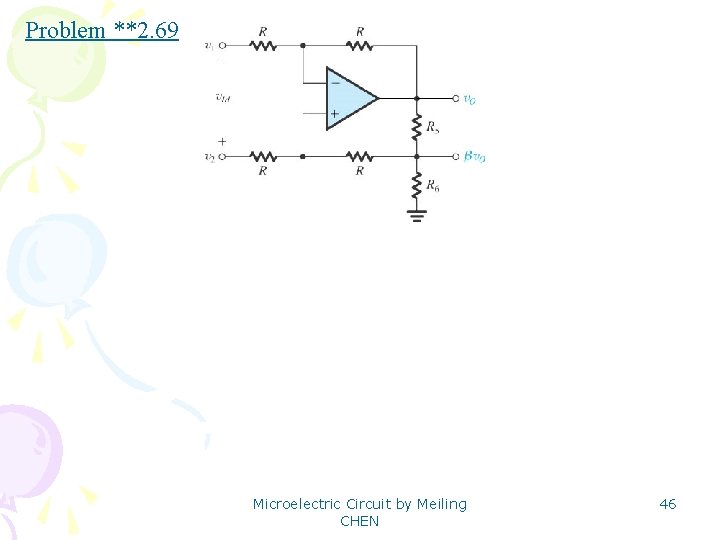

Problem **2. 69 Microelectric Circuit by Meiling CHEN 46

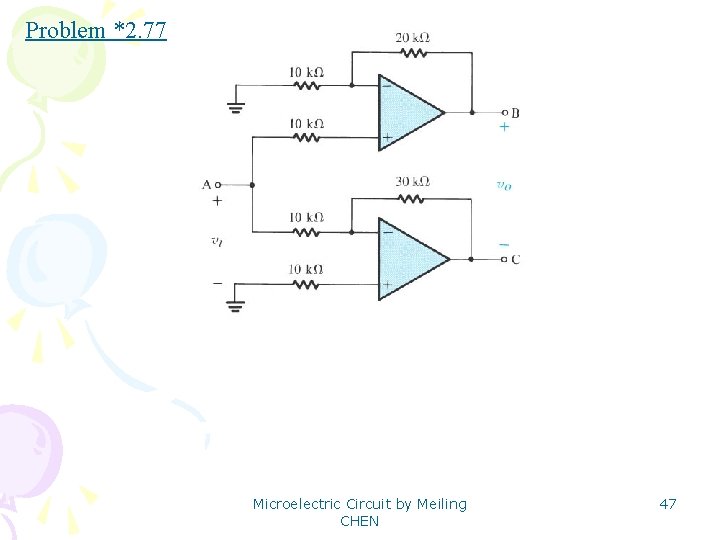

Problem *2. 77 Microelectric Circuit by Meiling CHEN 47

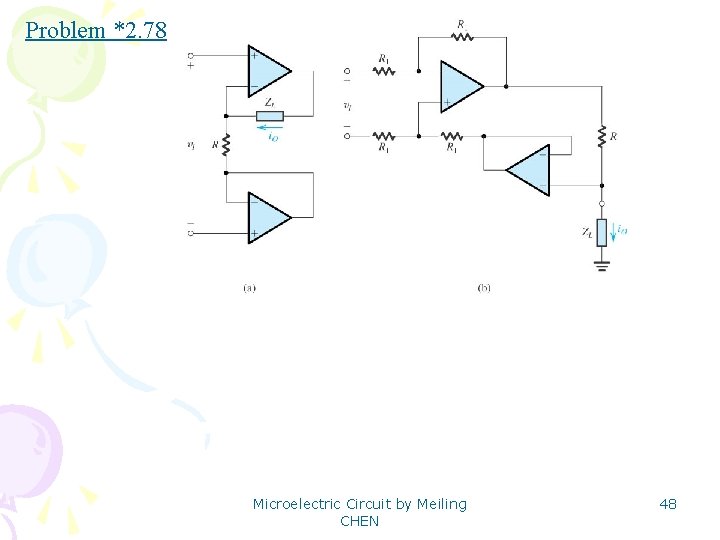

Problem *2. 78 Microelectric Circuit by Meiling CHEN 48

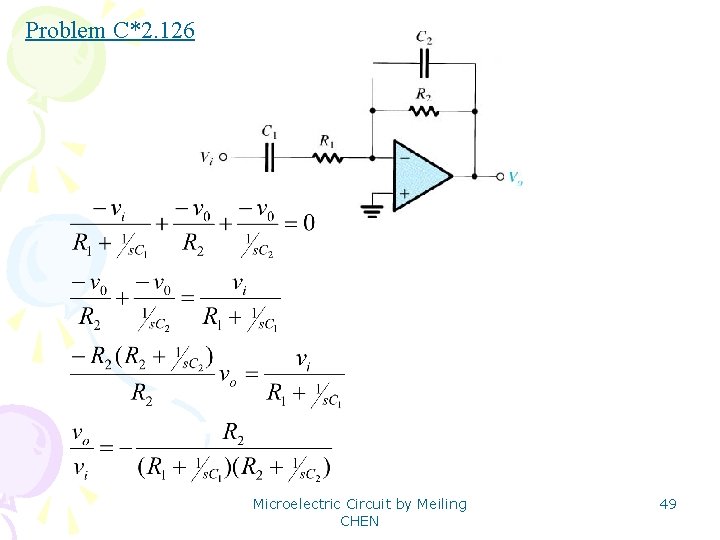

Problem C*2. 126 Microelectric Circuit by Meiling CHEN 49

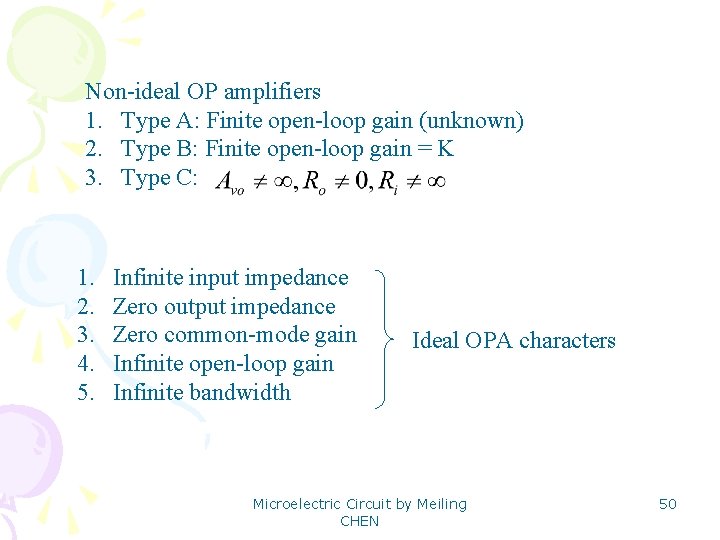

Non-ideal OP amplifiers 1. Type A: Finite open-loop gain (unknown) 2. Type B: Finite open-loop gain = K 3. Type C: 1. 2. 3. 4. 5. Infinite input impedance Zero output impedance Zero common-mode gain Infinite open-loop gain Infinite bandwidth Ideal OPA characters Microelectric Circuit by Meiling CHEN 50

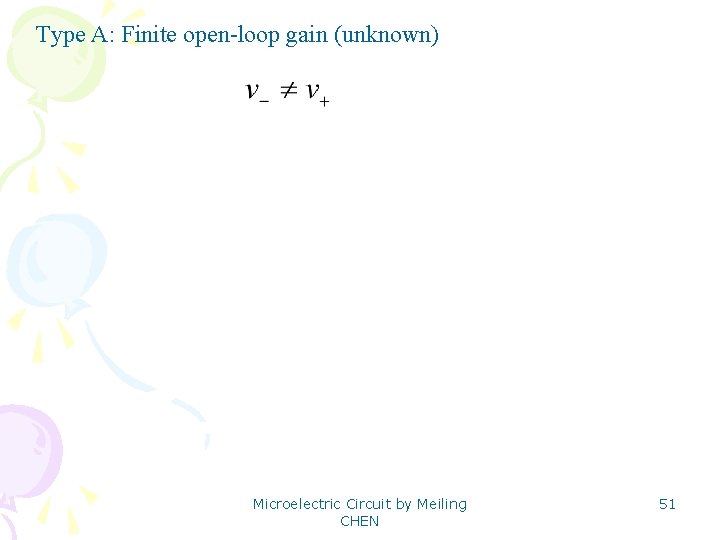

Type A: Finite open-loop gain (unknown) Microelectric Circuit by Meiling CHEN 51

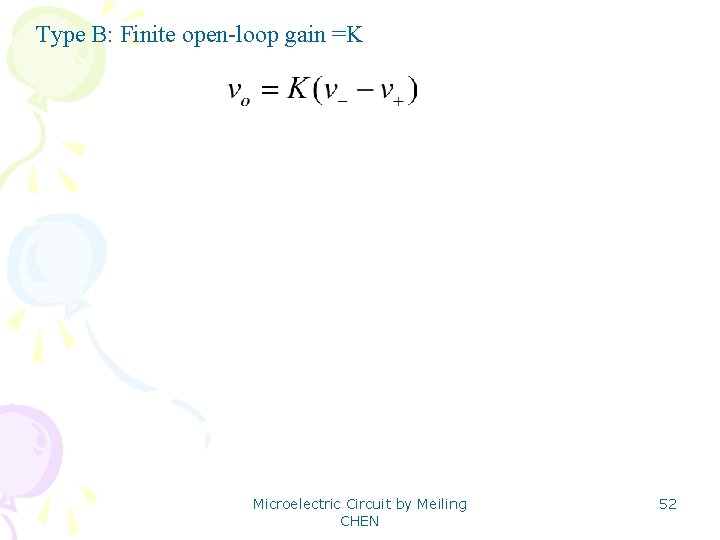

Type B: Finite open-loop gain =K Microelectric Circuit by Meiling CHEN 52

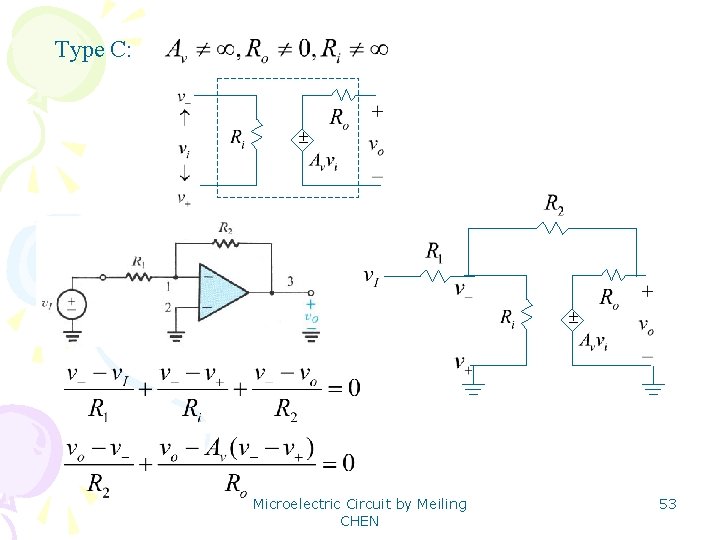

Type C: ± ± Microelectric Circuit by Meiling CHEN 53
