Lecture 11 Iterative approaches for solving linear systems

Lecture 11 Iterative approaches for solving linear systems Ø Jacobi method Ø Gauss-Seidel method Numerical method 1

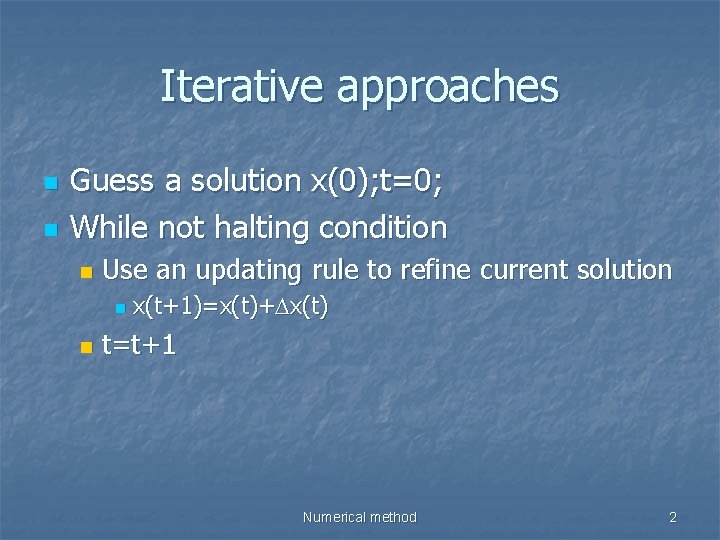

Iterative approaches n n Guess a solution x(0); t=0; While not halting condition n Use an updating rule to refine current solution n n x(t+1)=x(t)+ x(t) t=t+1 Numerical method 2

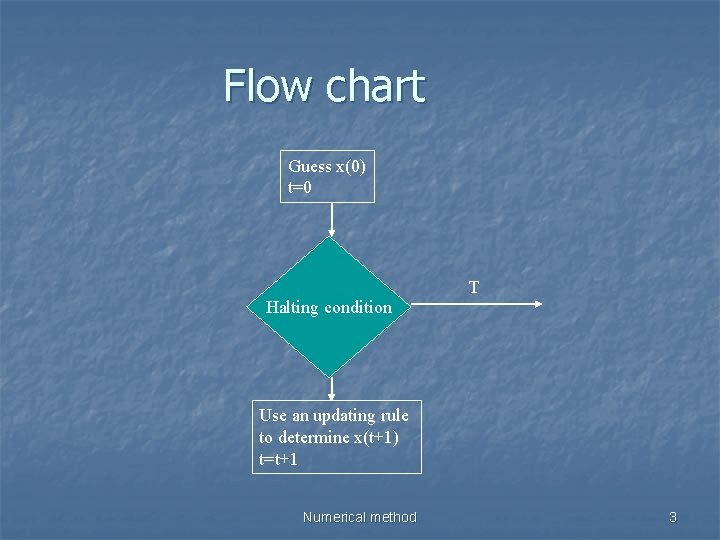

Flow chart Guess x(0) t=0 T Halting condition Use an updating rule to determine x(t+1) t=t+1 Numerical method 3

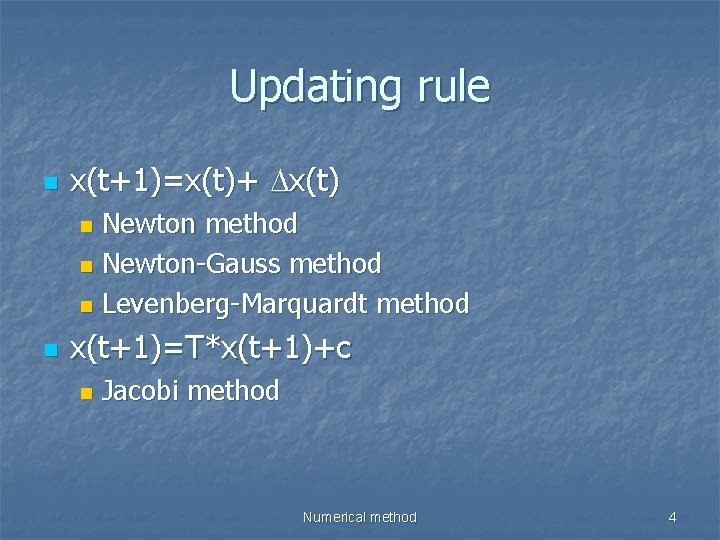

Updating rule n x(t+1)=x(t)+ x(t) Newton method n Newton-Gauss method n Levenberg-Marquardt method n n x(t+1)=T*x(t+1)+c n Jacobi method Numerical method 4

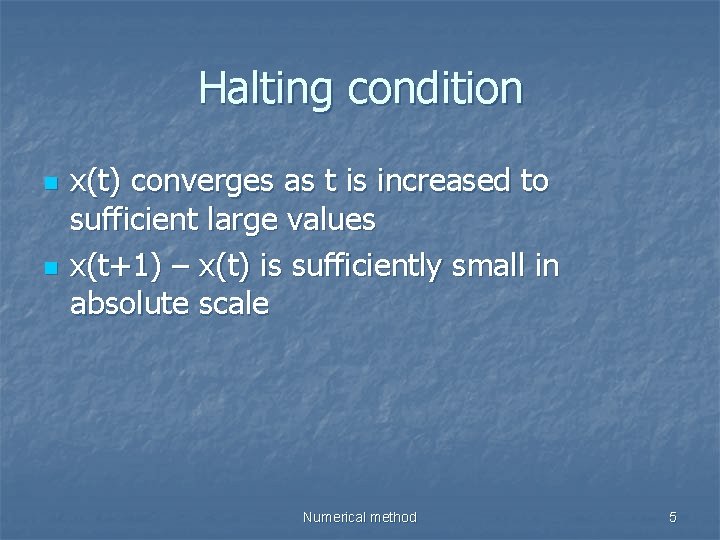

Halting condition n n x(t) converges as t is increased to sufficient large values x(t+1) – x(t) is sufficiently small in absolute scale Numerical method 5

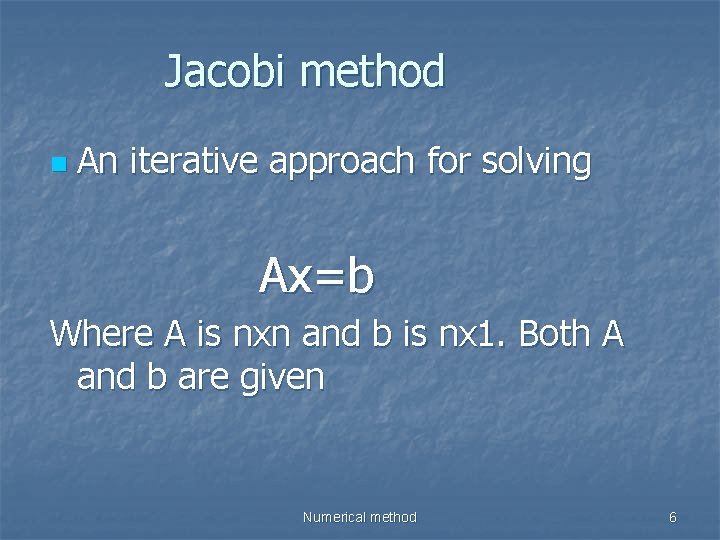

Jacobi method n An iterative approach for solving Ax=b Where A is nxn and b is nx 1. Both A and b are given Numerical method 6

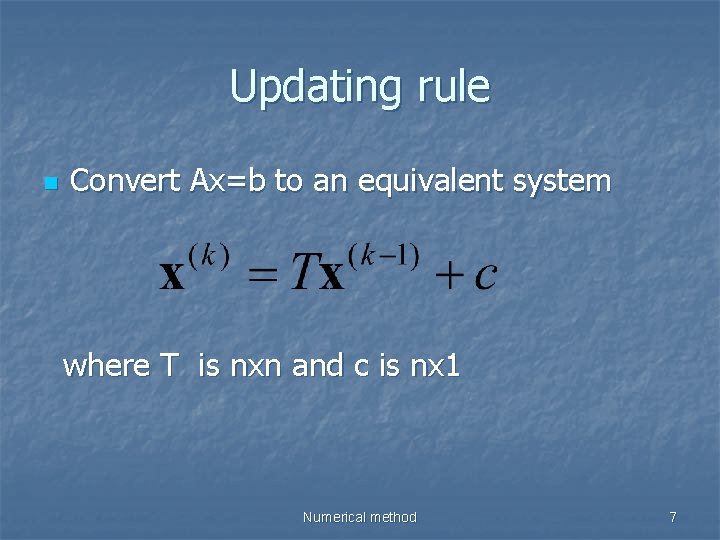

Updating rule n Convert Ax=b to an equivalent system where T is nxn and c is nx 1 Numerical method 7

Example Numerical method 8

Numerical method 9

Numerical method 10

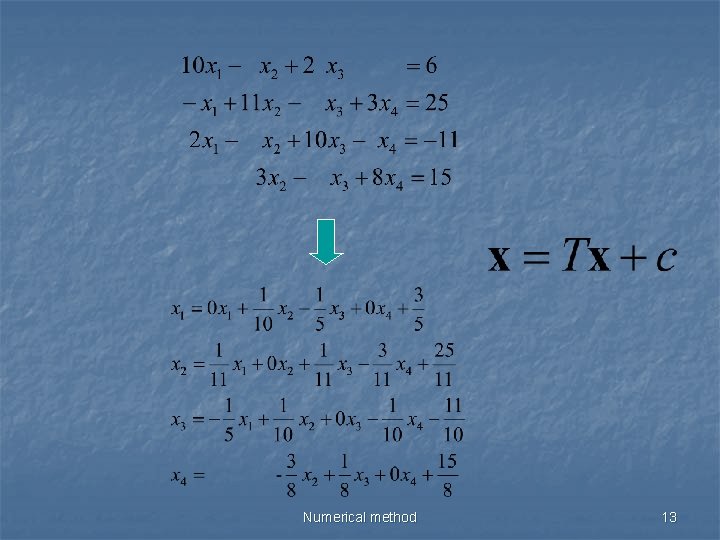

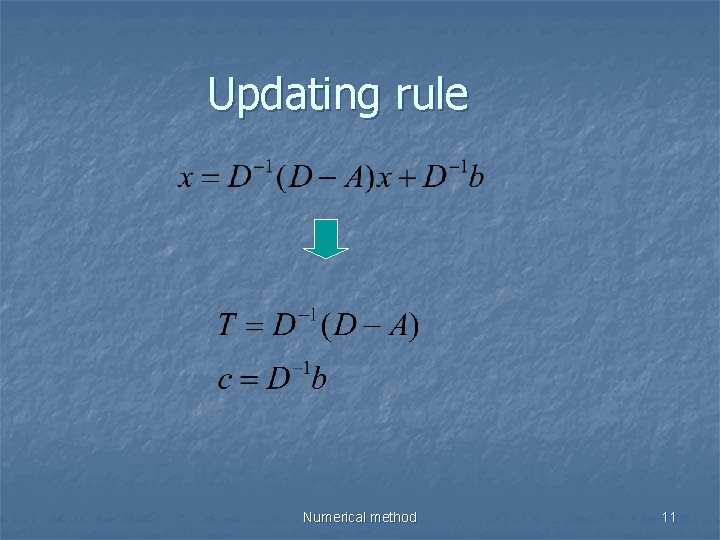

Updating rule Numerical method 11

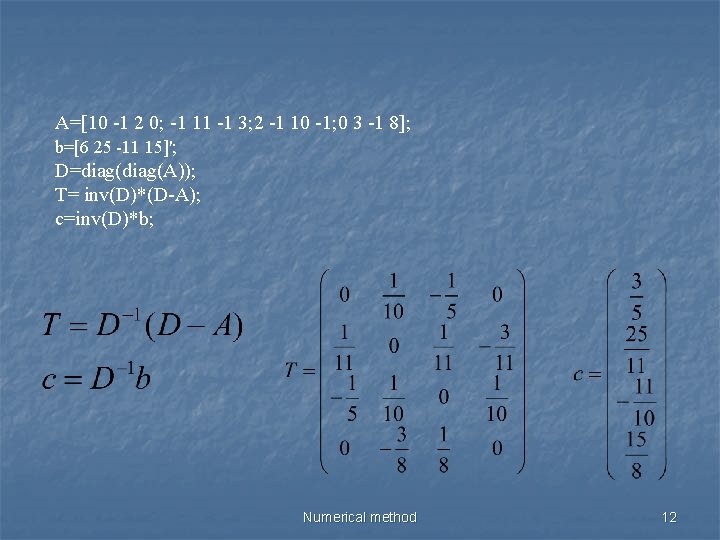

A=[10 -1 2 0; -1 11 -1 3; 2 -1 10 -1; 0 3 -1 8]; b=[6 25 -11 15]'; D=diag(A)); T= inv(D)*(D-A); c=inv(D)*b; Numerical method 12

Numerical method 13

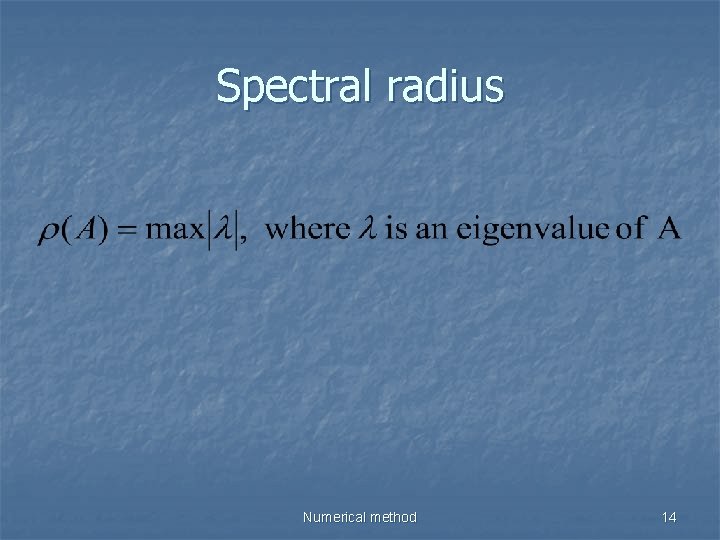

Spectral radius Numerical method 14

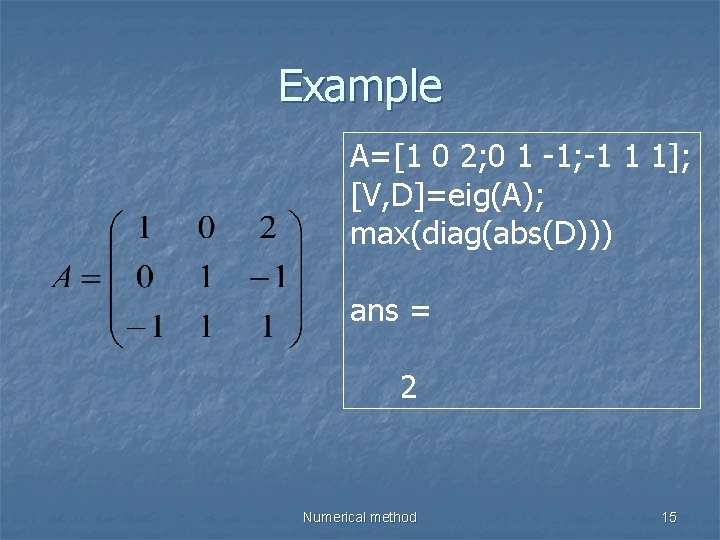

Example A=[1 0 2; 0 1 -1; -1 1 1]; [V, D]=eig(A); max(diag(abs(D))) ans = 2 Numerical method 15

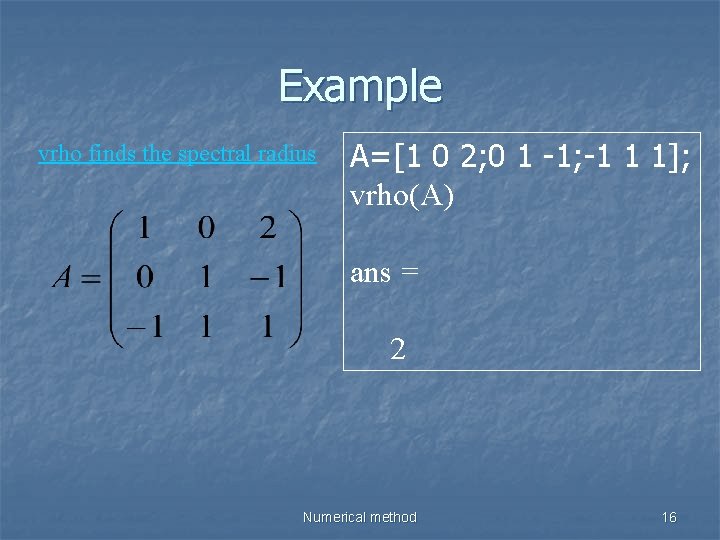

Example vrho finds the spectral radius A=[1 0 2; 0 1 -1; -1 1 1]; vrho(A) ans = 2 Numerical method 16

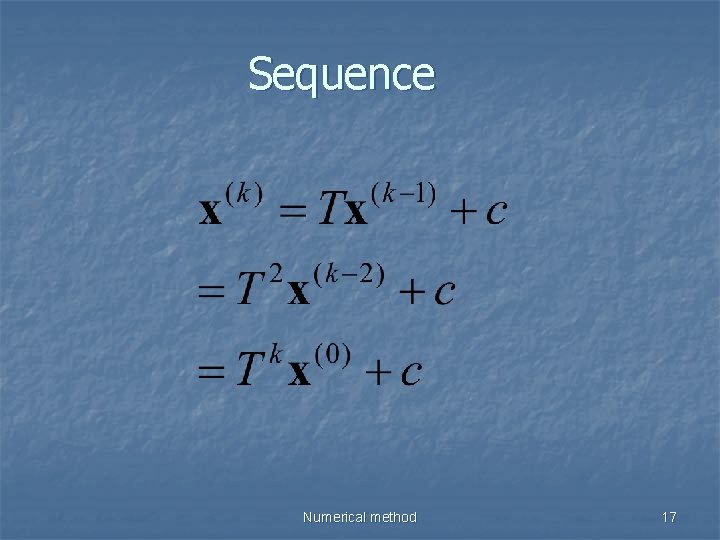

Sequence Numerical method 17

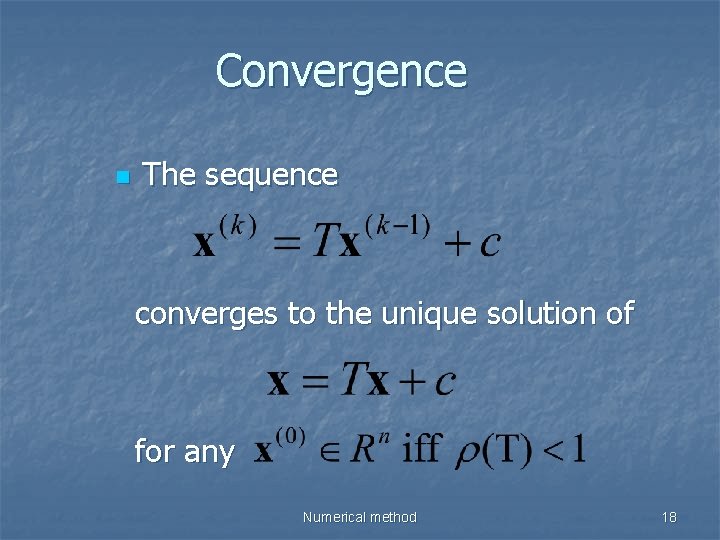

Convergence n The sequence converges to the unique solution of for any Numerical method 18

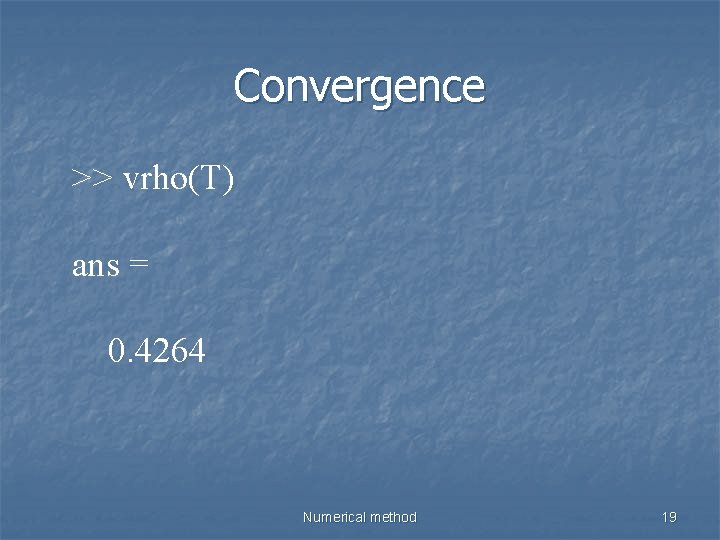

Convergence >> vrho(T) ans = 0. 4264 Numerical method 19

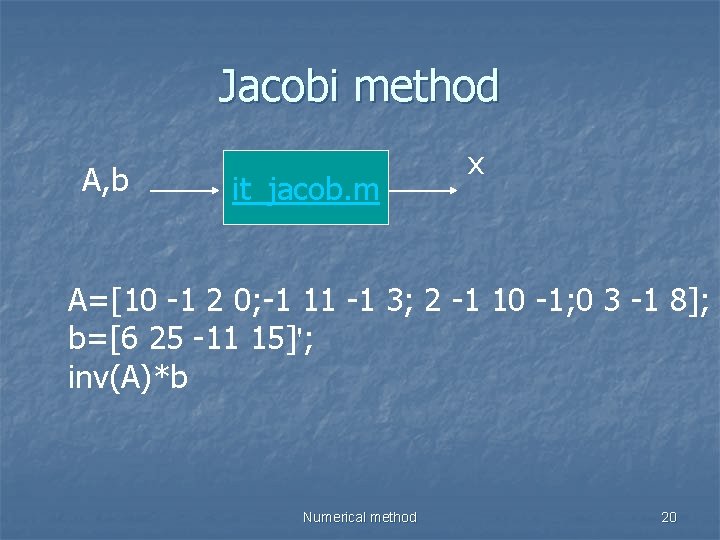

Jacobi method A, b it_jacob. m x A=[10 -1 2 0; -1 11 -1 3; 2 -1 10 -1; 0 3 -1 8]; b=[6 25 -11 15]'; inv(A)*b Numerical method 20

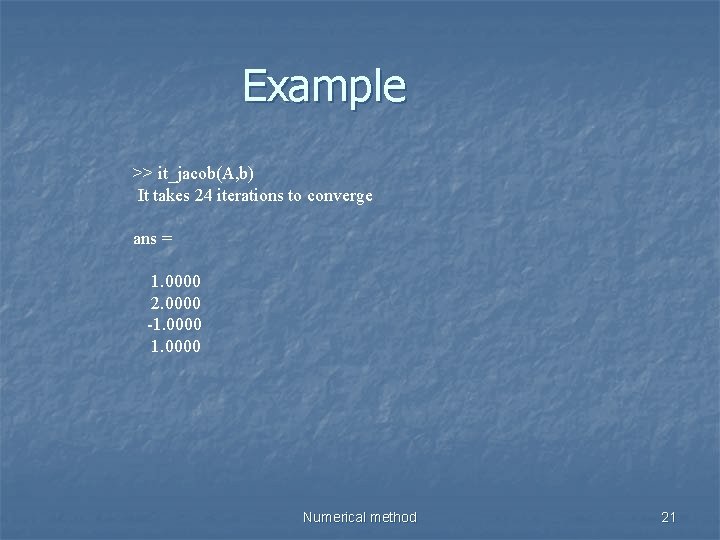

Example >> it_jacob(A, b) It takes 24 iterations to converge ans = 1. 0000 2. 0000 -1. 0000 Numerical method 21

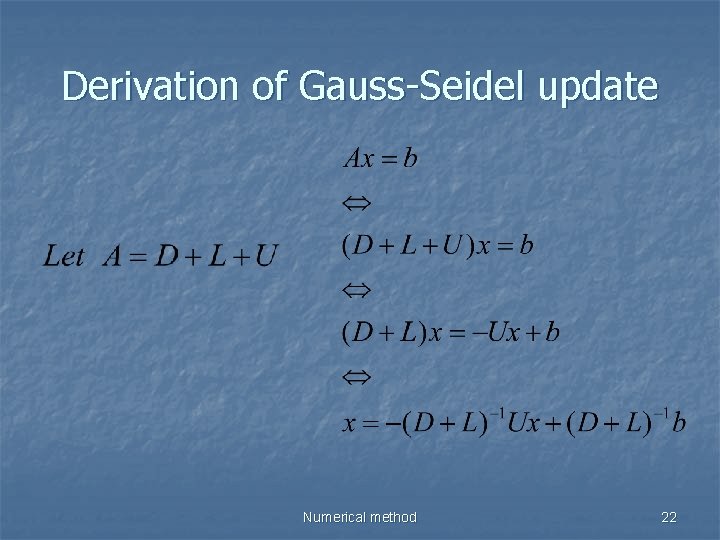

Derivation of Gauss-Seidel update Numerical method 22

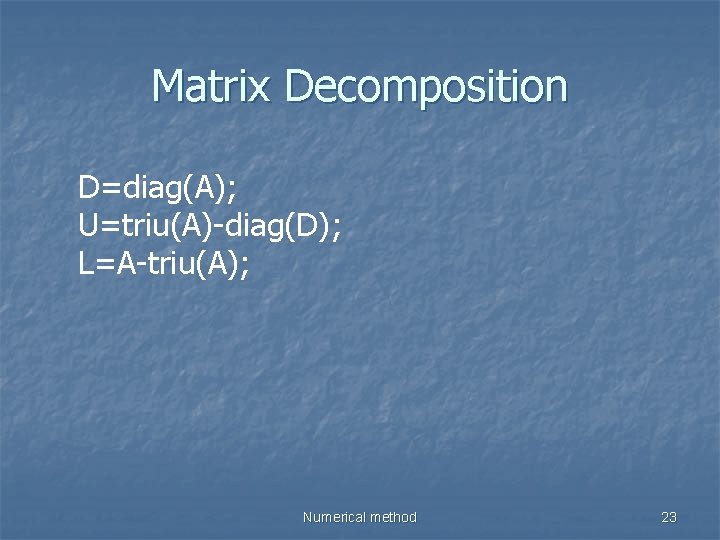

Matrix Decomposition D=diag(A); U=triu(A)-diag(D); L=A-triu(A); Numerical method 23

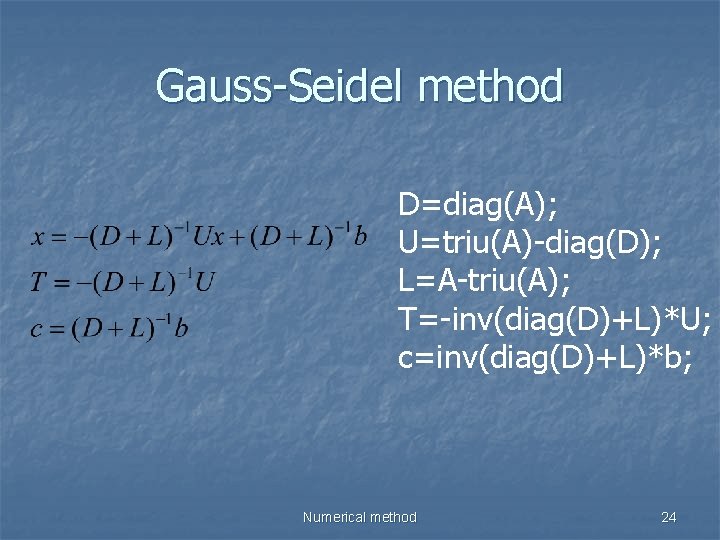

Gauss-Seidel method D=diag(A); U=triu(A)-diag(D); L=A-triu(A); T=-inv(diag(D)+L)*U; c=inv(diag(D)+L)*b; Numerical method 24

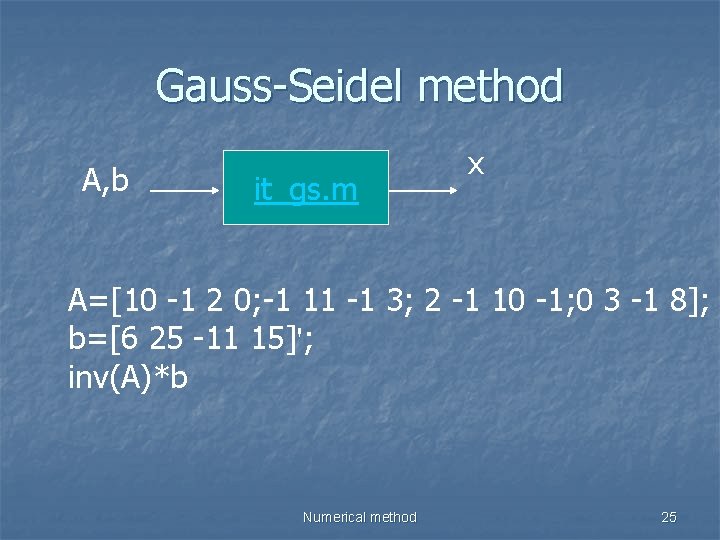

Gauss-Seidel method A, b it_gs. m x A=[10 -1 2 0; -1 11 -1 3; 2 -1 10 -1; 0 3 -1 8]; b=[6 25 -11 15]'; inv(A)*b Numerical method 25

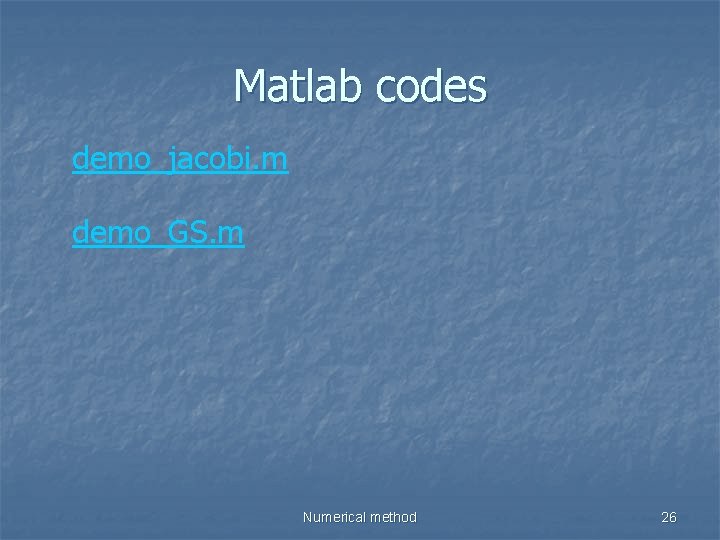

Matlab codes demo_jacobi. m demo_GS. m Numerical method 26

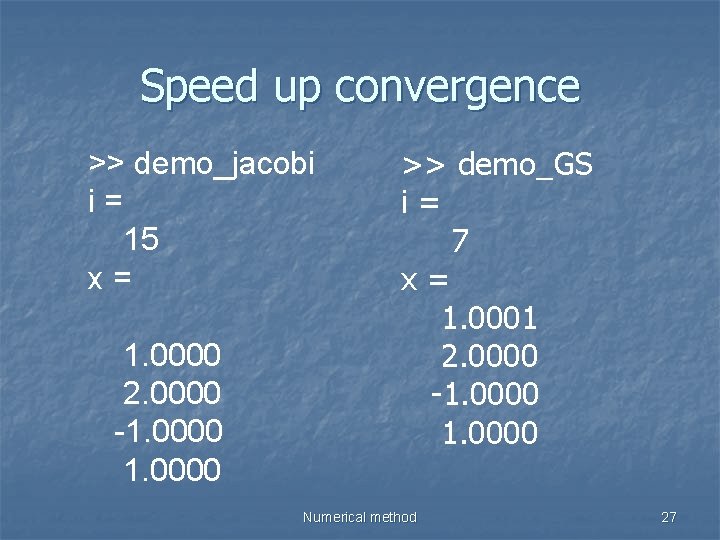

Speed up convergence >> demo_jacobi i= 15 x= 1. 0000 2. 0000 -1. 0000 >> demo_GS i= 7 x= 1. 0001 2. 0000 -1. 0000 Numerical method 27

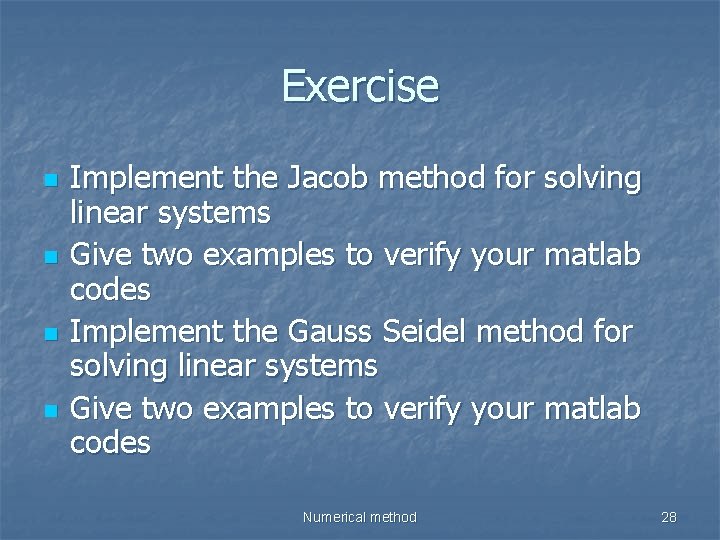

Exercise n n Implement the Jacob method for solving linear systems Give two examples to verify your matlab codes Implement the Gauss Seidel method for solving linear systems Give two examples to verify your matlab codes Numerical method 28

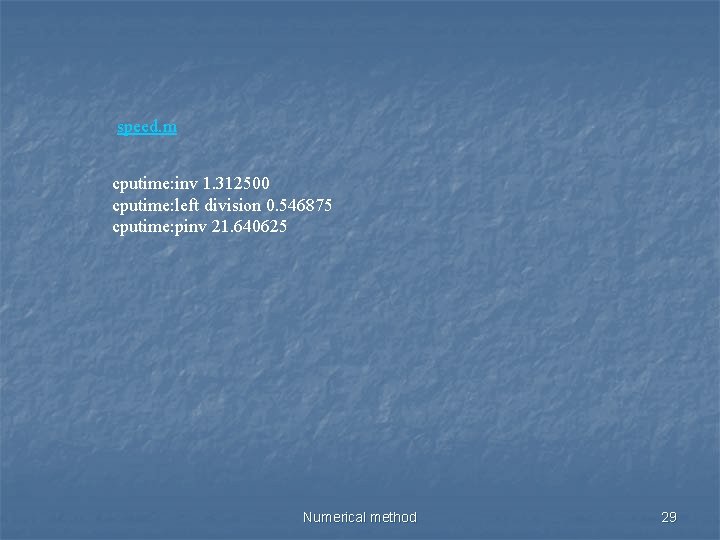

speed. m cputime: inv 1. 312500 cputime: left division 0. 546875 cputime: pinv 21. 640625 Numerical method 29
