Lecture 10 Types of lineage mutants Lateral inhibition
Lecture 10 • Types of lineage mutants • Lateral inhibition in C. elegans • Induction in C. elegans
Mutant names and origins • Most isolated in general mutant screens • • • unc Uncoordinated dpy Dumpy short and fat lineage abnormal egg laying lethal
Mutant names and origins unc-93 (e 1400) Phenotypic class ie screen isolated in Complementation group lin-22(n 372) allele

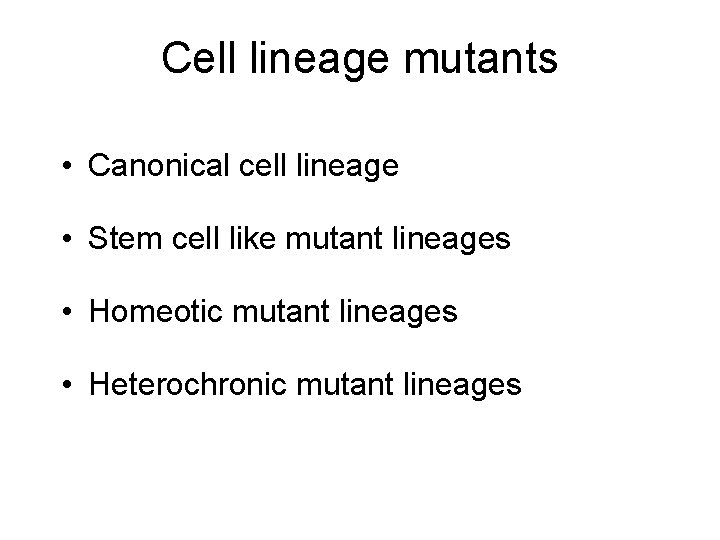

Cell lineage mutants • Canonical cell lineage • Stem cell like mutant lineages • Homeotic mutant lineages • Heterochronic mutant lineages

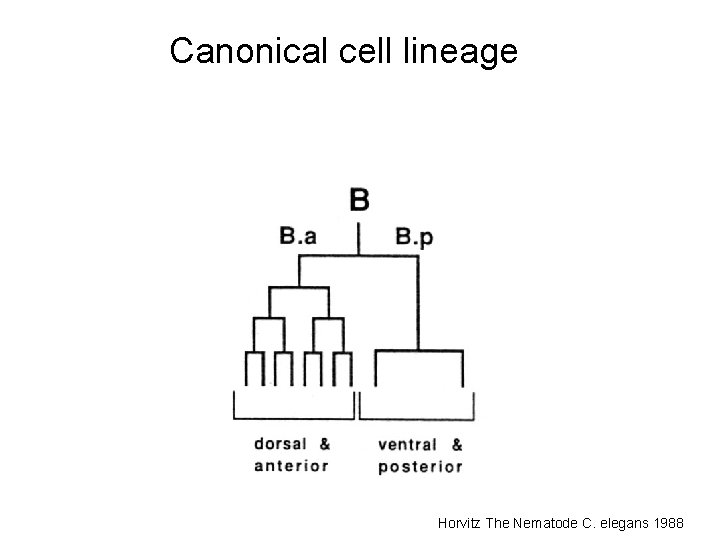

Canonical cell lineage Horvitz The Nematode C. elegans 1988
Canonical cell lineage A B C Horvitz The Nematode C. elegans 1988

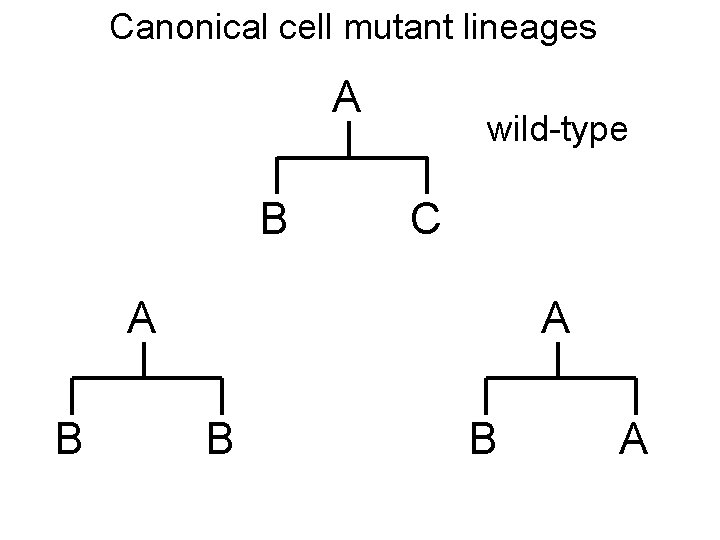

Canonical cell mutant lineages A B wild-type C A B B A

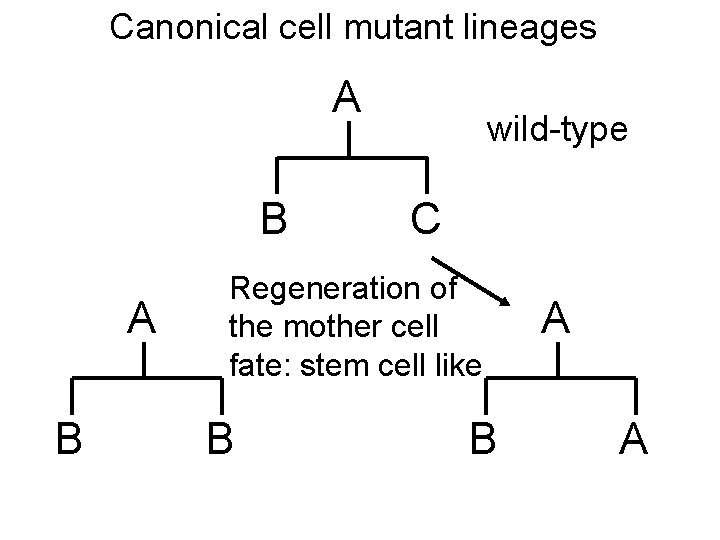

Canonical cell mutant lineages A B wild-type C Regeneration of the mother cell fate: stem cell like B B A A
Stem cell like mutant lineages Horvitz The Nematode C. elegans 1988

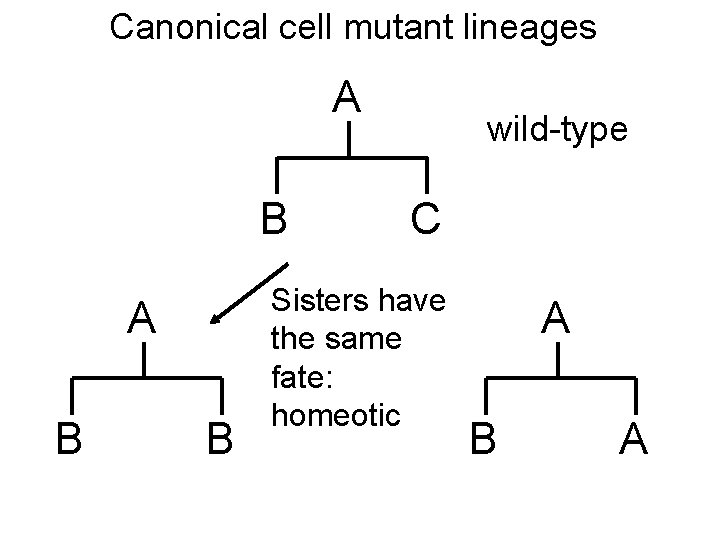

Canonical cell mutant lineages A B B wild-type C Sisters have the same fate: homeotic A B A
Homeotic transformation The transformation of one body part into the likeness of another
Antennapedia can be misexpressed either by spontaneous mutation or by genetic engineering. + Antp ry hsp Antenna to second leg transformation
Canonical cell mutant lineages A B B wild-type C Sisters have the same fate: homeotic A B A
Cell lineage homeotic transformation Horvitz The Nematode C. elegans 1988

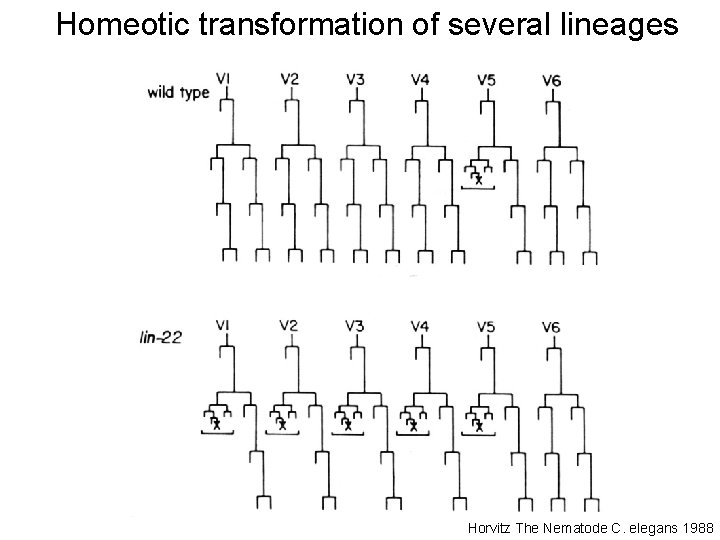

Homeotic transformation of several lineages Horvitz The Nematode C. elegans 1988

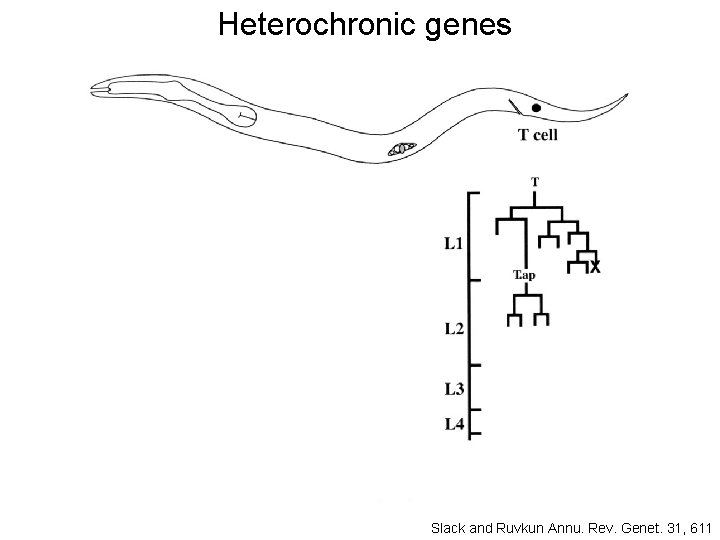

Heterochronic genes Slack and Ruvkun Annu. Rev. Genet. 31, 611
Heterochronic genes Slack and Ruvkun Annu. Rev. Genet. 31, 611

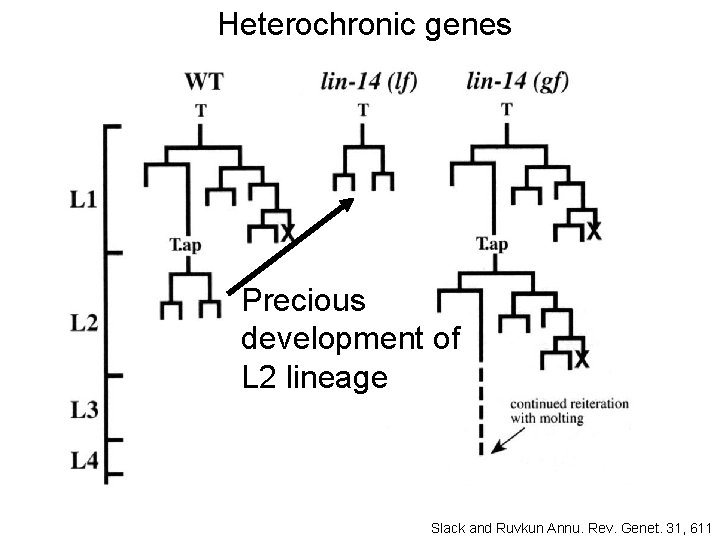

Heterochronic genes Precious development of L 2 lineage Slack and Ruvkun Annu. Rev. Genet. 31, 611
Heterochronic genes Suppression of L 2 lineage and replacement with L 1 lineage. Slack and Ruvkun Annu. Rev. Genet. 31, 611

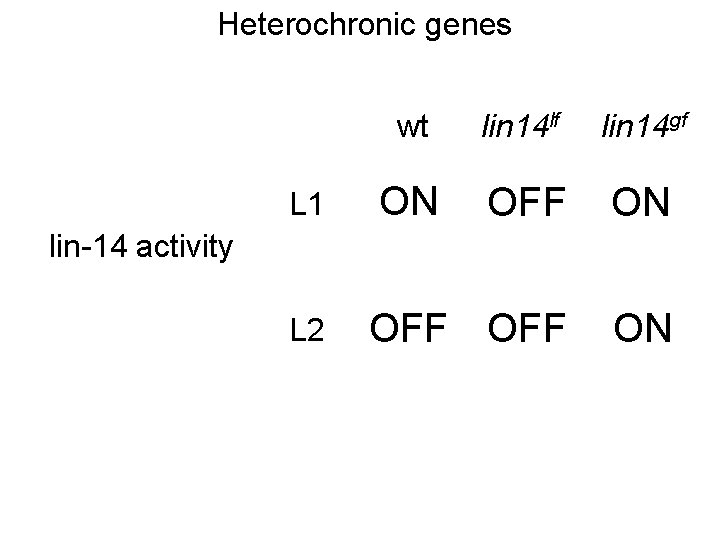

Heterochronic genes L 1 wt lin 14 lf lin 14 gf ON OFF OFF ON lin-14 activity L 2

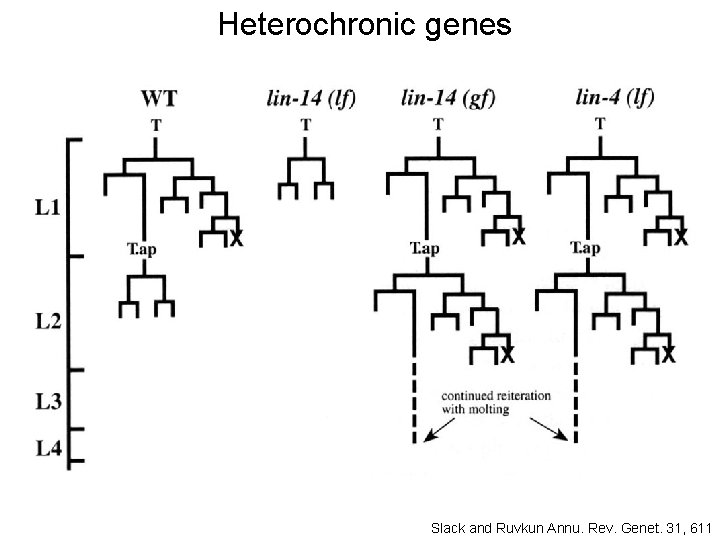

Heterochronic genes Slack and Ruvkun Annu. Rev. Genet. 31, 611
Heterochronic genes Slack and Ruvkun Annu. Rev. Genet. 31, 611

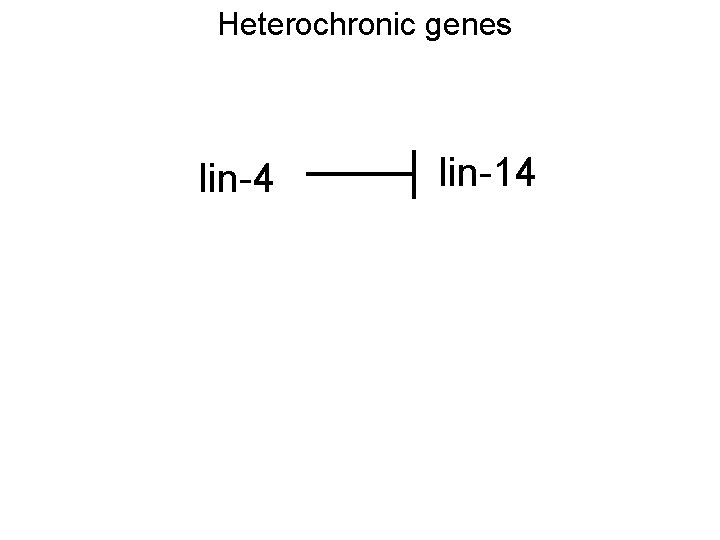

Heterochronic genes lin-4 lin-14

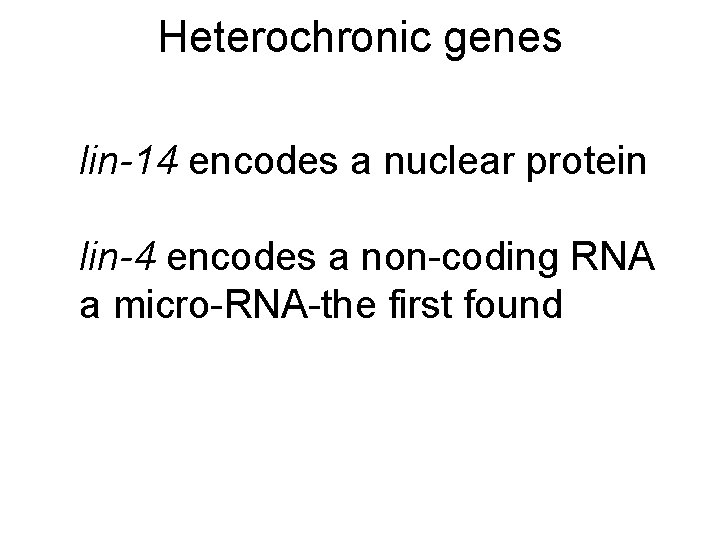

Heterochronic genes lin-14 encodes a nuclear protein lin-4 encodes a non-coding RNA a micro-RNA-the first found

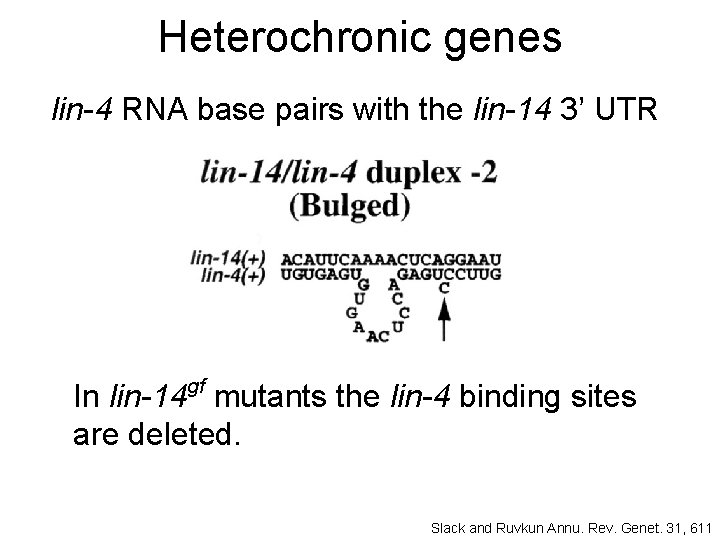

Heterochronic genes lin-4 RNA base pairs with the lin-14 3’ UTR In lin-14 gf mutants the lin-4 binding sites are deleted. Slack and Ruvkun Annu. Rev. Genet. 31, 611

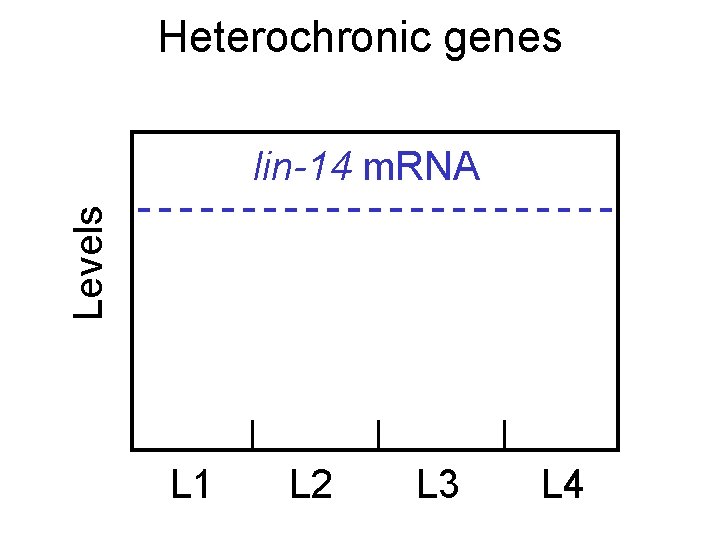

Heterochronic genes Levels lin-14 m. RNA L 1 L 2 L 3 L 4

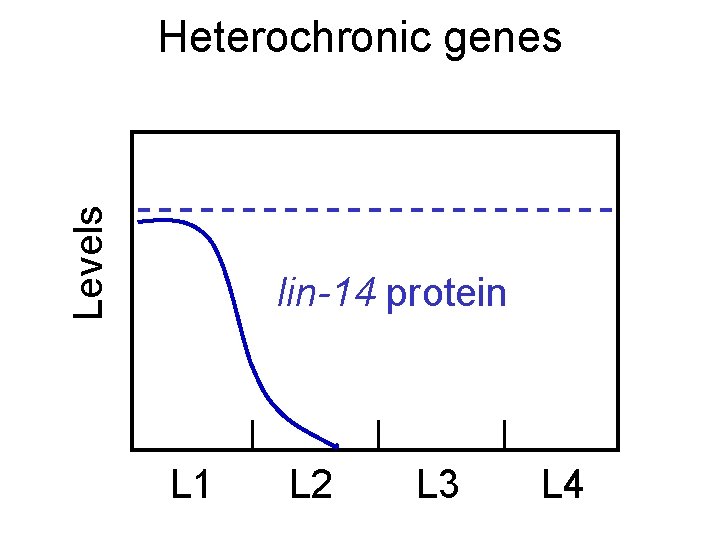

Levels Heterochronic genes lin-14 protein L 1 L 2 L 3 L 4
Levels Heterochronic genes lin-14 protein lin-4 mic. RNA L 1 L 2 L 3 L 4
Temporal Morphogen hypothesis Kalthoff Analysis of Biological development 2 nd ed

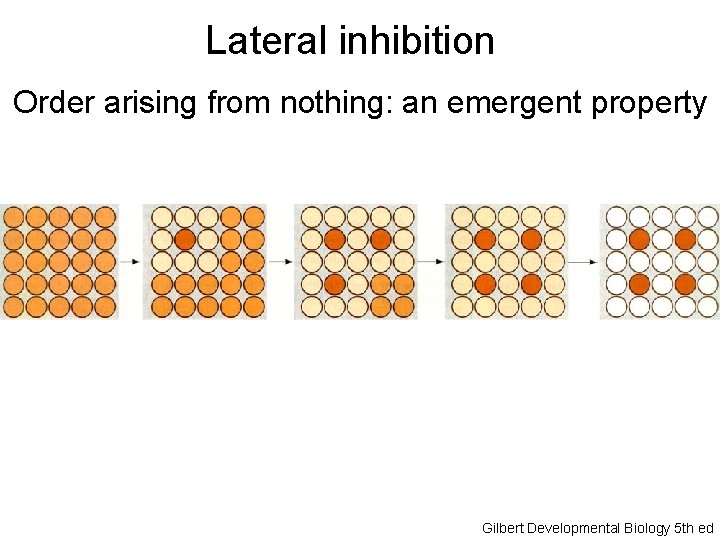

Lateral inhibition Order arising from nothing: an emergent property Gilbert Developmental Biology 5 th ed

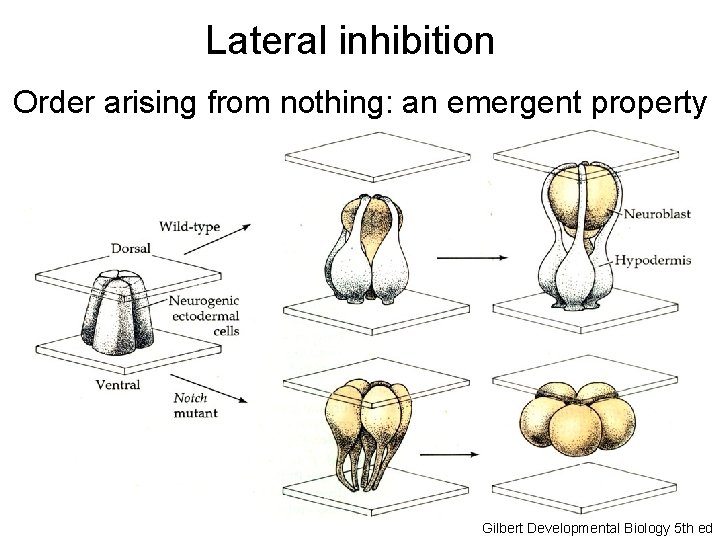

Lateral inhibition Order arising from nothing: an emergent property Gilbert Developmental Biology 5 th ed

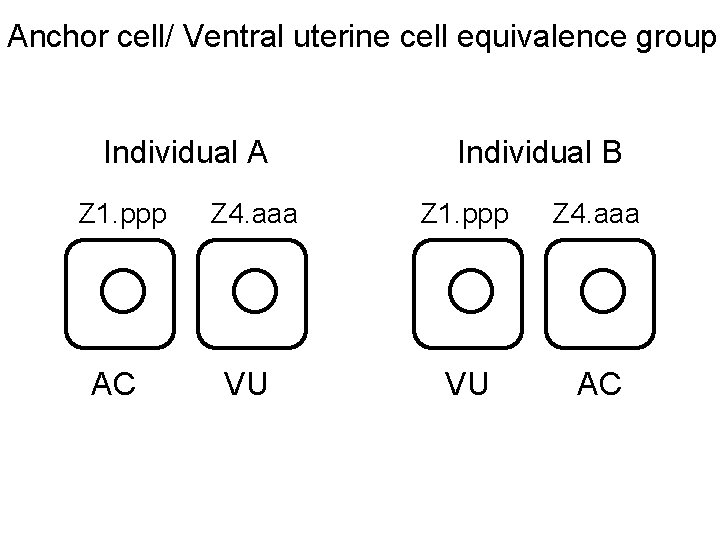

Anchor cell/ Ventral uterine cell equivalence group Individual A Z 1. ppp AC Z 4. aaa VU Individual B Z 1. ppp Z 4. aaa VU AC
Model for AC/VU decision Gilbert Developmental Biology 5 th ed
Model for AC/VU decision Equivalent signaling Gilbert Developmental Biology 5 th ed
Model for AC/VU decision Stochastic difference in signaling Gilbert Developmental Biology 5 th ed

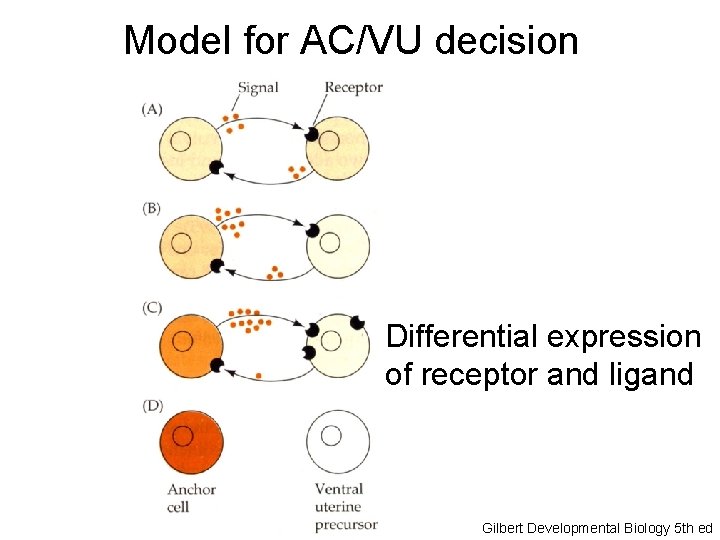

Model for AC/VU decision Differential expression of receptor and ligand Gilbert Developmental Biology 5 th ed

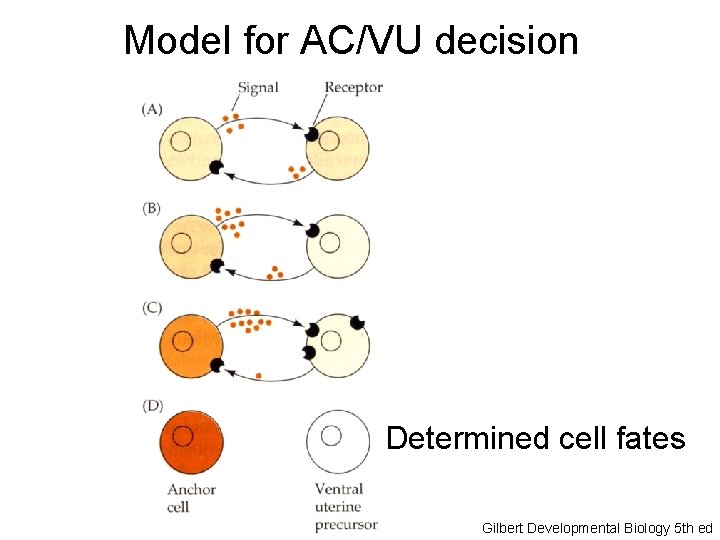

Model for AC/VU decision Determined cell fates Gilbert Developmental Biology 5 th ed

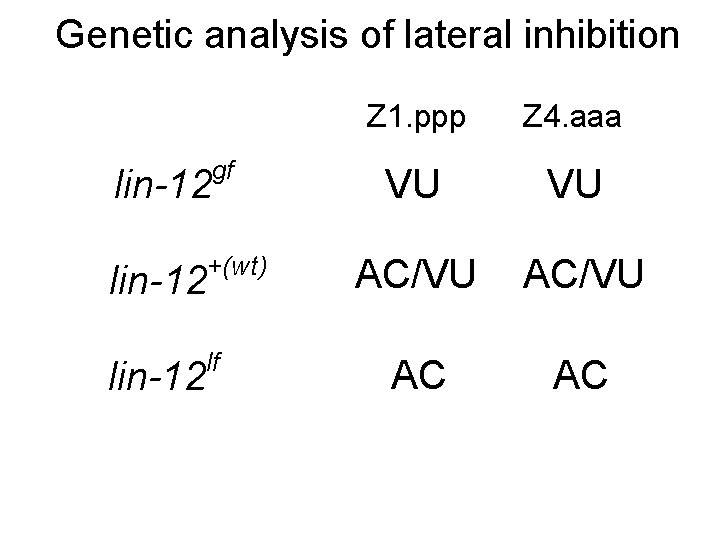

Genetic analysis of lateral inhibition lin-12 gf +(wt) lf Z 1. ppp Z 4. aaa VU VU AC/VU AC AC

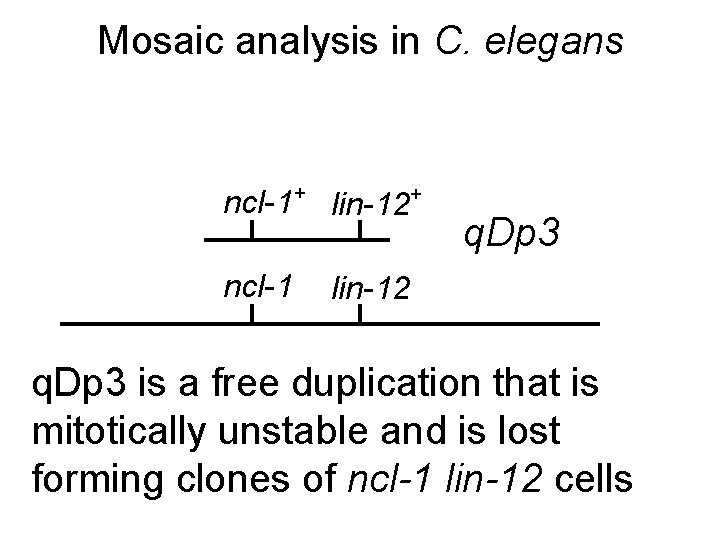

Mosaic analysis in C. elegans ncl-1+ lin-12+ ncl-1 q. Dp 3 lin-12 q. Dp 3 is a free duplication that is mitotically unstable and is lost forming clones of ncl-1 lin-12 cells
Mosaic analysis in C. elegans ncl-1 + ncl-1 In ncl-1 cells, the nucleolus is large.
Mosaic analysis in C. elegans ncl-1 lin-12 cell Seydoux and Greenwald Cell 57, 1237

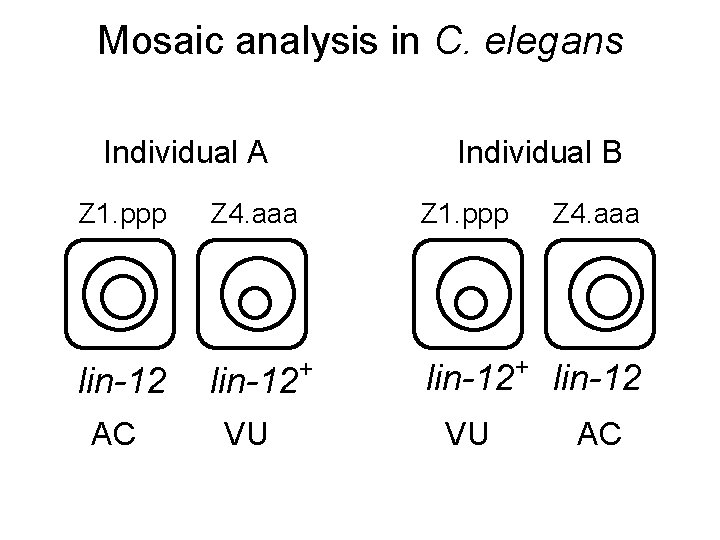

Mosaic analysis in C. elegans Individual A Z 1. ppp Individual B Z 4. aaa lin-12 AC VU + Z 1. ppp lin-12 VU Z 4. aaa + lin-12 AC
Mosaic analysis in C. elegans Individual A Z 1. ppp Individual B Z 4. aaa lin-12 AC VU + Z 1. ppp lin-12 VU Z 4. aaa + lin-12 AC Lin-12 activity is required in the VU cell

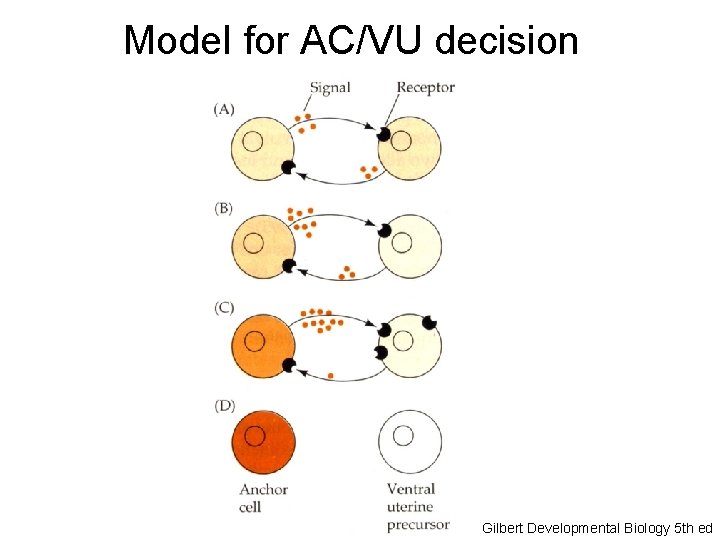

Model for AC/VU decision Gilbert Developmental Biology 5 th ed
Expression of Lin-12 protein Precommitment Committed Levitan and Greenwald Development 125, 3101
Induction of the vulva in C. elegans

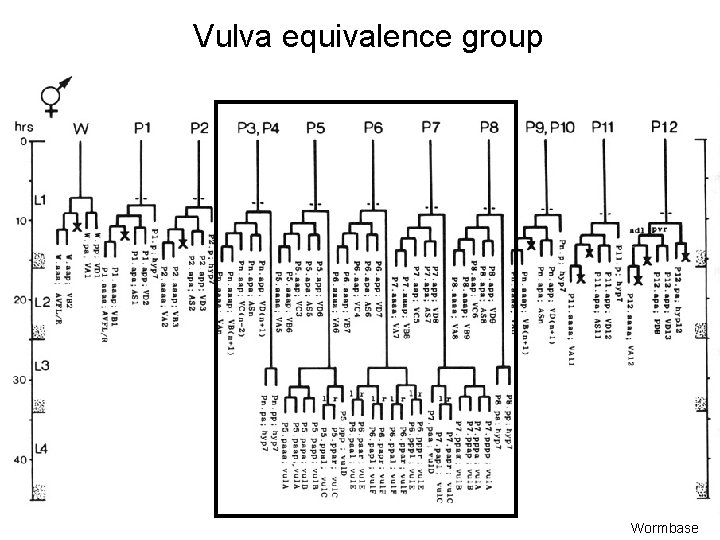

Vulva equivalence group Wormbase

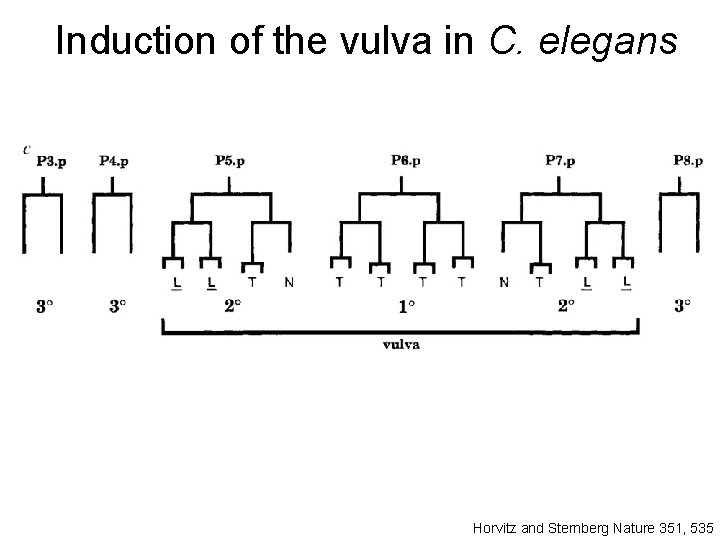

Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535
Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535
Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535

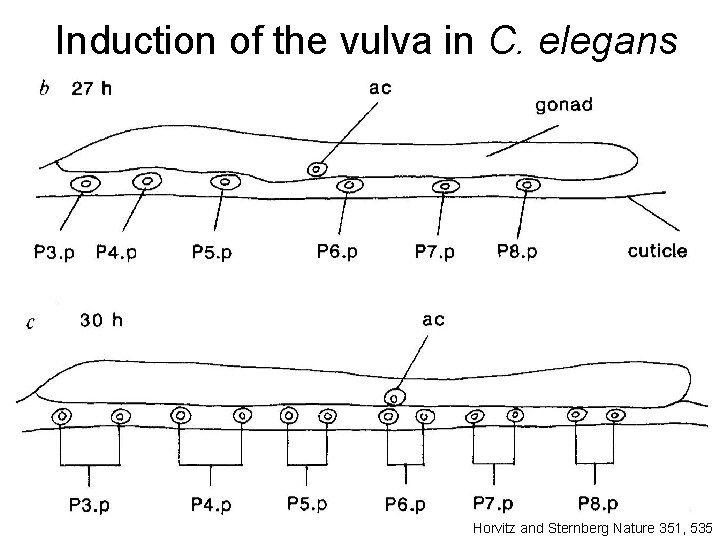

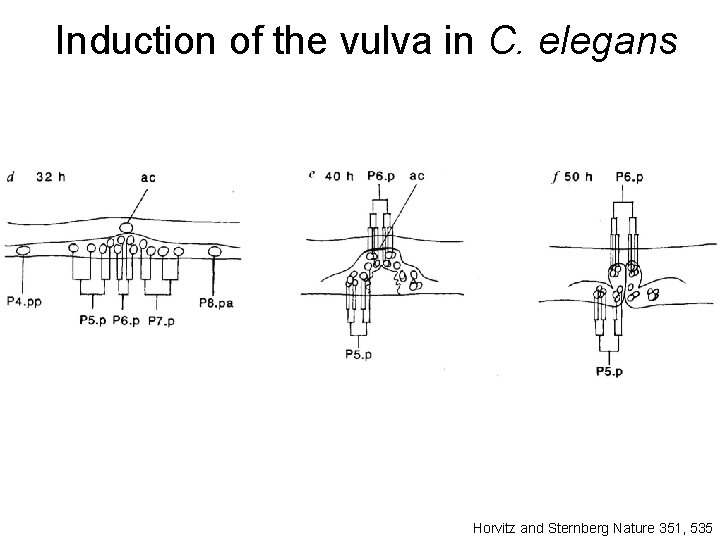

Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535
Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535

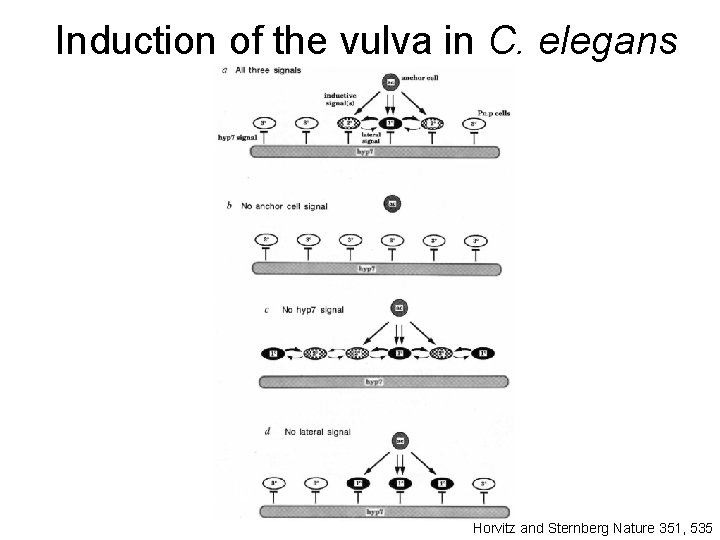

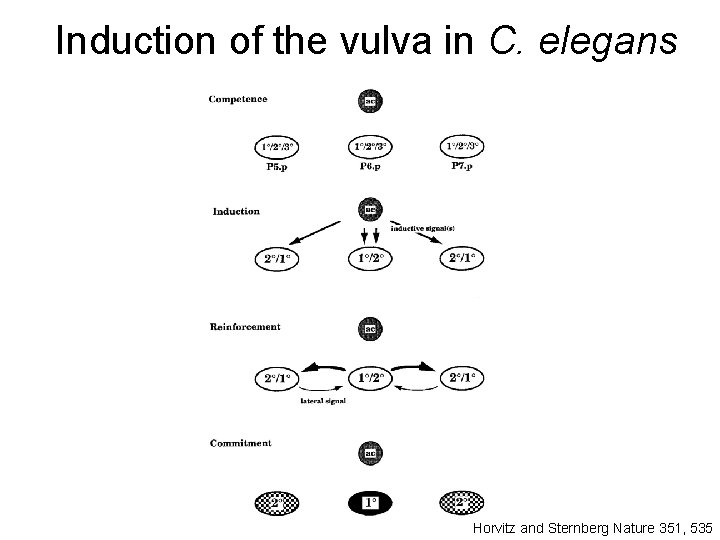

Induction of the vulva in C. elegans Horvitz and Sternberg Nature 351, 535
Induction of the vulva in C. elegans wild-type Vulvaless Vul Multivulva Muv Ferguson and Horvitz Genetics 110, 17

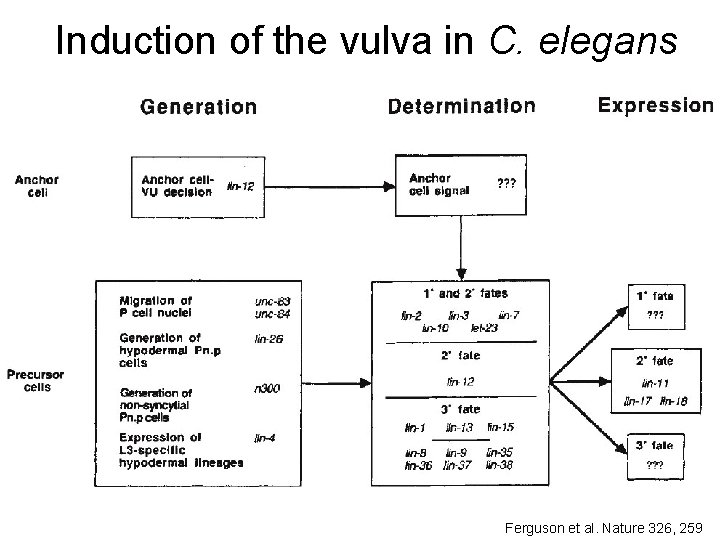

Induction of the vulva in C. elegans Ferguson et al. Nature 326, 259

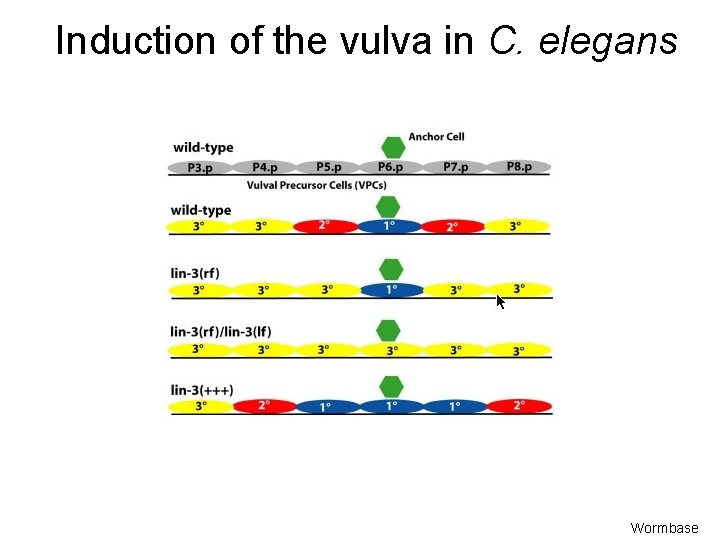

Induction of the vulva in C. elegans Wormbase
Lin-3 a morphogen? At high concentration of Lin-3: 1° fate At medium concentration of Lin-3: 2° fate At low concentration of Lin-3: 3° fate
