Lecture 1: SIC Architecture COP 3402 Fall 2009

Lecture 1: SIC Architecture COP 3402 Fall 2009

Simplified Instructional Computer (SIC) o Memory: n n n 8 -bit bytes 3 consecutive

Simplified Instructional Computer (SIC) o Memory: n n n 8 -bit bytes 3 consecutive bytes form a word (24 -bits) Addresses are byte addresses Words are addressed by location of their lowest numbered byte Memory size = 32, 768 (2^15) bytes

Simplified Instructional Computer (SIC) o Registers: n n Five registers Registers are 24 bits

Simplified Instructional Computer (SIC) o Registers: n n Five registers Registers are 24 bits of length

Simplified Instructional Computer (SIC) Mnemonic Number Special Use A 0 Accumulator; used for arithmetic

Simplified Instructional Computer (SIC) Mnemonic Number Special Use A 0 Accumulator; used for arithmetic operations X 1 Index register; used for addressing L 2 Linkaged register; the Jump to Subroutine (JSUB) instruction stores the return address in this register PC 8 Program Counter; contains the address of the next instruction to be fetched for execution SW 9 Status word; contains a variety of information, including a Condition Code(CC)

Simplified Instructional Computer (SIC) o Data Formats: n n n Integers stored as 24

Simplified Instructional Computer (SIC) o Data Formats: n n n Integers stored as 24 -bit binary numbers 2’s complement representation is used for negative values Characters stored using 8 -bit ASCII codes

Simplified Instructional Computer (SIC) o Instruction Formats: x: flag bit used to indicate indexed-addressing

Simplified Instructional Computer (SIC) o Instruction Formats: x: flag bit used to indicate indexed-addressing mode

Simplified Instructional Computer (SIC) o Addressing Mode: Mode Indication Target Address Calculation Direct x=0

Simplified Instructional Computer (SIC) o Addressing Mode: Mode Indication Target Address Calculation Direct x=0 TA=address Indexed x=1 TA=address + (X)

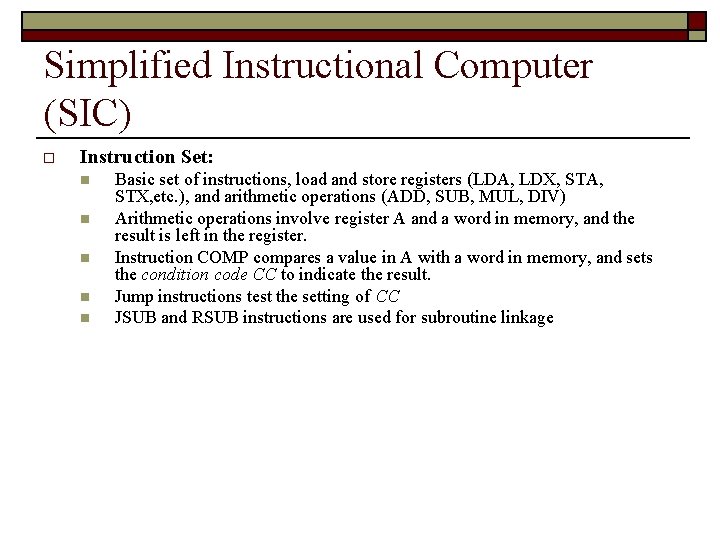

Simplified Instructional Computer (SIC) o Instruction Set: n n n Basic set of instructions,

Simplified Instructional Computer (SIC) o Instruction Set: n n n Basic set of instructions, load and store registers (LDA, LDX, STA, STX, etc. ), and arithmetic operations (ADD, SUB, MUL, DIV) Arithmetic operations involve register A and a word in memory, and the result is left in the register. Instruction COMP compares a value in A with a word in memory, and sets the condition code CC to indicate the result. Jump instructions test the setting of CC JSUB and RSUB instructions are used for subroutine linkage

Simplified Instructional Computer (SIC) o Input and Output: n n n Performed by transferring

Simplified Instructional Computer (SIC) o Input and Output: n n n Performed by transferring 1 byte at a time to or from the rightmost 8 bits of register A. Each device is assigned a unique 8 -bit code Three I/O devices instructions: o o o Test device (TD): tests whether the addressed device is ready to send or receive a byte of data Read data (RD) Write data (WD)

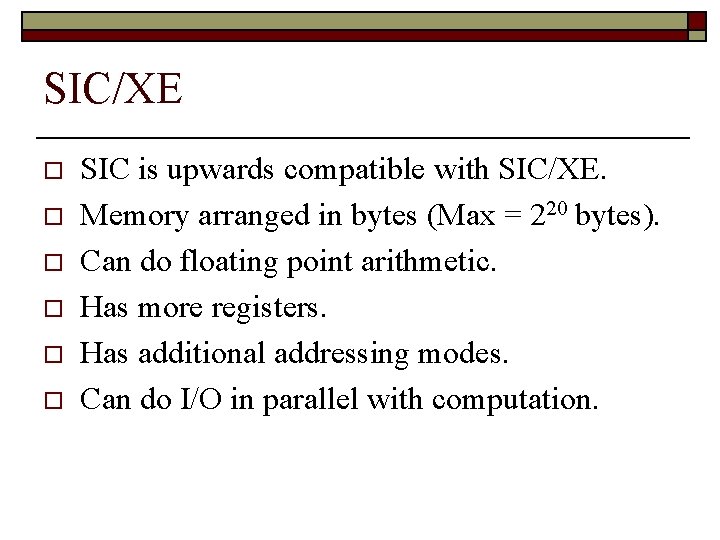

SIC/XE o o o SIC is upwards compatible with SIC/XE. Memory arranged in bytes

SIC/XE o o o SIC is upwards compatible with SIC/XE. Memory arranged in bytes (Max = 220 bytes). Can do floating point arithmetic. Has more registers. Has additional addressing modes. Can do I/O in parallel with computation.

Registers Mnemonic Register Comment 3 B Base Register (for addressing) 4 S General Purpose

Registers Mnemonic Register Comment 3 B Base Register (for addressing) 4 S General Purpose Register 5 T General Purpose Register 6 F Floating point Accumalator (48 -bits)

Data Formats o o SIC/XE supports integers and characters in the same manner as

Data Formats o o SIC/XE supports integers and characters in the same manner as SIC. Introduces new 48 -bit floating point type. o o o 1 -bit sign bit 11 -bit exponent 36 -bit fraction

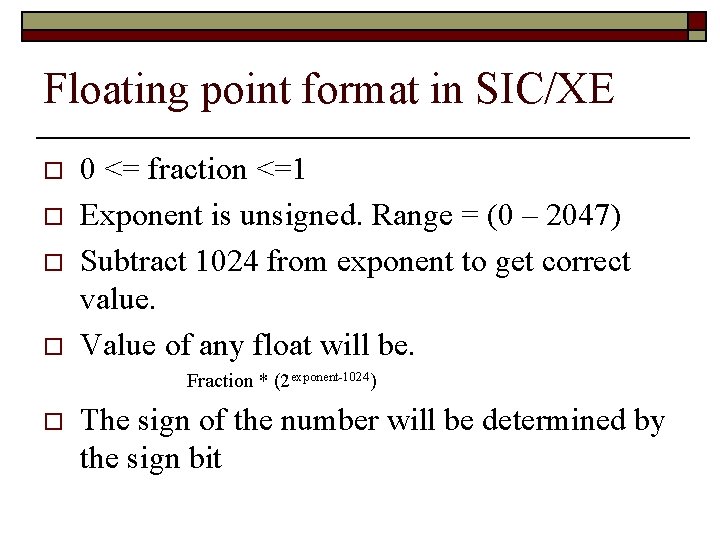

Floating point format in SIC/XE o o 0 <= fraction <=1 Exponent is unsigned.

Floating point format in SIC/XE o o 0 <= fraction <=1 Exponent is unsigned. Range = (0 – 2047) Subtract 1024 from exponent to get correct value. Value of any float will be. Fraction * (2 exponent-1024) o The sign of the number will be determined by the sign bit

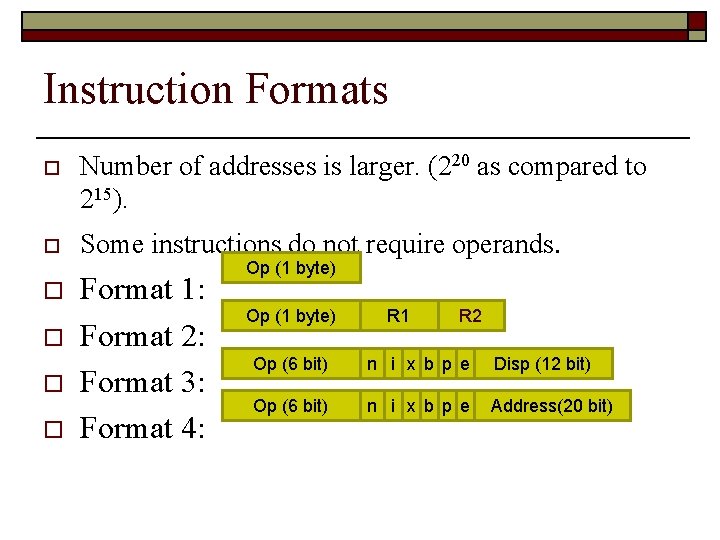

Instruction Formats o o o Number of addresses is larger. (220 as compared to

Instruction Formats o o o Number of addresses is larger. (220 as compared to 215). Some instructions do not require operands. Format 1: Format 2: Format 3: Format 4: Op (1 byte) R 1 R 2 Op (6 bit) n i x b p e Disp (12 bit) Op (6 bit) n i x b p e Address(20 bit)

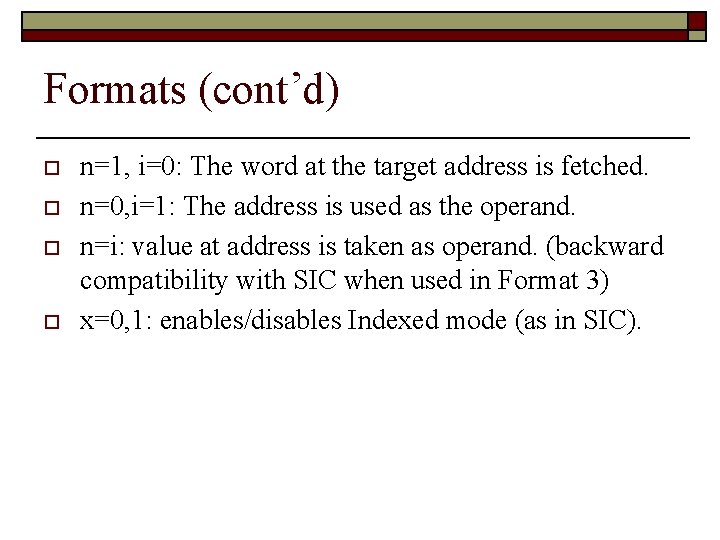

Formats (cont’d) o o n=1, i=0: The word at the target address is fetched.

Formats (cont’d) o o n=1, i=0: The word at the target address is fetched. n=0, i=1: The address is used as the operand. n=i: value at address is taken as operand. (backward compatibility with SIC when used in Format 3) x=0, 1: enables/disables Indexed mode (as in SIC).

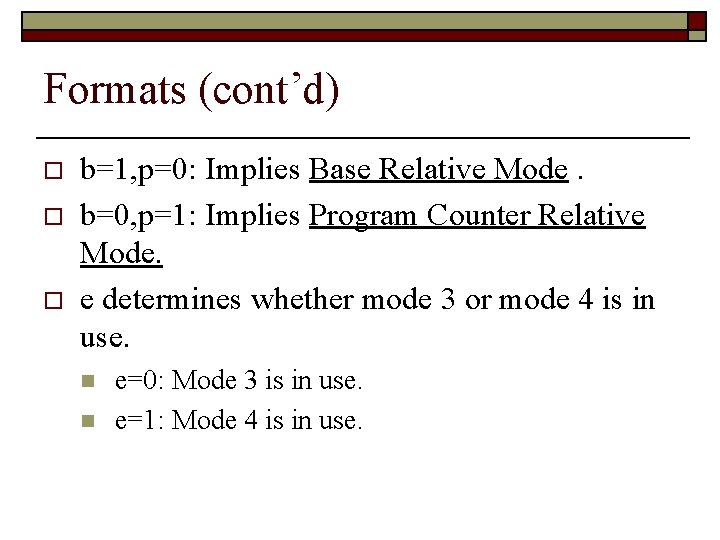

Formats (cont’d) o o o b=1, p=0: Implies Base Relative Mode. b=0, p=1: Implies

Formats (cont’d) o o o b=1, p=0: Implies Base Relative Mode. b=0, p=1: Implies Program Counter Relative Mode. e determines whether mode 3 or mode 4 is in use. n n e=0: Mode 3 is in use. e=1: Mode 4 is in use.

Addressing Modes o Base Relative: b=1, p=0 n o Program Counter Relative: b=0, p=1

Addressing Modes o Base Relative: b=1, p=0 n o Program Counter Relative: b=0, p=1 n o o Target Address = B + disp Target Address = PC+disp If b=p=0, then the address/disp field is taken as the address. Indexed addressing may be used with both these modes (x=0, 1).

Instructions o Instructions to Load/Store new registers n o Floating point Arithmetic n o

Instructions o Instructions to Load/Store new registers n o Floating point Arithmetic n o ADDF, SUBF, MULF, DIVF Register Instructions n o LDB, STB, … ADDR, SUBR, MULR, DIVR, RMO I/O instructions n TIO, SIO, HIO
