Lecture 1: Measurements, Statistics, Probability, and Data Display Karen Bandeen-Roche, Ph. D Department of Biostatistics Johns Hopkins University July 11, 2011 Introduction to Statistical Measurement and Modeling

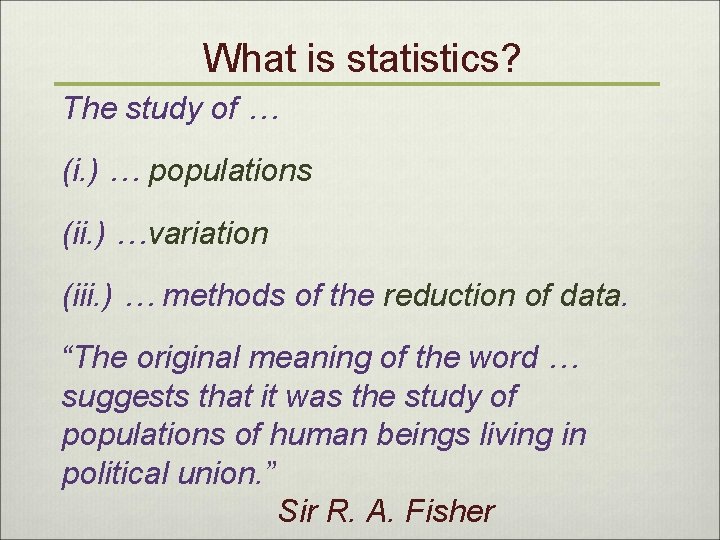

What is statistics? The study of … (i. ) … populations (ii. ) …variation (iii. ) … methods of the reduction of data. “The original meaning of the word … suggests that it was the study of populations of human beings living in political union. ” Sir R. A. Fisher

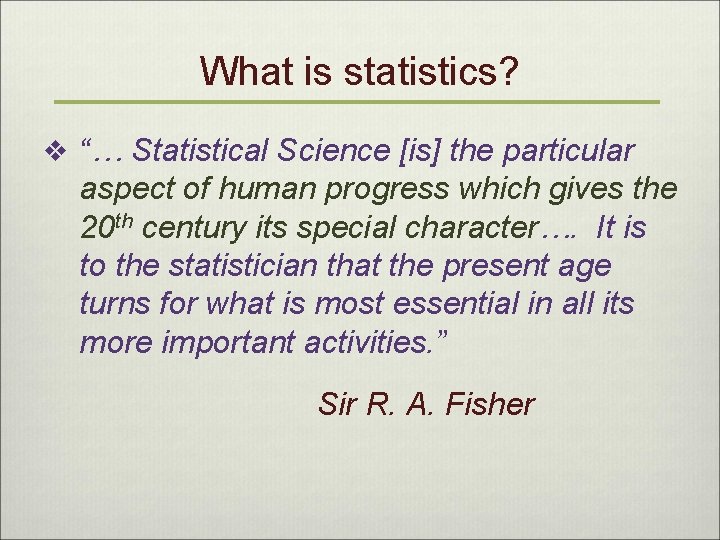

What is statistics? v “… Statistical Science [is] the particular aspect of human progress which gives the 20 th century its special character…. It is to the statistician that the present age turns for what is most essential in all its more important activities. ” Sir R. A. Fisher

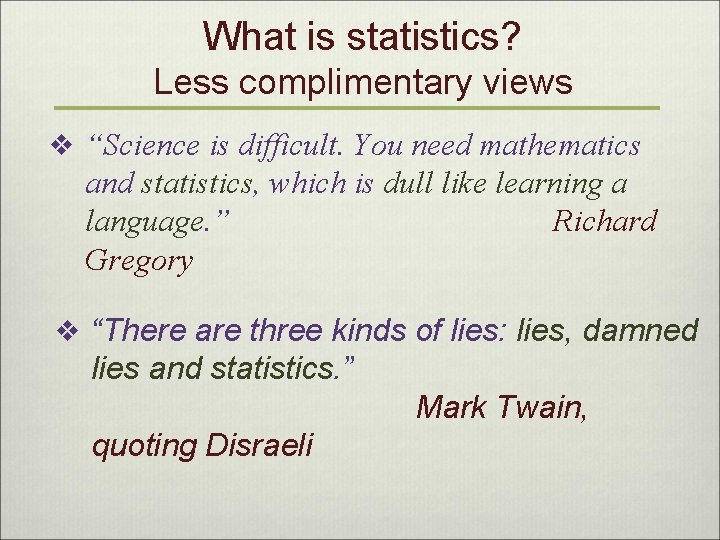

What is statistics? Less complimentary views v “Science is difficult. You need mathematics and statistics, which is dull like learning a language. ” Richard Gregory v “There are three kinds of lies: lies, damned lies and statistics. ” Mark Twain, quoting Disraeli

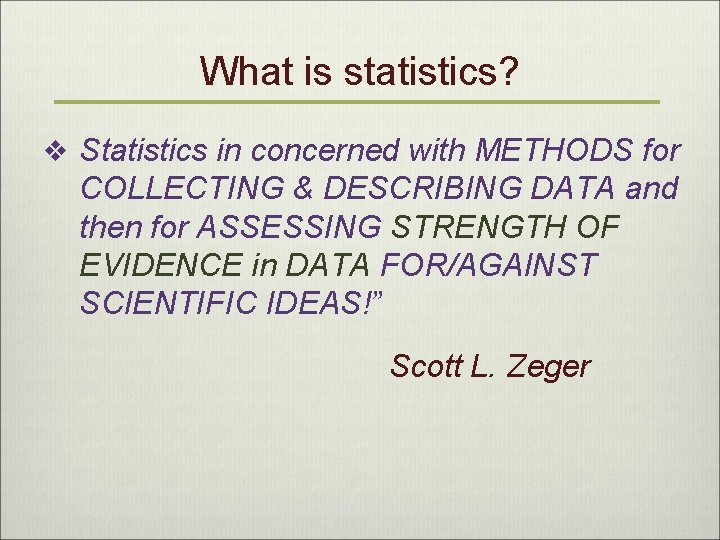

What is statistics? v Statistics in concerned with METHODS for COLLECTING & DESCRIBING DATA and then for ASSESSING STRENGTH OF EVIDENCE in DATA FOR/AGAINST SCIENTIFIC IDEAS!” Scott L. Zeger

What is statistics? v the art and science of gathering, analyzing, and making inferences from data. ” Encyclopaedia Britannica Poetry Music Statistics Mathematics Physics

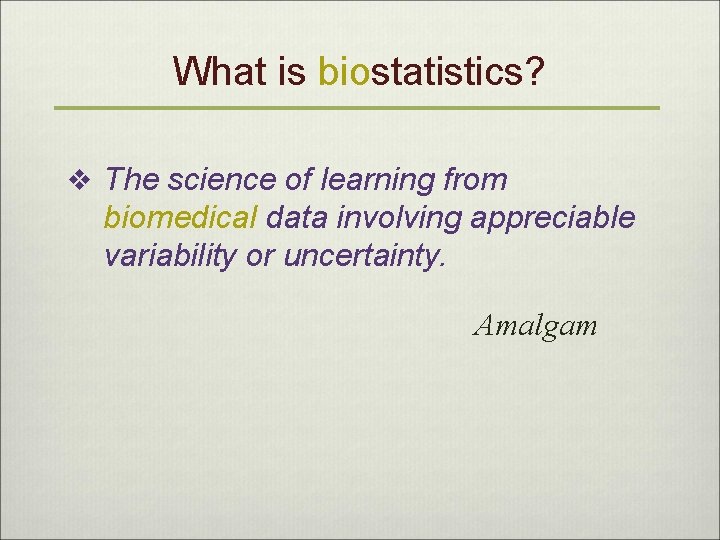

What is biostatistics? v The science of learning from biomedical data involving appreciable variability or uncertainty. Amalgam

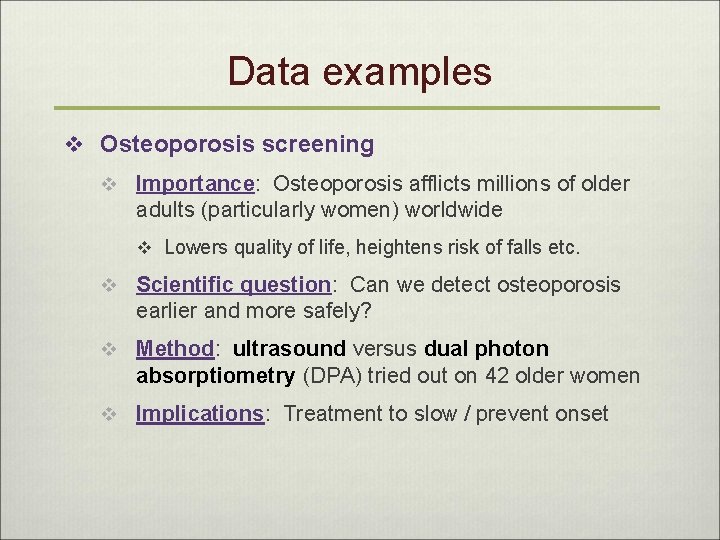

Data examples v Osteoporosis screening v Importance: Osteoporosis afflicts millions of older adults (particularly women) worldwide v Lowers quality of life, heightens risk of falls etc. v Scientific question: Can we detect osteoporosis earlier and more safely? v Method: ultrasound versus dual photon absorptiometry (DPA) tried out on 42 older women v Implications: Treatment to slow / prevent onset

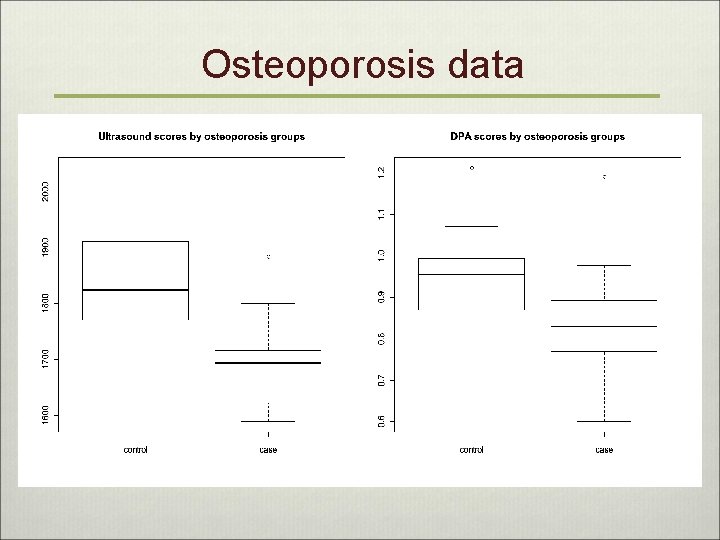

Osteoporosis data

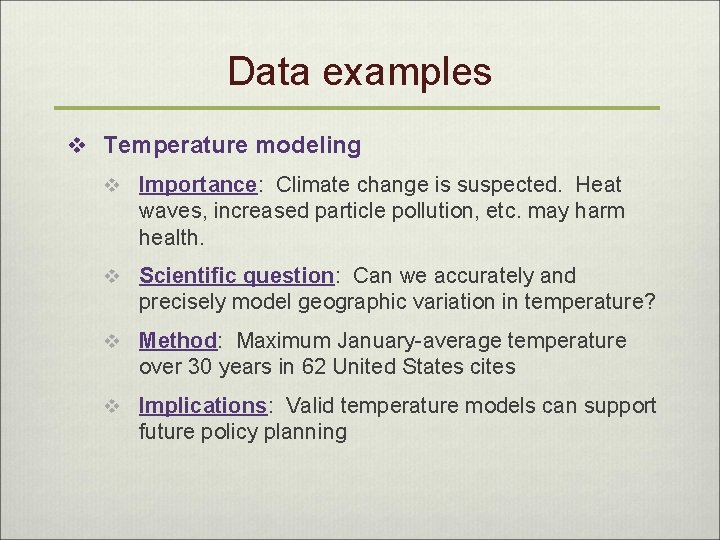

Data examples v Temperature modeling v Importance: Climate change is suspected. Heat waves, increased particle pollution, etc. may harm health. v Scientific question: Can we accurately and precisely model geographic variation in temperature? v Method: Maximum January-average temperature over 30 years in 62 United States cites v Implications: Valid temperature models can support future policy planning

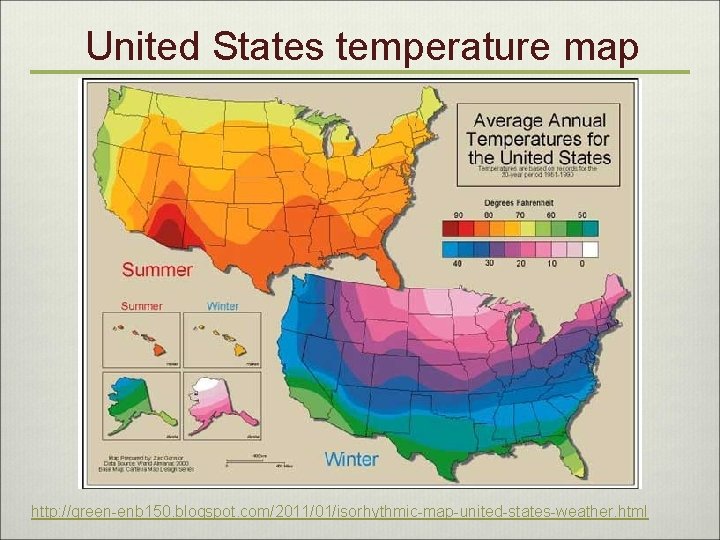

United States temperature map http: //green-enb 150. blogspot. com/2011/01/isorhythmic-map-united-states-weather. html

Modeling geographical variation: Latitude and Longitude http: //www. enchantedlearning. com/usa/activity/latlong/

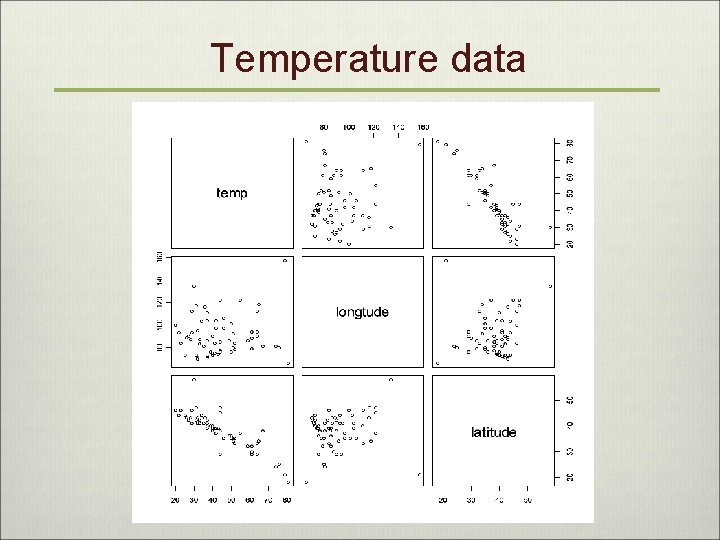

Temperature data

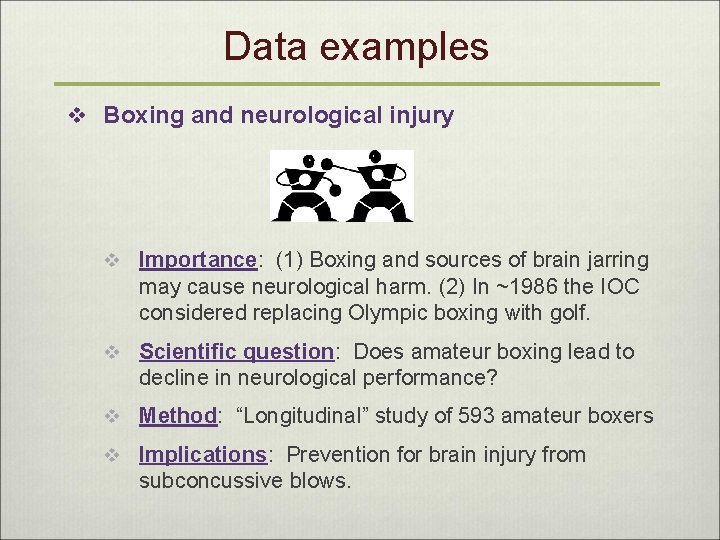

Data examples v Boxing and neurological injury v Importance: (1) Boxing and sources of brain jarring may cause neurological harm. (2) In ~1986 the IOC considered replacing Olympic boxing with golf. v Scientific question: Does amateur boxing lead to decline in neurological performance? v Method: “Longitudinal” study of 593 amateur boxers v Implications: Prevention for brain injury from subconcussive blows.

Boxing data

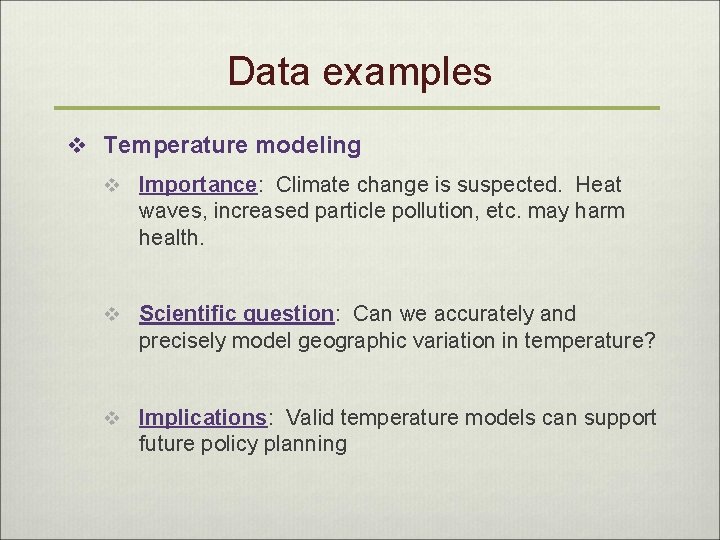

Data examples v Temperature modeling v Importance: Climate change is suspected. Heat waves, increased particle pollution, etc. may harm health. v Scientific question: Can we accurately and precisely model geographic variation in temperature? v Implications: Valid temperature models can support future policy planning

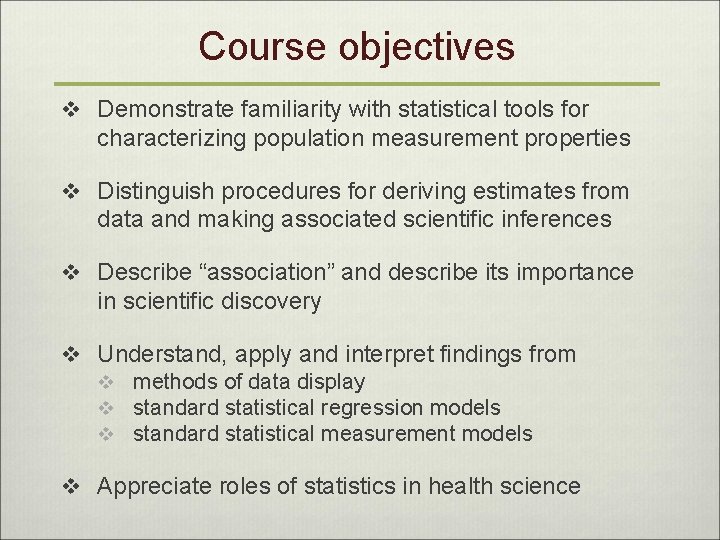

Course objectives v Demonstrate familiarity with statistical tools for characterizing population measurement properties v Distinguish procedures for deriving estimates from data and making associated scientific inferences v Describe “association” and describe its importance in scientific discovery v Understand, apply and interpret findings from v methods of data display v standard statistical regression models v standard statistical measurement models v Appreciate roles of statistics in health science

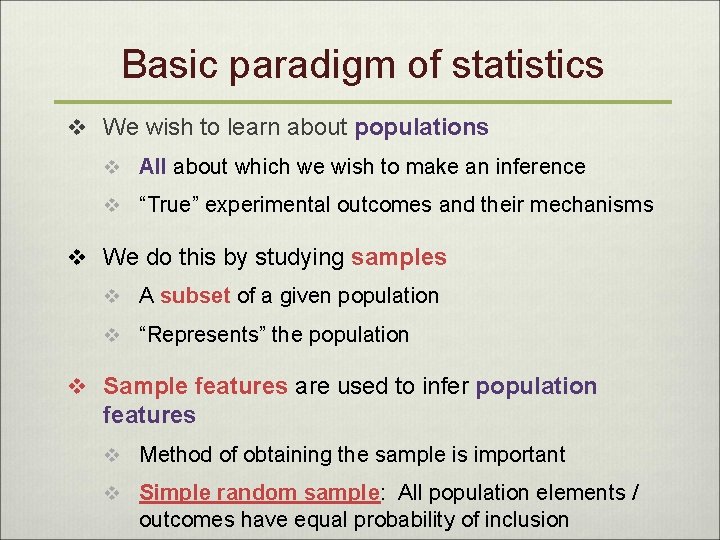

Basic paradigm of statistics v We wish to learn about populations v All about which we wish to make an inference v “True” experimental outcomes and their mechanisms v We do this by studying samples v A subset of a given population v “Represents” the population v Sample features are used to infer population features v Method of obtaining the sample is important v Simple random sample: All population elements / outcomes have equal probability of inclusion

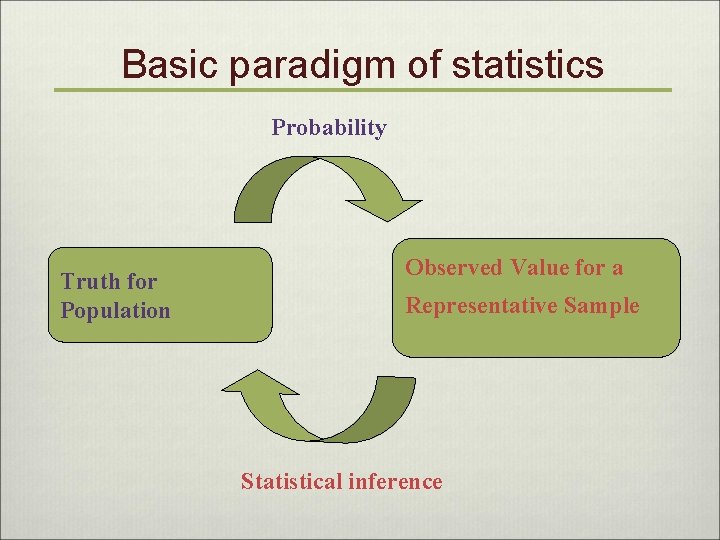

Basic paradigm of statistics Probability Truth for Population Observed Value for a Representative Sample Statistical inference

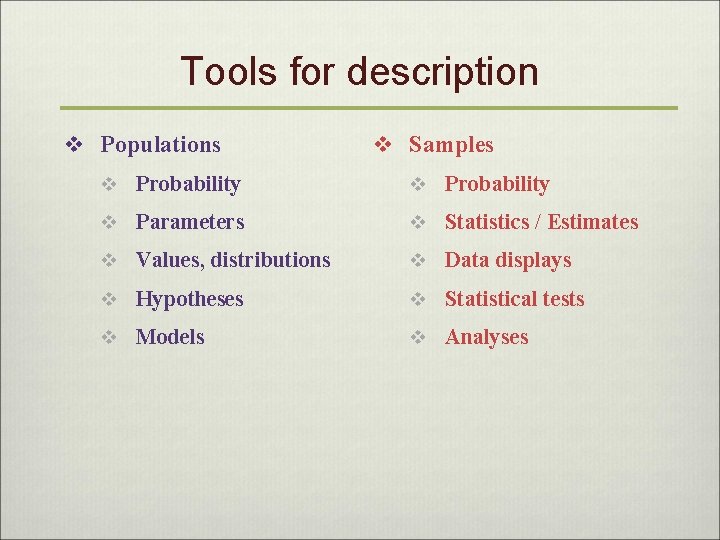

Tools for description v Populations v Samples v Probability v Parameters v Statistics / Estimates v Values, distributions v Data displays v Hypotheses v Statistical tests v Models v Analyses

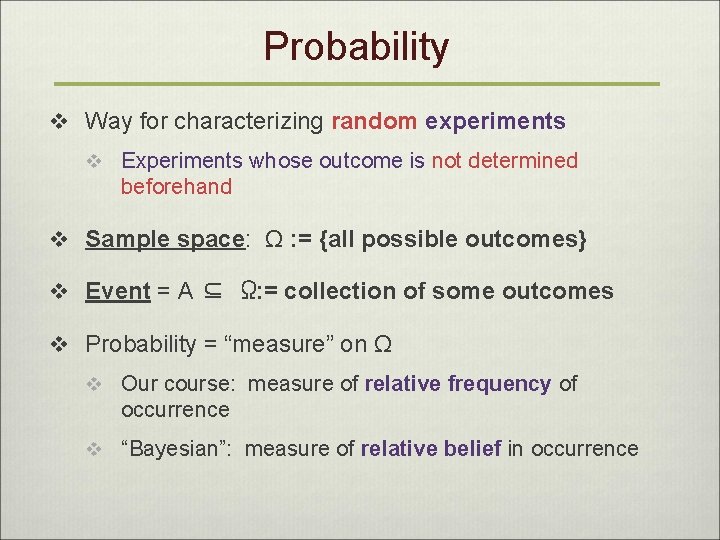

Probability v Way for characterizing random experiments v Experiments whose outcome is not determined beforehand v Sample space: Ω : = {all possible outcomes} v Event = A ⊆ Ω: = collection of some outcomes v Probability = “measure” on Ω v Our course: measure of relative frequency of occurrence v “Bayesian”: measure of relative belief in occurrence

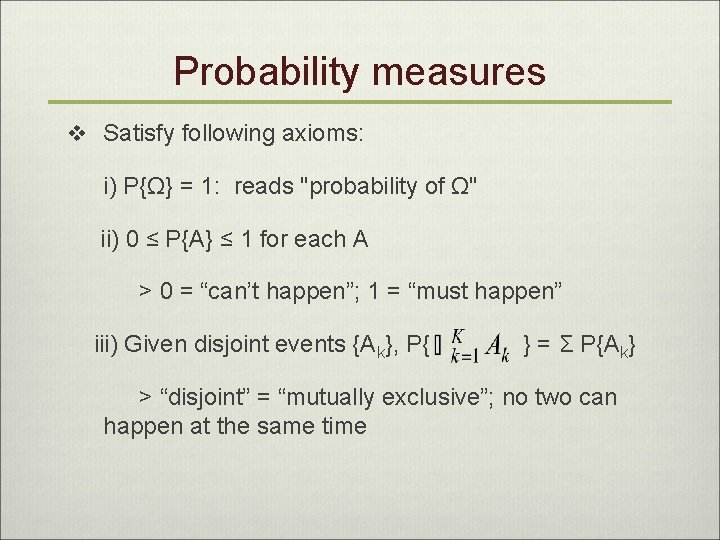

Probability measures v Satisfy following axioms: i) P{Ω} = 1: reads "probability of Ω" ii) 0 ≤ P{A} ≤ 1 for each A > 0 = “can’t happen”; 1 = “must happen” iii) Given disjoint events {Ak}, P{ } = Σ P{Ak} > “disjoint” = “mutually exclusive”; no two can happen at the same time

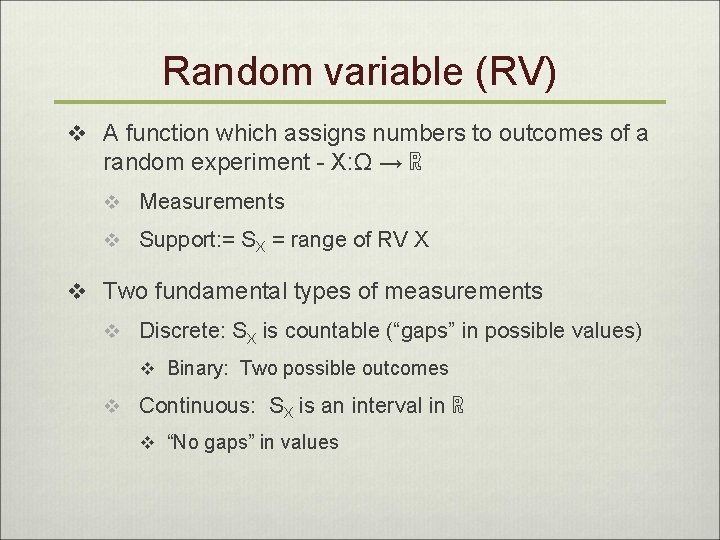

Random variable (RV) v A function which assigns numbers to outcomes of a random experiment - X: Ω → ℝ v Measurements v Support: = SX = range of RV X v Two fundamental types of measurements v Discrete: SX is countable (“gaps” in possible values) v Binary: Two possible outcomes v Continuous: SX is an interval in ℝ v “No gaps” in values

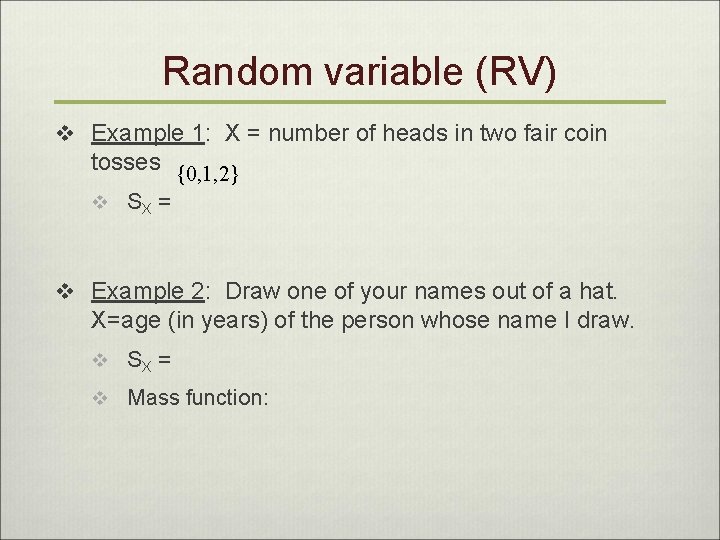

Random variable (RV) v Example 1: X = number of heads in two fair coin tosses {0, 1, 2} v SX = v Example 2: Draw one of your names out of a hat. X=age (in years) of the person whose name I draw. v SX = v Mass function:

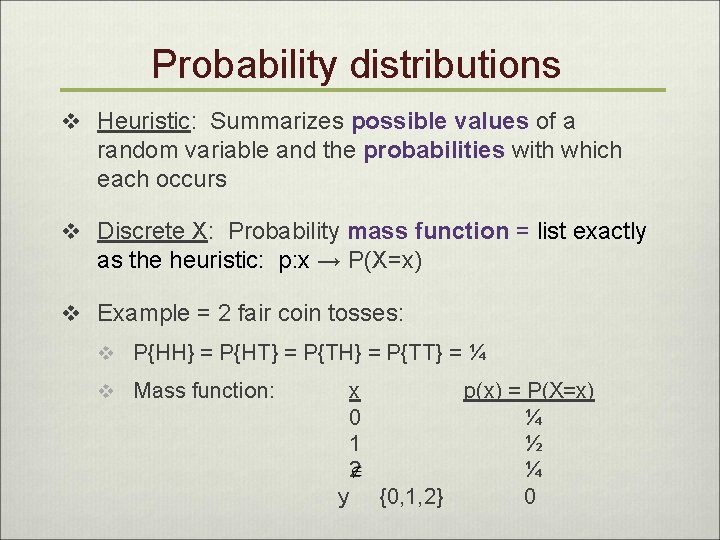

Probability distributions v Heuristic: Summarizes possible values of a random variable and the probabilities with which each occurs v Discrete X: Probability mass function = list exactly as the heuristic: p: x → P(X=x) v Example = 2 fair coin tosses: v P{HH} = P{HT} = P{TH} = P{TT} = ¼ v Mass function: x 0 1 2 y p(x) = P(X=x) ¼ ½ ¼ {0, 1, 2} 0

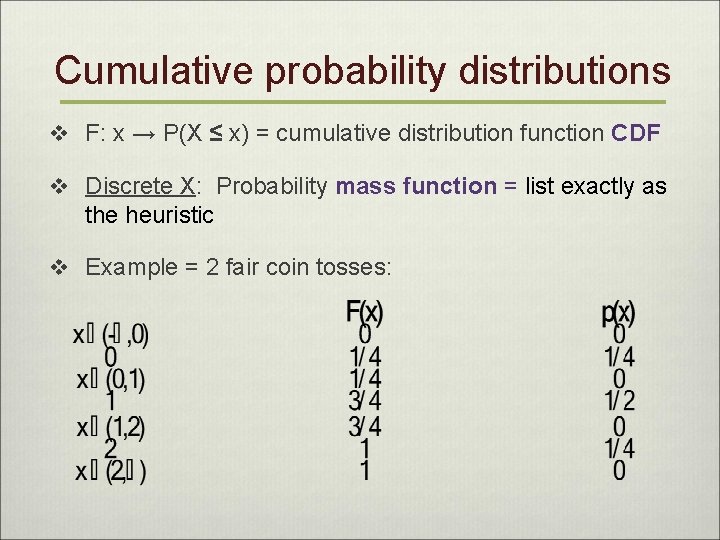

Cumulative probability distributions v F: x → P(X ≤ x) = cumulative distribution function CDF v Discrete X: Probability mass function = list exactly as the heuristic v Example = 2 fair coin tosses:

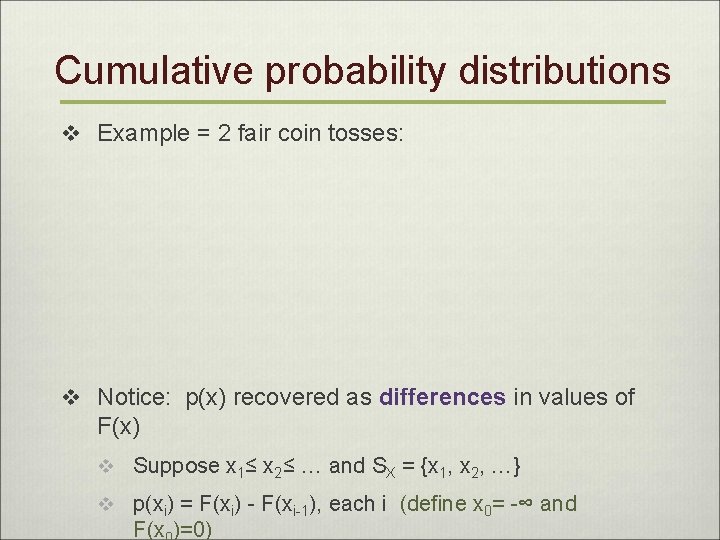

Cumulative probability distributions v Example = 2 fair coin tosses: v Notice: p(x) recovered as differences in values of F(x) v Suppose x 1≤ x 2≤ … and SX = {x 1, x 2, …} v p(xi) = F(xi) - F(xi-1), each i (define x 0= -∞ and F(x )=0)

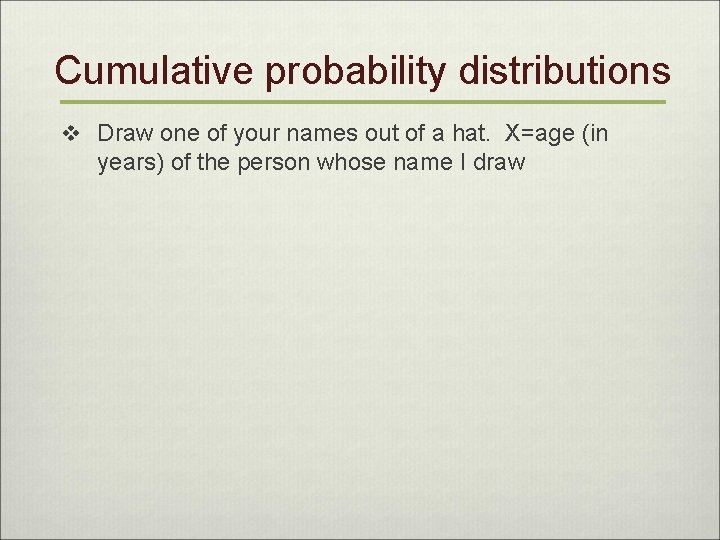

Cumulative probability distributions v Draw one of your names out of a hat. X=age (in years) of the person whose name I draw

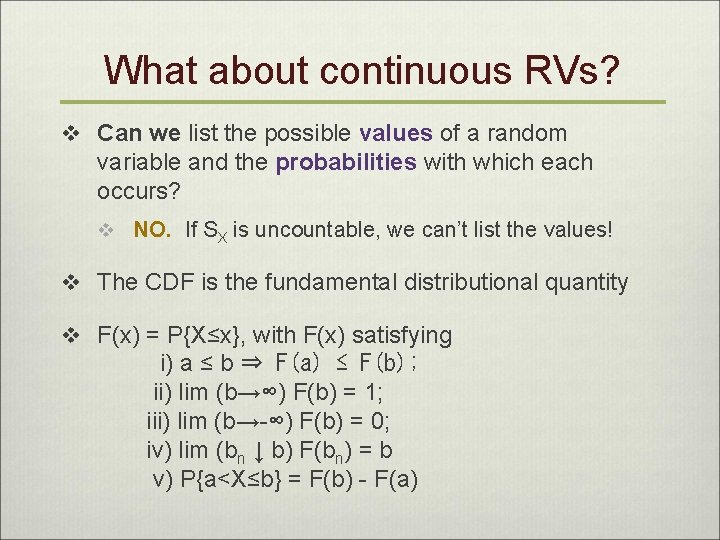

What about continuous RVs? v Can we list the possible values of a random variable and the probabilities with which each occurs? v NO. If SX is uncountable, we can’t list the values! v The CDF is the fundamental distributional quantity v F(x) = P{X≤x}, with F(x) satisfying i) a ≤ b ⇒ F(a) ≤ F(b); ii) lim (b→∞) F(b) = 1; iii) lim (b→-∞) F(b) = 0; iv) lim (bn ↓ b) F(bn) = b v) P{a<X≤b} = F(b) - F(a)

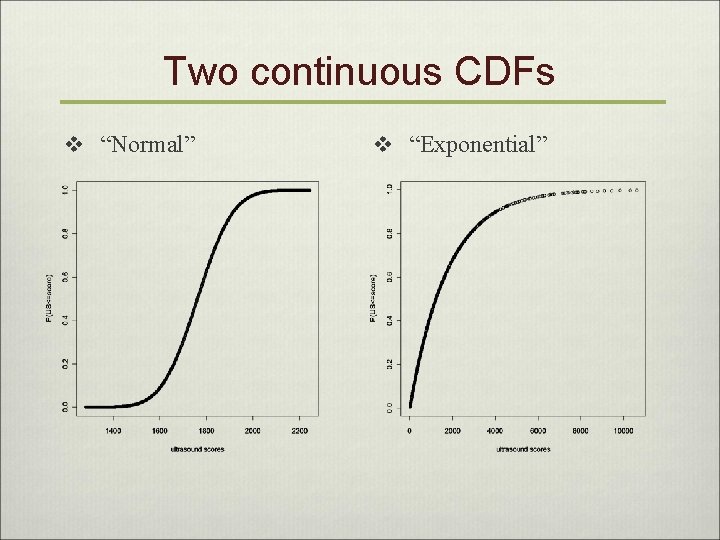

Two continuous CDFs v “Normal” v “Exponential”

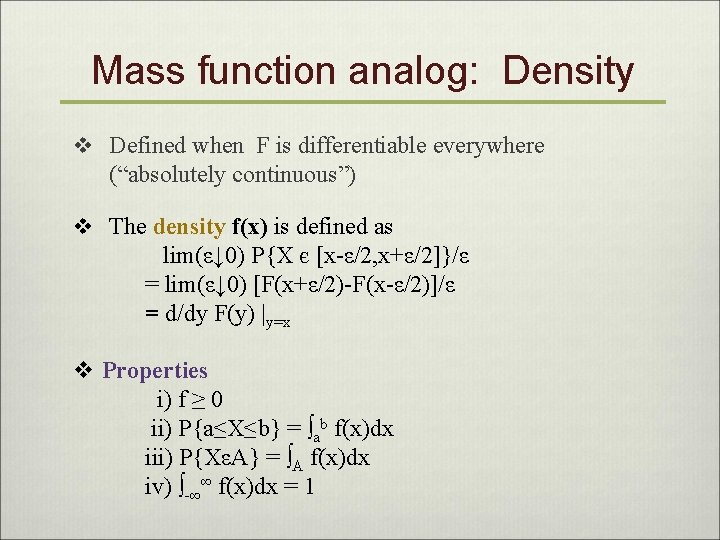

Mass function analog: Density v Defined when F is differentiable everywhere (“absolutely continuous”) v The density f(x) is defined as lim(ε↓ 0) P{X є [x-ε/2, x+ε/2]}/ε = lim(ε↓ 0) [F(x+ε/2)-F(x-ε/2)]/ε = d/dy F(y) |y=x v Properties i) f ≥ 0 ii) P{a≤X≤b} = ∫ab f(x)dx iii) P{XεA} = ∫A f(x)dx iv) ∫-∞∞ f(x)dx = 1

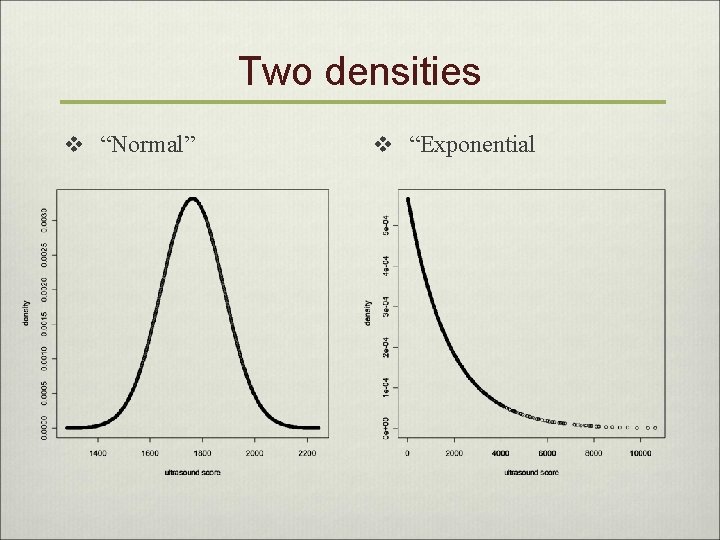

Two densities v “Normal” v “Exponential

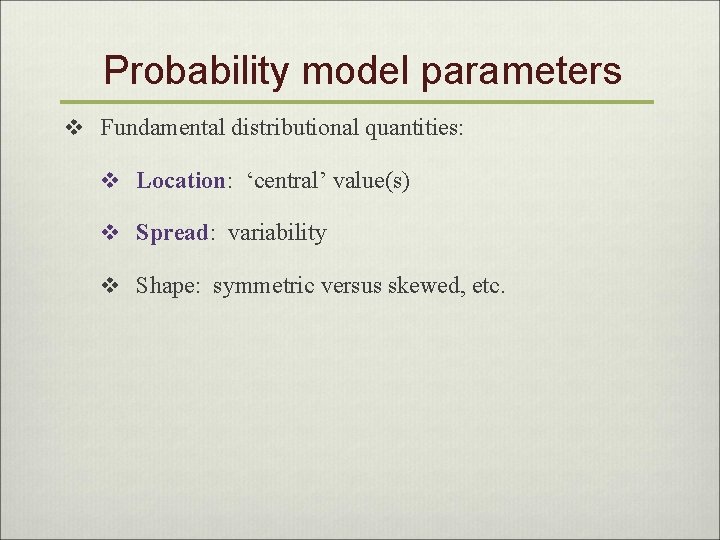

Probability model parameters v Fundamental distributional quantities: v Location: ‘central’ value(s) v Spread: variability v Shape: symmetric versus skewed, etc.

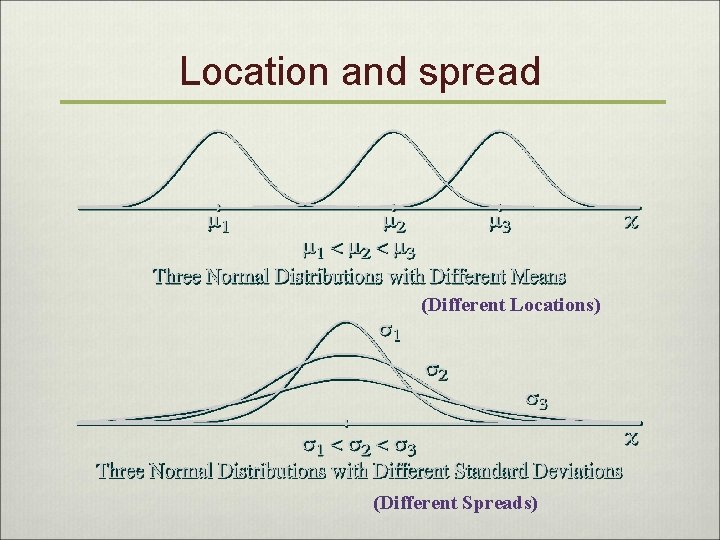

Location and spread (Different Locations) (Different Spreads)

Probability model parameters v Location v Mean: E[X] = ∫ xd. F(x) = µ v Discrete FV: E[X] = ΣxεSX xp(x) v Continuous case: E[X] = ∫ xf (x)dx v Linearity property: E[a+b. X] = a + b. E[X] v Physical interpretation: Center of mass

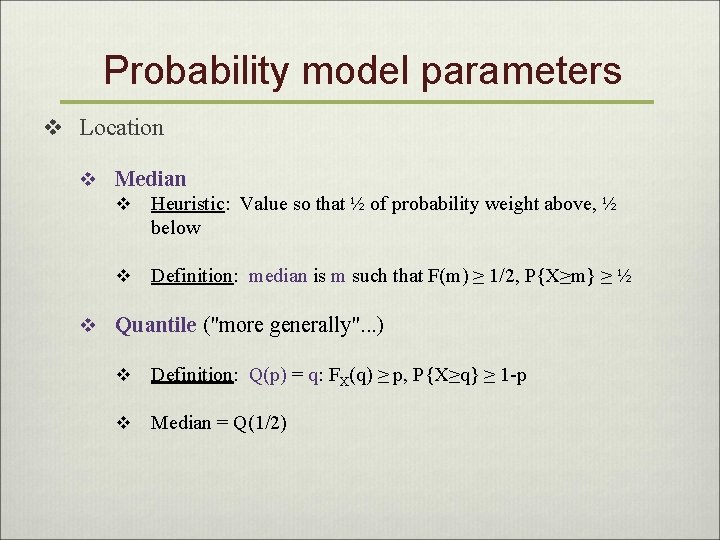

Probability model parameters v Location v Median v Heuristic: Value so that ½ of probability weight above, ½ below v Definition: median is m such that F(m) ≥ 1/2, P{X≥m} ≥ ½ v Quantile ("more generally". . . ) v Definition: Q(p) = q: FX(q) ≥ p, P{X≥q} ≥ 1 -p v Median = Q(1/2)

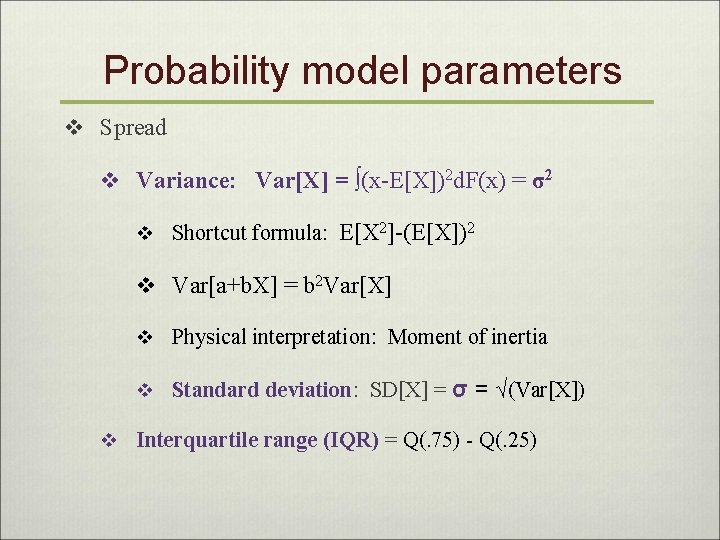

Probability model parameters v Spread v Variance: Var[X] = ∫(x-E[X])2 d. F(x) = σ2 v Shortcut formula: E[X 2]-(E[X])2 v Var[a+b. X] = b 2 Var[X] v Physical interpretation: Moment of inertia v Standard deviation: SD[X] = σ = √(Var[X]) v Interquartile range (IQR) = Q(. 75) - Q(. 25)

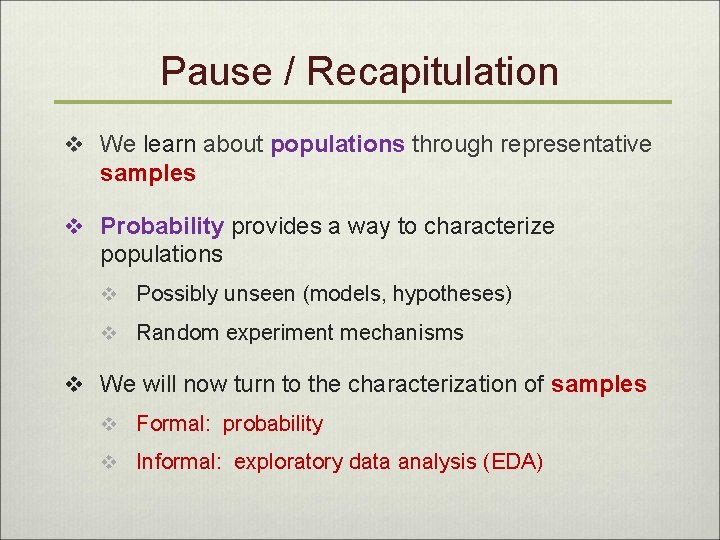

Pause / Recapitulation v We learn about populations through representative samples v Probability provides a way to characterize populations v Possibly unseen (models, hypotheses) v Random experiment mechanisms v We will now turn to the characterization of samples v Formal: probability v Informal: exploratory data analysis (EDA)

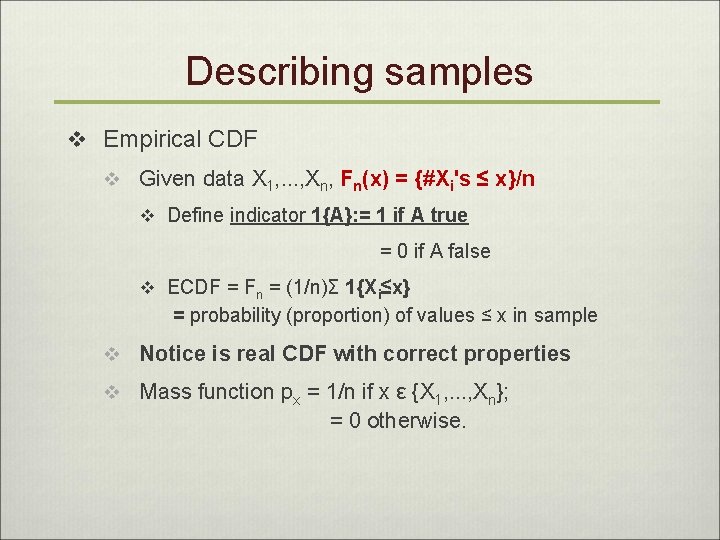

Describing samples v Empirical CDF v Given data X 1, . . . , Xn, Fn(x) = {#Xi's ≤ x}/n v Define indicator 1{A}: = 1 if A true = 0 if A false v ECDF = Fn = (1/n)Σ 1{Xi≤x} = probability (proportion) of values ≤ x in sample v Notice is real CDF with correct properties v Mass function px = 1/n if x ε {X 1, . . . , Xn}; = 0 otherwise.

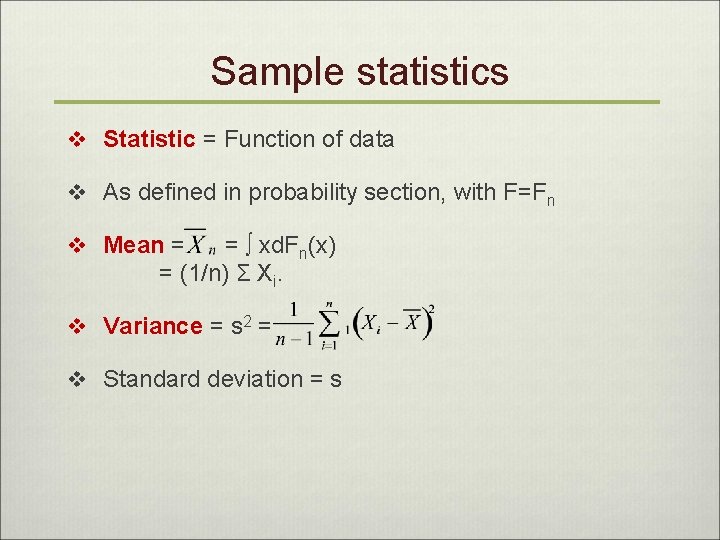

Sample statistics v Statistic = Function of data v As defined in probability section, with F=Fn v Mean = = ∫ xd. Fn(x) = (1/n) Σ Xi. v Variance = s 2 = v Standard deviation = s

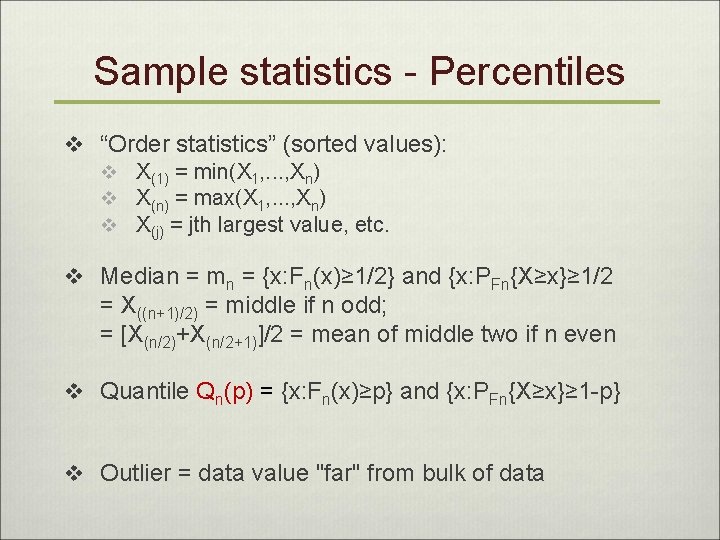

Sample statistics - Percentiles v “Order statistics” (sorted values): v X(1) = min(X 1, . . . , Xn) v X(n) = max(X 1, . . . , Xn) v X(j) = jth largest value, etc. v Median = mn = {x: Fn(x)≥ 1/2} and {x: PFn{X≥x}≥ 1/2 = X((n+1)/2) = middle if n odd; = [X(n/2)+X(n/2+1)]/2 = mean of middle two if n even v Quantile Qn(p) = {x: Fn(x)≥p} and {x: PFn{X≥x}≥ 1 -p} v Outlier = data value "far" from bulk of data

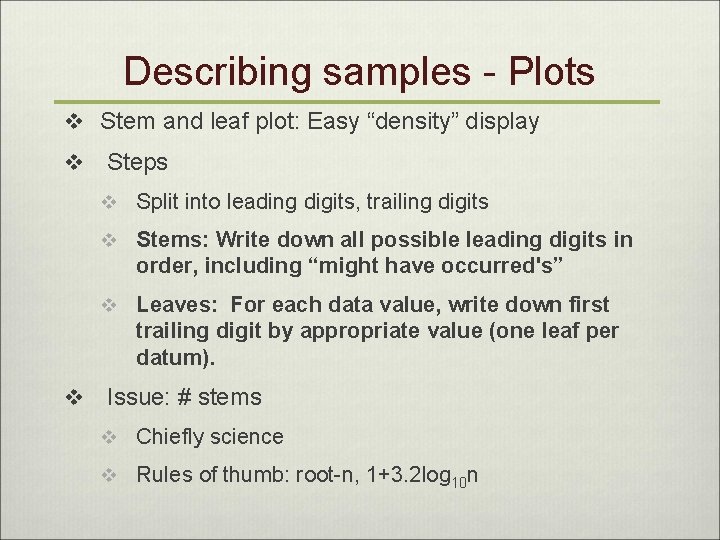

Describing samples - Plots v Stem and leaf plot: Easy “density” display v Steps v Split into leading digits, trailing digits v Stems: Write down all possible leading digits in order, including “might have occurred's” v Leaves: For each data value, write down first trailing digit by appropriate value (one leaf per datum). v Issue: # stems v Chiefly science v Rules of thumb: root-n, 1+3. 2 log 10 n

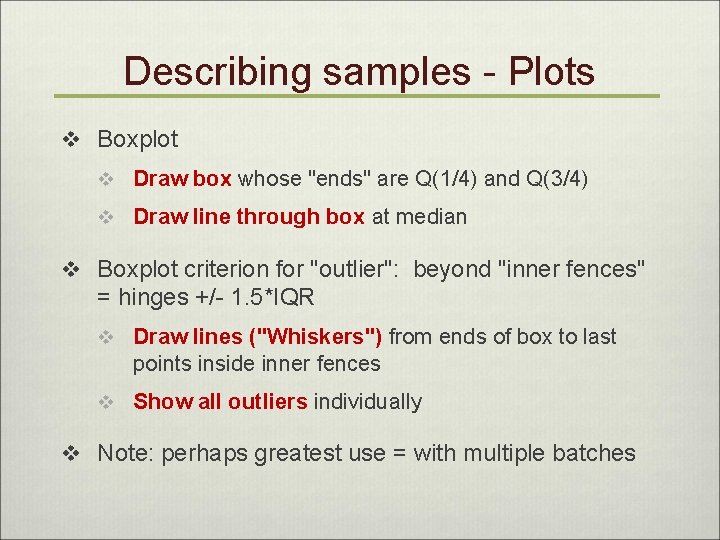

Describing samples - Plots v Boxplot v Draw box whose "ends" are Q(1/4) and Q(3/4) v Draw line through box at median v Boxplot criterion for "outlier": beyond "inner fences" = hinges +/- 1. 5*IQR v Draw lines ("Whiskers") from ends of box to last points inside inner fences v Show all outliers individually v Note: perhaps greatest use = with multiple batches

Osteoporosis data Osteo Age US Score DPA 0 58 1606 0. 837 0 68 1650. 25 0. 841 0 53 1659. 75 0. 917 0 68 1662 0. 975 0 54 1760. 75 0. 722 0 56 1770. 25 0. 801 0 77 1773. 5 1. 213 0 54 1789 1. 027 0 62 1808. 25 1. 045 0 59 1812. 5 0. 988 0 72 1822. 38 0. 907 0 53 1826 0. 971 0 61 1828 0. 88 0 51 1868. 5 0. 898 0 61 1898. 25 0. 806 0 52 1908. 88 0. 994 0 66 1911. 75 1. 045 0 53 1935. 75 0. 869 0 62 1937. 75 0. 968 0 59 1946 0. 957 0 50 2004. 5 0. 954 0 61 2043. 08 1. 072

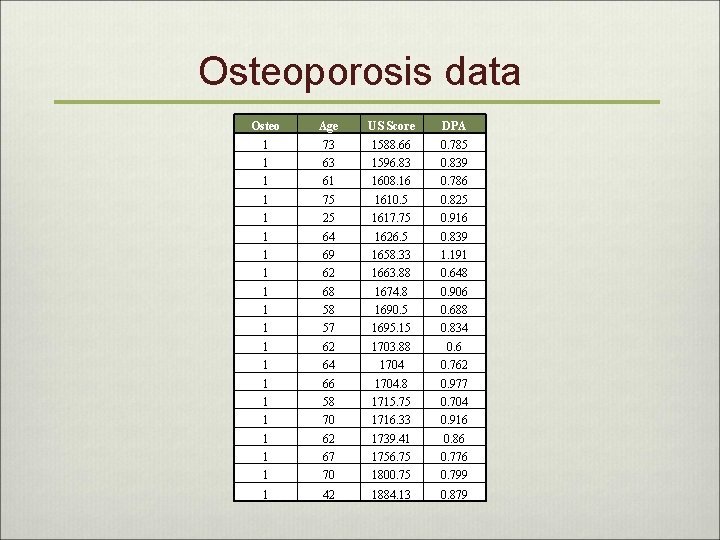

Osteoporosis data Osteo Age US Score DPA 1 73 1588. 66 0. 785 1 63 1596. 83 0. 839 1 61 1608. 16 0. 786 1 75 1610. 5 0. 825 1617. 75 0. 916 1 64 1626. 5 0. 839 1 69 1658. 33 1. 191 1 62 1663. 88 0. 648 1 68 1674. 8 0. 906 1 58 1690. 5 0. 688 1 57 1695. 15 0. 834 1 62 1703. 88 0. 6 1 64 1704 0. 762 1 66 1704. 8 0. 977 1 58 1715. 75 0. 704 1 70 1716. 33 0. 916 1 62 1739. 41 0. 86 1 67 1756. 75 0. 776 1 70 1800. 75 0. 799 1 42 1884. 13 0. 879

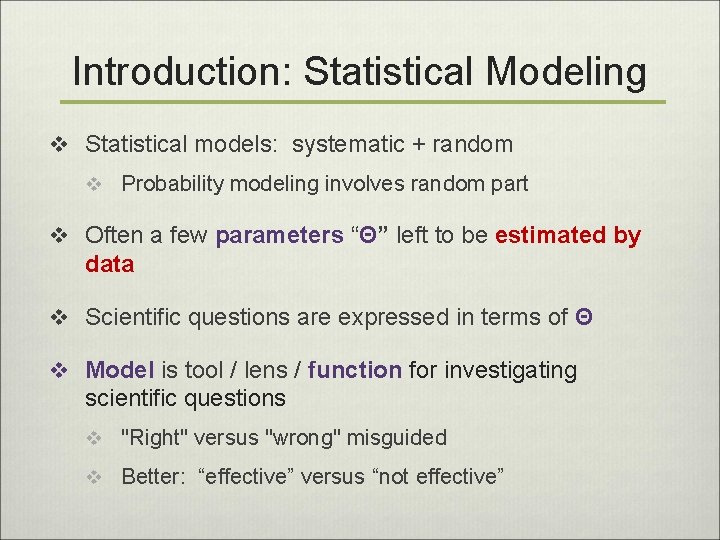

Introduction: Statistical Modeling v Statistical models: systematic + random v Probability modeling involves random part v Often a few parameters “Θ” left to be estimated by data v Scientific questions are expressed in terms of Θ v Model is tool / lens / function for investigating scientific questions v "Right" versus "wrong" misguided v Better: “effective” versus “not effective”

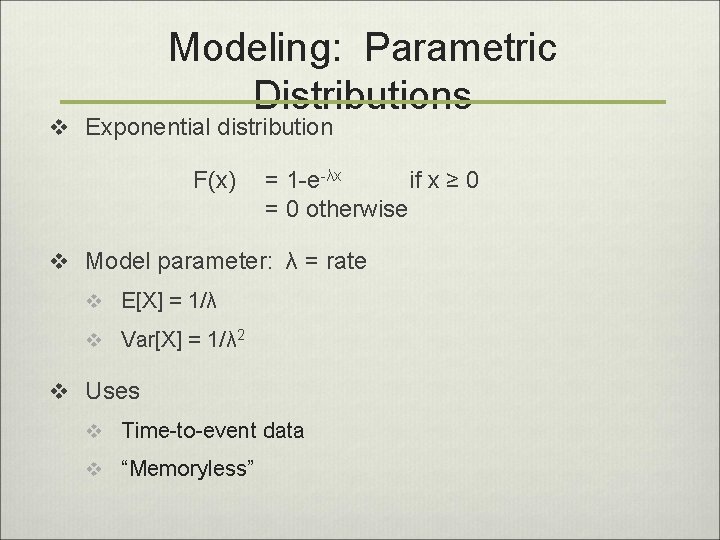

Modeling: Parametric Distributions v Exponential distribution F(x) = 1 -e-λx if x ≥ 0 = 0 otherwise v Model parameter: λ = rate v E[X] = 1/λ v Var[X] = 1/λ 2 v Uses v Time-to-event data v “Memoryless”

Modeling: Parametric Distributions v Normal distribution f(x) = on support SX = (-∞, ∞). v Distribution function has no closed form: v F(x) : = ∫-∞x f (t)dt, f given above v F(x) tabulated, available from software packages v Model parameters: μ=mean; σ2=variance

Normal distribution v Characteristics a) f(x) is symmetric about μ b) P{μ-σ≤X≤μ+σ} ≈. 68 c) P{μ-2σ≤X≤μ+2σ} ≈. 95 v Why is the normal distribution so popular? a) If X distributed as (“~”) Normal with parameters (μ, σ) then (X-μ)/σ = “Z” ~ Normal (μ=0, σ=1) b) Central limit theorem: Distributions of sample means converge to normal as n →∞

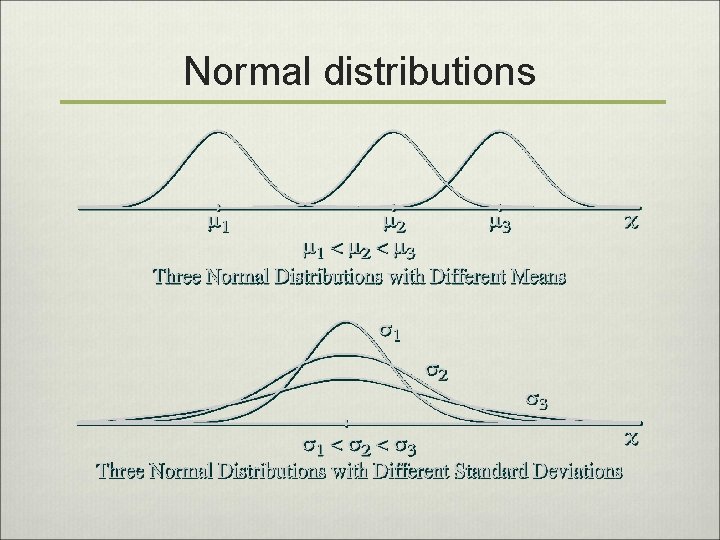

Normal distributions

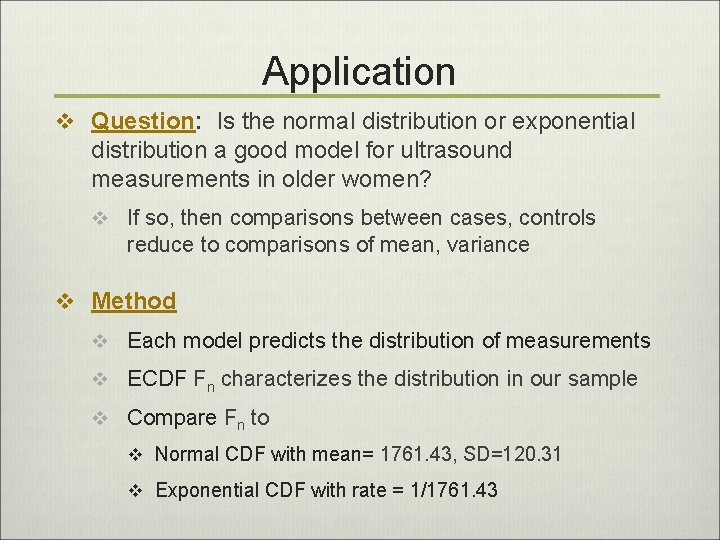

Application v Question: Is the normal distribution or exponential distribution a good model for ultrasound measurements in older women? v If so, then comparisons between cases, controls reduce to comparisons of mean, variance v Method v Each model predicts the distribution of measurements v ECDF Fn characterizes the distribution in our sample v Compare Fn to v Normal CDF with mean= 1761. 43, SD=120. 31 v Exponential CDF with rate = 1/1761. 43

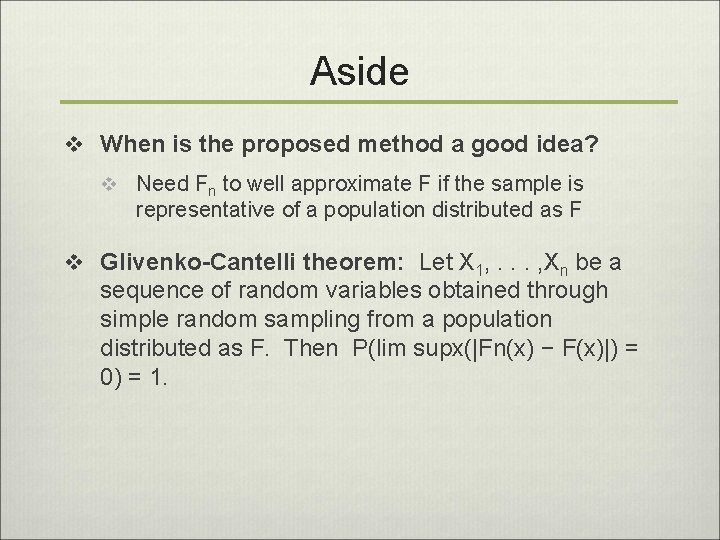

Aside v When is the proposed method a good idea? v Need Fn to well approximate F if the sample is representative of a population distributed as F v Glivenko-Cantelli theorem: Let X 1, . . . , Xn be a sequence of random variables obtained through simple random sampling from a population distributed as F. Then P(lim supx(|Fn(x) − F(x)|) = 0) = 1.

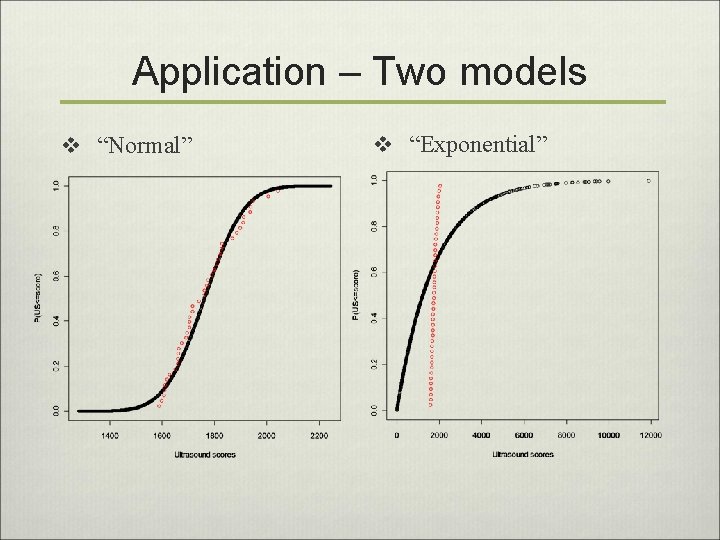

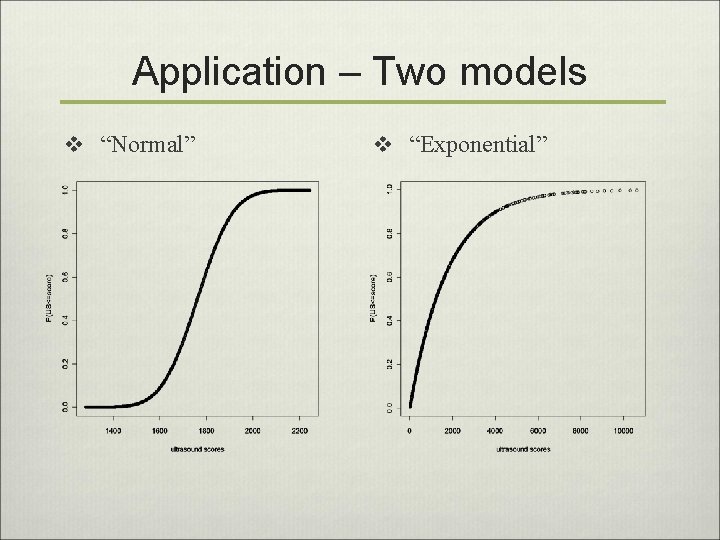

Application – Two models v “Normal” v “Exponential”

Application – Two models v “Normal” v “Exponential”

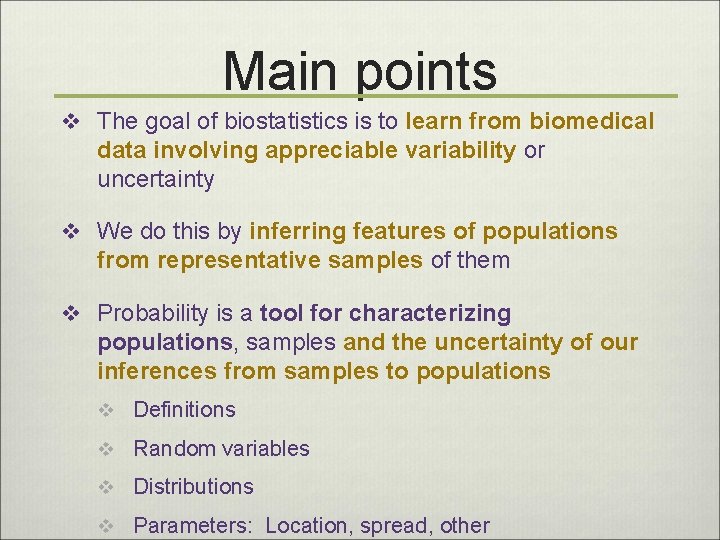

Main points v The goal of biostatistics is to learn from biomedical data involving appreciable variability or uncertainty v We do this by inferring features of populations from representative samples of them v Probability is a tool for characterizing populations, samples and the uncertainty of our inferences from samples to populations v Definitions v Random variables v Distributions v Parameters: Location, spread, other

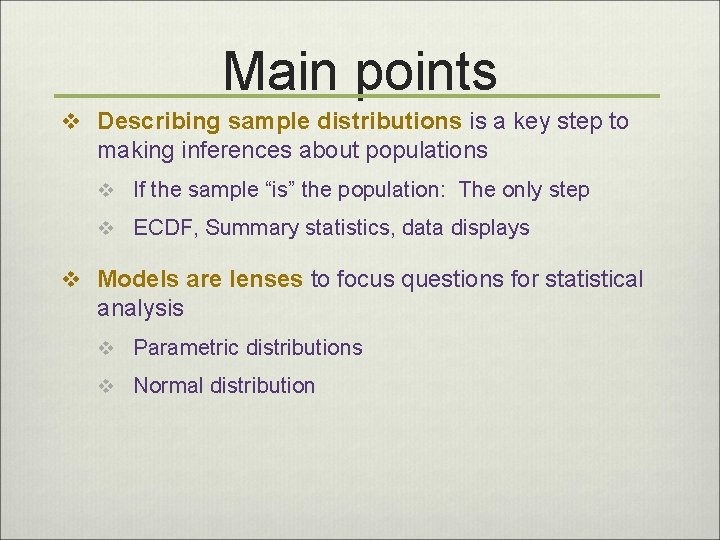

Main points v Describing sample distributions is a key step to making inferences about populations v If the sample “is” the population: The only step v ECDF, Summary statistics, data displays v Models are lenses to focus questions for statistical analysis v Parametric distributions v Normal distribution
