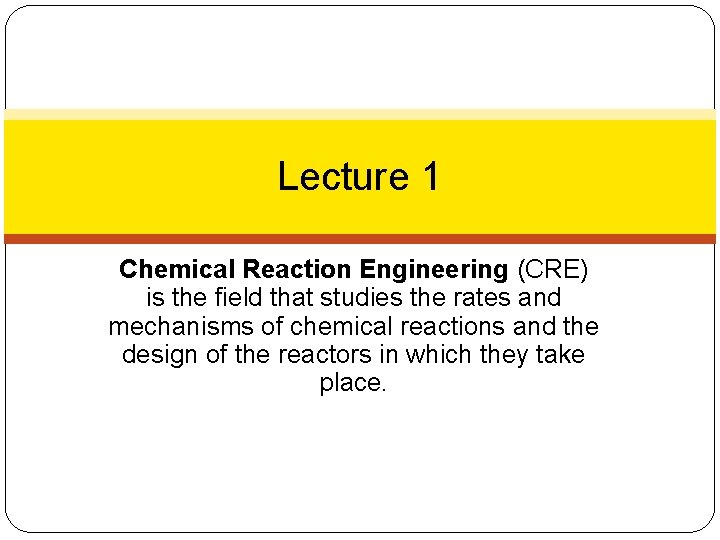

Lecture 1 Chemical Reaction Engineering (CRE) is the field that studies the rates and mechanisms of chemical reactions and the design of the reactors in which they take place. 1

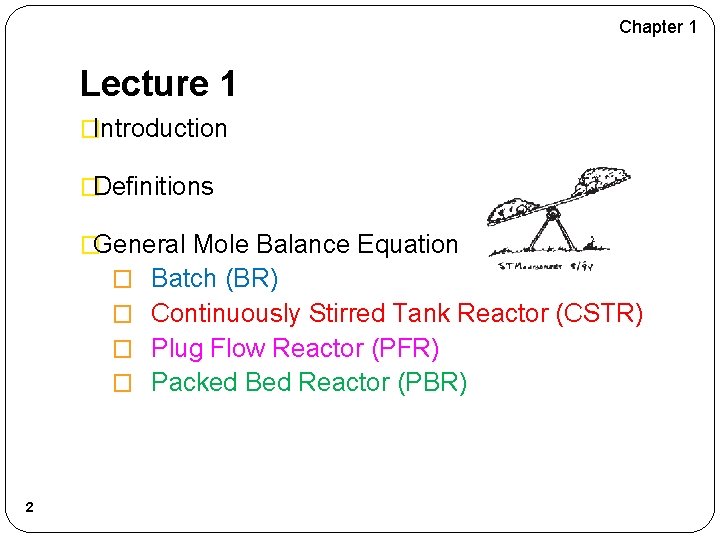

Chapter 1 Lecture 1 �Introduction �Definitions �General Mole Balance Equation � Batch (BR) � Continuously Stirred Tank Reactor (CSTR) � Plug Flow Reactor (PFR) � Packed Bed Reactor (PBR) 2

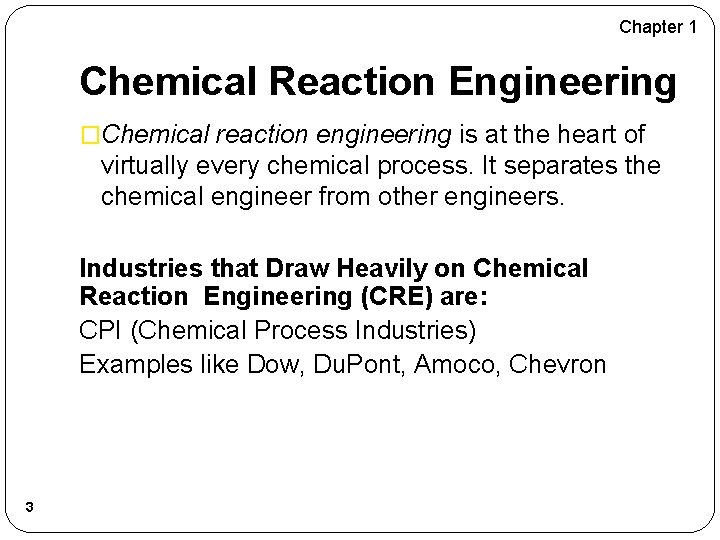

Chapter 1 Chemical Reaction Engineering �Chemical reaction engineering is at the heart of virtually every chemical process. It separates the chemical engineer from other engineers. Industries that Draw Heavily on Chemical Reaction Engineering (CRE) are: CPI (Chemical Process Industries) Examples like Dow, Du. Pont, Amoco, Chevron 3

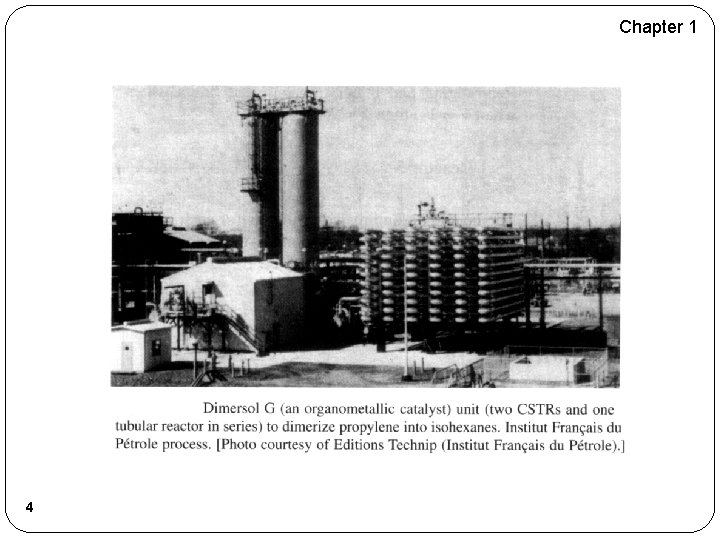

Chapter 1 4

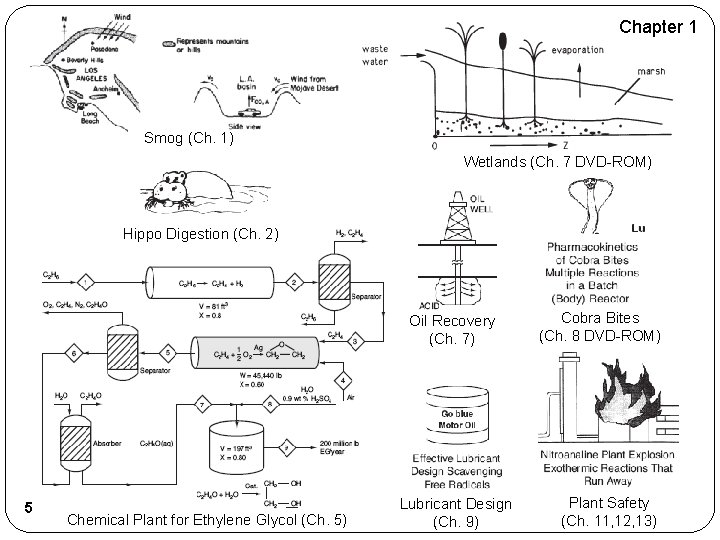

Chapter 1 Smog (Ch. 1) Wetlands (Ch. 7 DVD-ROM) Hippo Digestion (Ch. 2) Oil Recovery (Ch. 7) 5 Chemical Plant for Ethylene Glycol (Ch. 5) Lubricant Design (Ch. 9) Cobra Bites (Ch. 8 DVD-ROM) Plant Safety (Ch. 11, 12, 13)

Materials on the Web and CD-ROM http: //www. umich. edu/~essen/ 6

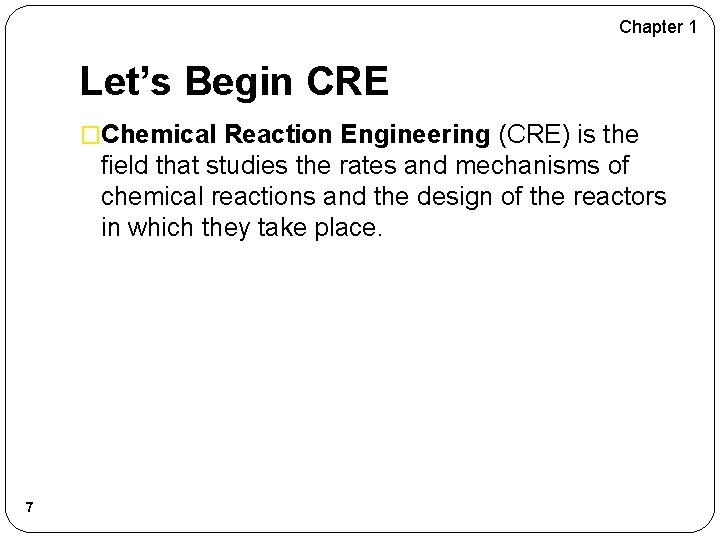

Chapter 1 Let’s Begin CRE �Chemical Reaction Engineering (CRE) is the field that studies the rates and mechanisms of chemical reactions and the design of the reactors in which they take place. 7

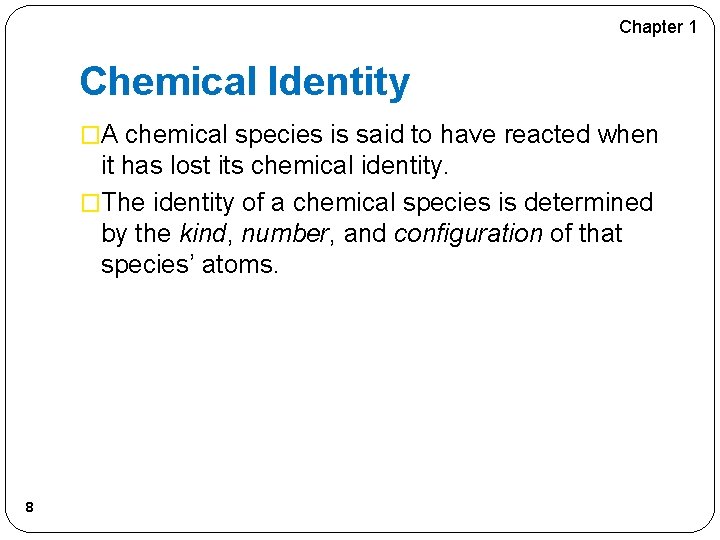

Chapter 1 Chemical Identity �A chemical species is said to have reacted when it has lost its chemical identity. �The identity of a chemical species is determined by the kind, number, and configuration of that species’ atoms. 8

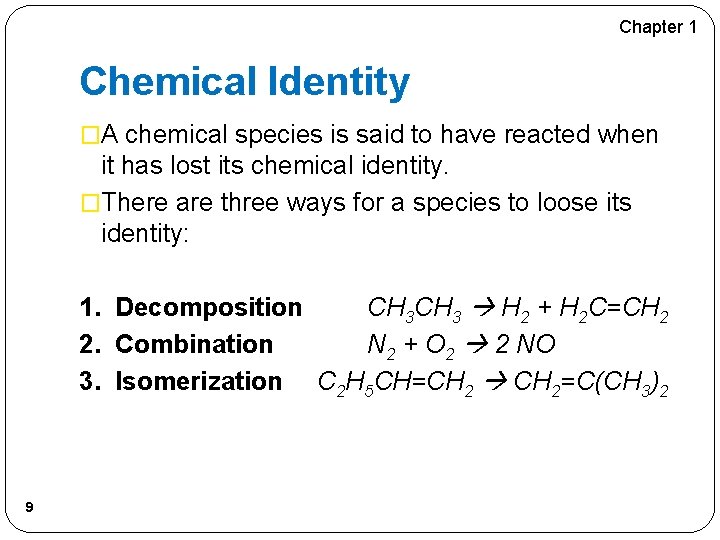

Chapter 1 Chemical Identity �A chemical species is said to have reacted when it has lost its chemical identity. �There are three ways for a species to loose its identity: 1. Decomposition CH 3 H 2 + H 2 C=CH 2 2. Combination N 2 + O 2 2 NO 3. Isomerization C 2 H 5 CH=CH 2 CH 2=C(CH 3)2 9

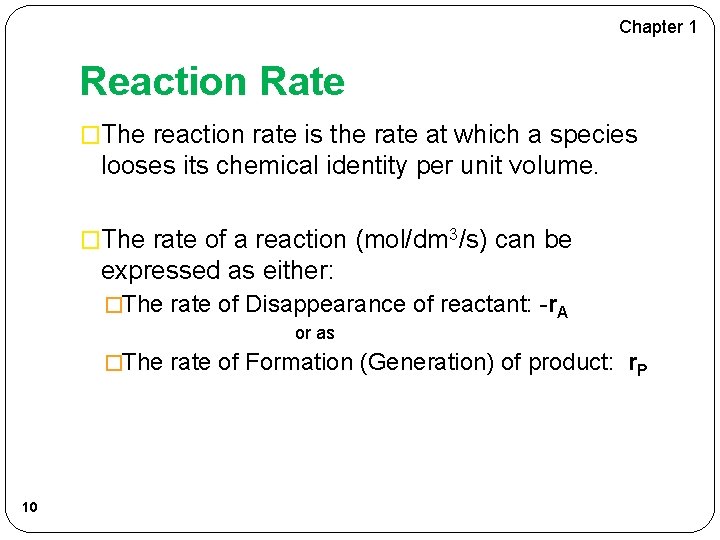

Chapter 1 Reaction Rate �The reaction rate is the rate at which a species looses its chemical identity per unit volume. �The rate of a reaction (mol/dm 3/s) can be expressed as either: �The rate of Disappearance of reactant: -r. A or as �The rate of Formation (Generation) of product: r. P 10

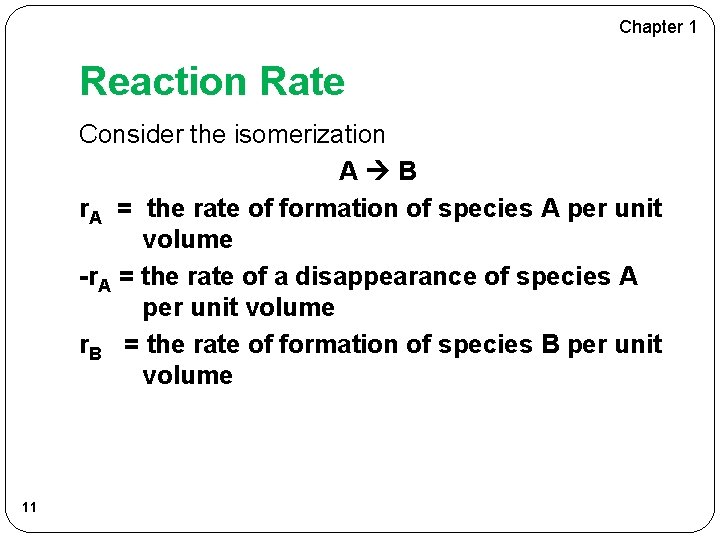

Chapter 1 Reaction Rate Consider the isomerization A B r. A = the rate of formation of species A per unit volume -r. A = the rate of a disappearance of species A per unit volume r. B = the rate of formation of species B per unit volume 11

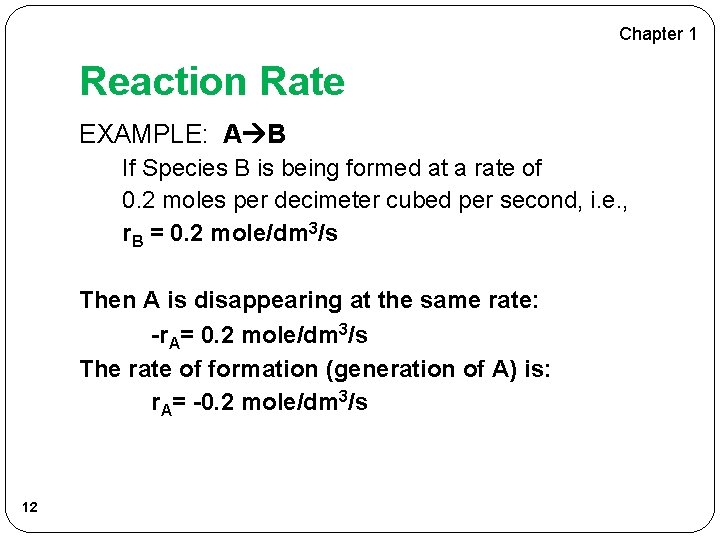

Chapter 1 Reaction Rate EXAMPLE: A B If Species B is being formed at a rate of 0. 2 moles per decimeter cubed per second, i. e. , r. B = 0. 2 mole/dm 3/s Then A is disappearing at the same rate: -r. A= 0. 2 mole/dm 3/s The rate of formation (generation of A) is: r. A= -0. 2 mole/dm 3/s 12

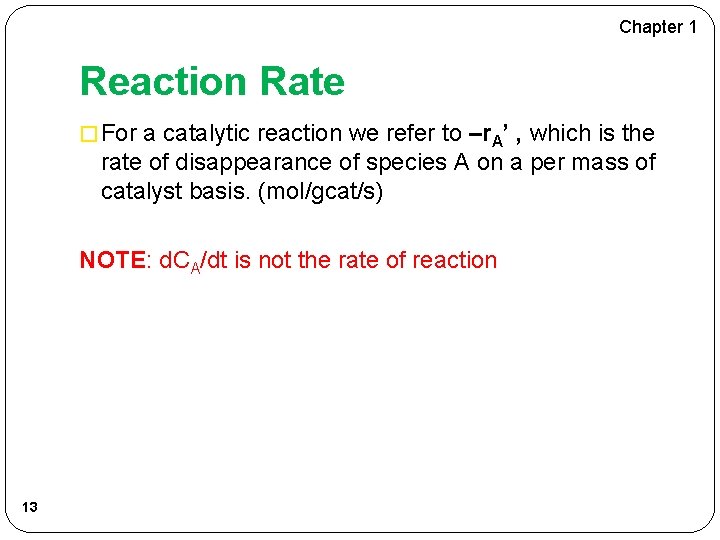

Chapter 1 Reaction Rate � For a catalytic reaction we refer to –r. A’ , which is the rate of disappearance of species A on a per mass of catalyst basis. (mol/gcat/s) NOTE: d. CA/dt is not the rate of reaction 13

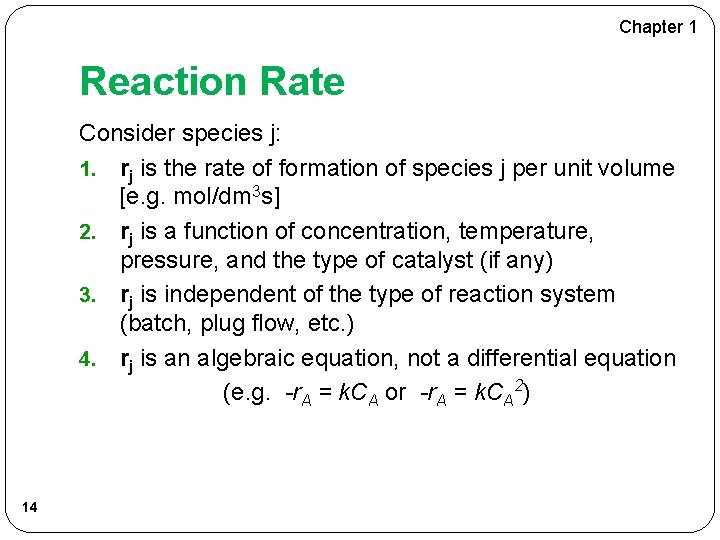

Chapter 1 Reaction Rate Consider species j: 1. rj is the rate of formation of species j per unit volume [e. g. mol/dm 3 s] 2. rj is a function of concentration, temperature, pressure, and the type of catalyst (if any) 3. rj is independent of the type of reaction system (batch, plug flow, etc. ) 4. rj is an algebraic equation, not a differential equation (e. g. -r. A = k. CA or -r. A = k. CA 2) 14

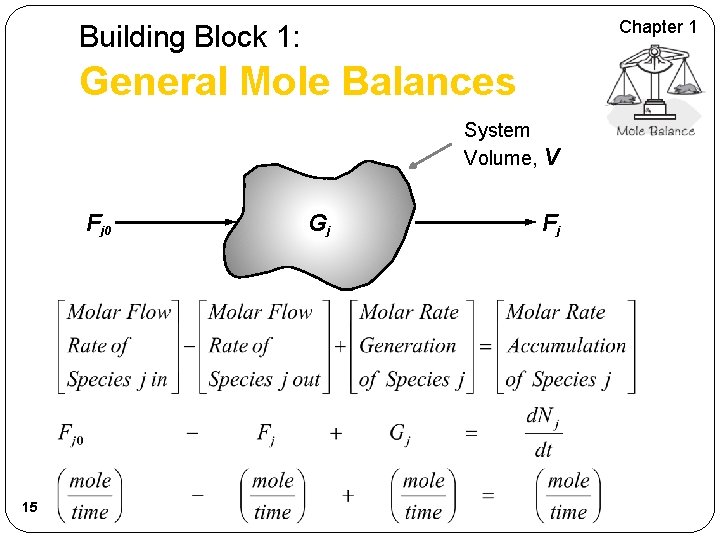

Chapter 1 Building Block 1: General Mole Balances System Volume, V Fj 0 15 Gj Fj

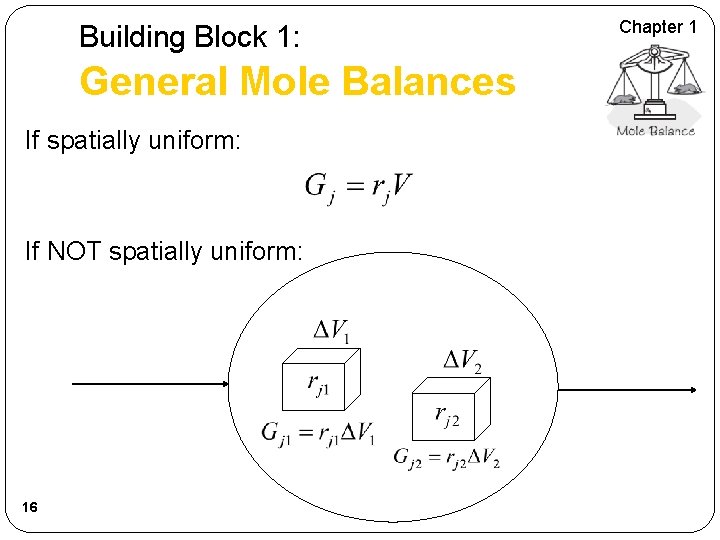

Building Block 1: General Mole Balances If spatially uniform: If NOT spatially uniform: 16 Chapter 1

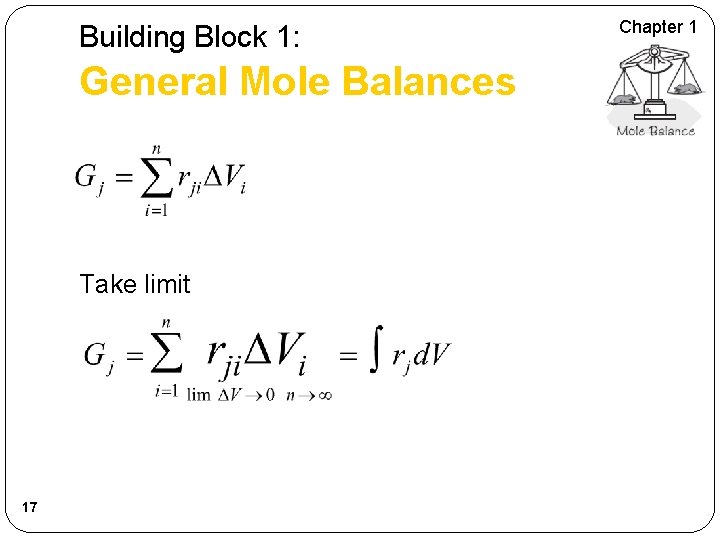

Building Block 1: General Mole Balances Take limit 17 Chapter 1

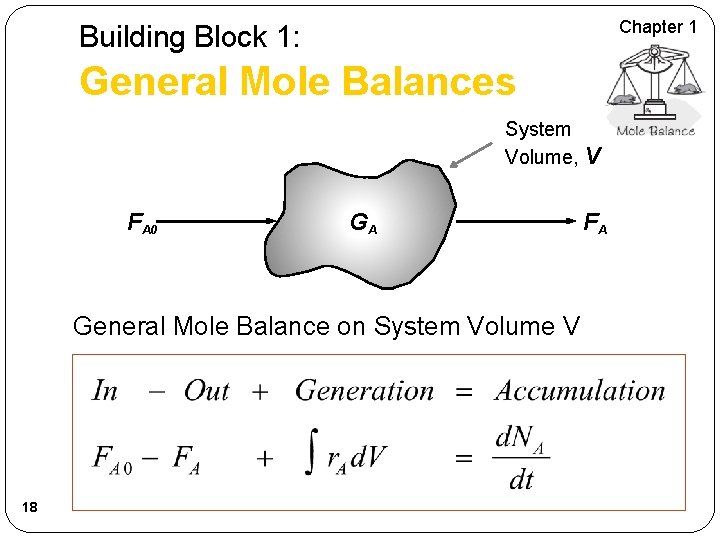

Chapter 1 Building Block 1: General Mole Balances System Volume, V FA 0 GA General Mole Balance on System Volume V 18 FA

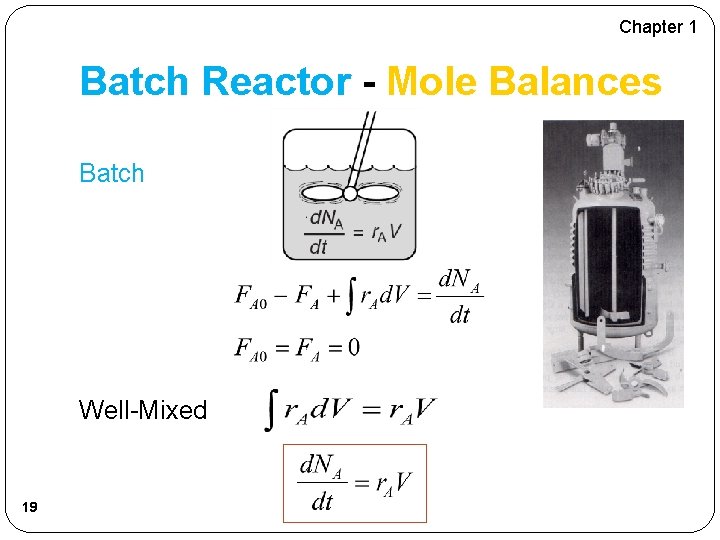

Chapter 1 Batch Reactor - Mole Balances Batch Well-Mixed 19

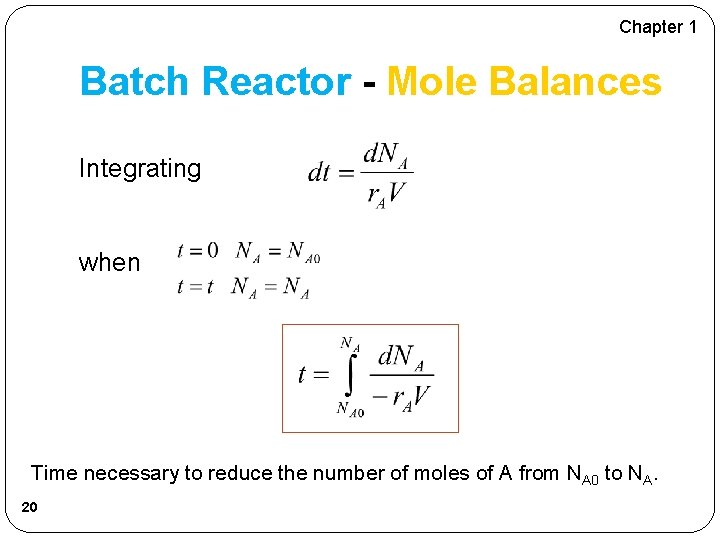

Chapter 1 Batch Reactor - Mole Balances Integrating when Time necessary to reduce the number of moles of A from NA 0 to NA. 20

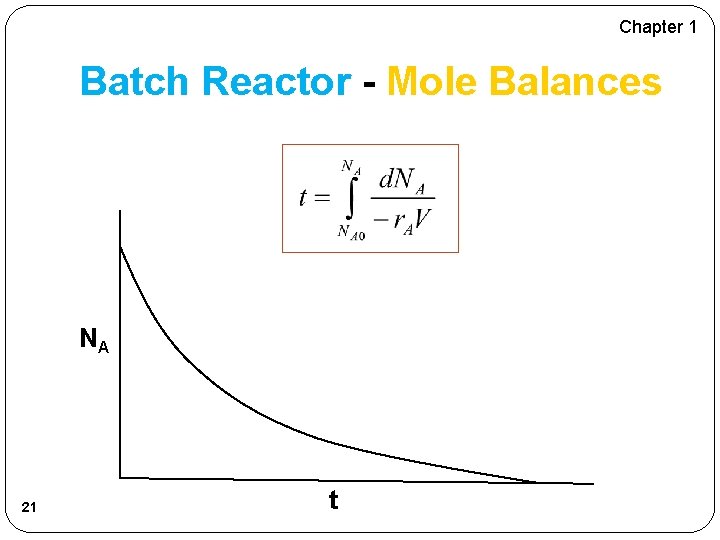

Chapter 1 Batch Reactor - Mole Balances NA 21 t

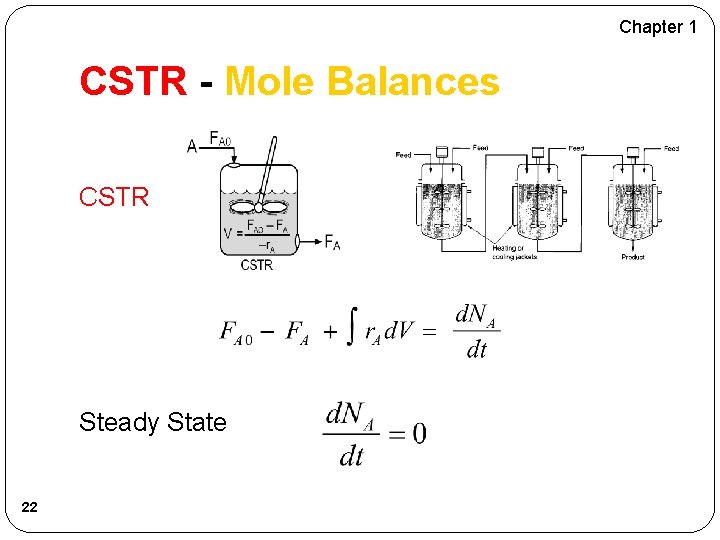

Chapter 1 CSTR - Mole Balances CSTR Steady State 22

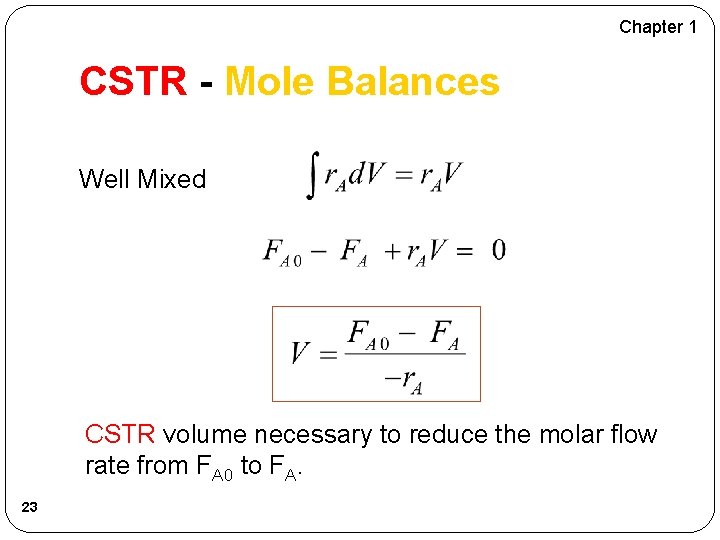

Chapter 1 CSTR - Mole Balances Well Mixed CSTR volume necessary to reduce the molar flow rate from FA 0 to FA. 23

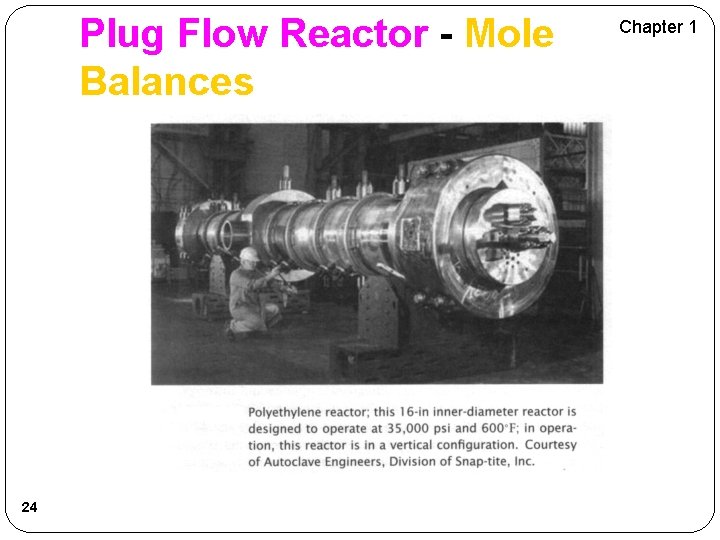

Plug Flow Reactor - Mole Balances 24 Chapter 1

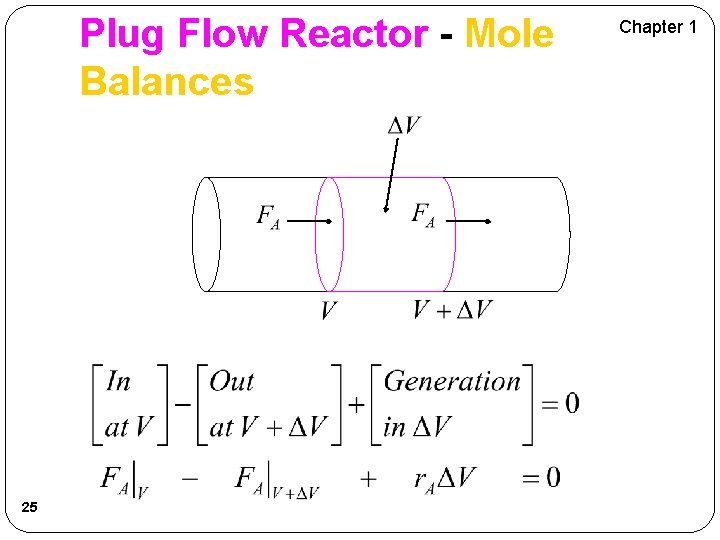

Plug Flow Reactor - Mole Balances 25 Chapter 1

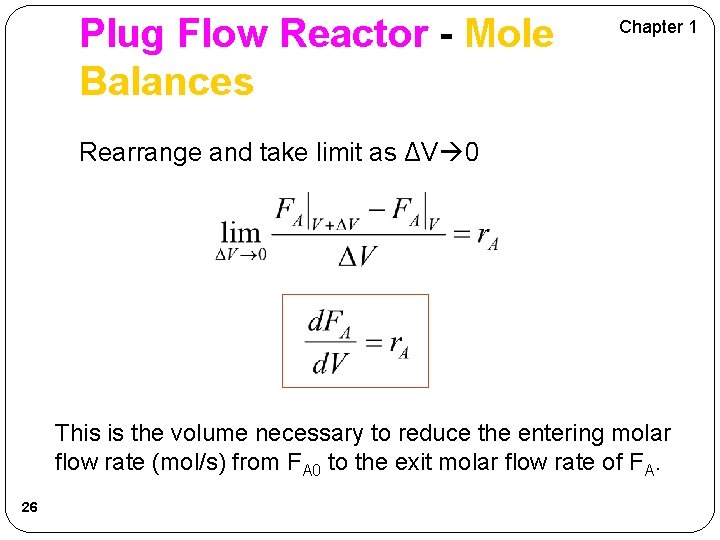

Plug Flow Reactor - Mole Balances Chapter 1 Rearrange and take limit as ΔV 0 This is the volume necessary to reduce the entering molar flow rate (mol/s) from FA 0 to the exit molar flow rate of FA. 26

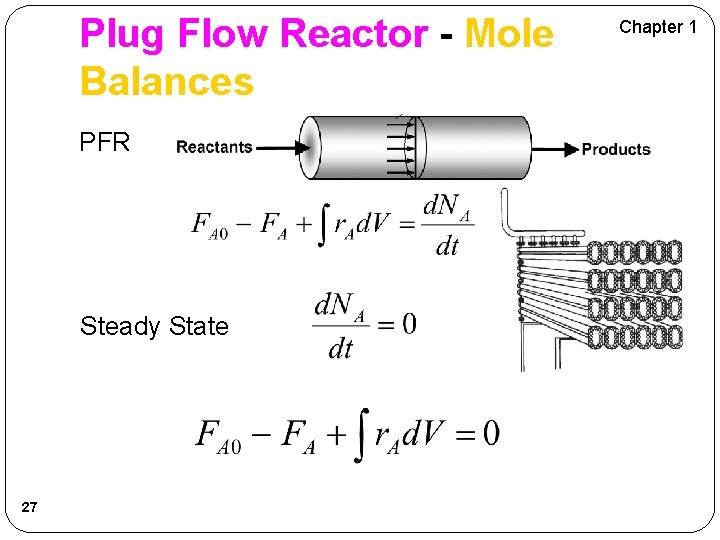

Plug Flow Reactor - Mole Balances PFR Steady State 27 Chapter 1

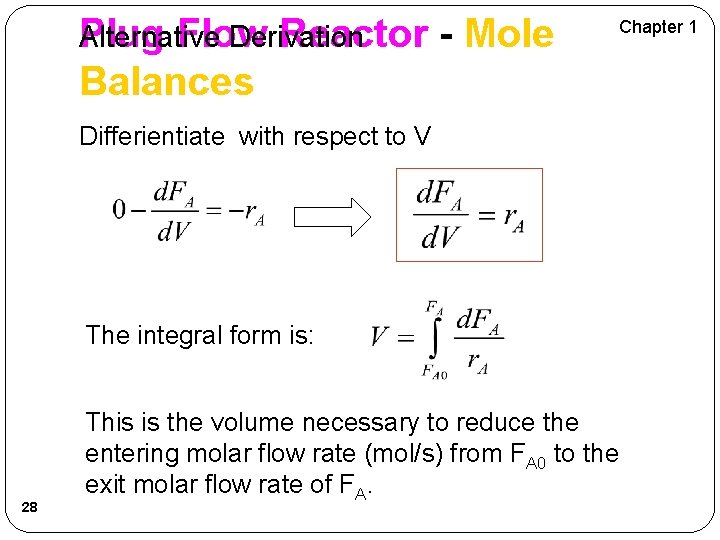

Plug Flow Reactor Alternative Derivation - Mole Balances Differientiate with respect to V The integral form is: 28 This is the volume necessary to reduce the entering molar flow rate (mol/s) from FA 0 to the exit molar flow rate of FA. Chapter 1

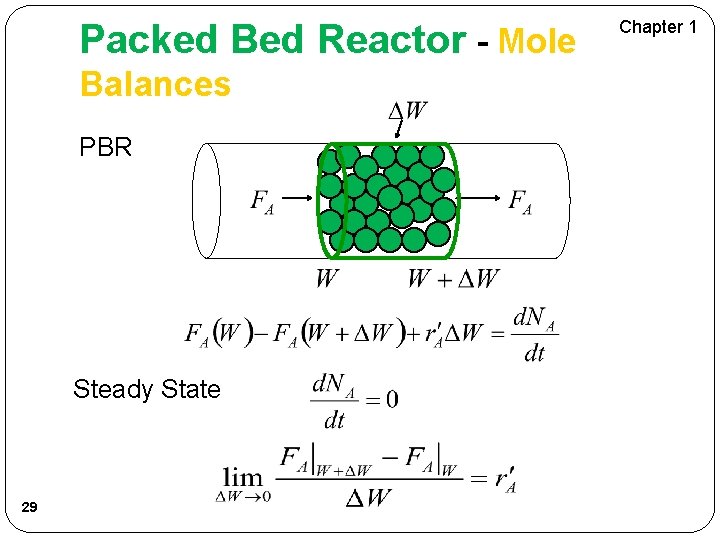

Packed Bed Reactor - Mole Balances PBR Steady State 29 Chapter 1

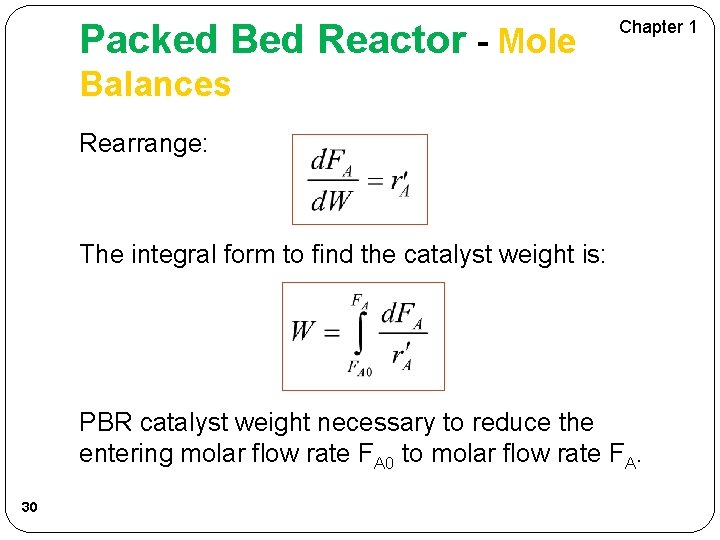

Packed Bed Reactor - Mole Chapter 1 Balances Rearrange: The integral form to find the catalyst weight is: PBR catalyst weight necessary to reduce the entering molar flow rate FA 0 to molar flow rate FA. 30

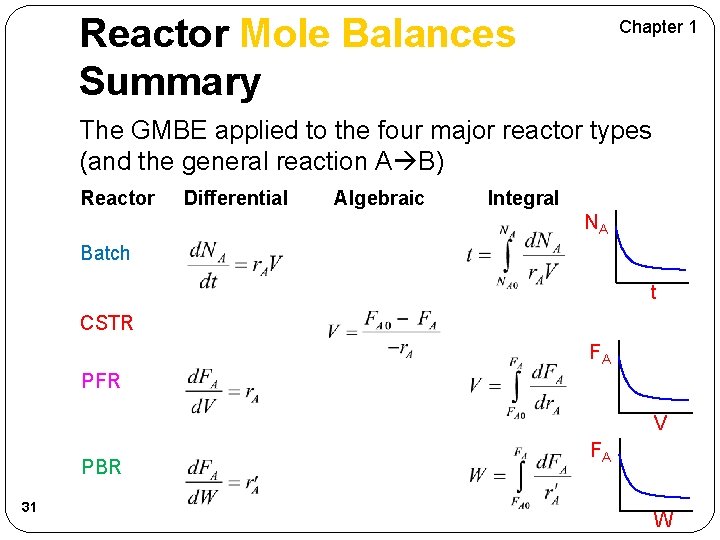

Reactor Mole Balances Summary Chapter 1 The GMBE applied to the four major reactor types (and the general reaction A B) Reactor Differential Algebraic Integral NA Batch t CSTR FA PFR V PBR 31 FA W

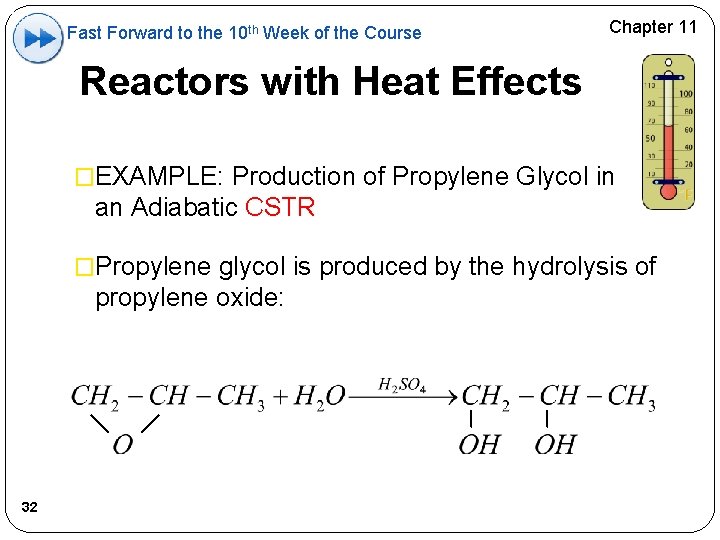

Fast Forward to the 10 th Week of the Course Chapter 11 Reactors with Heat Effects �EXAMPLE: Production of Propylene Glycol in an Adiabatic CSTR �Propylene glycol is produced by the hydrolysis of propylene oxide: 32

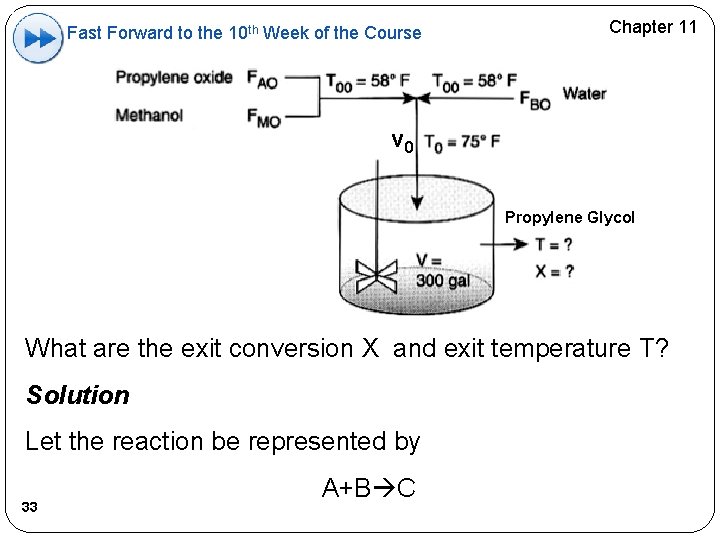

Fast Forward to the 10 th Week of the Course Chapter 11 v 0 Propylene Glycol What are the exit conversion X and exit temperature T? Solution Let the reaction be represented by 33 A+B C

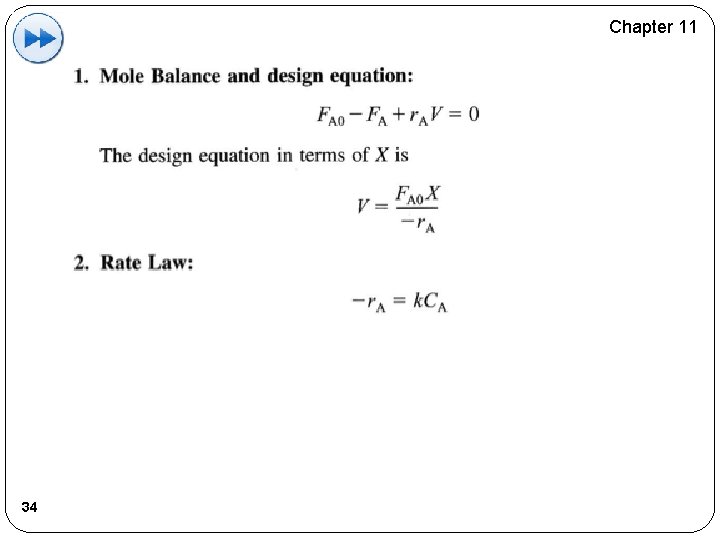

Chapter 11 34

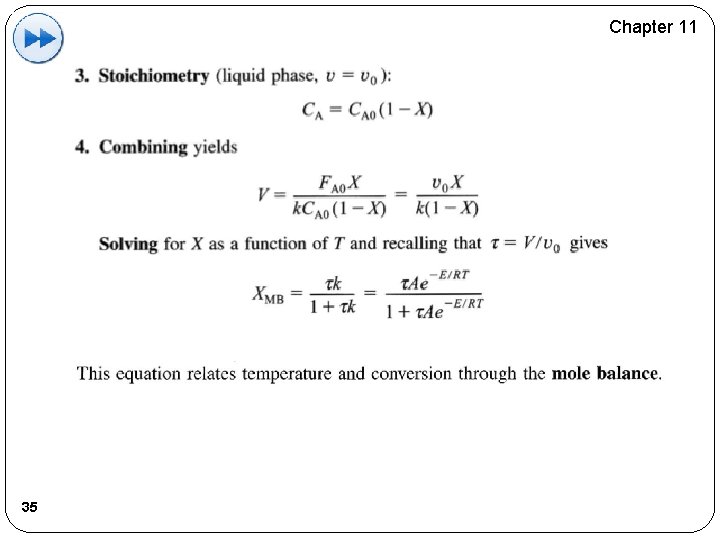

Chapter 11 35

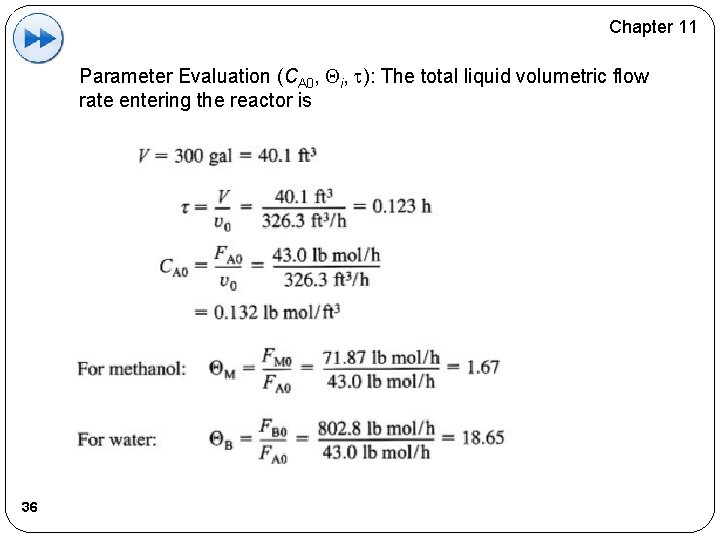

Chapter 11 Parameter Evaluation (CA 0, i, ): The total liquid volumetric flow rate entering the reactor is 36

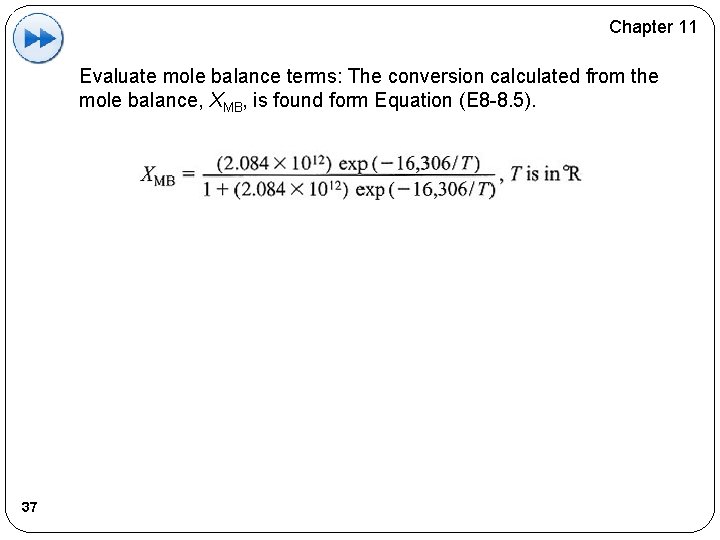

Chapter 11 Evaluate mole balance terms: The conversion calculated from the mole balance, XMB, is found form Equation (E 8 -8. 5). 37

Chapter 11 38

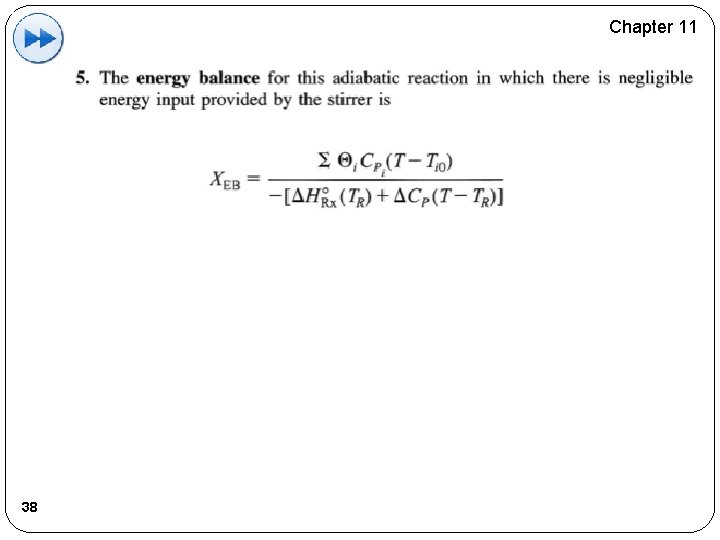

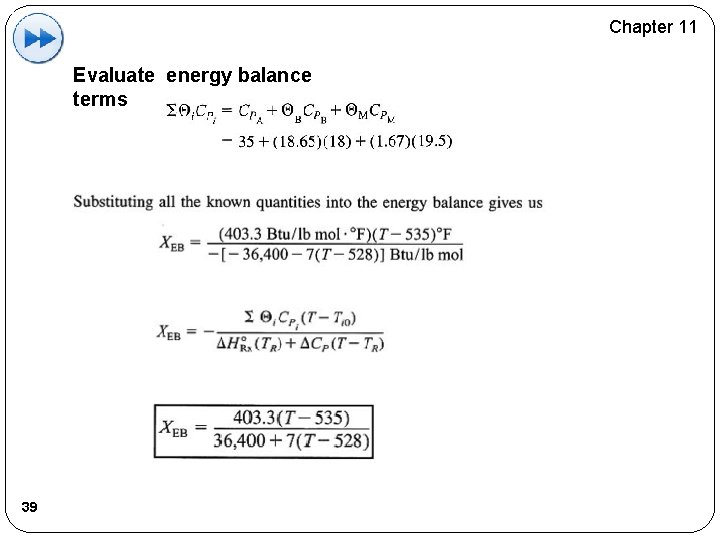

Chapter 11 Evaluate energy balance terms 39

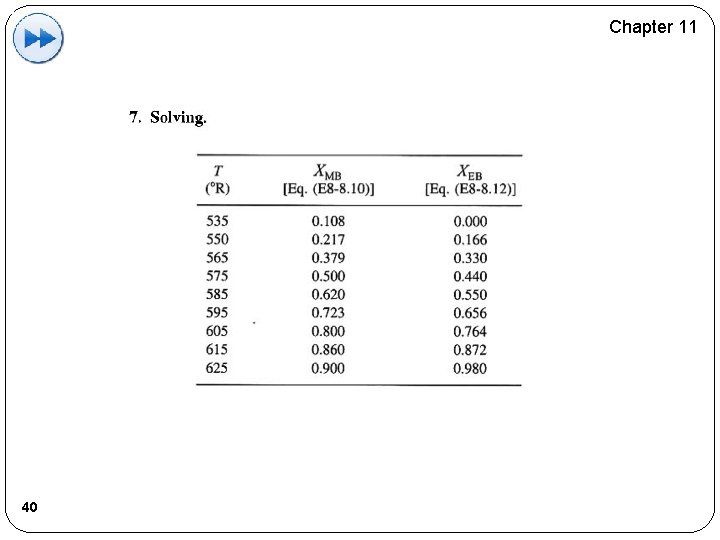

Chapter 11 40

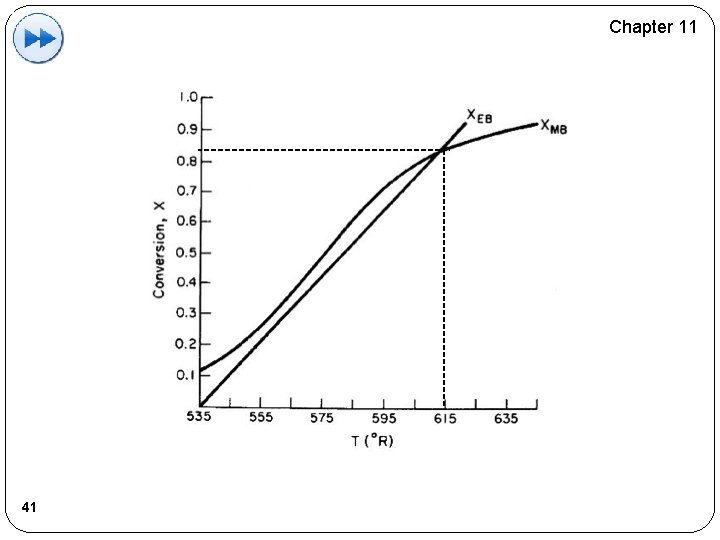

Chapter 11 41

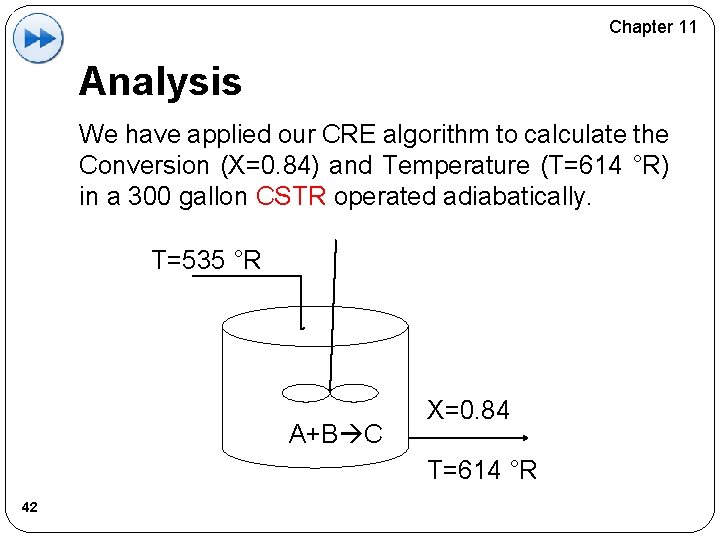

Chapter 11 Analysis We have applied our CRE algorithm to calculate the Conversion (X=0. 84) and Temperature (T=614 °R) in a 300 gallon CSTR operated adiabatically. T=535 °R A+B C X=0. 84 T=614 °R 42

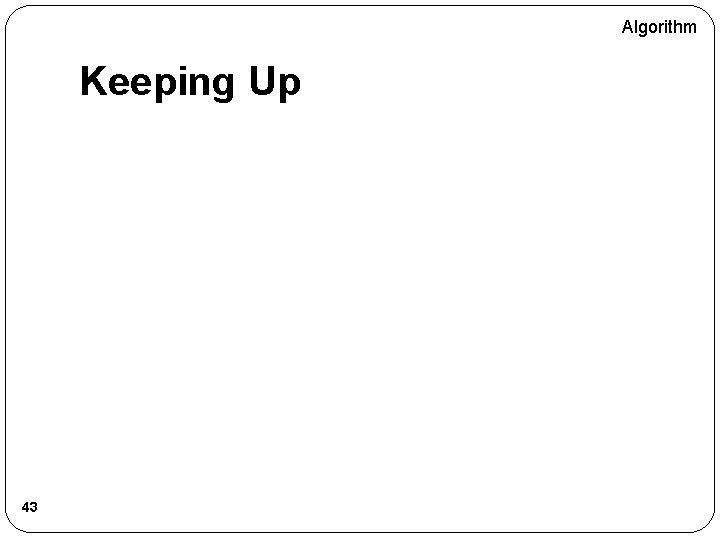

Algorithm Keeping Up 43

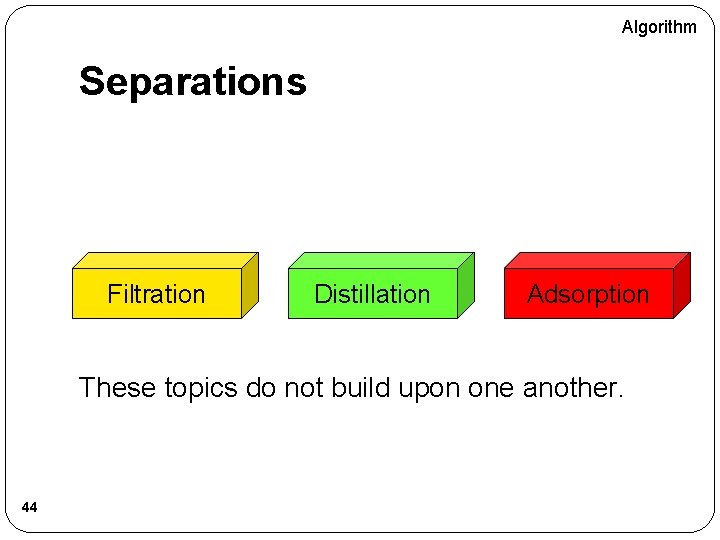

Algorithm Separations Filtration Distillation Adsorption These topics do not build upon one another. 44

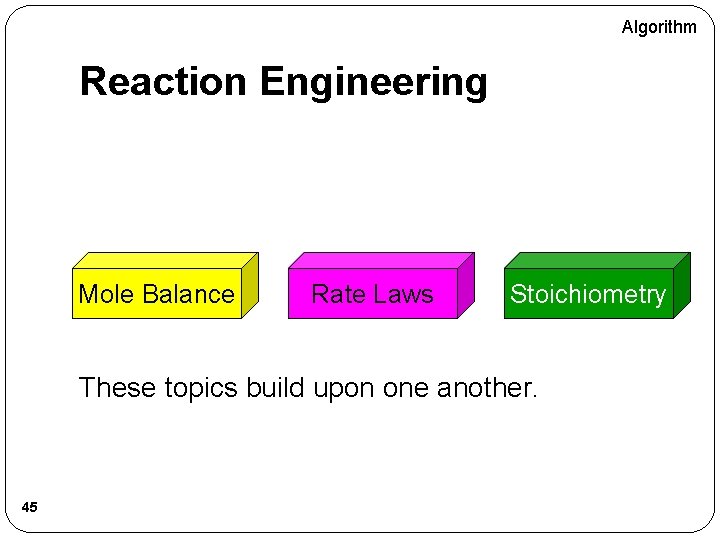

Algorithm Reaction Engineering Mole Balance Rate Laws Stoichiometry These topics build upon one another. 45

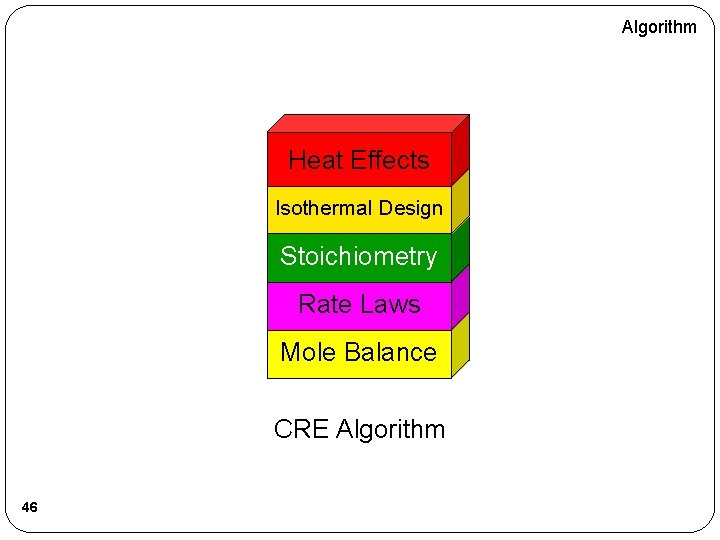

Algorithm Heat Effects Isothermal Design Stoichiometry Rate Laws Mole Balance CRE Algorithm 46

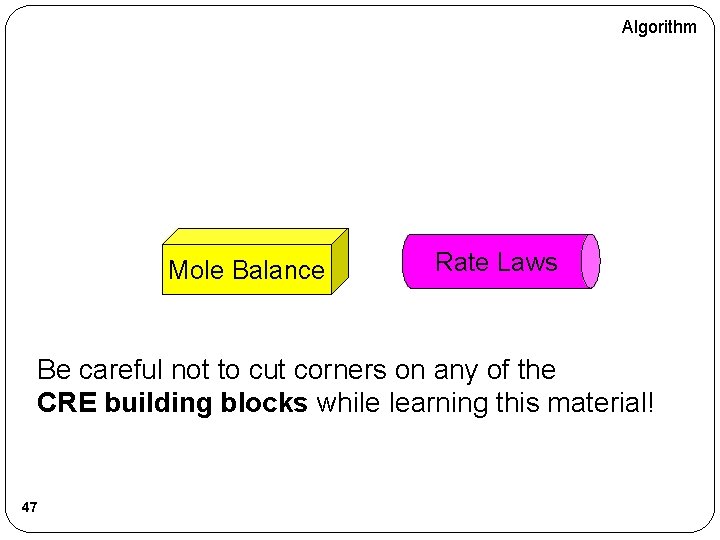

Algorithm Mole Balance Rate Laws Be careful not to cut corners on any of the CRE building blocks while learning this material! 47

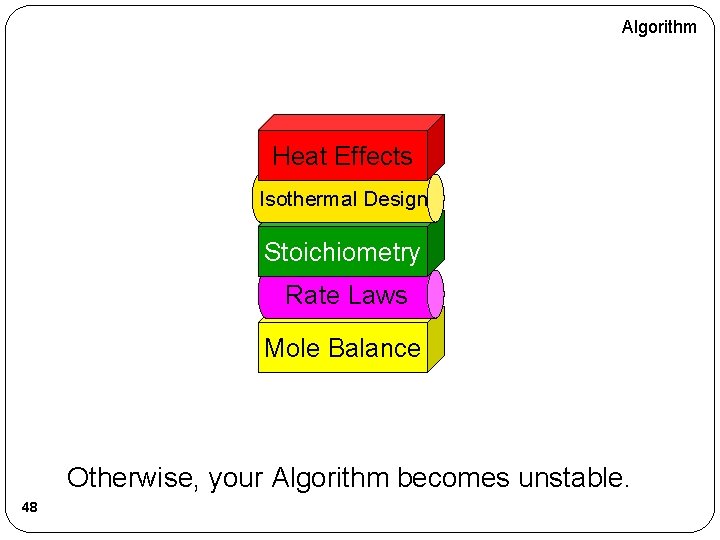

Algorithm Heat Effects Isothermal Design Stoichiometry Rate Laws Mole Balance Otherwise, your Algorithm becomes unstable. 48

End of Lecture 1 49

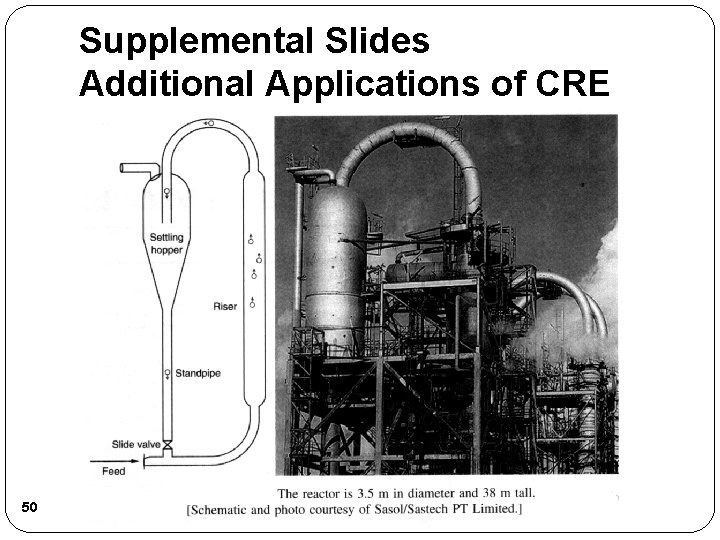

Supplemental Slides Additional Applications of CRE 50

Supplemental Slides Additional Applications of CRE 51

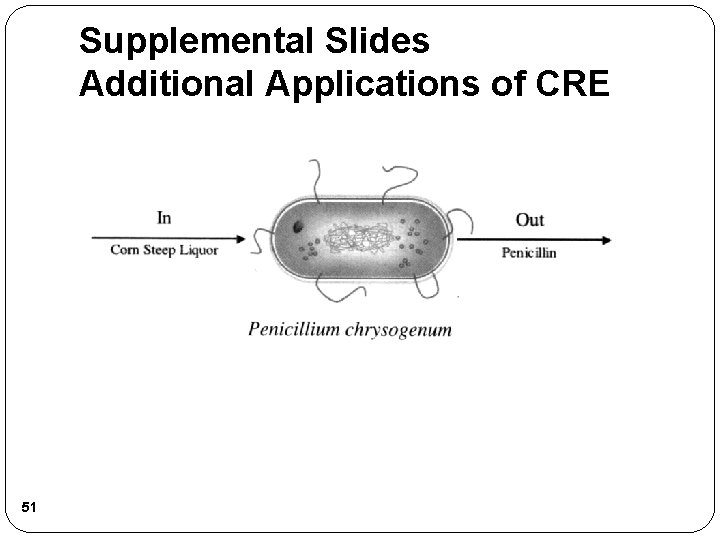

Supplemental Slides Additional Applications of CRE 52

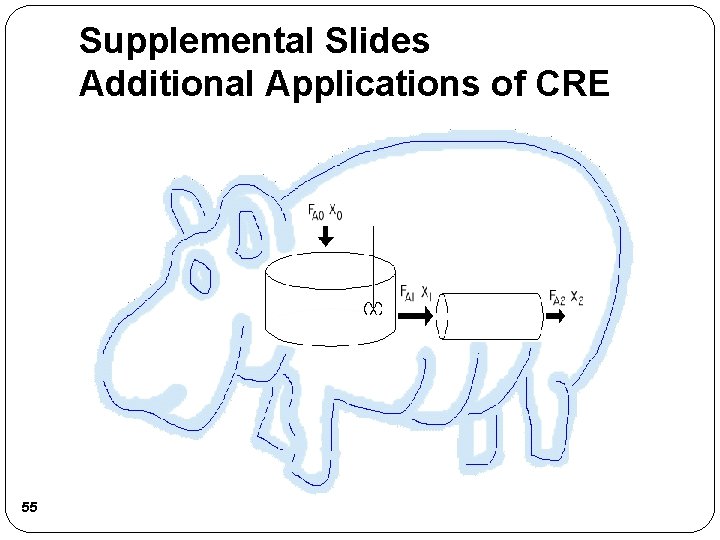

Supplemental Slides Additional Applications of CRE Hippo Digestion (Ch. 2) 53

Supplemental Slides Additional Applications of CRE 54

Supplemental Slides Additional Applications of CRE 55

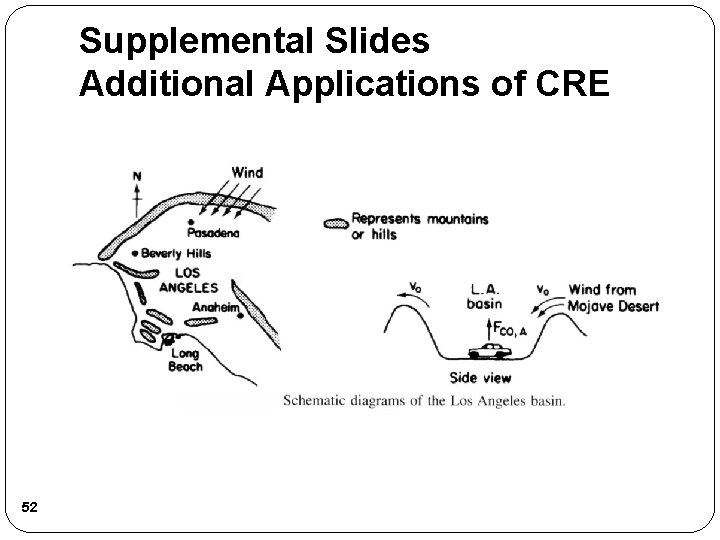

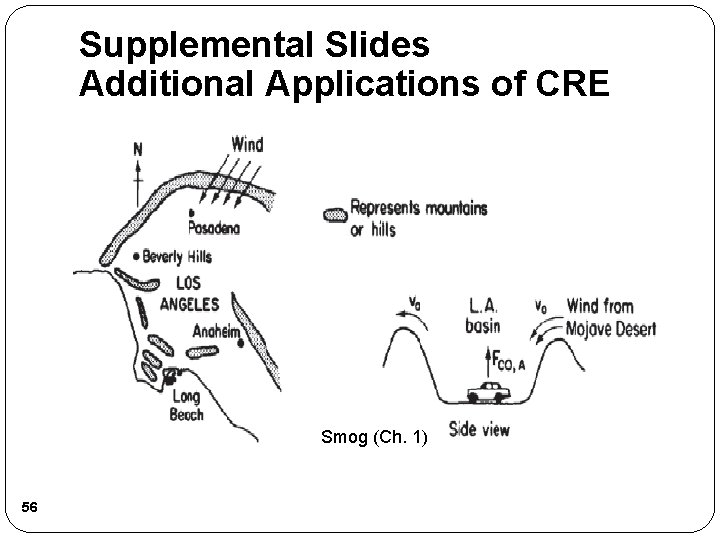

Supplemental Slides Additional Applications of CRE Smog (Ch. 1) 56

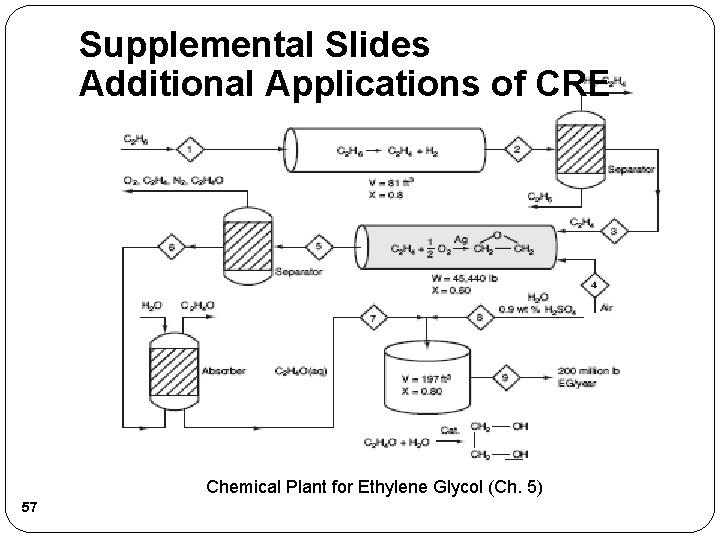

Supplemental Slides Additional Applications of CRE Chemical Plant for Ethylene Glycol (Ch. 5) 57

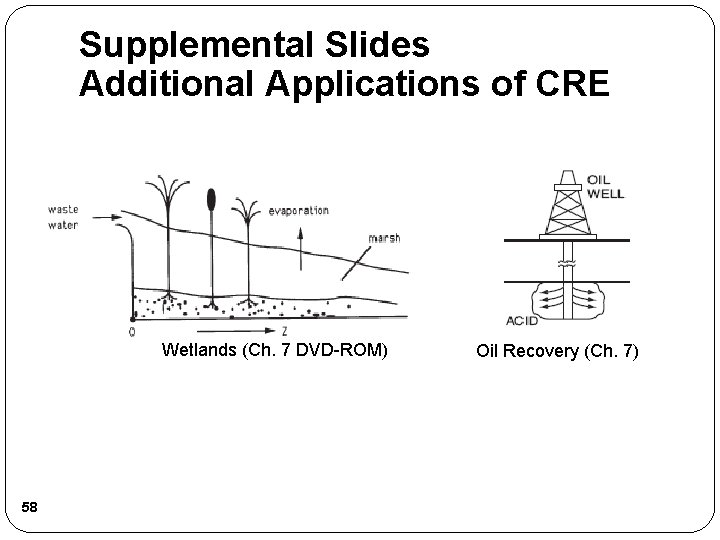

Supplemental Slides Additional Applications of CRE Wetlands (Ch. 7 DVD-ROM) 58 Oil Recovery (Ch. 7)
