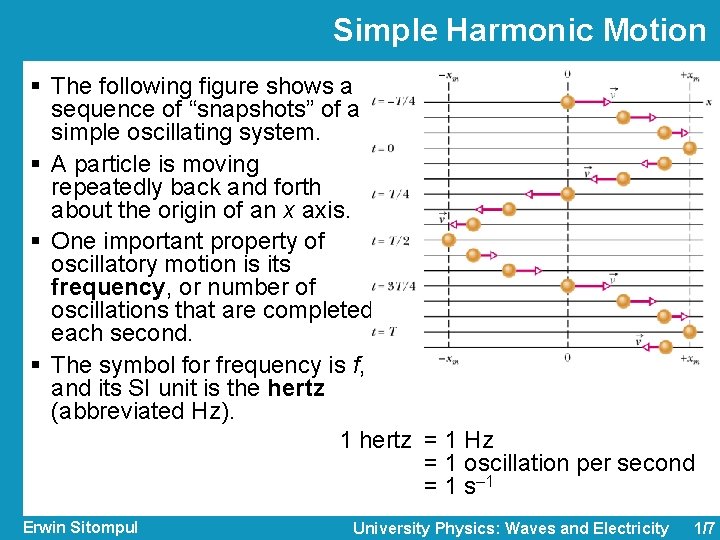

Simple Harmonic Motion § The following figure shows a sequence of “snapshots” of a simple oscillating system. § A particle is moving repeatedly back and forth about the origin of an x axis. § One important property of oscillatory motion is its frequency, or number of oscillations that are completed each second. § The symbol for frequency is f, and its SI unit is the hertz (abbreviated Hz). 1 hertz = 1 Hz = 1 oscillation per second = 1 s– 1 Erwin Sitompul University Physics: Waves and Electricity 1/7

Simple Harmonic Motion § Related to the frequency is the period T of the motion, which is the time for one complete oscillation (or cycle). § Any motion that repeats itself at regular intervals is called periodic motion or harmonic motion. § We are interested here only in motion that repeats itself in a particular way, namely in a sinusoidal way. § For such motion, the displacement x of the particle from the origin is given as a function of time by: Erwin Sitompul University Physics: Waves and Electricity 1/8

Simple Harmonic Motion § This motion is called simple harmonic motion (SHM). § Means, the periodic motion is a sinusoidal function of time. § The quantity xm is called the amplitude of the motion. It is a positive constant. § The subscript m stands for maximum, because the amplitude is the magnitude of the maximum displacement of the particle in either direction. § The cosine function varies between ± 1; so the displacement x(t) varies between ±xm. Erwin Sitompul University Physics: Waves and Electricity 1/9

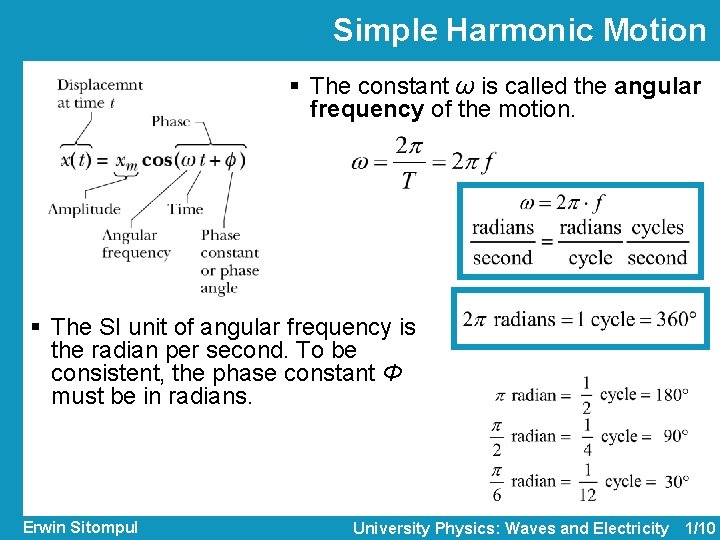

Simple Harmonic Motion § The constant ω is called the angular frequency of the motion. § The SI unit of angular frequency is the radian per second. To be consistent, the phase constant Φ must be in radians. Erwin Sitompul University Physics: Waves and Electricity 1/10

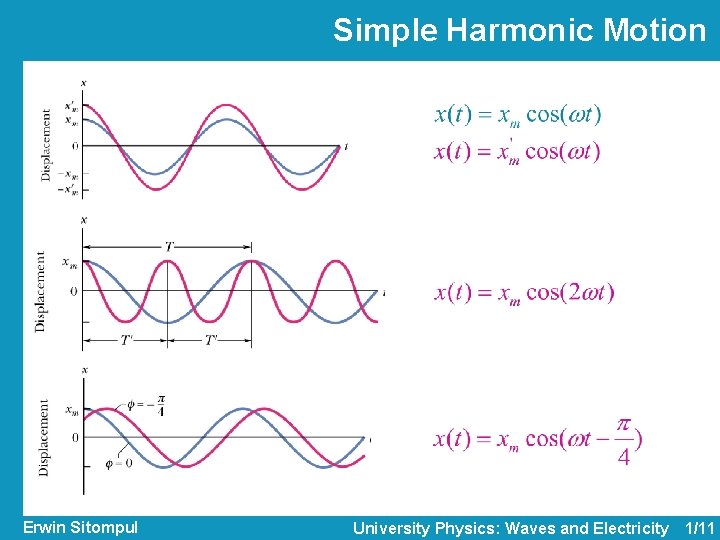

Simple Harmonic Motion Erwin Sitompul University Physics: Waves and Electricity 1/11

Checkpoint A particle undergoing simple harmonic oscillation of period T is at xm at time t = 0. Is it at –xm, at +xm, at 0, between –xm and 0, or between 0 and +xm when: (a) t = 2 T At +xm (b) t = 3. 5 T At –xm At 0 (c) t = 5. 25 T Between 0 and +xm (d) t = 2. 8 T ? 0. 5 T 1. 5 T T Erwin Sitompul University Physics: Waves and Electricity 1/12

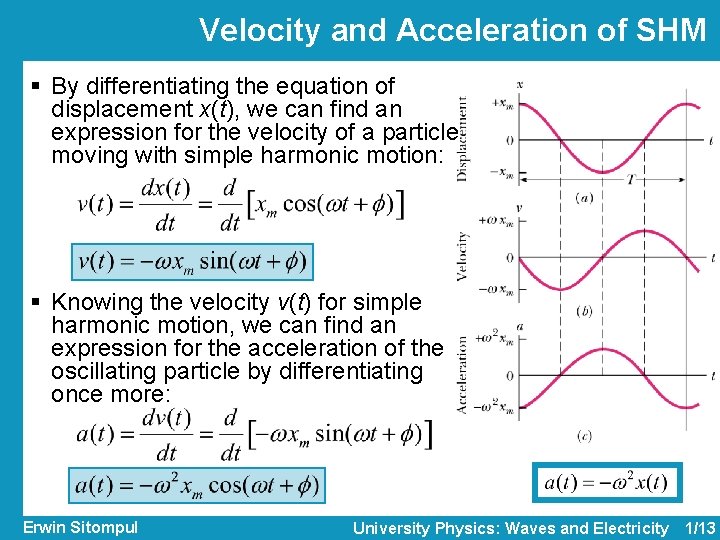

Velocity and Acceleration of SHM § By differentiating the equation of displacement x(t), we can find an expression for the velocity of a particle moving with simple harmonic motion: § Knowing the velocity v(t) for simple harmonic motion, we can find an expression for the acceleration of the oscillating particle by differentiating once more: Erwin Sitompul University Physics: Waves and Electricity 1/13

Plotting The Motion Plot the following simple xm harmonic motions: 0 (a) x 1(t) = xm cosωt (b) x 2(t) = xm cos(ωt+π) –xm (c) x 3(t) = (xm/2) cosωt (d) x 4(t) = xm cos 2ωt x x 1(t) 0. 5 T T x 2(t) m 0 x 1(t) 0. 5 T T x 3(t) –xm xm 0 –xm Erwin Sitompul x 1(t) 0. 5 T T x 4(t) University Physics: Waves and Electricity 1/14

The Force Law for Simple Harmonic Motion § Now we can use Newton’s second law to learn what force must act on the particle to give it that acceleration: § This result – a restoring force that is proportional to the displacement but opposite in sign – is familiar. § It is Hooke’s law for a spring: with the spring constant being k = mω2. § Conclusion: Simple harmonic motion is the motion executed by a particle, subject to a force that is proportional to the displacement of the particle but opposite in sign. Erwin Sitompul University Physics: Waves and Electricity 1/15

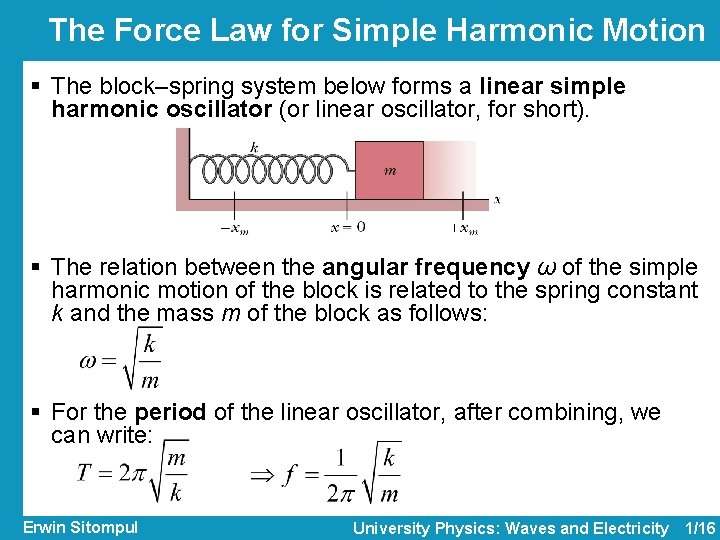

The Force Law for Simple Harmonic Motion § The block–spring system below forms a linear simple harmonic oscillator (or linear oscillator, for short). § The relation between the angular frequency ω of the simple harmonic motion of the block is related to the spring constant k and the mass m of the block as follows: § For the period of the linear oscillator, after combining, we can write: Erwin Sitompul University Physics: Waves and Electricity 1/16

Example 1 A block whose mass m is 680 g is fastened to a spring whose spring constant k is 65 N/m. The block is pulled a distance x = 11 cm from its equilibrium position at x = 0 on a frictionless surface and released from rest at t = 0. (a) What are the angular frequency, the frequency, and the period of the resulting motion? (b) What is the amplitude of the oscillation? (c) What is the maximum speed vm of the oscillating block, and where is the block when it has this speed? • Where is the block? Erwin Sitompul University Physics: Waves and Electricity 1/17

Example 1 A block whose mass m is 680 g is fastened to a spring whose spring constant k is 65 N/m. The block is pulled a distance x = 11 cm from its equilibrium position at x = 0 on a frictionless surface and released from rest at t = 0. (d) What is the magnitude am of the maximum acceleration of the block? (e) What is the phase constant Φ for the motion? • Why? (f) What is the displacement function x(t) for the spring–block system? Erwin Sitompul University Physics: Waves and Electricity 1/18

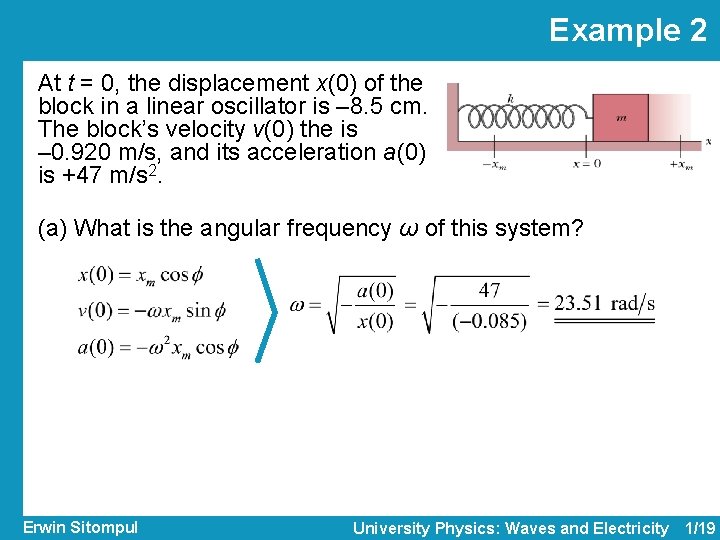

Example 2 At t = 0, the displacement x(0) of the block in a linear oscillator is – 8. 5 cm. The block’s velocity v(0) the is – 0. 920 m/s, and its acceleration a(0) is +47 m/s 2. (a) What is the angular frequency ω of this system? Erwin Sitompul University Physics: Waves and Electricity 1/19

Example 2 At t = 0, the displacement x(0) of the block in a linear oscillator is – 8. 5 cm. The block’s velocity v(0) the is – 0. 920 m/s, and its acceleration a(0) is +47 m/s 2. (b) What are the phase constant Φ and amplitude xm? ? ? Since Erwin Sitompul University Physics: Waves and Electricity 1/20

Example 3 A block with m = 500 g is attached to a massless spring and is free to oscillate on a frictionless floor. The equilibrium position is 25 cm from the origin of the x axis. At t = 0, the block is pressed 10 cm from the equilibrium and then released. A force of magnitude 5 N is needed to press the spring. (a) How many oscillations occur in 1 minute? Erwin Sitompul University Physics: Waves and Electricity 1/21

Example 3 (b) Determine the block’s equation of motion. • How? (c) Plot the motion of the block for two periods. 0. 25+xm x(t) 0. 25 0 0. 5 T T 1. 5 T 2 T 0. 25–xm Erwin Sitompul University Physics: Waves and Electricity 1/22

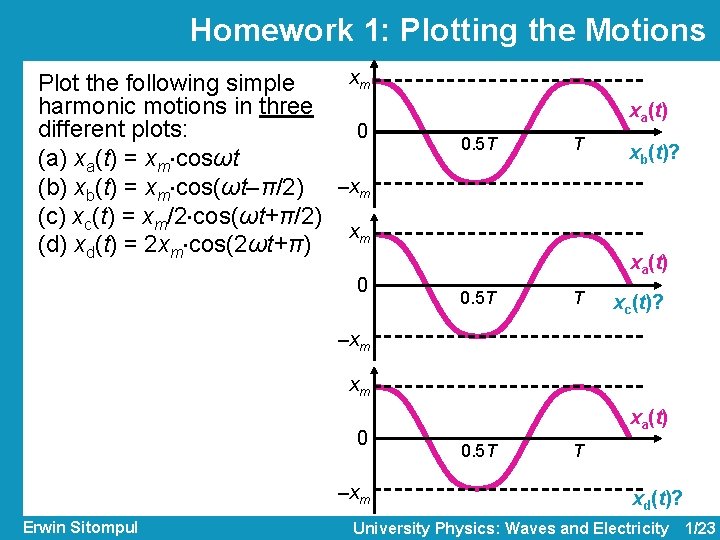

Homework 1: Plotting the Motions xm Plot the following simple harmonic motions in three different plots: 0 (a) xa(t) = xm cosωt (b) xb(t) = xm cos(ωt–π/2) –xm (c) xc(t) = xm/2 cos(ωt+π/2) xm (d) xd(t) = 2 xm cos(2ωt+π) 0 xa(t) 0. 5 T T xb(t)? xa(t) 0. 5 T T xc(t)? –xm xm 0 –xm Erwin Sitompul xa(t) 0. 5 T T xd(t)? University Physics: Waves and Electricity 1/23

Homework 1 A: Simple Harmonic Motion 1. Plot the following simple harmonic motions in three different plots: (a) xa(t) = xm sinωt (b) xb(t) = xm sin(ωt–π) (c) xc(t) = xm/2 sin(ωt+π/2) (d) xd(t) = xm/2 sin(2ωt+π/2) 2. A small car weighs 1200 kg has one spring on each wheel. It can be assumed, that the springs are identical, and that the mass of the car is distributed equally over the springs. (a) Determine the spring constant of each spring if the empty car bounces up and down 2. 0 times each second. (b) Determine the car’s oscillation frequency while carrying four 70 -kg passengers? Erwin Sitompul University Physics: Waves and Electricity 1/24
