Lecture 07 Fault current (I) Meiling CHEN 2005 1

Lecture 07 Fault current (I) Meiling CHEN 2005 1

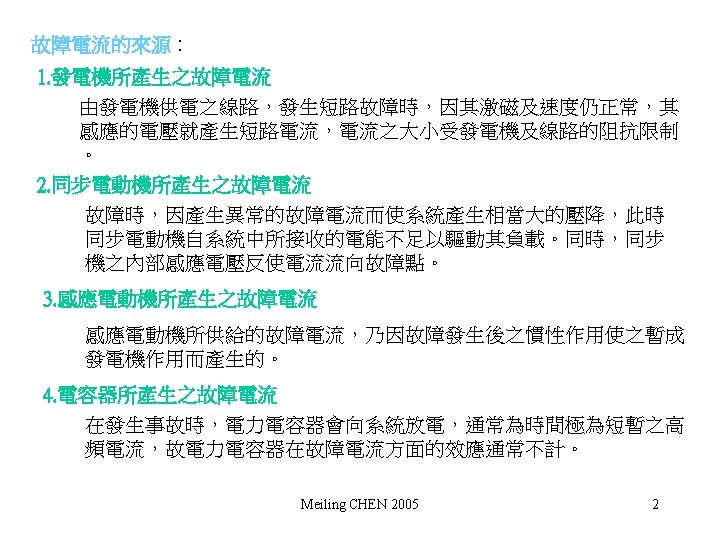

台電 Meiling CHEN 2005 3

台電 Meiling CHEN 2005 3

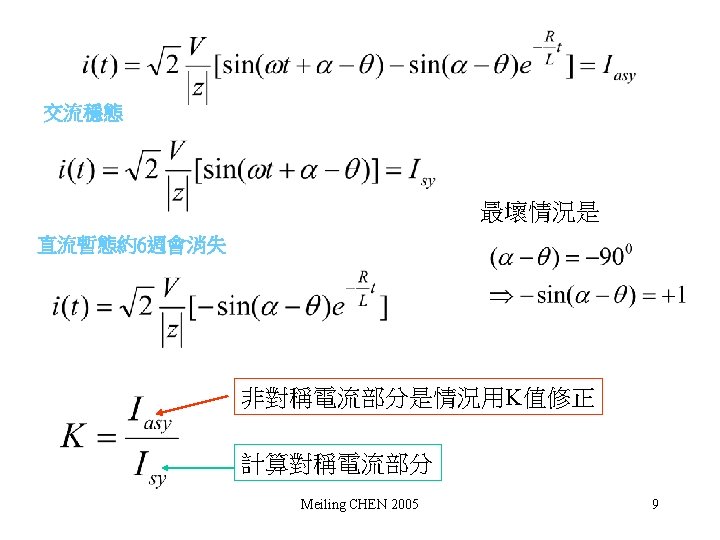

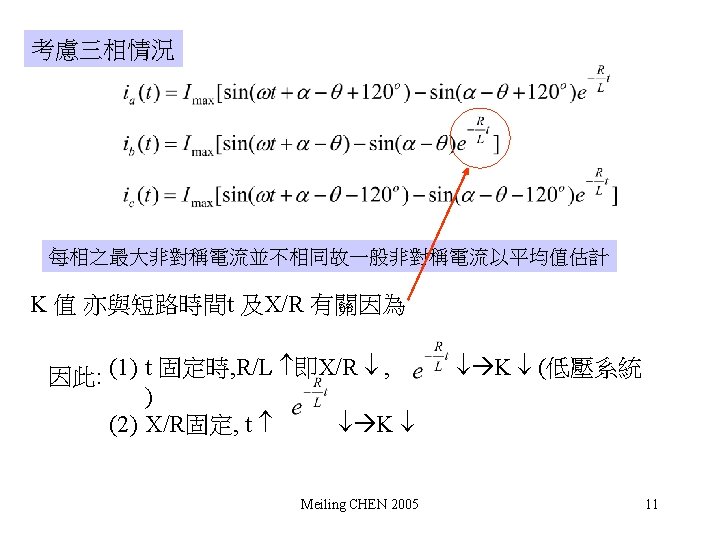

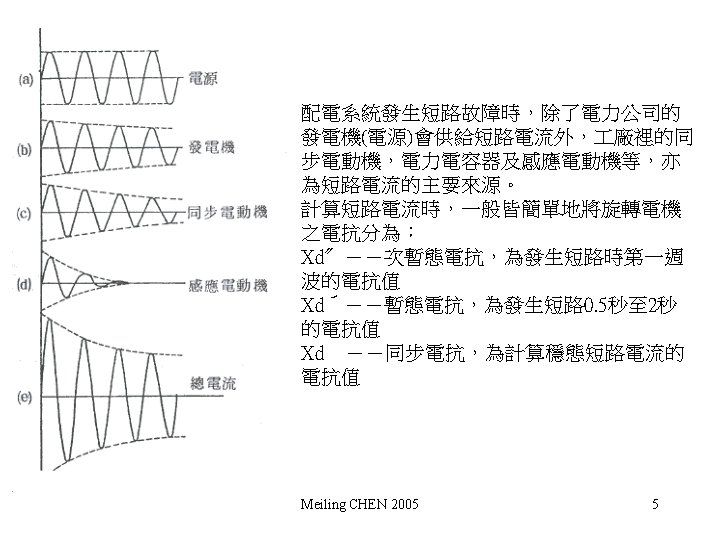

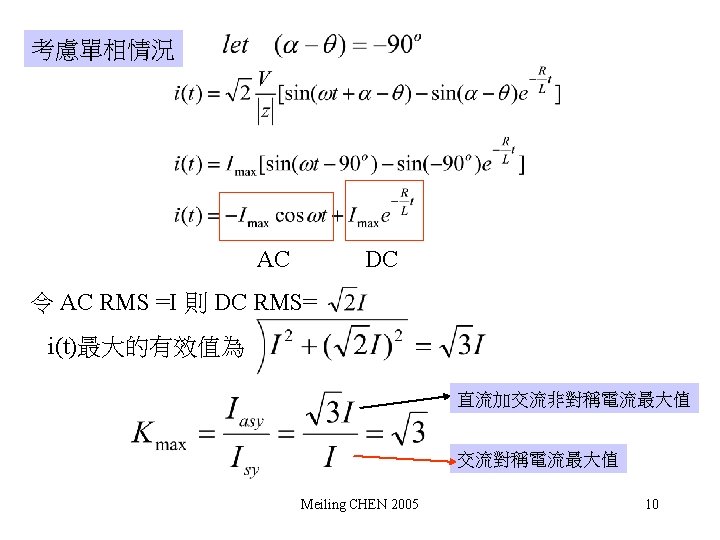

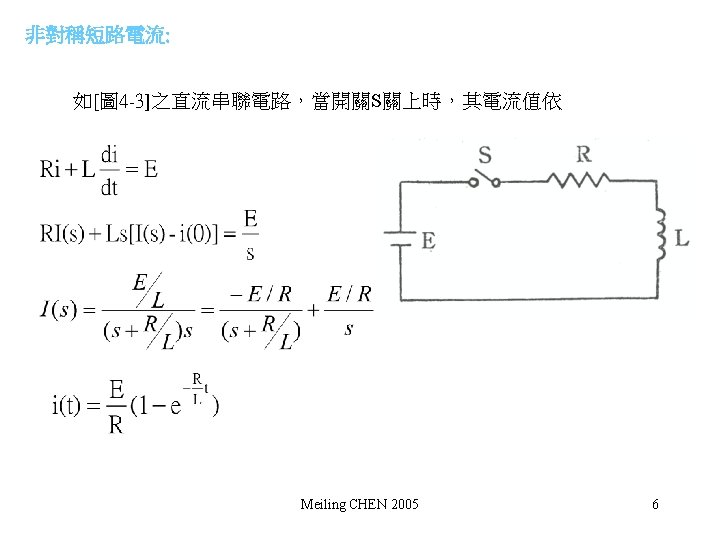

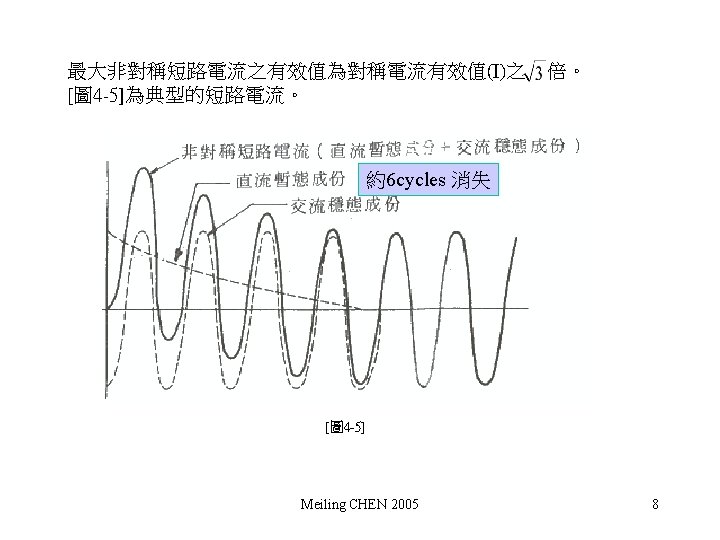

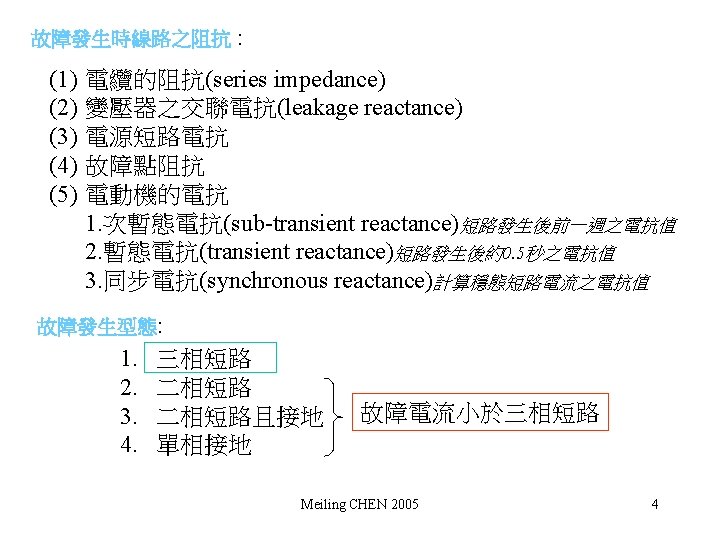

Meiling CHEN 2005 12

Meiling CHEN 2005 12

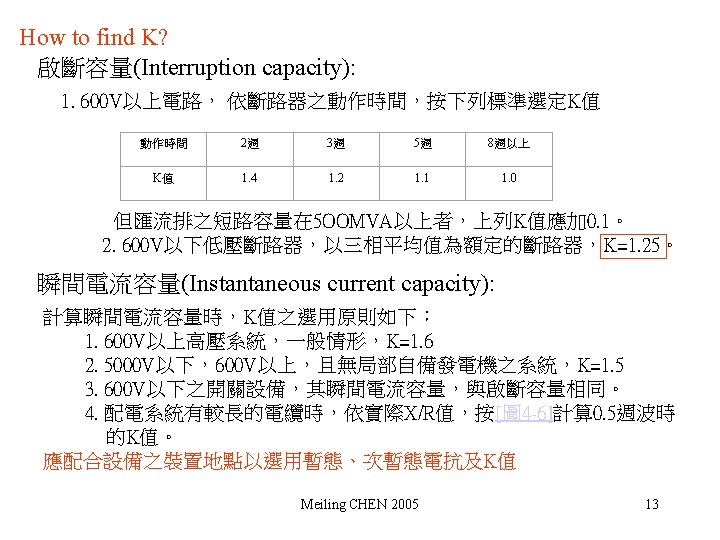

example Fault point 上例之標么阻抗圖: Fault point ~ ~ Meiling CHEN 2005 ~ 14

example Fault point 上例之標么阻抗圖: Fault point ~ ~ Meiling CHEN 2005 ~ 14

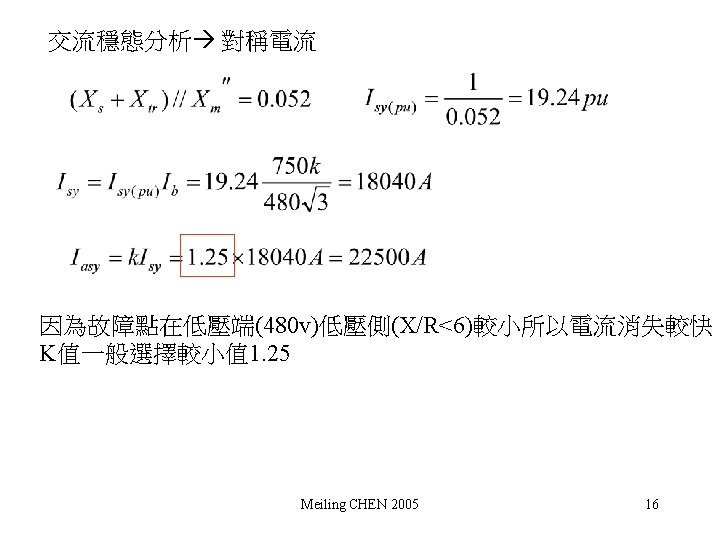

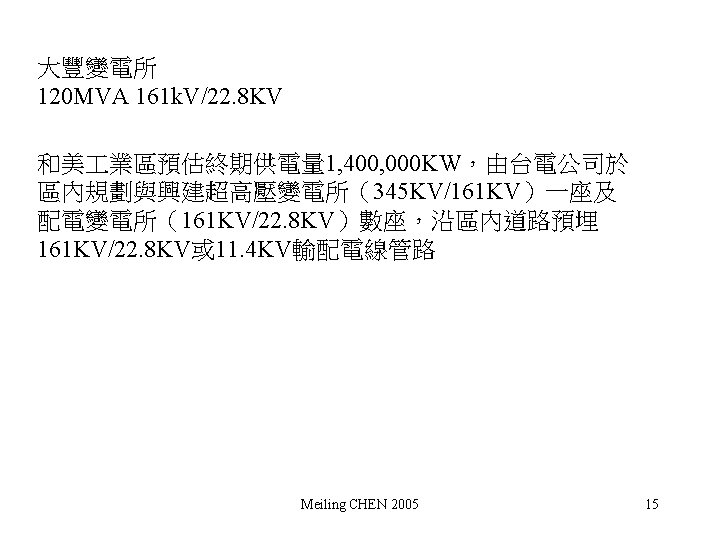

~ ~ example ~ ~ Meiling CHEN 2005 17

~ ~ example ~ ~ Meiling CHEN 2005 17

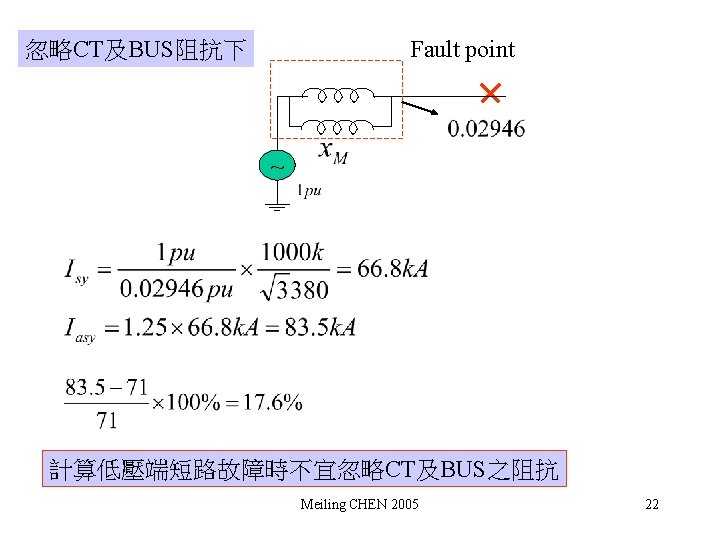

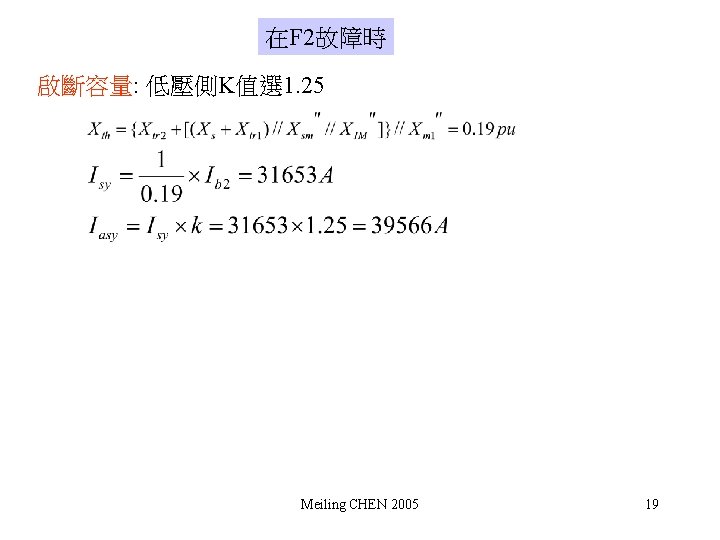

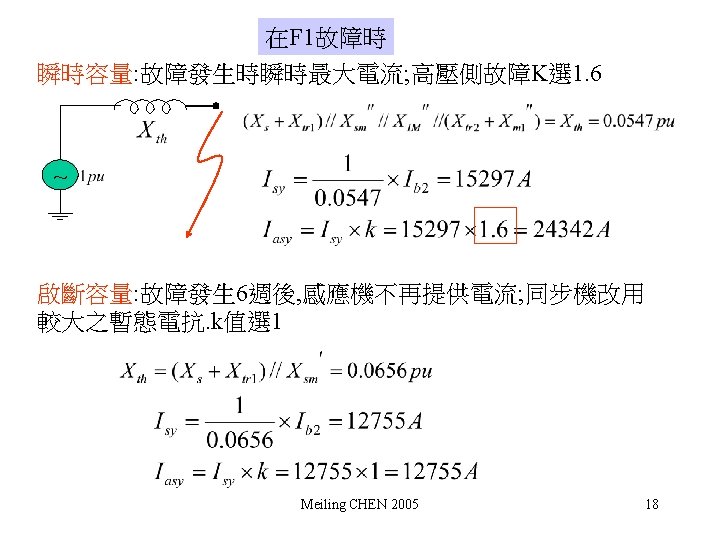

example 用此例來看計算低壓端短路故障時忽略CT及BUS之阻抗是否恰當 Fault point ~ Meiling CHEN 2005 20

example 用此例來看計算低壓端短路故障時忽略CT及BUS之阻抗是否恰當 Fault point ~ Meiling CHEN 2005 20

Fault point ~ 考慮CT及BUS阻抗下 Meiling CHEN 2005 21

Fault point ~ 考慮CT及BUS阻抗下 Meiling CHEN 2005 21

example 一般 600 v以下之低壓系統X/R<6電阻不宜忽略 6 lines Meiling CHEN 2005 23

example 一般 600 v以下之低壓系統X/R<6電阻不宜忽略 6 lines Meiling CHEN 2005 23

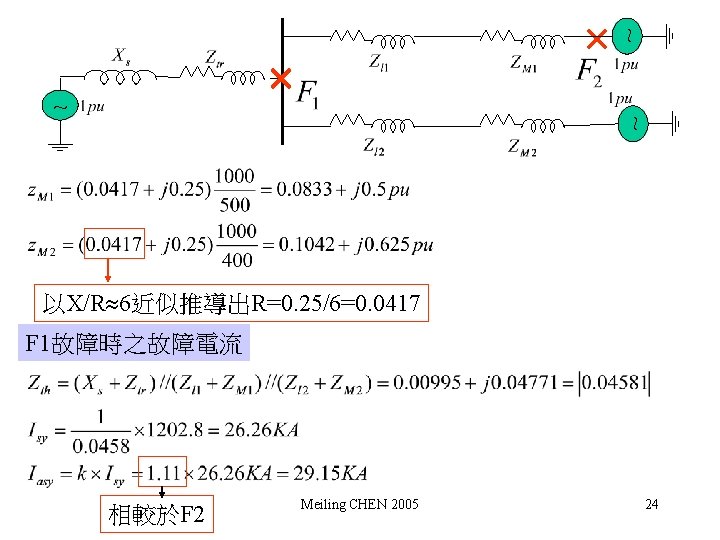

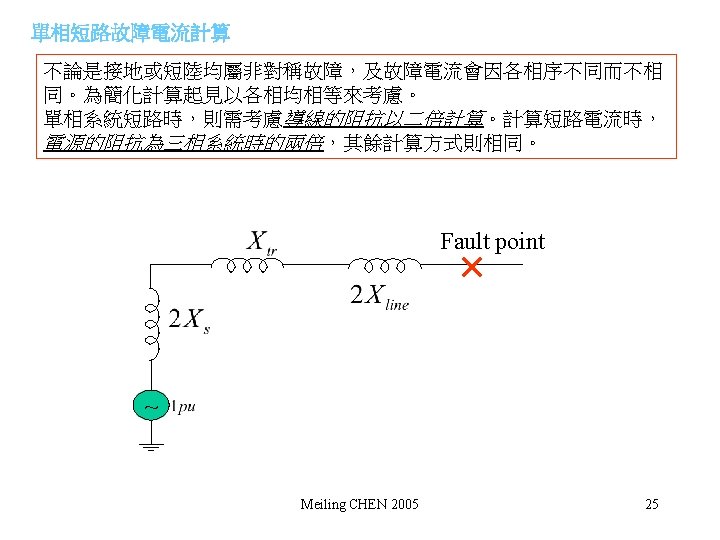

台電 ~ Meiling CHEN 2005 26

台電 ~ Meiling CHEN 2005 26

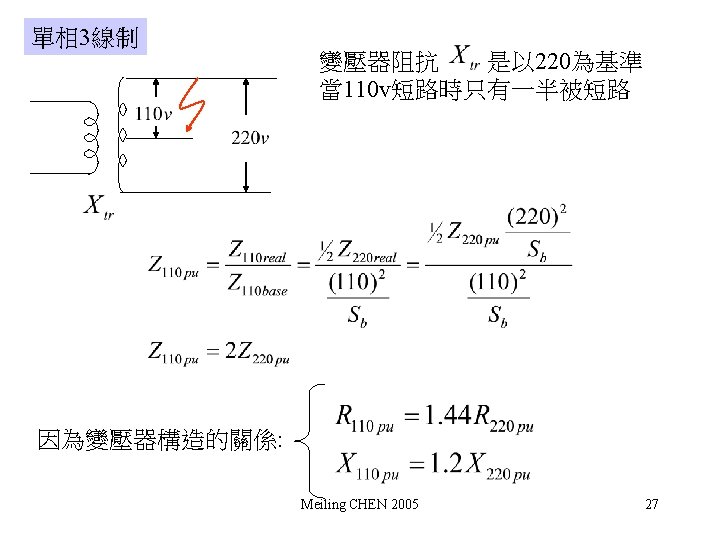

example Meiling CHEN 2005 28

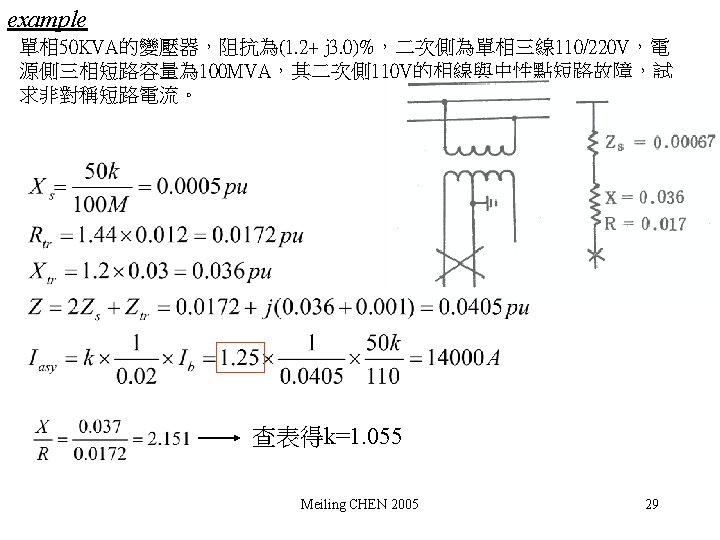

example Meiling CHEN 2005 28
