Lecture 05 Analysis I Time Response and State

Lecture 05 Analysis (I) Time Response and State Transition Matrix 5. 1 State Transition Matrix 5. 2 Modal decomposition --Diagonalization 5. 3 Cayley-Hamilton Theorem Modern Control Systems 1

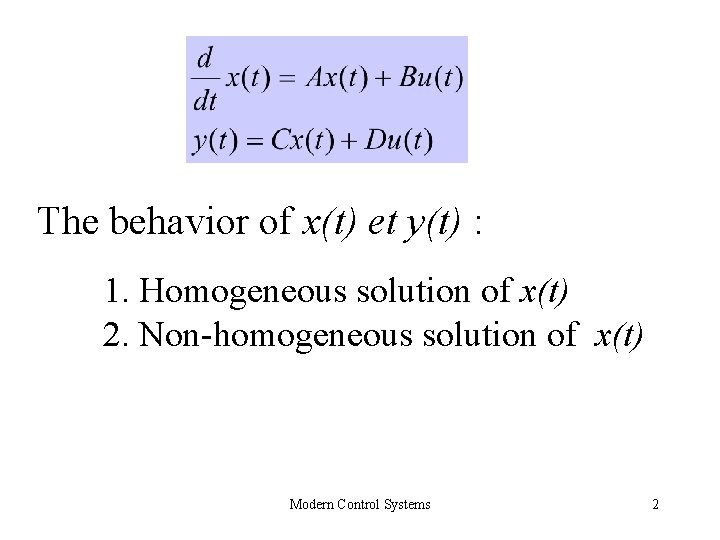

The behavior of x(t) et y(t) : 1. Homogeneous solution of x(t) 2. Non-homogeneous solution of x(t) Modern Control Systems 2

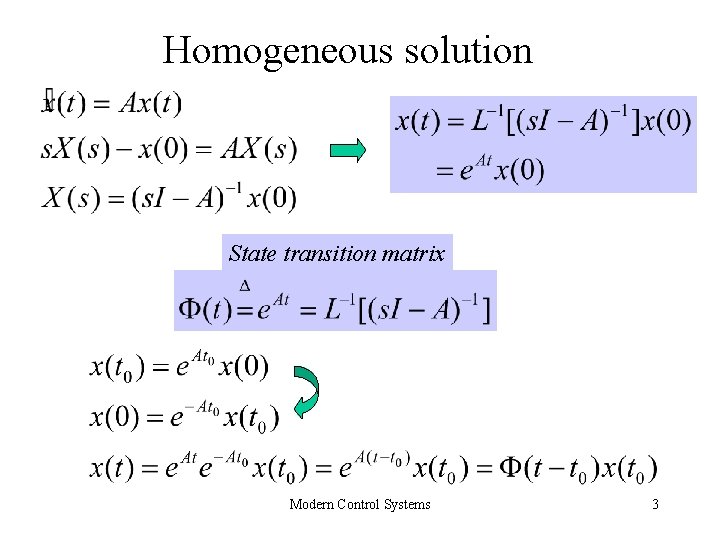

Homogeneous solution State transition matrix Modern Control Systems 3

Properties Modern Control Systems 4

Non-homogeneous solution Convolution Homogeneous Modern Control Systems 5

Zero-input response Zero-state response Modern Control Systems 6

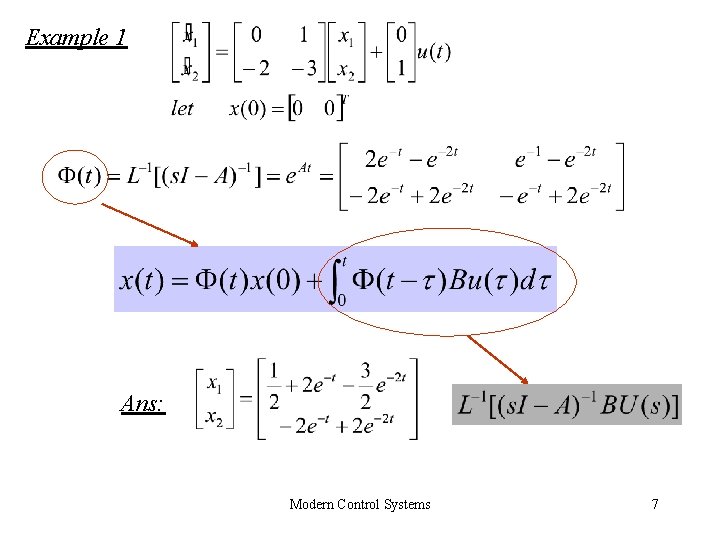

Example 1 Ans: Modern Control Systems 7

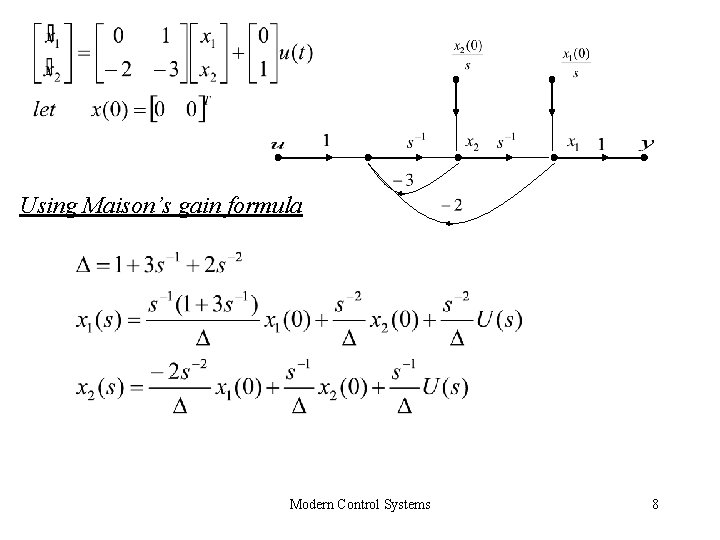

Using Maison’s gain formula Modern Control Systems 8

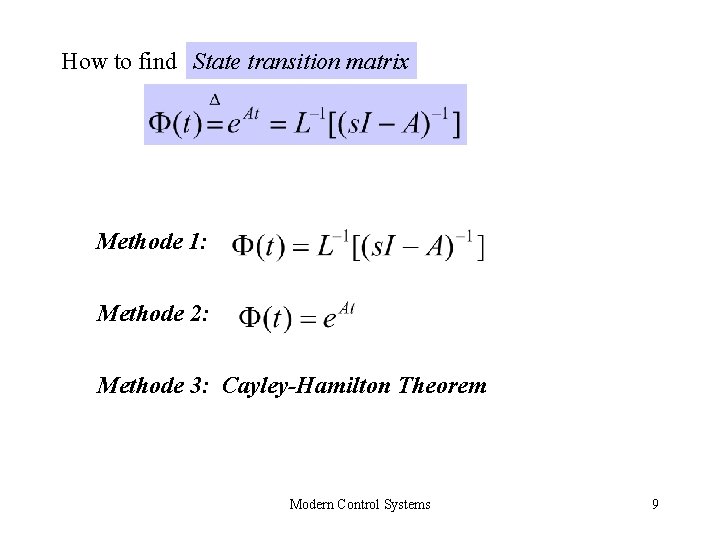

How to find State transition matrix Methode 1: Methode 2: Methode 3: Cayley-Hamilton Theorem Modern Control Systems 9

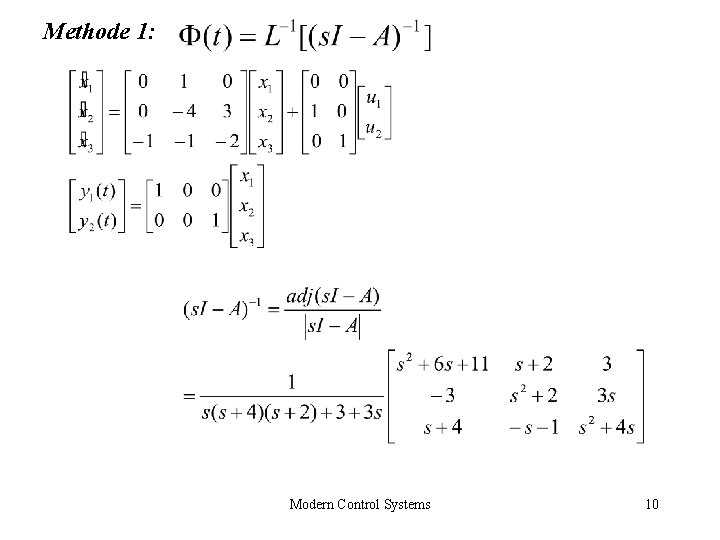

Methode 1: Modern Control Systems 10

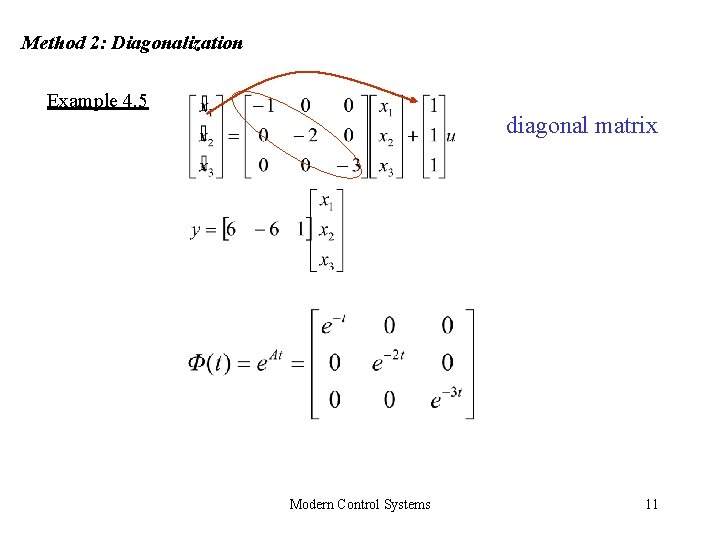

Method 2: Diagonalization Example 4. 5 diagonal matrix Modern Control Systems 11

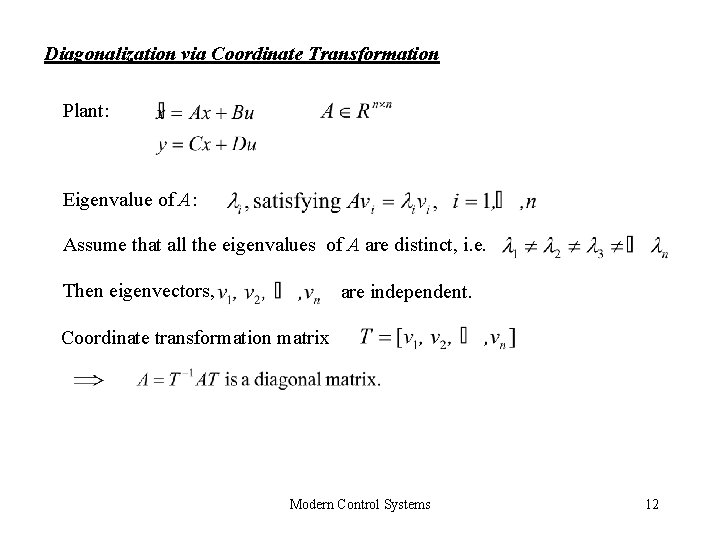

Diagonalization via Coordinate Transformation Plant: Eigenvalue of A: Assume that all the eigenvalues of A are distinct, i. e. Then eigenvectors, are independent. Coordinate transformation matrix Modern Control Systems 12

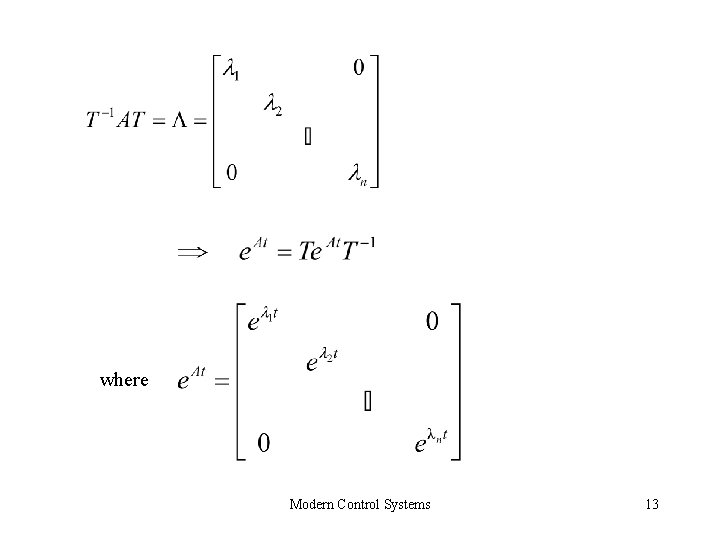

where Modern Control Systems 13

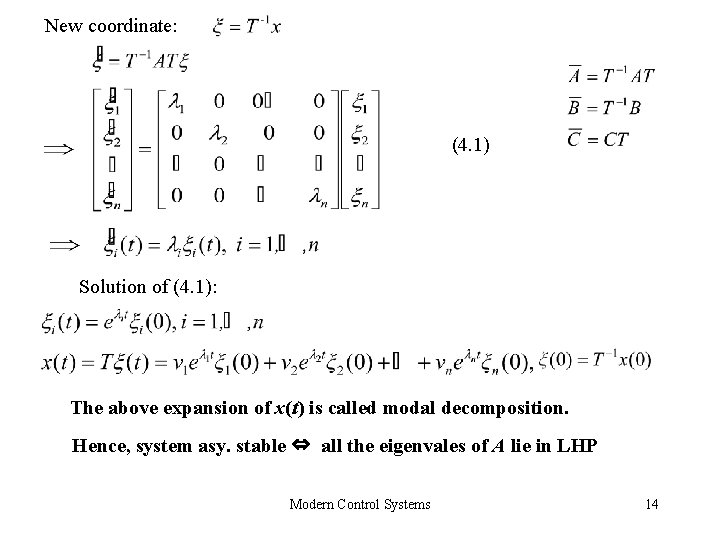

New coordinate: (4. 1) Solution of (4. 1): The above expansion of x(t) is called modal decomposition. Hence, system asy. stable ⇔ all the eigenvales of A lie in LHP Modern Control Systems 14

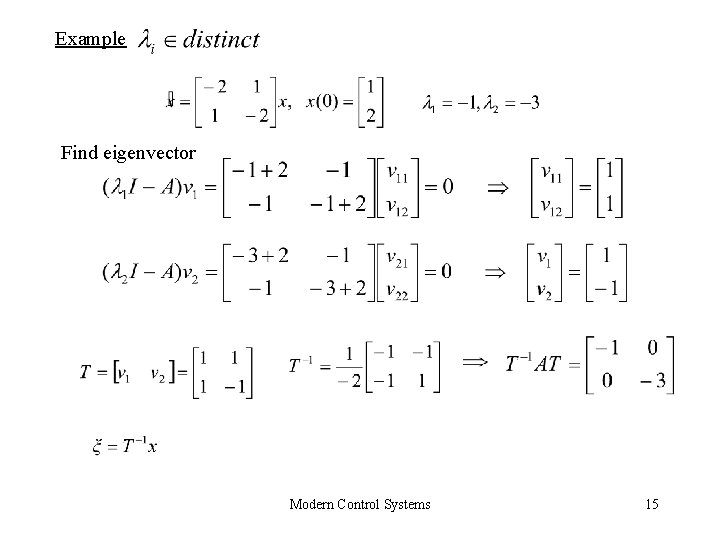

Example Find eigenvector Modern Control Systems 15

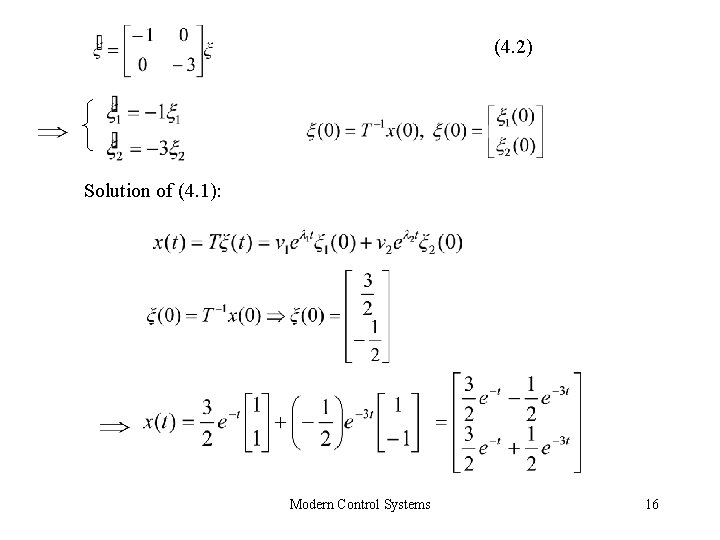

(4. 2) Solution of (4. 1): Modern Control Systems 16

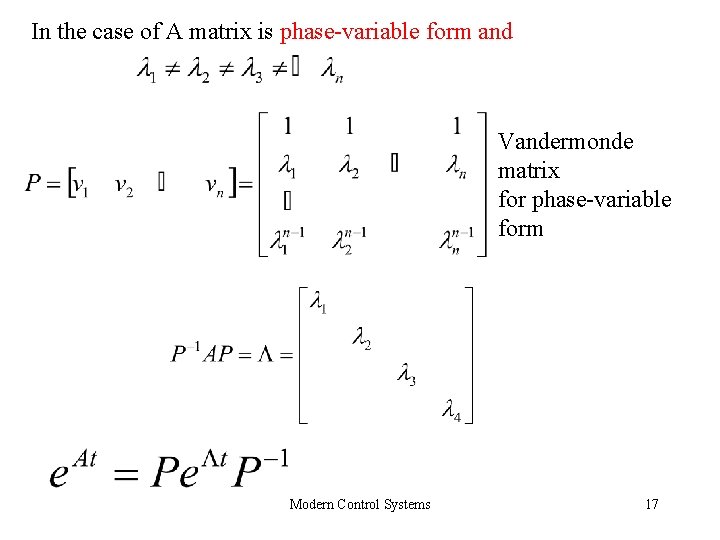

In the case of A matrix is phase-variable form and Vandermonde matrix for phase-variable form Modern Control Systems 17

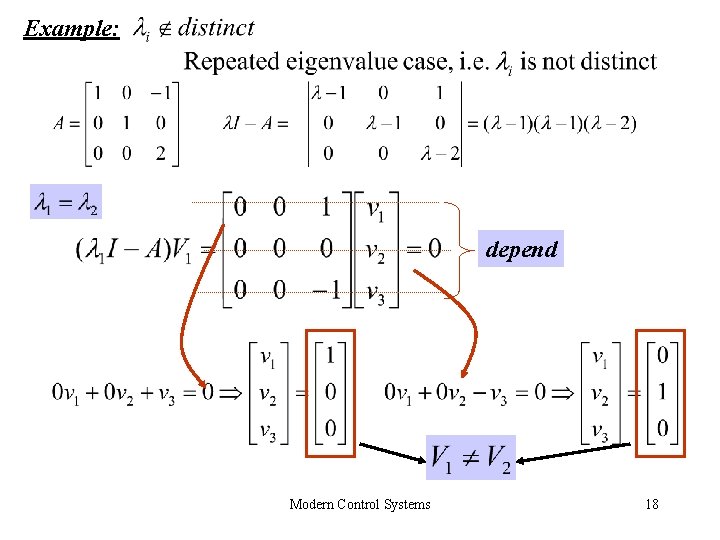

Example: depend Modern Control Systems 18

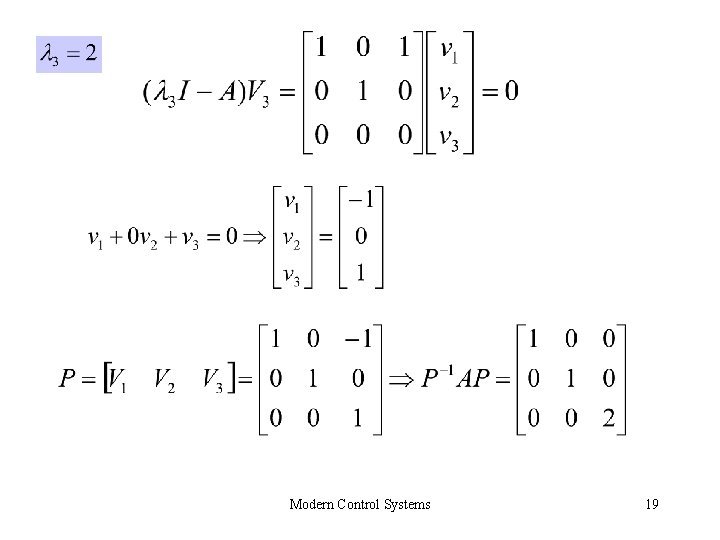

Modern Control Systems 19

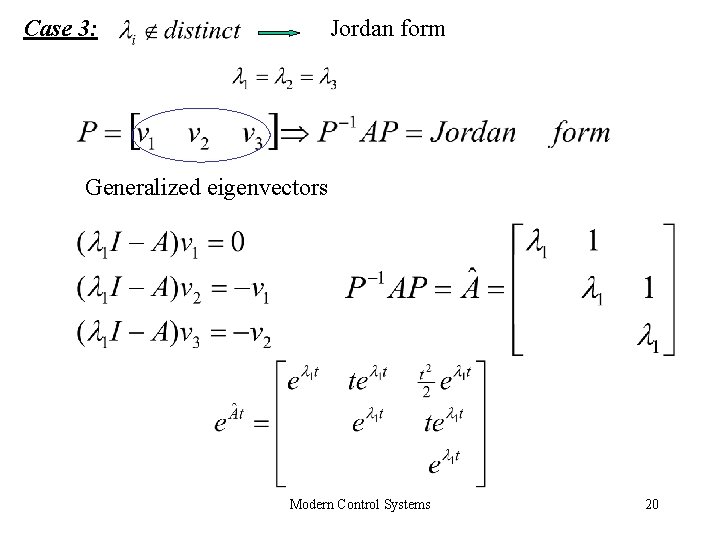

Case 3: Jordan form Generalized eigenvectors Modern Control Systems 20

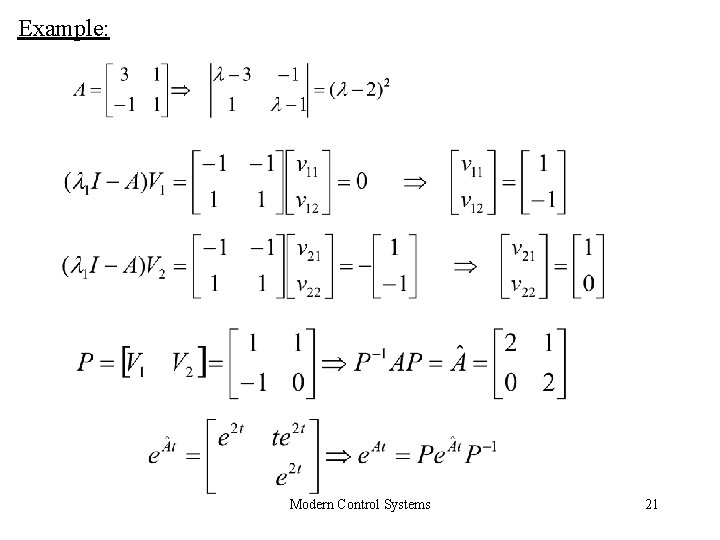

Example: Modern Control Systems 21

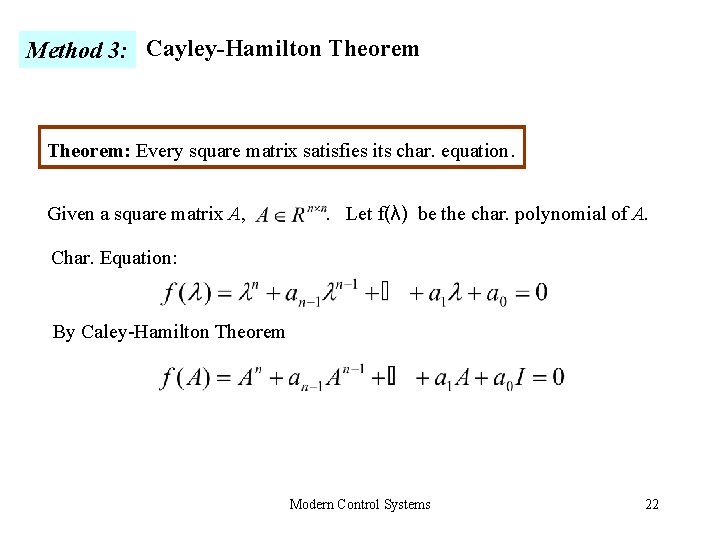

Method 3: Cayley-Hamilton Theorem: Every square matrix satisfies its char. equation. Given a square matrix A, . Let f(λ) be the char. polynomial of A. Char. Equation: By Caley-Hamilton Theorem Modern Control Systems 22

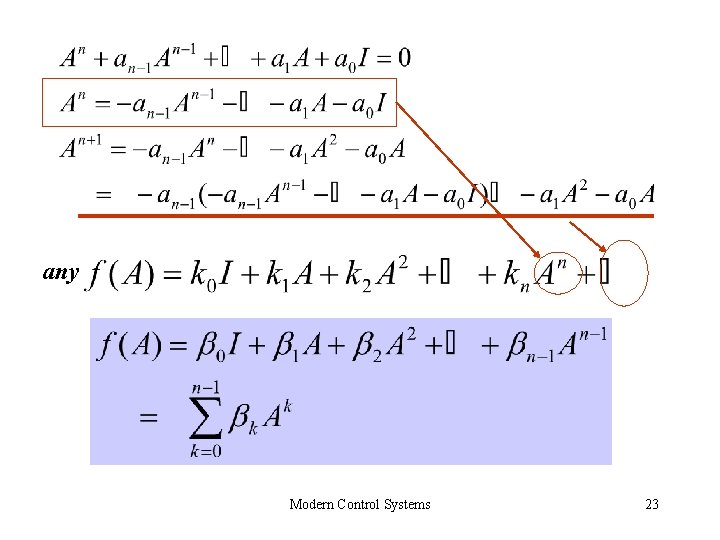

any Modern Control Systems 23

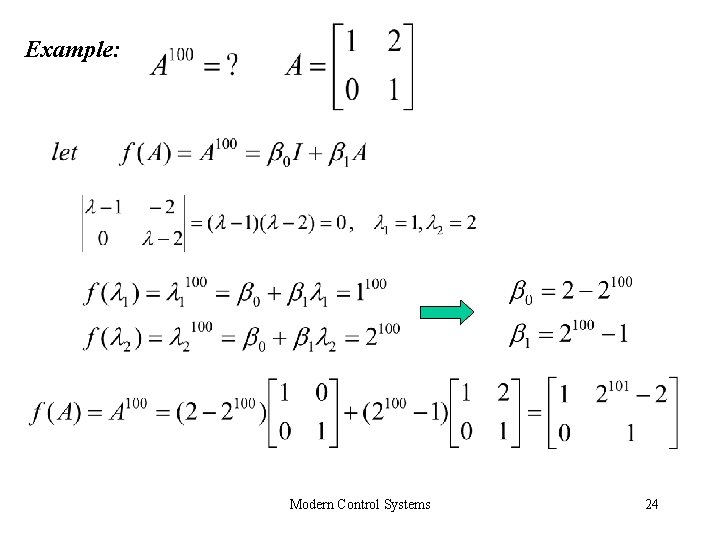

Example: Modern Control Systems 24

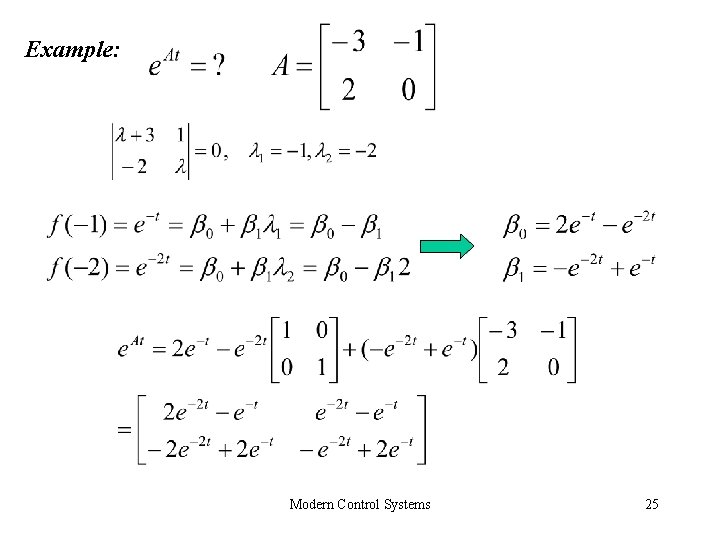

Example: Modern Control Systems 25

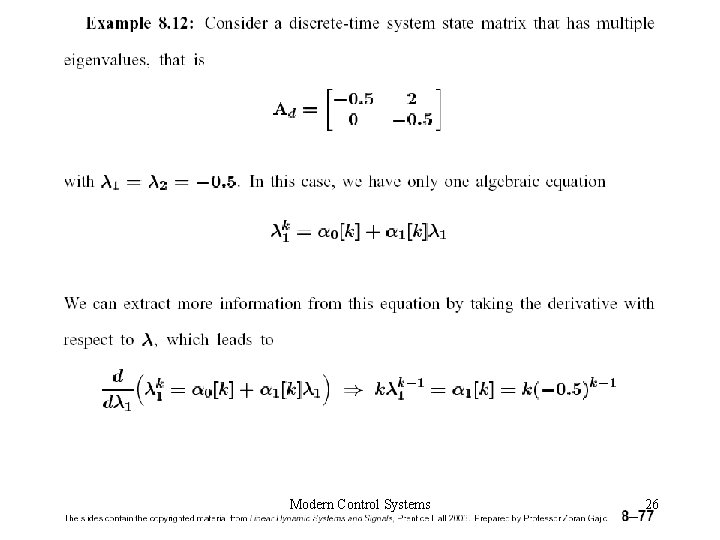

Modern Control Systems 26

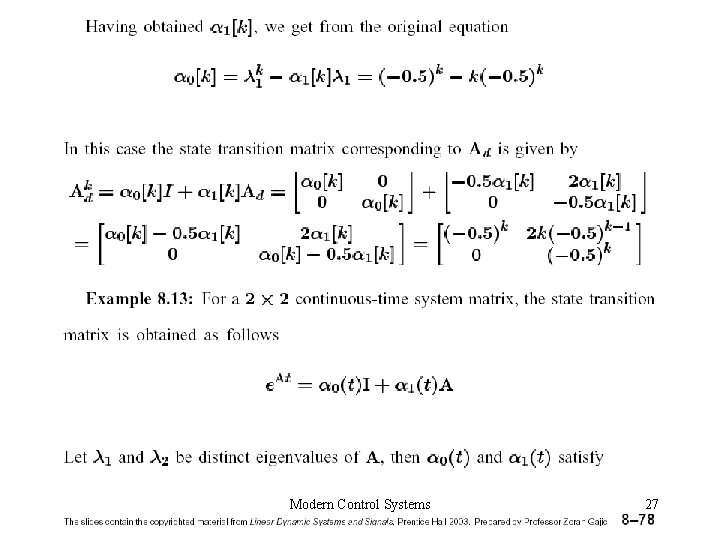

Modern Control Systems 27

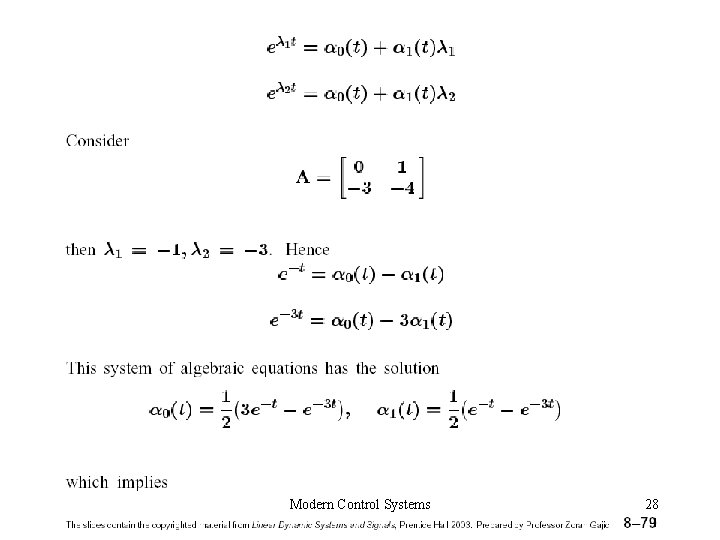

Modern Control Systems 28

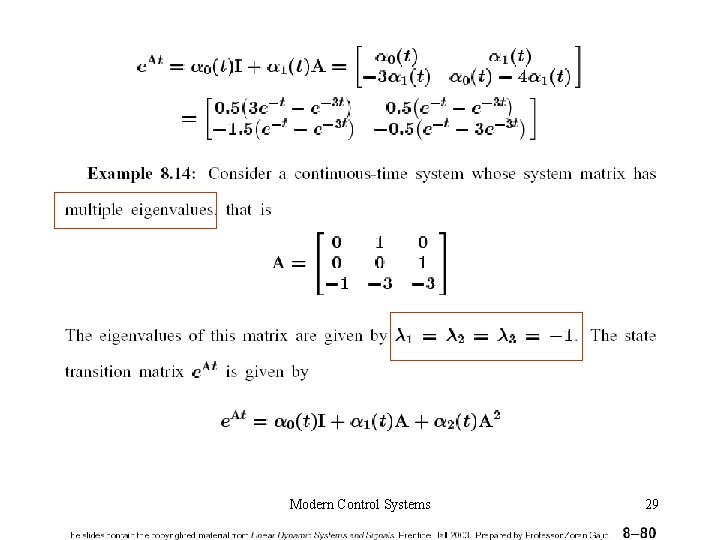

Modern Control Systems 29

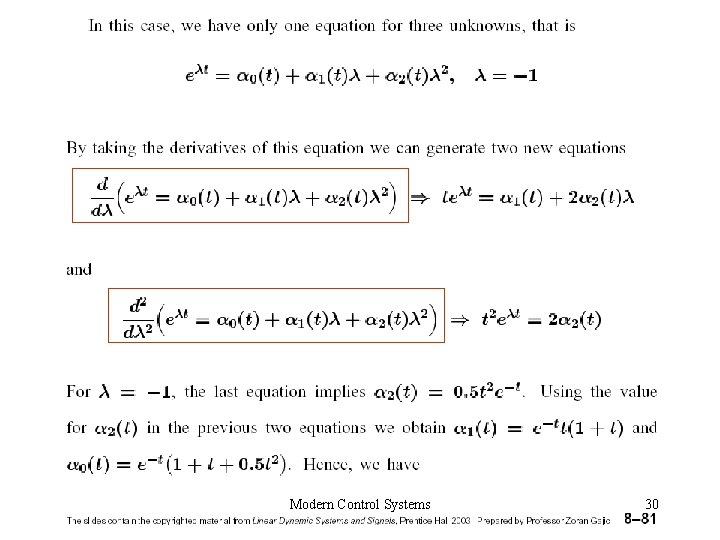

Modern Control Systems 30

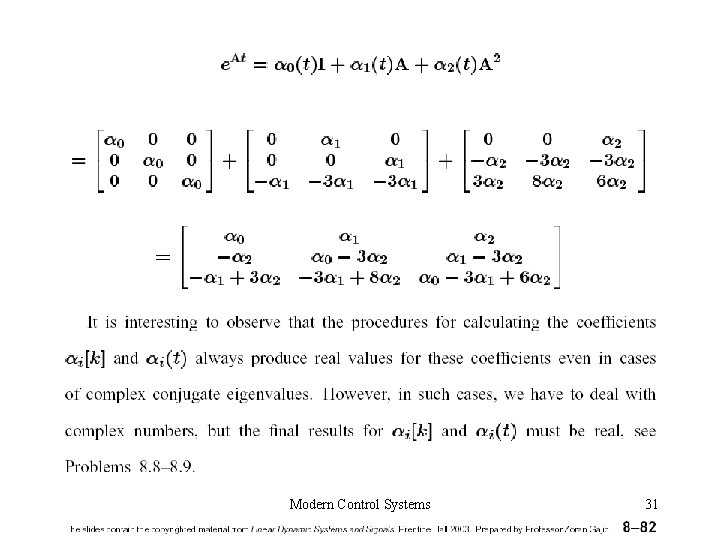

Modern Control Systems 31

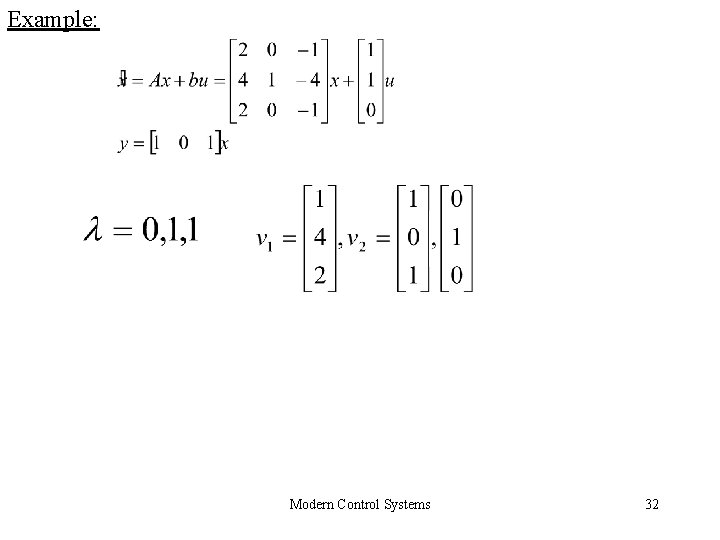

Example: Modern Control Systems 32

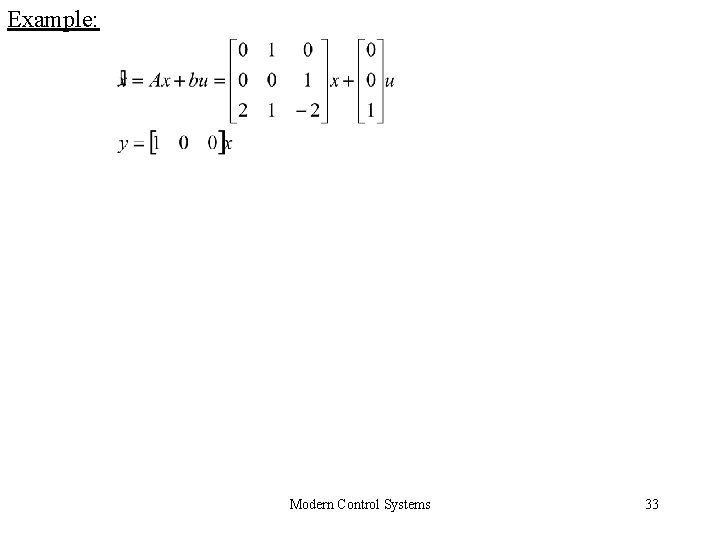

Example: Modern Control Systems 33
