Lect-4 introduction to the classification of materials Industrial Material Applications, IE 251 Dr M. A. Eissa King Saud University College of Engineering Department of Industrial Engineering Manufacturing materials --- IE 251 lect-4, lect-4 Slide 1

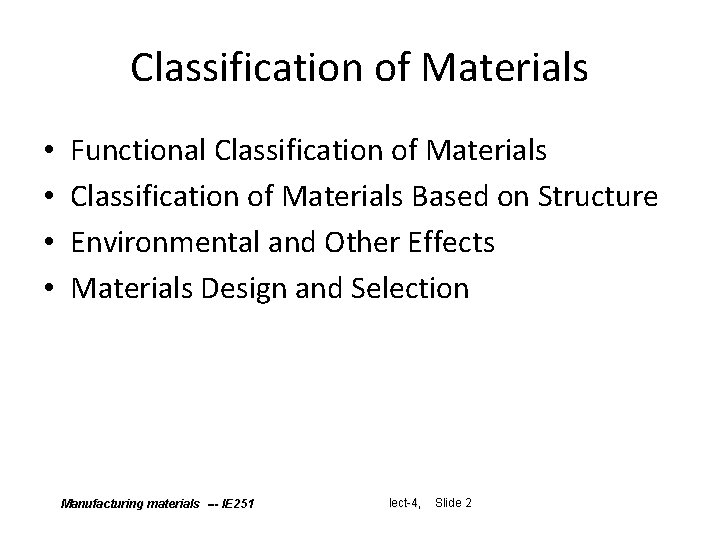

Classification of Materials • • Functional Classification of Materials Based on Structure Environmental and Other Effects Materials Design and Selection Manufacturing materials --- IE 251 lect-4, lect-4 Slide 2

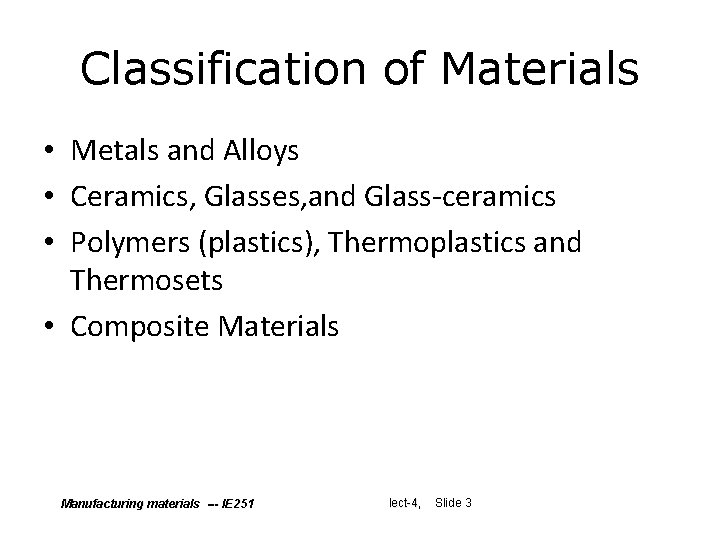

Classification of Materials • Metals and Alloys • Ceramics, Glasses, and Glass-ceramics • Polymers (plastics), Thermoplastics and Thermosets • Composite Materials Manufacturing materials --- IE 251 lect-4, lect-4 Slide 3

Manufacturing materials --- IE 251 lect-4, lect-4 Slide 4

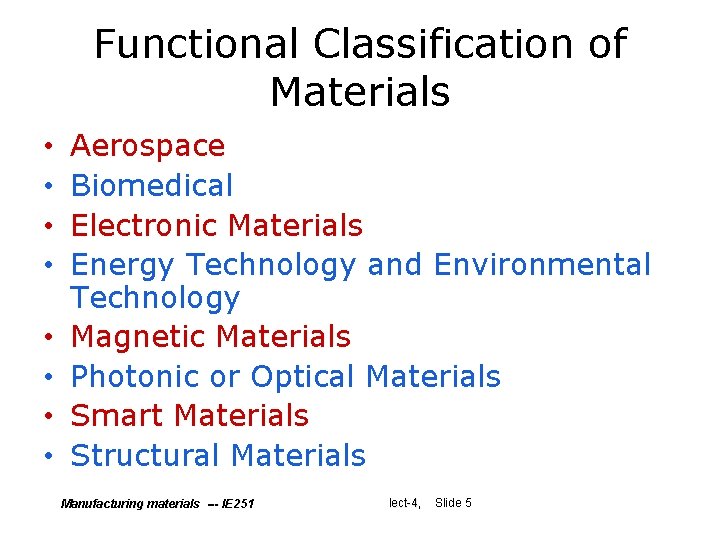

Functional Classification of Materials • • Aerospace Biomedical Electronic Materials Energy Technology and Environmental Technology Magnetic Materials Photonic or Optical Materials Smart Materials Structural Materials Manufacturing materials --- IE 251 lect-4, lect-4 Slide 5

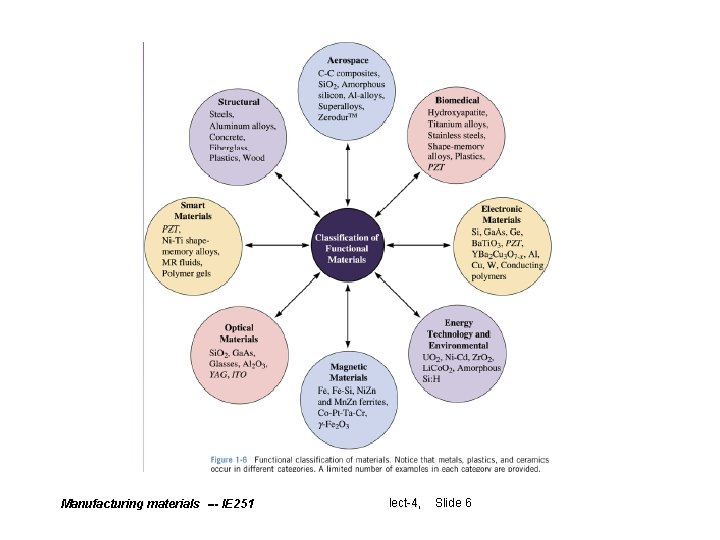

Manufacturing materials --- IE 251 lect-4, lect-4 Slide 6

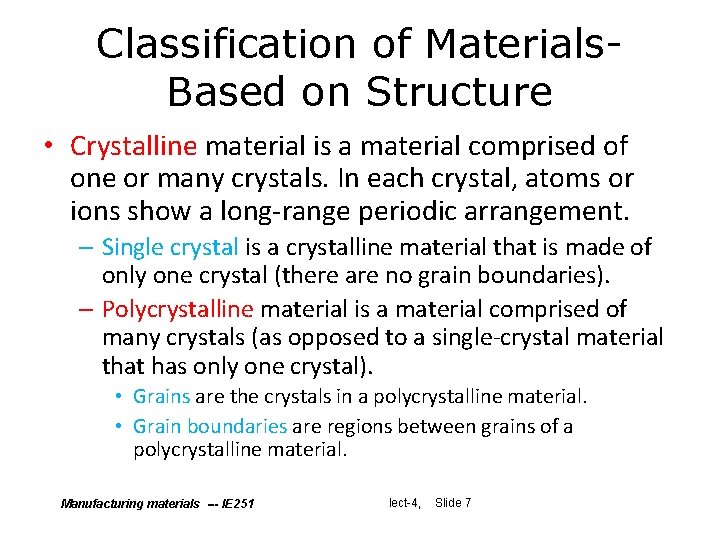

Classification of Materials. Based on Structure • Crystalline material is a material comprised of one or many crystals. In each crystal, atoms or ions show a long-range periodic arrangement. – Single crystal is a crystalline material that is made of only one crystal (there are no grain boundaries). – Polycrystalline material is a material comprised of many crystals (as opposed to a single-crystal material that has only one crystal). • Grains are the crystals in a polycrystalline material. • Grain boundaries are regions between grains of a polycrystalline material. Manufacturing materials --- IE 251 lect-4, lect-4 Slide 7

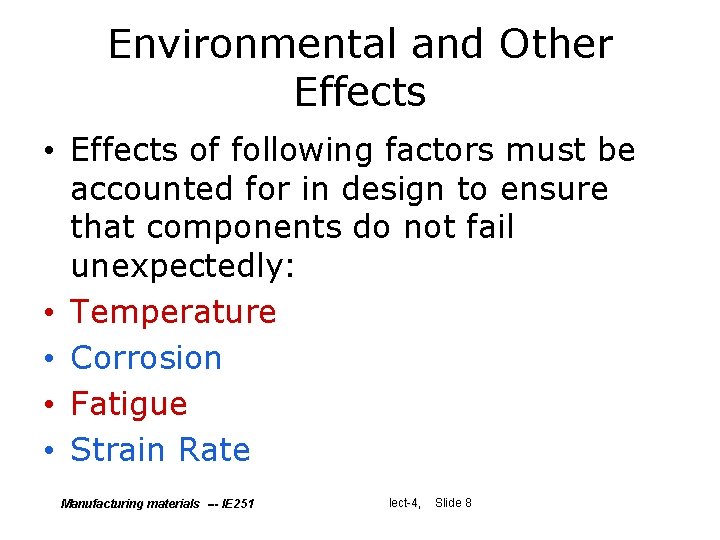

Environmental and Other Effects • Effects of following factors must be accounted for in design to ensure that components do not fail unexpectedly: • Temperature • Corrosion • Fatigue • Strain Rate Manufacturing materials --- IE 251 lect-4, lect-4 Slide 8

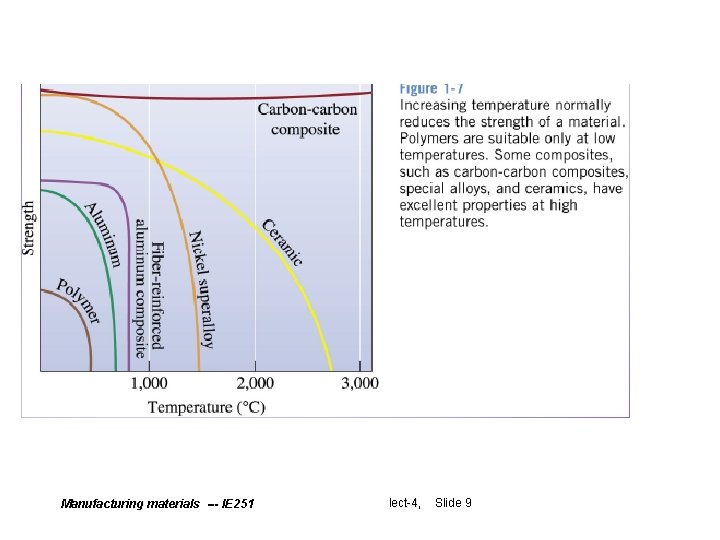

Manufacturing materials --- IE 251 lect-4, lect-4 Slide 9

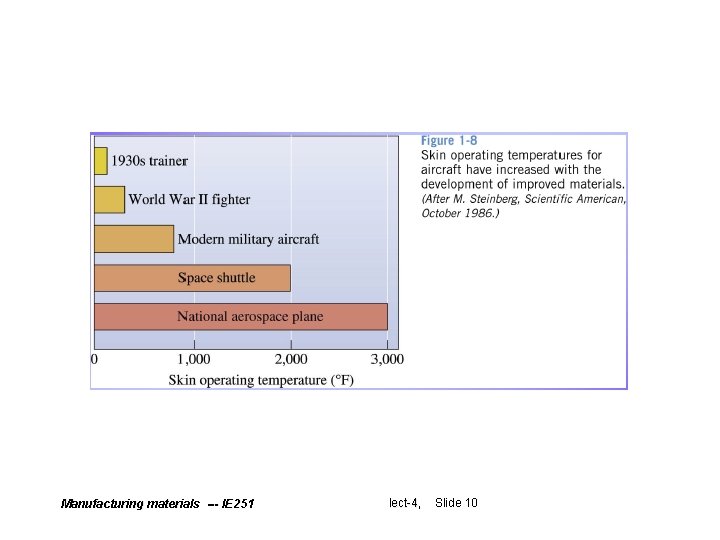

Manufacturing materials --- IE 251 lect-4, lect-4 Slide 10

Materials, process and shape Manufacturing materials --- IE 251 lect-4, lect-4 Slide 11

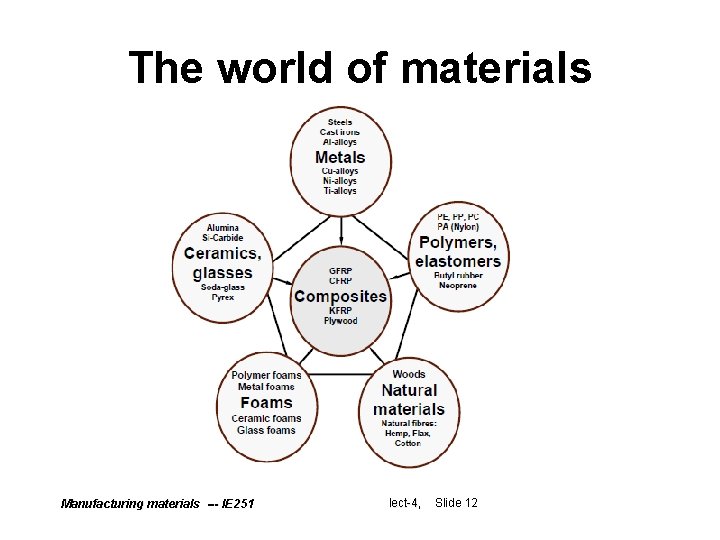

The world of materials Manufacturing materials --- IE 251 lect-4, lect-4 Slide 12

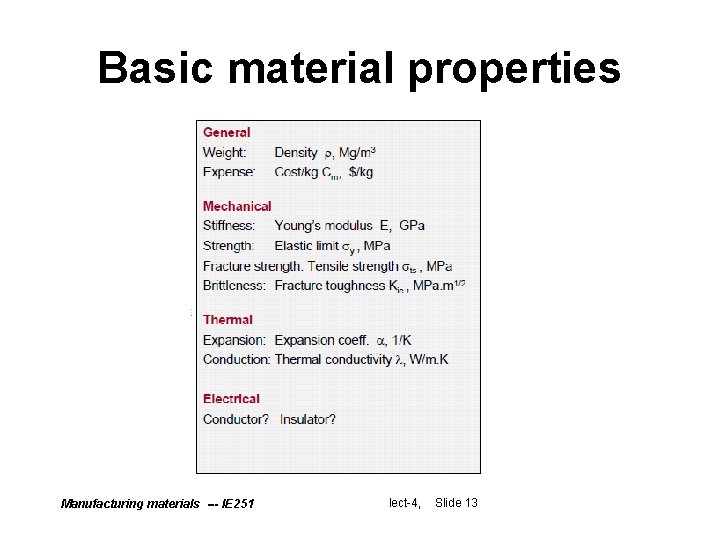

Basic material properties Manufacturing materials --- IE 251 lect-4, lect-4 Slide 13

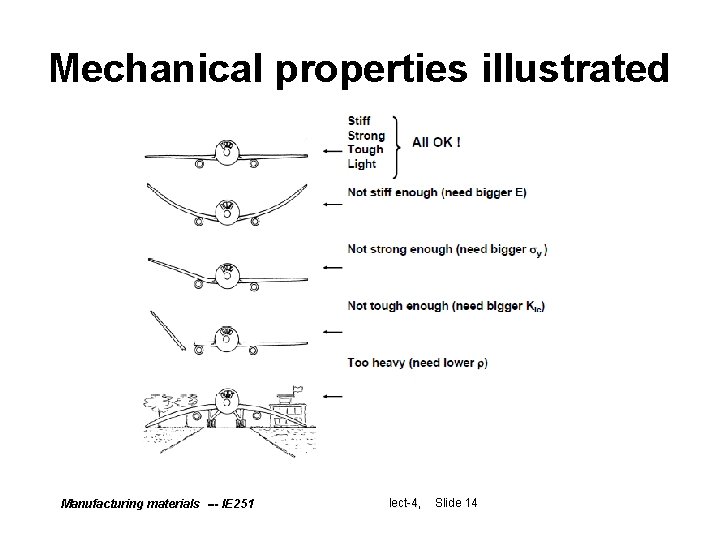

Mechanical properties illustrated Manufacturing materials --- IE 251 lect-4, lect-4 Slide 14

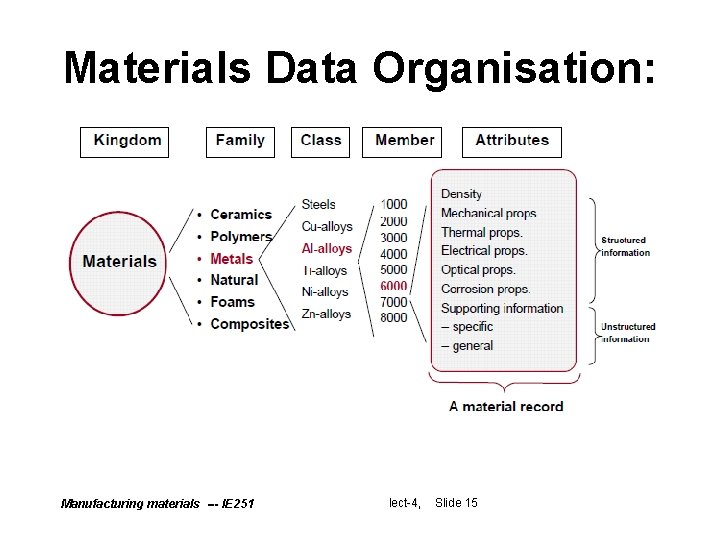

Materials Data Organisation: Manufacturing materials --- IE 251 lect-4, lect-4 Slide 15
