Leaving Certificate Agricultural Science Soil 4 – Soil Properties

Leaving Certificate Agricultural Science Soil 4 – Soil Properties

Humus � Humus is the product of the breakdown of organic matter. � It

Humus � Humus is the product of the breakdown of organic matter. � It is the remains of dead animals and plants. � Fully decayed material forms CO 2, water and mineral salts. � But the incomplete product is a dark sticky material called humus. � Humus in the soil absorbs the water and can greatly improve the quality of otherwise poor (sandy) soils.

Humus

Humus

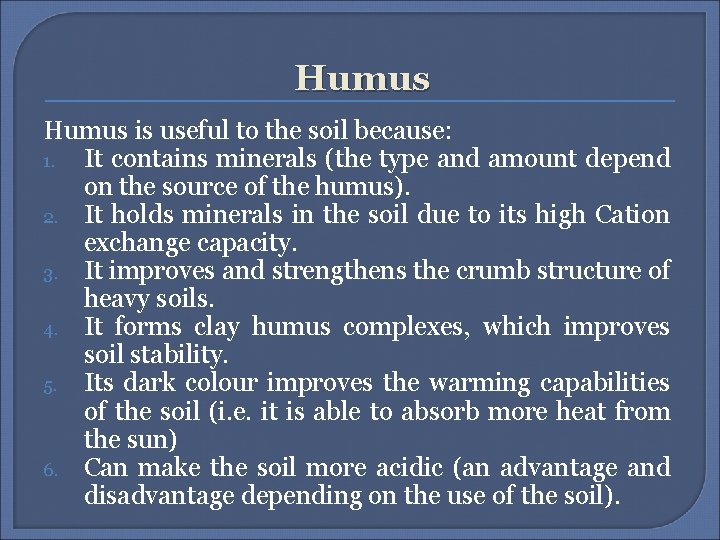

Humus is useful to the soil because: 1. It contains minerals (the type and

Humus is useful to the soil because: 1. It contains minerals (the type and amount depend on the source of the humus). 2. It holds minerals in the soil due to its high Cation exchange capacity. 3. It improves and strengthens the crumb structure of heavy soils. 4. It forms clay humus complexes, which improves soil stability. 5. Its dark colour improves the warming capabilities of the soil (i. e. it is able to absorb more heat from the sun) 6. Can make the soil more acidic (an advantage and disadvantage depending on the use of the soil).

Humus

Humus

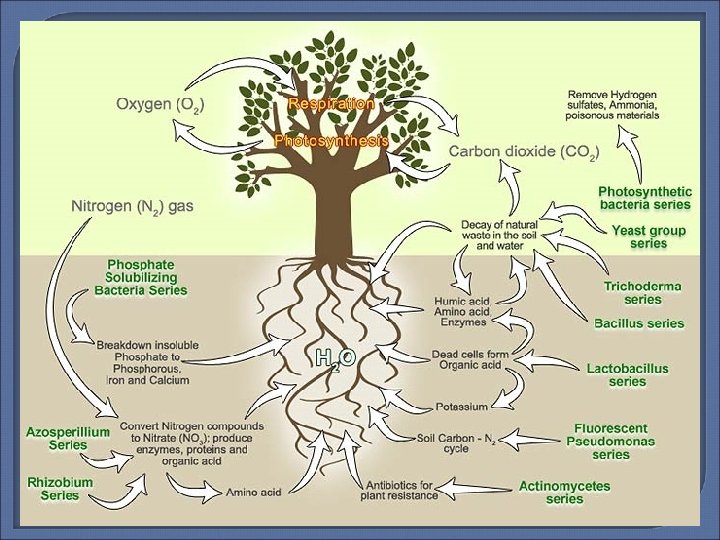

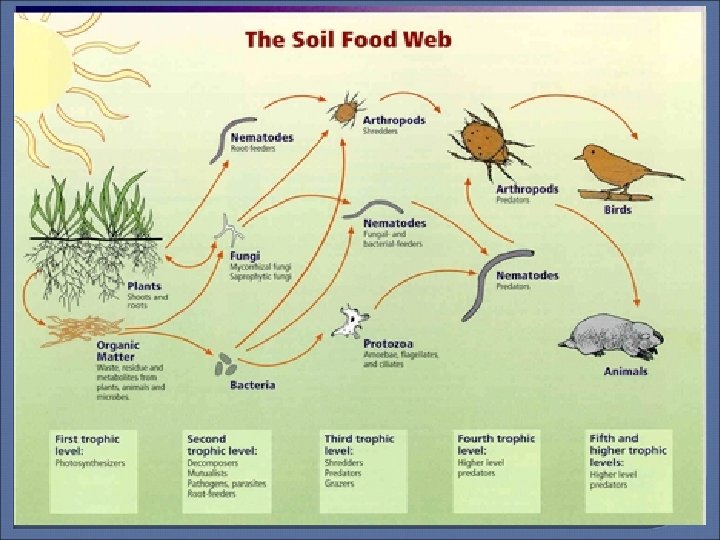

Soil Micro organisms � The micro-organisms in the soil include bacteria, fungi and algae

Soil Micro organisms � The micro-organisms in the soil include bacteria, fungi and algae but bacteria are the most important group. � The most important function of bacteria is the breakdown of organic matter into humus and play a major role in the Nitrogen & carbon cycle.

The Earthworm and its role in the soil � The earthworm plays a major

The Earthworm and its role in the soil � The earthworm plays a major role in the structure of the soil. � The number of earthworms is an indication of the fertility of the soil. � In good (fertile) soil there may be as many as 150 -200 worms per metre squared. � That is the same as 1. 5 – 2 million worms per hectare.

The Earthworm and its role in the soil Earthworms improve the soil in the

The Earthworm and its role in the soil Earthworms improve the soil in the following ways: • They eat their way through the soil and mix the • • ingested material with mucus in their guts. This helps to improve soil crumb structure. Depositing soil in different places and mixing horizons. Improve drainage of heavy clay soils Introduces more air into the soil. When they die the further increase the amount of organic matter.

The Earthworm

The Earthworm

Soil Water is important in the soil for some obvious reasons: • Required for

Soil Water is important in the soil for some obvious reasons: • Required for the growth of plants and animals (like • • earthworms and even bacteria) All chemical reactions that take place in the soil require water for them to proceed. But too little or too much water can be harmful to the soil and its inhabitants. It is the worlds best known solvent. It forms salts readily with chemicals found in parent rock these are then taken up by the plant roots.

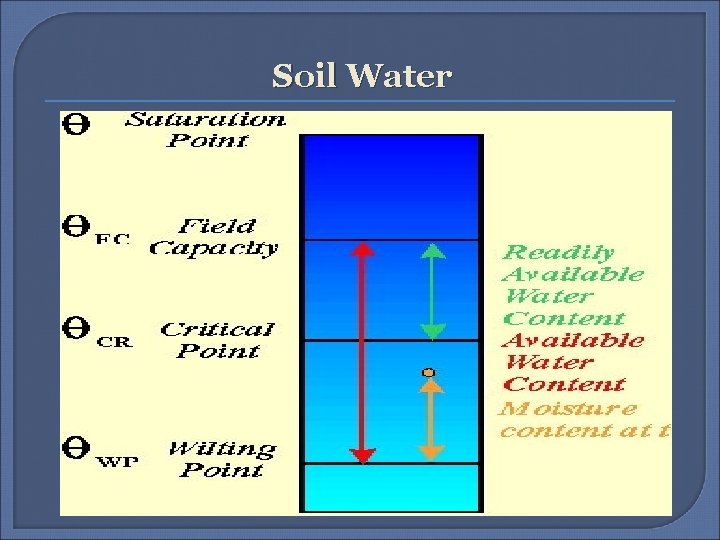

Soil Water

Soil Water

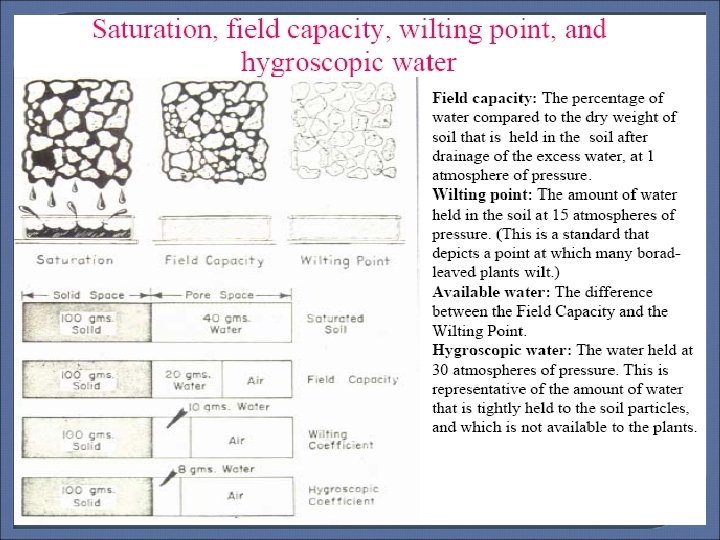

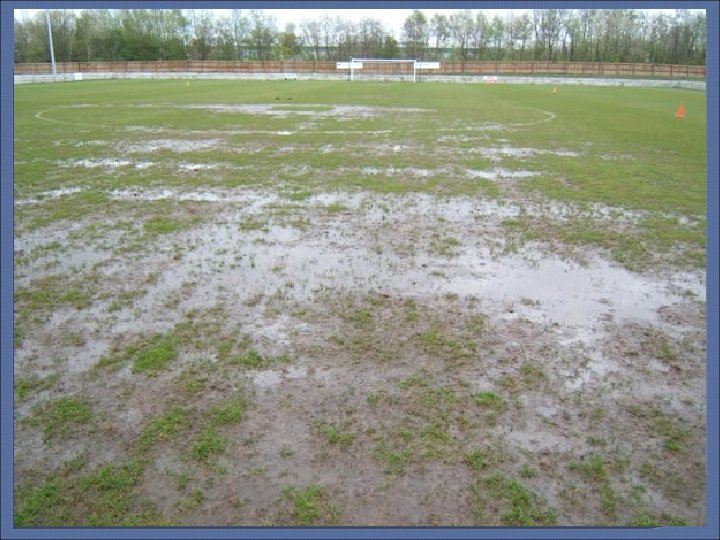

Soil Water There are four extreme conditions to consider when discussing soil water 1.

Soil Water There are four extreme conditions to consider when discussing soil water 1. Flooding – When all available space in the soil is taken up by water and there is excess on the surface of the soil.

Soil Water 2. Water logging – When all available spaces are taken up by

Soil Water 2. Water logging – When all available spaces are taken up by water in the soil but there is no excess on the surface of the soil. • The presence of the water is not the problem here but the resultant absence of air. • The area where all the air spaces is taken up by water is called the Water Table 3. Wilting Point – Is the condition of a particular plant when it has extracted all the available water from the soil.

Soil Water 4. Field Capacity - When a soil has just enough water and

Soil Water 4. Field Capacity - When a soil has just enough water and is not flooded or water logged. • Measured in mm of water • Clay soils can hold more water and are said to have a greater field capacity.

Soil Air

Soil Air

Soil Air � Air is required in the soil for the growth of roots,

Soil Air � Air is required in the soil for the growth of roots, bacteria and earthworms. It is essentially the same in composition as atmospheric air. • • 78 % Nitrogen 21 % Oxygen 0. 03 % Carbon Dioxide 0. 97 % Other gases

Soil Air � The most important constituent of soil air is oxygen. � This

Soil Air � The most important constituent of soil air is oxygen. � This gas is vital for the process of respiration by both plant roots and macro and micro– organisms. � Respiration involves burning up food in the presence of oxygen and releasing energy.

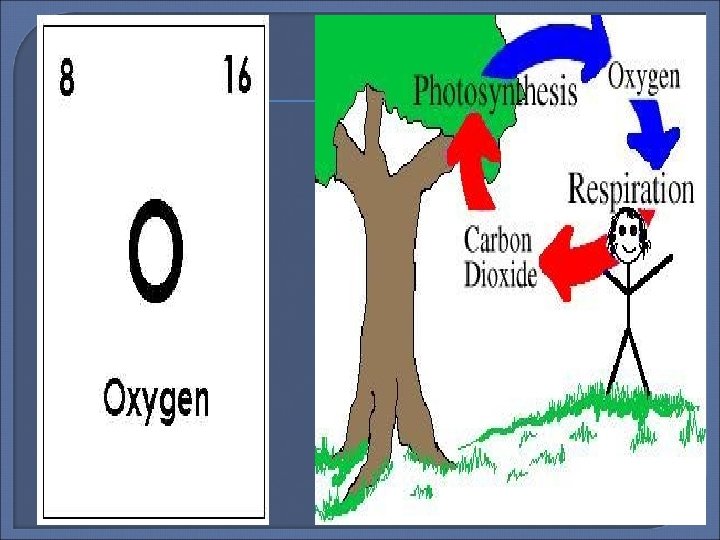

Respiration � Aerobic – In the presence of Oxygen (O 2) � Anaerobic –

Respiration � Aerobic – In the presence of Oxygen (O 2) � Anaerobic – In the absence of Oxygen (O 2) Food + Oxygen Carbon Dioxide + Water + Energy C 6 H 12 O 6 + 6 O 6 CO 2 + 6 H 2 O + Energy

Need for Oxygen � If it happens that the Oxygen content is < 20%

Need for Oxygen � If it happens that the Oxygen content is < 20% of its desired capacity then root growth is impeded (stunted). � This can happen by compaction by heavy machinery, frequent flooding or water logging and in severe cases over use of pesticides killing off helpful bacteria and earthworms. � Plants use O 2 for the uptake of minerals from the soil. Most the useful bacteria in the soil are aerobic (i. e. they need Oxygen to live) Anaerobic bacteria do not need oxygen. Certain types of bacteria can use the Nitrogen in the soil and change it into nitrates and other compounds which are useful to the plant.

Mineral Nutrients � These are elements or compounds that are either bound chemically to

Mineral Nutrients � These are elements or compounds that are either bound chemically to clay particles or are dissolved in water in the soil. � Plants require them as nutrients for growth and repair of their cells and also for certain chemical reactions to take place. � They are classified by their amount of use. � The minerals required in large amounts are called Macro – Nutrients. Examples are N, P, K, Ca and Mg. � Minerals required in small amounts are called Micro – Nutrients. Examples are Fe, Mn, Cu, and B. They are also known as minor elements or trace elements.

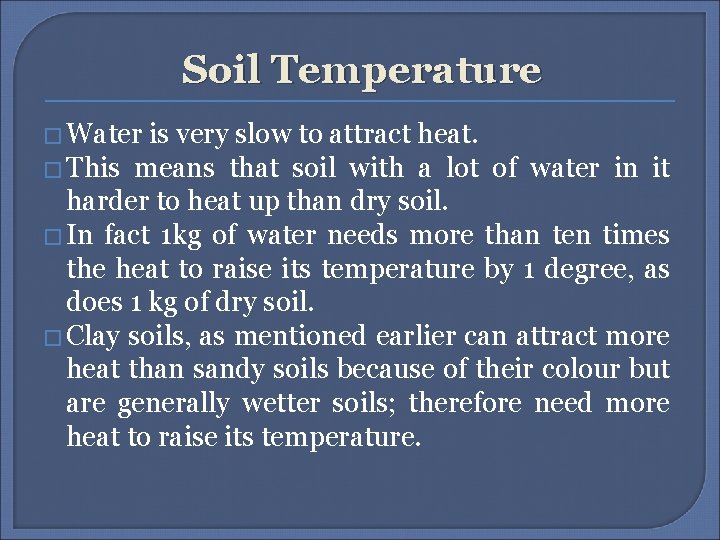

Soil Temperature � Water is very slow to attract heat. � This means that

Soil Temperature � Water is very slow to attract heat. � This means that soil with a lot of water in it harder to heat up than dry soil. � In fact 1 kg of water needs more than ten times the heat to raise its temperature by 1 degree, as does 1 kg of dry soil. � Clay soils, as mentioned earlier can attract more heat than sandy soils because of their colour but are generally wetter soils; therefore need more heat to raise its temperature.

Soil Temperature � This is why clay soils are referred to as cold soils

Soil Temperature � This is why clay soils are referred to as cold soils and sandy soils are called warm soils. � On average, clay soils need 50 % more heat than sandy soils to raise their temperatures by 1 degree. � Aspect, colour and altitude also affect the heating capabilities of a soil.

Soil Colour

Soil Colour

Soil Aspect � This is the direction that land is facing. � North facing

Soil Aspect � This is the direction that land is facing. � North facing slopes never get the sun � South facing slopes always get the sun � Land with a S, SW aspect will be warmer in spring and therefore more productive.

Soil Altitude � This is the height above sea level. For every 150 ft

Soil Altitude � This is the height above sea level. For every 150 ft the soil temperature drops by 10 C.

Soil p. H

Soil p. H

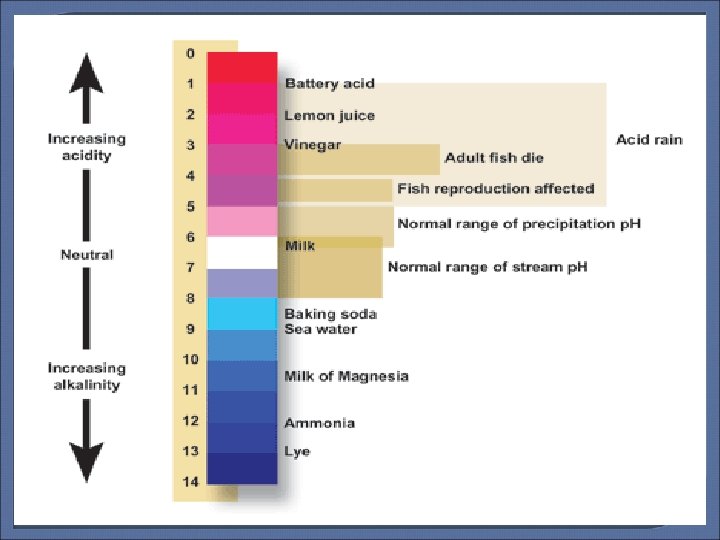

Soil p. H � Soil p. H is a measure of the acidity of

Soil p. H � Soil p. H is a measure of the acidity of a soil. � p. H stands for the power of the Hydrogen ion � Plants require certain p. H’s to grow well; if p. H changes the plant may not be able to produce as much, or may in fact die as a result. Earthworms and soil bacteria thrive in neutral or near neutral conditions. � In soils, p. H ranges mainly from 4 to 9.

Soils p. H values � < 4. 5 = Very Acidic � – 5.

Soils p. H values � < 4. 5 = Very Acidic � – 5. 2 = Strongly acidic � 5. 3 – 5. 9 = Moderately acidic � 6. 0 – 6. 5 = Slightly acidic � 6. 6 – 6. 9 = Near Neutral � 7. 0 = Neutral � 7. 1 – 7. 5 = Slightly Alkaline � 7. 6 – 8. 3 = Moderately alkaline. � In Ireland, soils tend to become acidic with time, and most soils need to be limes (increase the p. H) every four years or so.

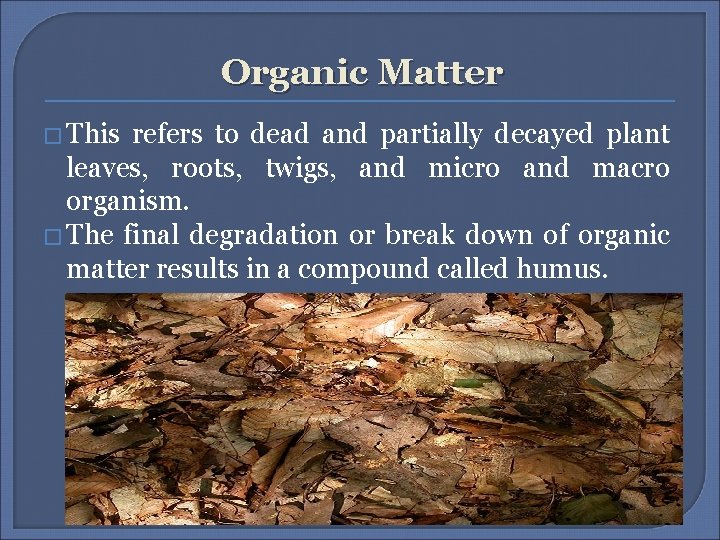

Organic Matter � This refers to dead and partially decayed plant leaves, roots, twigs,

Organic Matter � This refers to dead and partially decayed plant leaves, roots, twigs, and micro and macro organism. � The final degradation or break down of organic matter results in a compound called humus.

Organic Matter Advantages of organic matter • It is dark brown/black in colour. This

Organic Matter Advantages of organic matter • It is dark brown/black in colour. This means it will absorb heat and warm soils (especially in spring) will have an early germination capacity (Tillage – Barley and Wheat) • It has a crumb structure and is therefore friable • It has 4 times the C. E. C. of clay particles. Therefore soils rich in organic matter will be very fertile. • By promoting flocculation it hugely improves aeration. This increases the population of earth worms and bacteria of decay
