Learning Stable Multivariate Baseline Models for Outbreak Detection Sajid M. Siddiqi, Byron Boots, Geoffrey J. Gordon, Artur W. Dubrawski The Auton Lab School of Computer Science Carnegie Mellon University presented by Robin Sabhnani from the Auton Lab This work was partly funded by NSF grant IIS-0325581 and CDC award R 01 -PH 000028

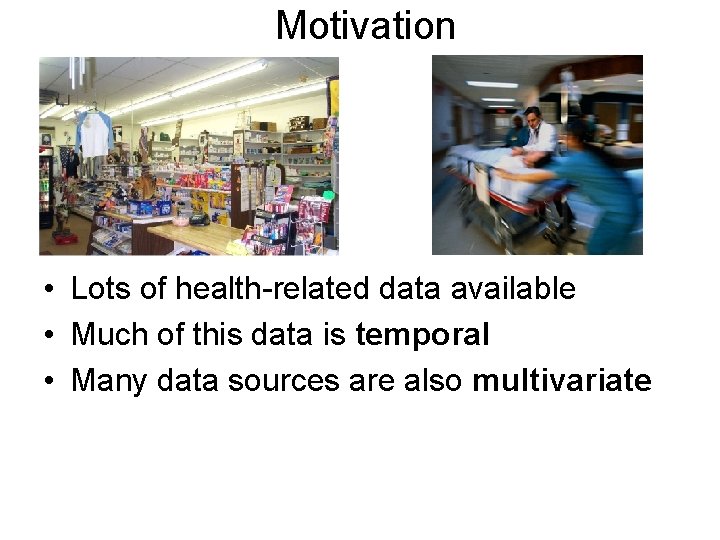

Motivation • Lots of health-related data available • Much of this data is temporal • Many data sources are also multivariate

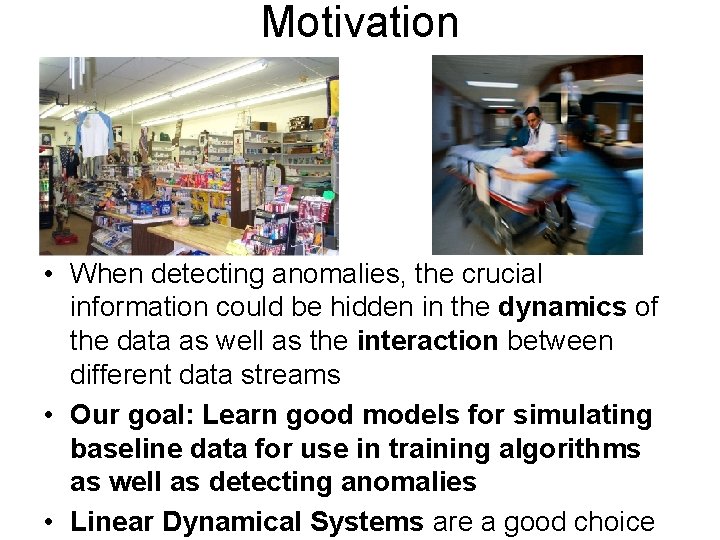

Motivation • When detecting anomalies, the crucial information could be hidden in the dynamics of the data as well as the interaction between different data streams • Our goal: Learn good models for simulating baseline data for use in training algorithms as well as detecting anomalies • Linear Dynamical Systems are a good choice

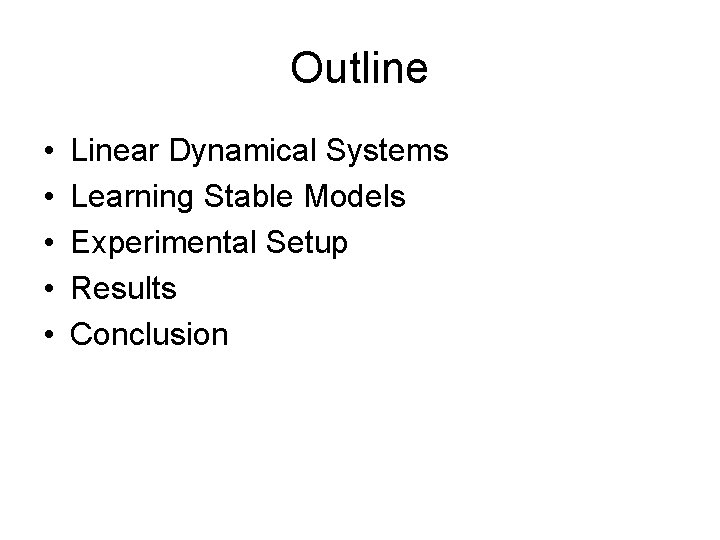

Outline • • • Linear Dynamical Systems Learning Stable Models Experimental Setup Results Conclusion

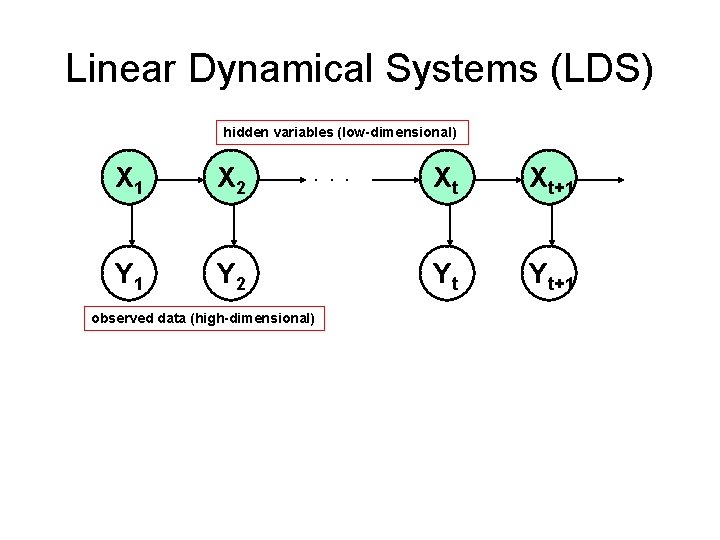

Linear Dynamical Systems (LDS) hidden variables (low-dimensional) X 1 X 2 Y 1 Y 2 . . . observed data (high-dimensional) Xt Xt+1 Yt Yt+1

Linear Dynamical Systems (LDS) hidden variables (low-dimensional) X 1 X 2 Y 1 Y 2 . . . observed data (high-dimensional) Xt Xt+1 Yt Yt+1

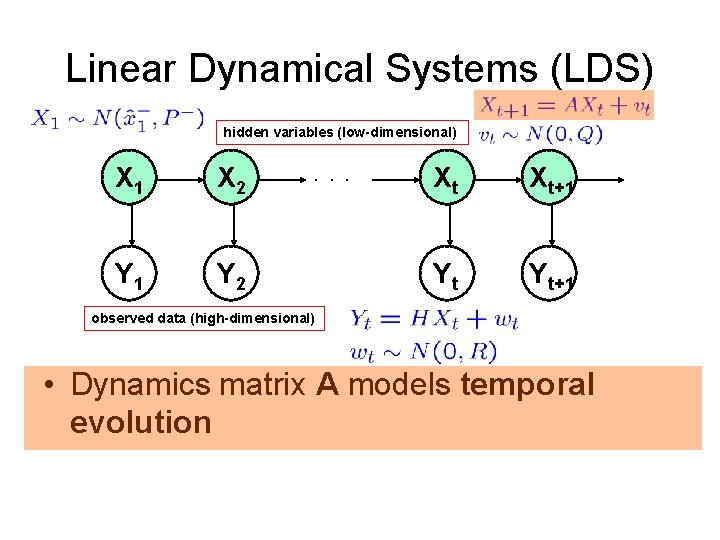

Linear Dynamical Systems (LDS) hidden variables (low-dimensional) X 1 X 2 Y 1 Y 2 . . . Xt Xt+1 Yt Yt+1 observed data (high-dimensional) • Dynamics matrix A models temporal evolution

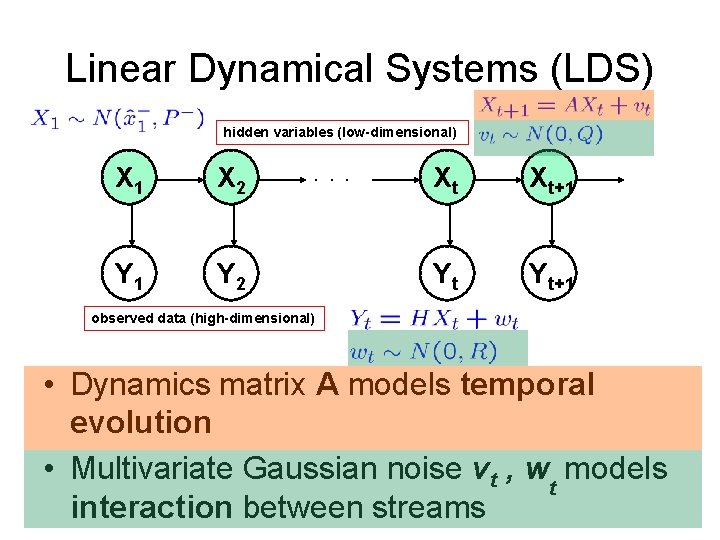

Linear Dynamical Systems (LDS) hidden variables (low-dimensional) X 1 X 2 Y 1 Y 2 . . . Xt Xt+1 Yt Yt+1 observed data (high-dimensional) • Dynamics matrix A models temporal evolution • Multivariate Gaussian noise vt , wt models interaction between streams

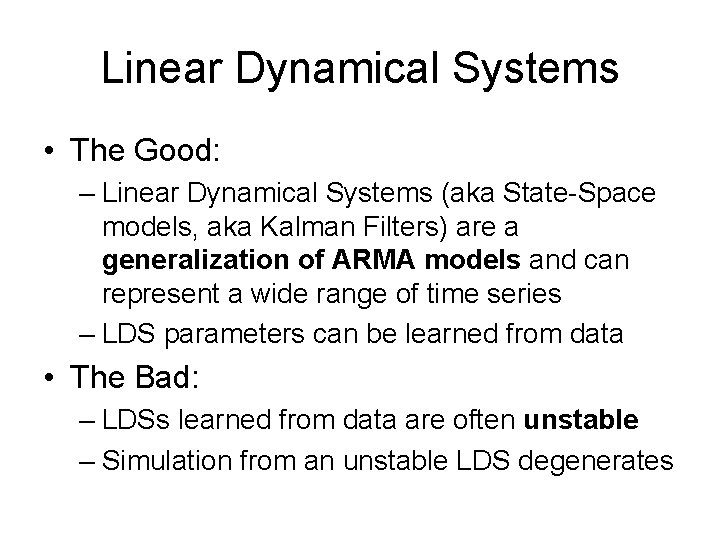

Linear Dynamical Systems • The Good: – Linear Dynamical Systems (aka State-Space models, aka Kalman Filters) are a generalization of ARMA models and can represent a wide range of time series – LDS parameters can be learned from data • The Bad: – LDSs learned from data are often unstable – Simulation from an unstable LDS degenerates

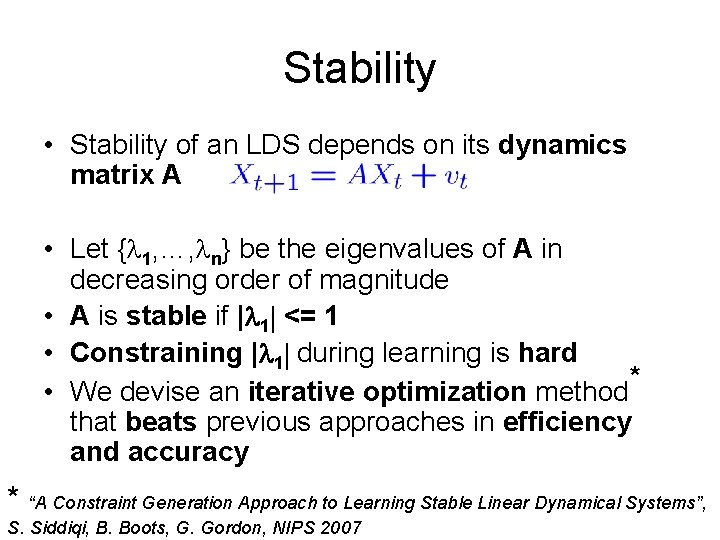

Stability • Stability of an LDS depends on its dynamics matrix A • Let { 1, …, n} be the eigenvalues of A in decreasing order of magnitude • A is stable if | 1| <= 1 • Constraining | 1| during learning is hard * • We devise an iterative optimization method that beats previous approaches in efficiency and accuracy * “A Constraint Generation Approach to Learning Stable Linear Dynamical Systems”, S. Siddiqi, B. Boots, G. Gordon, NIPS 2007

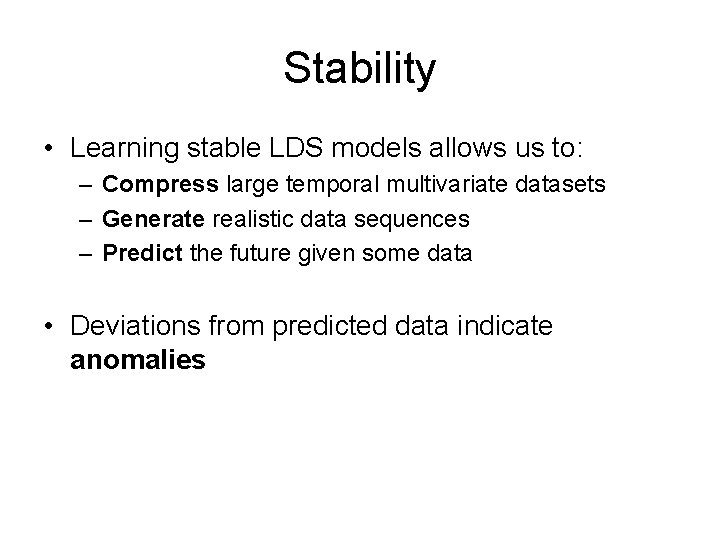

Stability • Learning stable LDS models allows us to: – Compress large temporal multivariate datasets – Generate realistic data sequences – Predict the future given some data • Deviations from predicted data indicate anomalies

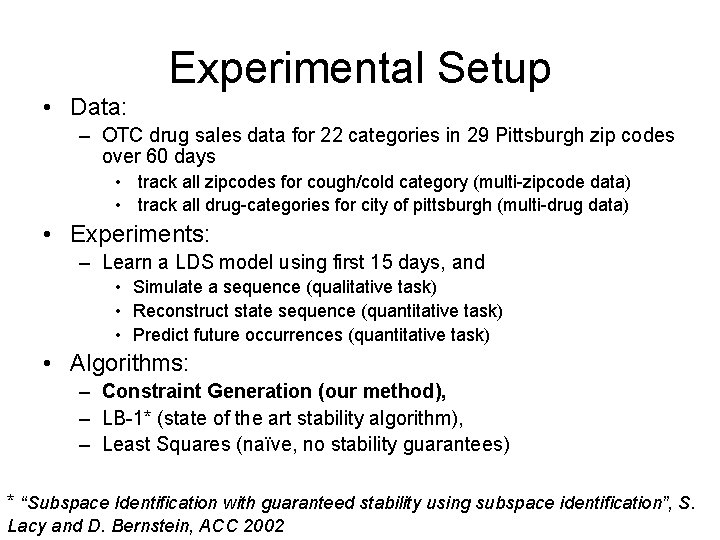

Experimental Setup • Data: – OTC drug sales data for 22 categories in 29 Pittsburgh zip codes over 60 days • track all zipcodes for cough/cold category (multi-zipcode data) • track all drug-categories for city of pittsburgh (multi-drug data) • Experiments: – Learn a LDS model using first 15 days, and • Simulate a sequence (qualitative task) • Reconstruct state sequence (quantitative task) • Predict future occurrences (quantitative task) • Algorithms: – Constraint Generation (our method), – LB-1* (state of the art stability algorithm), – Least Squares (naïve, no stability guarantees) * “Subspace Identification with guaranteed stability using subspace identification”, S. Lacy and D. Bernstein, ACC 2002

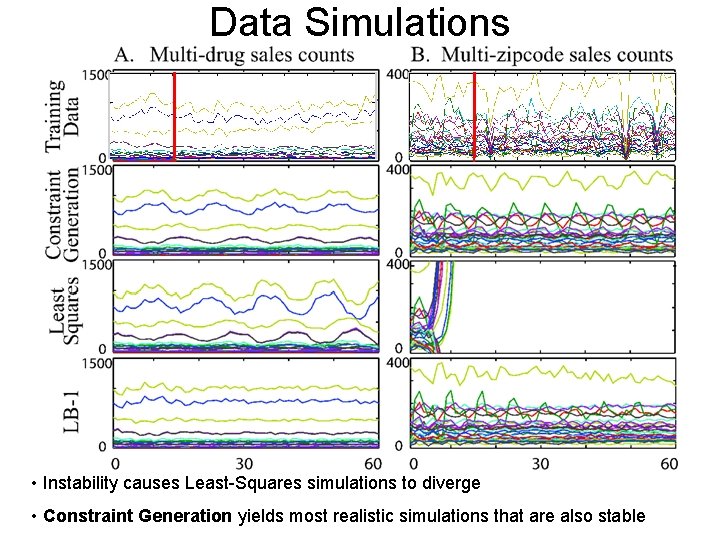

Data Simulations • Instability causes Least-Squares simulations to diverge • Constraint Generation yields most realistic simulations that are also stable

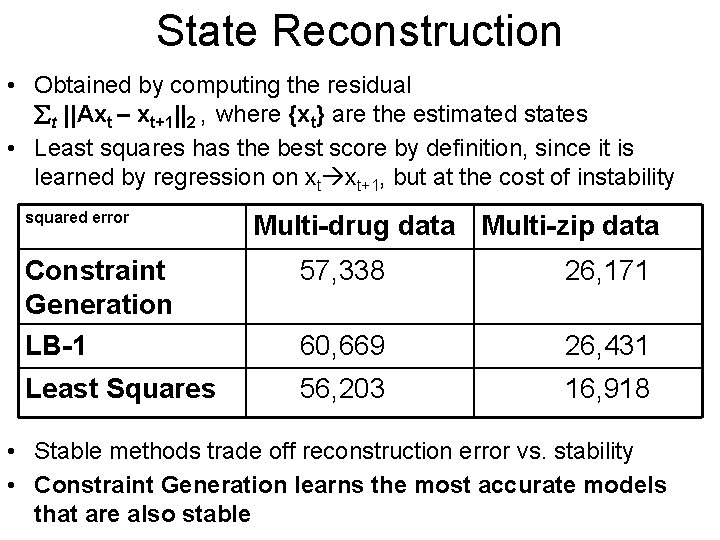

State Reconstruction • Obtained by computing the residual t ||Axt – xt+1||2 , where {xt} are the estimated states • Least squares has the best score by definition, since it is learned by regression on xt xt+1, but at the cost of instability squared error Multi-drug data Multi-zip data Constraint Generation LB-1 57, 338 26, 171 60, 669 26, 431 Least Squares 56, 203 16, 918 • Stable methods trade off reconstruction error vs. stability • Constraint Generation learns the most accurate models that are also stable

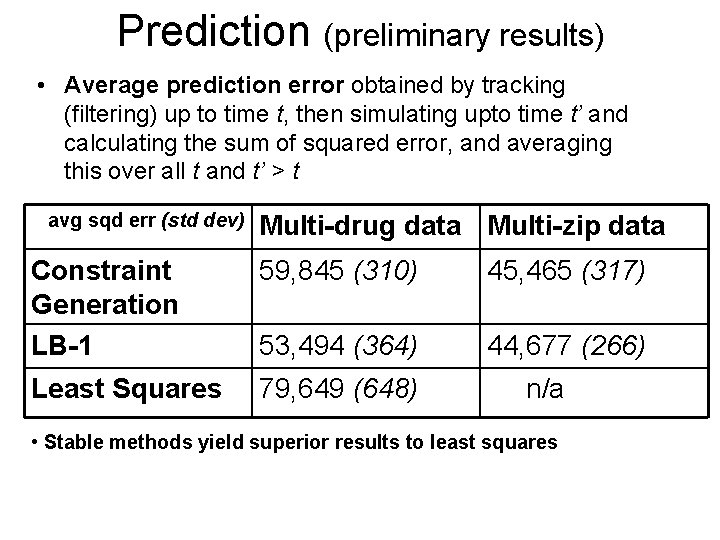

Prediction (preliminary results) • Average prediction error obtained by tracking (filtering) up to time t, then simulating upto time t’ and calculating the sum of squared error, and averaging this over all t and t’ > t avg sqd err (std dev) Multi-drug data Multi-zip data Constraint Generation LB-1 59, 845 (310) 45, 465 (317) 53, 494 (364) 44, 677 (266) Least Squares 79, 649 (648) n/a • Stable methods yield superior results to least squares

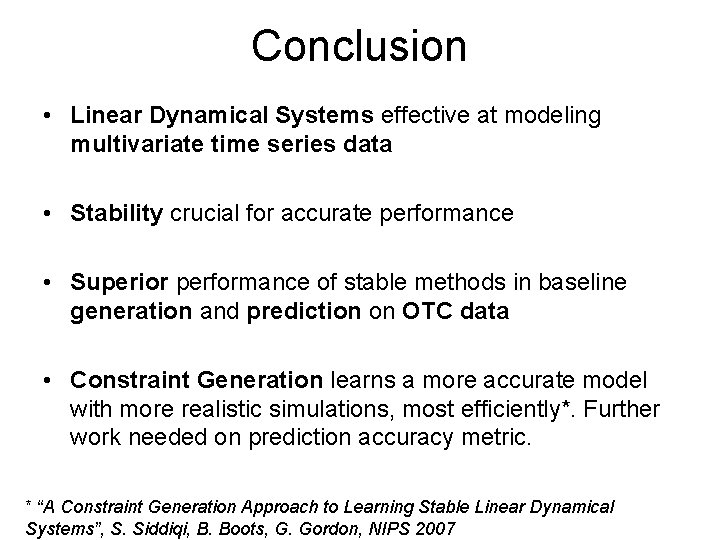

Conclusion • Linear Dynamical Systems effective at modeling multivariate time series data • Stability crucial for accurate performance • Superior performance of stable methods in baseline generation and prediction on OTC data • Constraint Generation learns a more accurate model with more realistic simulations, most efficiently*. Further work needed on prediction accuracy metric. * “A Constraint Generation Approach to Learning Stable Linear Dynamical Systems”, S. Siddiqi, B. Boots, G. Gordon, NIPS 2007
