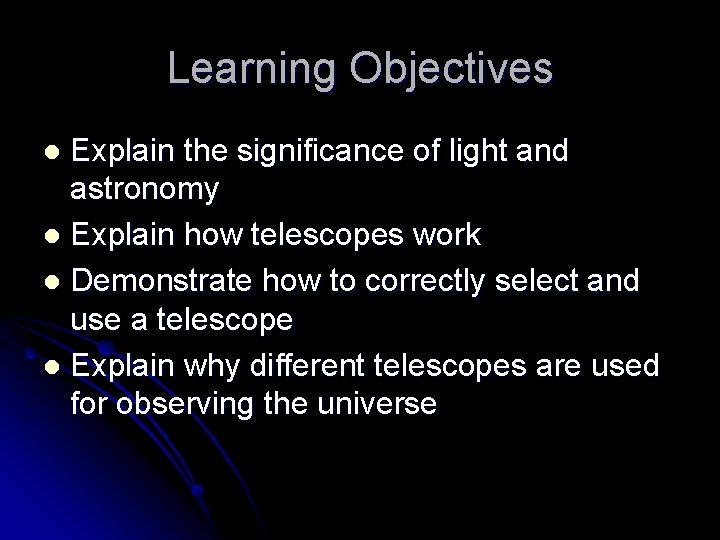

Learning Objectives Explain the significance of light and astronomy l Explain how telescopes work l Demonstrate how to correctly select and use a telescope l Explain why different telescopes are used for observing the universe l

Main Threads • the connection between sunlight, radio waves, and other kinds of electromagnetic radiation • what telescopes can and cannot do and how telescopes collect and focus light • why different types of telescopes are used for different types of research and how astronomers use the entire spectrum of electromagnetic radiation to observe the stars and other astronomical events • what new generations of land-based and spacebased high-technology telescopes being developed can do

Reflector vs. Refractor

Even Dogs Love Astronomy

CHAPTER 3: Light and Telescopes Radio wave image of Saturn. False color is used to represent different wavelengths of radio waves.

WHAT DO YOU THINK? What is light? l What is the electromagnetic spectrum? l Which type of electromagnetic radiation is most dangerous to life? l What is the main purpose of a telescope? l Why do stars twinkle? l Which type(s) of electromagnetic radiation can telescopes currently detect? l

Prisms Newton found that the prism itself does not add the colors to the light, but that color is an intrinsic property of light.

When light of a single color is passed through two slits, the light from the two sources creates an interference pattern of bright and dark regions. This shows that light is a wave.

In 1860, James Clerk Maxwell combined and unified the current theories of electricity and magnetism and showed that electric and magnetic fields should travel through space together in the form of electromagnetic waves. These waves are characterized by their wavelength, the distance between two peaks in a wave.

There a wide range of wavelengths of electromagnetic waves plotted on the electromagnetic spectrum. We classify these waves by their source, use, or interactions with other matter. Only a very small range of wavelengths, 400 nm to 700 nm, are visible to humans. (Since these wavelengths are small we describe them in terms of nanometers (10 -9 m) or Angstroms (10 -10 m). Other wavelengths are classified as Gamma Rays, X-Rays, Ultraviolet, Infrared, Microwaves or Radio waves.

Ole Romer used two eclipses of one of Jupiter’s moons to show that light does not travel infinitely fast and to measure its speed. One can also use Maxwell’s equations to calculate the speed of light. The speed of light, denoted by the letter c, has since been measured to be 299, 792. 458 km/s which we generally round to c = 300, 000 km/s = 180, 000 mi/s

The Doppler Effect Sources moving toward the observer squeeze light waves in front of them, causing them to be shorter. We call this a blueshift. Sources moving away from the observer stretch the light waves behind them, causing them to be longer. We call this a redshift.

Einstein showed that light also behaves as a particle. He found that light behaves as discreet packets called photons. The energy of a photon decreases with its wavelength and is calculated by: Photon energy = Planck’s constant × speed of light wavelength

Questions--Light l l l l What is light? Why is light referred to as a spectrum? How is light distinguished or recognized? What is the speed of light? What is the Doppler Effect and why does it relate to light? What does it mean for an astronomical object to be redshifted or blueshifted? Which two properties does light exhibit? (or in which two ways can light be modeled? ) What is a photon?

What is a photon bucket? (Another name for a telescope)

TWO BASIC TYPES OF TELESCOPES 1. Reflecting Telescopes use a mirror to gather light. 2. Refracting Telescopes use a lens to gather light.

Functions of a Telescope l l l Brighten (increase the number of photons gathered) Increase brightness by increasing the area of primary mirror or lens. Resolve (angular resolution, best resolution on Earth is 0. 1 arcseconds). Resolution is improved by increasing the area of the primary mirror or lens; the manufacturing quality is also important. Magnify (focal length of primary/focal length of eyepiece) Magnification makes image appear larger, the larger the image, the greater the detail seen.

Your Best View l l If your original image is blurry, and you magnify this, will the magnification improve the image resolution? No. The two most important aspects of a telescope are light-gathering power and resolving power. Greater magnification will allow for more detail to be seen, but will eventually lead to greater and greater distortion (maximum useful magnification).

Your Best View If you had a 3 in diameter reflecting telescope, how would you to improve the quality of the image? l Increase the diameter of the primary mirror. l Increase the quality of the mirror. l

Making a Large Parabolic Mirror 40, 000 pounds of glass are loaded into a rotated furnace and heated to 1500 K. After melting, spinning and cooling, the surface is ready to be coated with a highly reflective material.

FUNCTIONS OF A TELESCOPE Telescopes brighten objects by collecting light. The ability of a telescope to collect light is called its light-gathering power. SMALLER DIAMETER LARGER DIAMETER LESS LIGHT GATHERING POWER MORE LIGHT GATHERING POWER DIMMER IMAGE BRIGHTER IMAGE

FUNCTIONS OF A TELESCOPE Telescopes reveal the details of extended celestial objects. The clarity of the image and the amount of detail revealed is called the angular resolution. Smaller diameter telescopes have less resolution and produce images that are blurred. Larger diameter telescopes have more resolution and produce images that are clear.

FUNCTIONS OF A TELESCOPE Telescopes make objects appear larger. This is called magnification. The magnification is the focal length of the primary mirror divided by the focal length of the eyepiece. focal length of the primary magnification = focal length of the eyepiece A common misconception is that the magnification is the most important factor determining the quality of a telescope’s images. Actually, the light-gathering and resolving powers of a telescope are much more important, as the magnification can be changed simply by switching eyepieces. Telescopes have a maximum useful magnification beyond which images will be larger but will no longer be clearly focused. In general, the larger the diameter of a telescope, the greater the maximum magnification will be.

REFLECTING TELESCOPES Light rays approaching the surface of a mirror will bounce off at the same angle at which it approaches. This is the principle of reflection. The reflected angle is the same as the incident angle.

The large mirror used to gather and focus the light in a reflecting telescope is called the primary mirror. The surface of the mirror used is bent into a curve. Parallel light rays from distant objects converges to a focal point. The distance between the mirror and its focal point is called the focal length.

Designs of Reflecting Telescopes

A Newtonian telescope uses a flat secondary mirror to redirect the focused image to the side of the telescope for viewing. The image is viewed through a small focal length lens called an eyepiece.

Reflecting Telescope l See Animation

REFRACTING TELESCOPES Light rays traveling into a transparent medium such as glass bend at the surface. The bending of light rays between two transparent media is called refraction. If the lens is curved, parallel rays will converge at a focal point, just like the rays in a reflecting telescope.

Like reflecting telescopes, extended objects produce images in a focal plane. Refracting telescopes use an objective lens to gather light and an eyepiece through which the image is viewed.

Refracting Telescope l See animation

Refracting Telescopes Historically speaking, the first telescopes. l Invented by Hans Lippershey (1608) l Largest refracting telescope in the world—is at the Yerkes Observatory in Wisconsin (N of Chicago) … 40 inches in diameter! l

Limitations of Refracting Telescopes • Different colors of light are refracted differently and have different focal points. Thus, all the colors of the image will not be focused at once. This is called chromatic aberration. • It is difficult to grind a lens into the proper shape to have all parallel rays converge at a single focal point. • The weight of a large lens can cause the lens to sag and distort the image. • Air bubbles in the glass cause unwanted refractions, distorting the image. • Glass is opaque to certain wavelengths of light, meaning they do not go through the glass. http: //hyperphysics. phyastr. gsu. edu/hbase/geoopt/aber 2. html

Problems with Reflecting Telescopes These issues do not affect reflecting telescopes because the light from the stars does not travel through a glass lens before being focused. However, reflecting telescopes do have some problems. One problem is that the secondary mirror used to deflect the light out the side partially blocks the light from the star.

Another problem with reflecting telescopes is called spherical aberration. When a sphericallyshaped mirror is used, the light rays hitting far from the center will not converge at the same point. One solution is to grind the mirror into a parabolic shape. Another solution is to use a correcting lens to make all the light rays converge at a single point.

Telescopes can yield reversed and inverted images

Which way is up? Astronomical telescopes invert images. l For instance, this image of Saturn as viewed from Earth would appear reversed and/or upside-down. l

Questions--Telescopes What are the two types of telescopes? l What are three functions of a telescope? l What could you do to better your viewing of the night sky? l Why is it that increasing the magnification of a telescope does not necessarily help you see the object any better? l How do you determine the magnification of your telescope? l

Questions--Telescopes Why is there a hole in the primary mirror of a Cassegrain reflecting telescope? l What is the focal length of a lens or mirror? l Name three limitations of a refracting telescope. l Name two limitations of a reflecting telescope. l Explain why the term photon bucket is such a good description for a telescope. l

Even though light rays from stars spread out in all directions, they must travel over huge interstellar distances to reach the Earth. Therefore, the rays which enter our telescopes are essentially traveling in the same direction, and thus they are considered parallel. If the object we are examining is an extended object, such as the Moon, then the light rays converge in a focal plane rather than a single point.
