Learning Objective 1 LO 1 Apply Air Law
Learning Objective 1 (LO 1) Apply Air Law EO 1. 2 – Carry out Airspace Classification. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert 1 solutions, adding value
Scope • Introduction. • Aim. • Flight Information Regions. • Airspace Classification System (Controlled and Uncontrolled Airspace). • Flight Information Services. • Types of Controlled Airspace. • Airspace Subject to Flight Restrictions or Hazards. • NOTAMS. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Introduction http: //www. bbc. co. uk/britainfromabove/stories/visualisations/planes. shtml Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Aim • Define: • Flight Information Region (FIR). • Controlled Airspace (CAS). • The classes of CAS. • Control Zone (CTZ) & (CTR). • Control Area (CTA). • Airway. • Air Traffic Zone (ATZ). • NOTAMS. • How this effects RPAS day to day operations. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Revision What is the current national airspace rules for operating Small Unmanned Surveillance Aircraft and Small Unmanned Aircraft? Ans: Visual Line Of Sight (VLOS): 1. At a height exceeding 400 ft AGL. 2. At a distance beyond the visual range of the operator(s) of the said aircraft, or a maximum range of 500 m. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

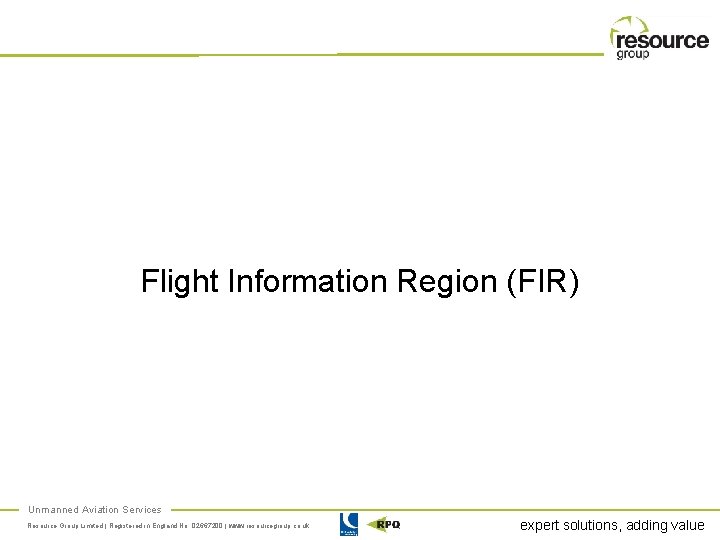

Flight Information Region (FIR) Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Flight Information Region (FIR) • Airspace within which a Flight Information Service (FIS) and an Alerting System are provided. • It is the largest regular division of airspace in use in the world. • Any portion of atmosphere belongs to some specific FIR. • Smaller countries’ airspace is encompassed by a single FIR. • Larger countries like the UK will be subdivided into a number of regional FIRs. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
UK Flight Information Regions Scottish FIR Prestwick Sc. ATCC London FIR Swanwick NERC Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Classification System Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Classification System • Various Classes of airspace are allocated in the UK – Grades A to G. • Classes A, C & D require an air traffic control clearance to enter the airspace and receipt of an air traffic service is mandatory. • Classes, E and F, are not widely used in the UK and no UK airspace is currently designated as Class B. • Class G is uncontrolled in that any aircraft may use the airspace under The Rules of the Air and although an air traffic service may be available it is not mandated. • Large portions of Class G airspace below 19, 500 ft are used extensively by Military and General Aviation. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Classification System • The UK airspace structure needs to evolve and change to meet increasing demand on capacity whilst meeting some key principles: • Maintaining the highest standards of safety. • Reducing the impact to people on the ground. • Reducing the impact on the environment. • Accommodating the diverse (sometimes conflicting) requirements of different airspace user groups, to the greatest extent possible. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

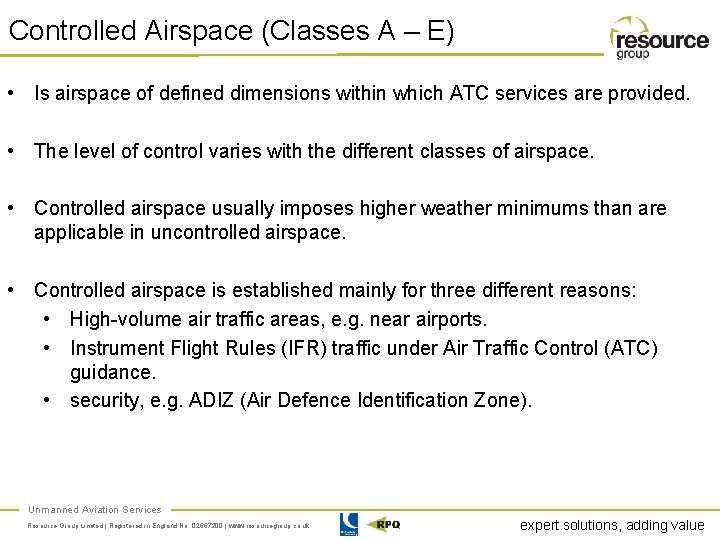

Controlled Airspace (Classes A – E) • Is airspace of defined dimensions within which ATC services are provided. • The level of control varies with the different classes of airspace. • Controlled airspace usually imposes higher weather minimums than are applicable in uncontrolled airspace. • Controlled airspace is established mainly for three different reasons: • High-volume air traffic areas, e. g. near airports. • Instrument Flight Rules (IFR) traffic under Air Traffic Control (ATC) guidance. • security, e. g. ADIZ (Air Defence Identification Zone). Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Controlled Airspace (Classes A – E) • Controlled airspace usually exists in the immediate vicinity of busier airports. • Where aircraft used in commercial air transport flights are climbing out from or making an approach to the airport; or • At higher levels where air transport flights would tend to cruise. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Controlled Airspace (Classes A – E) • What does Controlled Airspace mean to you as a RPAS operator? • UAS operations is expected to be transparent to ATS providers. • You must gain permission to enter by the ATC. • The UAS-c will be required to respond to ATS guidance or requests for information. • Must comply with any ATC instruction in the same way; and • Within the same time frame that the pilot of a manned aircraft • Must have an RT licence. • UAS operators intending to use RT must ensure that they hold a Flight Radio Telephony Operators’ Licence (FRTOL) valid for the privileges intended to be exercised. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Uncontrolled Airspace (Classes F & G) • Is airspace where an ATC service is not deemed necessary or cannot be provided for practical reasons. • ATC does not exercise any executive authority in uncontrolled airspace; but • May provide basic information services to aircraft in radio contact. • Flight in uncontrolled airspace will typically be under VFR. • Used extensively by Military and General Aviation. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Uncontrolled Airspace (Classes F & G) • What does Uncontrolled Airspace mean to you as a RPAS operator? • Identify any Air Traffic Zones (ATZ), Military Air Traffic Zones (MATZ) and liaise with their Air Traffic Service Unit with your intentions. • Identify other Air User locations – Microlight Flying Sites, Gliding Launching Sites, Hang/Para Gliding Sites and Free-Fall Parachute Drop Zones. • Identify any Restricted Areas, Prohibited Areas, Danger Areas, Bird Sanctuaries to avoid. • Maintain a constant visual observation of your operating area for any air incursions when live flying. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Any Questions Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation Qu 1: What is an Flight Information Region? Ans: In aviation a flight information region (FIR) is a region of airspace with specific dimensions, in which a flight information service and an alerting service are provided. It is the largest regular division of airspace in use in the world today. Any portion of the atmosphere belongs to some specific FIR. Smaller countries' airspace is encompassed by a single FIR, larger countries' airspace is subdivided into a number of regional FIRs. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Qu 2: UK Airspace is divided into 2 Flight Information Regions, what are they? Ans: 1. 2. London Scottish Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • There are currently six classes of airspace under ICAO Standards and Recommended Practices; these are allocated depending on the need to actively control access to airspace and the nature of the activity that takes place within it. • Qu 3: What are the six Classes of Airspace and which classes are considered to be controlled and uncontrolled? • Ans: • 1. A to E – Controlled Airspace. • 2. F and G – Uncontrolled Airspace. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation Qu 4: Controlled airspace is established mainly for three different reasons, what are they? Ans: 1. High-volume air traffic areas, e. g. near airports. 2. Instrument Flight Rules (IFR) traffic under Air Traffic Control (ATC) guidance. 3. Security, e. g. ADIZ (Air Defence Identification Zone). Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Flight Information Service FIS Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Flight Information Service (FIS) • Is a form of air traffic service available to any aircraft within the FIR as agreed internationally by ICAO. • Defined as Information pertinent to the safe and efficient conduct of flight. • Information on other potentially conflicting traffic, but stopping short of • providing positive separation. • Flight Information also includes: • Meteorological Information. • Information on aerodromes. • Information on possible hazards to flight. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Flight Information Service (FIS) • A FIS shall be provided to all aircraft which are provided with any ATC service; or • are known to Air Traffic Service Units. • All Air Traffic Service Units will provide a FIS to any aircraft, in addition to their other tasks. • This includes UAS operations. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

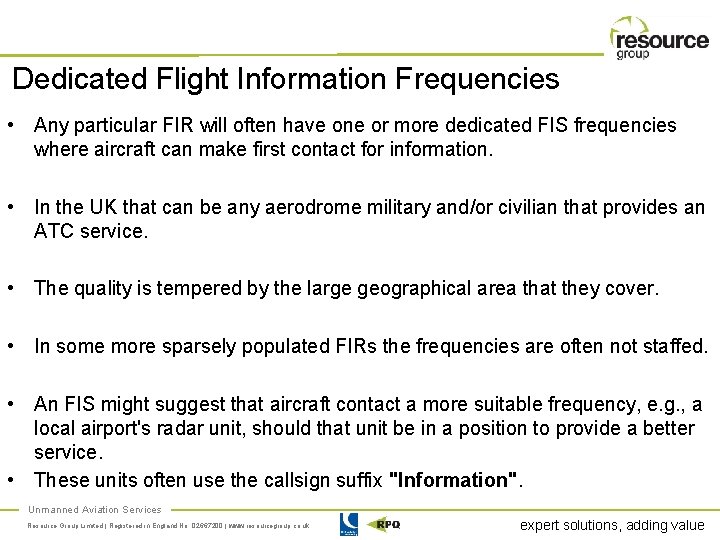

Dedicated Flight Information Frequencies • Any particular FIR will often have one or more dedicated FIS frequencies where aircraft can make first contact for information. • In the UK that can be any aerodrome military and/or civilian that provides an ATC service. • The quality is tempered by the large geographical area that they cover. • In some more sparsely populated FIRs the frequencies are often not staffed. • An FIS might suggest that aircraft contact a more suitable frequency, e. g. , a local airport's radar unit, should that unit be in a position to provide a better service. • These units often use the callsign suffix "Information". Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Aerodrome Flight Information Services • Is provided at airfields where, despite not being busy enough for full air traffic control, the traffic is such that some form of service is necessary. • It can be seen as a half-way house between an uncontrolled and controlled airfield: • Provides pilots of aircraft with details of other known traffic taking off, landing and flying in the vicinity of the airfield. • This service is provided by a licensed Flight Information Service Officer (FISO), using the callsign suffix "Information". • The FISO resembles a fully qualified controller for aircraft taxiing, but only extends to the provision of an FIS to aircraft landing, taking-off or in flight, within the Area of Responsibility (i. e. the Aerodrome, and Air Traffic Zone (ATZ)). Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Any Questions Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

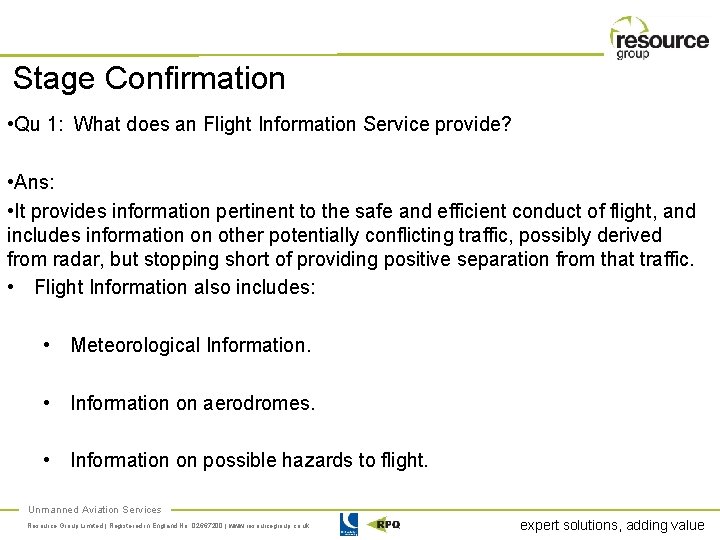

Stage Confirmation • Qu 1: What does an Flight Information Service provide? • Ans: • It provides information pertinent to the safe and efficient conduct of flight, and includes information on other potentially conflicting traffic, possibly derived from radar, but stopping short of providing positive separation from that traffic. • Flight Information also includes: • Meteorological Information. • Information on aerodromes. • Information on possible hazards to flight. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • Any particular FIR will often have one or more dedicated FIS frequencies where aircraft can make first contact for information. • Qu 2: How is that achieved in the UK? • Ans: • In the UK that can be any aerodrome military and/or civilian that provides an ATC service. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Take - 5 Minutes Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

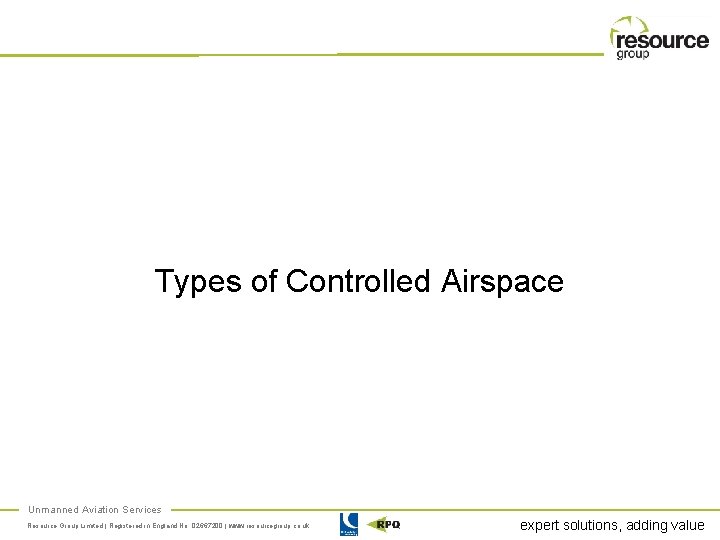

Types of Controlled Airspace Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Types of Controlled Airspace • Control Zones. • Control Areas. • Airways. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Control Zone (CTR) 2000 ft AGL Surface Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Control Zone (CTR) Map Observation 1 Cardiff CTR Vertical: Surface – FL 105 Class D London CTR Vertical: Surface – 2500 ft Class: A Images taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Control Area (CTA) Control Zone Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Control Areas (CTA) Map Observation 2 Cardiff International Airport CTA Vertical: 1000 to FL 105, 1500 to FL 105 2000 to FL 105, 3000 to FL 105 4000 to FL 105 Class: D London TMA Vertical: 2400 to FL 195, 2500 to FL 195 3500 ft to FL 195 Class: A Images taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airways Control Area Control Zone Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airways Map Observation 3 Images taken from www. skydemonlight. com Unmanned Aviation Services Airway Q 41 Vertical: FL 35 to FL 195 Ident: Q 41 Class: A Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

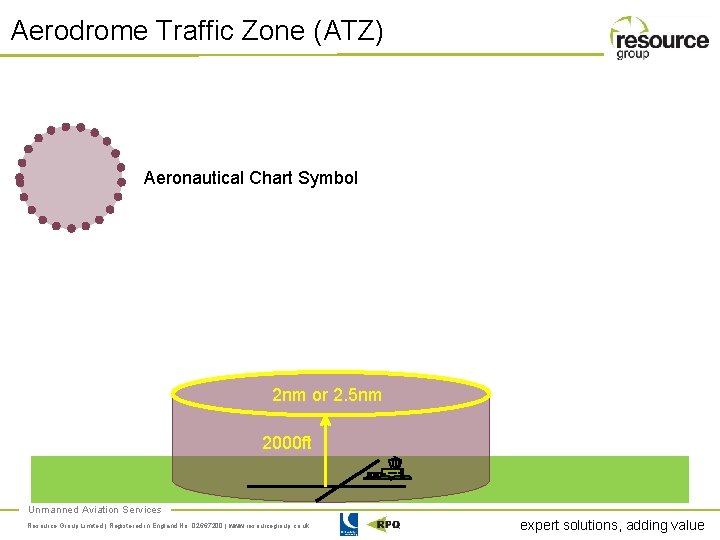

Aerodrome Traffic Zone (ATZ) Aeronautical Chart Symbol 2 nm or 2. 5 nm 2000 ft Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Military Aerodrome Traffic Zones (MATZ) Aeronautical Chart Symbol 5 nm Radius 5 nm 4 nm 1000 ft to 3000 ft Surface to 3000 ft ATZ Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

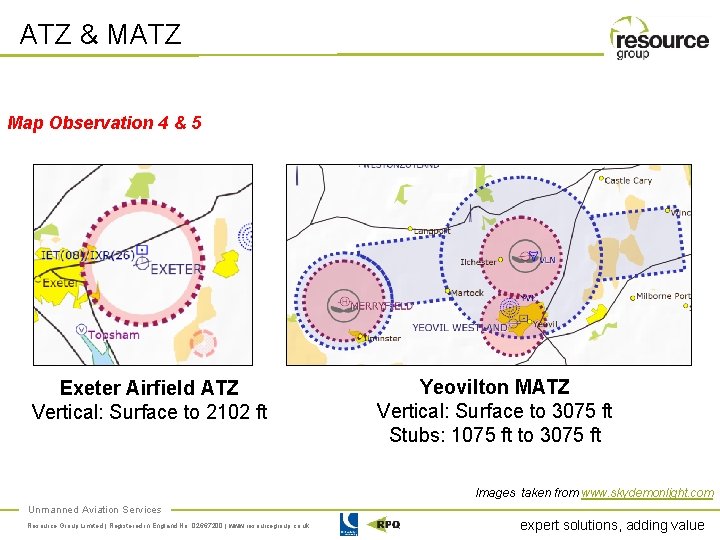

ATZ & MATZ Map Observation 4 & 5 Exeter Airfield ATZ Vertical: Surface to 2102 ft Yeovilton MATZ Vertical: Surface to 3075 ft Stubs: 1075 ft to 3075 ft Images taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Any Questions Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • Qu 1: What are three types of controlled Airspace? • Ans: • Control Zones. • Control Areas. • Airways. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • Qu 2: Define what a Control Zone is? • Ans: • Normally around an airport, which extends from the surface to a specified upper limit. • Established to protect air traffic operating to and from that airport. • Aircraft can only fly in to a Control Zone after receiving a specific clearance from ATC. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • Qu 3: Define a Control Area? • Ans: • A sections of airspace that usually is situated on top of a CTR. • It has a specified lower level and a specified upper level. • It provides protection to aircraft climbing out from the airport by joining the low-level CTR to the nearest Airways. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to Flight Restrictions or Hazards Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

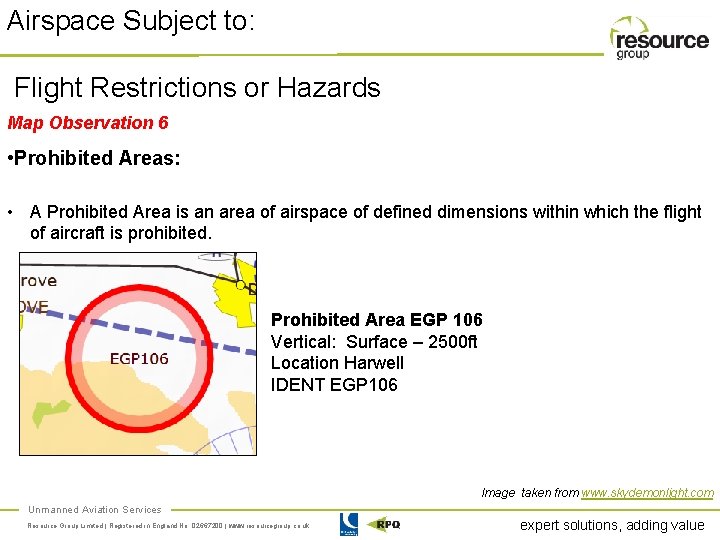

Airspace Subject to: Flight Restrictions or Hazards Map Observation 6 • Prohibited Areas: • A Prohibited Area is an area of airspace of defined dimensions within which the flight of aircraft is prohibited. Prohibited Area EGP 106 Vertical: Surface – 2500 ft Location Harwell IDENT EGP 106 Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 7 • Restricted Areas: • A Restricted Area is an area of airspace of defined dimensions within which the flight of aircraft is restricted in accordance with certain specified conditions. Restricted Area EGR 154 Vertical: Surface – 2000 ft Location: Oldbury Ident: EGR 154 EGR 155 Vertical: Surface – 2000 ft Location: Berkeley Ident: ERG 155 Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to Flight Restrictions or Hazards Map Observation 8 • Danger Areas: • A Danger Area is an area of airspace which has been notified as such within which activities dangerous to the flight of aircraft may take place or exist at such times as may be notified. • Unauthorised entry into many Danger Areas is prohibited within the period of activity of the Danger Area EGD 216 Vertical: Surface – 2300 ft Location: Credenhill Ident: EGD 216 Active: Everyday Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 9 • Area of Intense Air Activity (AIAA). • Airspace within which the intensity of civil and/or military flying is exceptionally high or where aircraft, either singly or in combination with others, regularly participate in unusual manoeuvres. Oxford AIAA Vertical: Surface – 5000 ft Active: Every Day Radio: Brize Radar on 124. 275 Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 10 • Aerial Tactics Areas (ATA) • Airspace of defined dimensions designated for air combat training within which high energy manoeuvres are regularly practised by formations of aircraft. Yeovilton AIAA Vertical: Surface to 6000 ft Active: Weekdays Radio: Yeovil Radar on 127. 350 Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards • Royal Flights • A Royal Flight over the United Kingdom is a flight of a civil or military aircraft carrying certain members of the Royal Family. • Flights within the United Kingdom by other reigning Sovereigns, Prime Ministers and Heads of State of Commonwealth and foreign countries may also be afforded Royal Flight status. • Royal Flights in fixed-wing aircraft are, whenever possible, to take place within the national ATS route structure. • Control Zones and Control Areas will be established around all airfields used for the departure or arrival of a Royal Flight. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

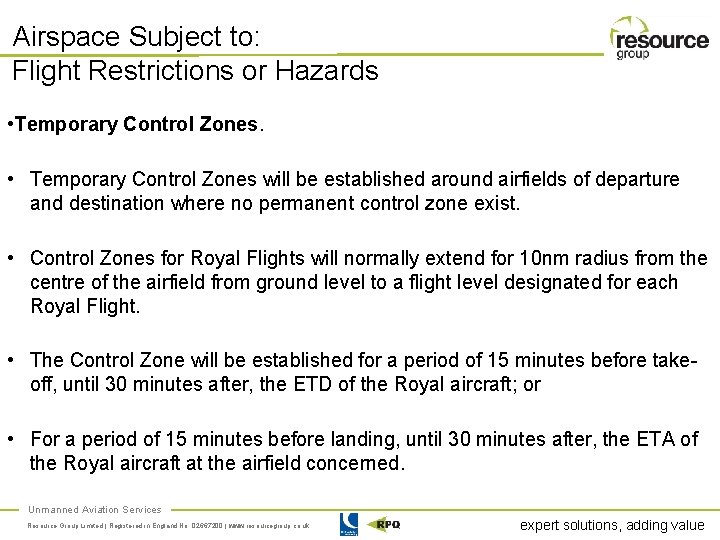

Airspace Subject to: Flight Restrictions or Hazards • Temporary Control Zones will be established around airfields of departure and destination where no permanent control zone exist. • Control Zones for Royal Flights will normally extend for 10 nm radius from the centre of the airfield from ground level to a flight level designated for each Royal Flight. • The Control Zone will be established for a period of 15 minutes before takeoff, until 30 minutes after, the ETD of the Royal aircraft; or • For a period of 15 minutes before landing, until 30 minutes after, the ETA of the Royal aircraft at the airfield concerned. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards • Temporary Control Areas will be established to meet the specific requirements of a Royal Flight. • The lateral and vertical limits, the duration and the controlling authority of such areas will be promulgated via NOTAM. • The controlling authority will be the appropriate civil ATCC. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Gliders Winch Launch Activities - G • /2. 5 Primary activity at locations showing Maximum Altitude of winch launch. AMSL. Map Observation 11 Additional activity at locations showing Maximum Altitude of winch G/2. 5 launch. AMSL. Map Observation 12 Additional activity without cables. Map Observation 13 G Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 14 • • /2. 5 Hang/Para Gliding – Winched launch sites showing Maximum Altitude of winch launch. AMSL. • Winch Launch Activities. • Maximum Altitude of cables is represented in thousands and hundreds of feet above mean sea level calculated using a minimum cable height of 2000 ft AGL plus site elevation. • At some sites the cable may extend above 2000 ft AGL. Due to the groundbased cable, aircraft should avoid over-flying these sites below the indicated altitude. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

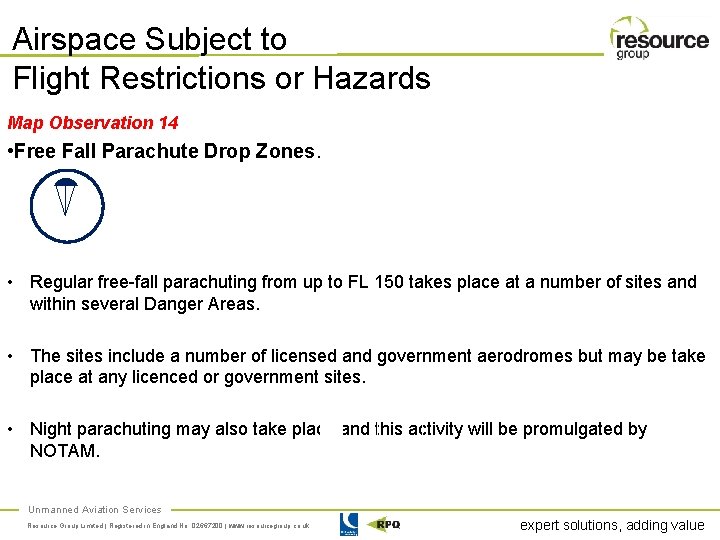

Airspace Subject to Flight Restrictions or Hazards Map Observation 14 • Free Fall Parachute Drop Zones. • Regular free-fall parachuting from up to FL 150 takes place at a number of sites and within several Danger Areas. • The sites include a number of licensed and government aerodromes but may be take place at any licenced or government sites. • Night parachuting may also take place and this activity will be promulgated by NOTAM. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 15 • Bird Sanctuaries. • • Severn Bird Sanctuary Vertical: Surface to 4000 ft • UAS operators should be mindful of the risks operating close to bird colonies, but also the risk to other Air Users. • Environmental – Breeding birds may be upset, operating should be avoided on conservation grounds. Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards Map Observation 16 • High Intensity Radio Transmission Areas (HIRTA). • UAS operators should be aware that these transmissions can give false indications on navigation and systems monitoring equipment; GPS is particularly vulnerable. Rampisham HIRTA Vertical: Surface – 2500 ft Location: Rampisham Image taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to : Flight Restrictions or Hazards • Air Navigation Obstacles. • Land based and off shore obstacles that are over 300 ft in height. • Exceptionally high Obstacles (Lighted 1000 ft or more AGL), Single Obstacle (Unlighted), Multiple Obstacle (Lighted), Cable Joining • Obstacles. Map Observation 17 • Turbines (Multiple Obstacles - Lighted). Map Observation 18 • Buildings (Single or Multiple Obstacles – Lighted or Unlighted). • Antenna (Lighted or Unlighted). Map Observation 19 Images taken from www. skydemonlight. com Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Airspace Subject to: Flight Restrictions or Hazards • Emergency Restriction of Flying Regulations. • An Emergency Controlling Authority (ECA) may seek to inhibit flight in the vicinity of an emergency incident on land or at sea within the UK FIR if it considers it essential for the safety of life or property and particularly for the protection of those engaged in Search and Rescue action. • Restricted Area (Temporary) – RA (T). • A Restricted Area (Temporary) is established primarily to enable Restrictions of Flying Regulations to be put in place in the vicinity of air shows, for security reasons, to cover radar outages, and to meet other requirements. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Any Questions Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

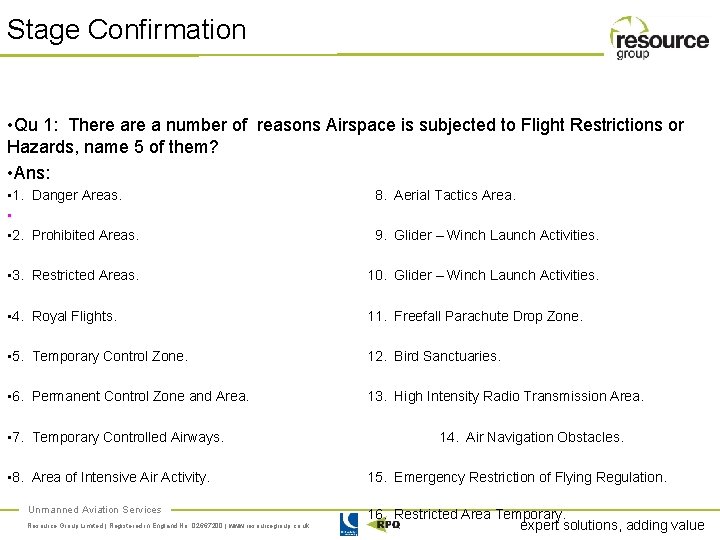

Stage Confirmation • Qu 1: There a number of reasons Airspace is subjected to Flight Restrictions or Hazards, name 5 of them? • Ans: • 1. Danger Areas. • • 2. Prohibited Areas. 8. Aerial Tactics Area. 9. Glider – Winch Launch Activities. • 3. Restricted Areas. 10. Glider – Winch Launch Activities. • 4. Royal Flights. 11. Freefall Parachute Drop Zone. • 5. Temporary Control Zone. 12. Bird Sanctuaries. • 6. Permanent Control Zone and Area. 13. High Intensity Radio Transmission Area. • 7. Temporary Controlled Airways. • 8. Area of Intensive Air Activity. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk 14. Air Navigation Obstacles. 15. Emergency Restriction of Flying Regulation. 16. Restricted Area Temporary. expert solutions, adding value
Stage Confirmation Qu 2: Define what an Restricted Area is: Ans: A Restricted Area is an area of airspace of defined dimensions within which the flight of aircraft is restricted in accordance with certain specified conditions. *Reference to specific Prohibited, Danger & Restricted Areas can be found in the AIP at section ENR 5. 1. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation • Qu 3: What does the symbol below describe? • Ans: • Area of Intense Air Activity (AIAA)*. • Airspace within which the intensity of civil and/or military flying is exceptionally high or where aircraft, either singly or in combination with others, regularly participate in unusual manoeuvres. • Pilots of non-participating aircraft who are unable to avoid AIAA should keep a good look-out and are strongly advised to make use of a radar service. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Notice to Airmen (NOTAM) Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Notice to Airmen (NOTAM) • NOTAMs are issued (and reported) for a number of reasons, such as: • Hazards - air-shows, parachute jumps, kite flying, rocket launches, etc. • Flights by VIPs, heads of state (sometimes referred to as Temporary Flight Restrictions, TFRs). • Closed runways. • Military exercises with resulting airspace restrictions. • Temporary erection of obstacles near airfields (e. g. , cranes). • Passage of flocks of birds through airspace (a NOTAM in this category is known as a BIRDTAM. ) Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Definition • NOTAM • “A notice containing information concerning the establishment, condition or change in any aeronautical facility, service, procedure or hazard, the timely knowledge of which is essential to personnel concerned with flight operations” Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Notice to Airmen (NOTAM) Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Notice to Airmen (NOTAM) Q) EGTT/QACCA/IV/NBO/AE/000/045/5140 N 00203 W 005 Temporary Controlled Airspace class D established as follows: CTR Circle 5 nm Radius Centred on Kemble Surface / 4500 ft Above Mean Sea Level Controlling Authority Kemble Air Traffic Control / Brize Radar. 1303 -0303 / AS 4 Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Notice to Airmen (NOTAM) • Setting up a NOTAM for RPAS operations: • http: //www. caa. co. uk/default. aspx? catid=7&pagetype=90&pageid=45 • An email or call: • Tel: 020 7453 64599 Email: ausops@caa. co. uk • Information Required: 1. Name of Operator or company: i. e. Resource UAS. 2. Contact details: i. e. mobile number. 3. Centre point of operation co-ordinates in Latitude and Longitude. 4. Radius required from centre point of operation in which to operate: i. e. 500 m. 5. Height from/to: i. e. Surface to 400 ft AGL. 6. Description of UAS platform using: i. e. Name/make, weight and size. 7. Unmanned Aviation Services Timings (from – to). Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
UAS Restrictions Factors: Effect: Airspace segregation ensures separation of the UAS operation from other airspace users and the third parties. Risk of collision, Airprox or separation infringement is Airspace Segregation eliminated, except in the case of incursion by other airspace users into segregated airspace, or uncommanded excursion by the UA. Visual Line-of-Sight Low Aircraft Mass Operation within the unaided direct line-of-sight of the UAS operator (accepted as within 500 m horizontally and at a height not exceeding 400 ft vertically above the surface) permits the UAS operator to respond to and avoid other airspace users. Aircraft mass below a specified limit reduces risk to other airspace users and third parties by reducing maximum kinetic energy damage potential below a significant level. This mass limit is determined by CAA Airworthiness Division. Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Any Questions Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Stage Confirmation Qu 1: What is a NOTAM? Ans: "A notice containing information concerning the establishment, condition or change in any aeronautical facility, service, procedure or hazard, the timely knowledge of which is essential to personnel concerned with flight operations" Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value

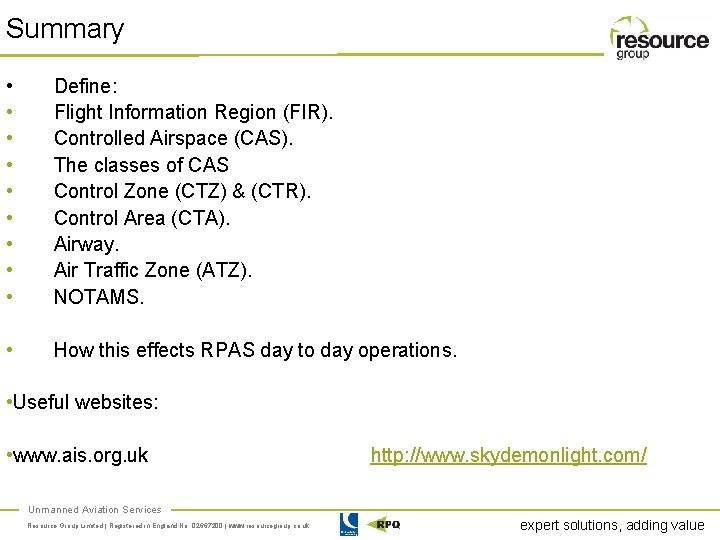

Summary • • • Define: Flight Information Region (FIR). Controlled Airspace (CAS). The classes of CAS Control Zone (CTZ) & (CTR). Control Area (CTA). Airway. Air Traffic Zone (ATZ). NOTAMS. • How this effects RPAS day to day operations. • Useful websites: • www. ais. org. uk http: //www. skydemonlight. com/ Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
Look Forward Aviation Chart Plotting Exercise Unmanned Aviation Services Resource Group Limited | Registered in England No: 02667200 | www. resourcegroup. co. uk expert solutions, adding value
