Learning Decision Trees

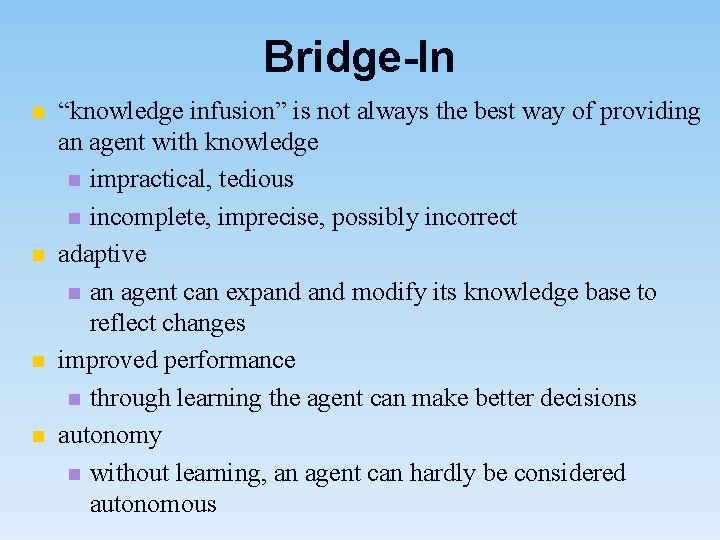

Bridge-In n n “knowledge infusion” is not always the best way of providing an agent with knowledge n impractical, tedious n incomplete, imprecise, possibly incorrect adaptive n an agent can expand modify its knowledge base to reflect changes improved performance n through learning the agent can make better decisions autonomy n without learning, an agent can hardly be considered autonomous

Learning n learning is important for agents to deal with unknown environments n changes n n in many cases, it is more efficient to train an agent via examples, than to “manually” extract knowledge from the examples, and “instill” it into the agent

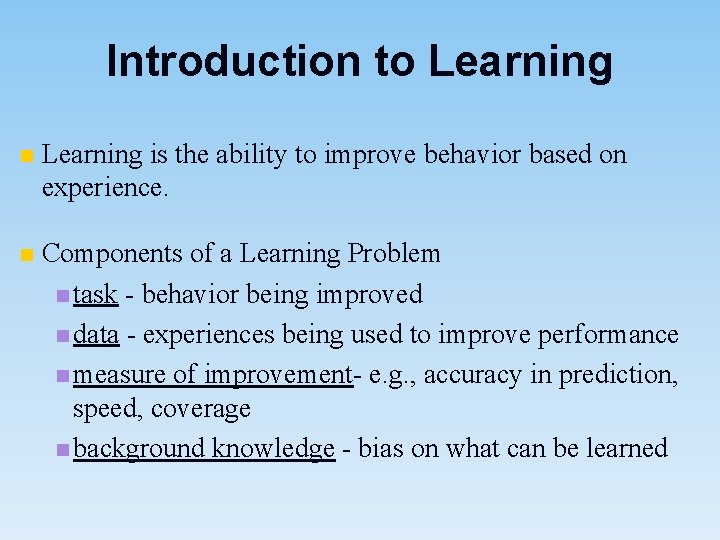

Introduction to Learning n Learning is the ability to improve behavior based on experience. n Components of a Learning Problem n task - behavior being improved n data - experiences being used to improve performance n measure of improvement- e. g. , accuracy in prediction, speed, coverage n background knowledge - bias on what can be learned

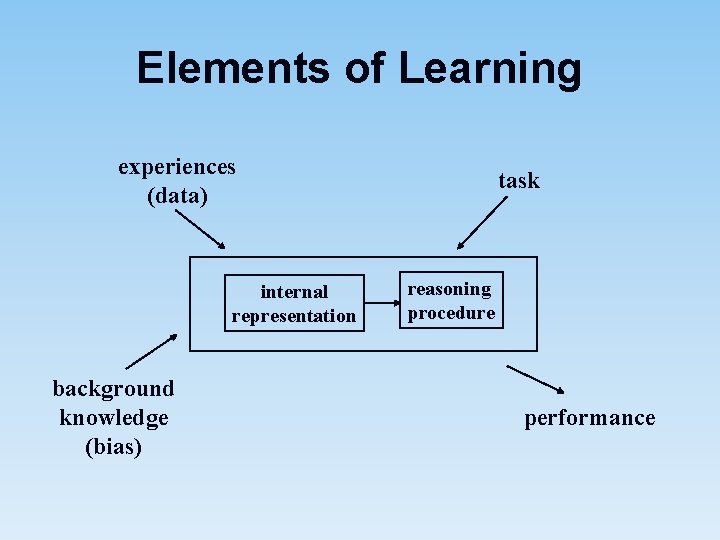

Elements of Learning experiences (data) internal representation background knowledge (bias) task reasoning procedure performance

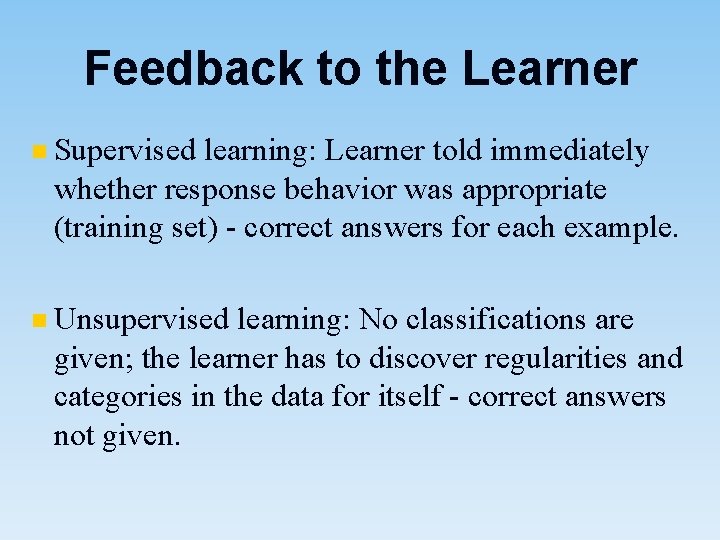

Feedback to the Learner n Supervised learning: Learner told immediately whether response behavior was appropriate (training set) - correct answers for each example. n Unsupervised learning: No classifications are given; the learner has to discover regularities and categories in the data for itself - correct answers not given.

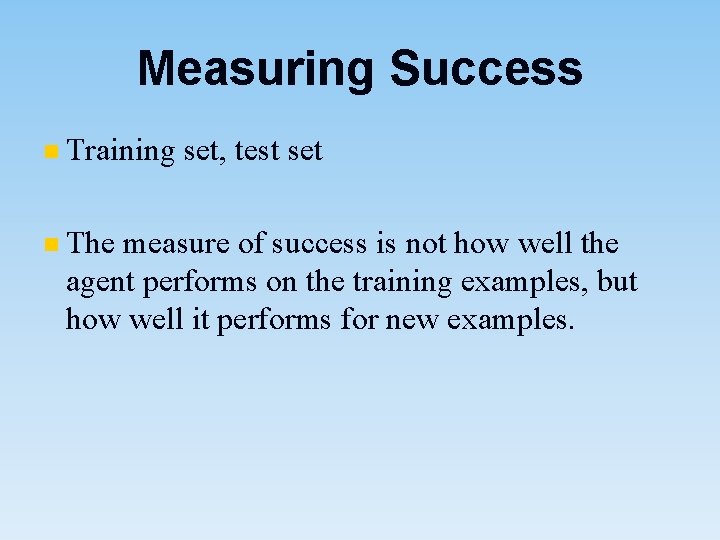

Measuring Success n Training n The set, test set measure of success is not how well the agent performs on the training examples, but how well it performs for new examples.

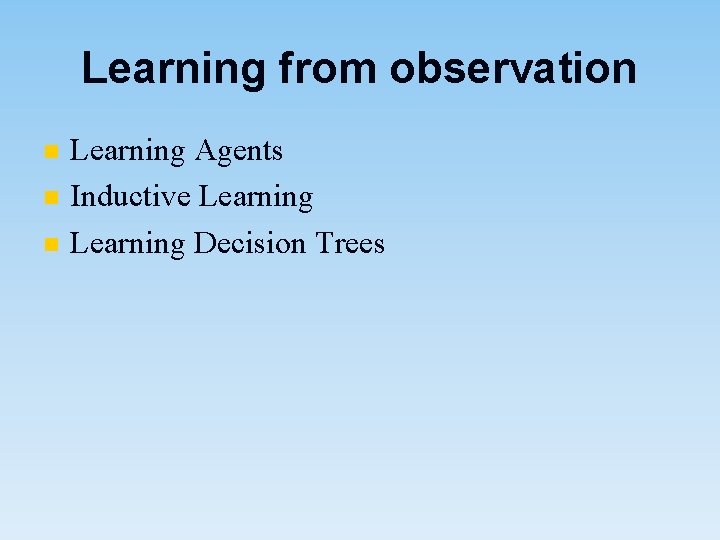

Learning from observation n Learning Agents Inductive Learning Decision Trees

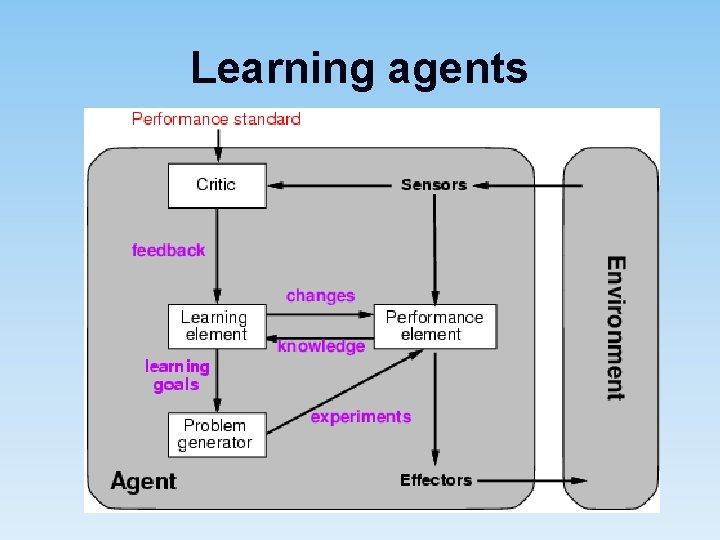

Learning agents

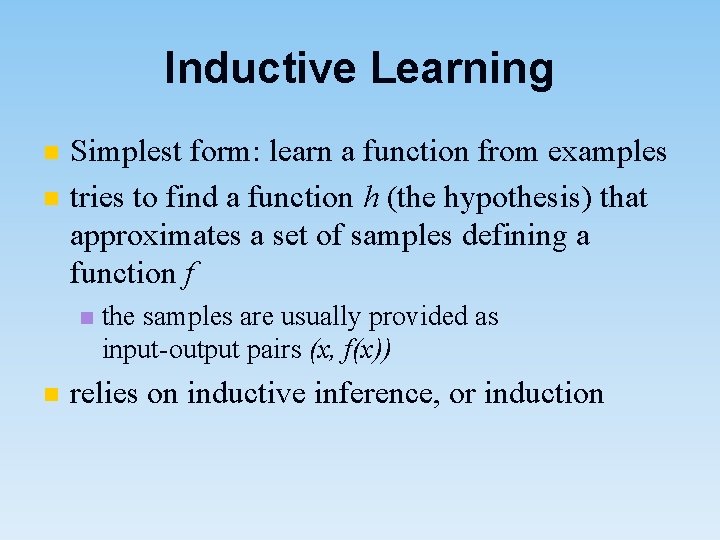

Inductive Learning n n Simplest form: learn a function from examples tries to find a function h (the hypothesis) that approximates a set of samples defining a function f n n the samples are usually provided as input-output pairs (x, f(x)) relies on inductive inference, or induction

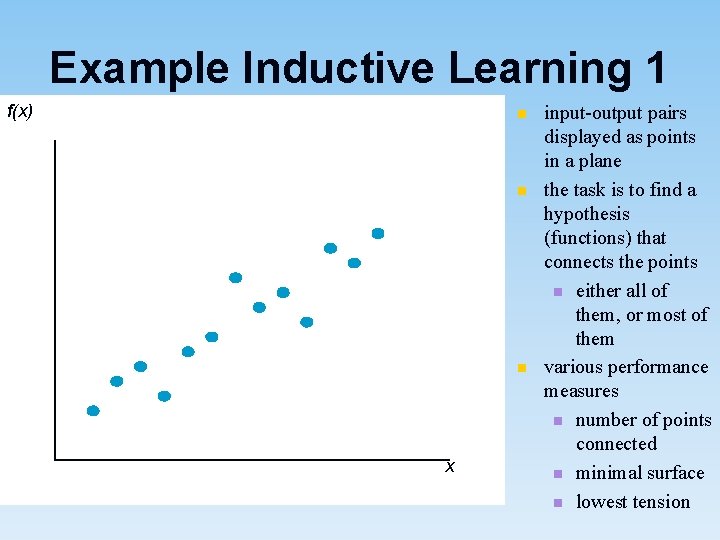

Example Inductive Learning 1 f(x) n n n x input-output pairs displayed as points in a plane the task is to find a hypothesis (functions) that connects the points n either all of them, or most of them various performance measures n number of points connected n minimal surface n lowest tension

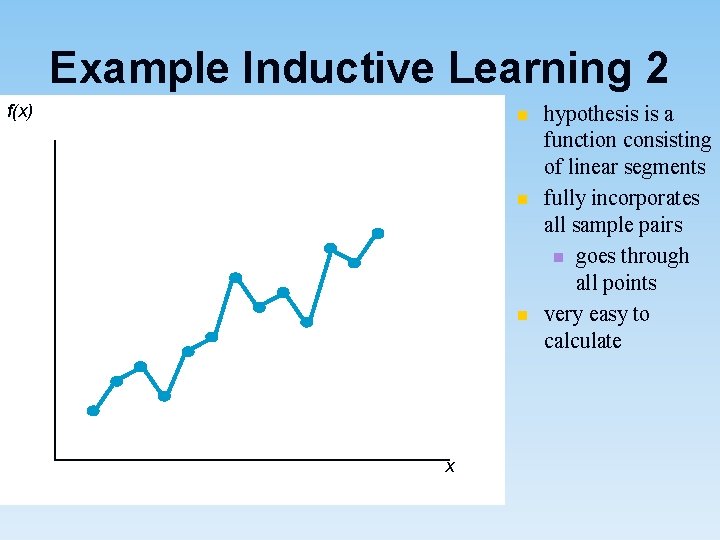

Example Inductive Learning 2 f(x) n n n x hypothesis is a function consisting of linear segments fully incorporates all sample pairs n goes through all points very easy to calculate

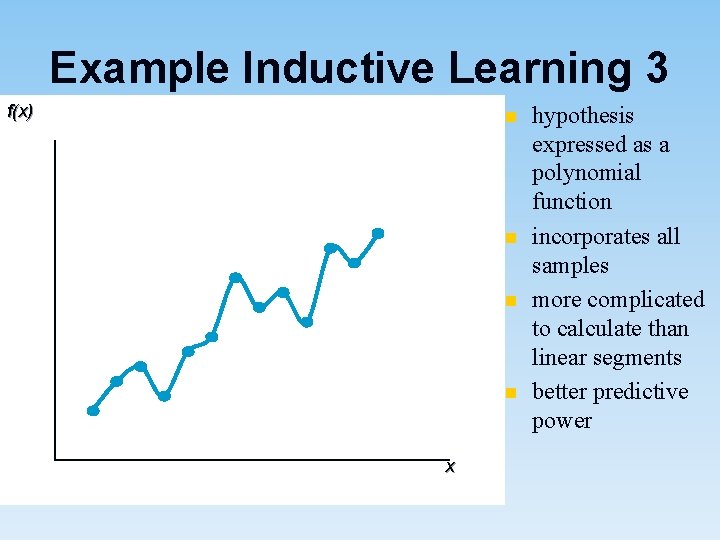

Example Inductive Learning 3 f(x) n n x hypothesis expressed as a polynomial function incorporates all samples more complicated to calculate than linear segments better predictive power

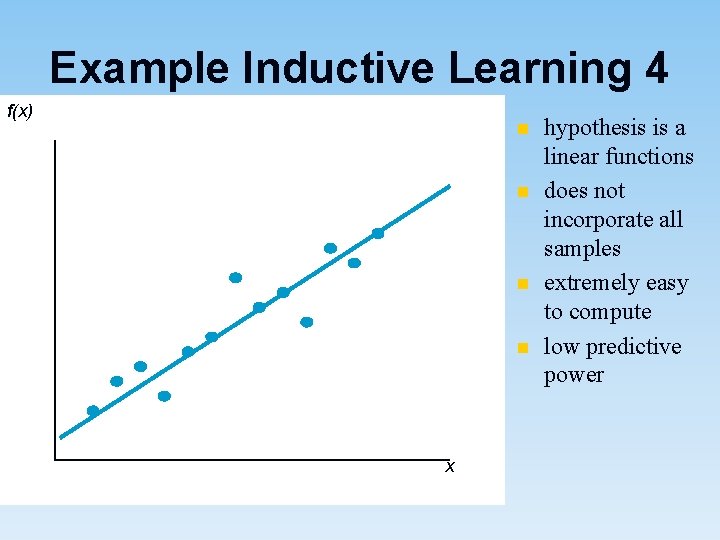

Example Inductive Learning 4 f(x) n n x hypothesis is a linear functions does not incorporate all samples extremely easy to compute low predictive power

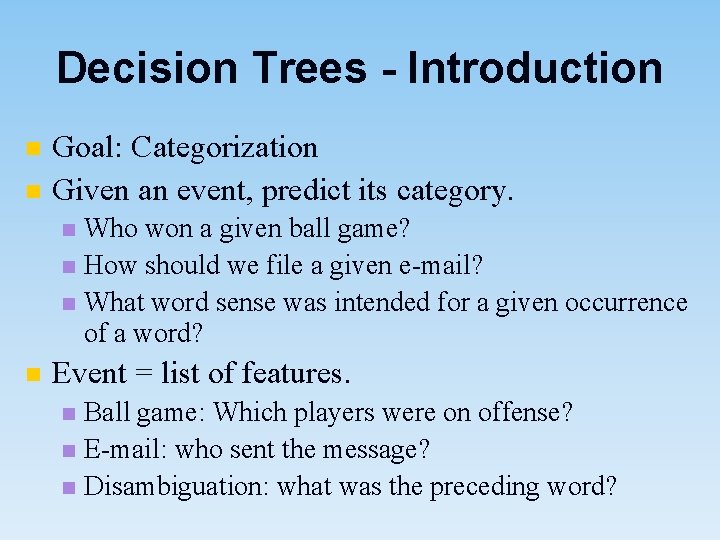

Decision Trees - Introduction n n Goal: Categorization Given an event, predict its category. Who won a given ball game? n How should we file a given e-mail? n What word sense was intended for a given occurrence of a word? n n Event = list of features. Ball game: Which players were on offense? n E-mail: who sent the message? n Disambiguation: what was the preceding word? n

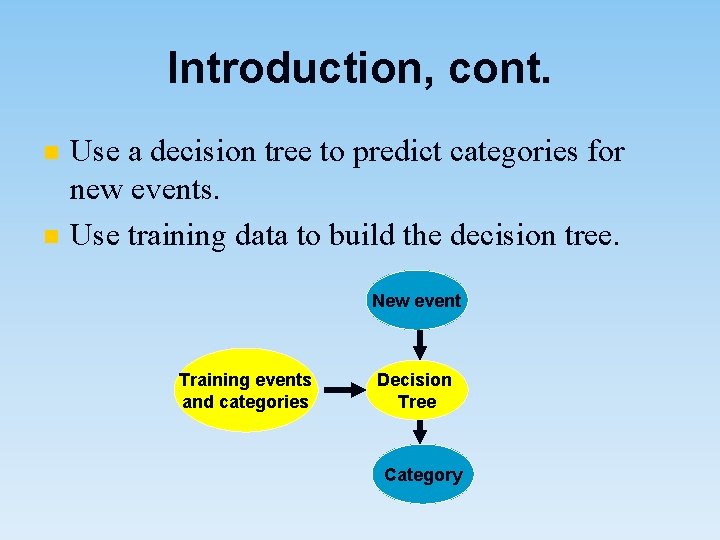

Introduction, cont. n n Use a decision tree to predict categories for new events. Use training data to build the decision tree. New event Training events and categories Decision Tree Category

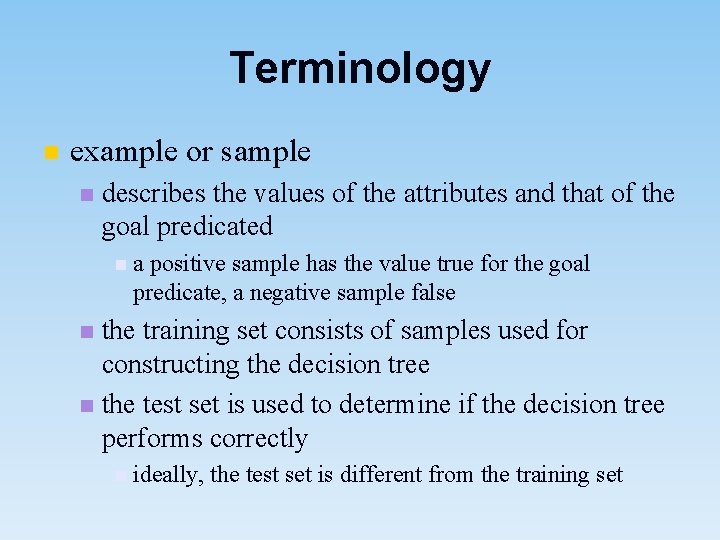

Terminology n example or sample n describes the values of the attributes and that of the goal predicated na positive sample has the value true for the goal predicate, a negative sample false the training set consists of samples used for constructing the decision tree n the test set is used to determine if the decision tree performs correctly n n ideally, the test set is different from the training set

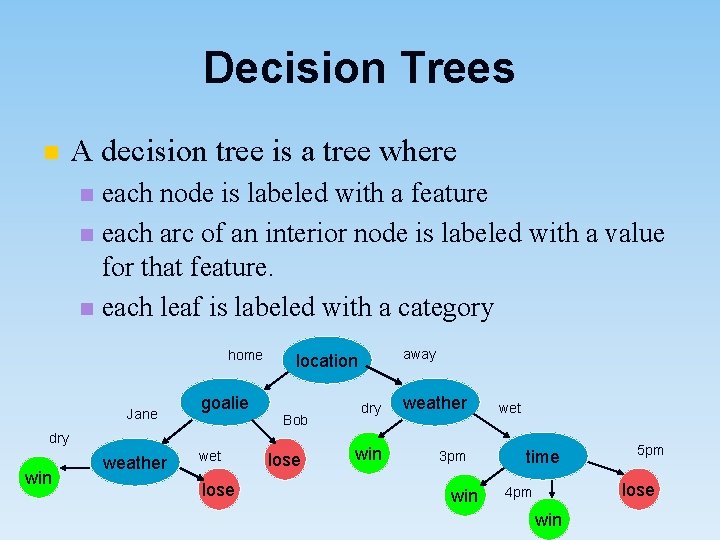

Decision Trees n A decision tree is a tree where each node is labeled with a feature n each arc of an interior node is labeled with a value for that feature. n each leaf is labeled with a category n home Jane goalie Bob dry win weather wet lose away location lose dry weather win 3 pm win wet time 5 pm lose 4 pm win

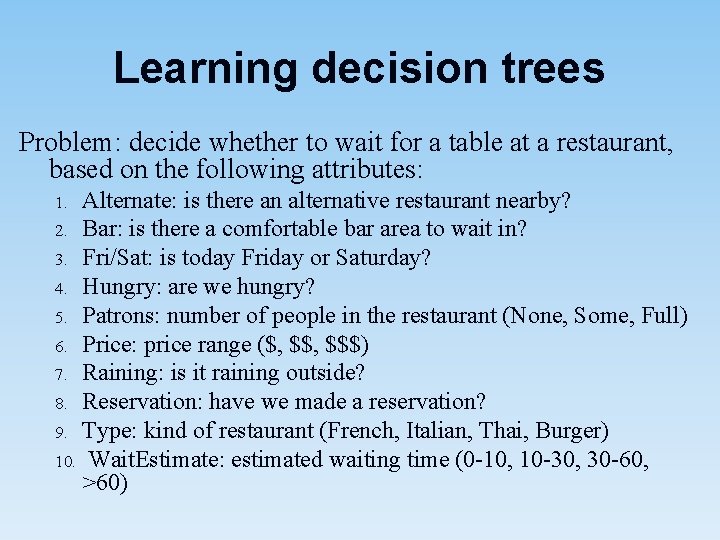

Learning decision trees Problem: decide whether to wait for a table at a restaurant, based on the following attributes: Alternate: is there an alternative restaurant nearby? 2. Bar: is there a comfortable bar area to wait in? 3. Fri/Sat: is today Friday or Saturday? 4. Hungry: are we hungry? 5. Patrons: number of people in the restaurant (None, Some, Full) 6. Price: price range ($, $$$) 7. Raining: is it raining outside? 8. Reservation: have we made a reservation? 9. Type: kind of restaurant (French, Italian, Thai, Burger) 10. Wait. Estimate: estimated waiting time (0 -10, 10 -30, 30 -60, >60) 1.

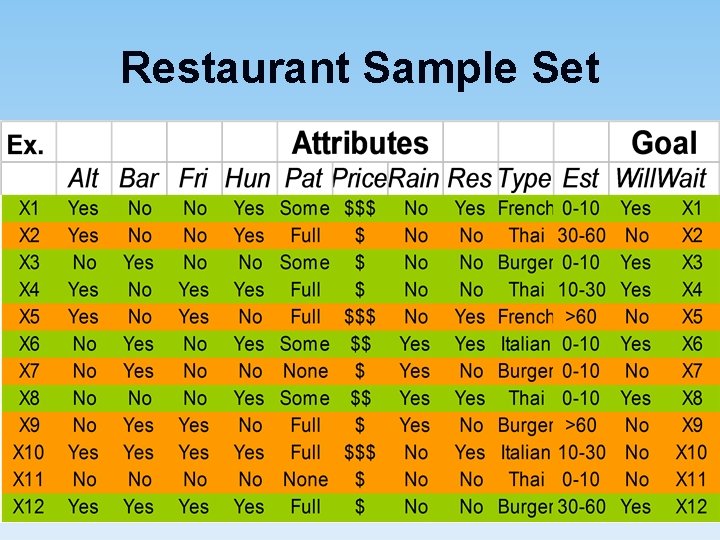

Restaurant Sample Set

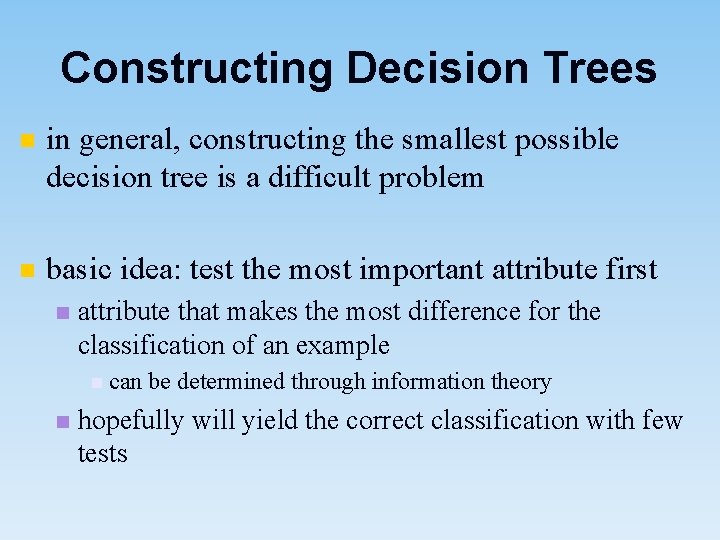

Constructing Decision Trees n in general, constructing the smallest possible decision tree is a difficult problem n basic idea: test the most important attribute first n attribute that makes the most difference for the classification of an example n can n be determined through information theory hopefully will yield the correct classification with few tests

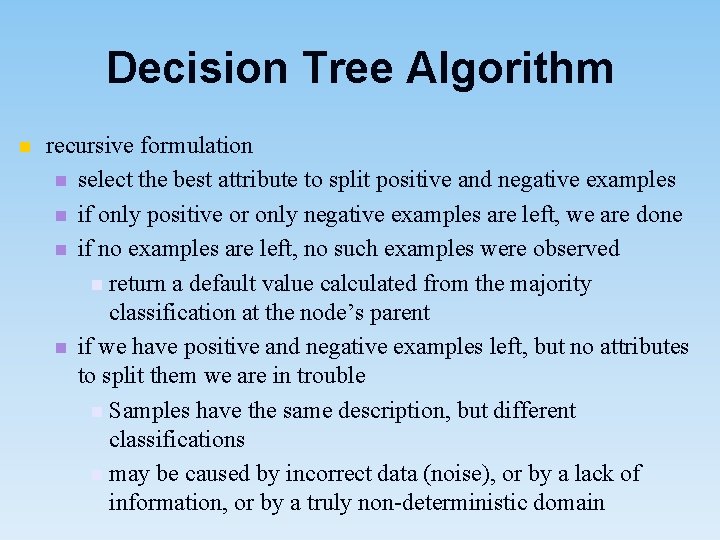

Decision Tree Algorithm n recursive formulation n select the best attribute to split positive and negative examples n if only positive or only negative examples are left, we are done n if no examples are left, no such examples were observed n return a default value calculated from the majority classification at the node’s parent n if we have positive and negative examples left, but no attributes to split them we are in trouble n Samples have the same description, but different classifications n may be caused by incorrect data (noise), or by a lack of information, or by a truly non-deterministic domain

Restaurant Sample Set n select best attribute n candidate : Pat Some and None in agreement with goal

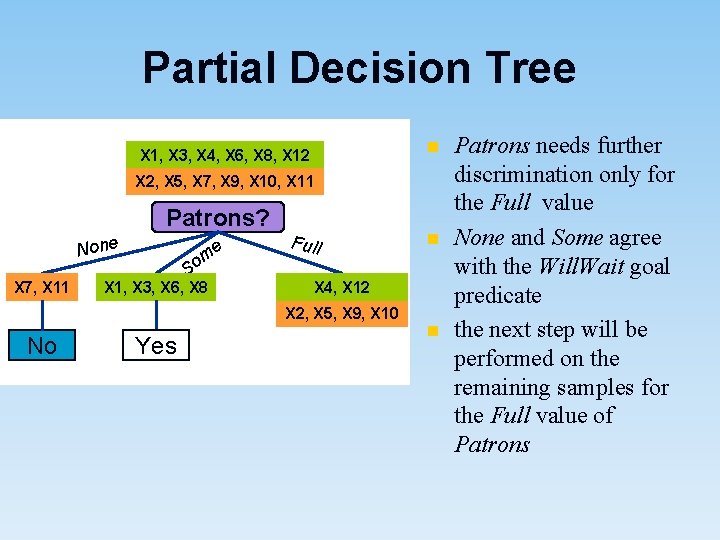

Partial Decision Tree n X 1, X 3, X 4, X 6, X 8, X 12 X 2, X 5, X 7, X 9, X 10, X 11 Patrons? None X 7, X 11 e m o S X 1, X 3, X 6, X 8 Full X 4, X 12 X 2, X 5, X 9, X 10 No Yes n n Patrons needs further discrimination only for the Full value None and Some agree with the Will. Wait goal predicate the next step will be performed on the remaining samples for the Full value of Patrons

Restaurant Sample Set n select next best attribute n candidate : Hungry No in agreement with goal

Partial Decision Tree n X 1, X 3, X 4, X 6, X 8, X 12 X 2, X 5, X 7, X 9, X 10, X 11 Patrons? None X 7, X 11 e m o S X 1, X 3, X 6, X 8 Full n X 4, X 12 X 2, X 5, X 9, X 10 No Yes Hungry? Y X 4, X 12 N X 5, X 9 X 2, X 10 No n Hungry needs further discrimination only for the Yes value No agrees with the Will. Wait goal predicate the next step will be performed on the remaining samples for the Yes value of Hungry

Restaurant Sample Set n select next best attribute n candidate : Type Italian, Burger in agreement with goal

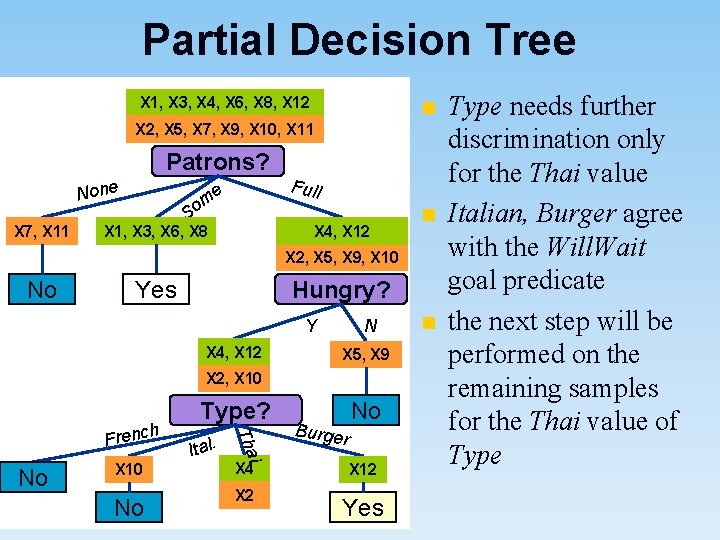

Partial Decision Tree X 1, X 3, X 4, X 6, X 8, X 12 n X 2, X 5, X 7, X 9, X 10, X 11 Patrons? None X 7, X 11 om Full e S X 1, X 3, X 6, X 8 X 4, X 12 n X 2, X 5, X 9, X 10 No Yes Hungry? Y X 4, X 12 N X 5, X 9 X 2, X 10 No X 4 i No Ital. Tha h Frenc Type? X 2 Burger No X 12 Yes n Type needs further discrimination only for the Thai value Italian, Burger agree with the Will. Wait goal predicate the next step will be performed on the remaining samples for the Thai value of Type

Restaurant Sample Set n select next best attribute n candidate 1: Friday Yes and No in agreement with goal

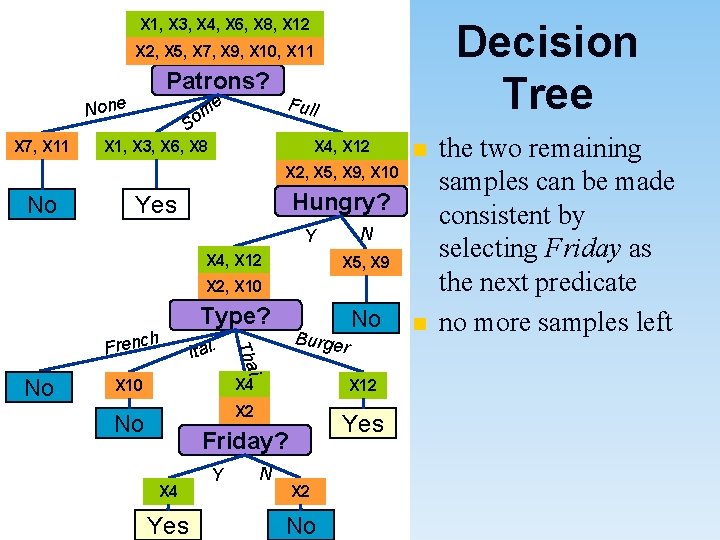

X 1, X 3, X 4, X 6, X 8, X 12 Decision Tree X 2, X 5, X 7, X 9, X 10, X 11 Patrons? e None X 7, X 11 Full m So X 1, X 3, X 6, X 8 X 4, X 12 n X 2, X 5, X 9, X 10 No Hungry? Yes N Y X 4, X 12 X 5, X 9 X 2, X 10 Burger No i No Ital. Tha h Frenc Type? X 4 X 10 X 12 X 2 No Yes Friday? X 4 Yes Y N X 2 No n the two remaining samples can be made consistent by selecting Friday as the next predicate no more samples left
