Learn To Know The NOZONE THE SHADED AREA

Learn To Know… The NO-ZONE THE SHADED AREA SURROUNDING EACH VEHICLE REPRESENTS THE DANGER ZONE or “NO-ZONE” IN WHICH THE VEHICLE OPERATOR’S VIEW OF PEDESTRAN TRAFFIC IS GREATLY REDUCED OR OBSCURRED ALTOGETHER. NOTE THAT ALL DISTANCES ARE APPROXIMATE. SPECIFIC DISTANCES MAY VARY.

Eye level 10 ft - 0 in above ground level 34’ 0” 36’ 4” 68’ 0” 95’ 0” Manlift

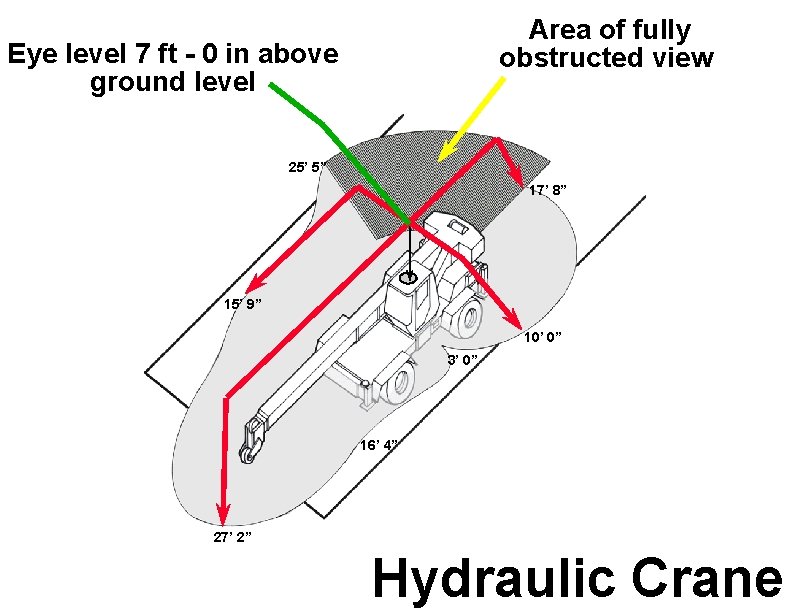

Area of fully obstructed view Eye level 7 ft - 0 in above ground level 25’ 5” 17’ 8” 15’ 9” 10’ 0” 3’ 0” 16’ 4” 27’ 2” Hydraulic Crane

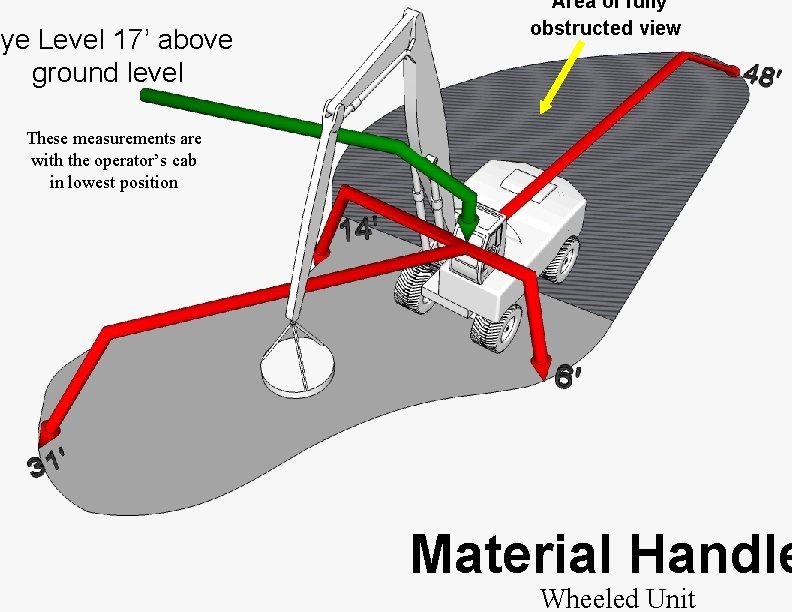

Eye Level 17’ above ground level Area of fully obstructed view These measurements are with the operator’s cab in lowest position Material Handle Wheeled Unit

Eye Level 9’ 6” above ground level Area of fully obstructed view Mobile Shear

Eye Level 17’ above ground level Area of fully obstructed view Material Handle

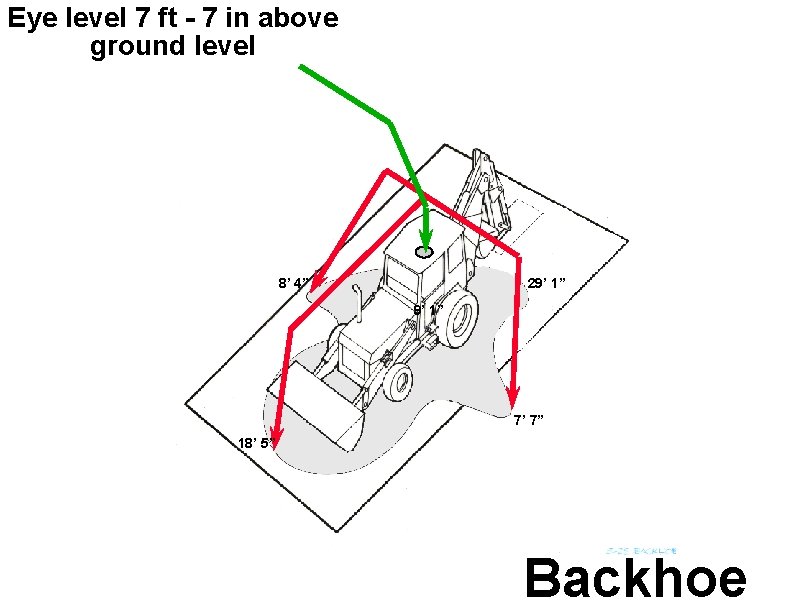

Eye level 7 ft - 7 in above ground level 8’ 4” 29’ 1” 7’ 7” 18’ 5” Backhoe

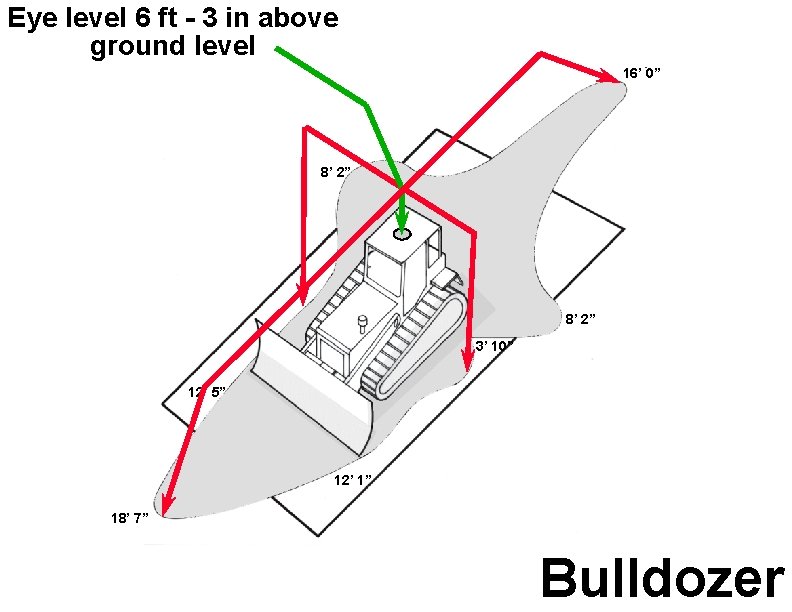

Eye level 6 ft - 3 in above ground level 16’ 0” 8’ 2” 3’ 10” 12’ 5” 12’ 1” 18’ 7” Bulldozer

Eye level 10 ft - 0 in above ground level 28’ 11” 14’ 8” 16’ 2” 14’ 3” 21’ 11” 14’ 10” Front End Loader

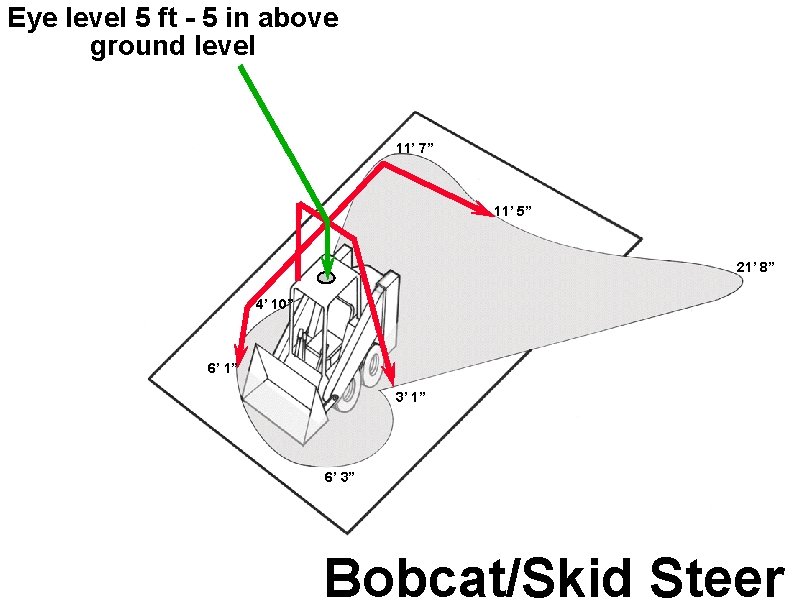

Eye level 5 ft - 5 in above ground level 11’ 7” 11’ 5” 21’ 8” 4’ 10” 6’ 1” 3’ 1” 6’ 3” Bobcat/Skid Steer

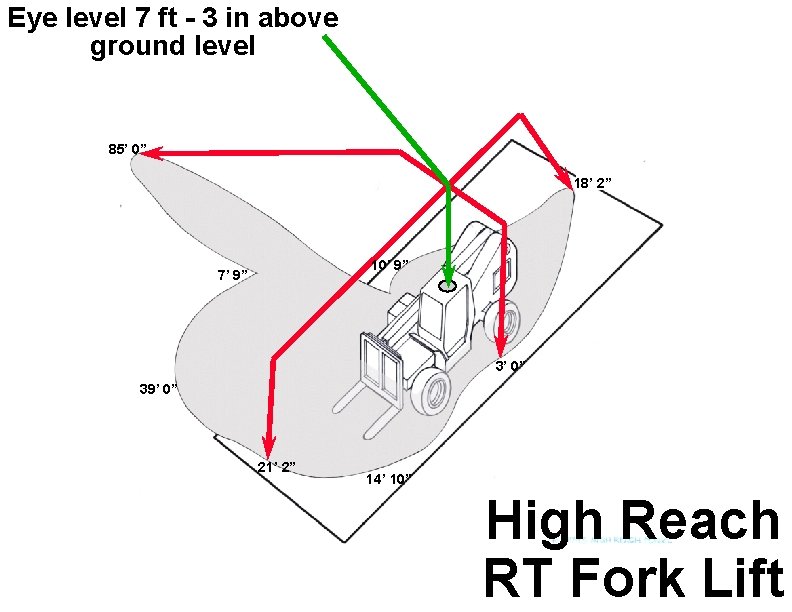

Eye level 7 ft - 3 in above ground level 85’ 0” 18’ 2” 10’ 9” 7’ 9” 3’ 0” 39’ 0” 21’ 2” 14’ 10” High Reach RT Fork Lift

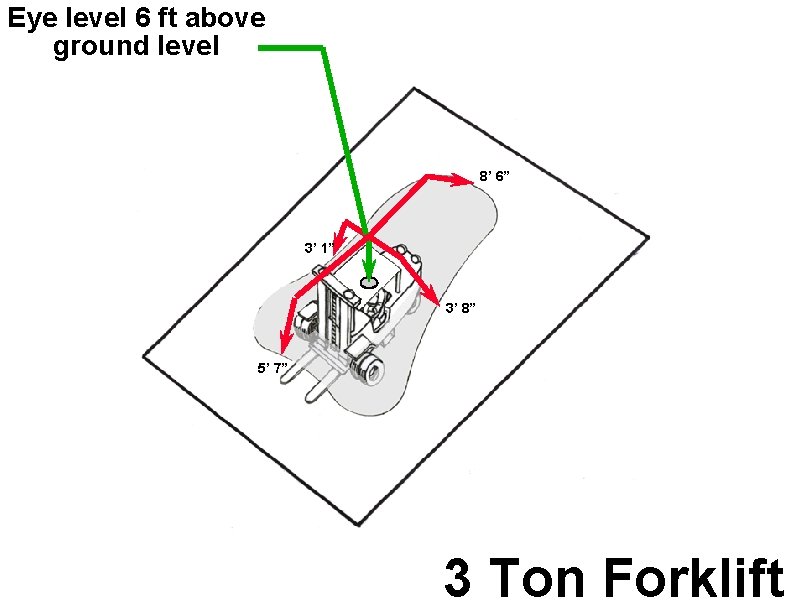

Eye level 6 ft above ground level 8’ 6” 3’ 1” 3’ 8” 5’ 7” 3 Ton Forklift

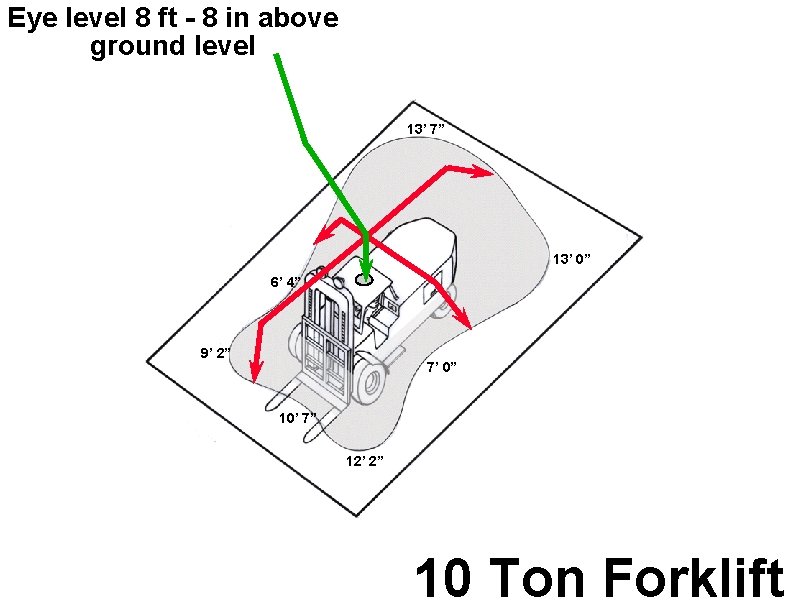

Eye level 8 ft - 8 in above ground level 13’ 7” 13’ 0” 6’ 4” 9’ 2” 7’ 0” 10’ 7” 12’ 2” 10 Ton Forklift

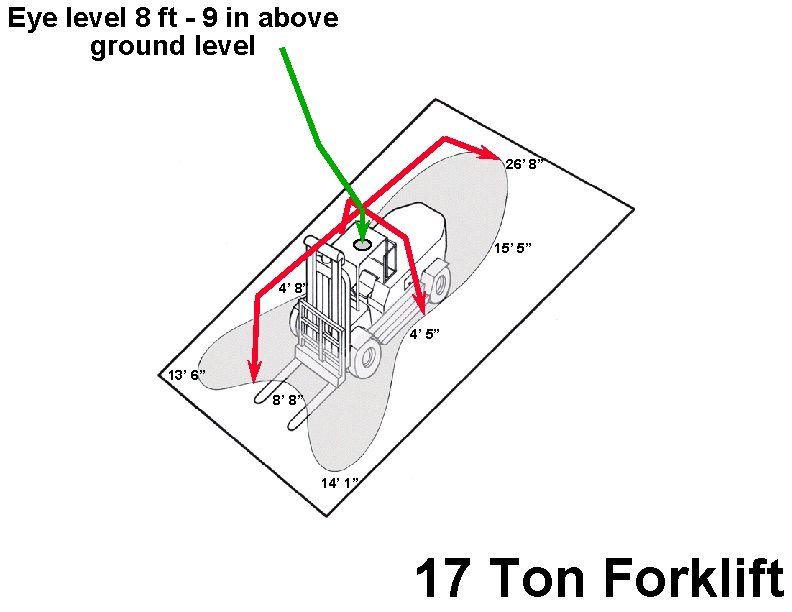

Eye level 8 ft - 9 in above ground level 26’ 8” 15’ 5” 4’ 8” 4’ 5” 13’ 6” 8’ 8” 14’ 1” 17 Ton Forklift

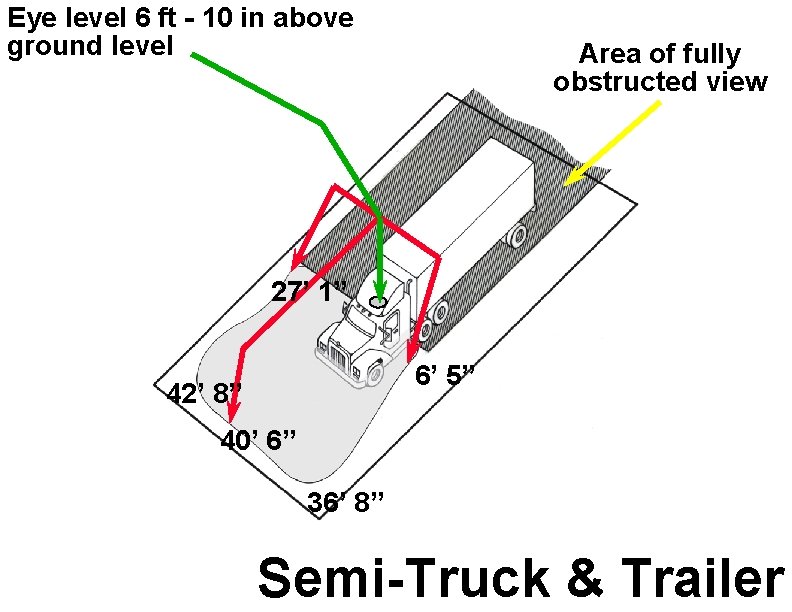

Eye level 6 ft - 10 in above ground level Area of fully obstructed view 27’ 1” 6’ 5” 42’ 8” 40’ 6” 36’ 8” Semi-Truck & Trailer

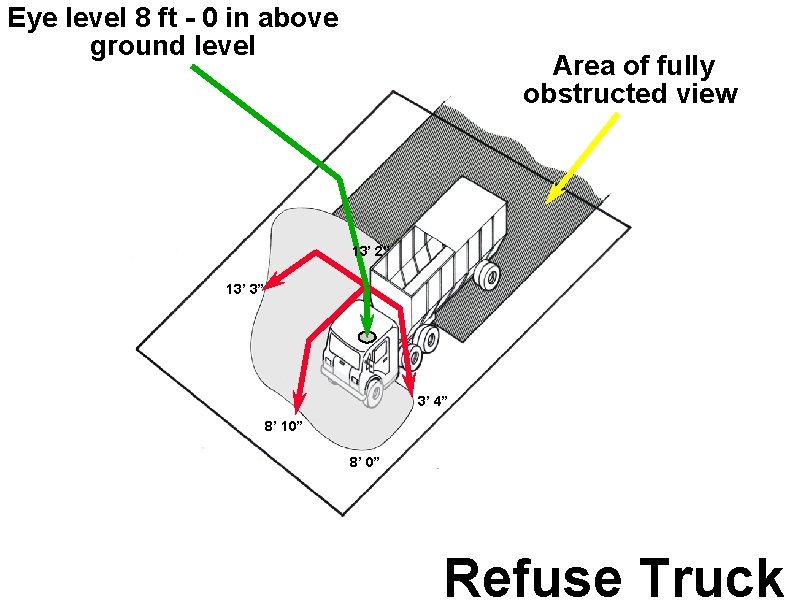

Eye level 8 ft - 0 in above ground level Area of fully obstructed view 13’ 2” 13’ 3” 3’ 4” 8’ 10” 8’ 0” Refuse Truck

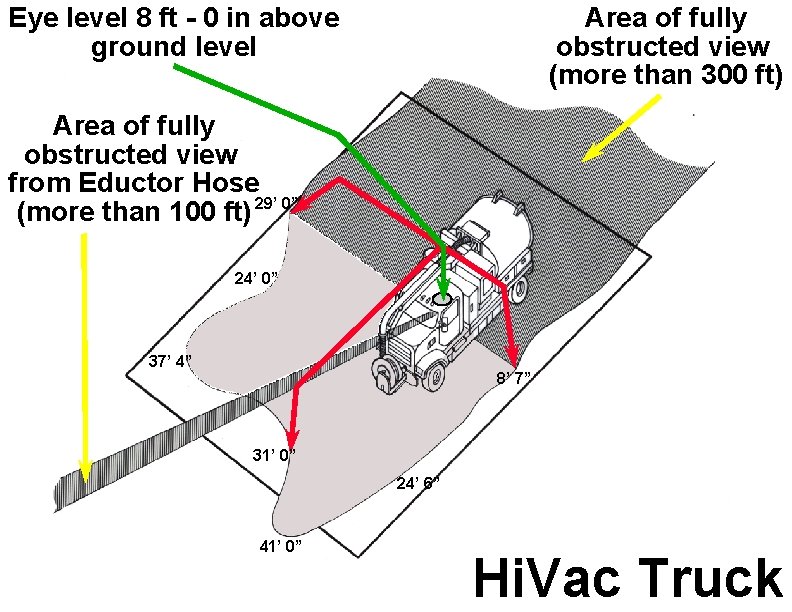

Eye level 8 ft - 0 in above ground level Area of fully obstructed view (more than 300 ft) Area of fully obstructed view from Eductor Hose (more than 100 ft) 29’ 0” 24’ 0” 37’ 4” 8’ 7” 31’ 0” 24’ 6” 41’ 0” Hi. Vac Truck

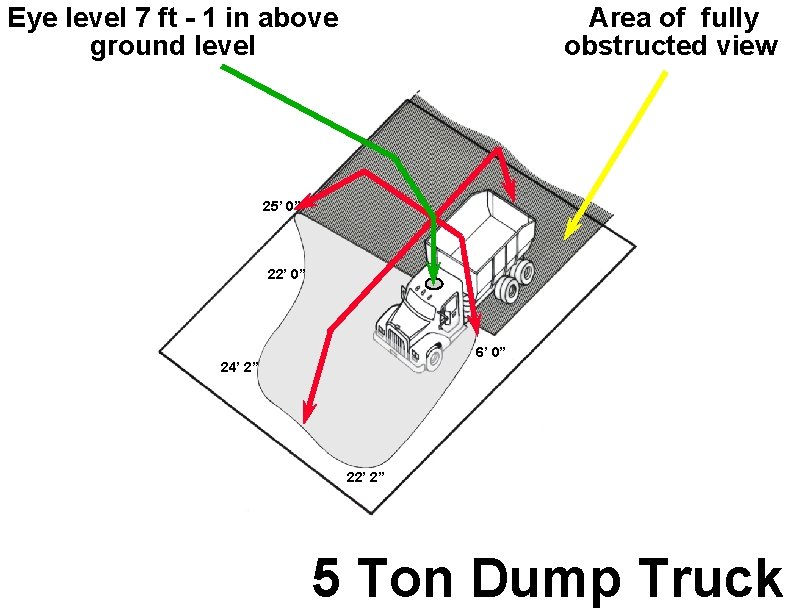

Eye level 7 ft - 1 in above ground level Area of fully obstructed view 25’ 0” 22’ 0” 6’ 0” 24’ 2” 22’ 2” 5 Ton Dump Truck

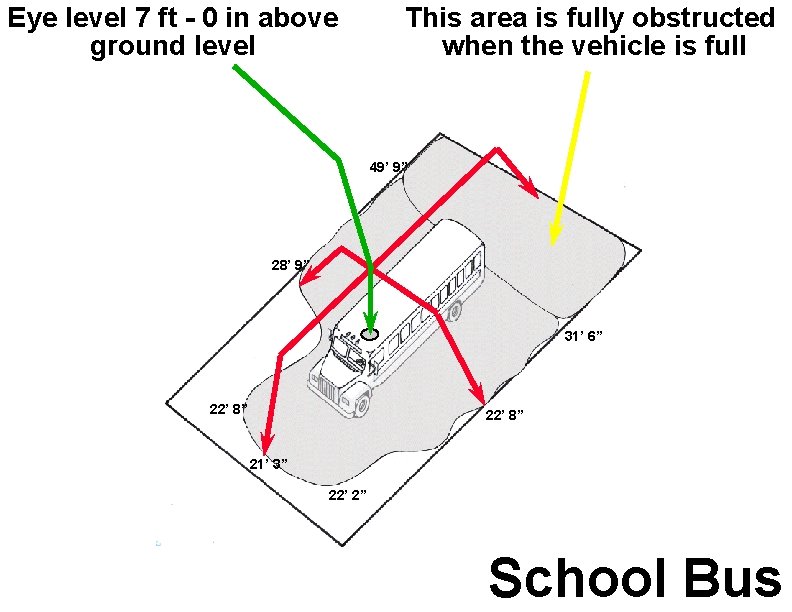

Eye level 7 ft - 0 in above ground level This area is fully obstructed when the vehicle is full 49’ 9” 28’ 9” 31’ 6” 22’ 8” 21’ 3” 22’ 2” School Bus

Eye level 5 ft - 11 in above ground level 17’ 2” 17’ 0” 14’ 5” 15’ 2” 6’ 0” 9’ 6” 4’ 9” Street Sweeper

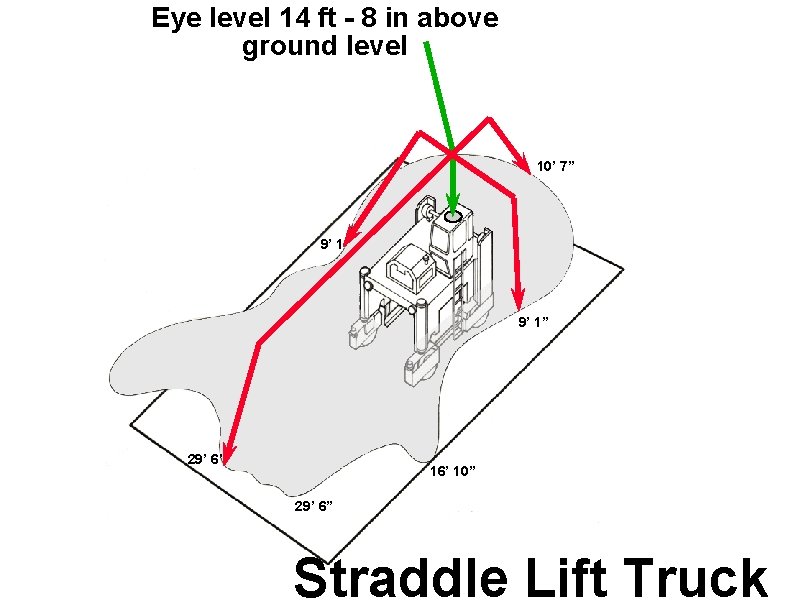

Eye level 14 ft - 8 in above ground level 10’ 7” 9’ 1” 29’ 6” 16’ 10” 29’ 6” Straddle Lift Truck

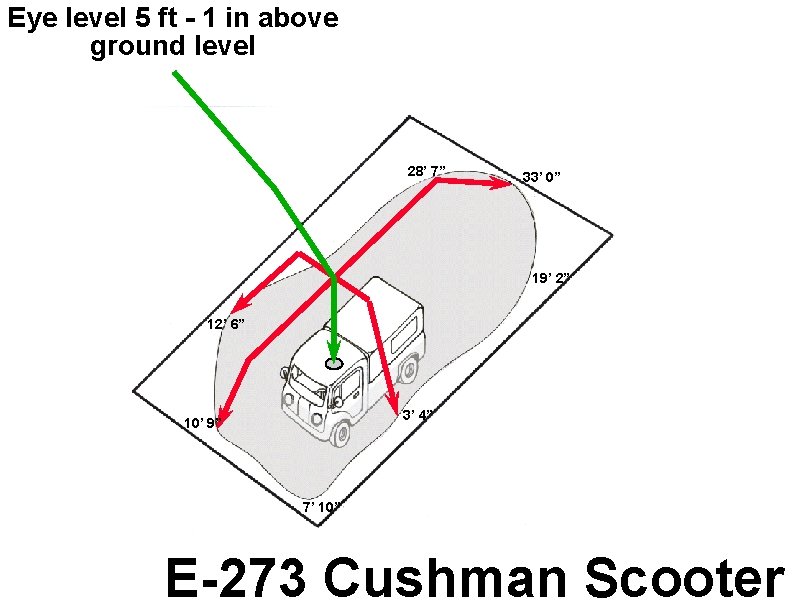

Eye level 5 ft - 1 in above ground level 28’ 7” 33’ 0” 19’ 2” 12’ 6” 3’ 4” 10’ 9” 7’ 10” E-273 Cushman Scooter

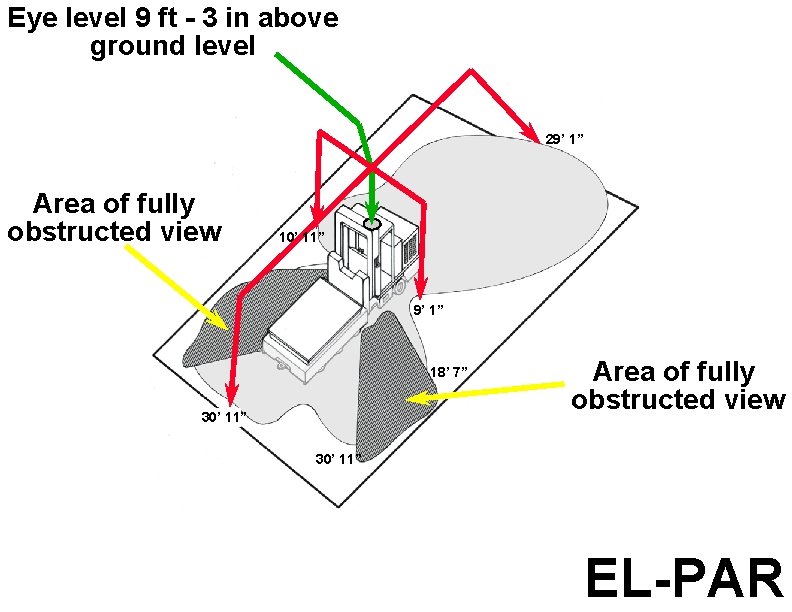

Eye level 9 ft - 3 in above ground level 29’ 1” Area of fully obstructed view 10’ 11” 9’ 1” 18’ 7” 30’ 11” Area of fully obstructed view 30’ 11” EL-PAR
