LEAD SPLICE SPECIFICATION w BY ROY HANNAFORD October

LEAD SPLICE SPECIFICATION w BY: ROY HANNAFORD October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

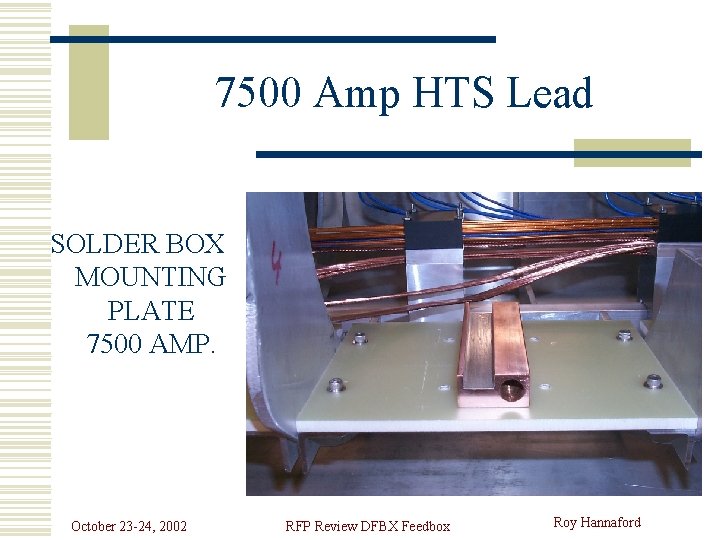

7500 Amp HTS Lead SOLDER BOX MOUNTING PLATE 7500 AMP. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

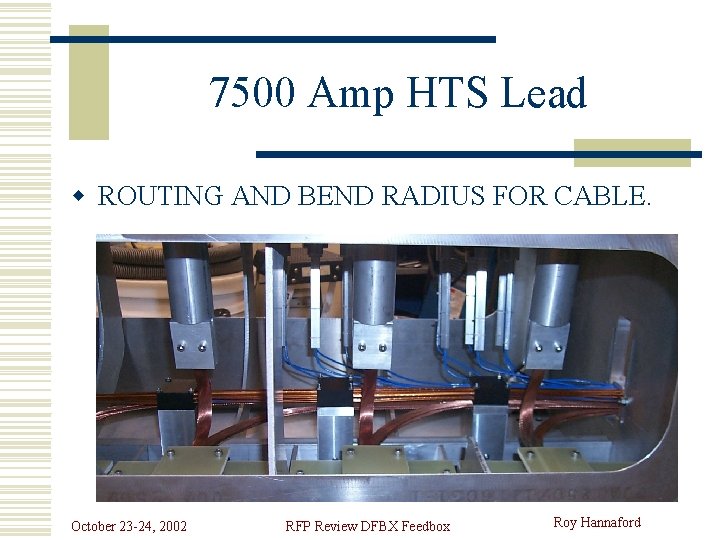

7500 Amp HTS Lead w ROUTING AND BEND RADIUS FOR CABLE. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

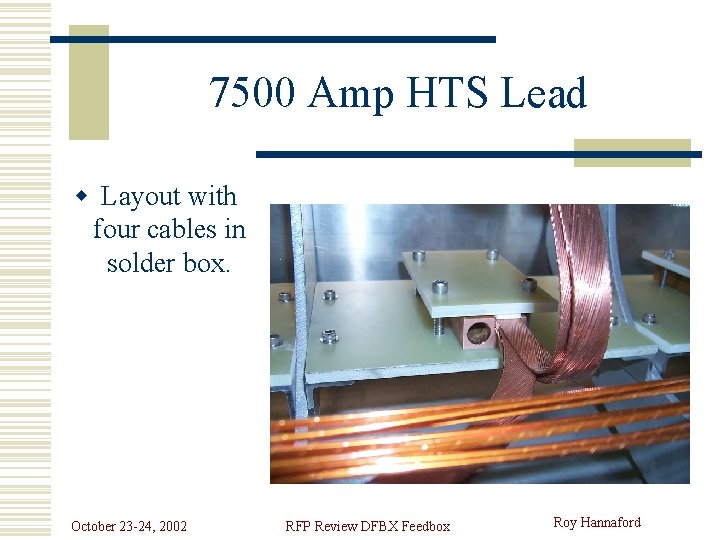

7500 Amp HTS Lead w Layout with four cables in solder box. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

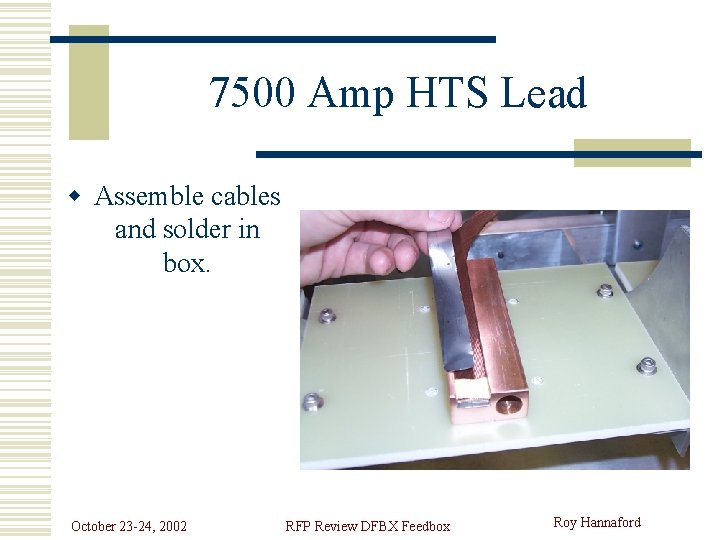

7500 Amp HTS Lead w Assemble cables and solder in box. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

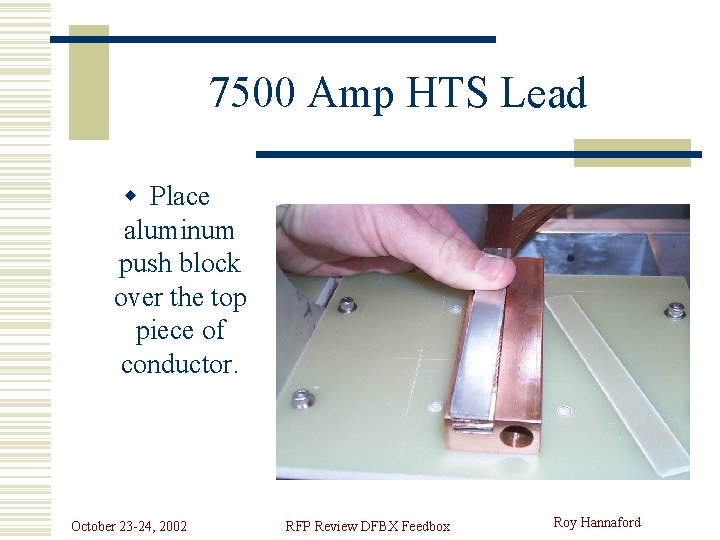

7500 Amp HTS Lead w Place aluminum push block over the top piece of conductor. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

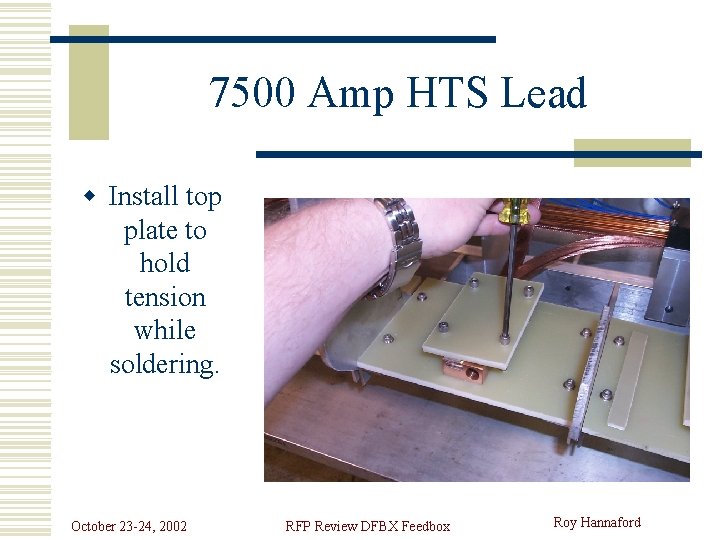

7500 Amp HTS Lead w Install top plate to hold tension while soldering. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

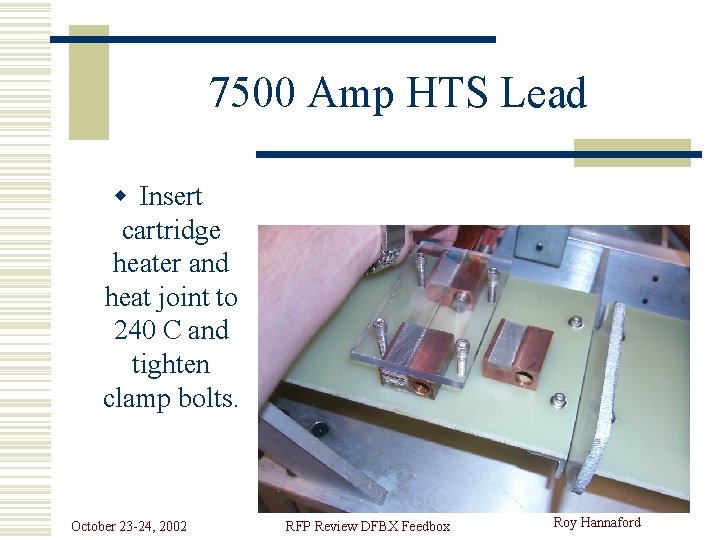

7500 Amp HTS Lead w Insert cartridge heater and heat joint to 240 C and tighten clamp bolts. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

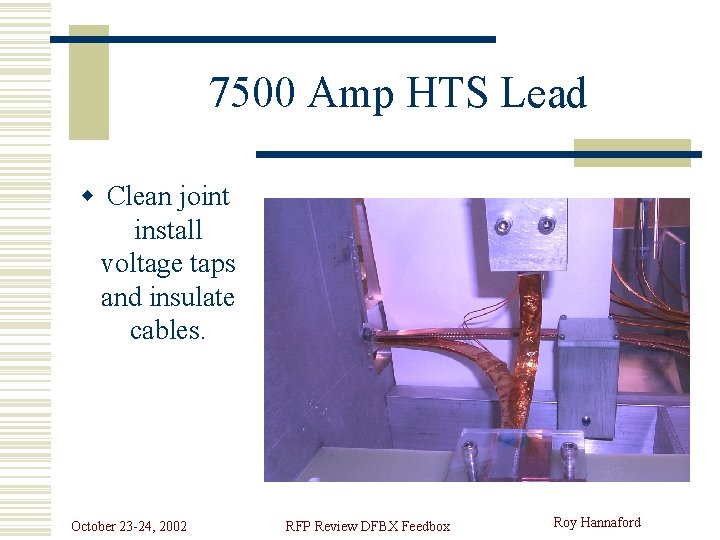

7500 Amp HTS Lead w Clean joint install voltage taps and insulate cables. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

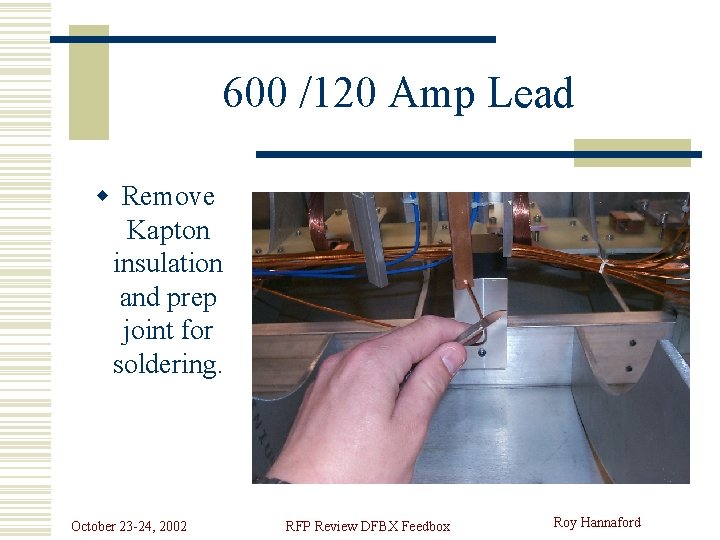

600 /120 Amp Lead w Remove Kapton insulation and prep joint for soldering. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

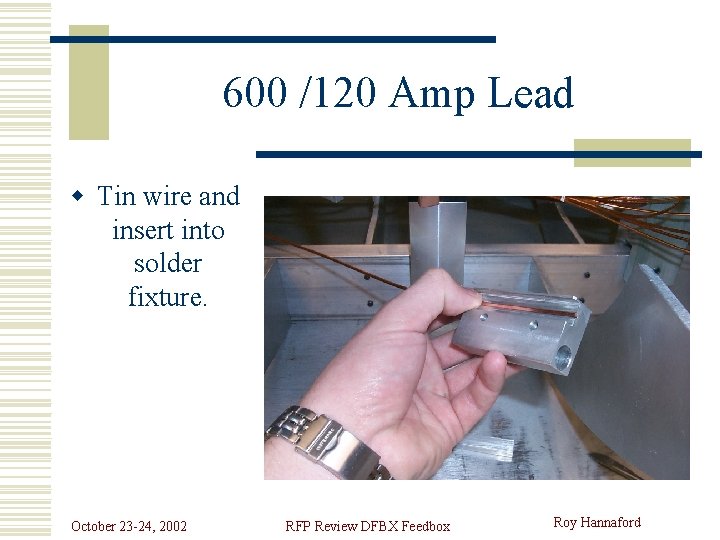

600 /120 Amp Lead w Tin wire and insert into solder fixture. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

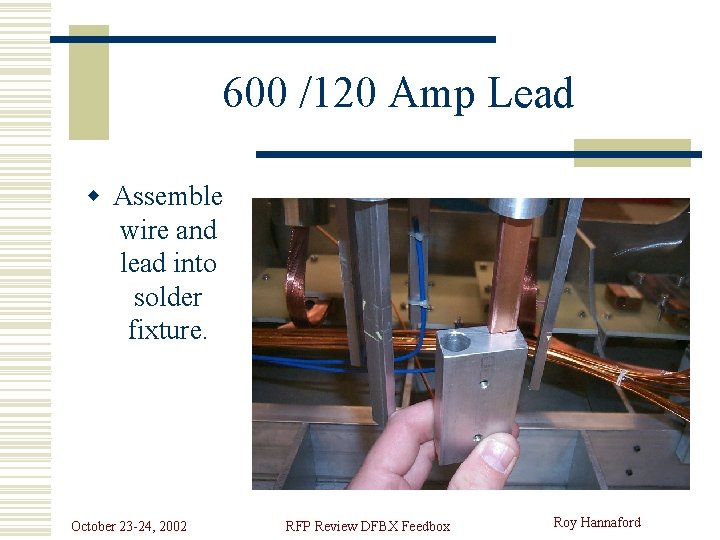

600 /120 Amp Lead w Assemble wire and lead into solder fixture. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

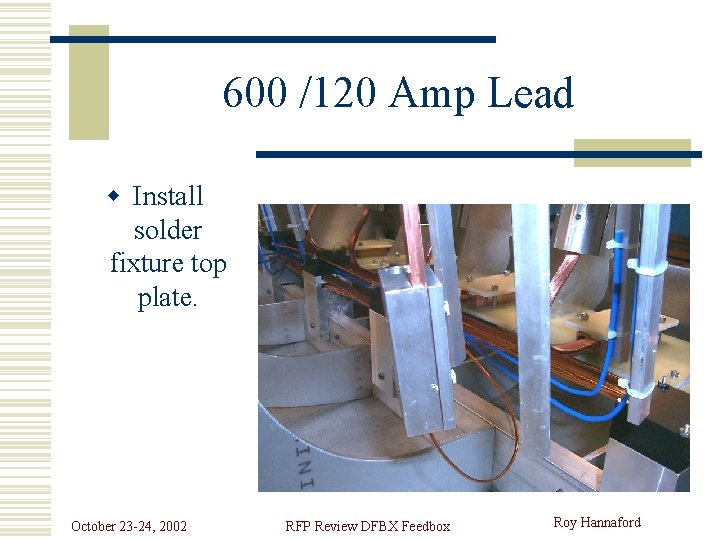

600 /120 Amp Lead w Install solder fixture top plate. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

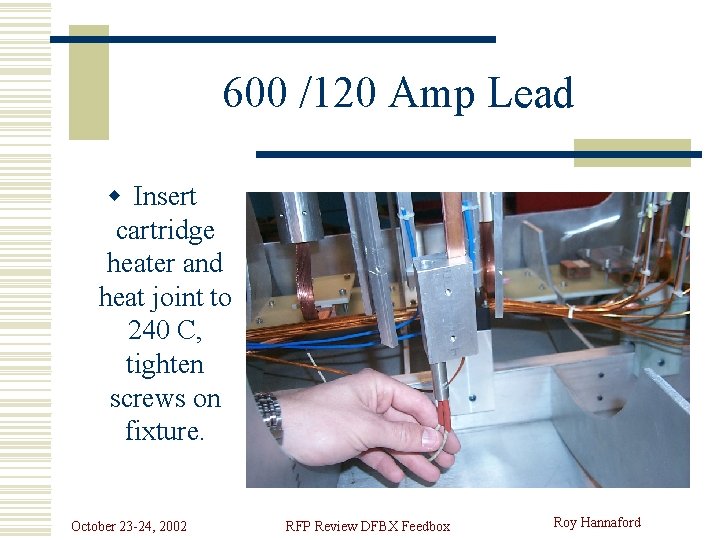

600 /120 Amp Lead w Insert cartridge heater and heat joint to 240 C, tighten screws on fixture. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford

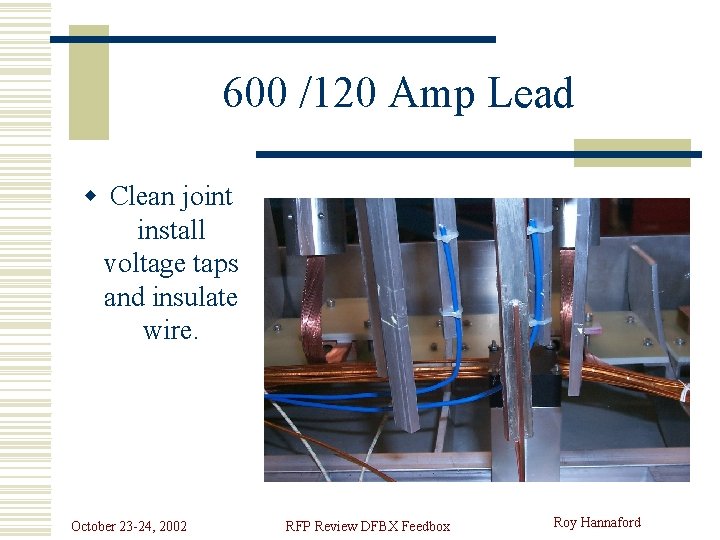

600 /120 Amp Lead w Clean joint install voltage taps and insulate wire. October 23 -24, 2002 RFP Review DFBX Feedbox Roy Hannaford
