Leachate Seep Collection and Management System below Landfill

Leachate Seep Collection and Management System below Landfill Final Covers Solid Waste Association of North America North Carolina Chapter Spring Conference April 4 -6, 2017 Ali Khatami, Ph. D. , P. E. SCS Engineers

Leachate Seeps 1. Many reasons for leachate seeps 2. Operator manages leachate seeps while slope unclosed 3. Various means and methods for management of leachate seeps

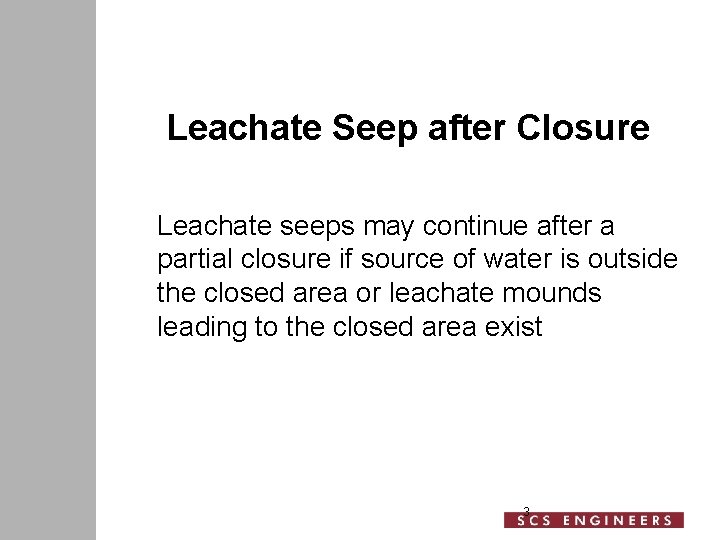

Leachate Seep after Closure Leachate seeps may continue after a partial closure if source of water is outside the closed area or leachate mounds leading to the closed area exist 3

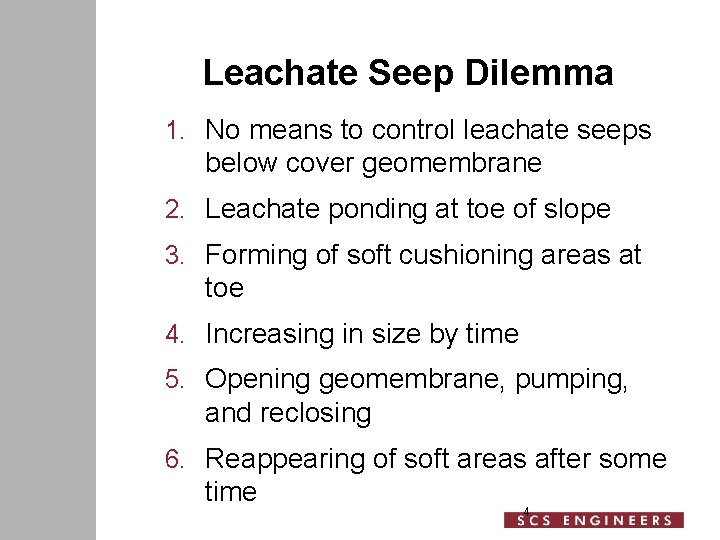

Leachate Seep Dilemma 1. No means to control leachate seeps below cover geomembrane 2. Leachate ponding at toe of slope 3. Forming of soft cushioning areas at toe 4. Increasing in size by time 5. Opening geomembrane, pumping, and reclosing 6. Reappearing of soft areas after some time 4

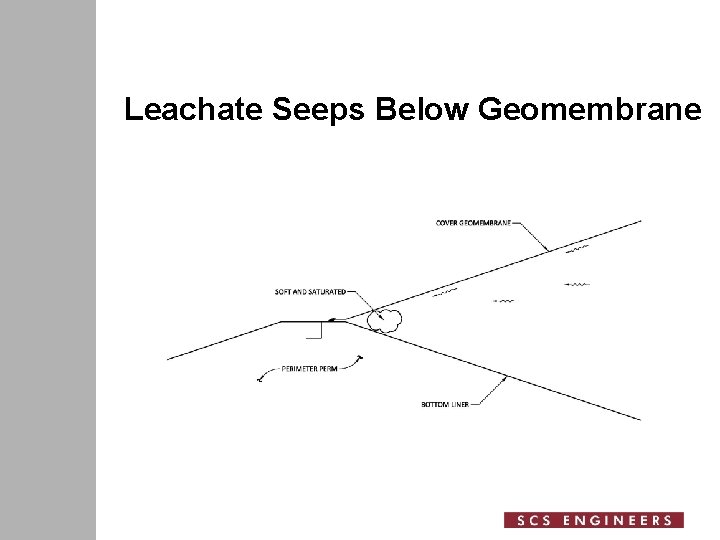

Leachate Seeps Below Geomembrane

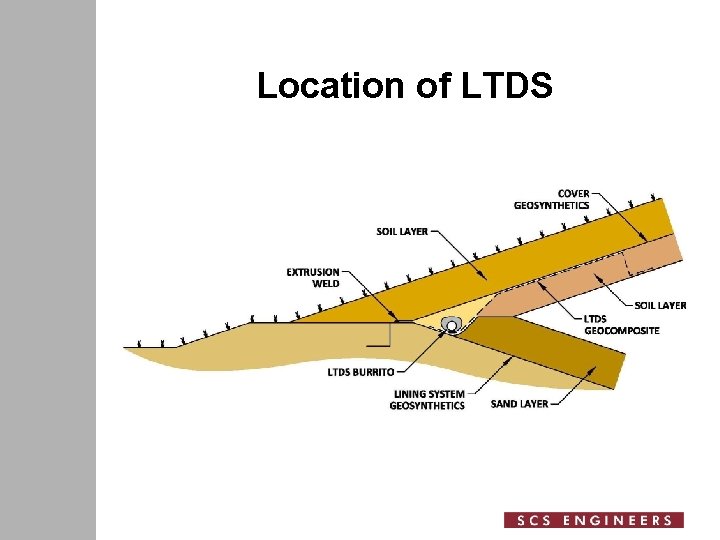

Location of LTDS

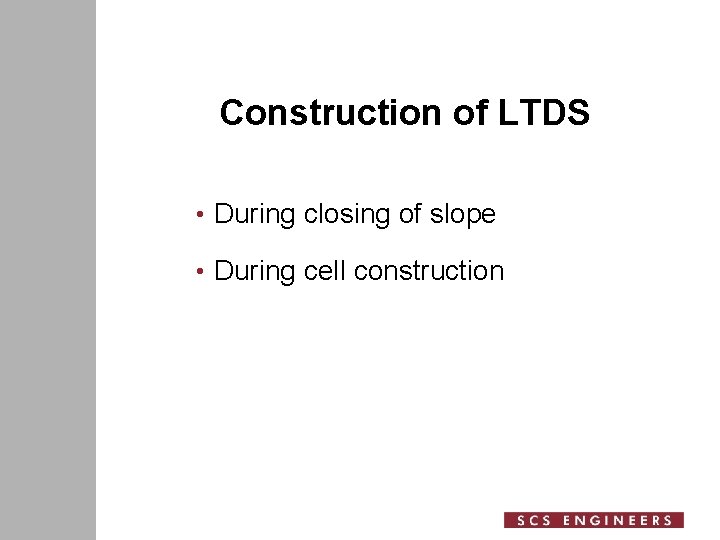

Construction of LTDS • During closing of slope • During cell construction

LTDS Construction during Closing of Slope

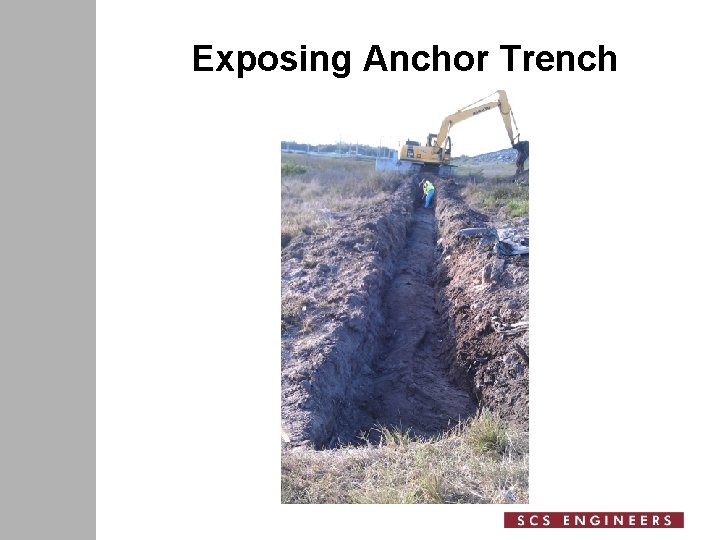

Exposing Anchor Trench

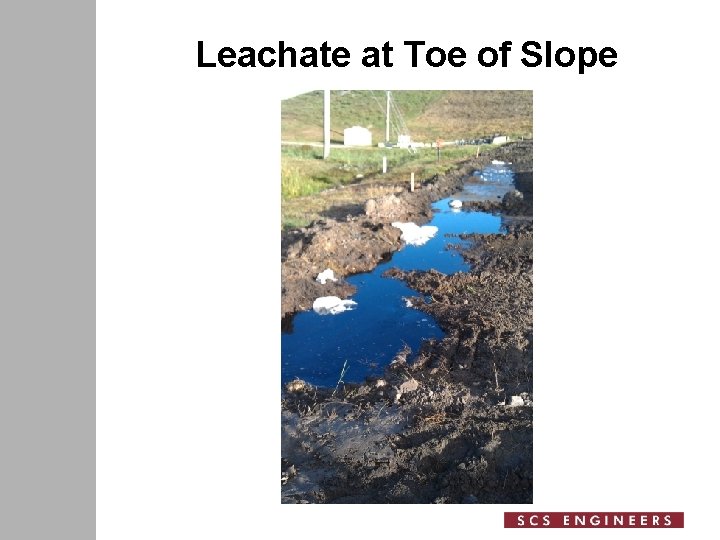

Leachate at Toe of Slope

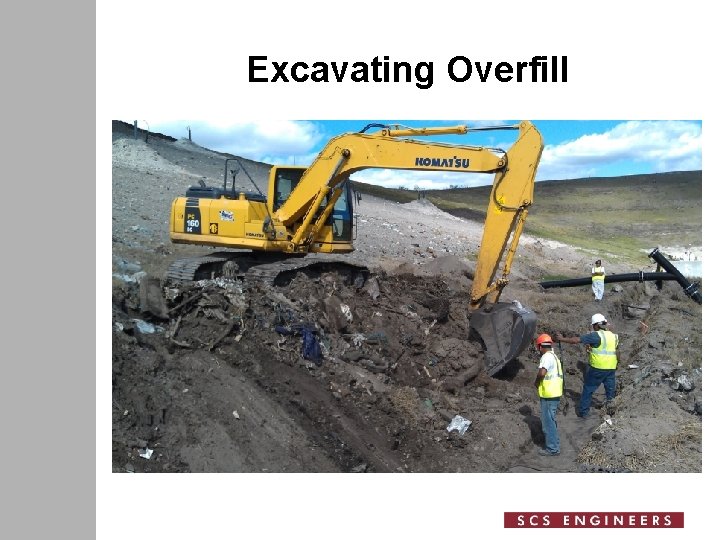

Excavating Overfill

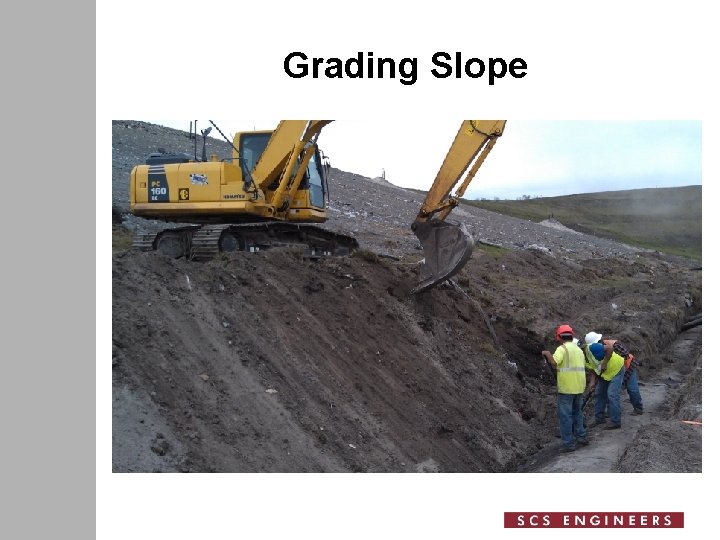

Grading Slope

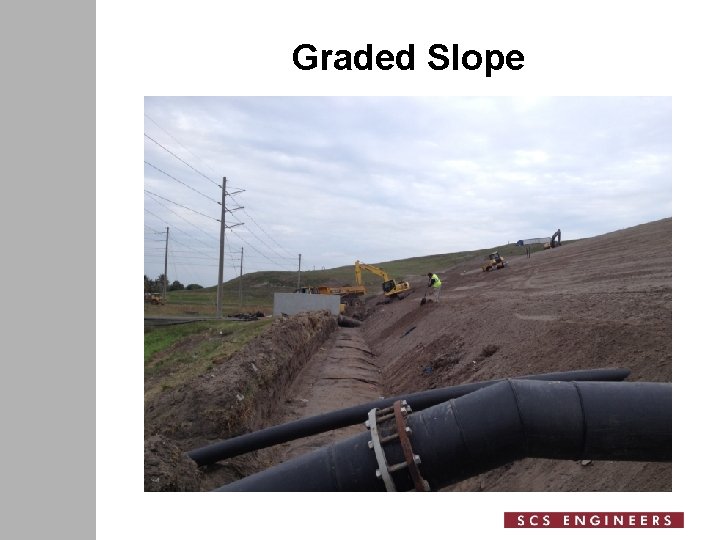

Graded Slope

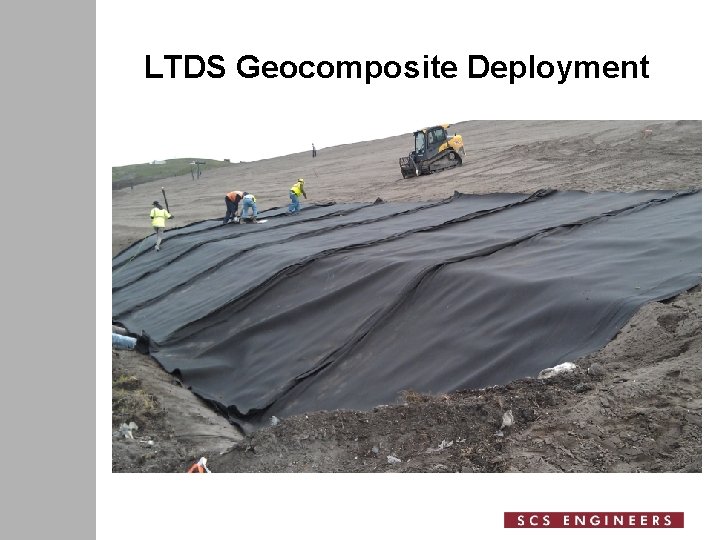

LTDS Geocomposite Deployment

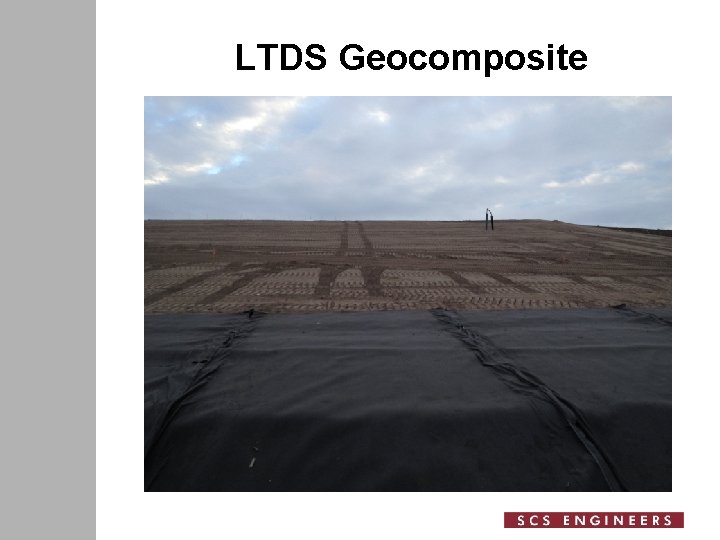

LTDS Geocomposite

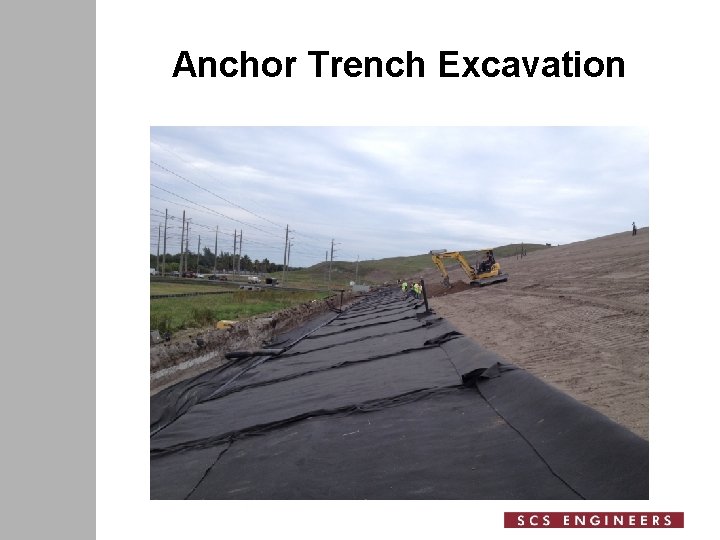

Anchor Trench Excavation

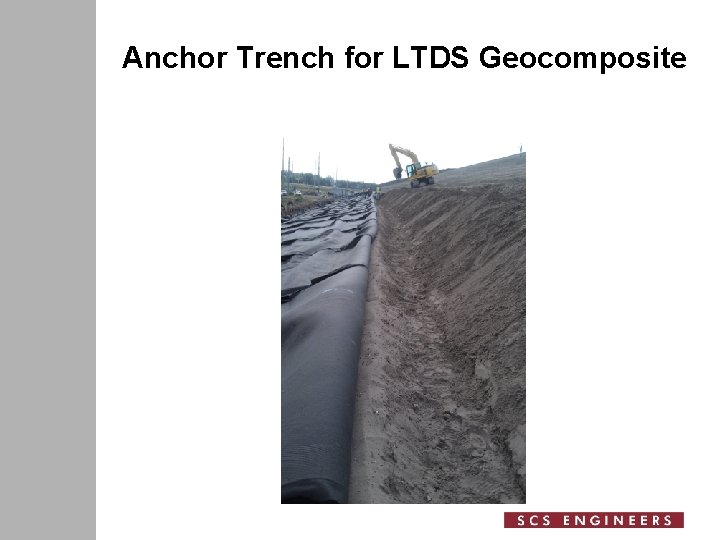

Anchor Trench for LTDS Geocomposite

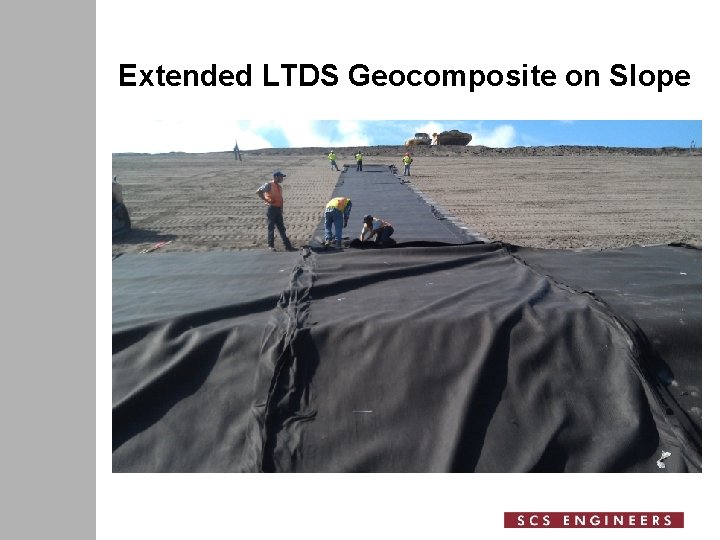

Extended LTDS Geocomposite on Slope

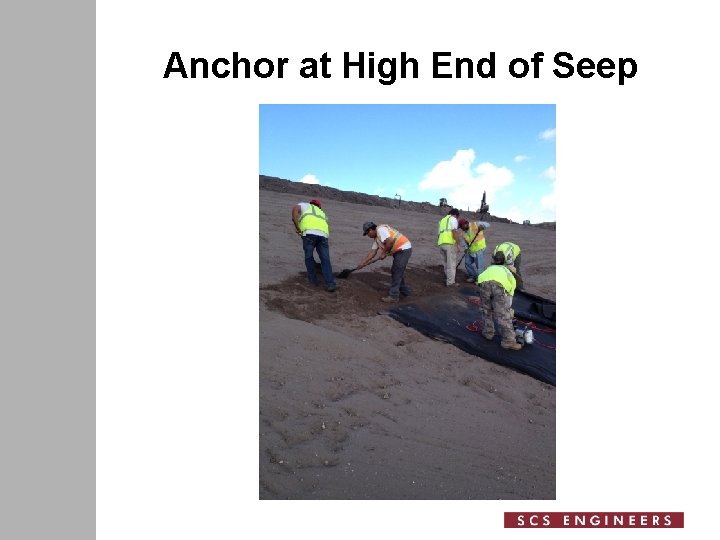

Anchor at High End of Seep

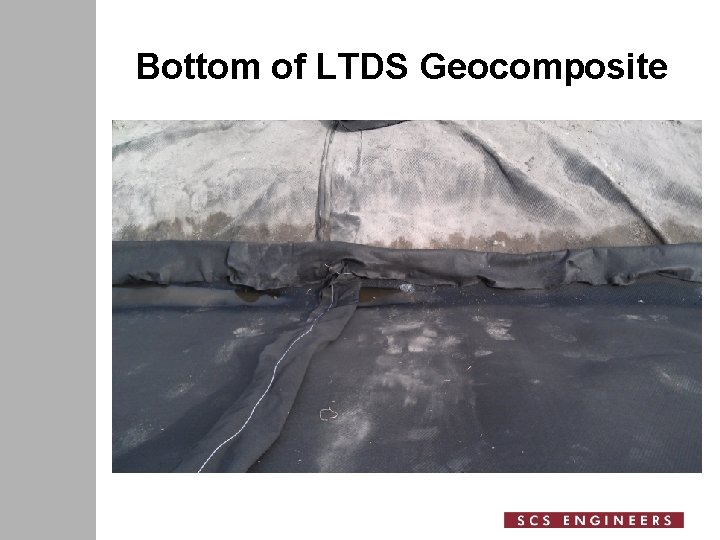

Bottom of LTDS Geocomposite

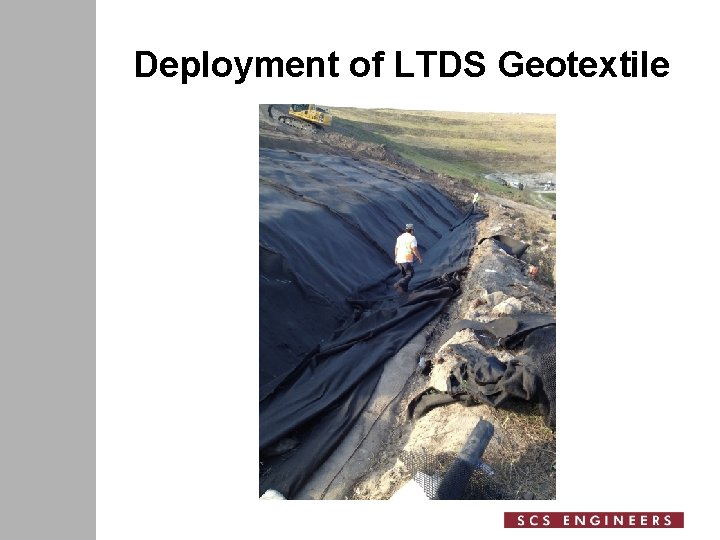

Deployment of LTDS Geotextile

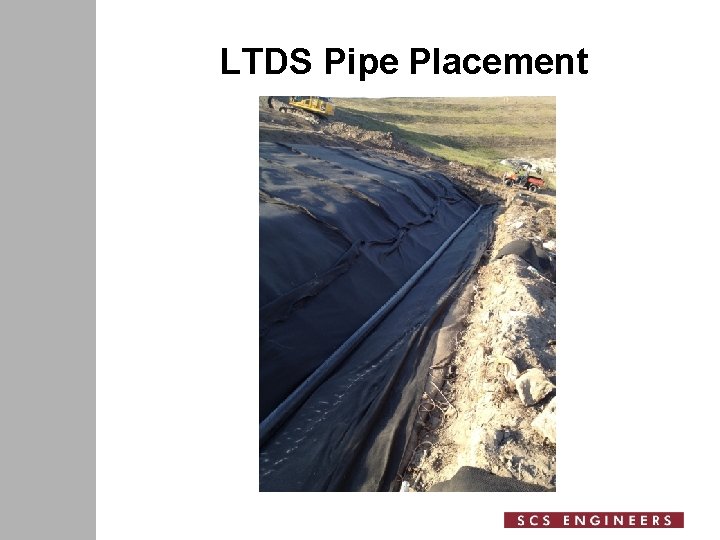

LTDS Pipe Placement

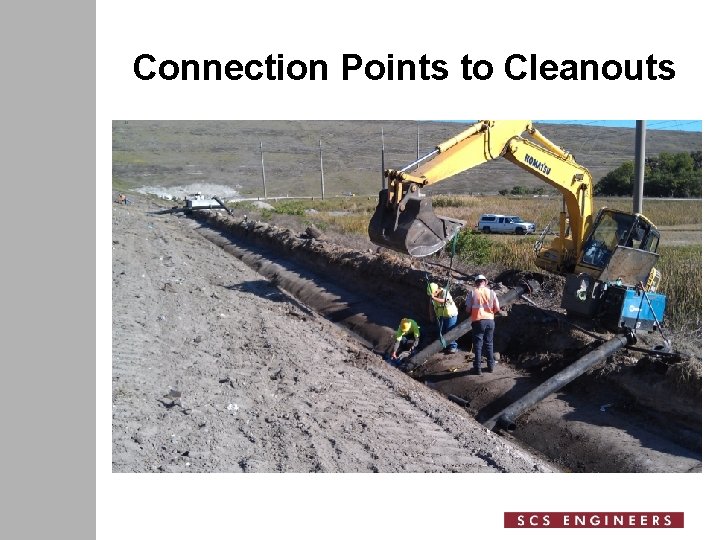

Connection Points to Cleanouts

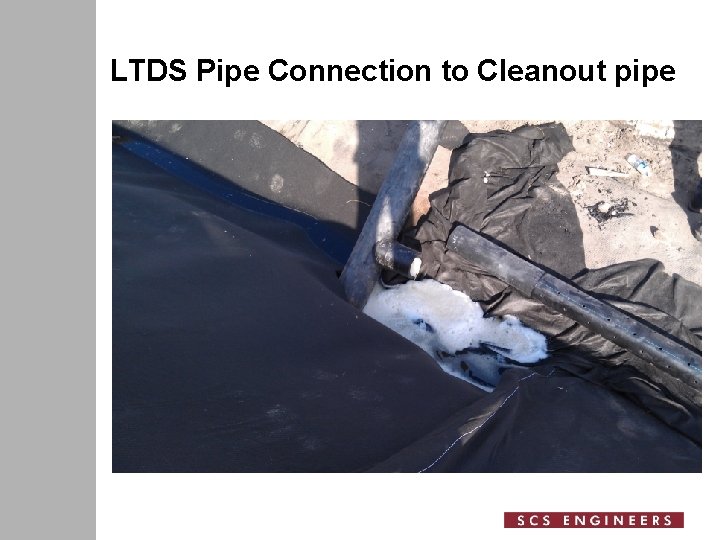

LTDS Pipe Connection to Cleanout pipe

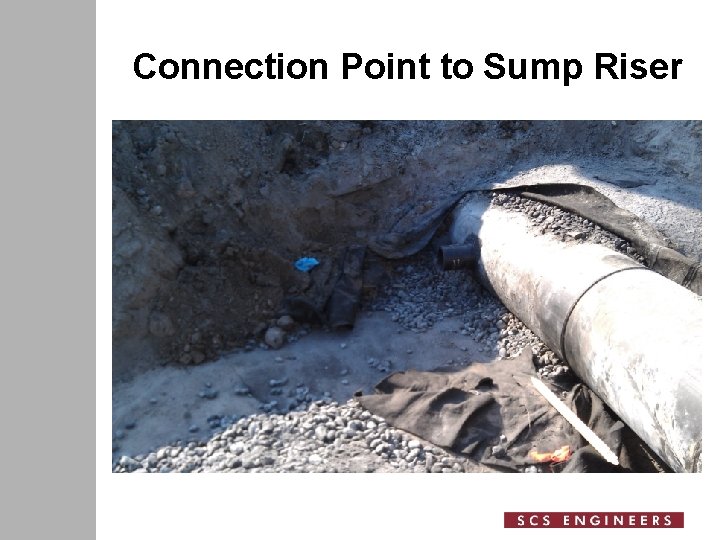

Connection Point to Sump Riser

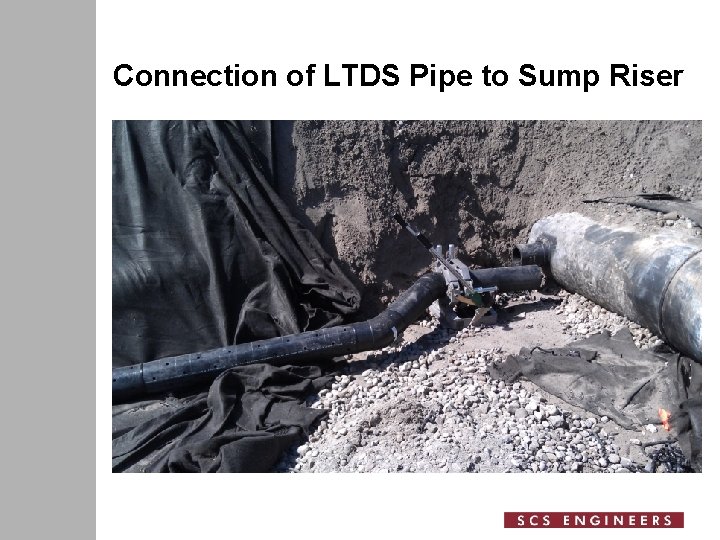

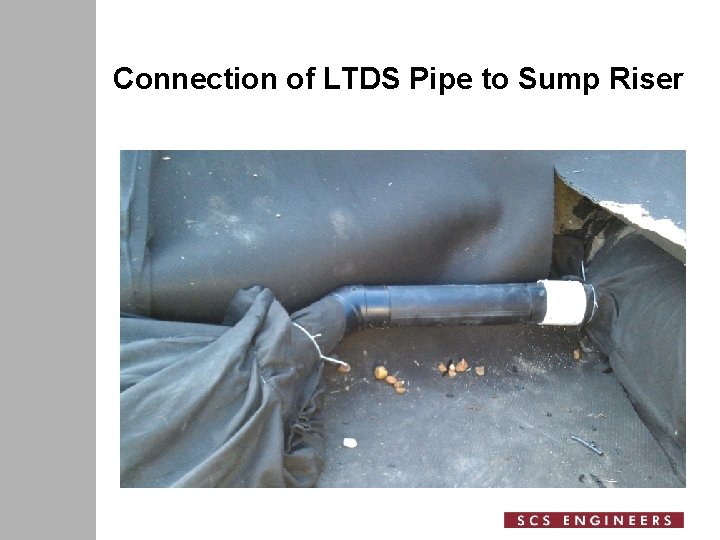

Connection of LTDS Pipe to Sump Riser

Connection of LTDS Pipe to Sump Riser

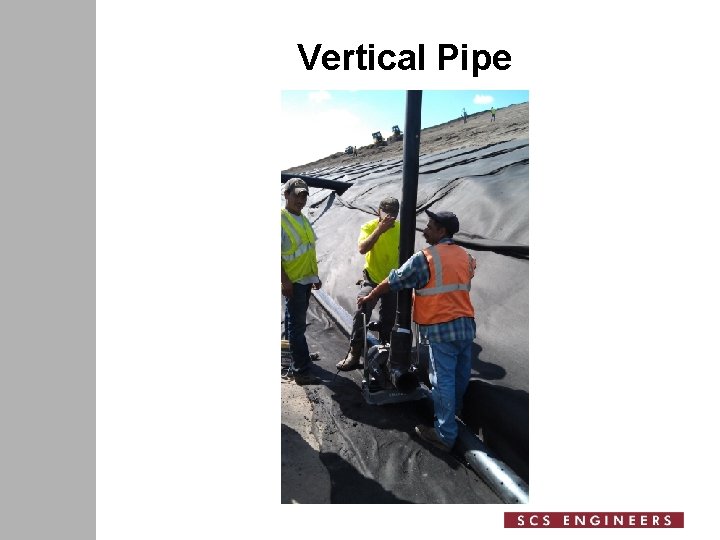

Vertical Pipe

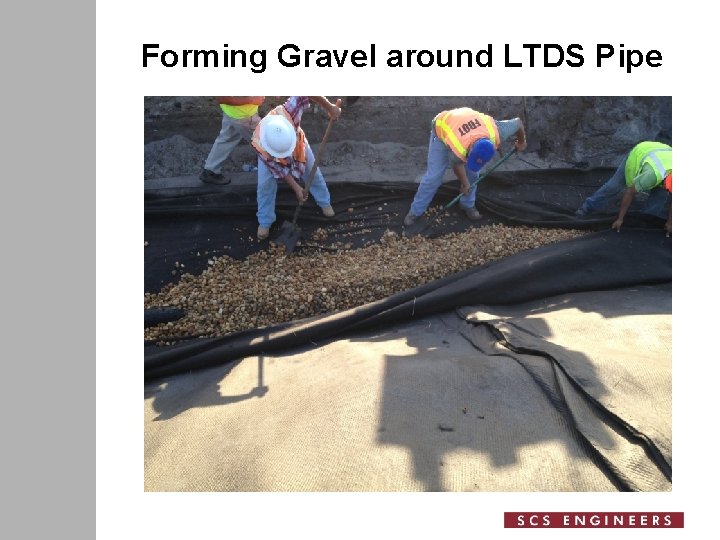

Forming Gravel around LTDS Pipe

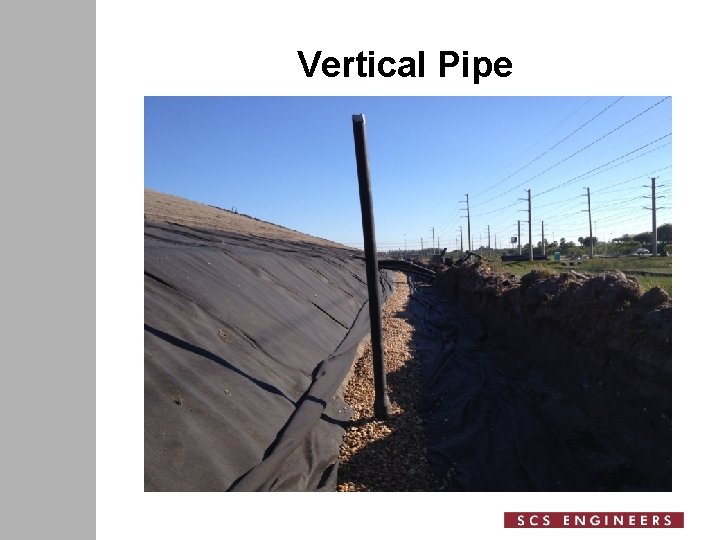

Vertical Pipe

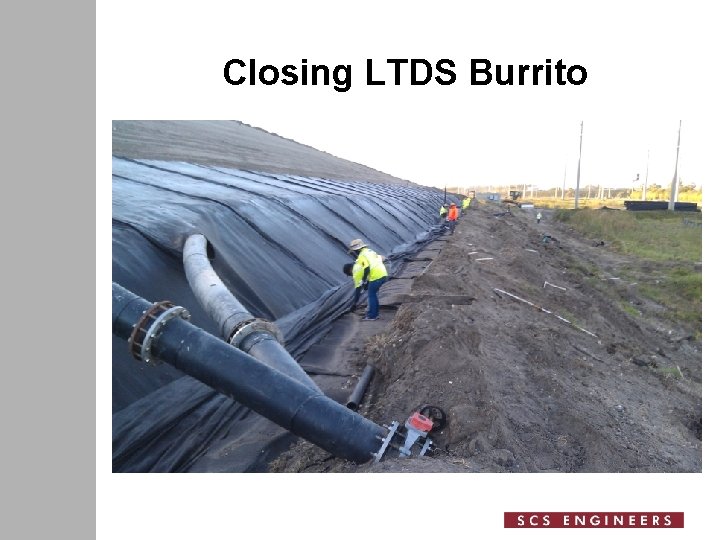

Closing LTDS Burrito

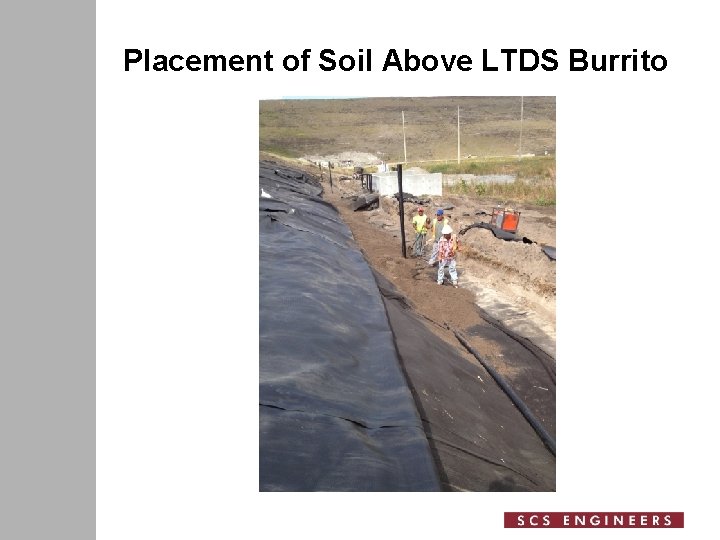

Placement of Soil Above LTDS Burrito

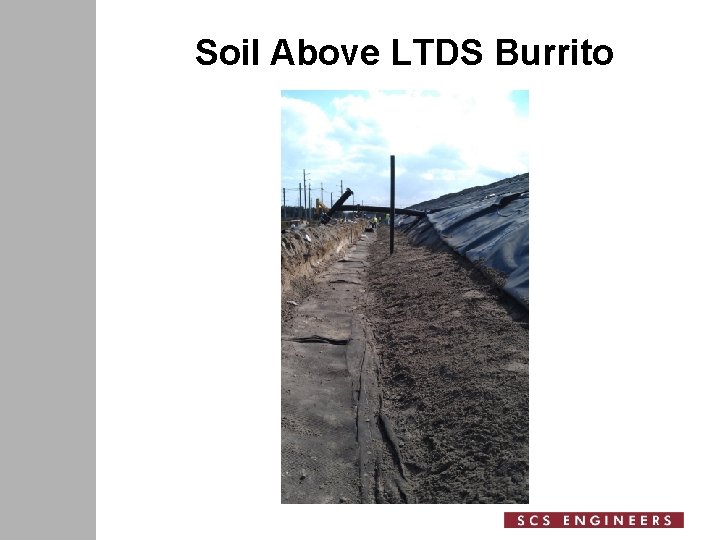

Soil Above LTDS Burrito

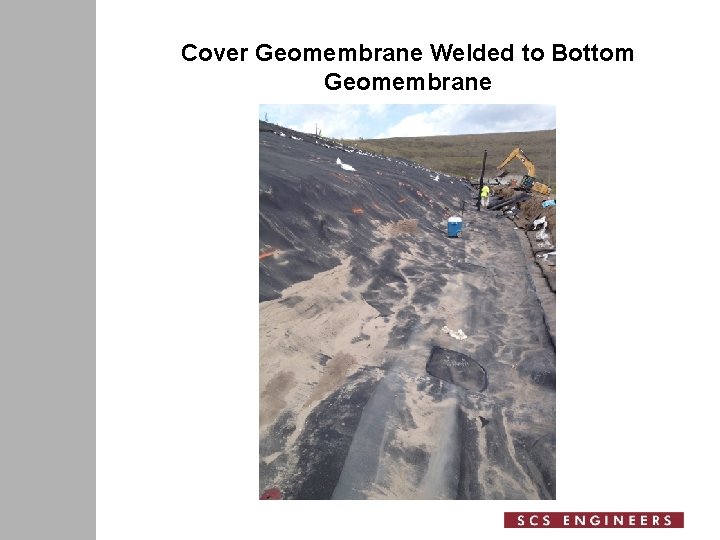

Cover Geomembrane Welded to Bottom Geomembrane

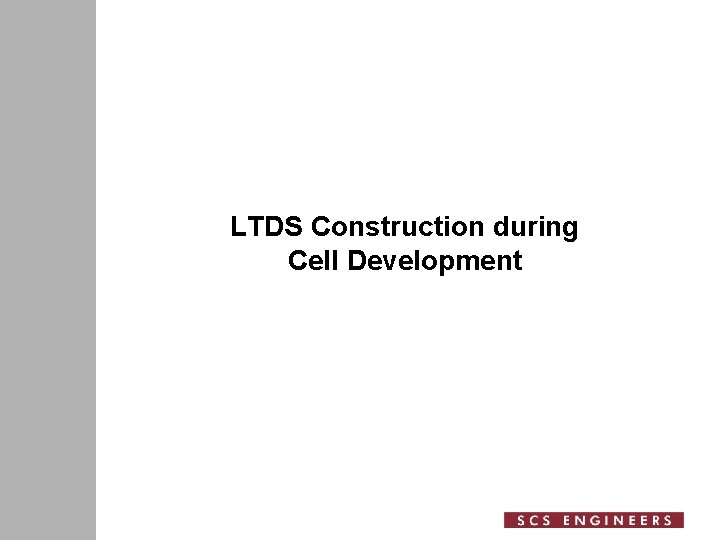

LTDS Construction during Cell Development

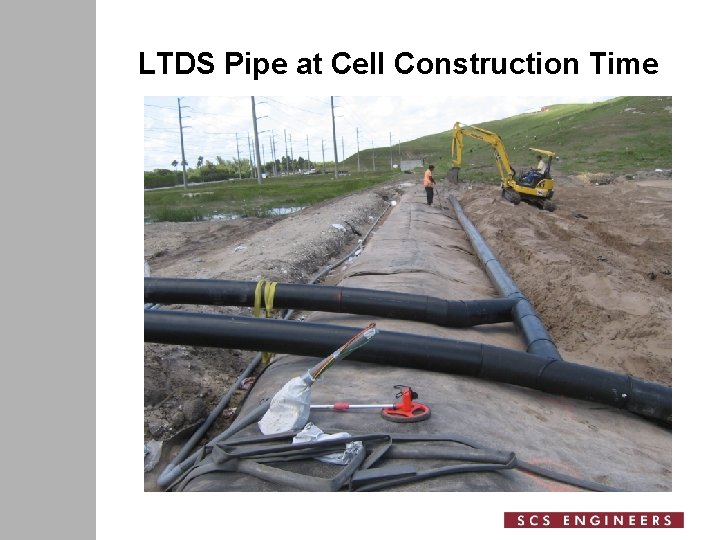

LTDS Pipe at Cell Construction Time

LTDS Drain Pipe into Leachate Sump

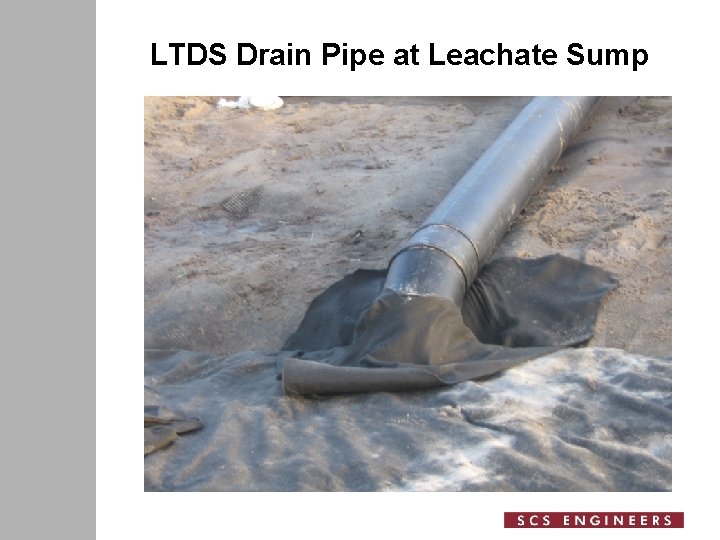

LTDS Drain Pipe at Leachate Sump

LTDS Gravel Placement

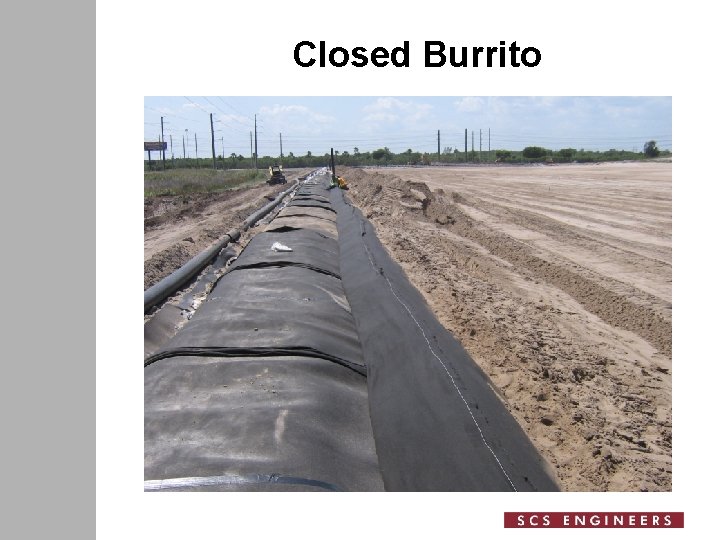

Closed Burrito

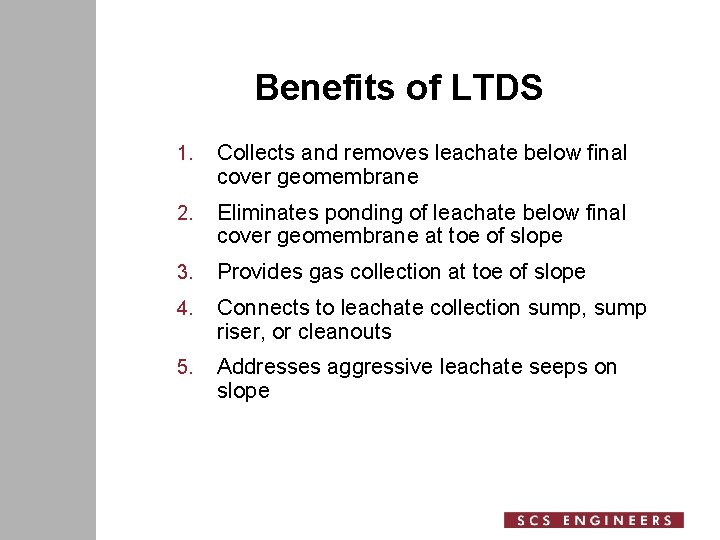

Benefits of LTDS 1. Collects and removes leachate below final cover geomembrane 2. Eliminates ponding of leachate below final cover geomembrane at toe of slope 3. Provides gas collection at toe of slope 4. Connects to leachate collection sump, sump riser, or cleanouts 5. Addresses aggressive leachate seeps on slope

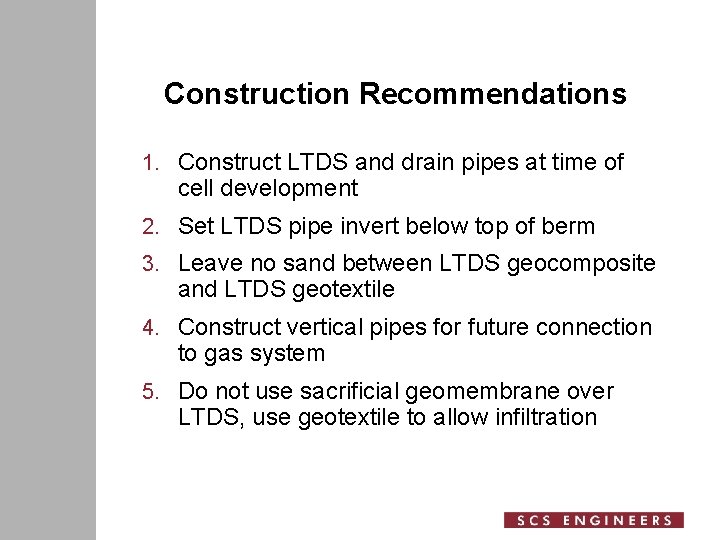

Construction Recommendations 1. Construct LTDS and drain pipes at time of cell development 2. Set LTDS pipe invert below top of berm 3. Leave no sand between LTDS geocomposite and LTDS geotextile 4. Construct vertical pipes for future connection to gas system 5. Do not use sacrificial geomembrane over LTDS, use geotextile to allow infiltration

Thank You for Your Time
